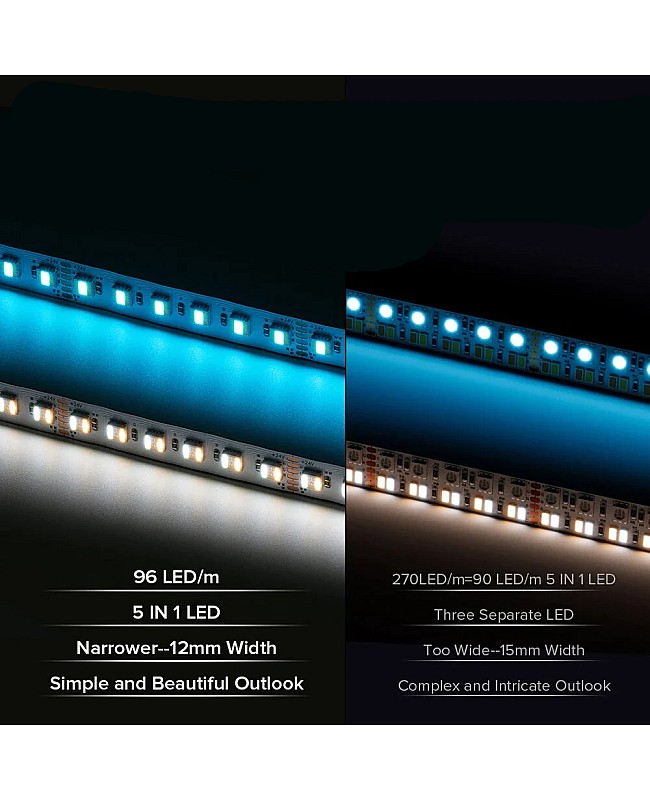

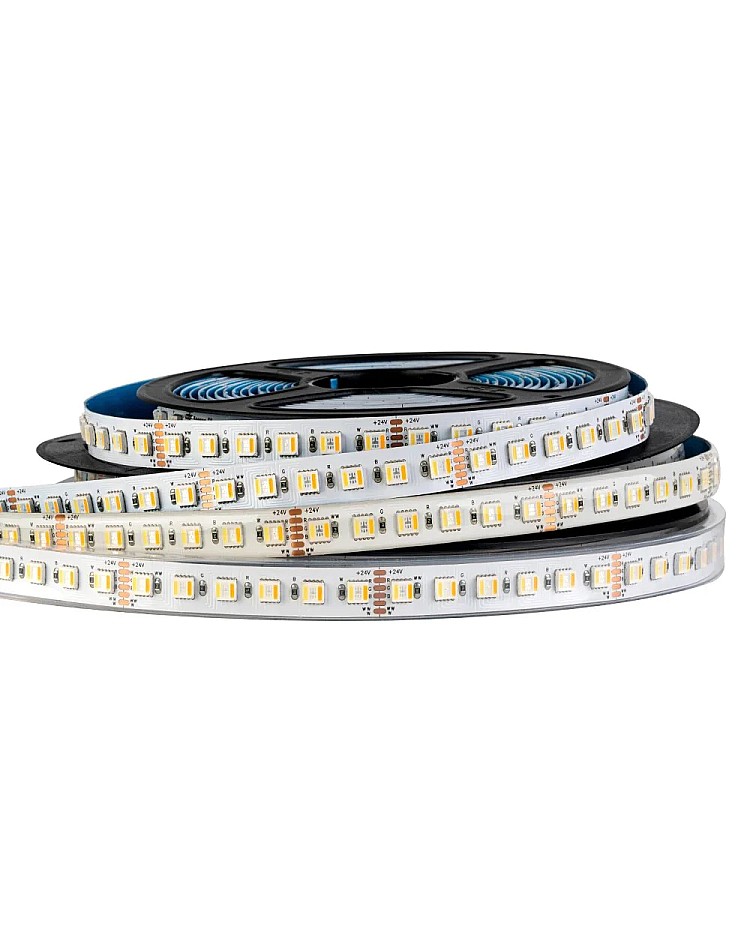

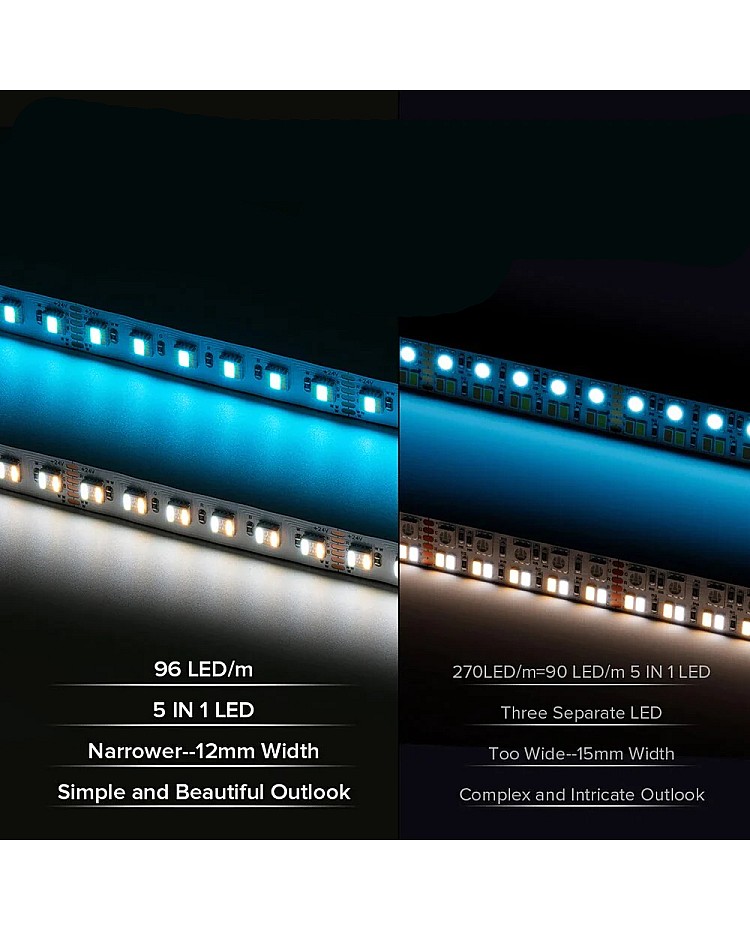

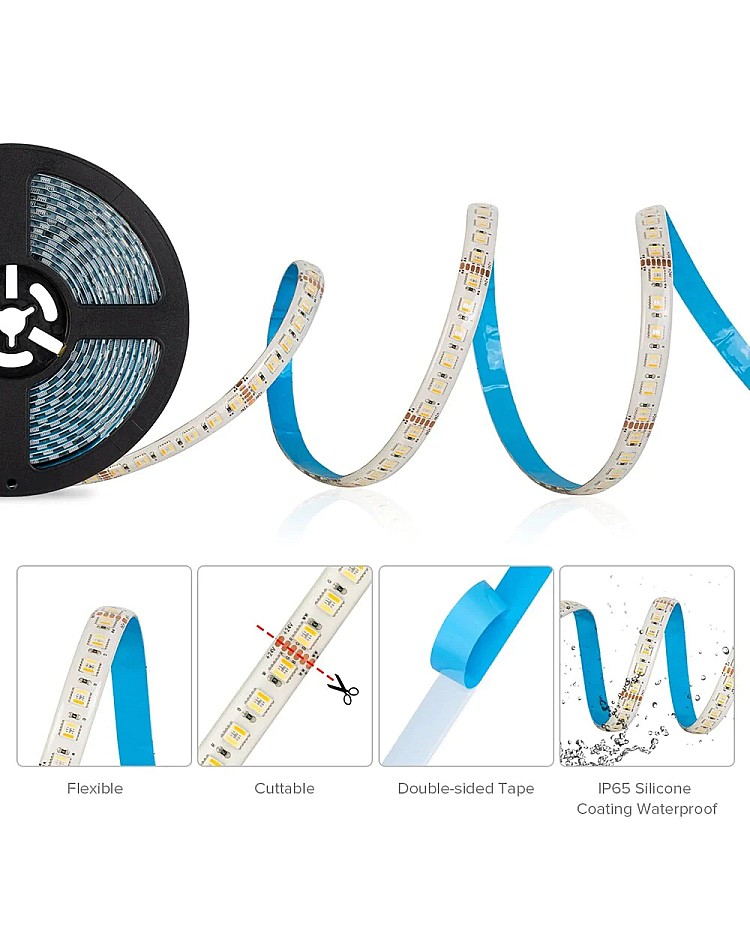

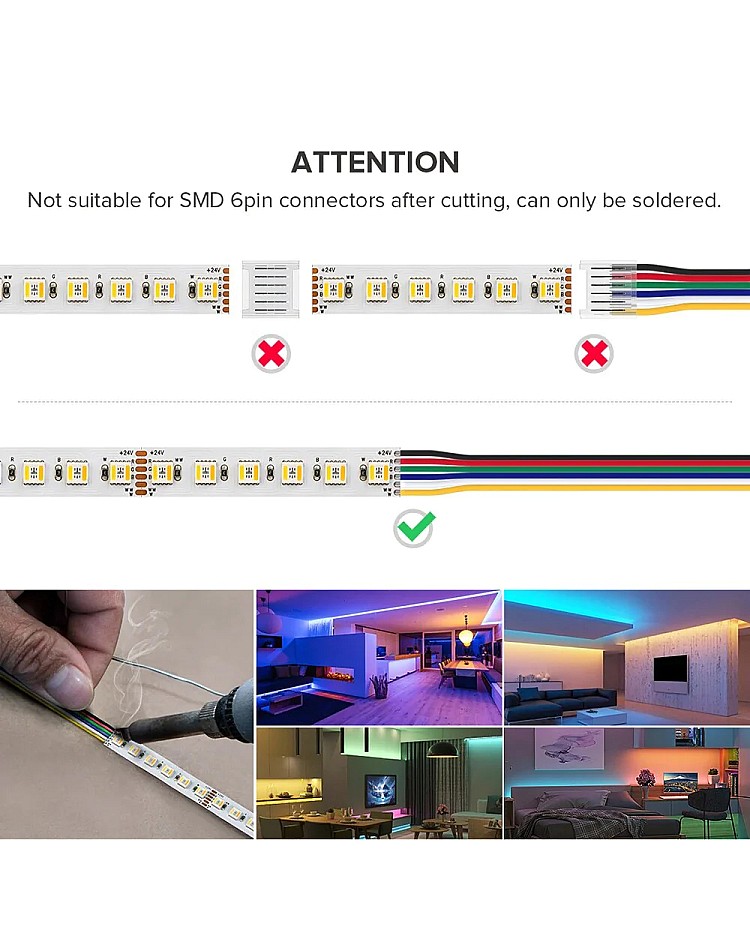

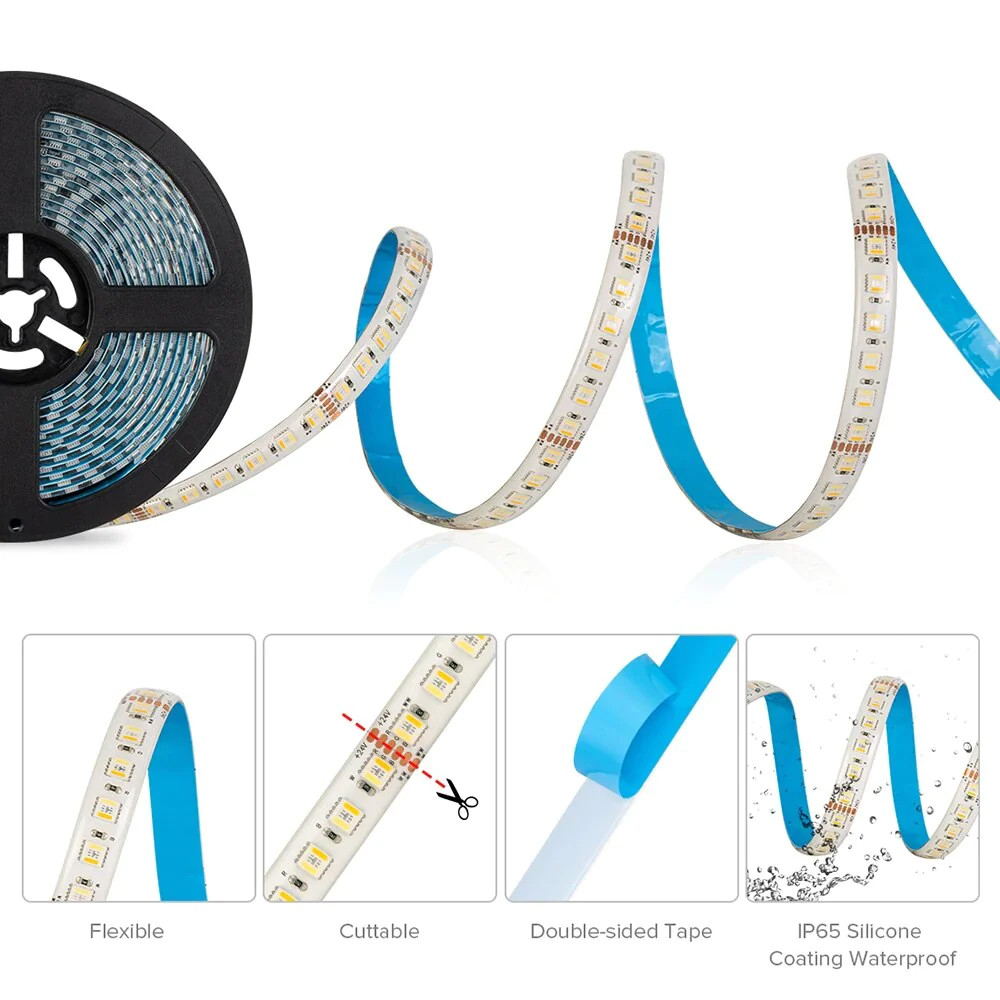

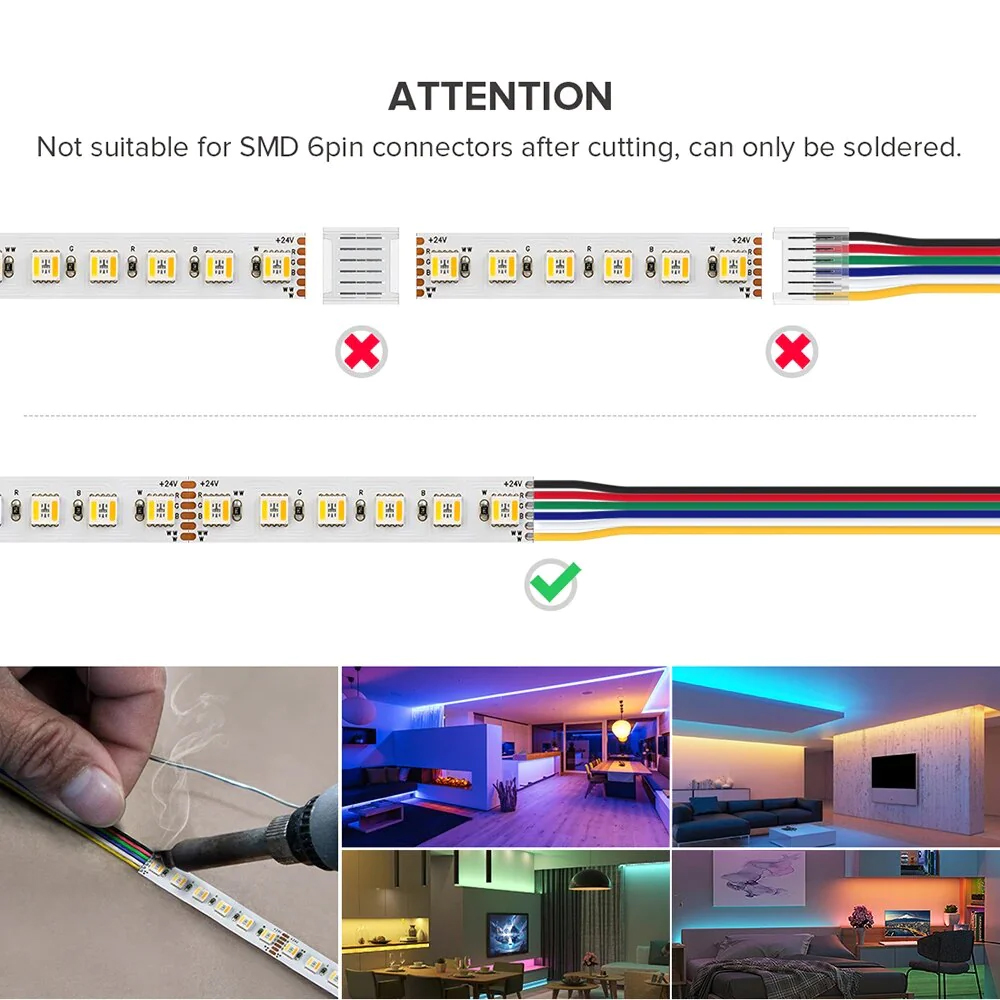

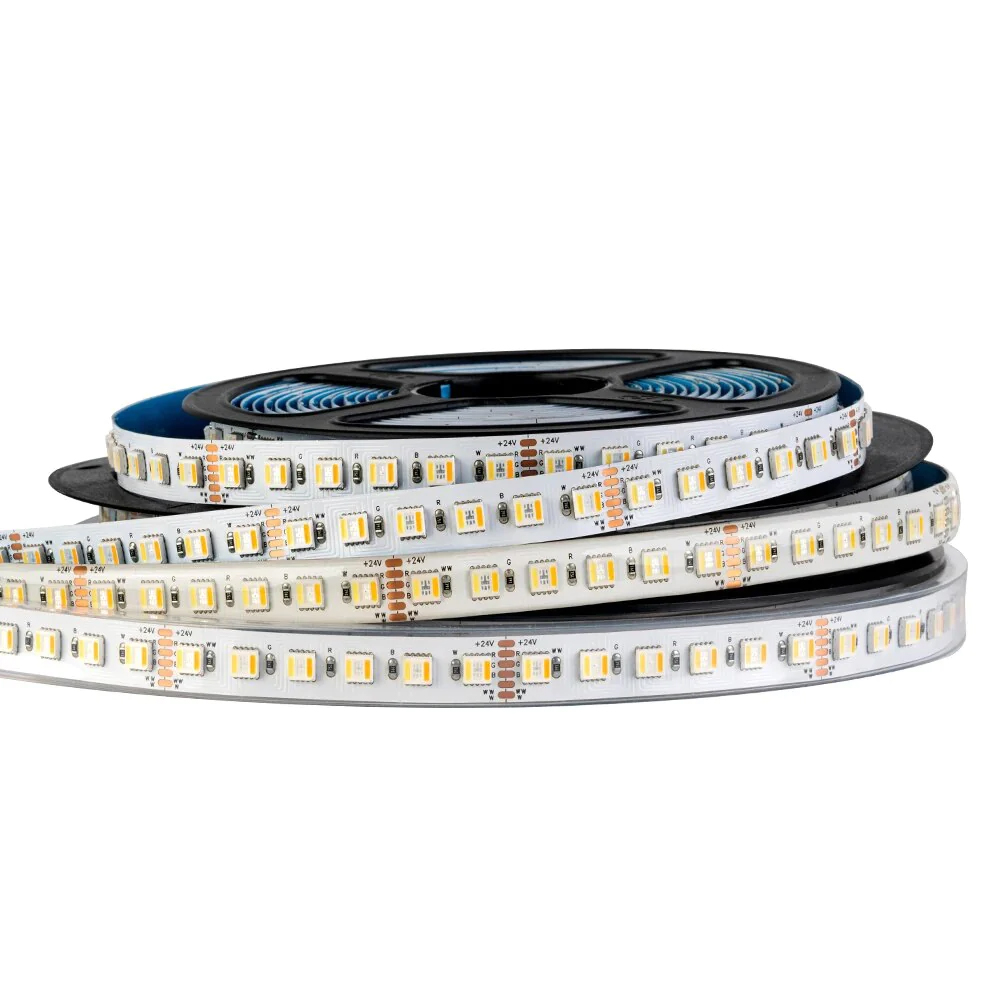

The RGBCCT LED strips offer a combination of red, green, blue, cool white, and warm white chips in one LED, producing a wide range of high-quality color tones and allowing you to adjust color temperature and brightness for various scenes. With 96 LEDs per meter and 16.4 ft per roll, the minimum cutting length is 62mm, allowing you to cut to any size. The strips must be soldered; solderless connectors cannot be used. The RGB CCT LED strips operate on a DC 24V voltage and require connection to RGBWW controllers to achieve colorful lighting. 3 waterproof level products are available: IP30 non-waterproof, IP65 epoxy-coated waterproof, and IP67 silicone tube waterproof. The back of IP30 and IP65 models features double-sided adhesive tape, making them easy to stick to where you want to install them, and is only recommended for indoor use. The IP67 model comes with clips and is suitable for outdoor use.
Specifications:
- Type: 5 In 1 RGBCCT SMD LED strips
- Model: LB-RGBCCT-96-24V-WP
- Length: 16.4FT/roll(5 meters)

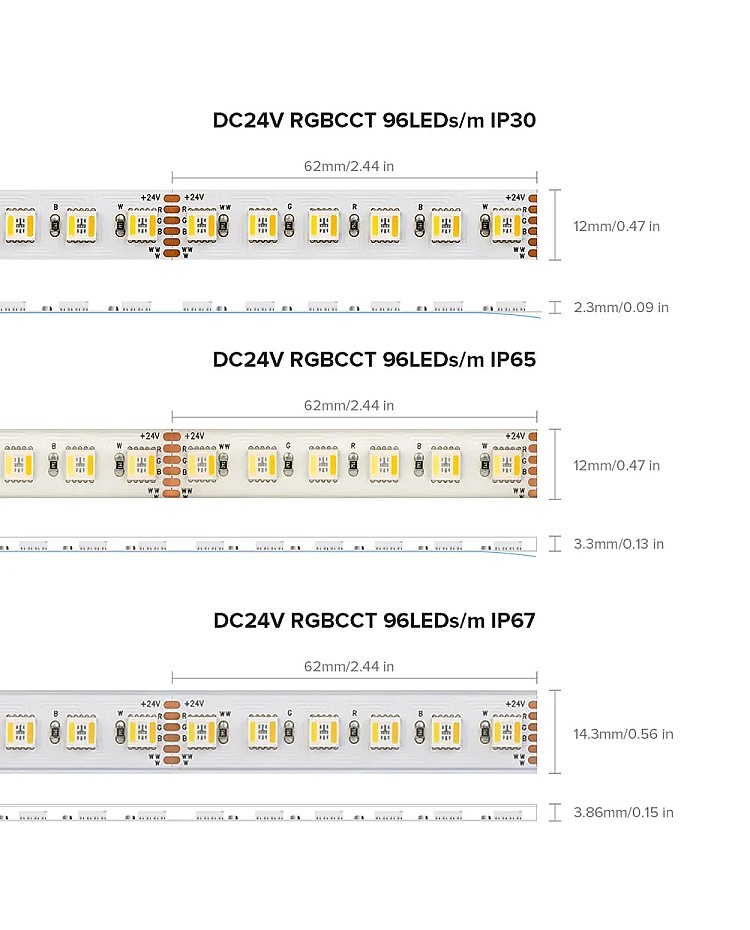

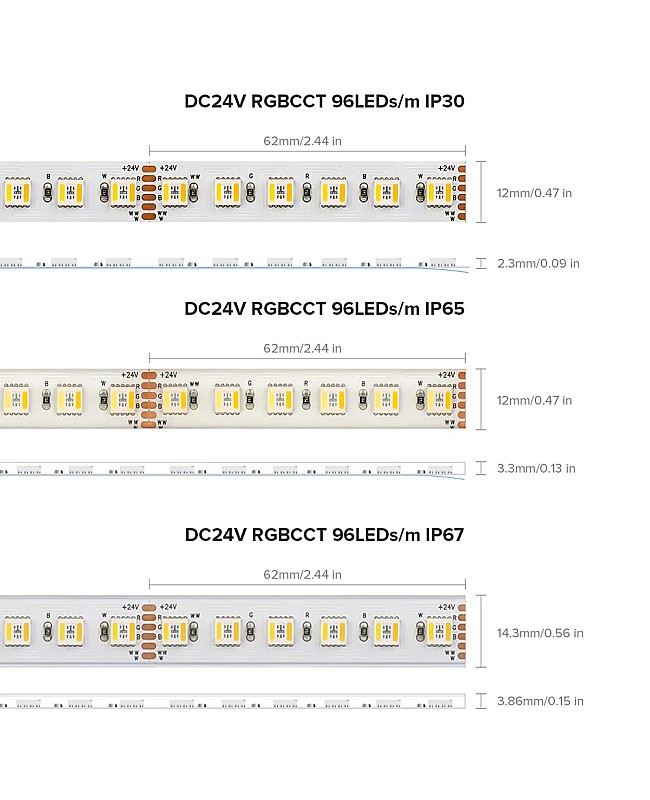

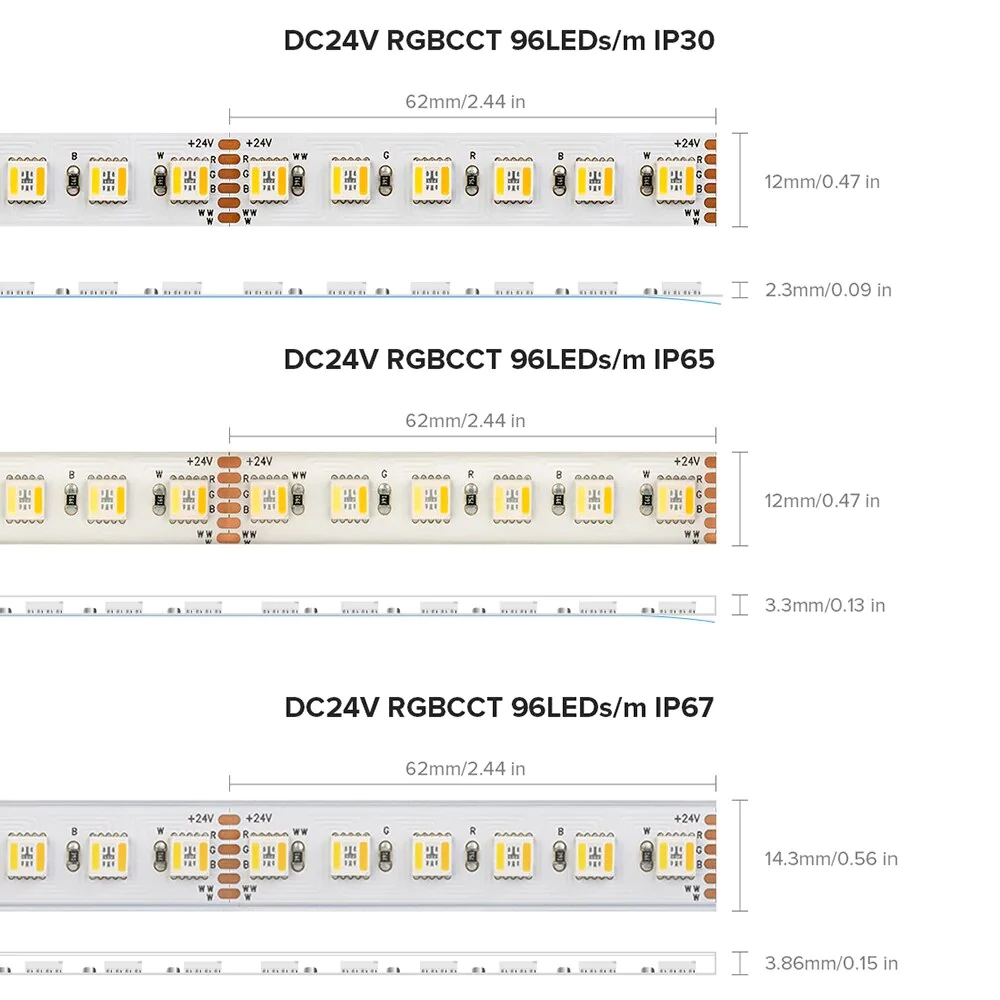

- Width: 12mm(IP30 non-waterproof/IP65 epoxy coated waterproof) / 14.3mm(IP67 silicone tube waterproof)
- Height: 2.3mm(IP30 non-waterproof) / 3.3mm(IP65 epoxy coated waterproof) / 3.86mm(IP67 silicone tube waterproof)

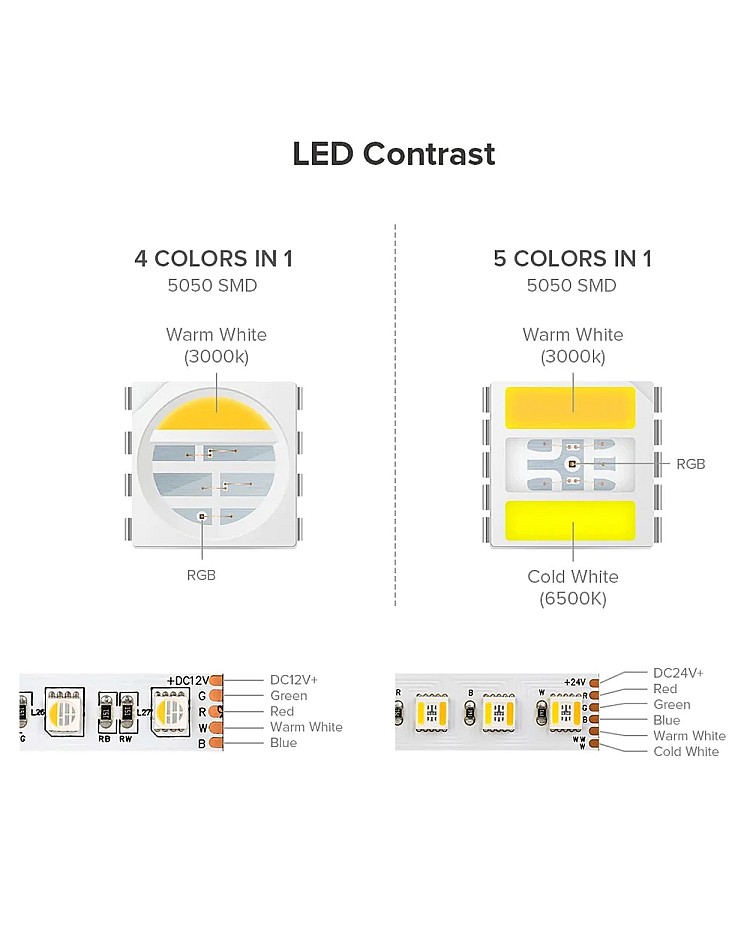

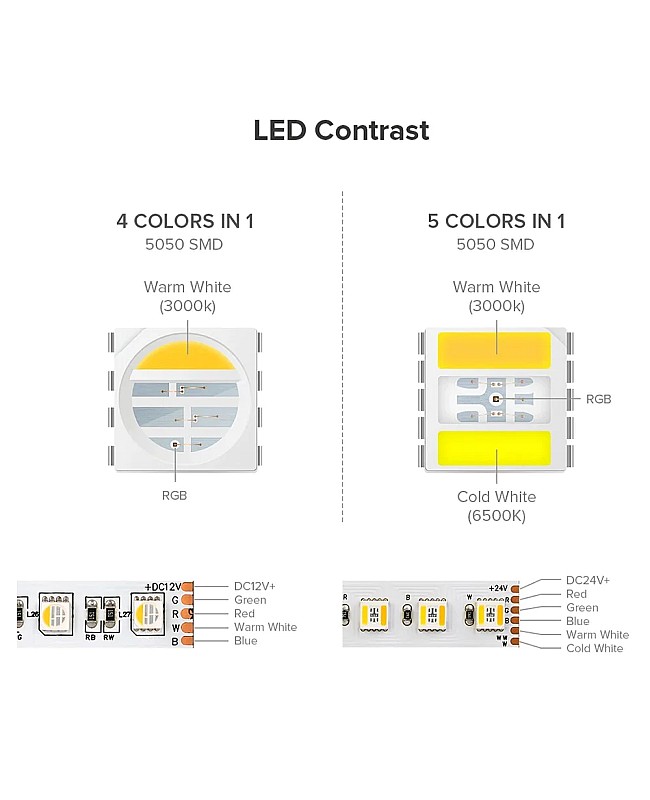

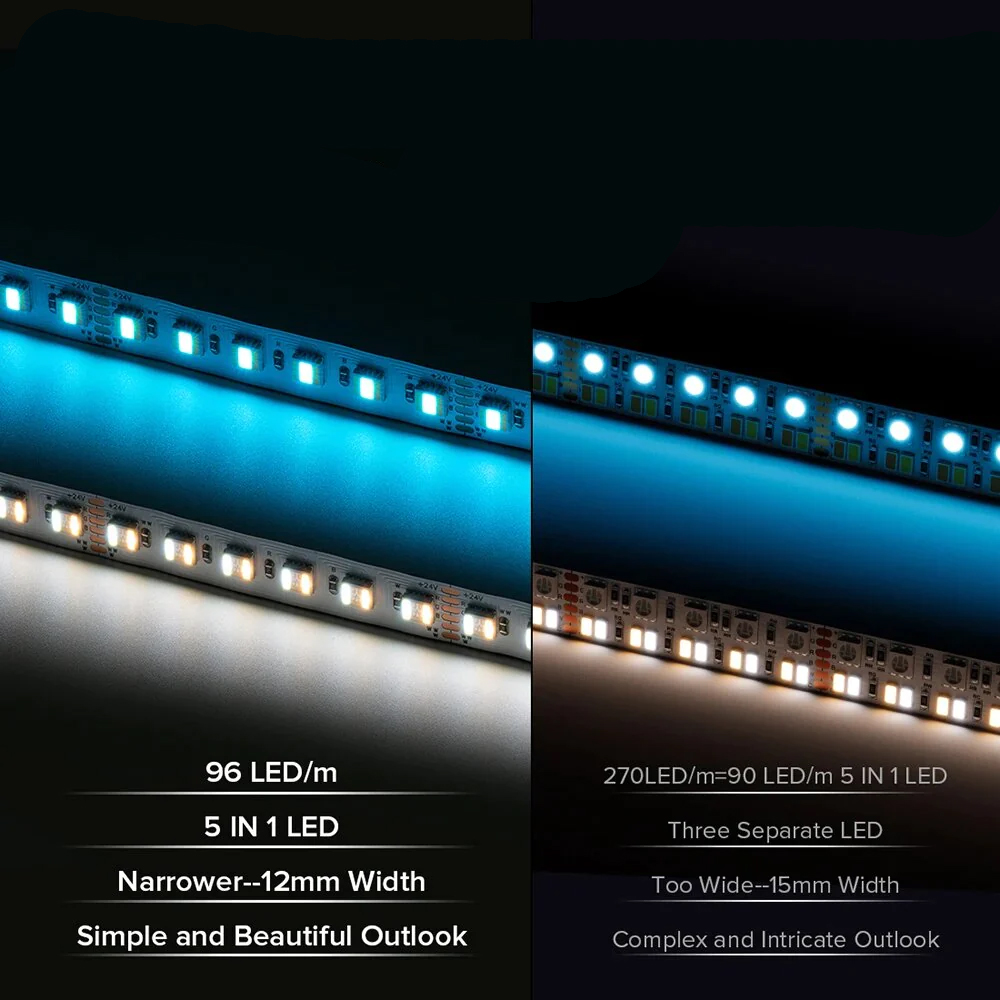

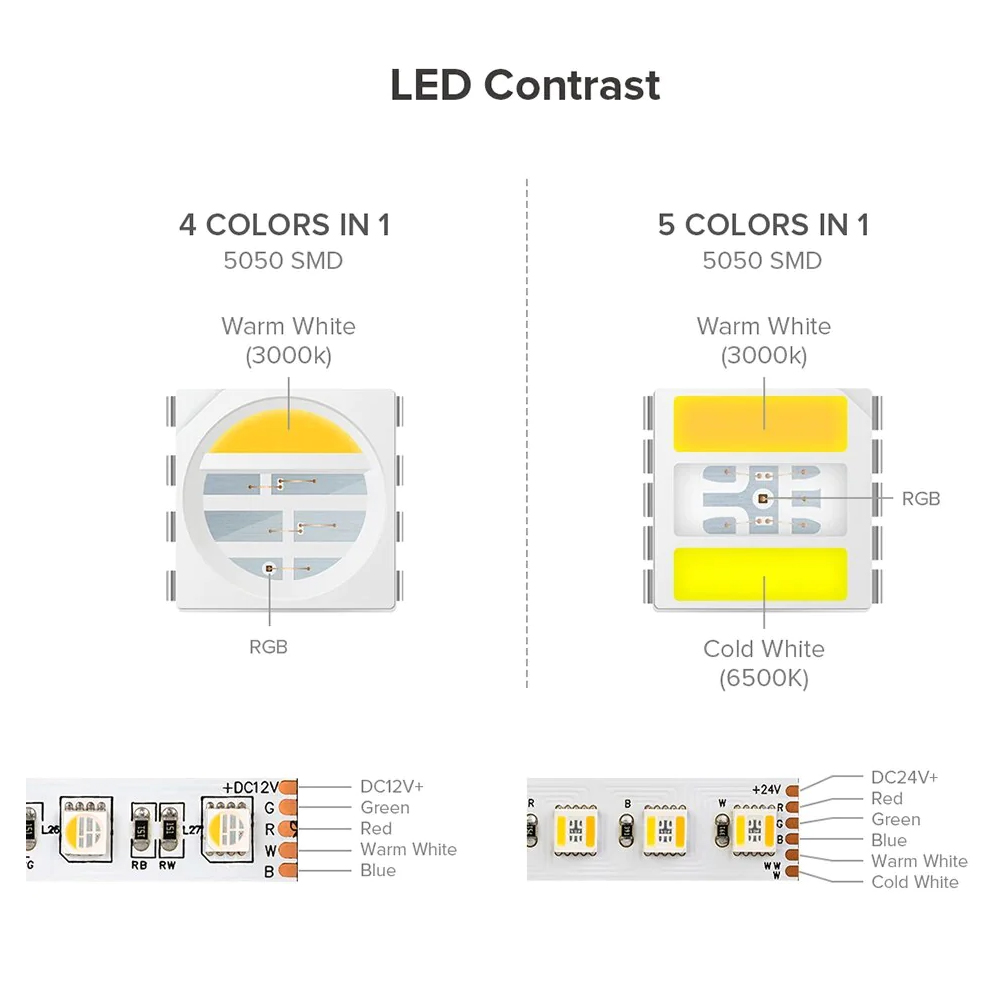

- LED Type: 5 In 1 5050 SMD LEDs, 5 Colors(red, green, blue, cool white, warm white) mixed in one LED
- LED Quantity: 96LEDs/M
- Color Of PCB Board: White
- Minimum Cutting Length: 62mm(6 LEDs)
- Input Voltage: DC24V
- Power: 24W/M
- Emitting Color: RGB+CCT(3000-6000K)
- IP Rate: IP30 non-waterproof, IP65 epoxy coated waterproof, IP67 silicone tube waterproof
- View Angle: 120°
- Gray Levels: 256
- Both ends have 15CM 6P wires
- Storage Temperature: -40-50℃
- Working Temperature: -25-50℃
- Lifespan: 50,000 hours
- 2-year warranty
Includes:
1 * RGBCCT SMD LED strips(16.4FT/roll)
