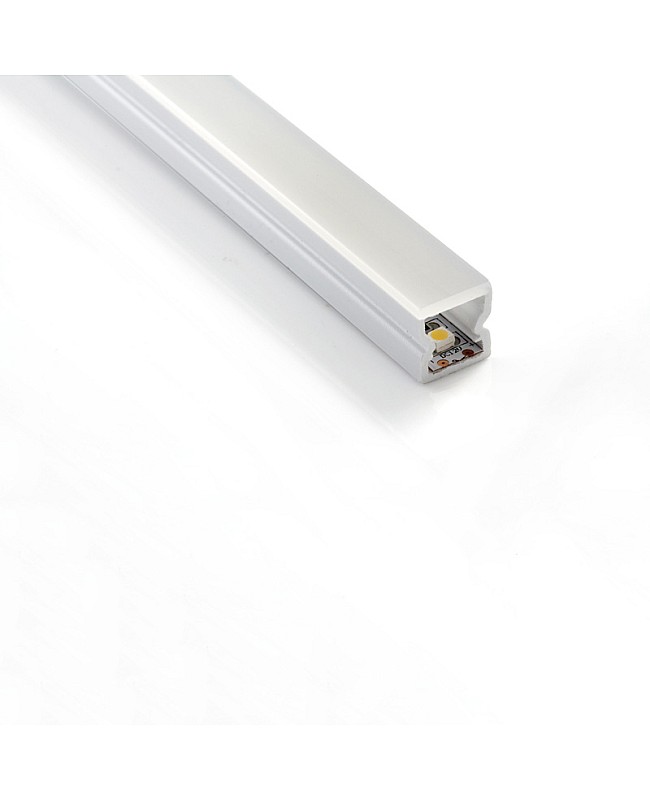

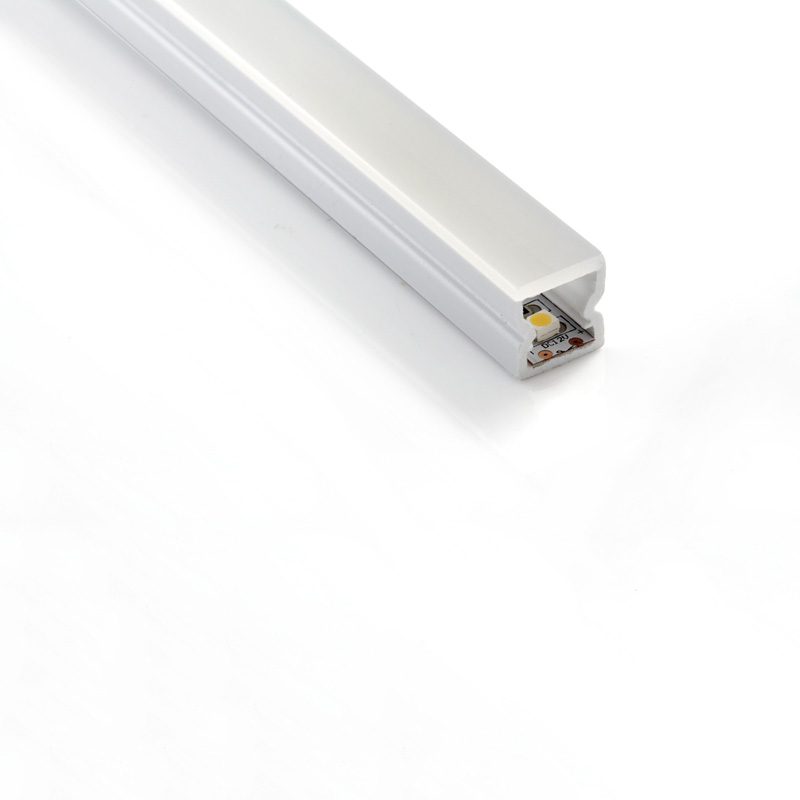

The small size waterproof light profiles are designed to provide a waterproof lighting solution for LED lighting in high-moisture, dust-prone, or outdoor areas. They provide ultimate protection against water, and the milky white PMMA tube eliminates hotspots, diffusing the lighting smoothly and uniformly. Ideal for bathrooms, kitchens, swimming pools, and refrigerator applications. It's made of frosted and light-dense white PMMA material, anti-yellowing, and perfect light distribution. The standard lengths are 1 m and 2 m, and you can cut to any desired length. The IP rating is IP68, which means it is fully submersible in 1 meter of water and resistant to dust, rain, and harsh weather conditions. Recommend works with the rigid LED light bar and allows the maximum width of LED strips to be 8mm. The metal mounting clips are included for surface mounting. Due to its slim size and lightweight design, it can also be used with double-sided adhesive to adhere to tight spaces. The silicone end caps are included.
Specifications:

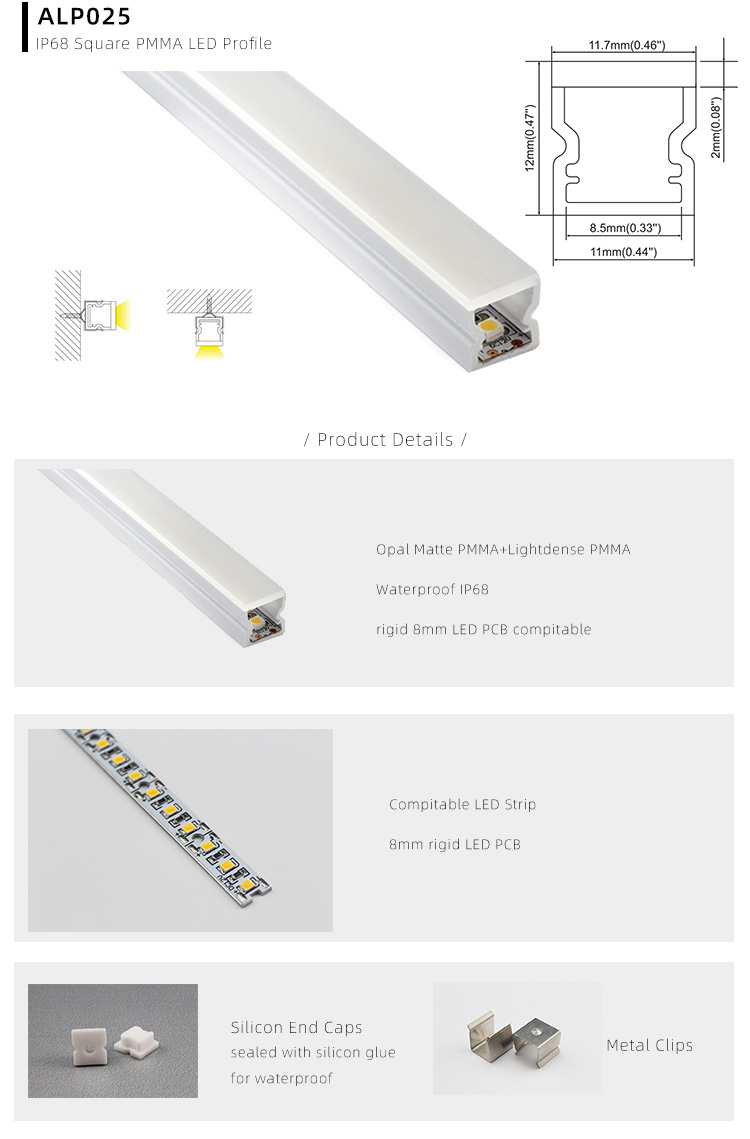

- Model: ALP025
- Material: PMMA
- Shape: Flat

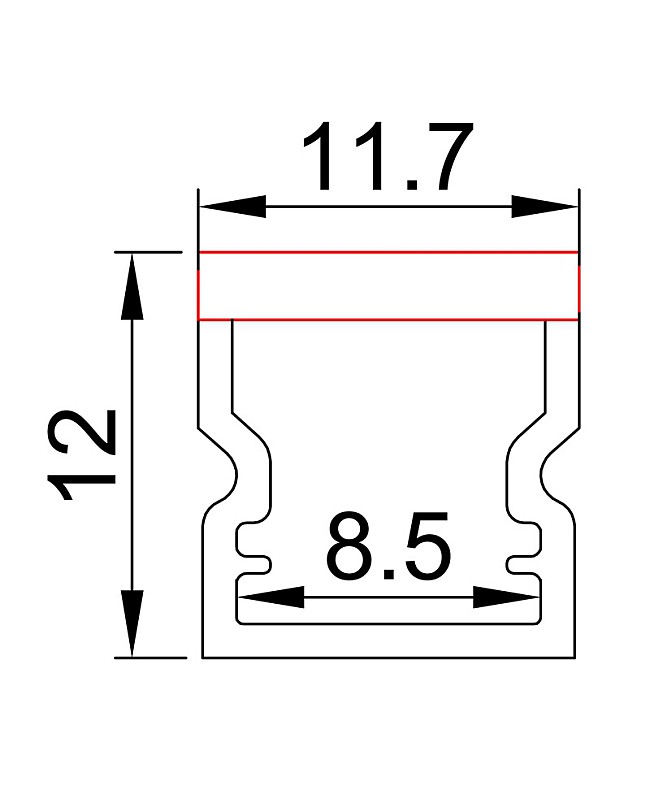

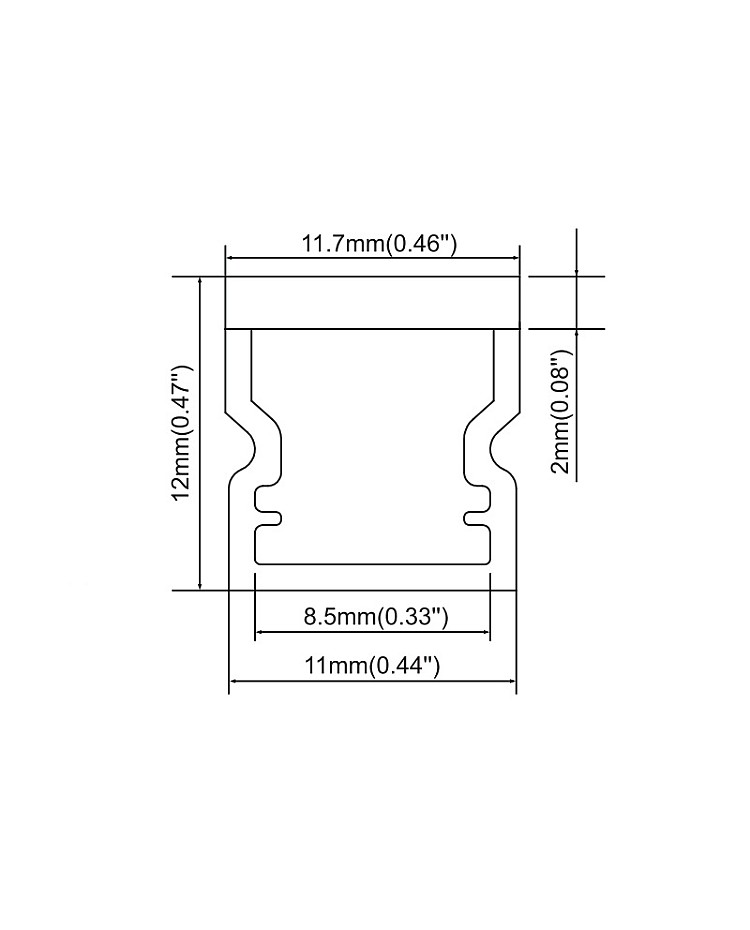

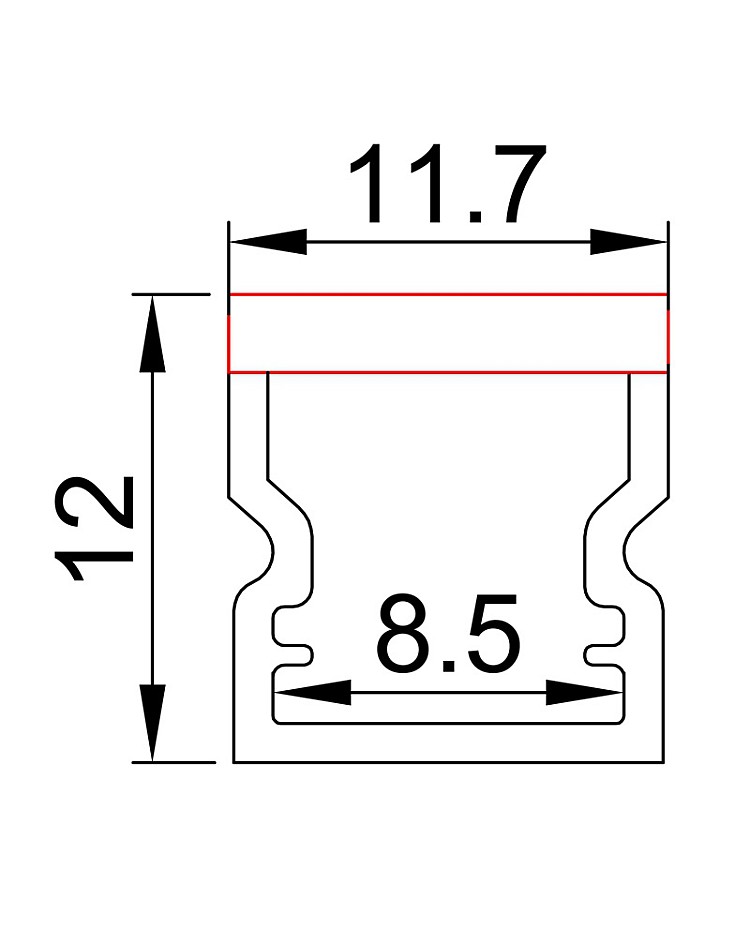

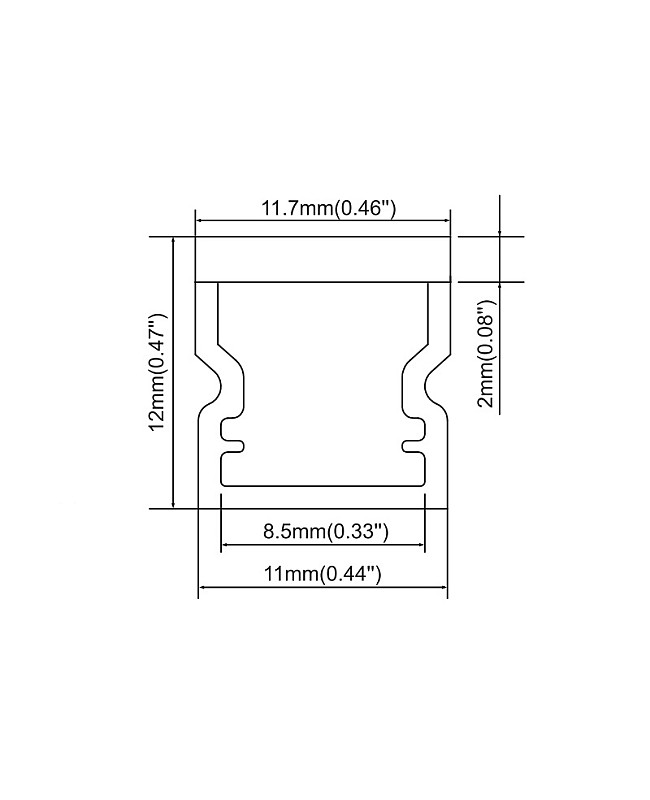

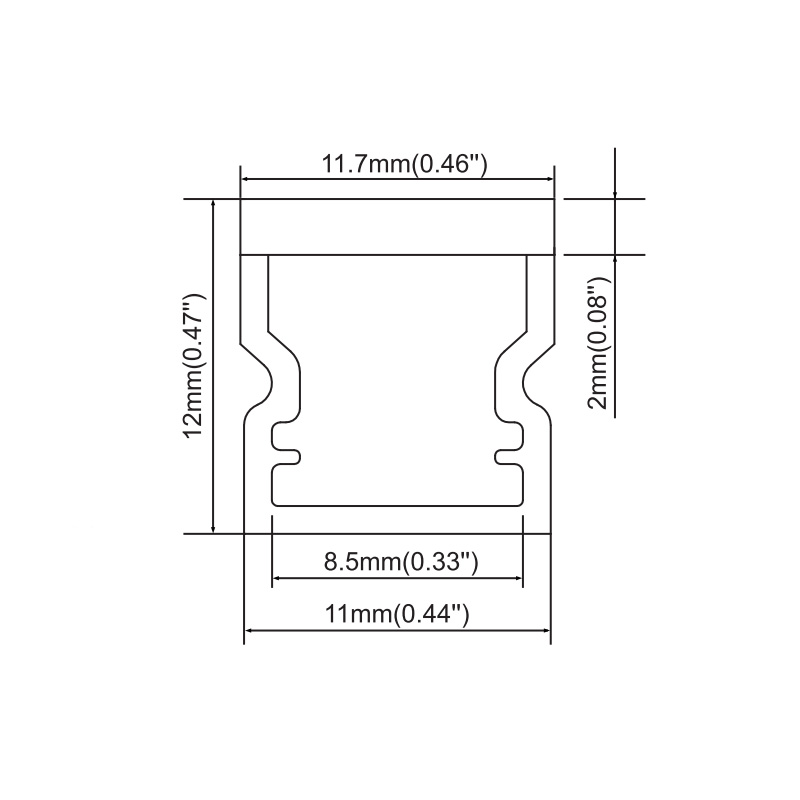

- Size(W*H): 11.7mm X 12 mm ( 0.46" x 0.47" )
- Stock Length: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Inner Width: 8.5mm ( 0.33" )
- Maximum LED Strip Width: 8mm ( 0.31" )
- Accommodate 8mm rigid or flexible LED strips
- Max Power: <10W/M
- Beam Angle: 100°
- IP Rating: IP68 waterproof
- Application: Refrigerator, furniture, under-cabinet, bathroom niche, etc
- Silicone end caps and metal clips are included

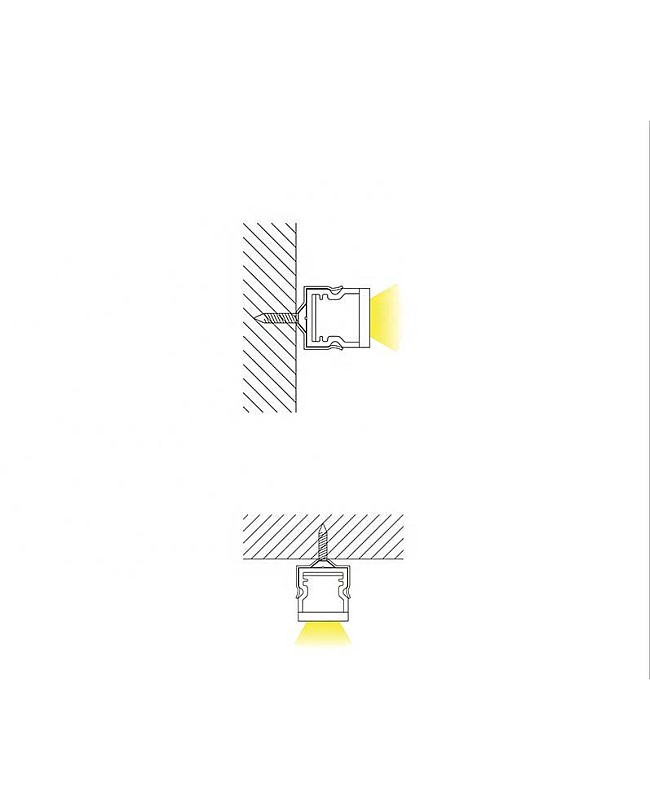

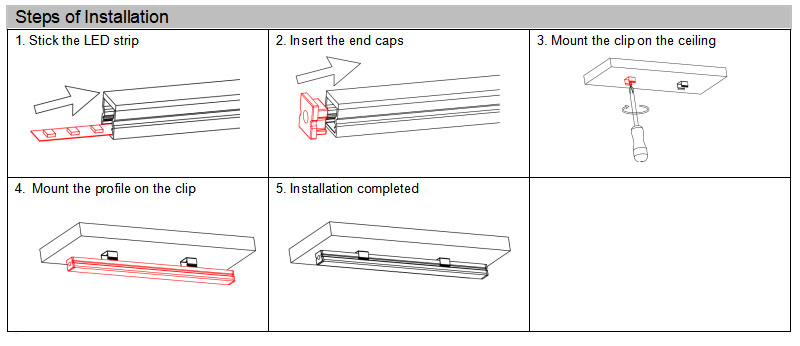

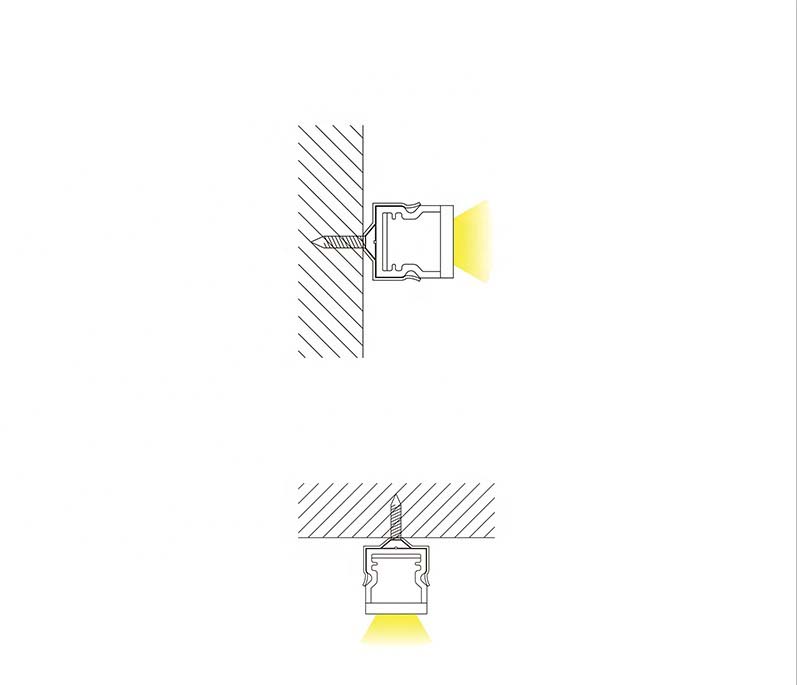

- Installation: Surface Mounted
- Warranty: 5 years
Includes:
1 * IP68 waterproof light channel

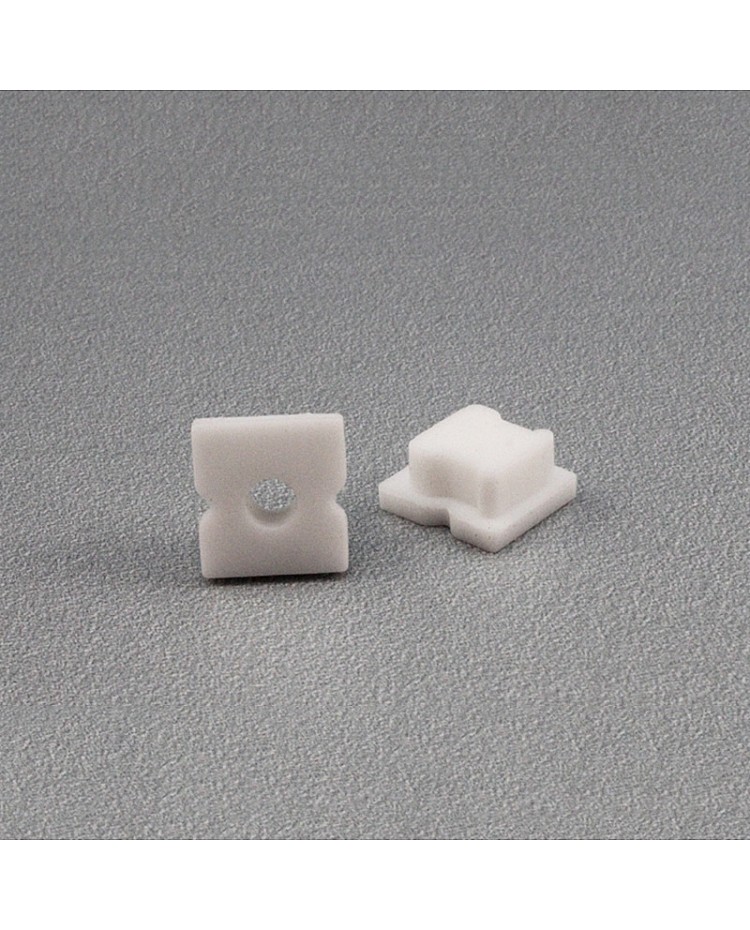

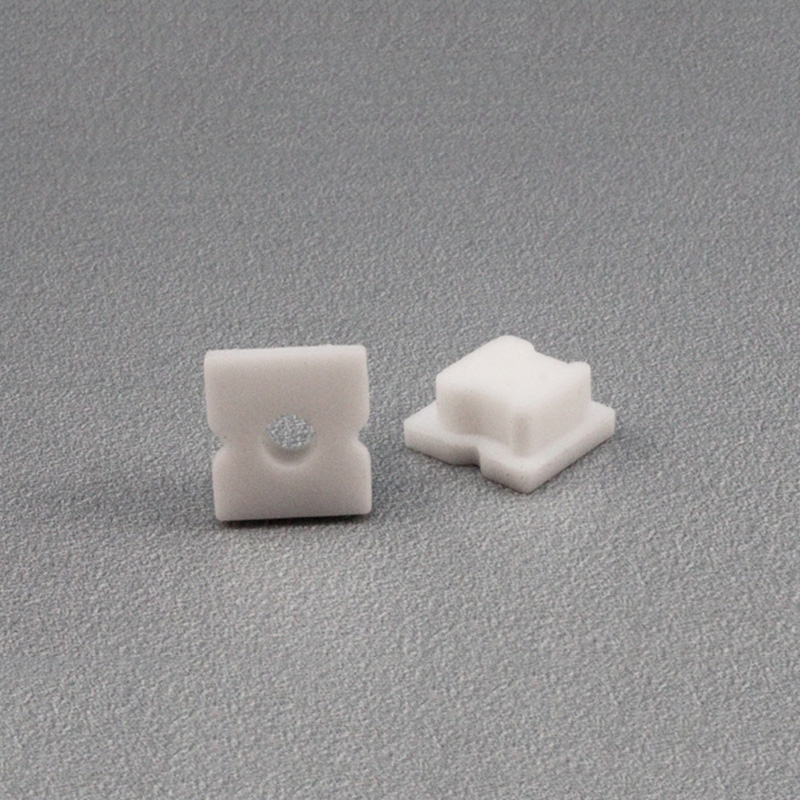

End Caps(With/without wire hole)

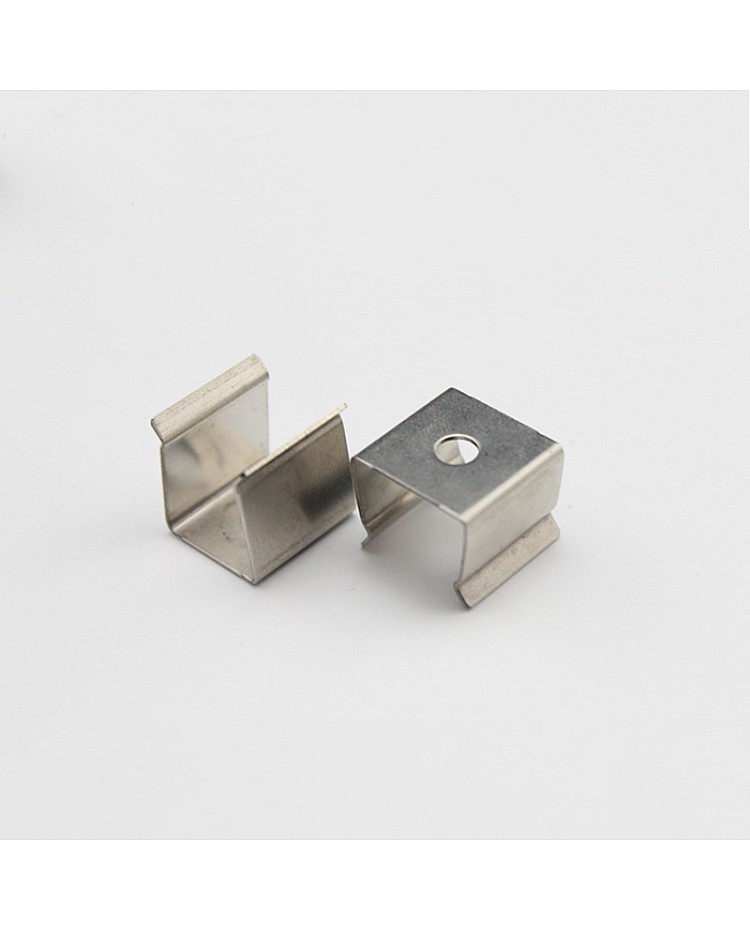

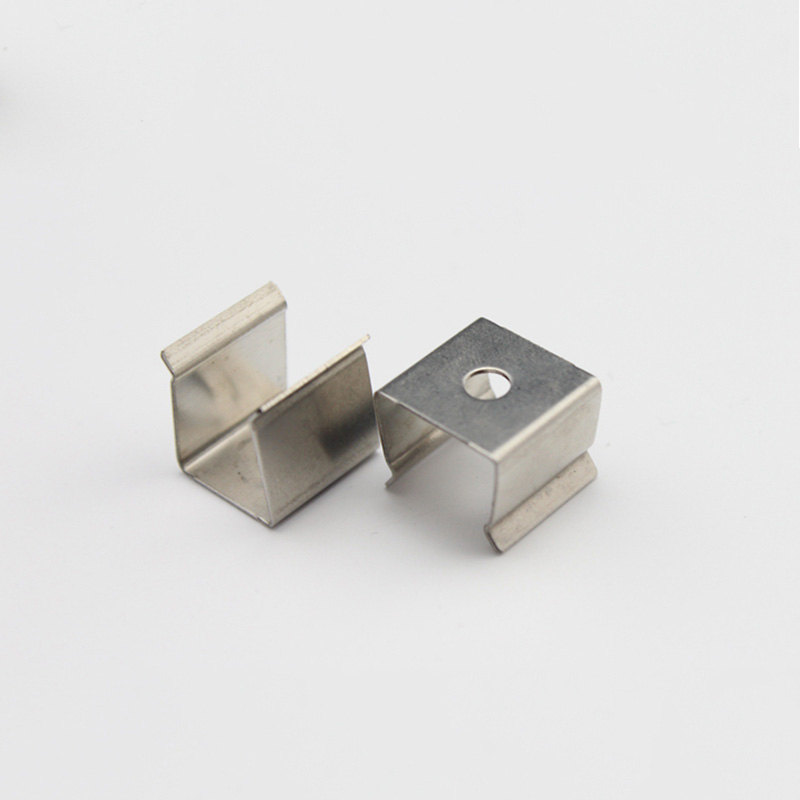

Metal mounting clips
