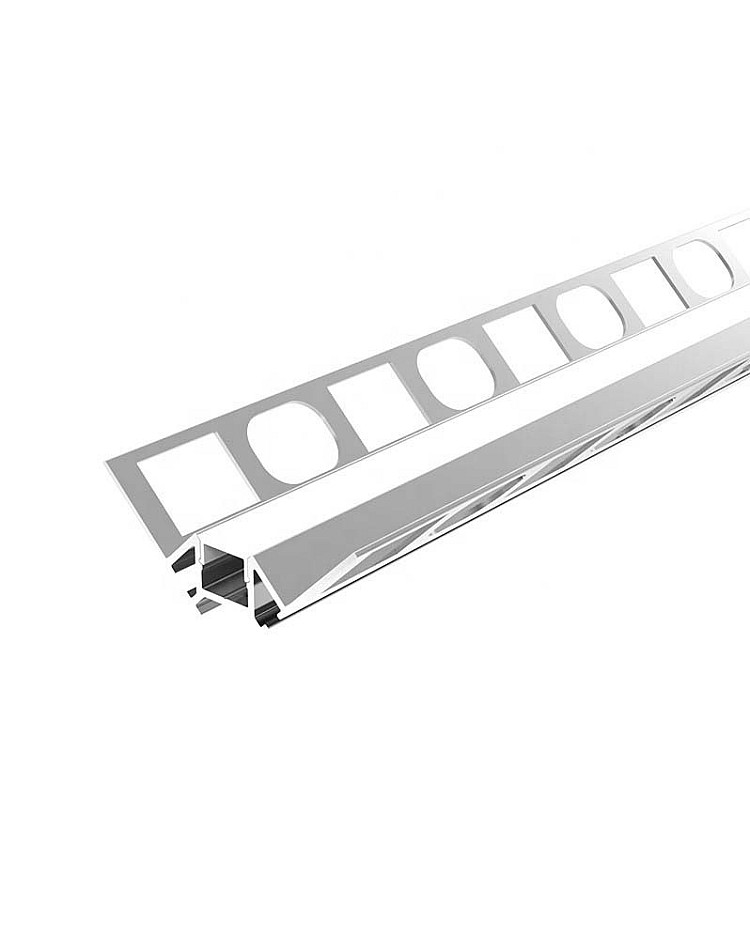

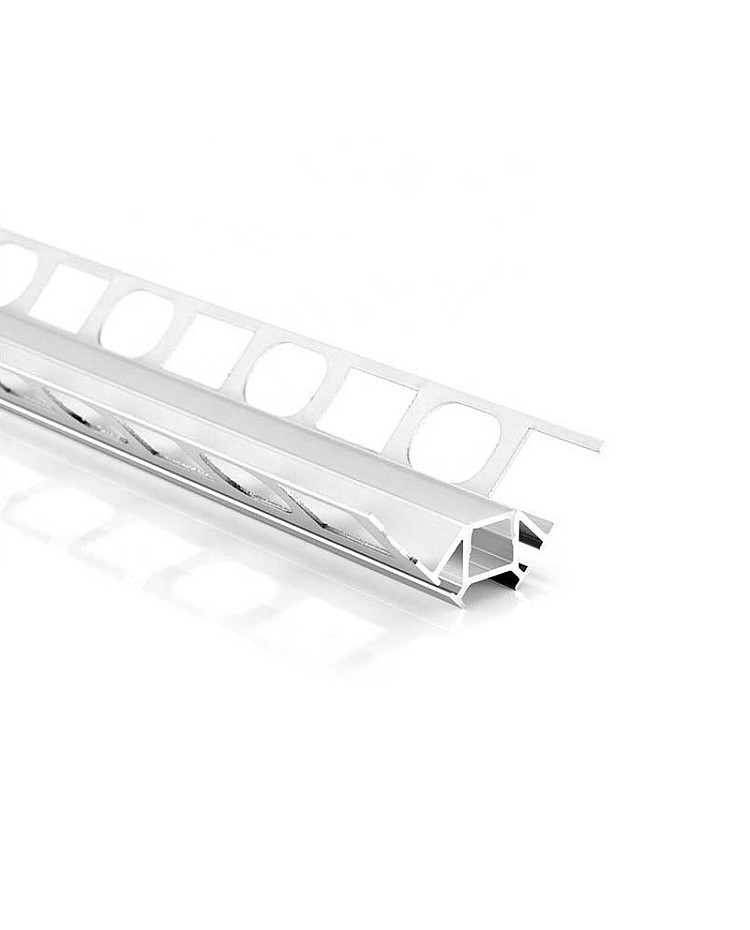

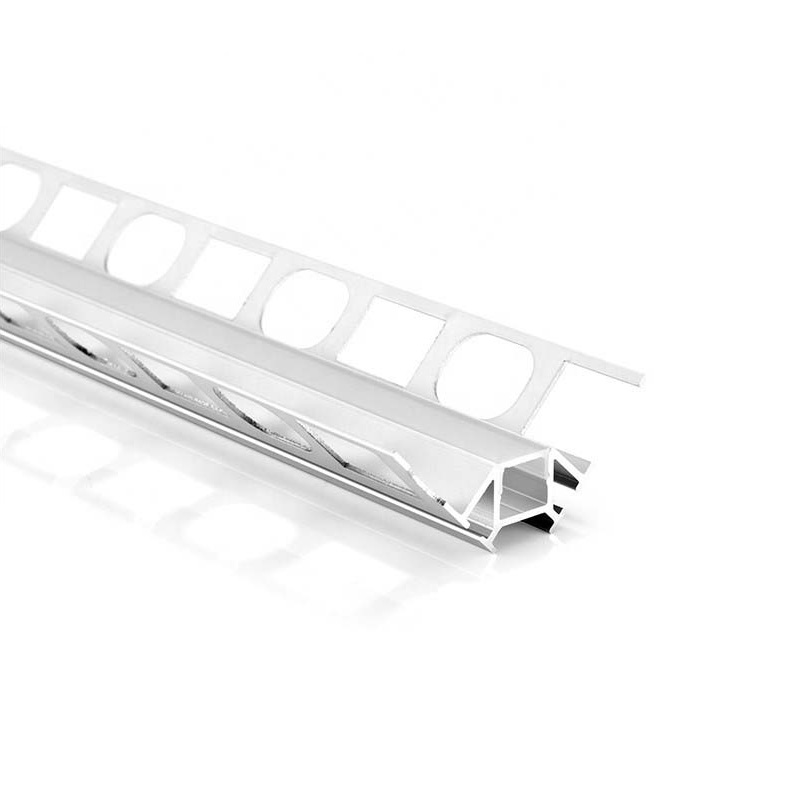

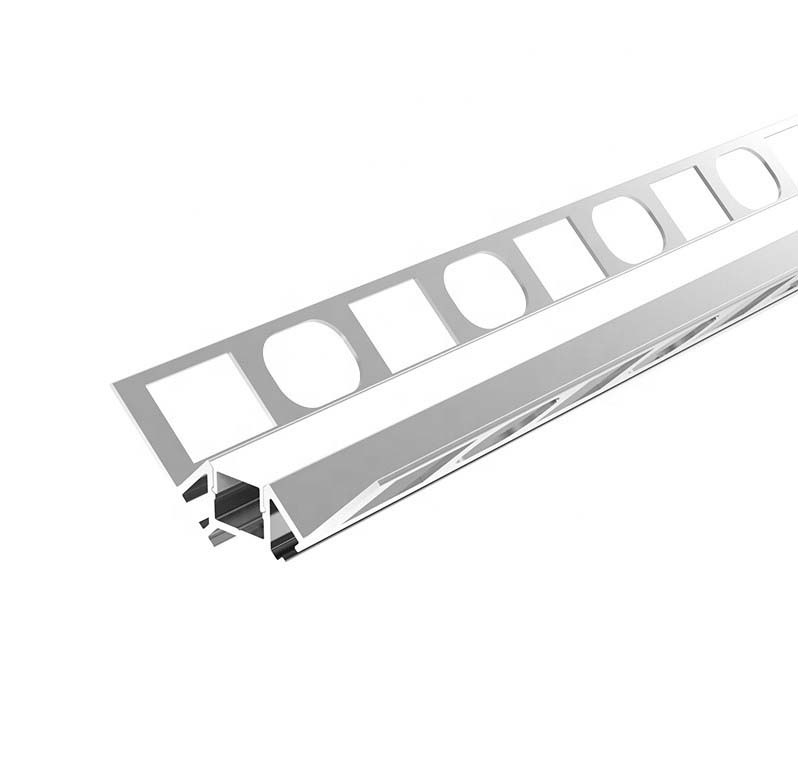

The inside corner light profiles are specially designed for adding seamless, integrated lighting at inside tile joints and corners. Engineered to be installed during tiling, enables you to deliver a clean, architectural lighting solution that enhances interior aesthetics without disrupting the tile layout. You can add them in tiled or marble areas such as the kitchen, bathroom, shower niche, or swimming pool. The inner width is 10.5 mm and accommodates a maximum width of strip lights of 10 mm. You can add our 10mm IP20 non-waterproof COB LED strips for dry places or 8mm IP67 waterproof LED strips in wet or rainy environments to create a uniform lighting without light dots. The tile light channels are made of 6063-T5 aluminum alloy with silver anodized surface treatment for anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and custom lengths are supported. There are only PC diffused covers available; they are made of brand material with stable quality, anti-yellowing, and perfect light distribution. The diffused covers will diffuse the lighting smoothly for a cozy illumination. End caps with and without wire holes are included.
Specifications:

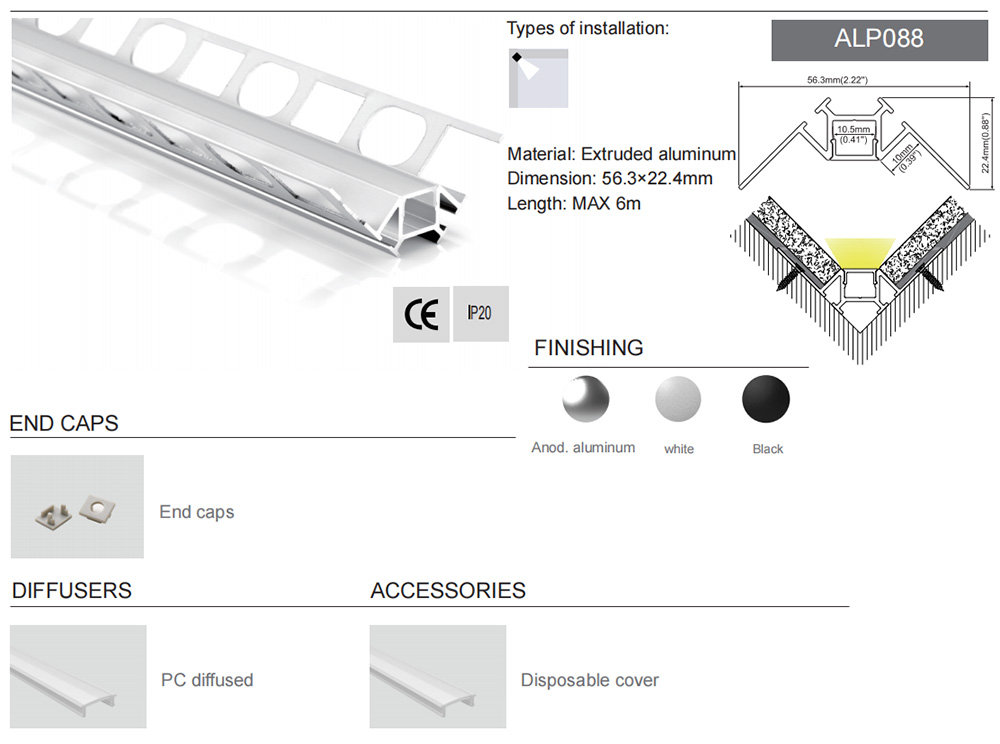

- Model: ALP088
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Silver

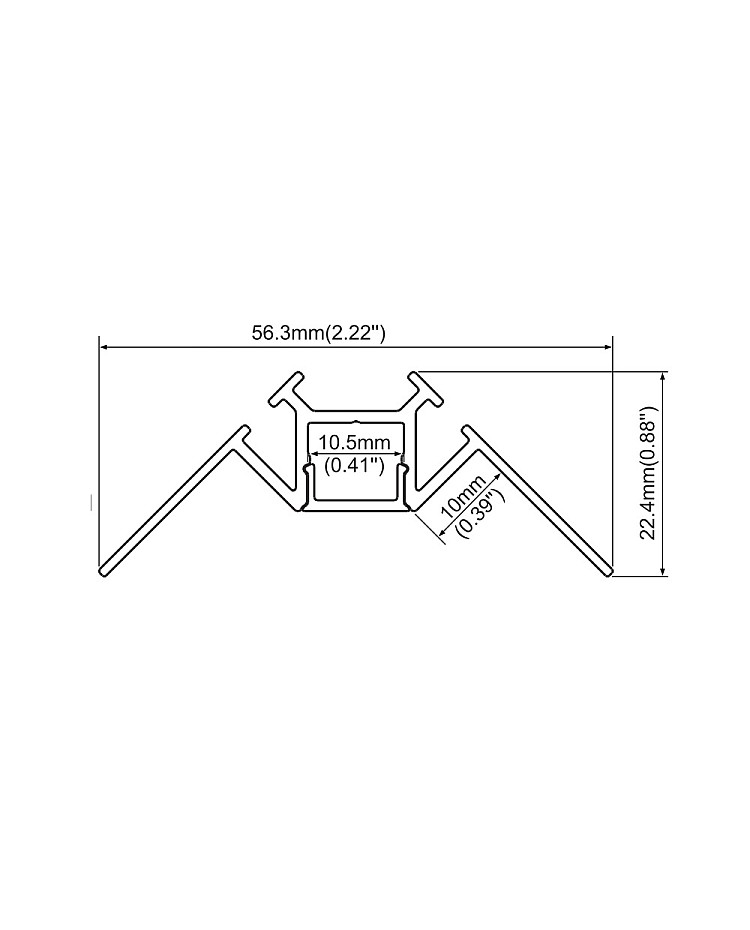

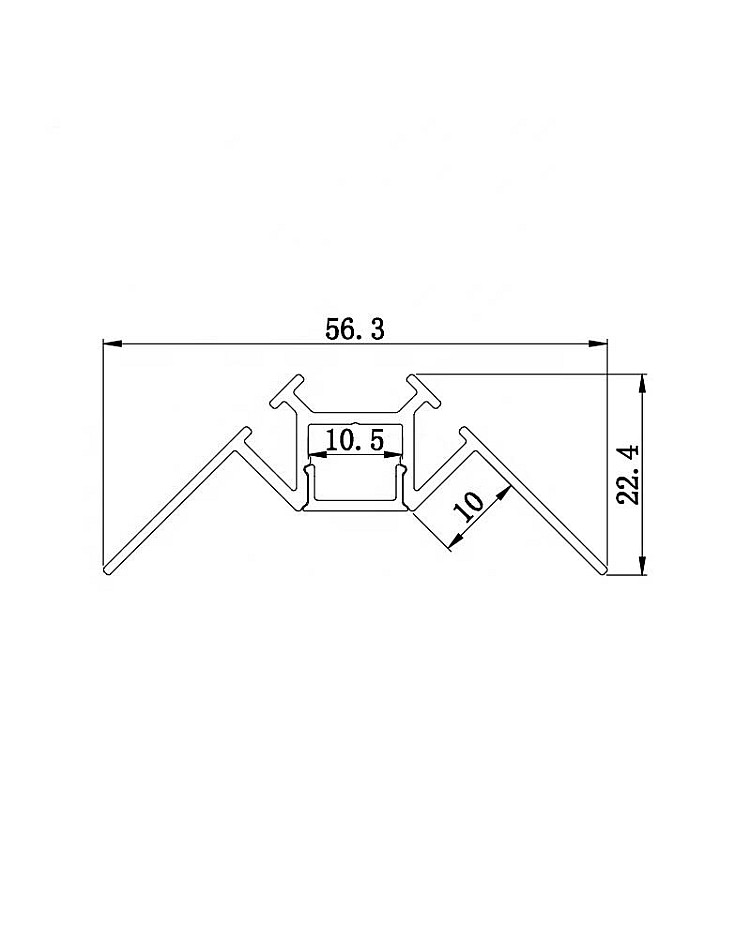

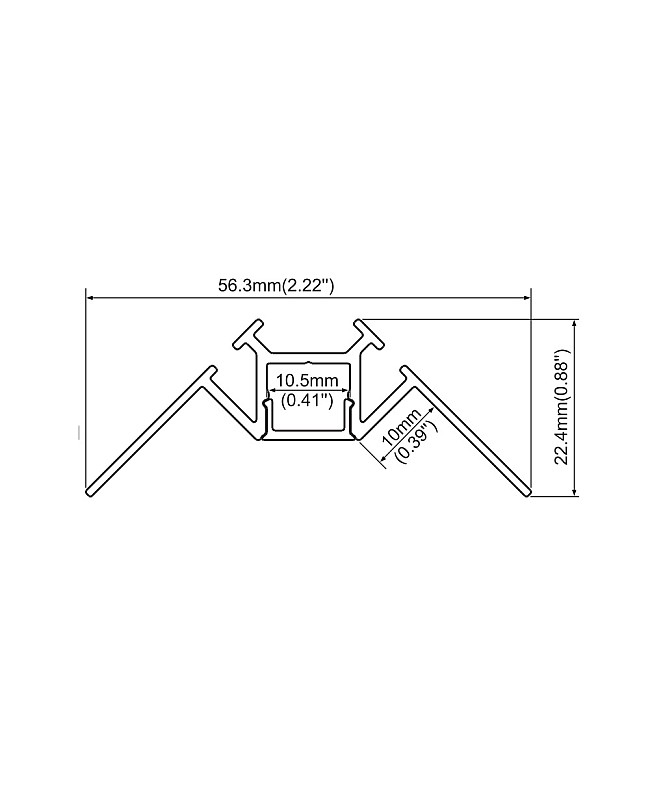

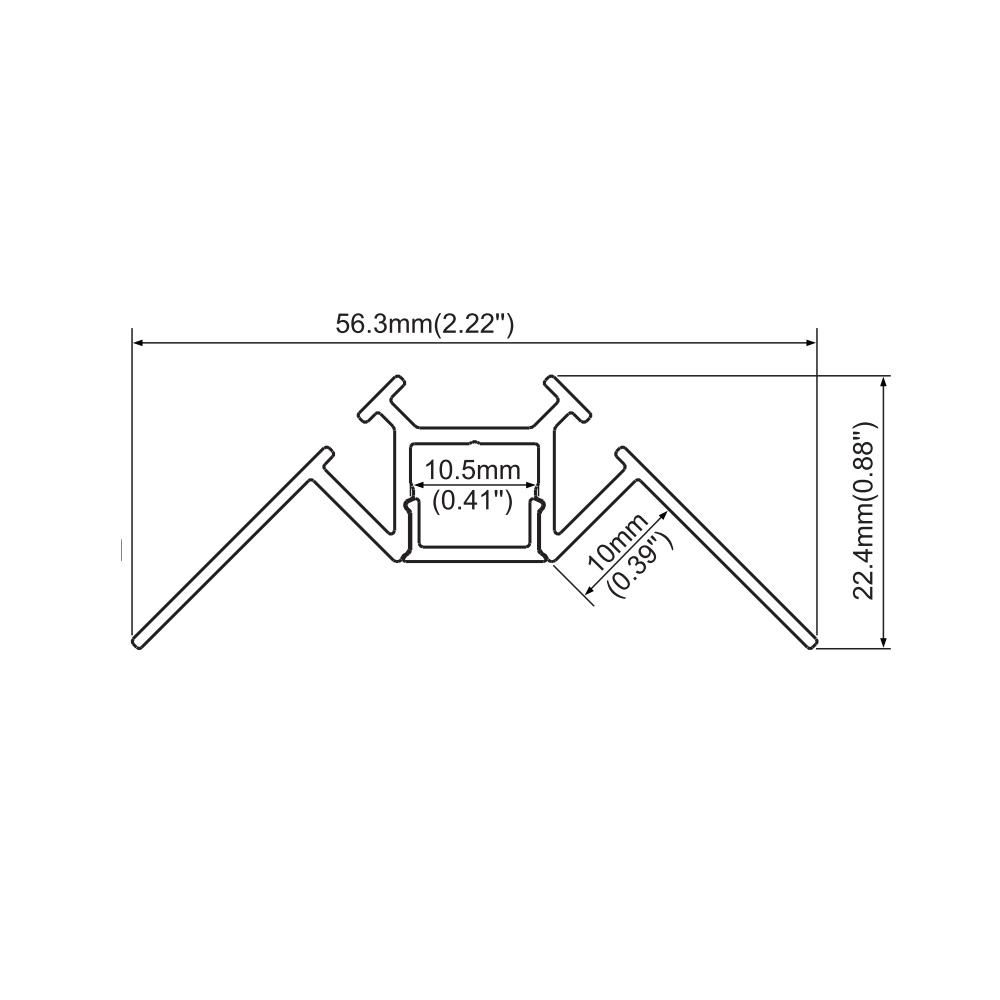

- Size ( W x H ): 56.3 mm x 22.4 mm ( 2.22" x 0.88" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.5 mm ( 0.41" )
- Max LED strips width: 10 mm ( 0.39" )
- Max power: 12W/m
- Diffuser: PC diffused cover
- Beam angle: 100°

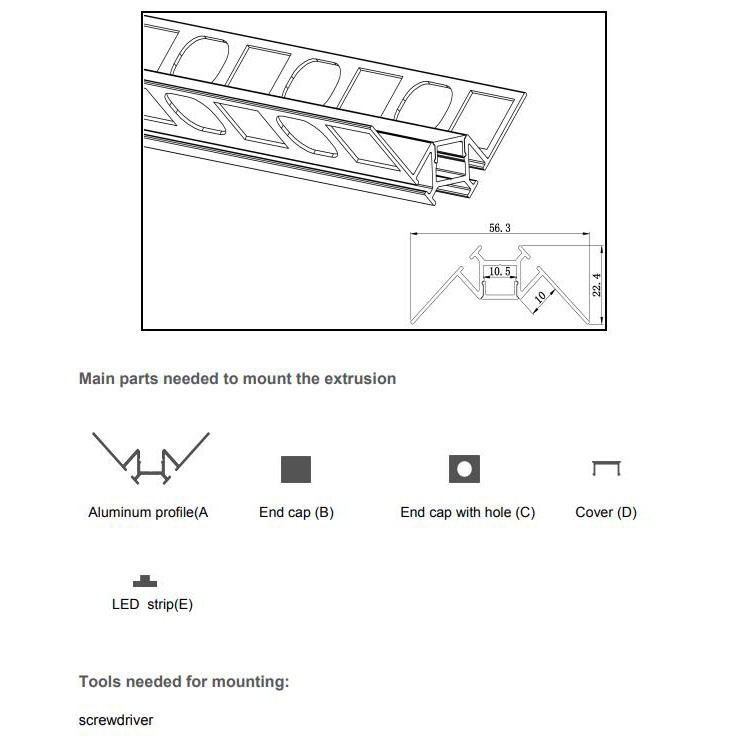

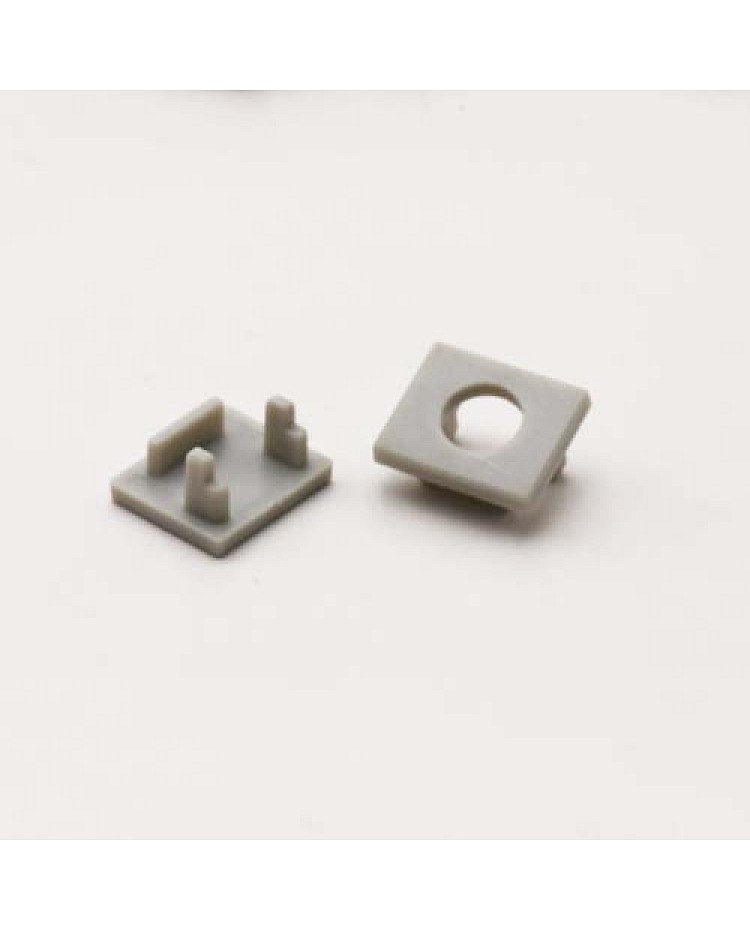

- End caps with and without wire holes are included

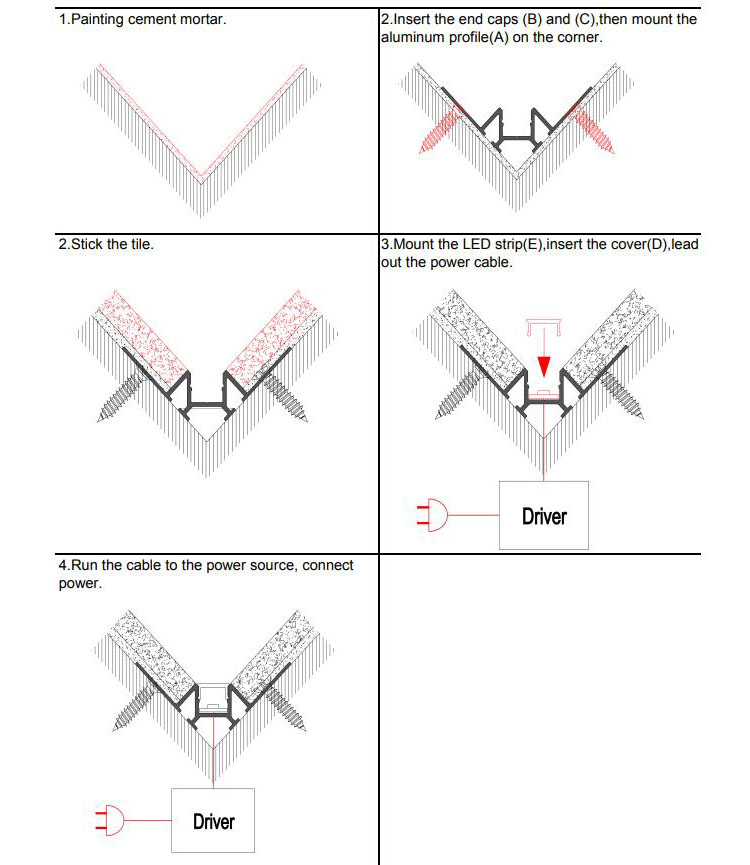

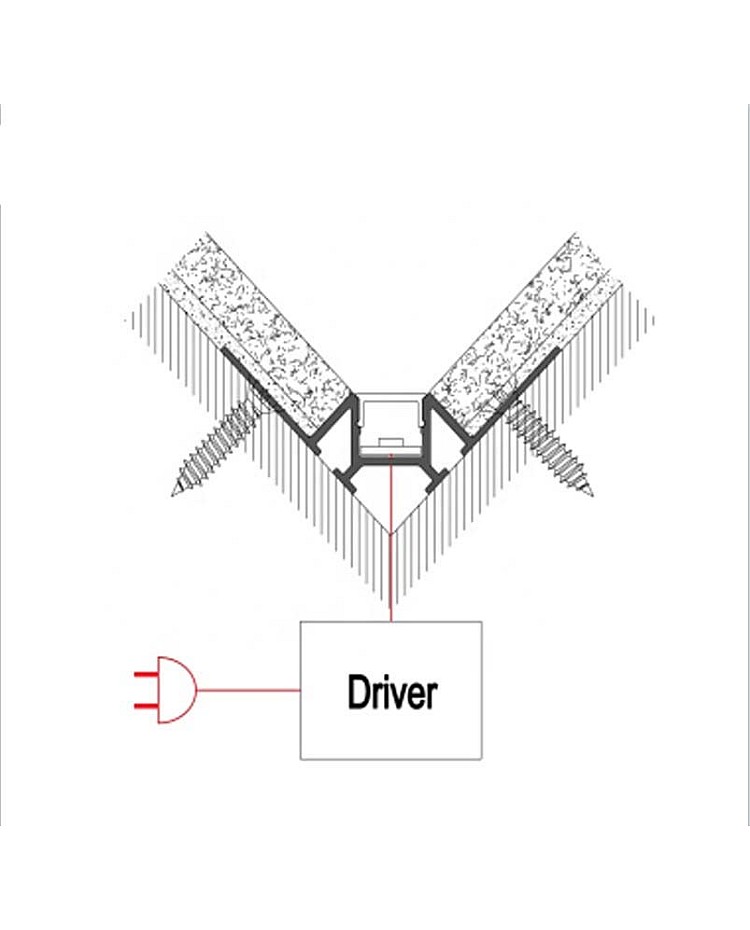

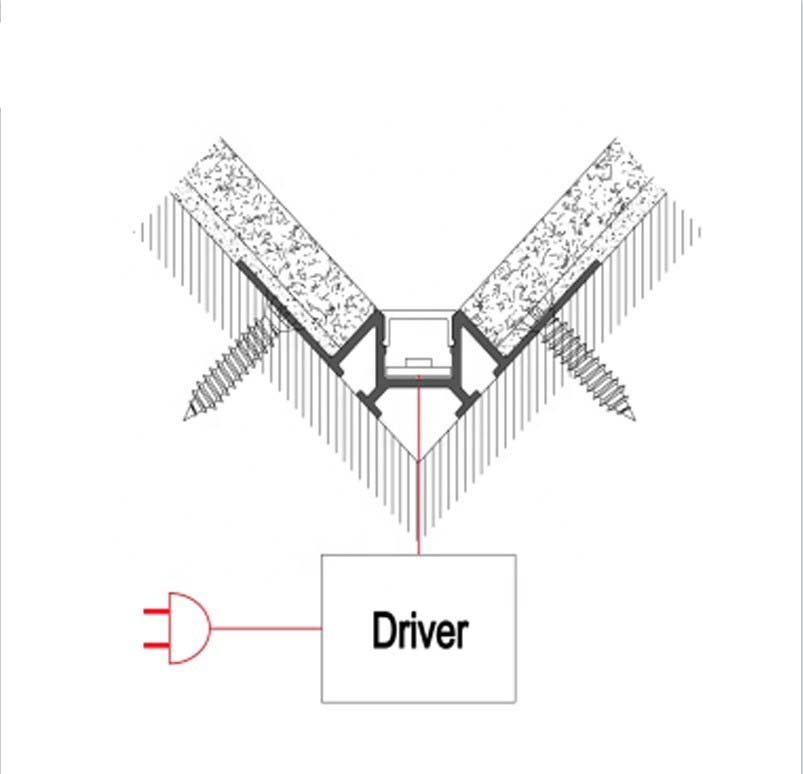

- Installation: Inside corner recessed
- Applications: Tile or marble inside corner lighting
- Warranty: 5 years
Includes:
1 * Tile LED linear light profile with diffuser
End caps(With/without wire hole)
