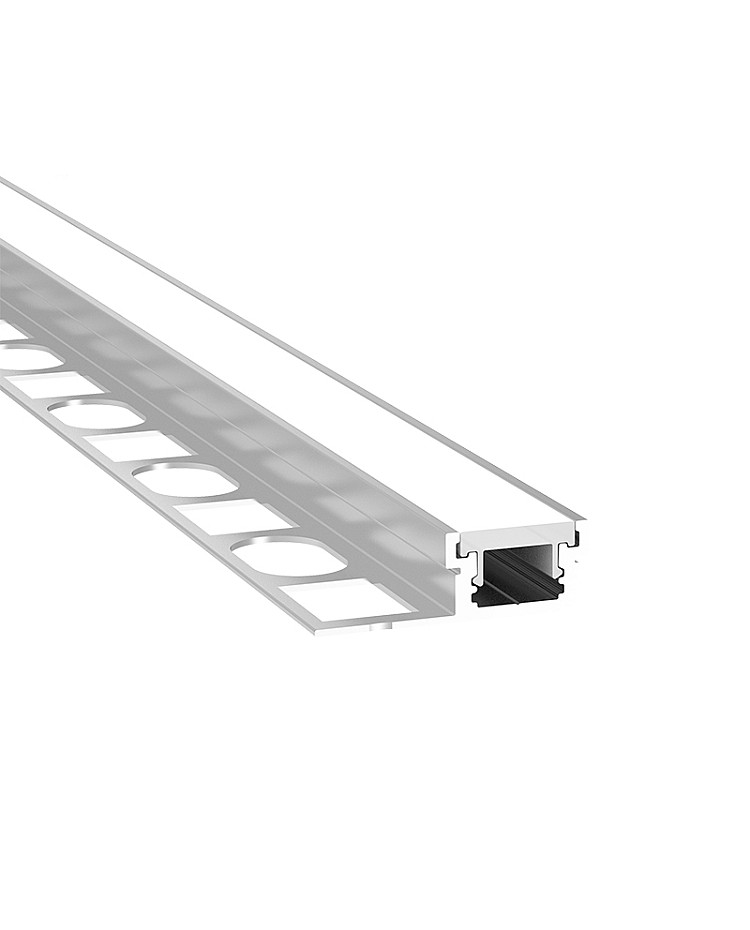

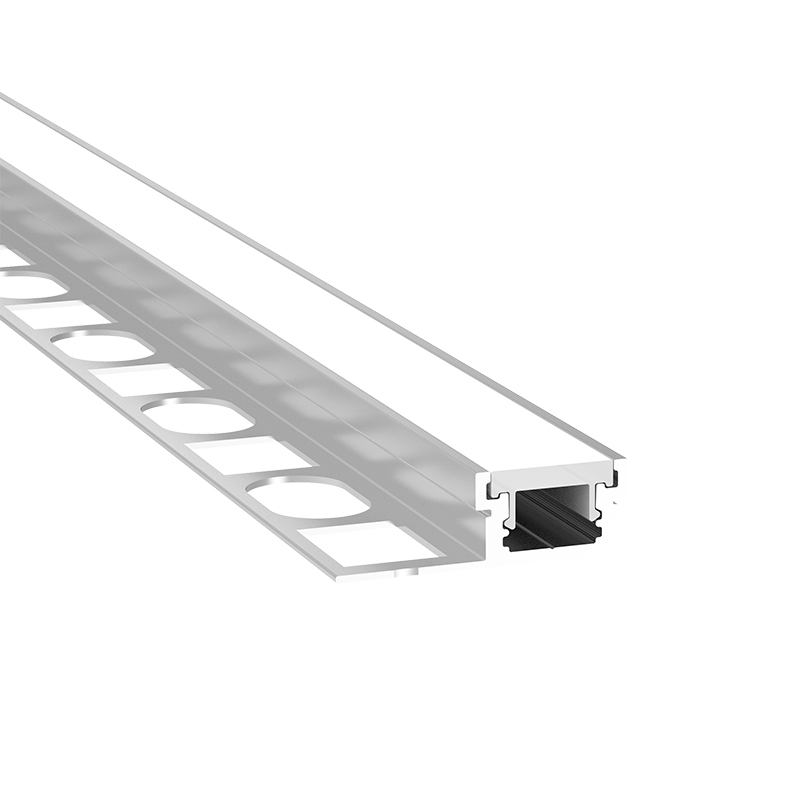

These recessed LED channels feature a flange design, enabling seamless flush mounting with 12mm tiles for a clean, integrated finish. Suitable for recessed installation in tile, ceramic, or stoneware surfaces in kitchens, bathrooms, and other areas. They accommodate 10mm IP67 waterproof strip lights, ensuring uniform and glare-free illumination in wet environments such as shower niches. Constructed from quality aluminum alloy with an anodized surface finish, they offer superior oxidation resistance and extended durability. The LED profile kits have a flange design and can be mounted between two tiles or used as tile-ending trim. They can also serve as heat sinks to effectively dissipate heat generated by LEDs, thereby enhancing the longevity of the tile lighting system. The stock length is 2M, and customizable cutting options are available. The inner width is 12.3mm, supporting LED strips up to 12mm in width. Only one type of diffuser is available: PC opal matte covers, made from brand-stable material that is anti-yellowing and features perfect light distribution. The PC diffusers have a clip-in design for easy installation. End caps with /without wire holes are included.
Note: You can use regular IP65 surface-coated or IP67 silicone tube waterproof LED strips; however, silicone glue is required to seal the end caps and diffusers for waterproofing purposes.
Specifications:

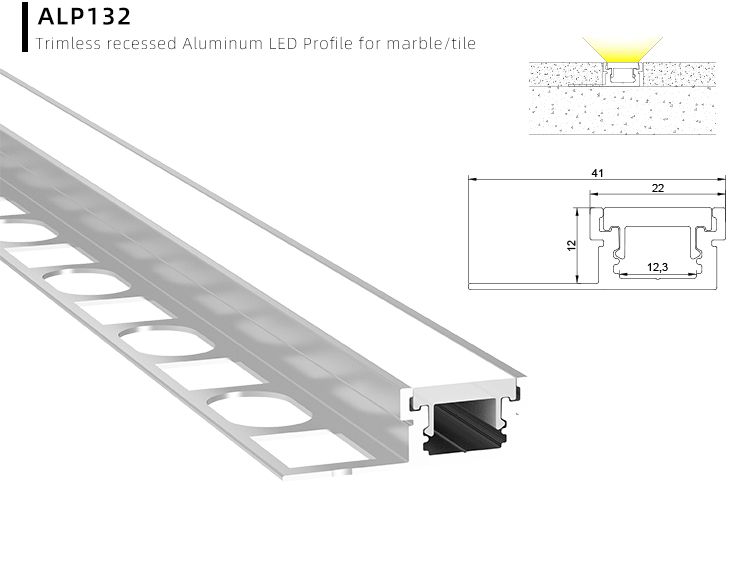

- Model: ALP132
- Material: 6063-T5 Aluminium alloy
- Surface Treatment: Anodized
- Colors: Silver

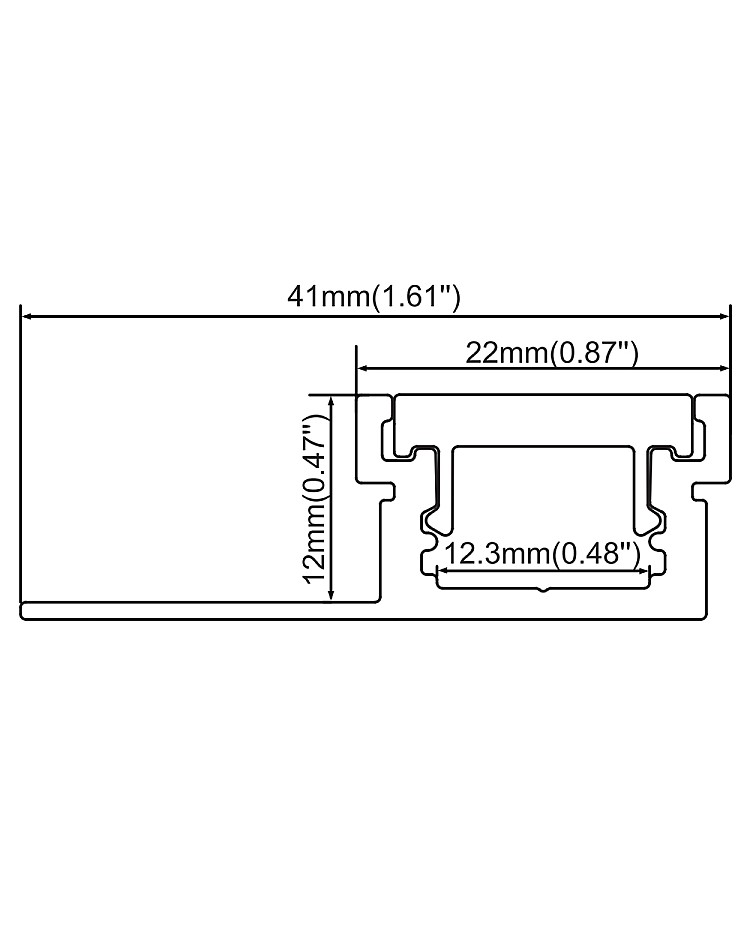

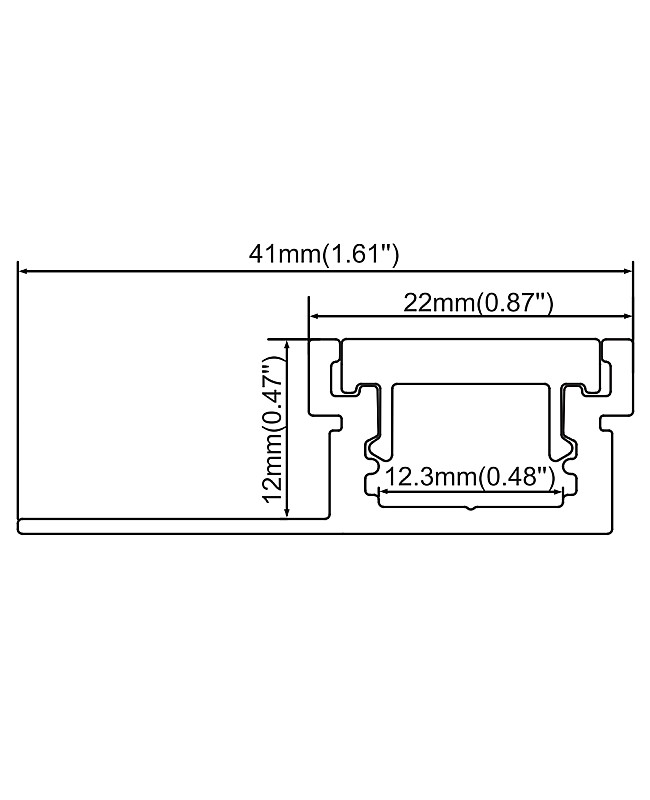

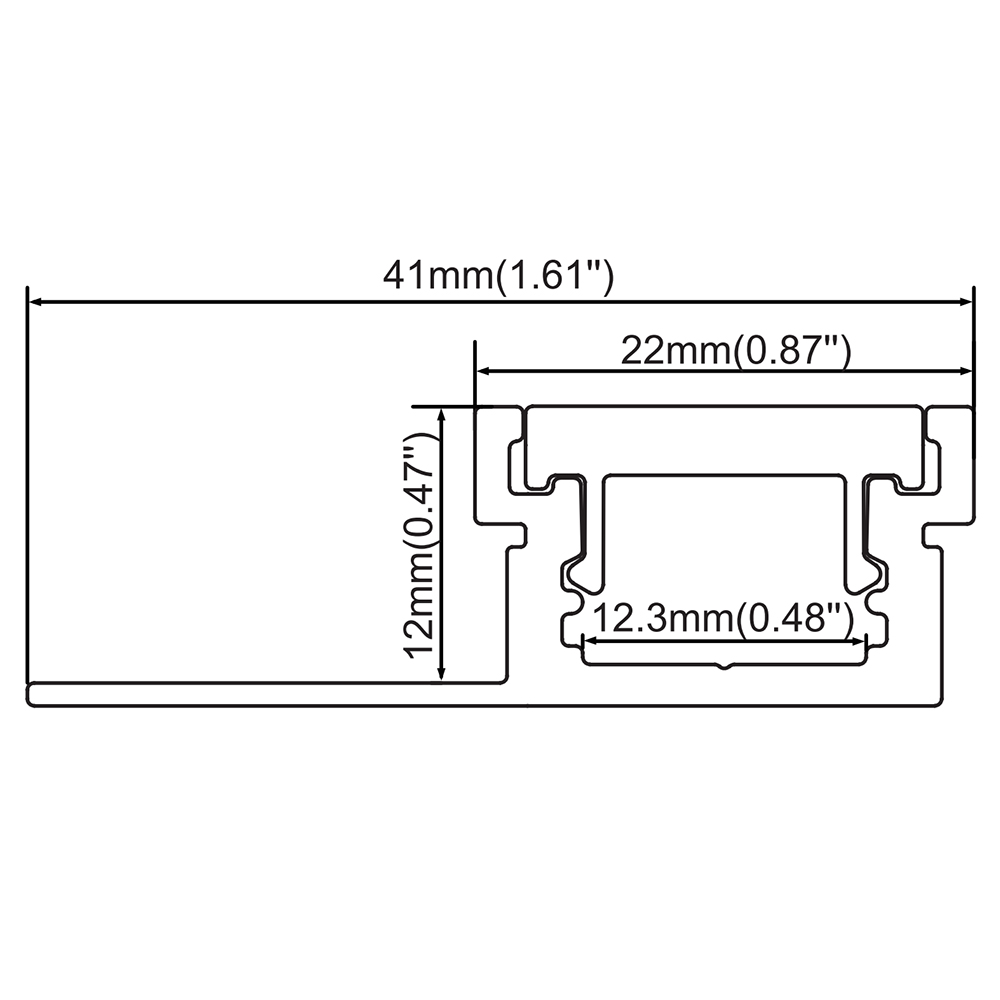

- Size(W*H): 41*12mm/1.61"*0.47"
- Inner Width: 12.3mm/0.48"
- Allows The Max Width Of LED Strips: 12mm/0.47"
- Max Power: <15W/M
- Standard Length: 1M (39"), 2M (78")
- Custom Length Available: YES
- Diffuser: 3mm PC opal matte diffuser
- Tolerance: ±1%
- IP Rating: IP67 waterproof

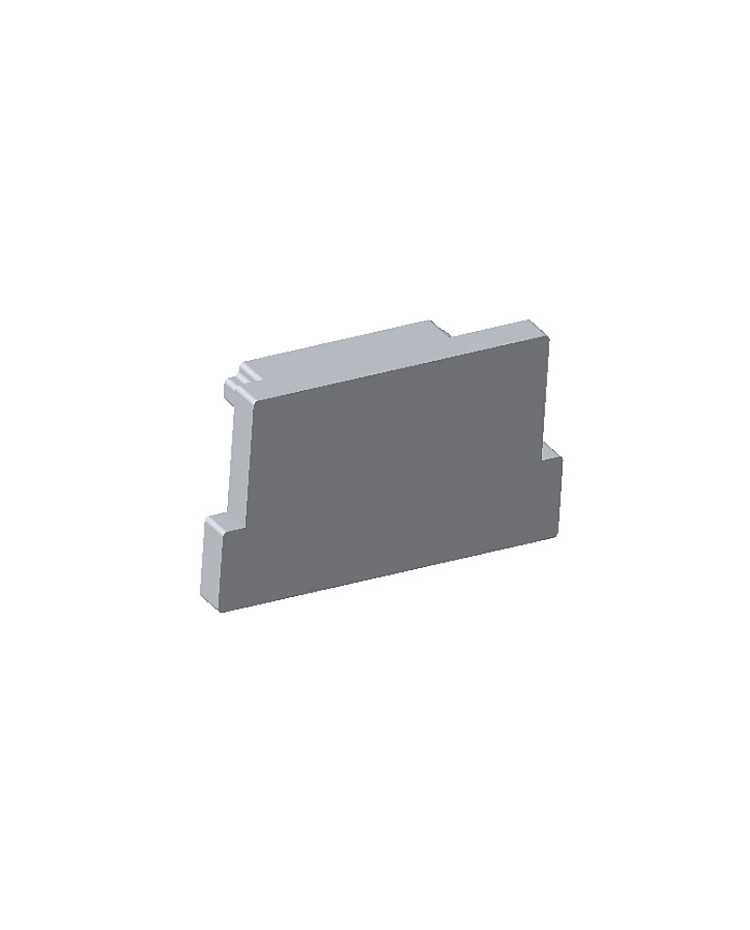

- End caps with/without wire hole included

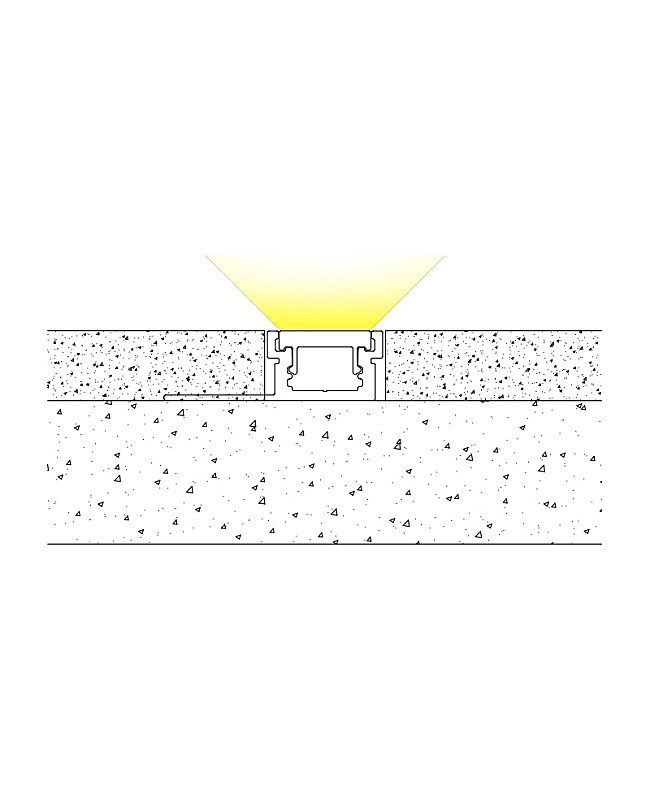

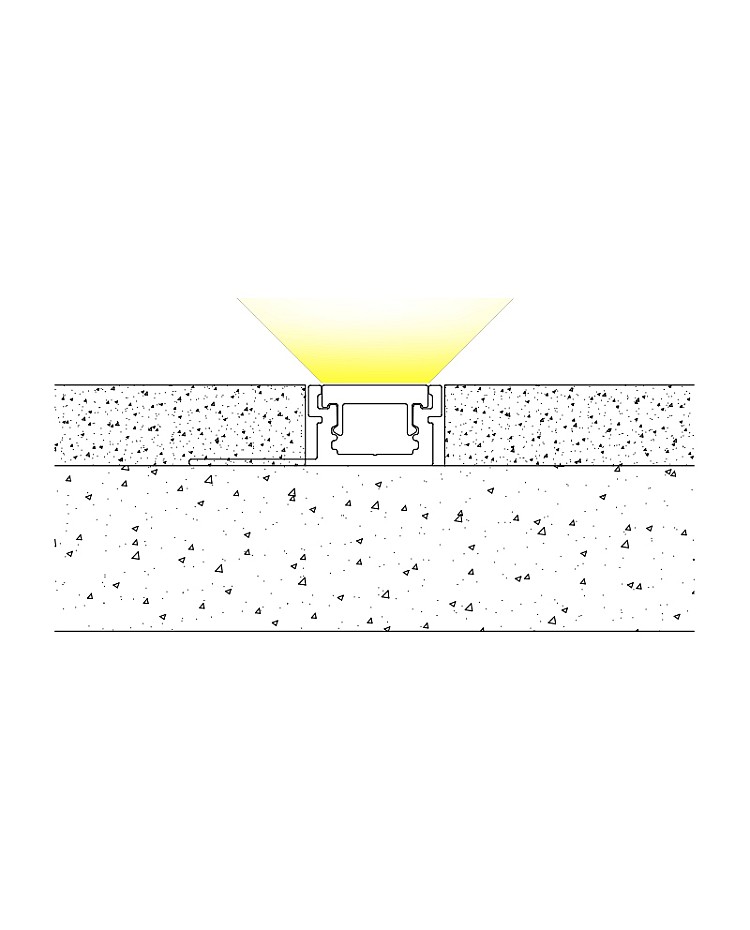

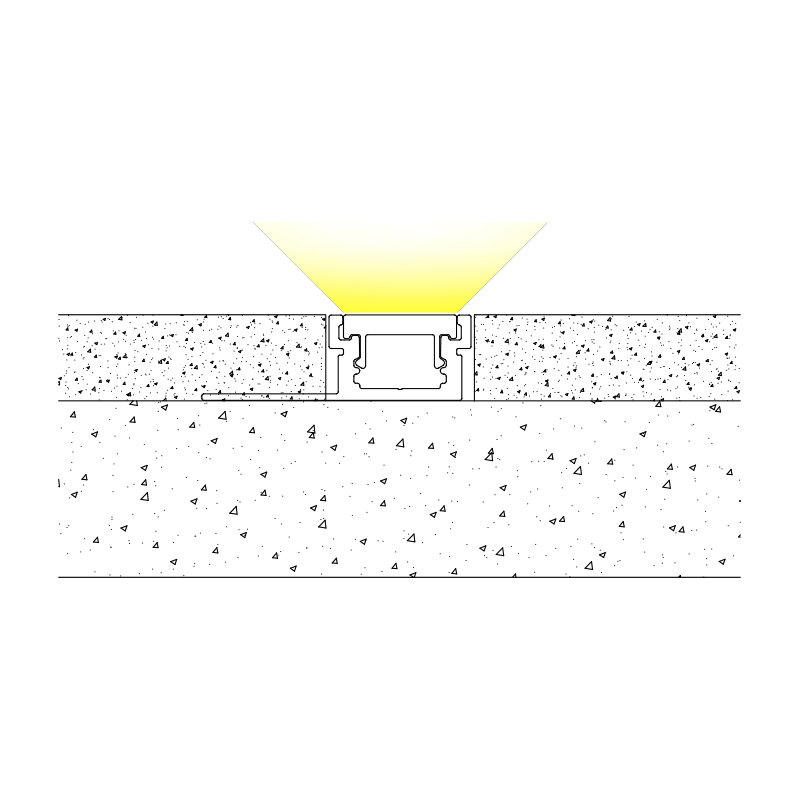

- Installation: Recessed (tiles, marbles)

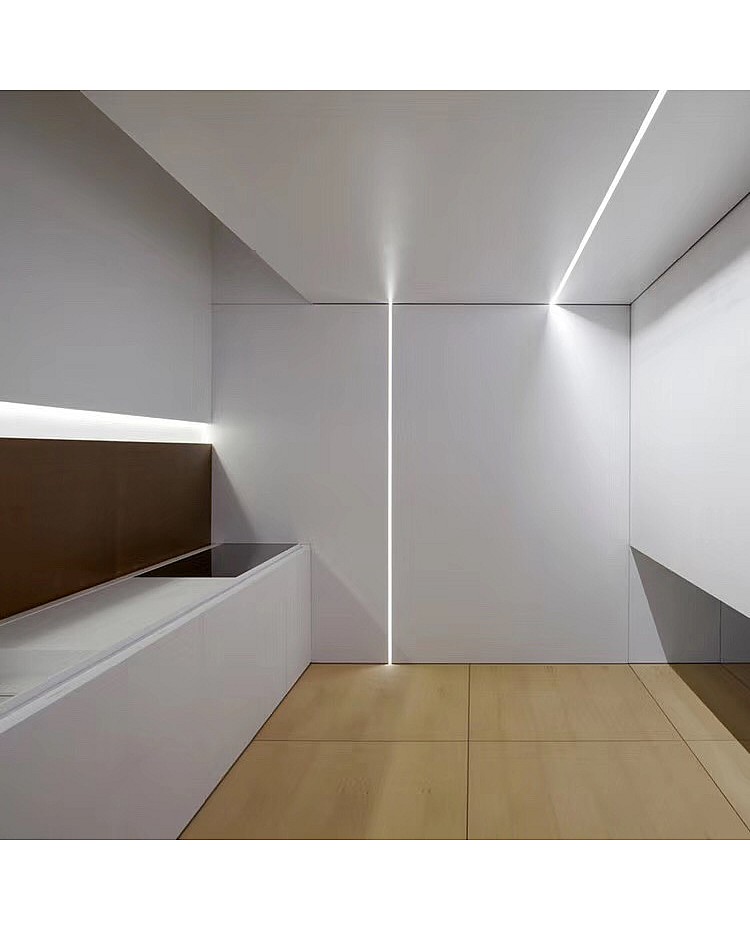

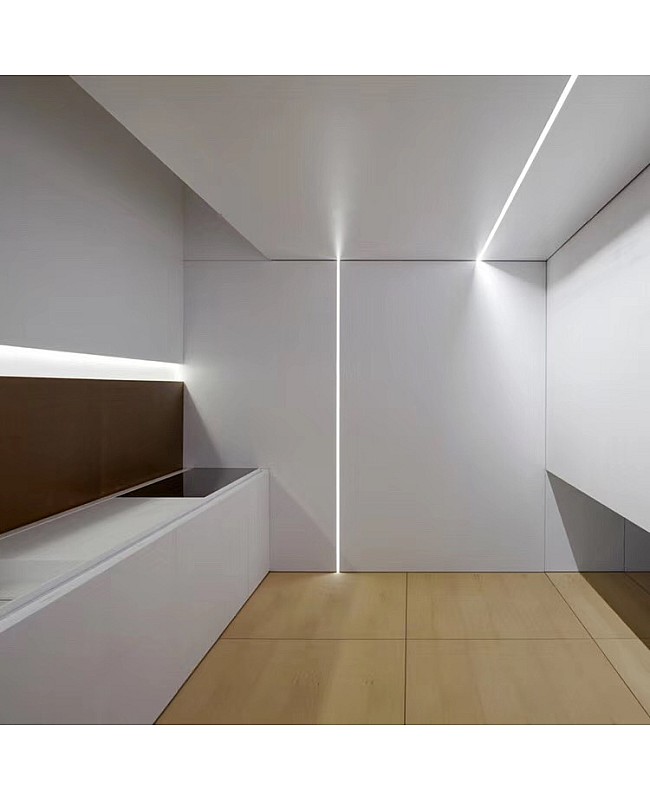

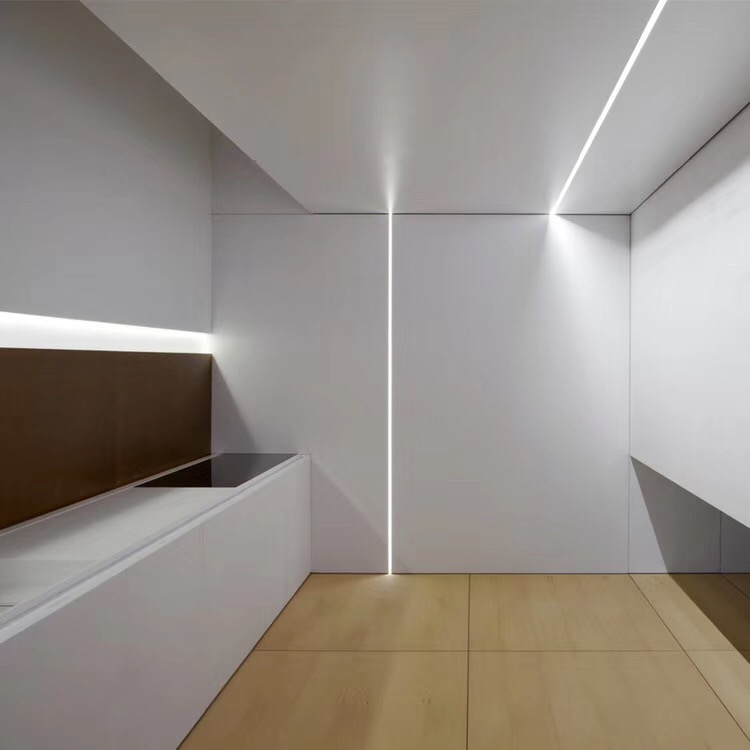

- Applications: In tiled areas in the kitchen, bathroom, shower niche, wall, swimming pool, etc
- Certifications: CE, ROHS
- 5-year warranty

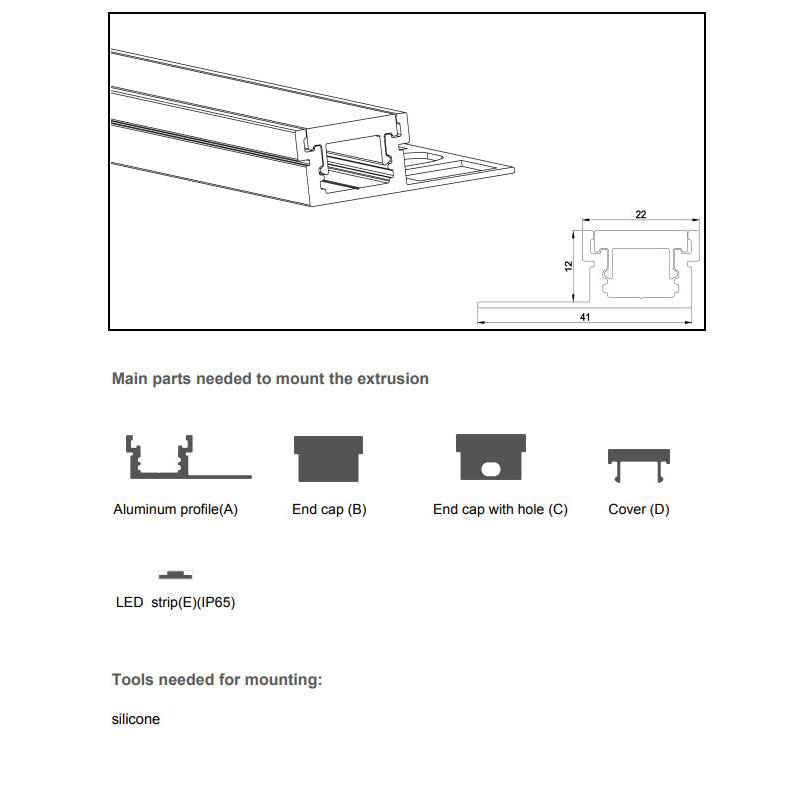

Includes:
1 * Recessed Light Profile With Diffuser

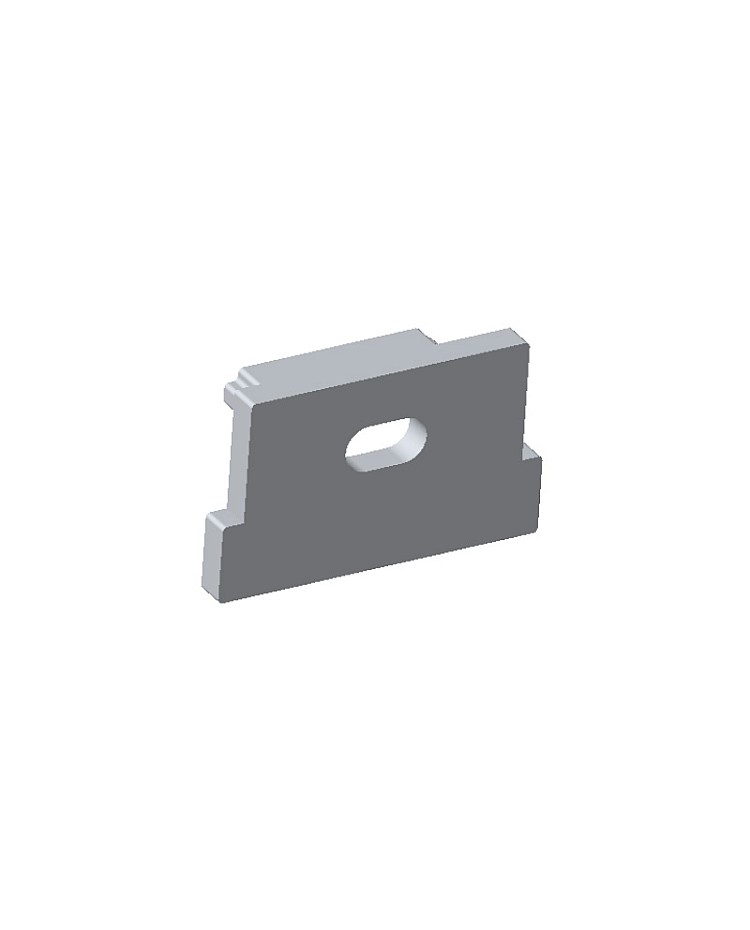

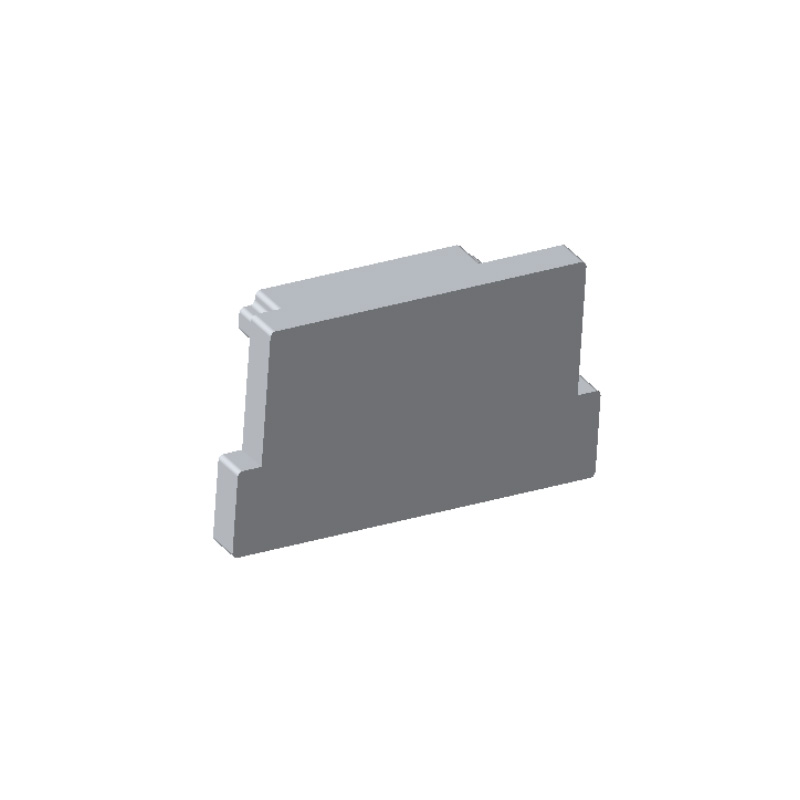

End Caps(With And Without Wire Holes)

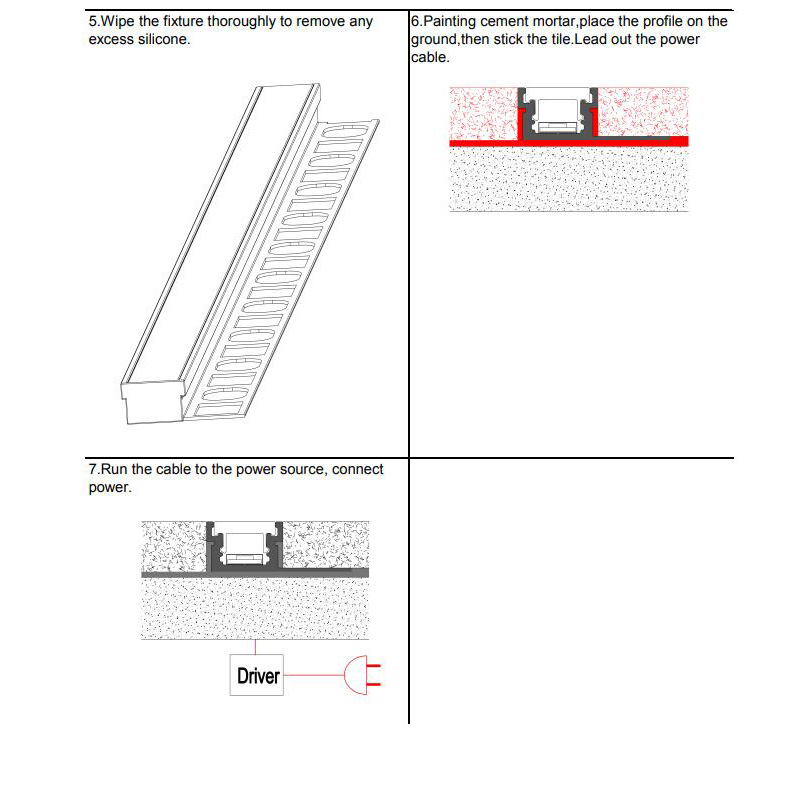

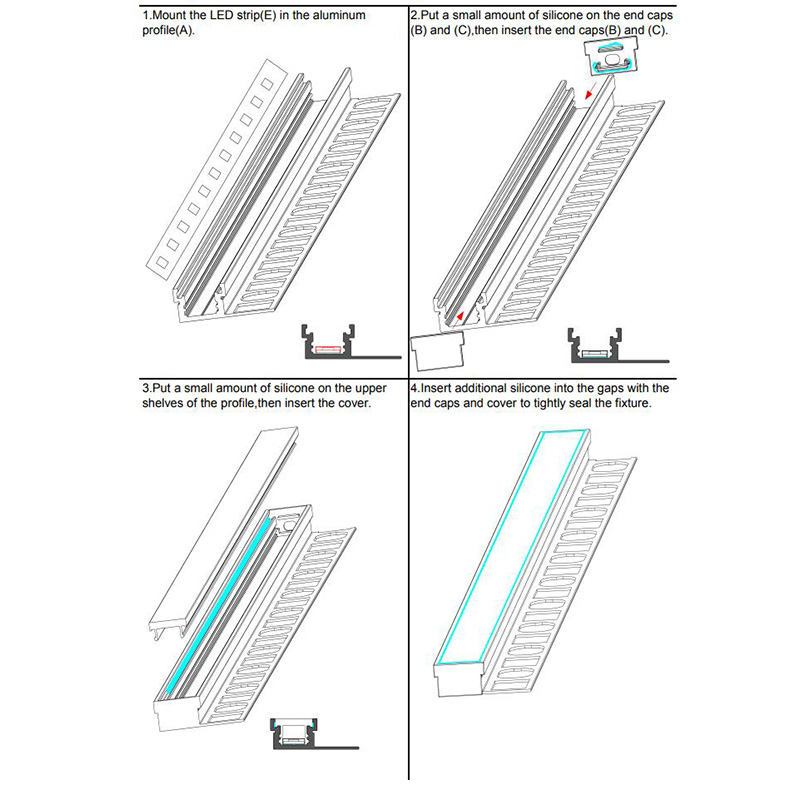

The Steps Of Installation:
1. Prepare the necessary accessories, including lighting strips, power supply, controller, connectors, and wires.
2. Mount the LED tapes on the aluminum profile.
3. Lead out the power cable of LED strips and install the end caps with and without wire holes.
4. Use silicone glue to seal the end caps.
5. Put a small amount of silicone glue on the upper shelves of the profile and insert the diffuser.
6. Insert additional silicone glue into the gaps between the end caps and covers to achieve a tight seal.
7. Wipe the tile trim LED profiles thoroughly to remove the extra silicone glue.
8. Paint cement mortar, place the profile where you want to install it, then stick the tile and lead out the power cable.
9. Connect the power cable to the power supply to power the strips on.
10. Installation is complete.
