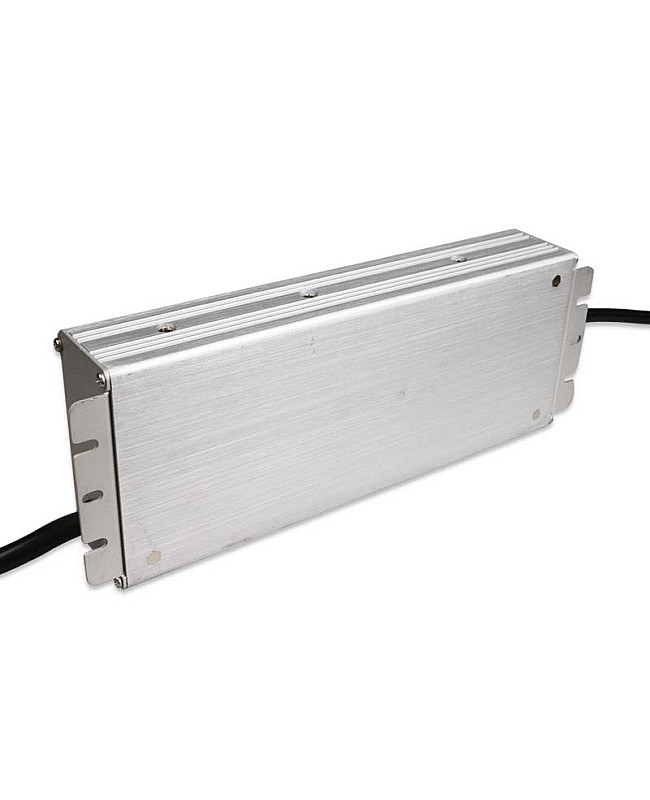

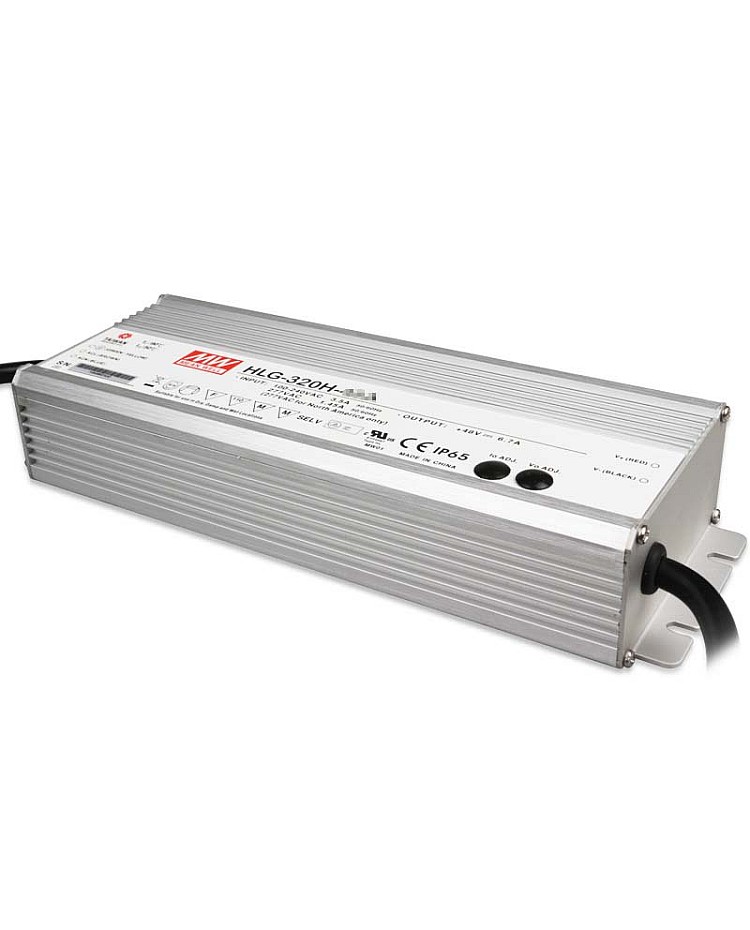

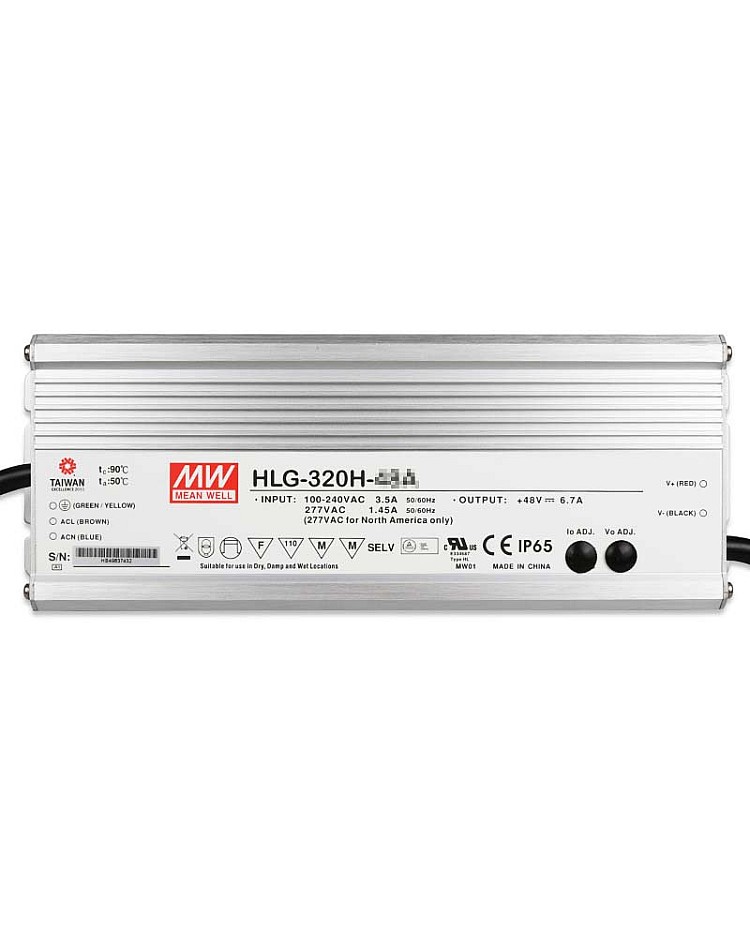

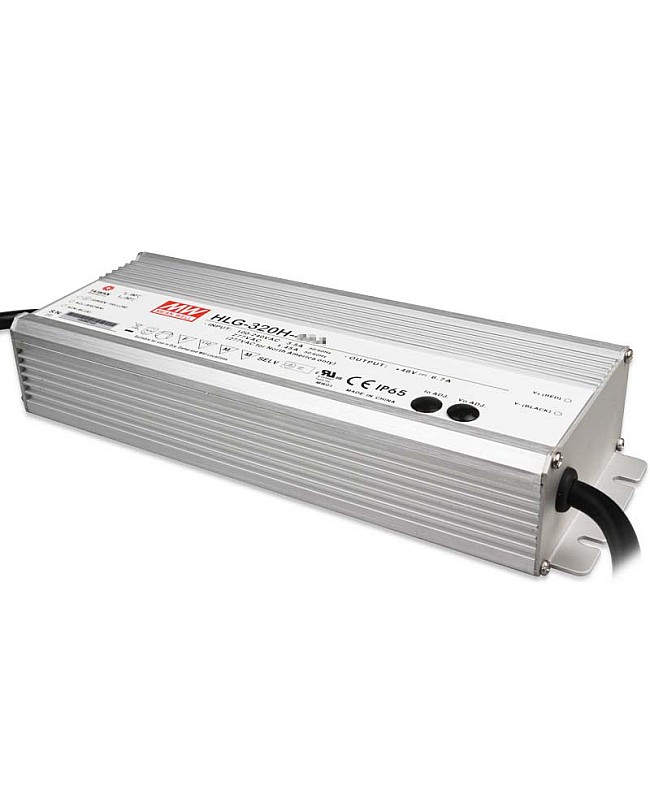

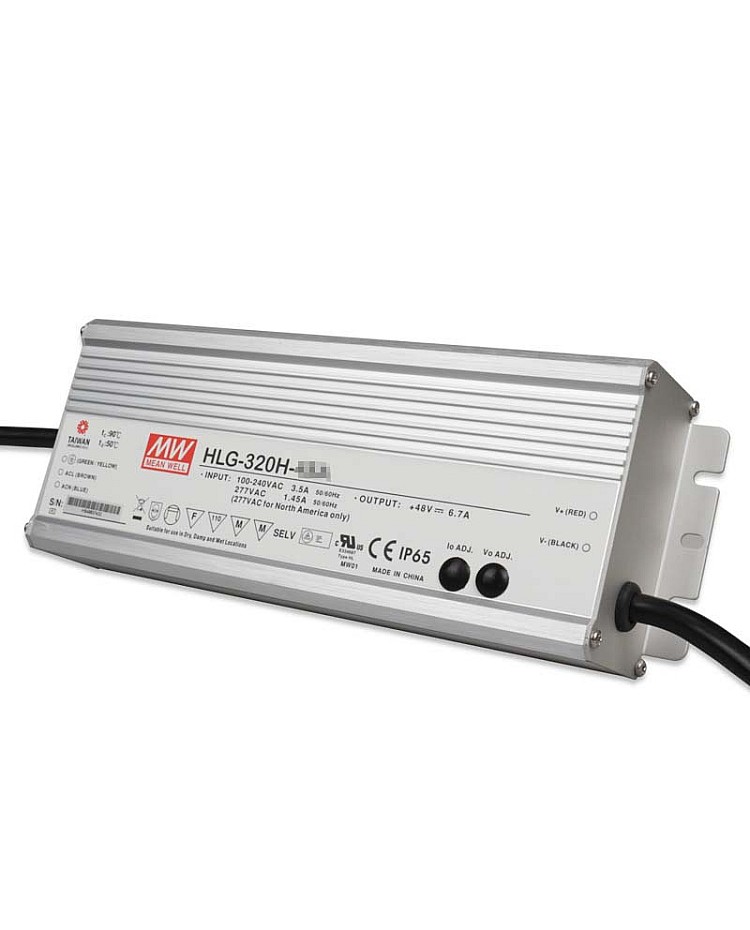

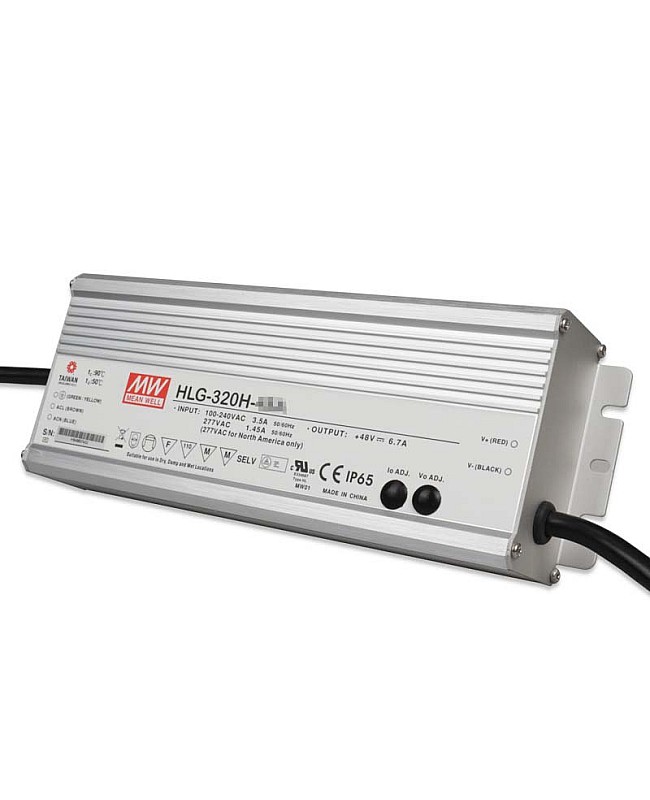

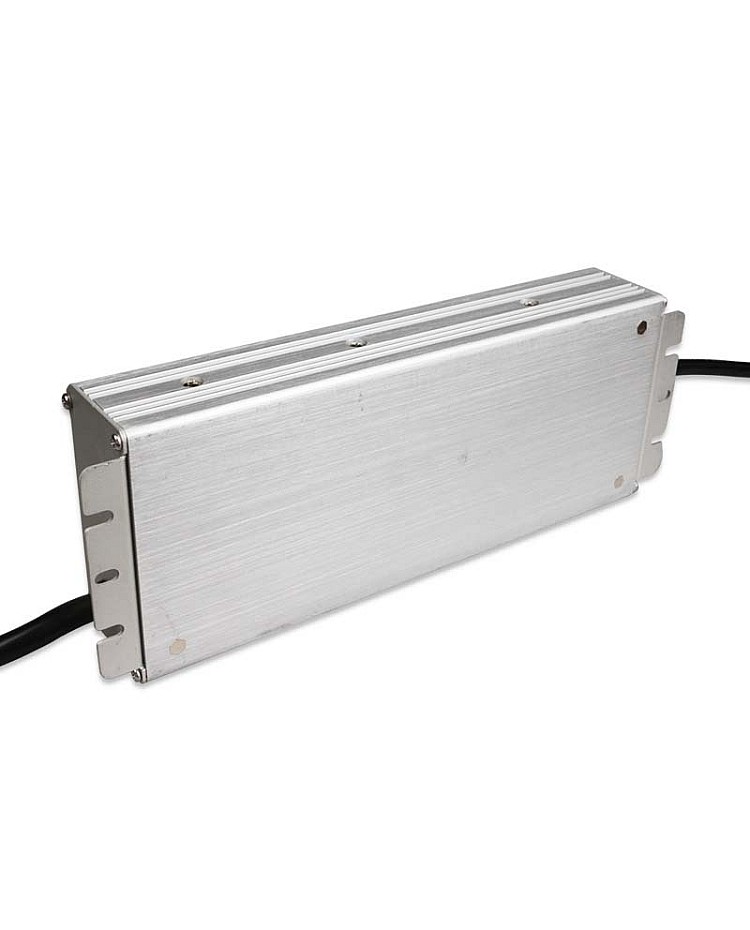

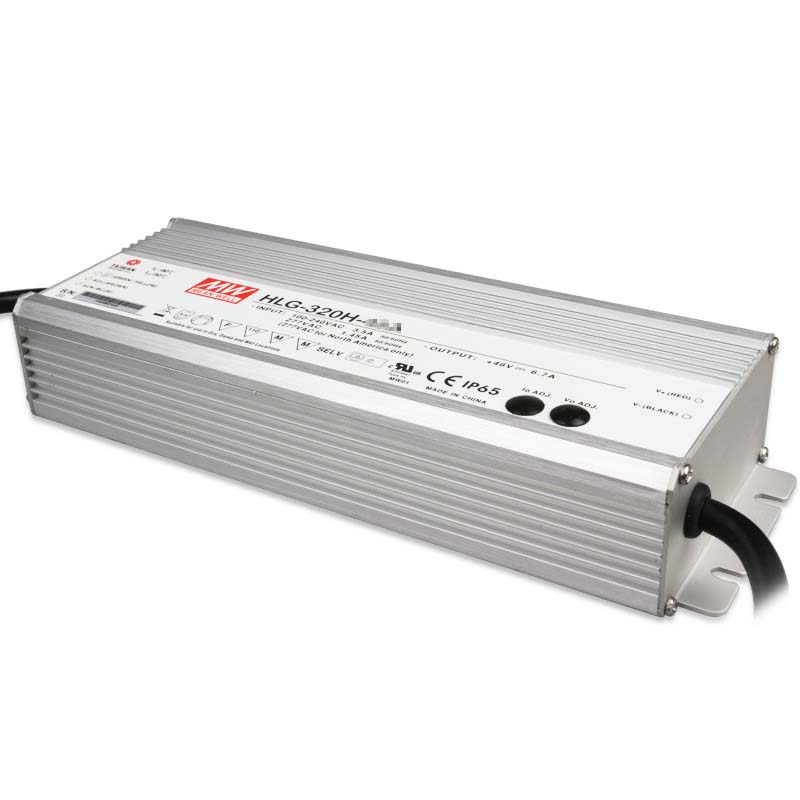

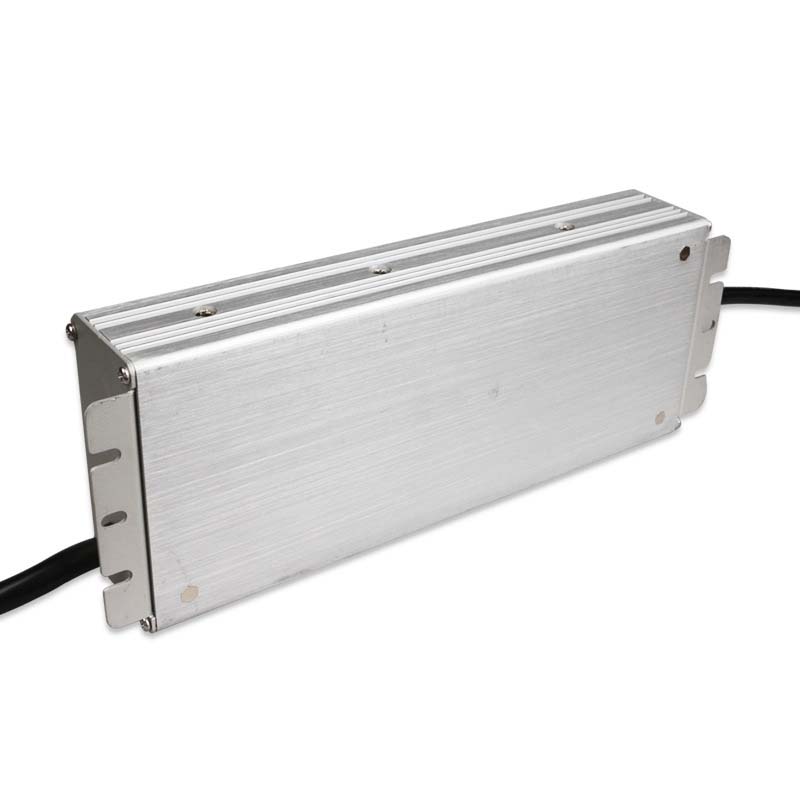

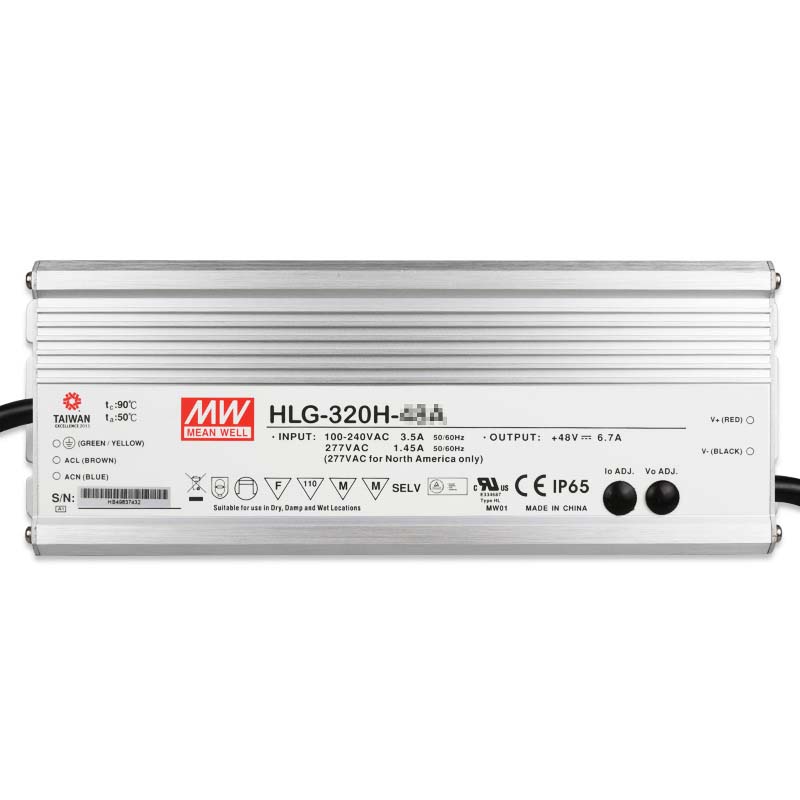

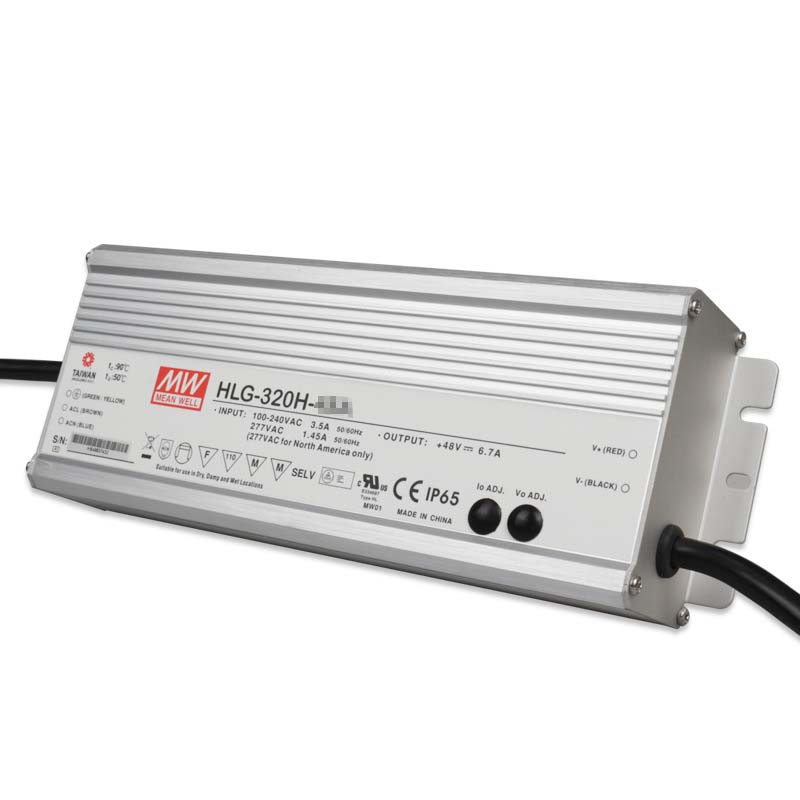

The Mean Well HLG-320H power supply for LEDs, which is enclosed in a metal housing with a class I design, has a waterproof level that can reach IP65 or IP67. You can use them for indoor or outdoor locations, making them suitable for waterproof street lights, high-bay lighting, parking lights, etc. The HLG 320H series LED power supplies have a constant voltage and current mode output design. The A, B, and C types have an output voltage and current adjustable design through the built-in potentiometer, and the B, AB, and D types have a dimming function. The AC to DC LED power supplies operate from AC90V to AC305V and offer models with different rated voltages ranging from DC12V to DC54V. With a high-efficiency rate up to 94%, without fan design, and able to operate for -40℃ to 90℃ case temperature under free air convection. The super-long lifespan of over 62,000 hours and a 7-year warranty.

  • Constant Voltage And Constant Current Mode Output
  • Output Voltage And Output Current Adjustable Through The Built-in Potentiometer(A, B, C Types)
  • Dimming Function(B, AB, D Types)
  • Metal Housing With Class I Design
  • Built-in Active PFC Design
  • IP67 / IP65 Rating For Indoor Or Outdoor Installations
  • Lifespan: >62,000 Hours
  • Suitable For Outdoor Street Lamps, High-Bay Lights, Parking Space Lighting, Waterproof Fishing Lamps, etc

Quick Links:

Mean Well HLG-320H Series Specification Document


Specifications:

  • Model: HLG-320H

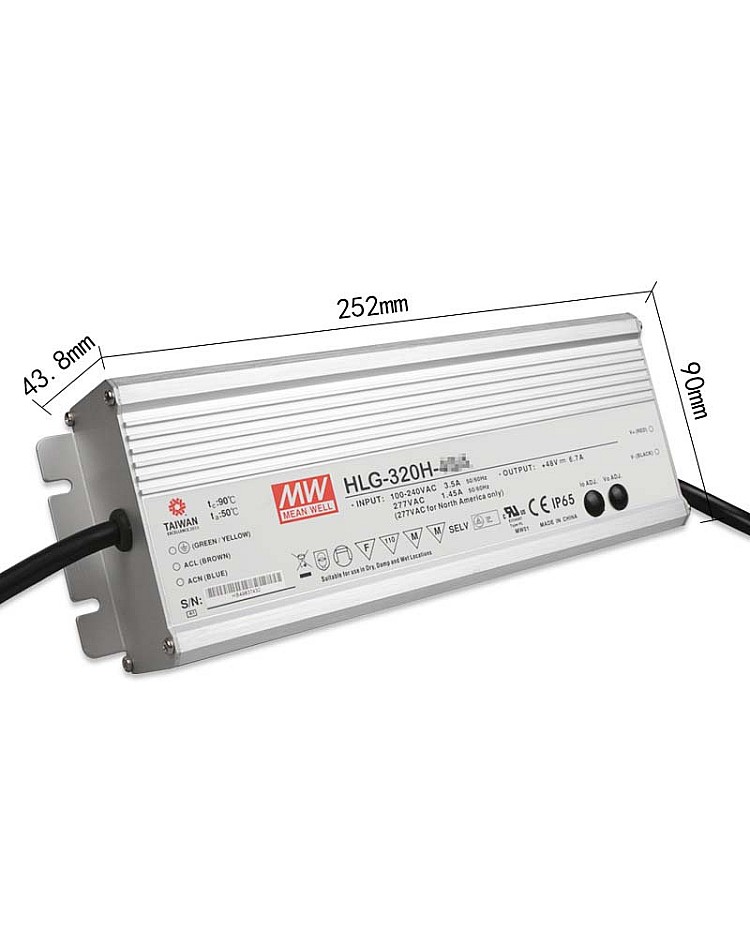

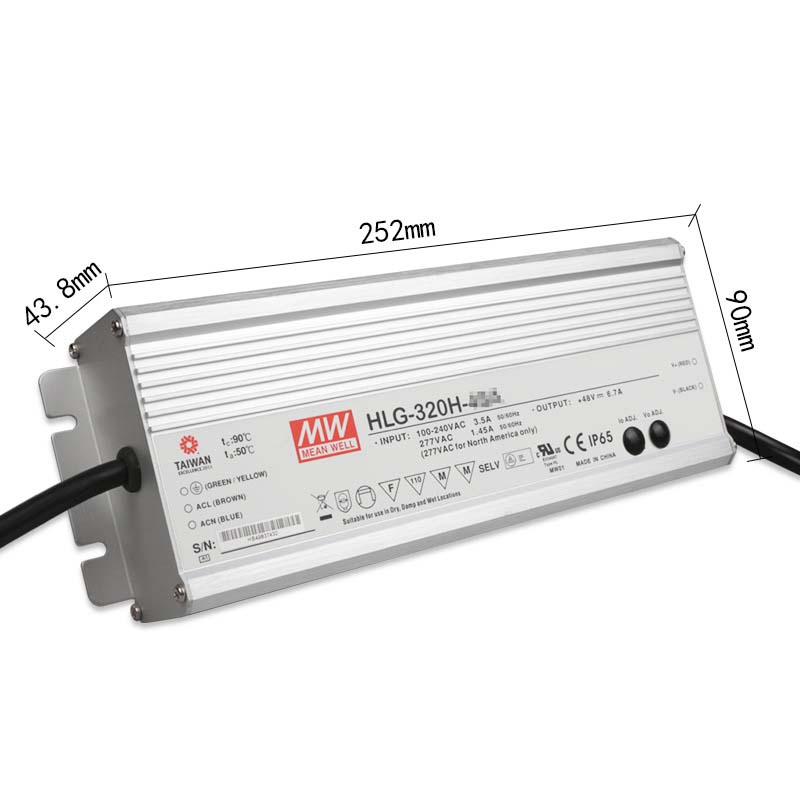

  • Size: 252*90*43.8mm(L*W*H)
  • Types:
  • Blank: IP67 Waterproof Level, Voltage, And Current Fixed
  • A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer
  • B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • AB: IP65 Waterproof Level, Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • C: NO IP Assigned, Terminal Block For I/O Connection. The Output Voltage And Constant Current Level Can Be Adjusted Through the Internal Potentiometer
  • D: IP67 Waterproof Level, Timer Dimming Function
  • Input Voltage Range: 90- 305VAC
  • Frequency Range: 47- 63Hz
  • Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥277VAC
  • Efficiency: 91%(DC12V), 92.5%(DC15V), 93.5%(DC20V), 94%(DC24V), 94%(DC30V), 94.5%(DC36V), 95%(DC42V), 95%(DC48V), 95%(DC54V)
  • AC Current: 3.5A/115VAC, 1.65A/230VAC, 1.45A/277VAC
  • Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
  • Rated Current: 22A(DC12V), 19A(DC15V), 15A(DC20V), 13.34A(DC24V), 10.7A(DC30V), 8.9A(DC36V), 7.65A(DC42V), 6.7A(DC48V), 5.95A(DC54V)
  • Rated Power: 264W(DC12V), 285W(DC15V), 300W(DC20V), 320.16W(DC24V), 321W(DC30V), 320.4W(DC36V), 321.3W(DC42V), 321.6W(DC48V), 321.3W(DC54V)
  • Current Adjustable Range(For A/AB/C Type Only Via Built-in Potentiometer): 11-22A(DC12V), 9.5-19A(DC15V), 7.5-15A(DC20V), 6.67-13.34A(DC24V), 5.35-10.7A(DC30V), 4.4.5-8.9A(DC36V), 3.8-7.65A(DC42V), 3.35-56.7A(DC48V), 2.97-5.95A(DC54V)
  • Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 21-26V(DC24V), 26-32V(DC30V), 32-39V(DC36V), 38-45V(DC42V), 43-52V(DC48V), 49-58V(DC54V)
  • Working Temperature: -40℃-+80℃
  • Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
  • Safety Standards: UL1012, CAN/CSA-C22.2 N0.107.1-01, UL8750(type "HL"), CSA C22.2 NO.250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-12 independent(Except For HLG-240H C Type), IEC/UL/EN62368-1(except for AB.D Type), UL8750; GB19510.14(except for C Type); IP65 or IP67; J61347-1, J61347-2-13(except for B, AB and D type), BIS IS15885(for 48V only), EAC TP TC 004, KC61347-1, KC61347-2-13(except for AB, C, D type) approved
  • Short Circuit Protection
  • Over-Voltage Protection
  • Over Temperature Protection
  • 7 Years Warranty


Includes:

1 * HLG-320H Power Supply LED

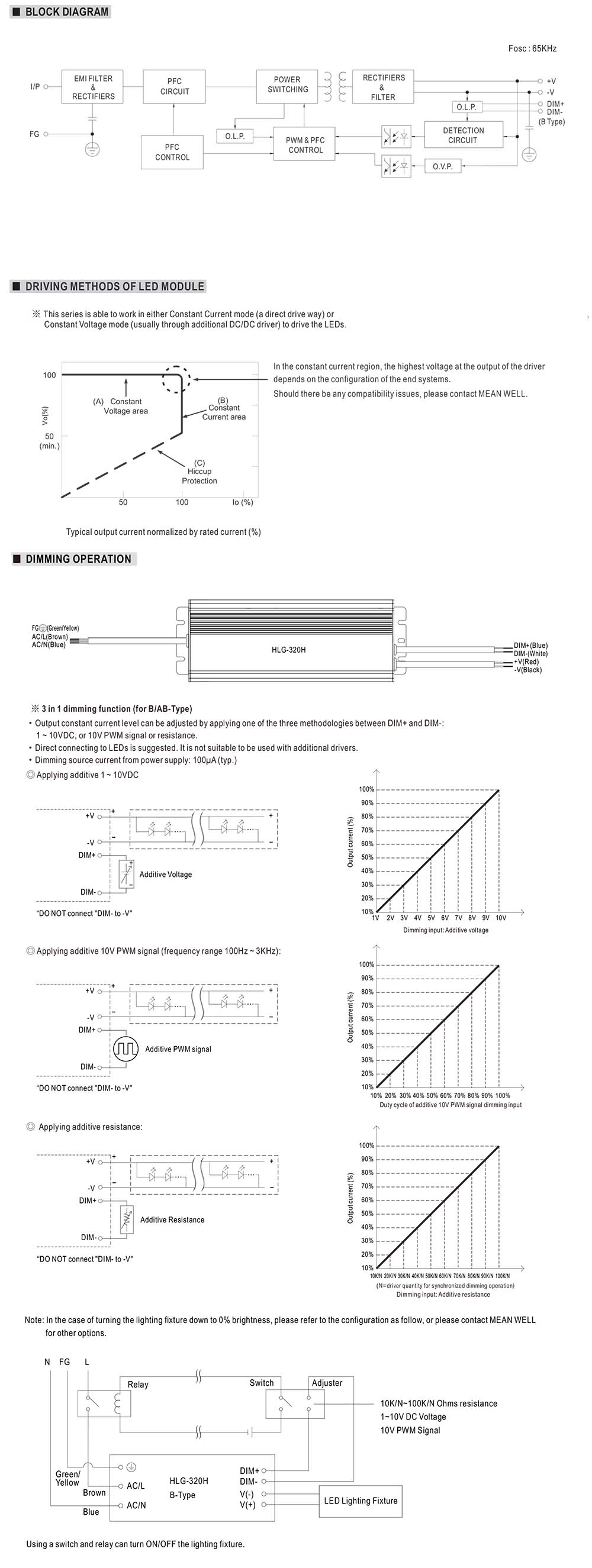

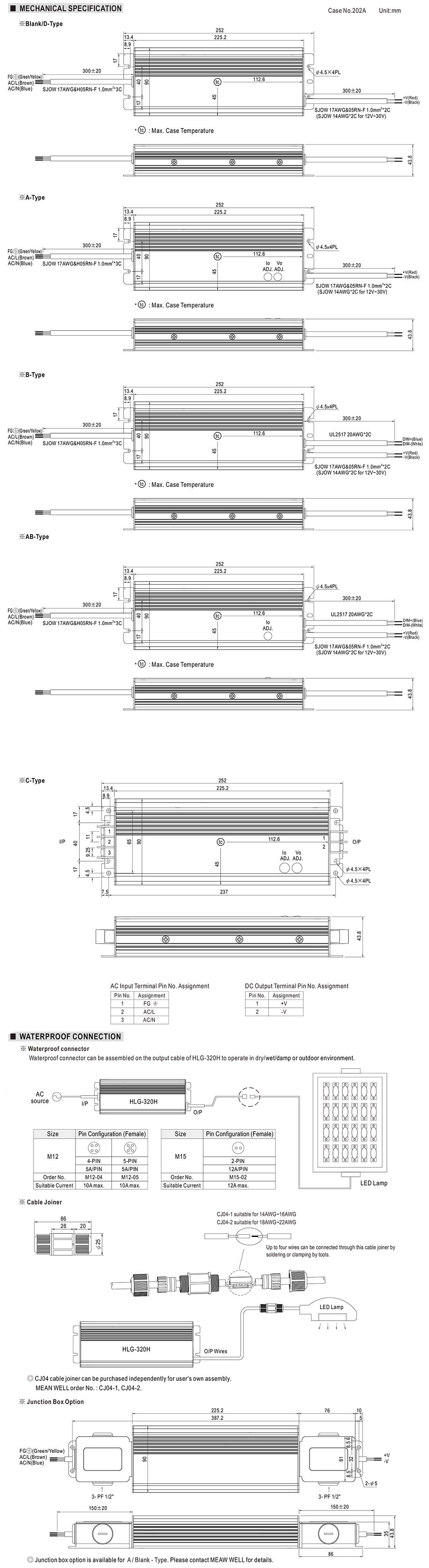

HLG-320H-24 HLG-320H-54A
