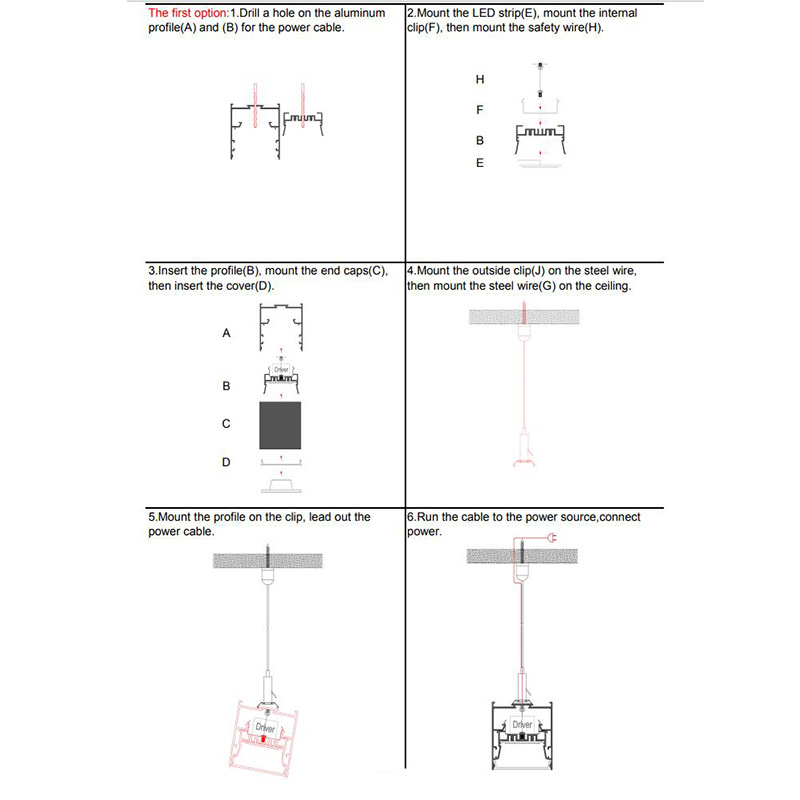

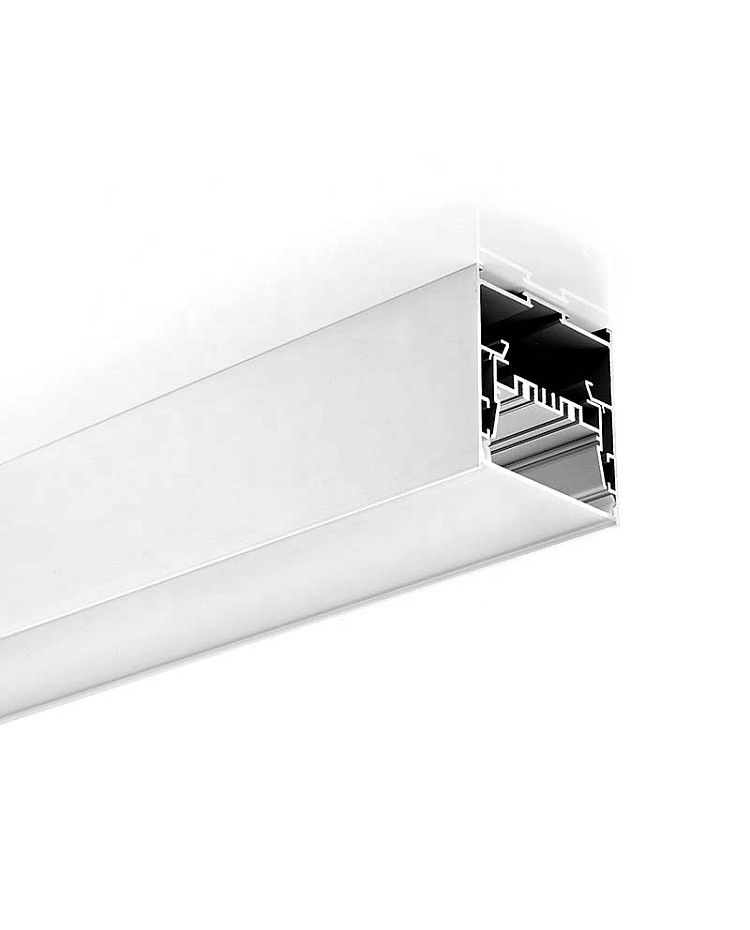

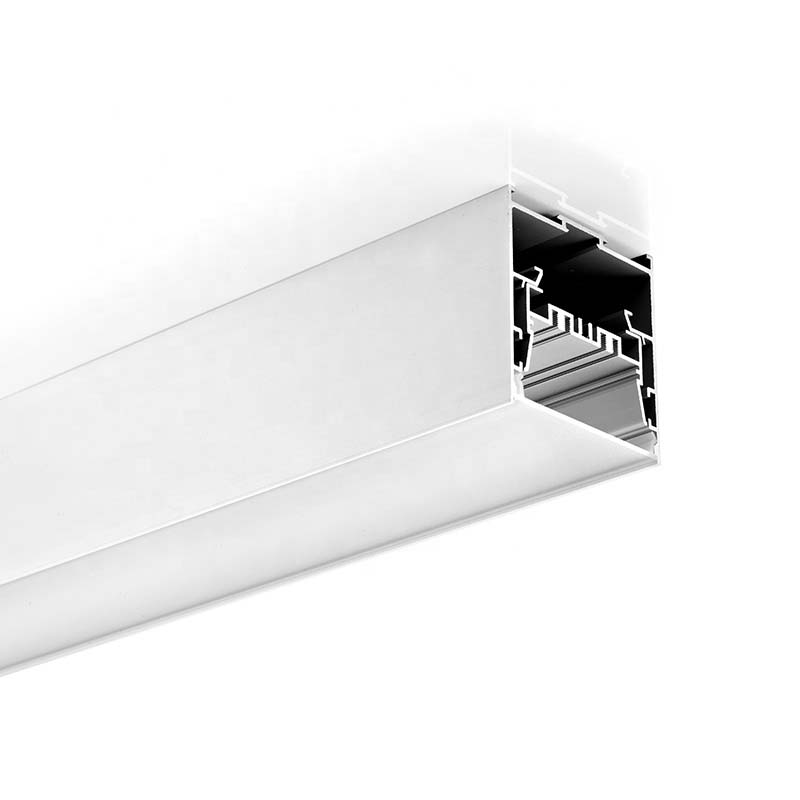

The LED Aluminum Channel System for Pendant lights is a great choice for any commercial or residential application, the system includes a high-performance, corrosion-resistant aluminum channel, which is designed to accept a variety of LED strips and other lighting components. Can be mounted to the ceiling or wall, providing a neat and discreet way to install the pendant light. The standard length is 1M and the max length can do 2.5 meters, can be cut to any length fit for your needs. The Aluminum Channels are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, durability, and a longer lifespan than other similar products. The inner width is 18.5mm and allows the max width of Strip Lights to be 18mm, recommend adding dual rows of high-density COB LED Strip Lights as the light source, with no visible light spots and dark areas, to create evenly, seamless lighting. There is only one type of diffuser available: the PC Frosted Diffuser, made of brand material with stable quality, anti-yellowing, perfect light distribution, and soft light output. End caps, internal and external clips, and suspension wires are included, you can mount them on the surface ceiling or wall or allows pendant installation. With the LED Aluminum Channel System, you can create a unique and attractive lighting design.

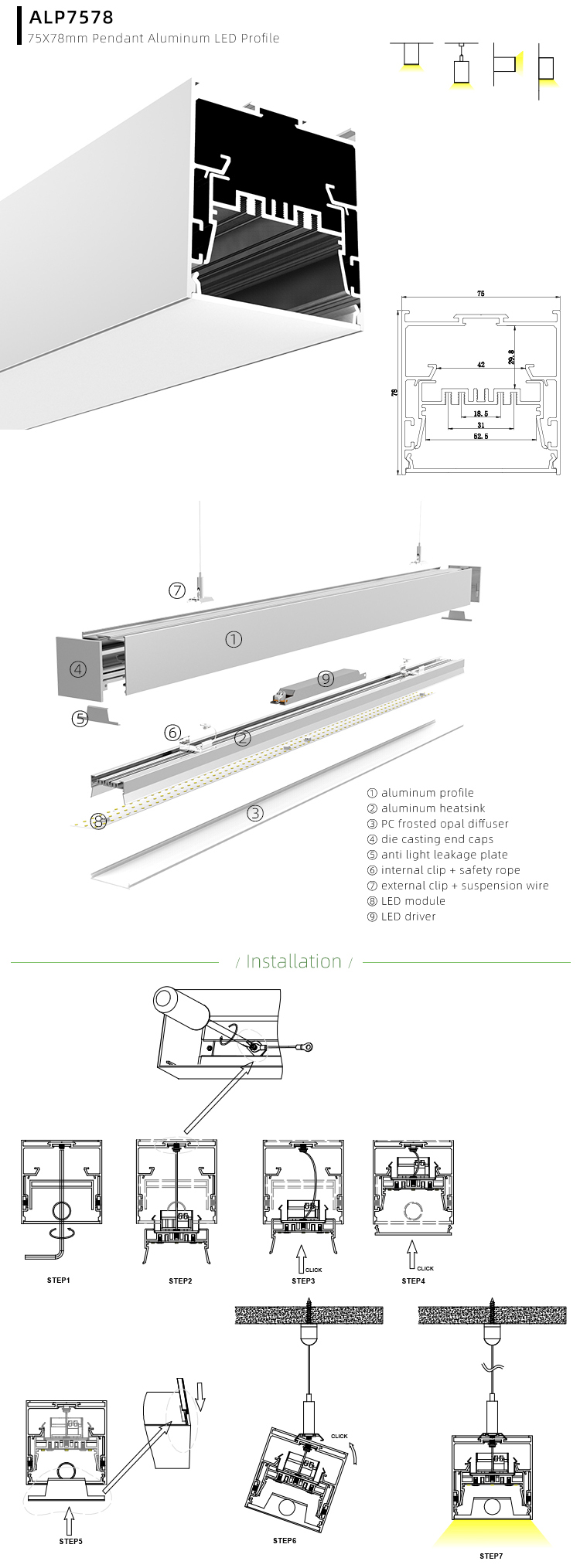

  • Model: ALP7578

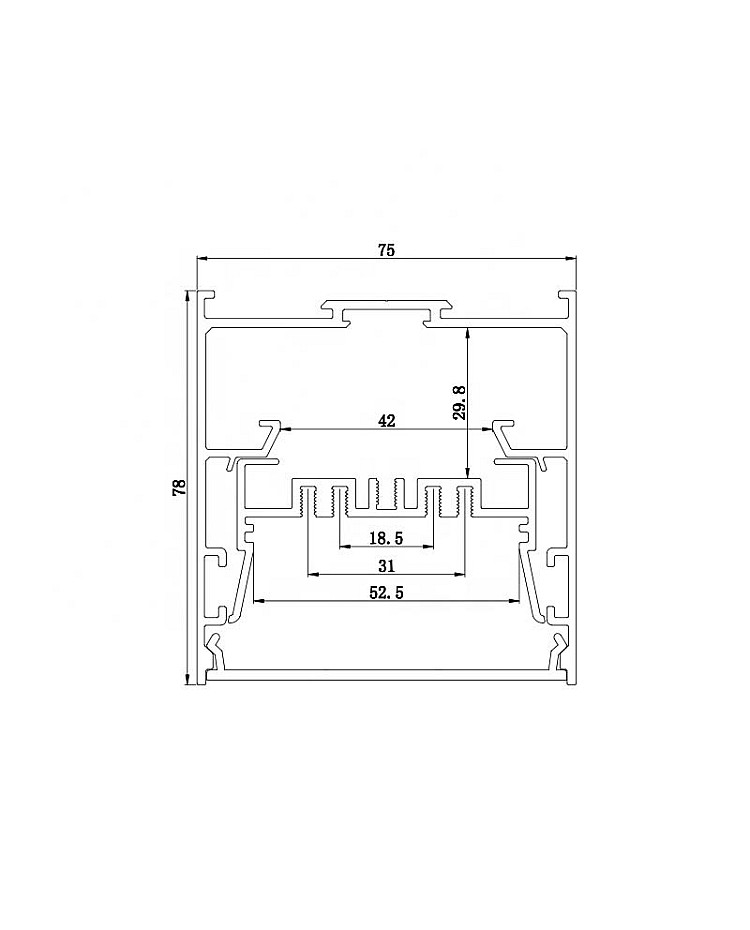

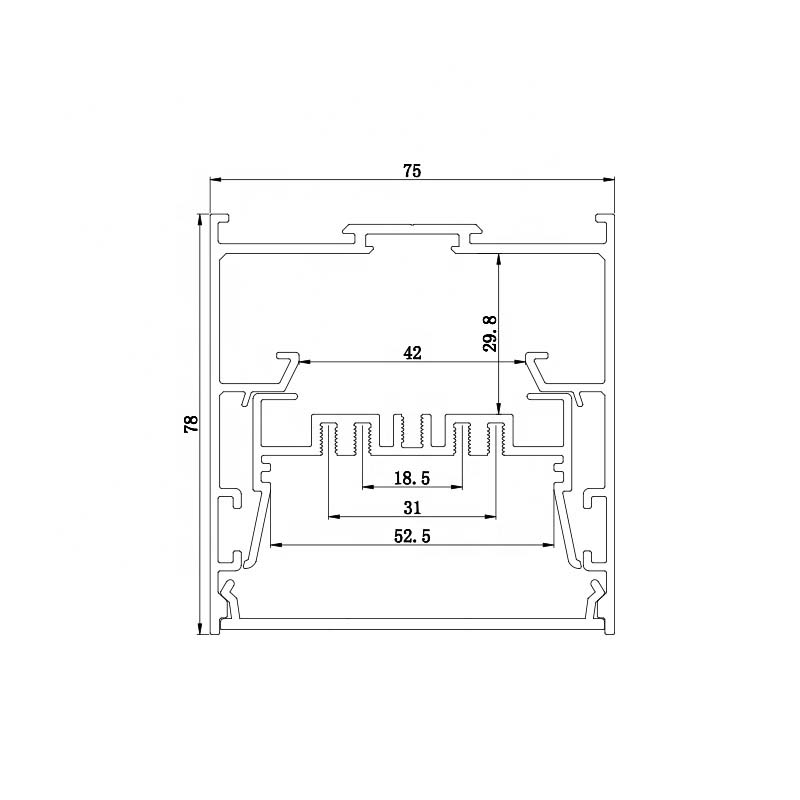

  • Size: 75*78mm
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
  • Custom Length Available: YES
  • Diffuser: PC Frosted Diffuser
  • Inner Width: 18.5mm
  • Max Power: 45W/Meter
  • Compatible With 140mm/280mm/560mm Constant Current LED Modules Or COB LED Strips

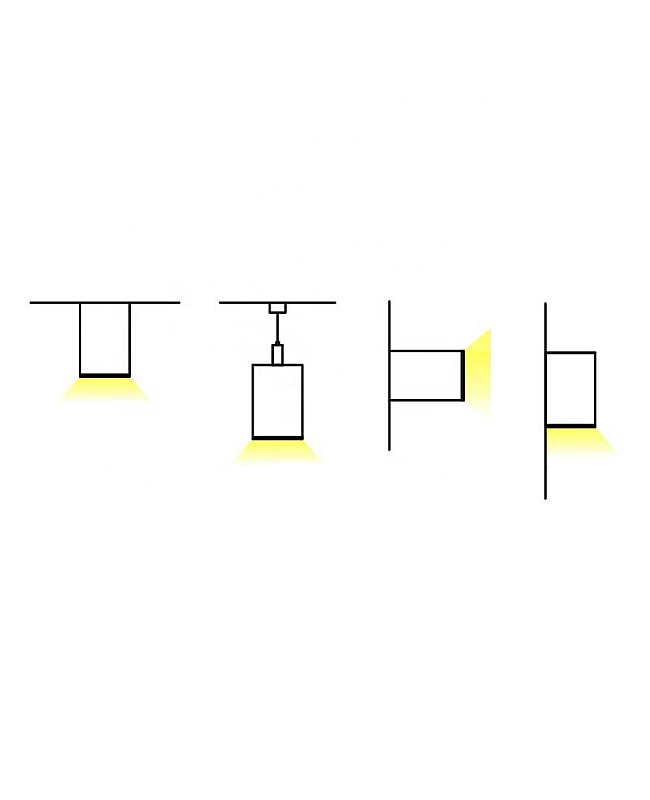

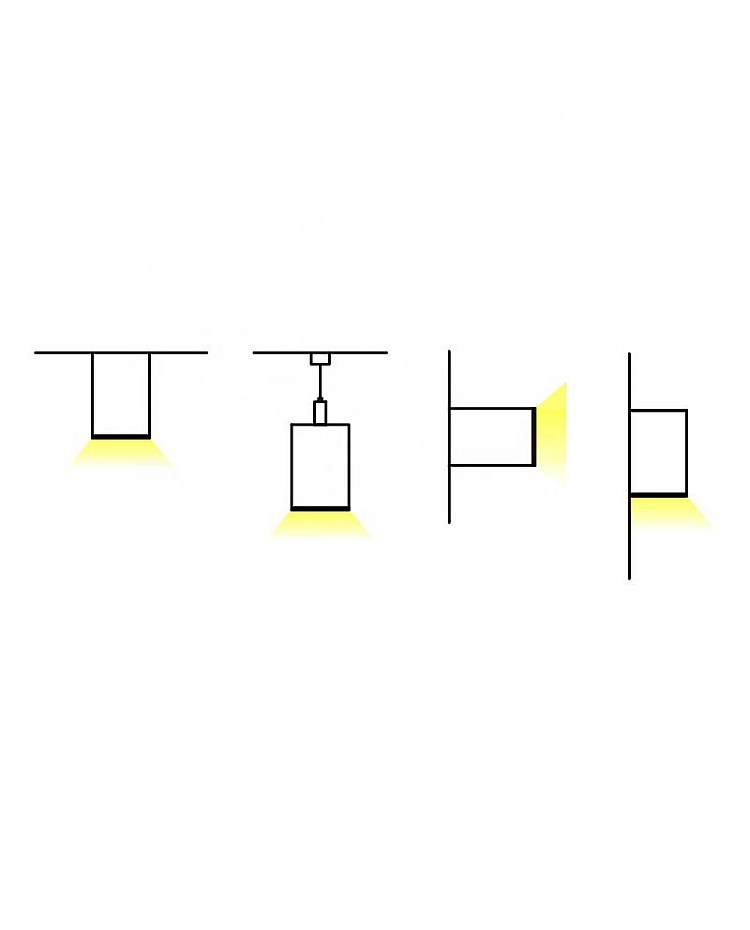

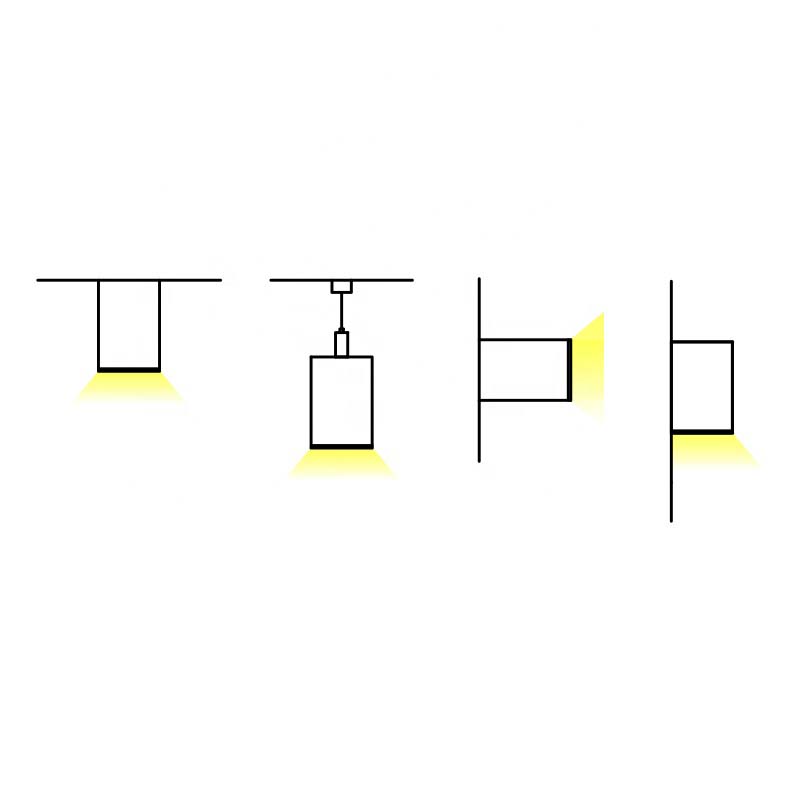

  • Installation: Surface Mounted/Pendant

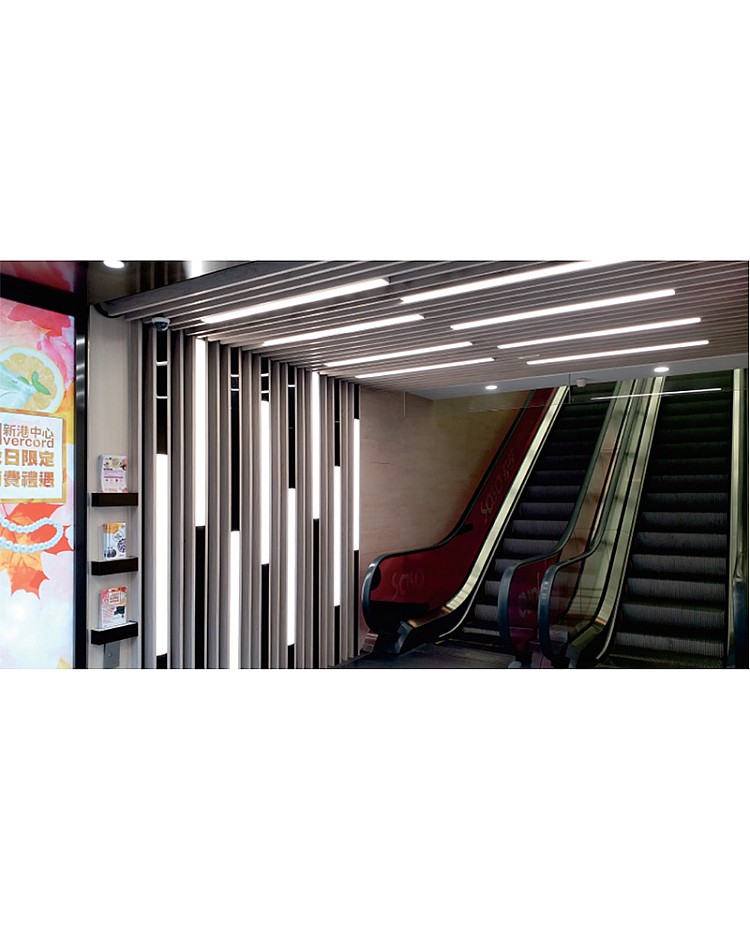

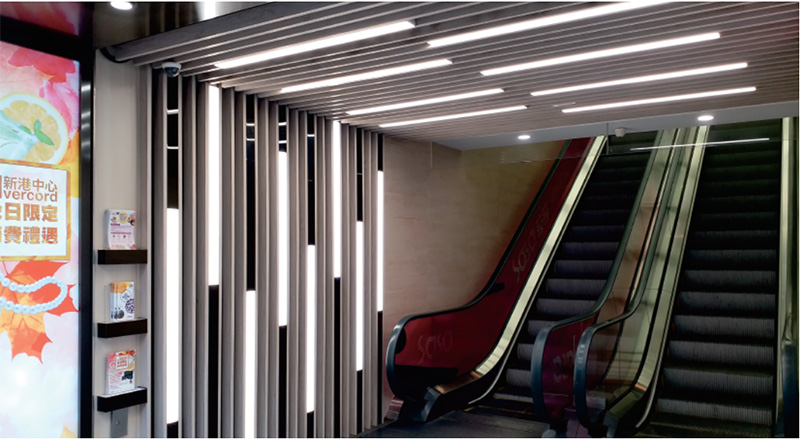

  • Application: Offices, Shops, Retails, Hotels, Schools, etc
  • End Caps, Suspension Wires, And Accessories Included

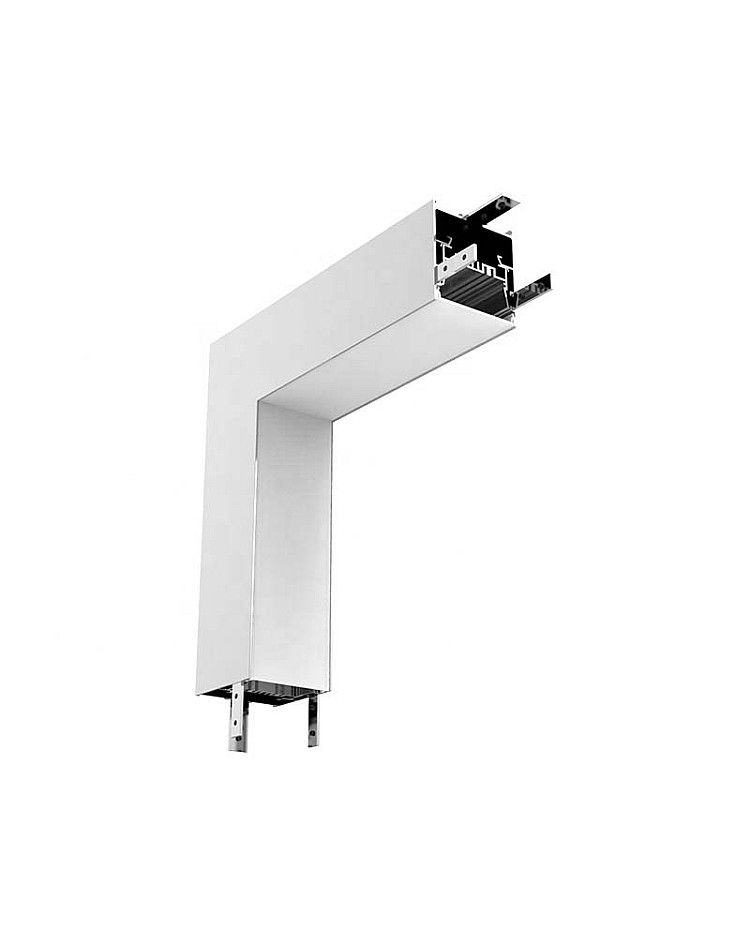

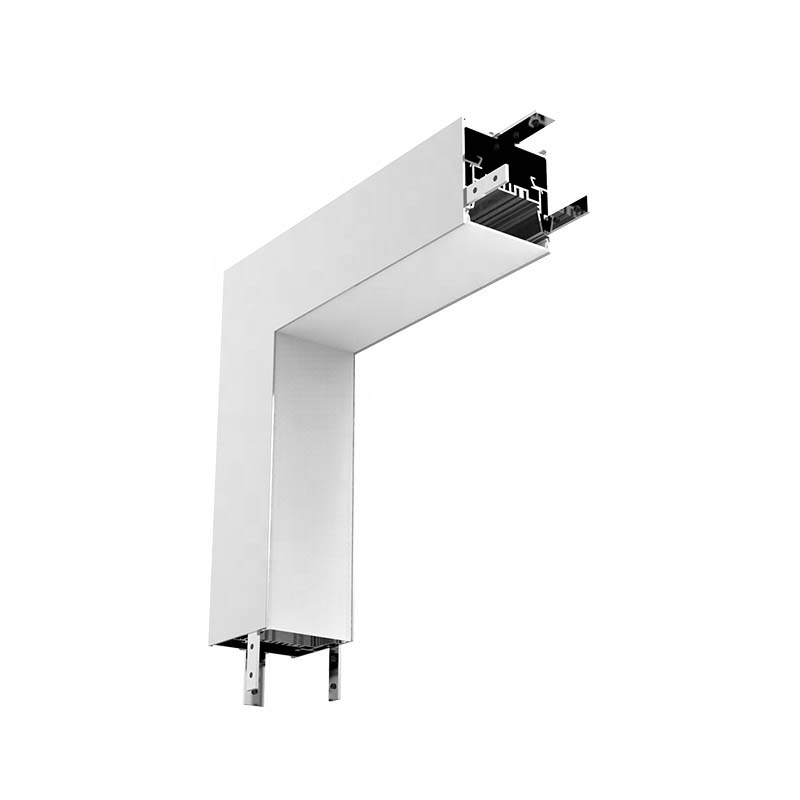

  • " L ", “ T" And Cross Connectors Sold Separately
  • 5 Years Warranty

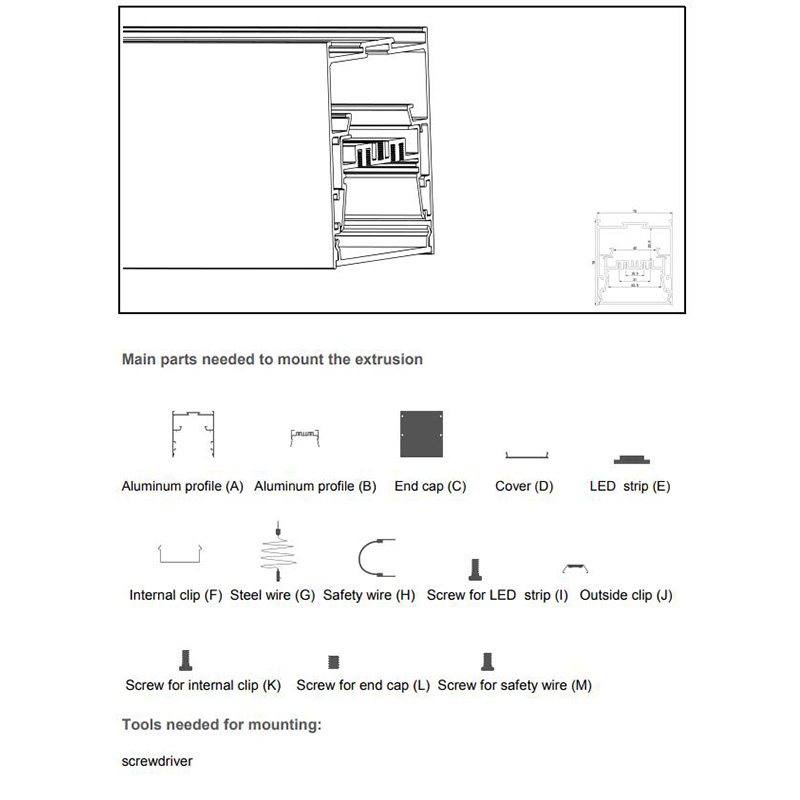

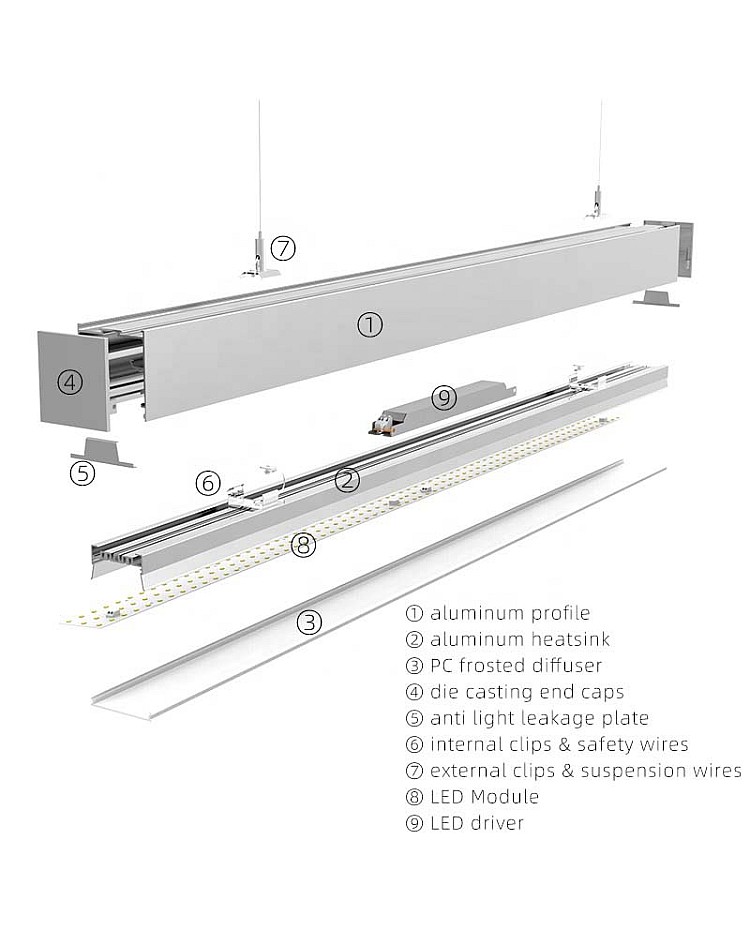

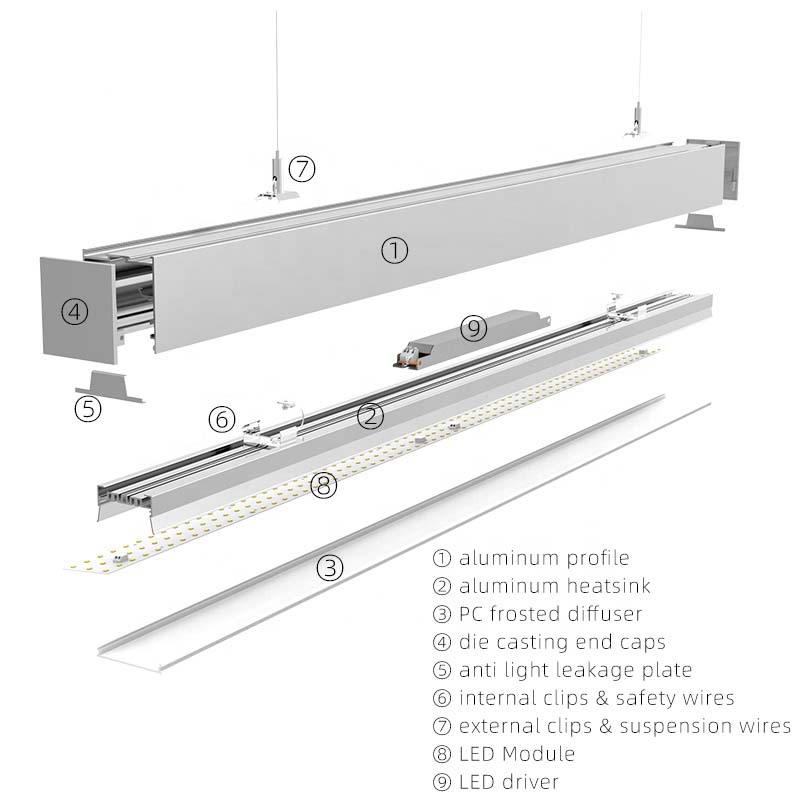

1*LED Aluminum Channel System

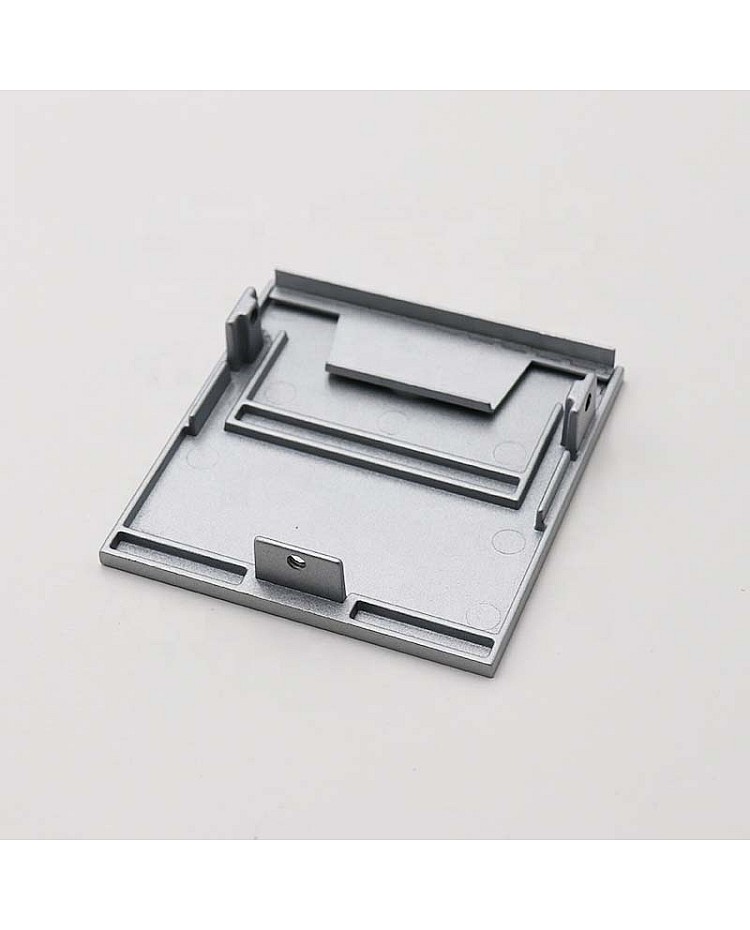

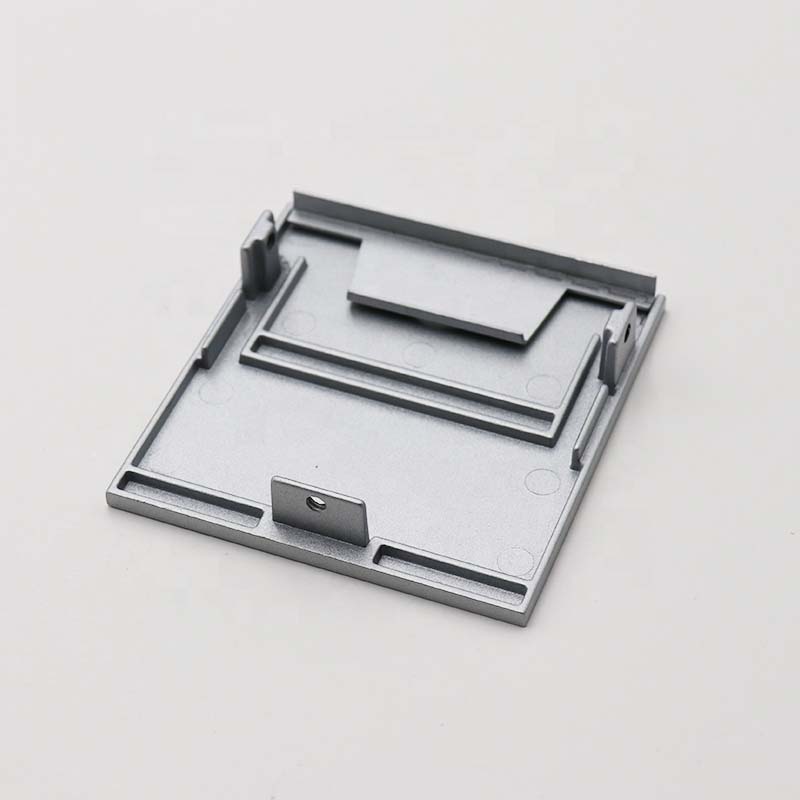

End Caps

Internal Clips

External Clips

Suspension Wires
