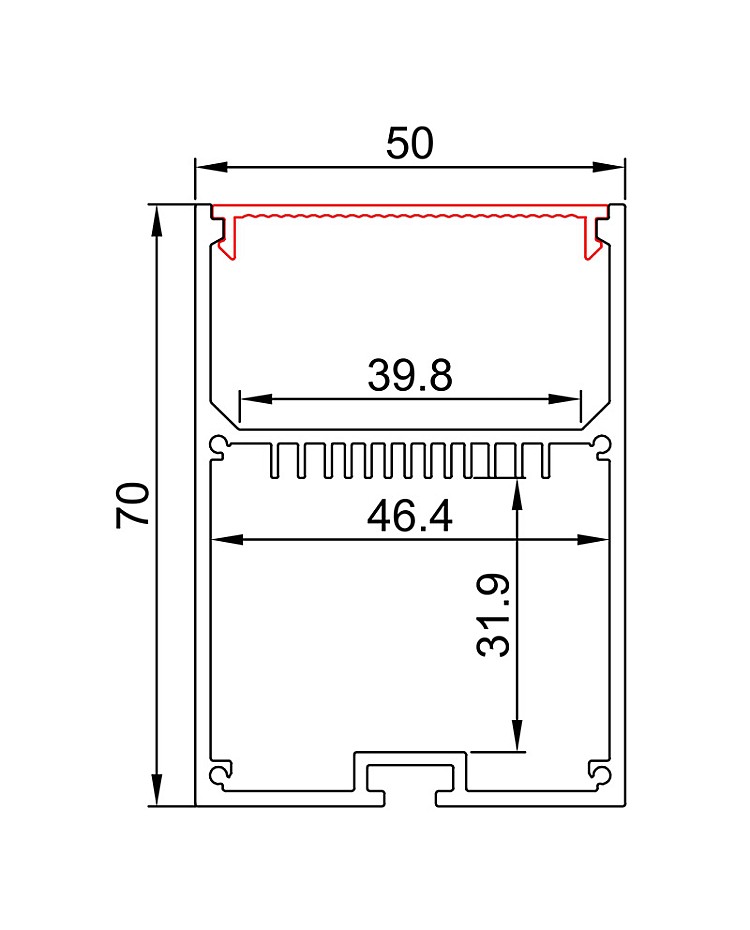

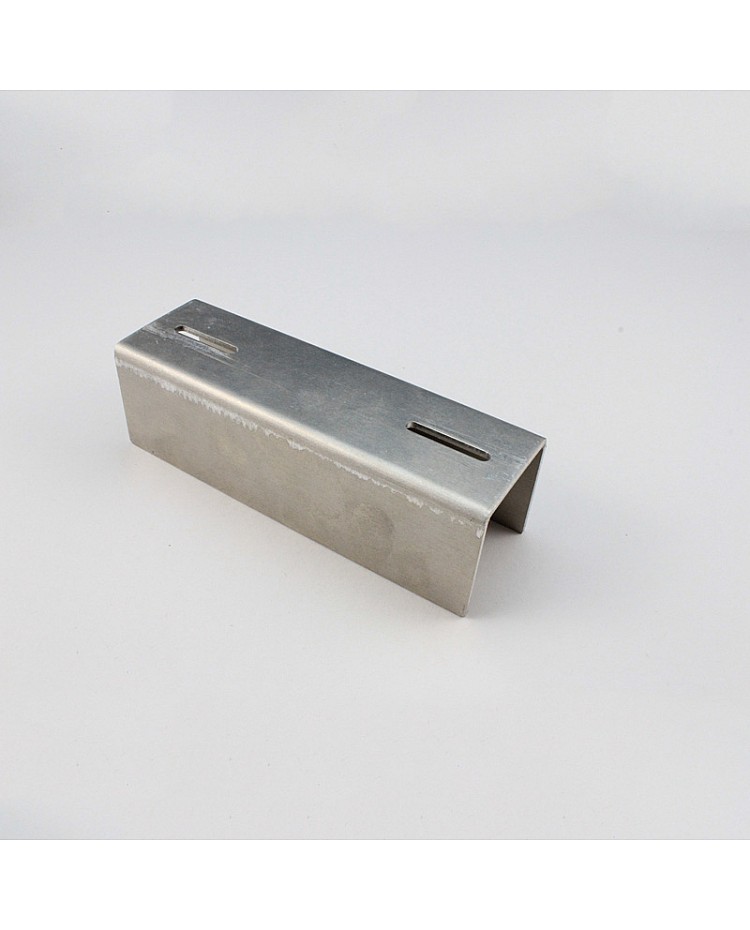

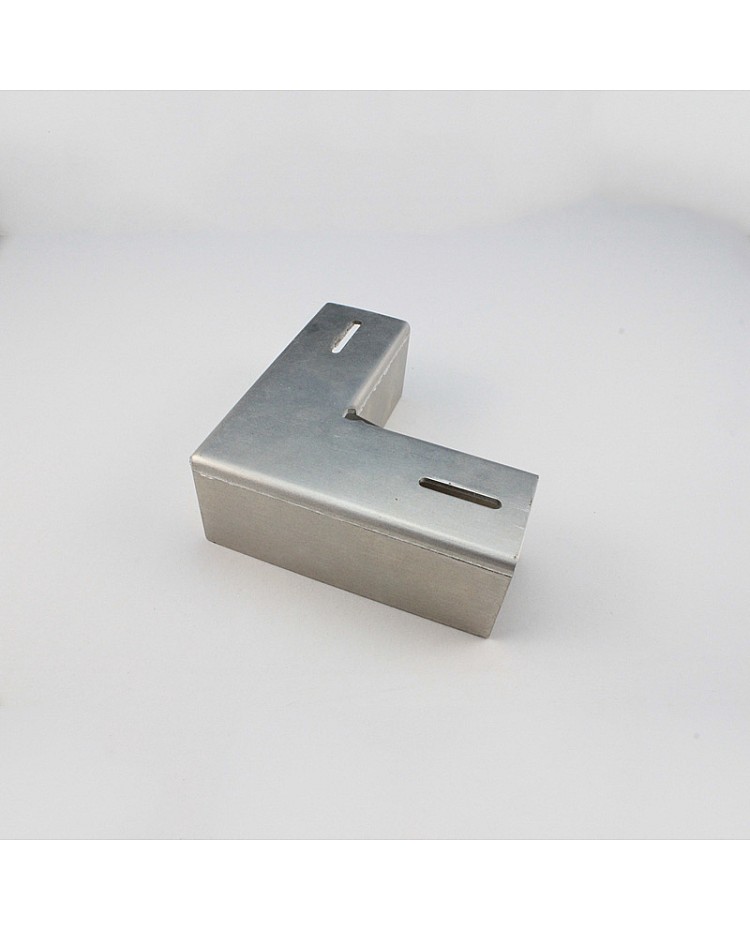

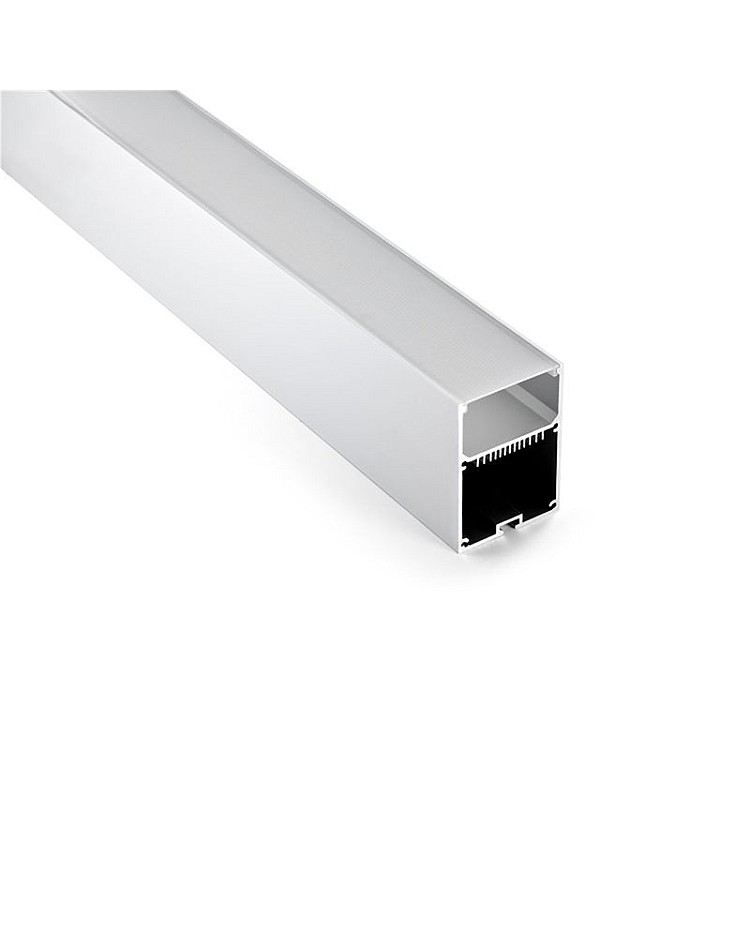

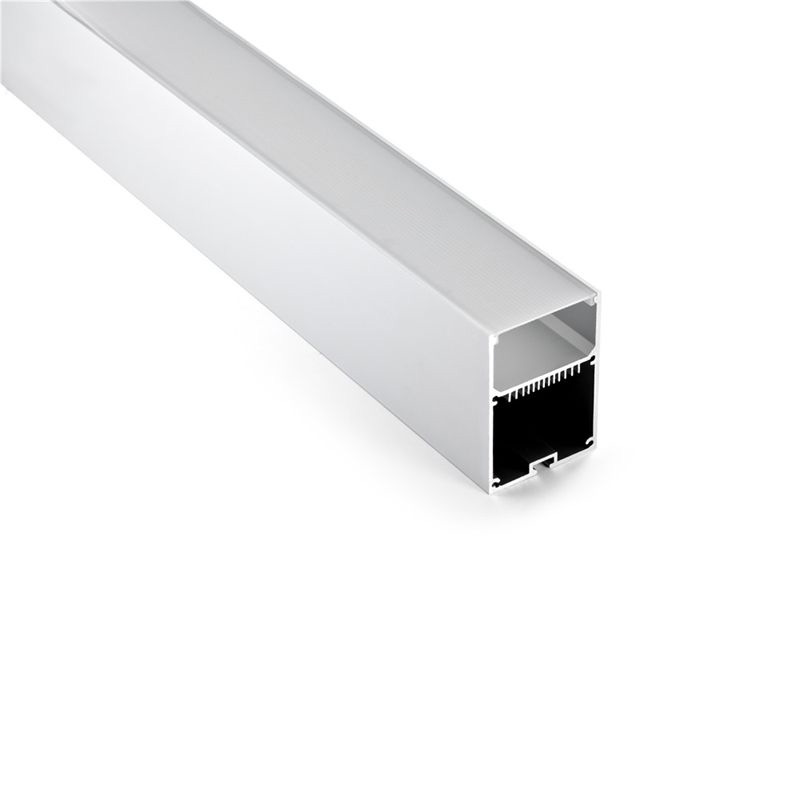

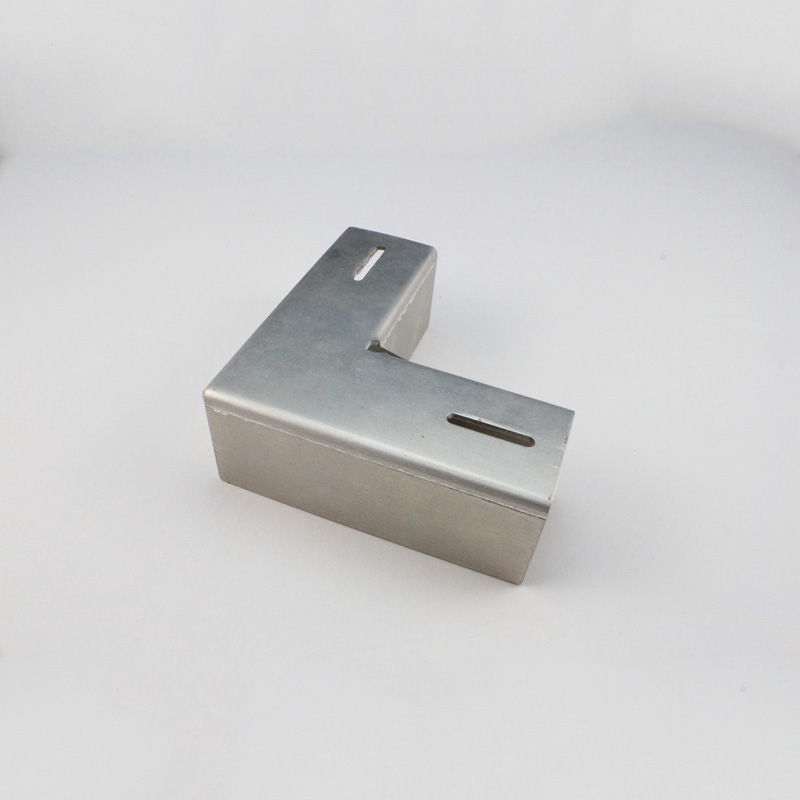

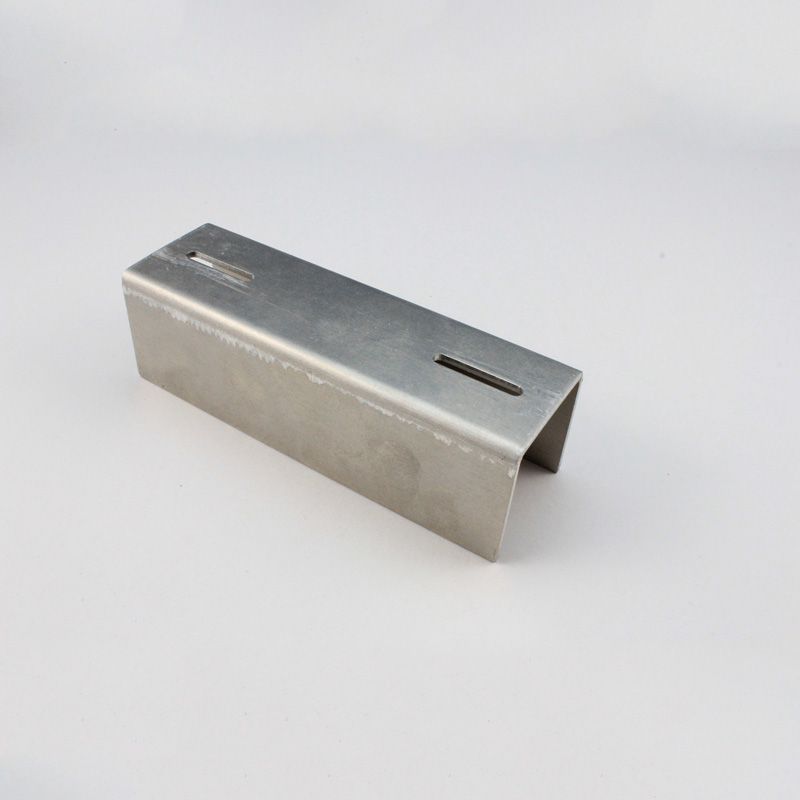

The 50*70mm Pendant Suspended Aluminum Channel With Cover specially designed for the pendant installation, the width is 50mm, the inner with is 39.8mm allows it compatible with 5730, 5630, 5050 LED Light Strip in multi rows as the light source. there is one type of diffuser available, you can choose the PC Opal Matte Diffuser for the smooth lighting effect. the diffuser made of brand material with stable quality, anti-yellowing and perfect light distribution. the aluminum base made of high-quality 6063-T5 aluminum alloy material and with the silver anodized surface treatment for the better anti-oxidation feature and a longer lifespan, you can install the LED Strips on the LED Channel easily, the aluminum base for the better heat dissipation of your LED Light. the default length is 1meter, you also can choose other lengths like 0.5meter, 1.5meter or 2meter, the max length can do 3meter, you can cut to any length you want. the end caps with wire holes and without wire included, you can connect them with the LED Dimmer to adjust the brightness. the suspension wires included, you could use them for the pendant installation on the ceiling, the straight and "L" shape connector (sold separately) available, ideal for modern luxury office design in home, office, hotel, restaurant, mall.

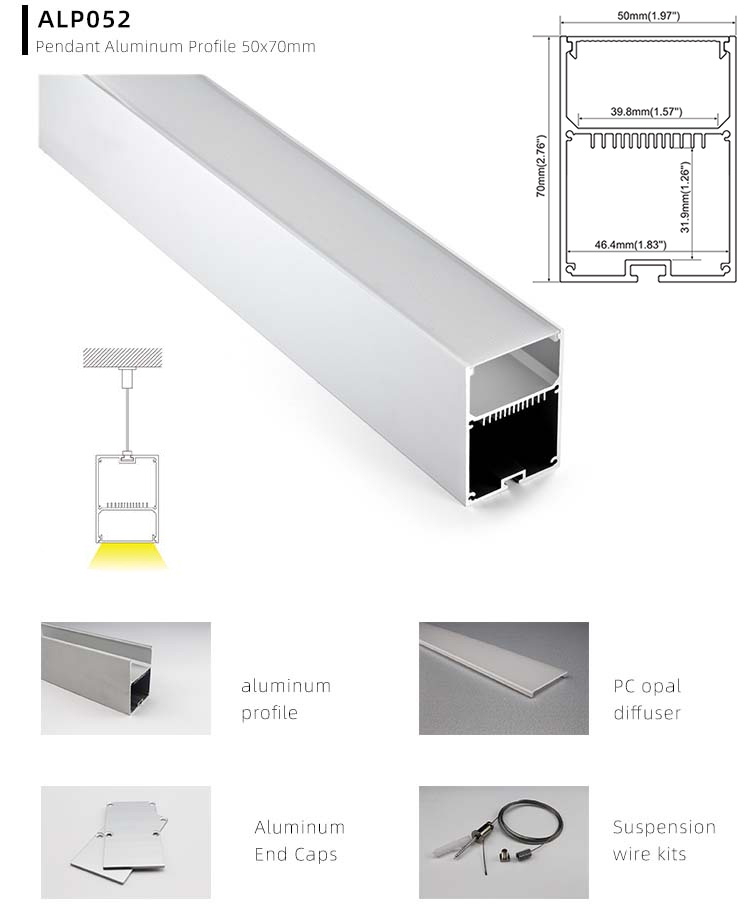

  • Model: ALP052
  • Material: Aluminum Alloy(6063-T5)
  • Surface Treatment: Silver Anodized
  • Color: Silver, White, Black

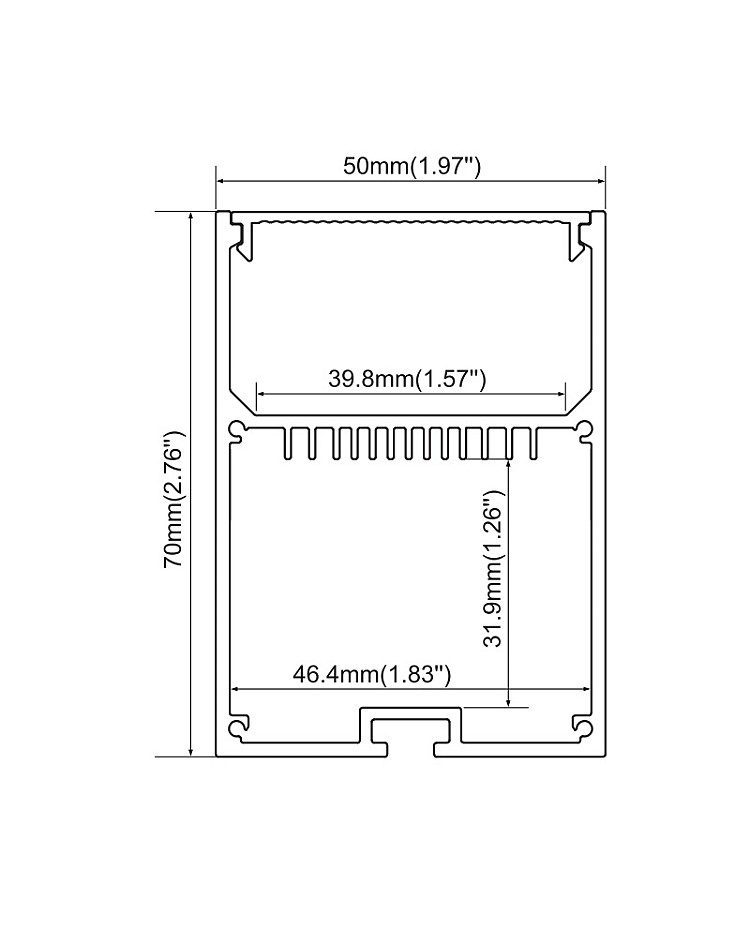

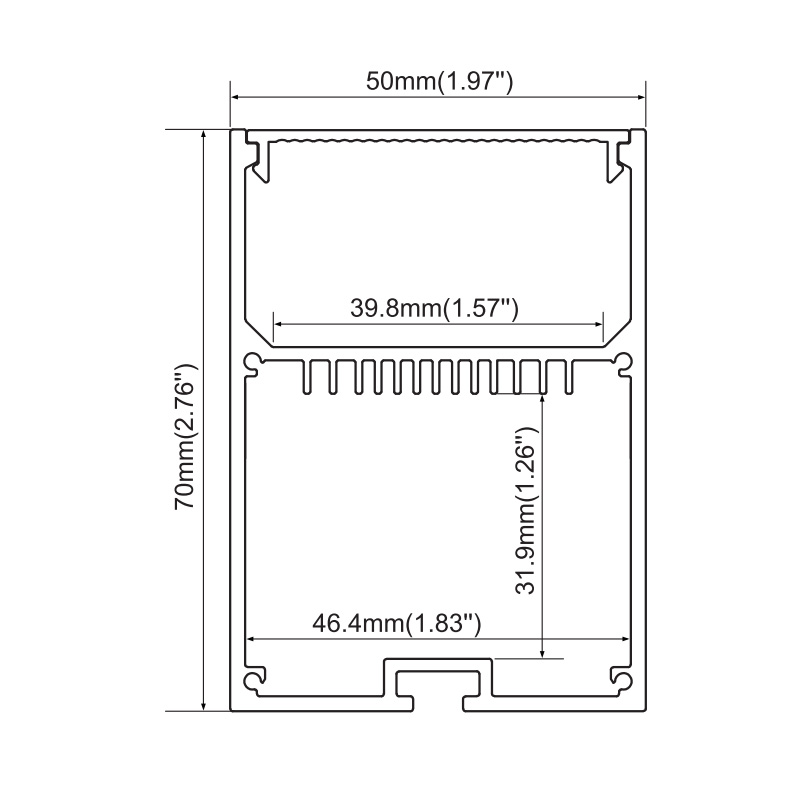

  • Size: 70*50mm
  • Diffusers: PC Opal Matte Diffuser, PC Semi-Clear Diffuser
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Installation: Ceiling Pendant / Surface Mounted
  • Inner Width: 39.8mm
  • Recommended LED Strips: 5730, 5630, 5050 LED Strips In Multi Rows
  • Max Power: <35W/Meter
  • Aluminium End Caps And Suspension Wire Kits Included

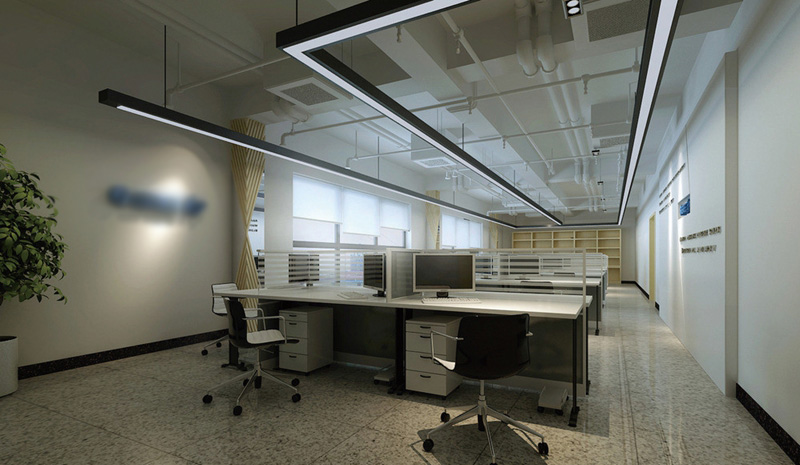

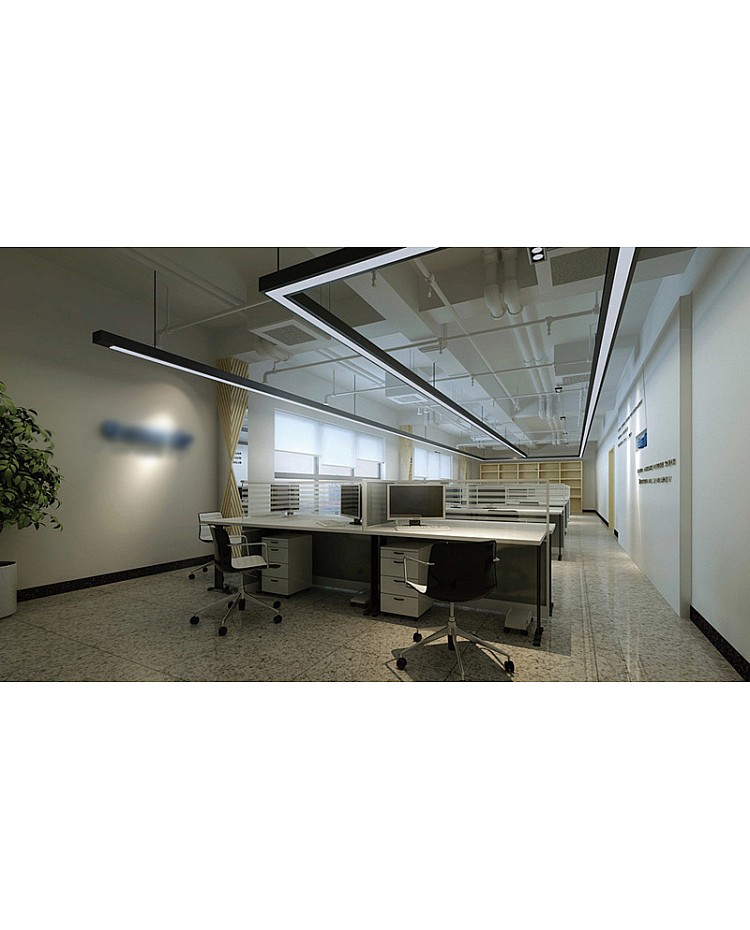

  • Applications: Office, Retail Stores, Supermarket, Shop, GYM, School, Airport, Metting Room, etc
  • 5 Years Warranty


1*LED Aluminum Channel With Cover

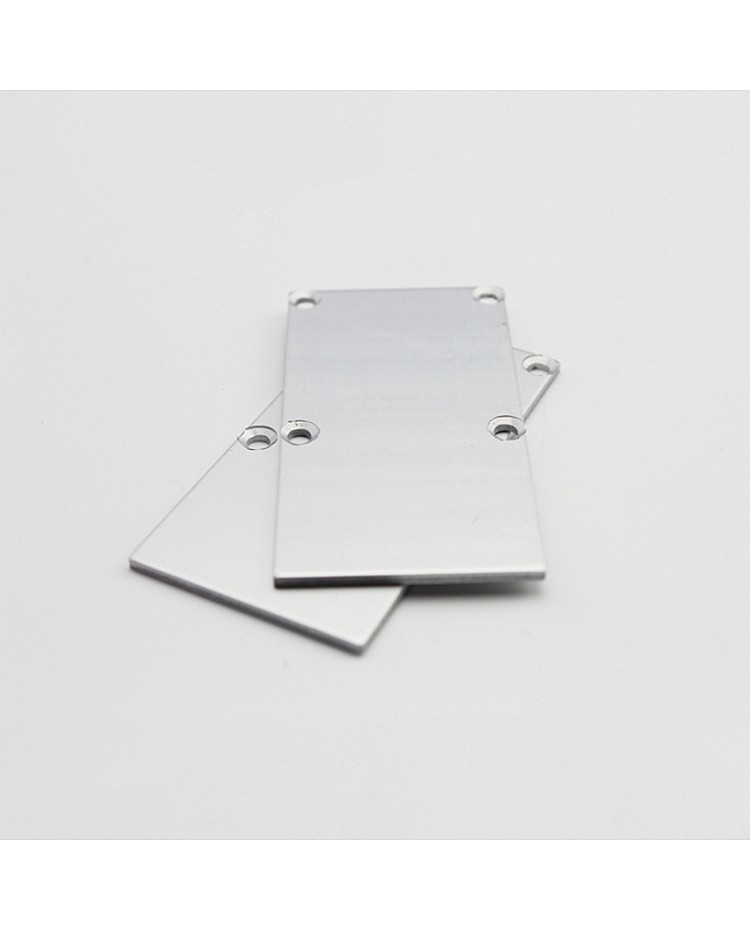

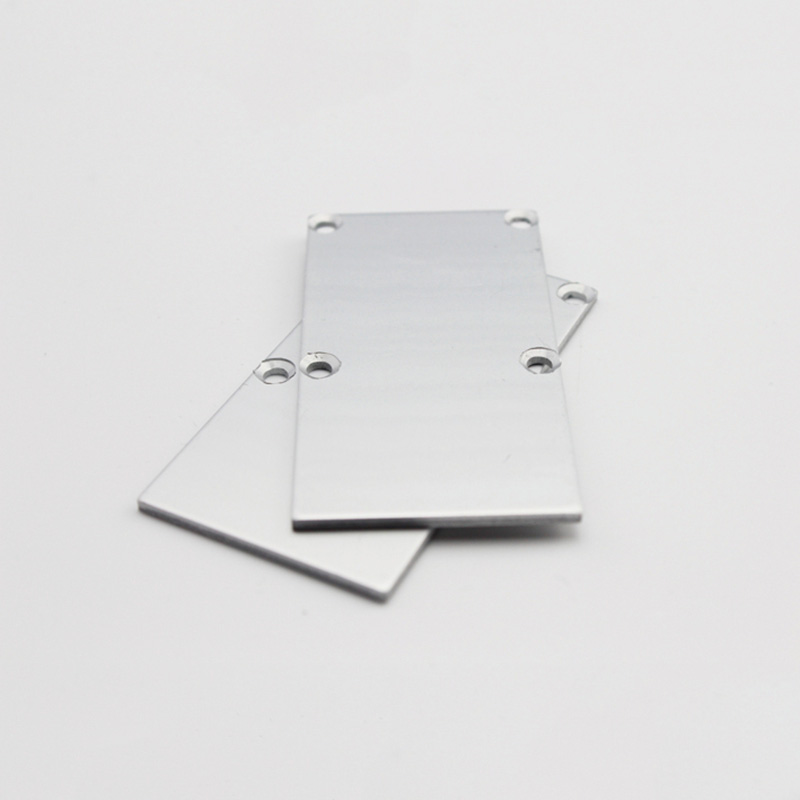

End Caps(With Wire Hole/WIthout Wire Hole)

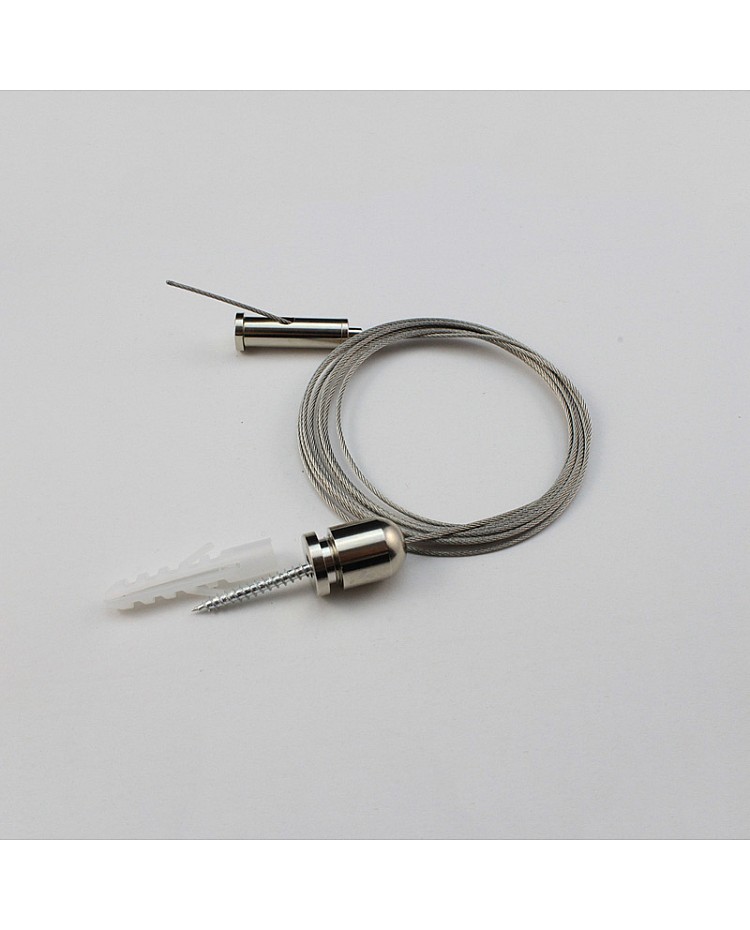

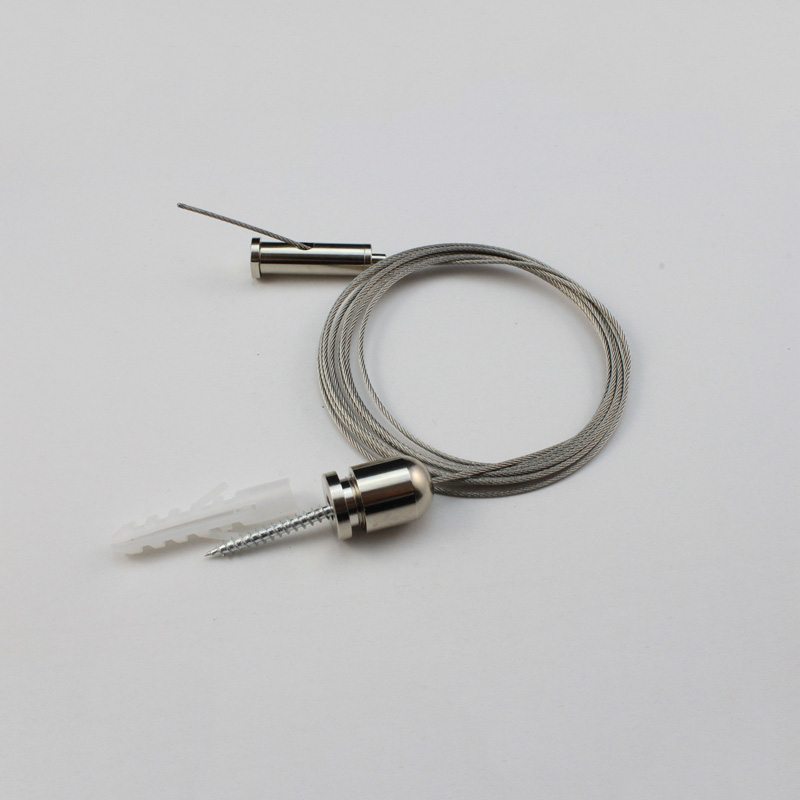

Suspension Wires

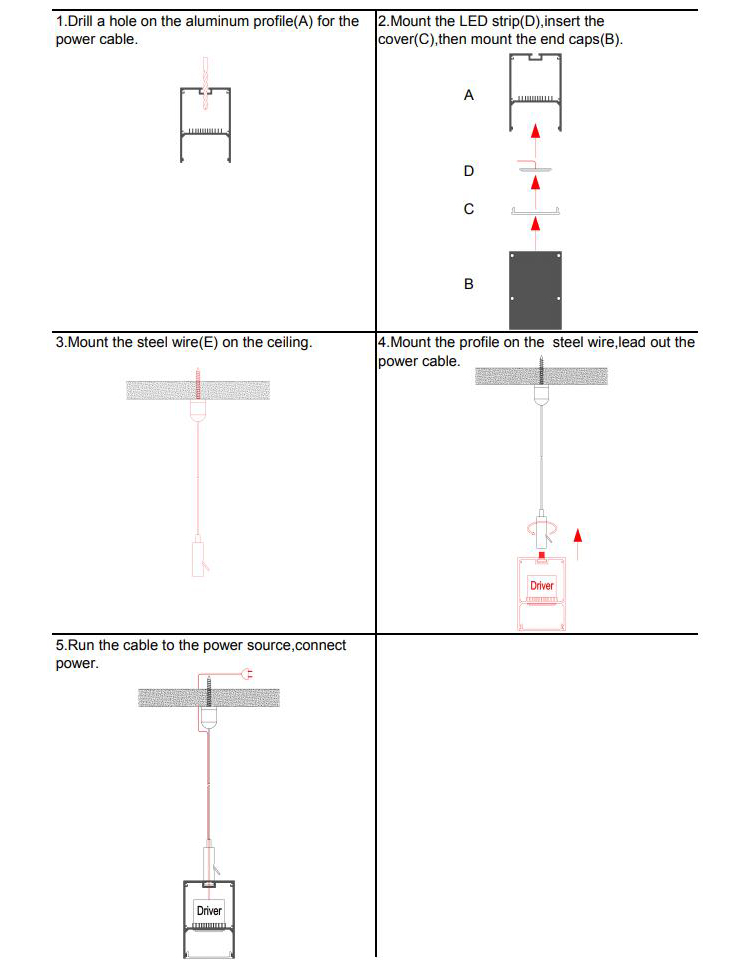

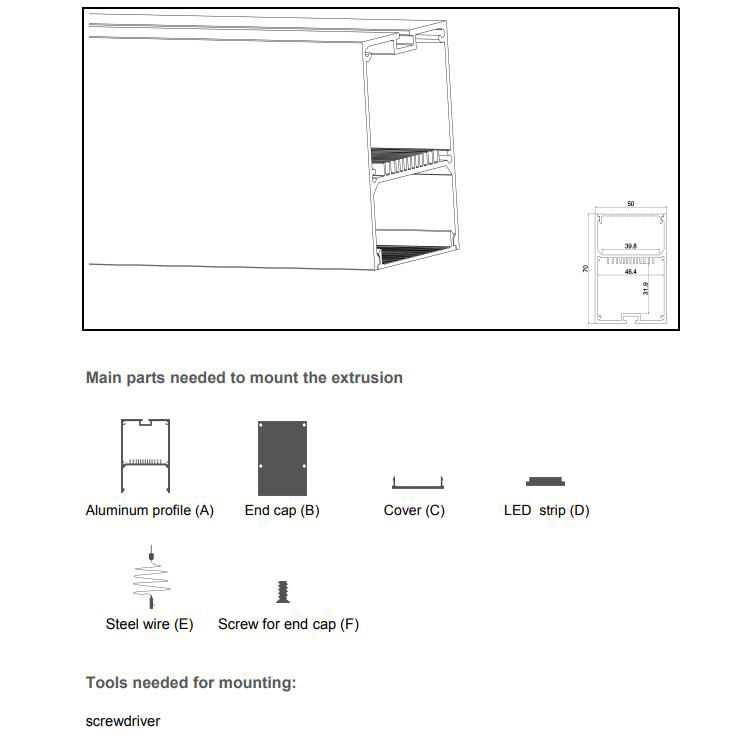

LED Aluminium Channel With Cover Installation Suspended LED Channel With Diffuser How To Install Suspended LED Channel LED Aluminum Channel With Cover Amazon
