In Stock
$5.12
Reward Points: 5
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP068-R

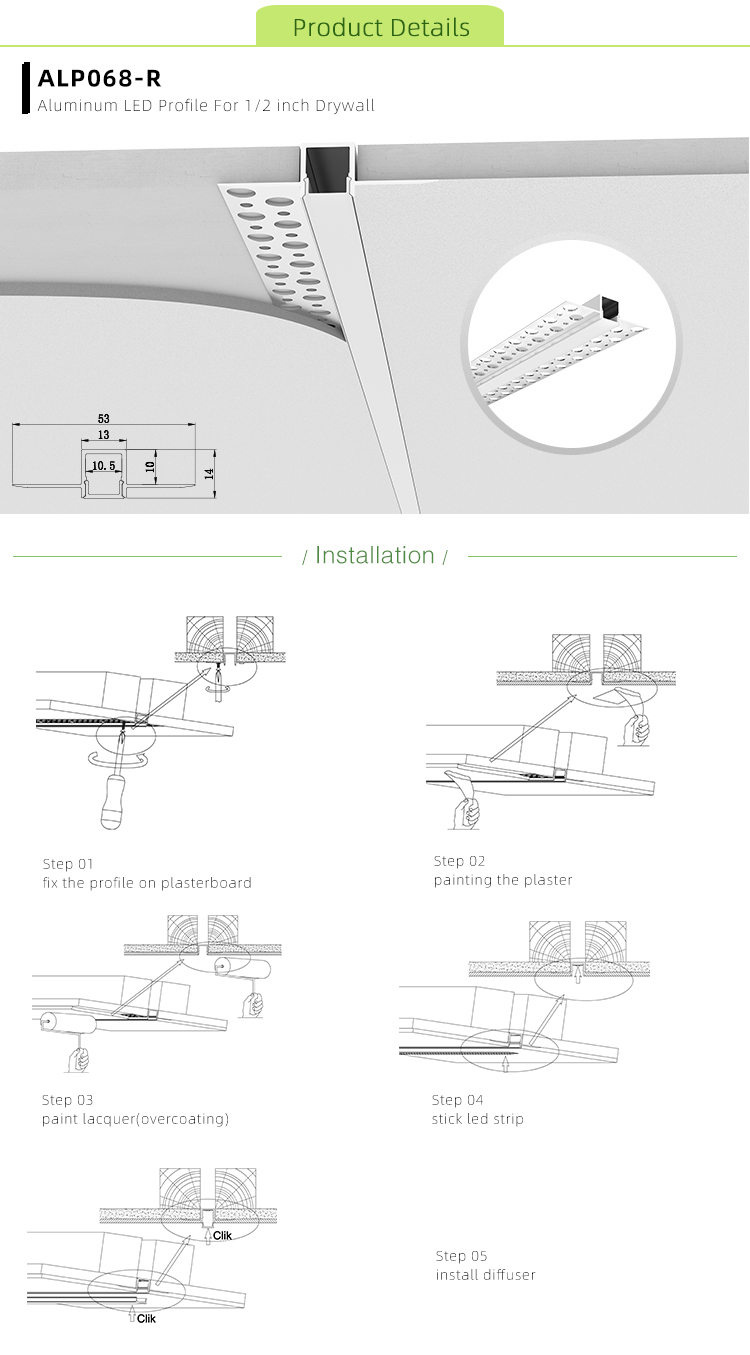

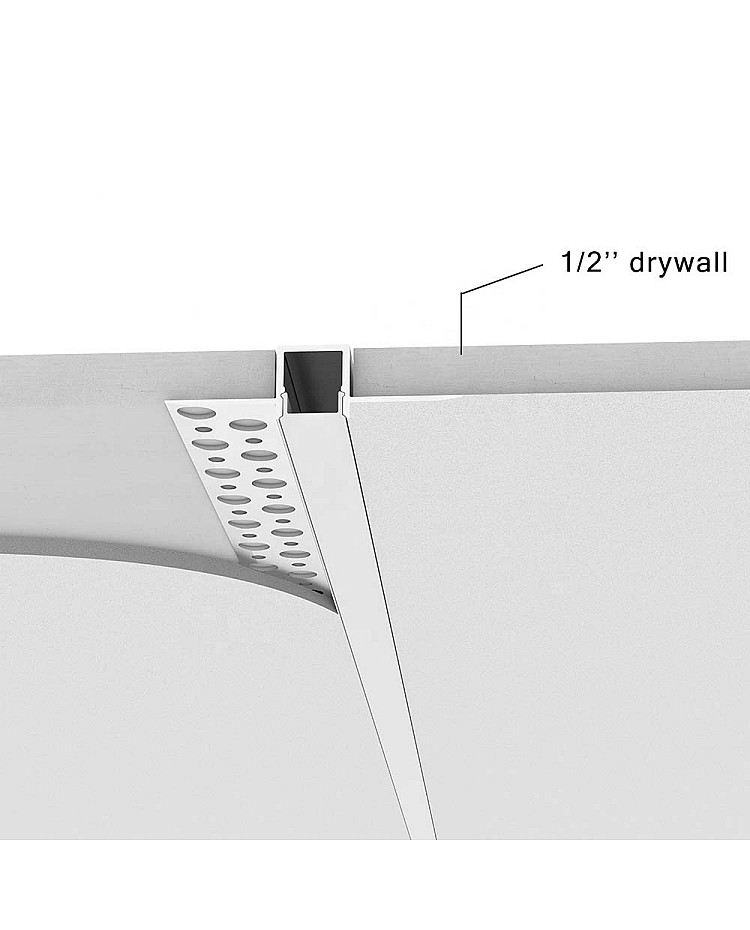

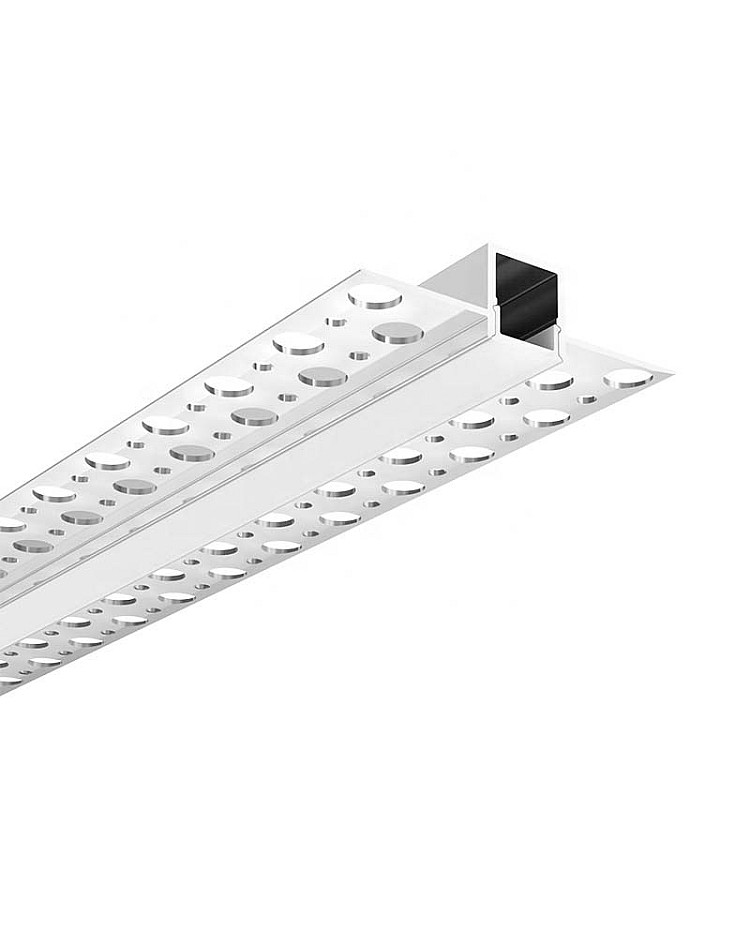

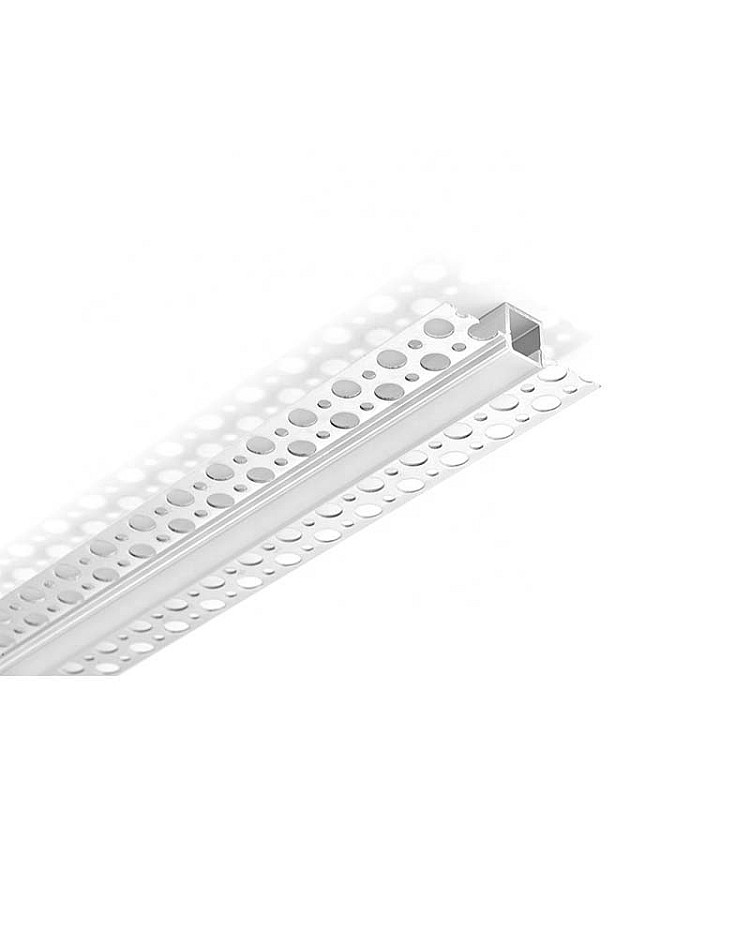

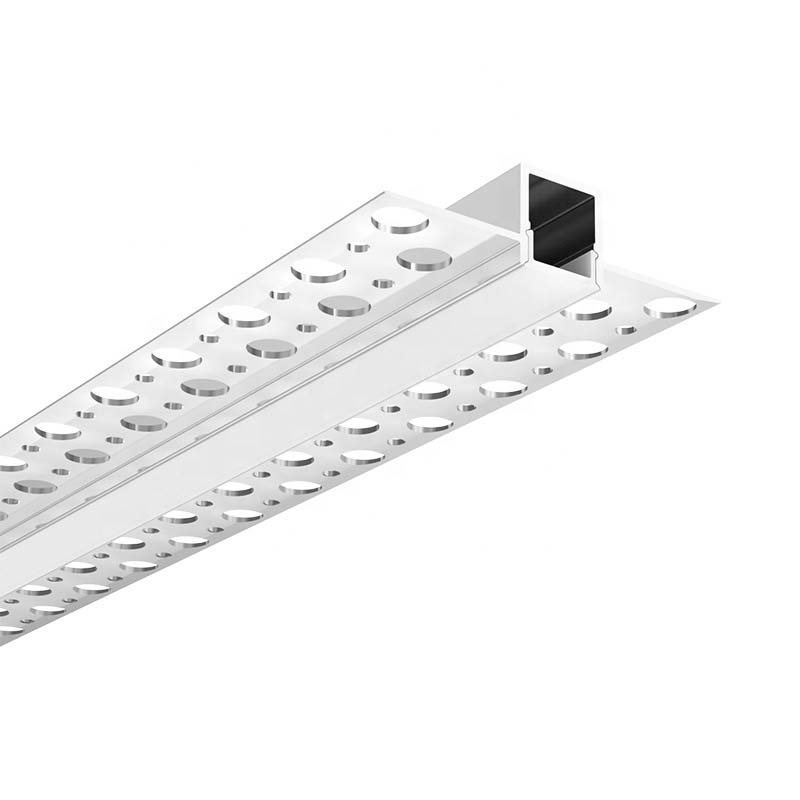

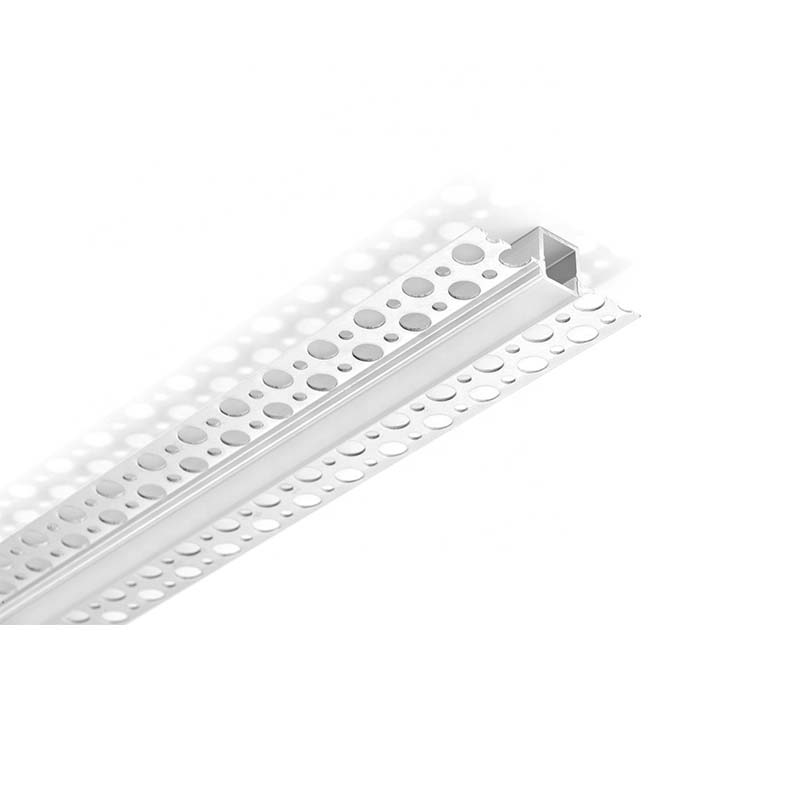

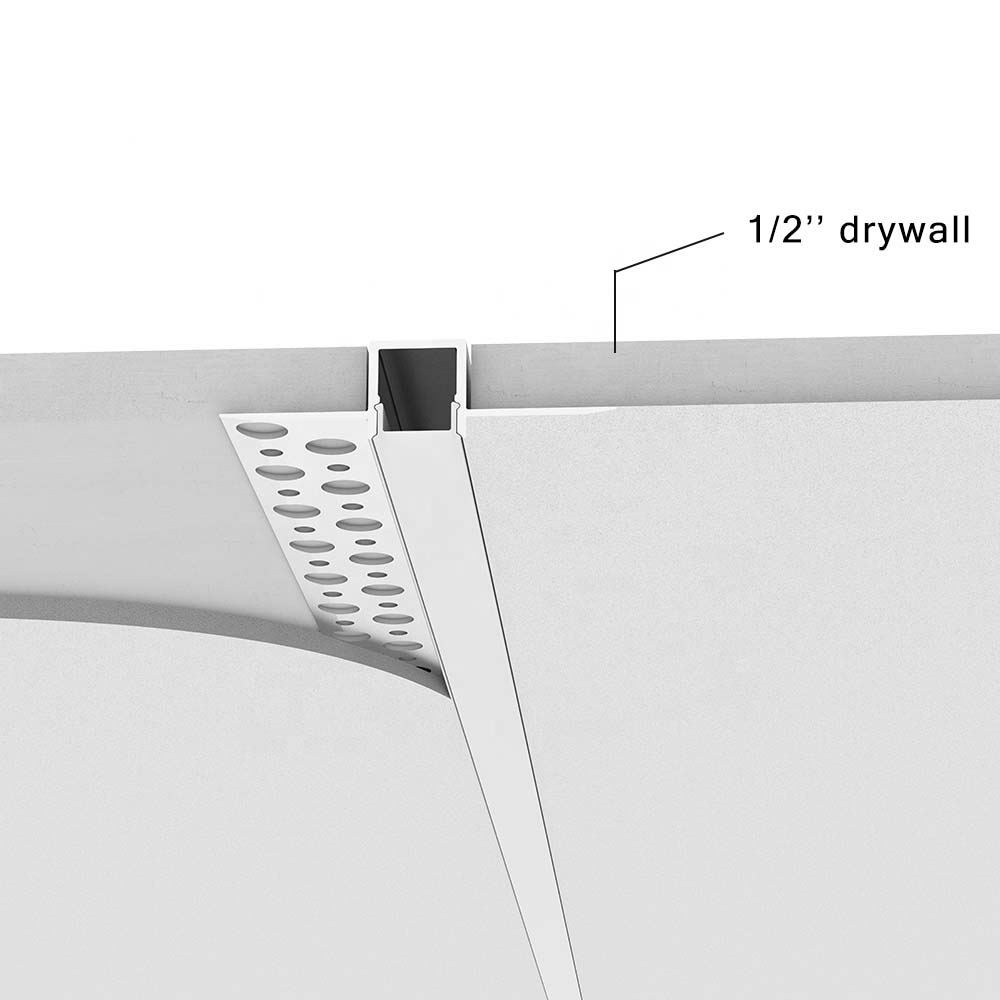

The LED drywall channels can be mounted on drywall and used for trimless recessed lighting in any room. They can also be installed flush against the ceiling, creating a trimless look and seamless integration of the light fixture into the room. They are made of high-quality aluminum with a silver anodized finish, anti-oxidation resistance, and a longer lifespan than similar products. The stand lengths are 1M and 2M and can be cut to any length you want. End caps with wire holes and without wire holes make it easy to install the LED strips inside the channels as a light source and connect to a Transformer to light up. The inner width is 10.5mm, allowing the maximum width of LED strips to be 10mm. The aluminium base can work as a heat sink for better heat dissipation. Only one type of diffuser is available: PC diffused covers, which are made of imported-brand material, are anti-yellowing and have perfect light distribution. These channels also help minimize any damage to the drywall and provide a barrier between the light fixtures and the drywall. It also helps to hide any wiring or electrical components necessary to install the light fixtures.


Specifications:

  • Material: 6063-T5 Aluminium Alloy
  • Model: ALP068-R

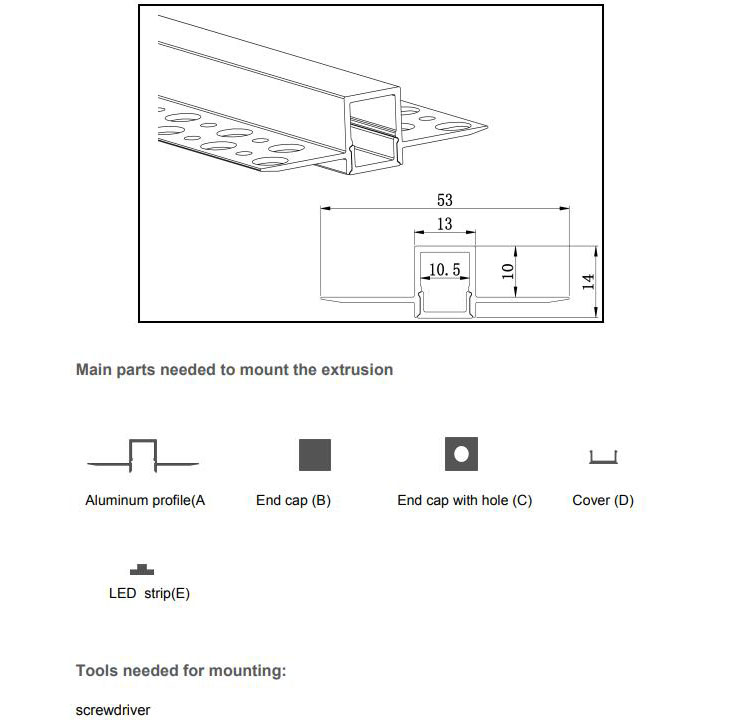

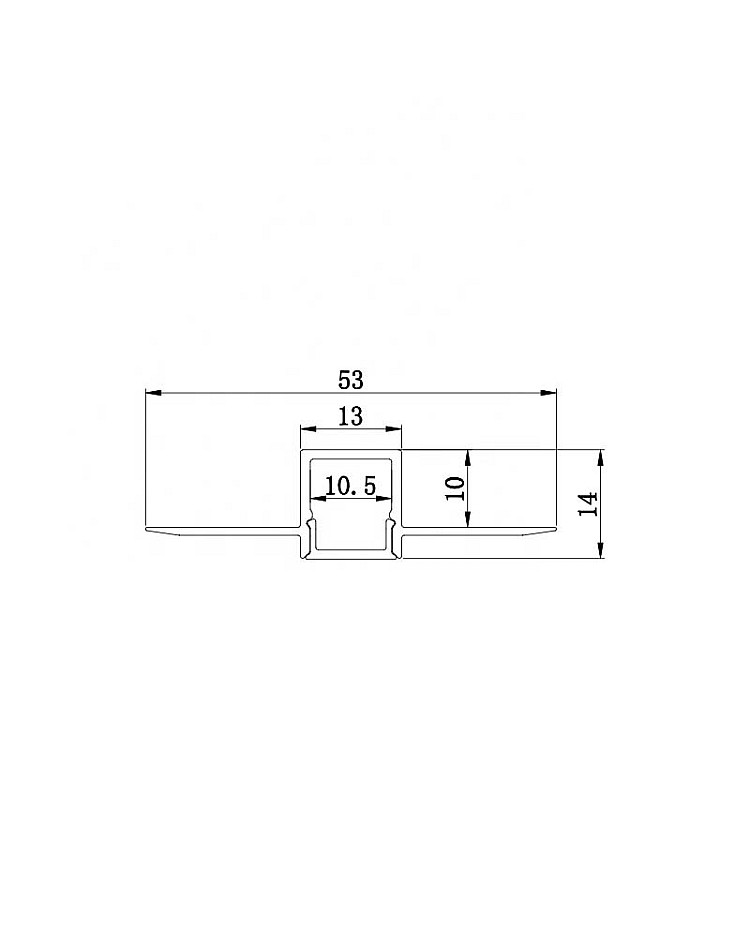

  • Size: 53*14mm
  • Shape: T Shape
  • Color: Silver
  • Cover: PC Diffused Cover
  • Surface Treatment: Silver Anodized
  • End Caps With Hole / Without Hole Included
  • Standard Length: 1 Meter
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Inner Width: 10.5mm
  • Allows The Max Width Of Strip Lights To Be 10mm
  • Can Work With SMD LED Strips Or COB Strip Lights
  • Max Power: <15W/Meter

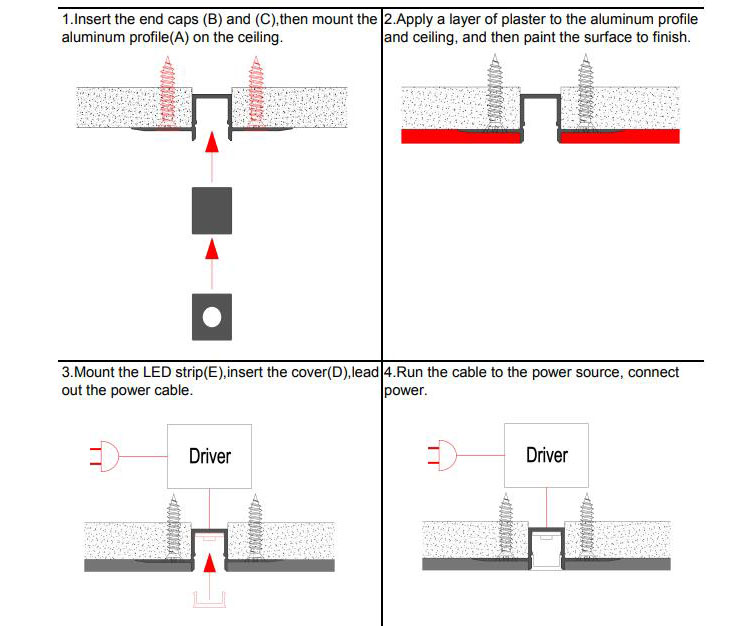

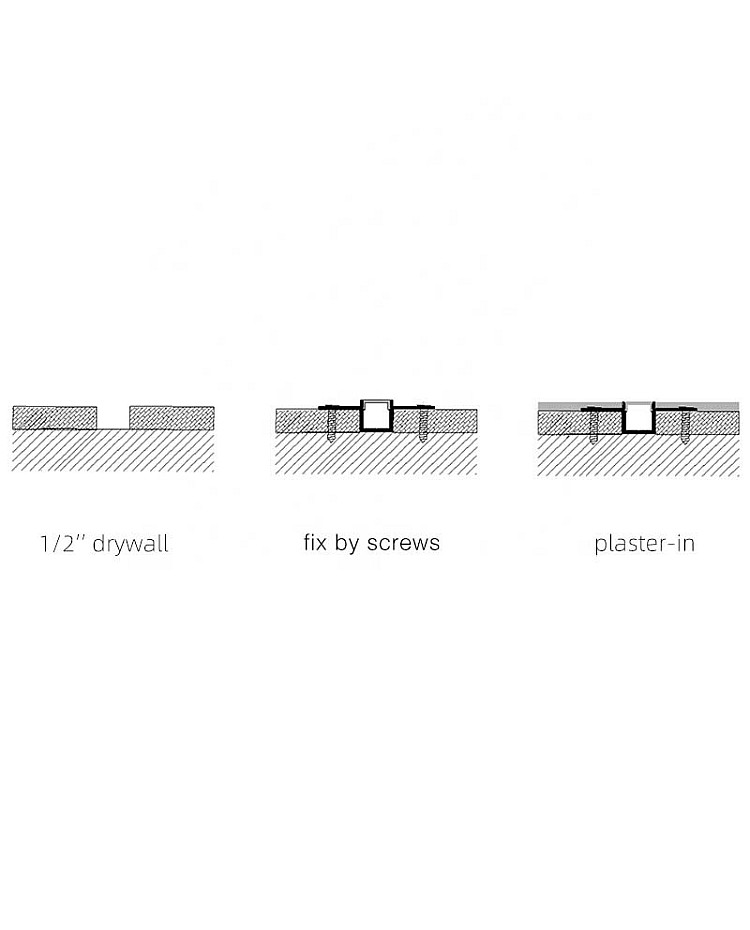

  • Installation: Drywall Trimless Recessed

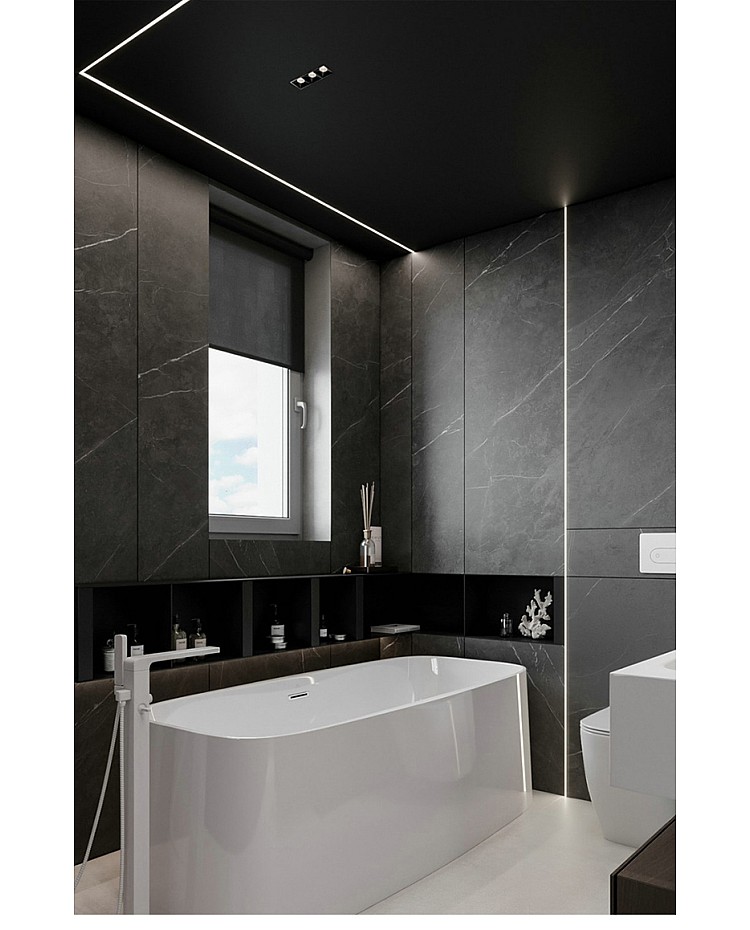

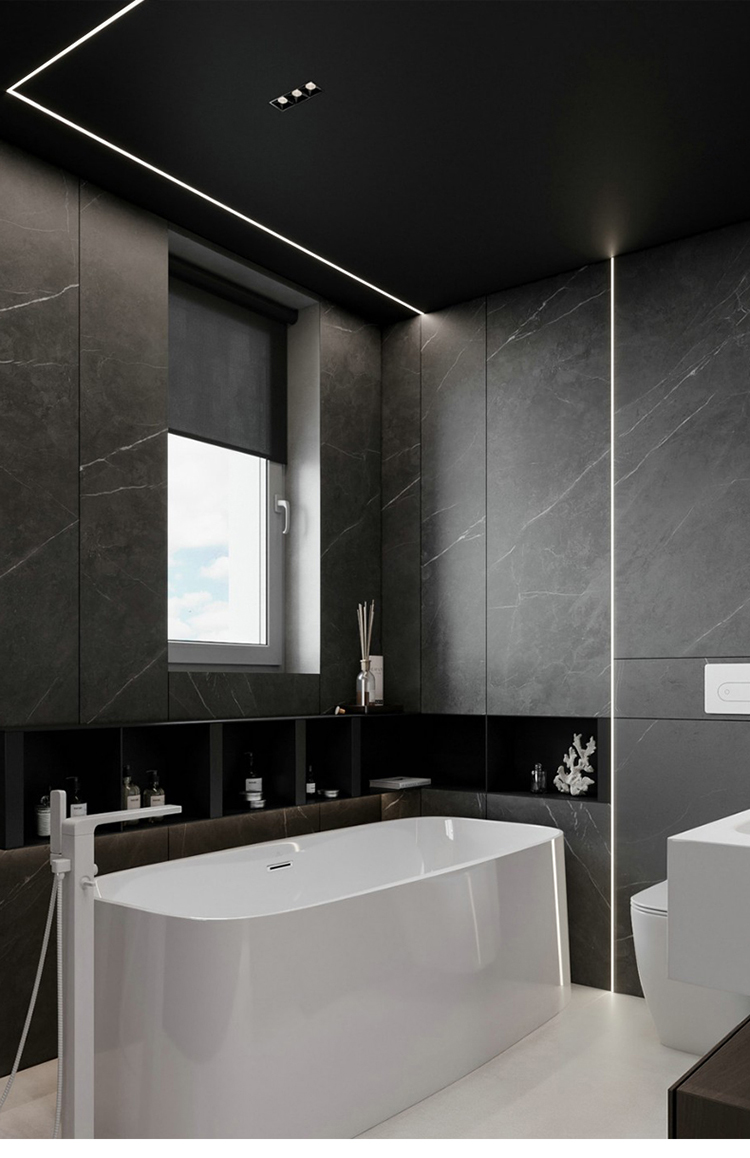

  • Applications: Trimless Recessed Lighting
  • LED Strip Lights, Dimmers, Controllers, And Transformers Sold Separately
  • Warranty: 5 Years
  • Shipping Method: By Express, By Sea(Send Us Inquiry)


Includes:

1 * LED Drywall Channel With Diffuser

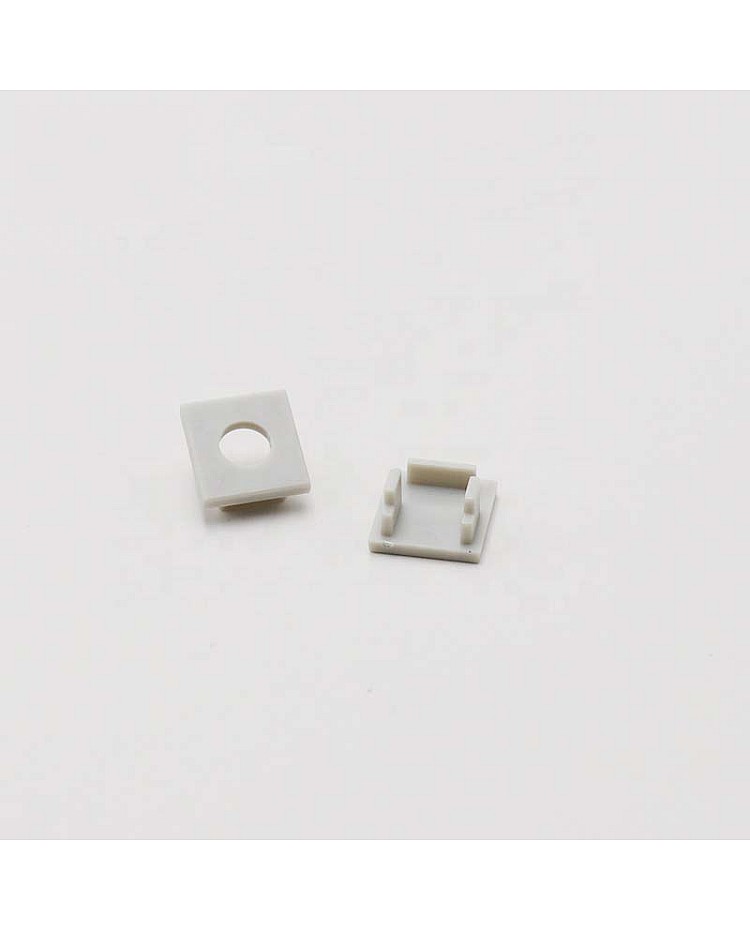

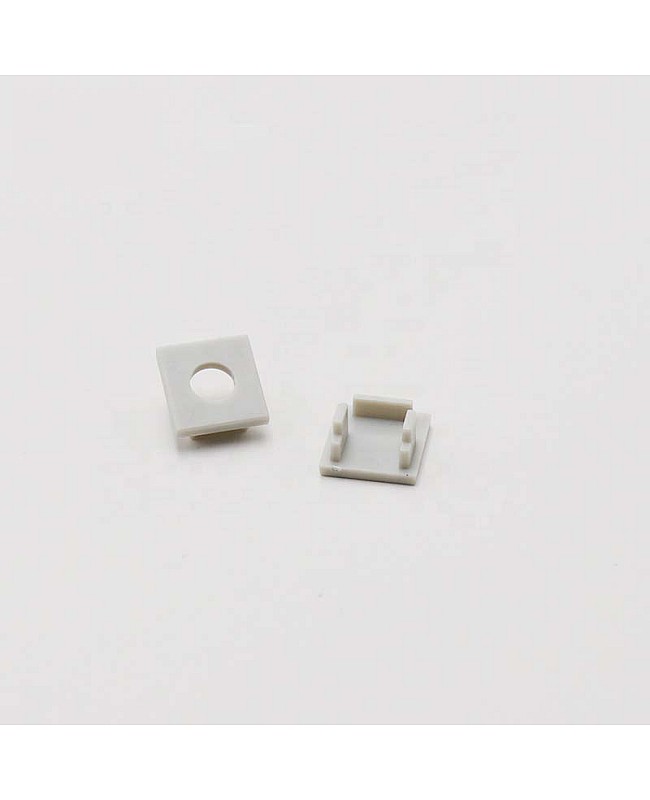

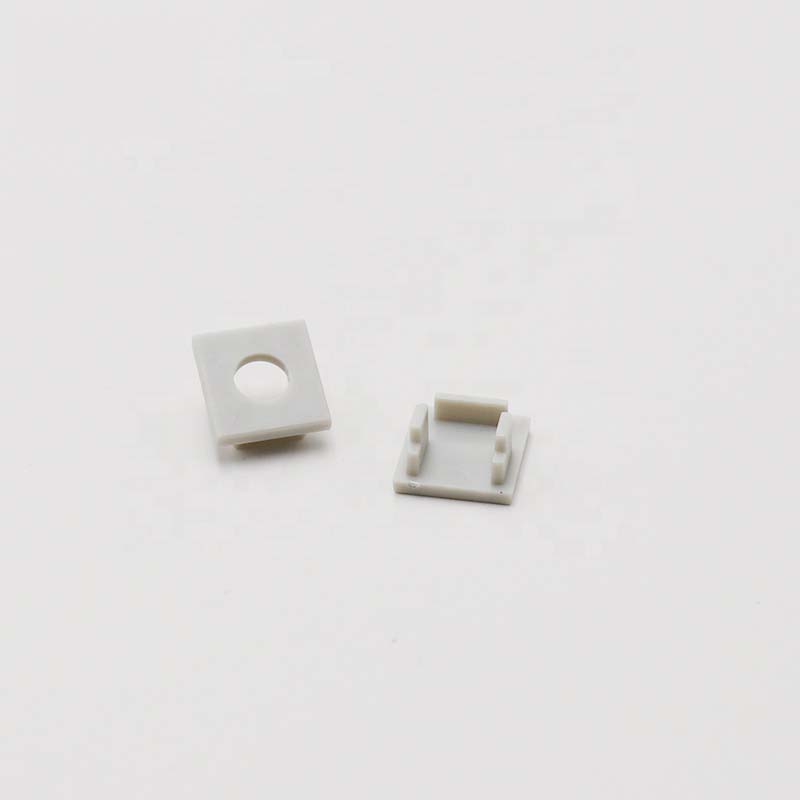

End Caps(With And Without Wire Hole)

LED Drywall Channel Recessed Drywall LED Channels How To Install LED Drywall Channel Trimless Drywall LED Channel
