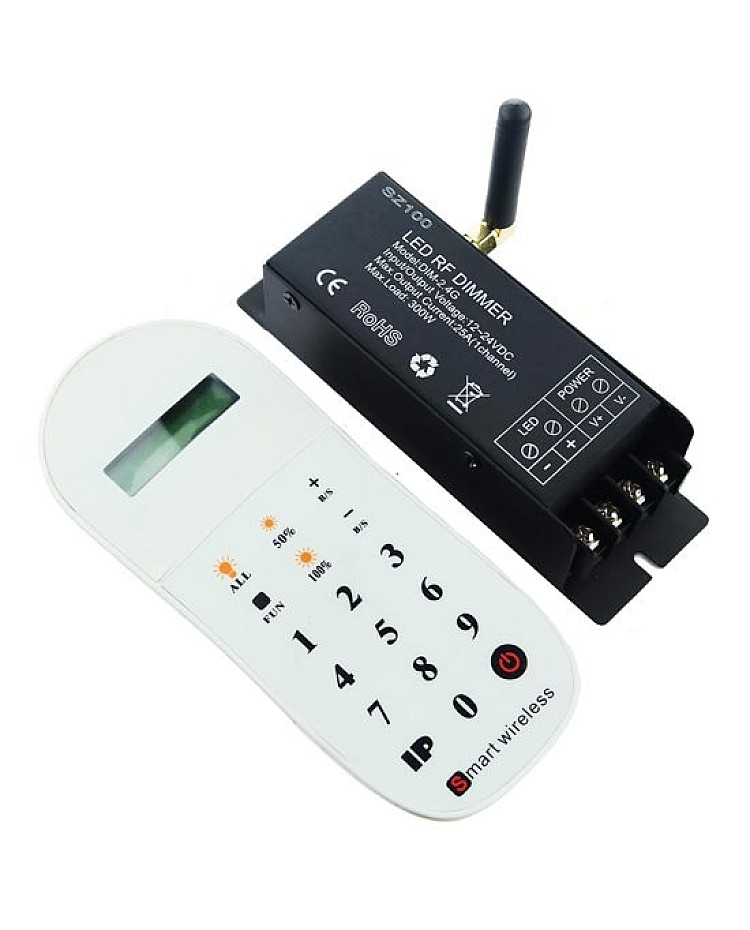

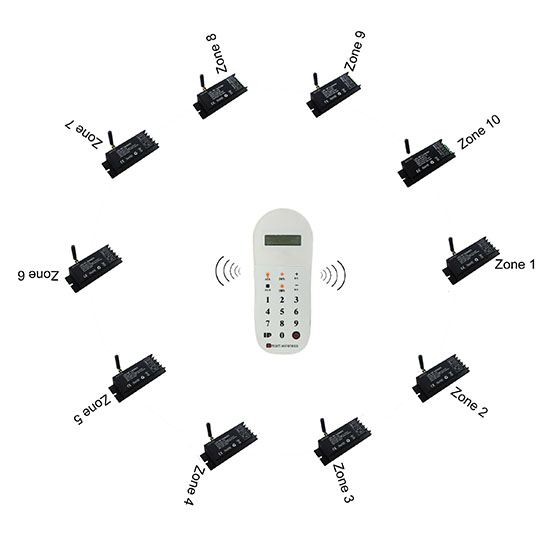

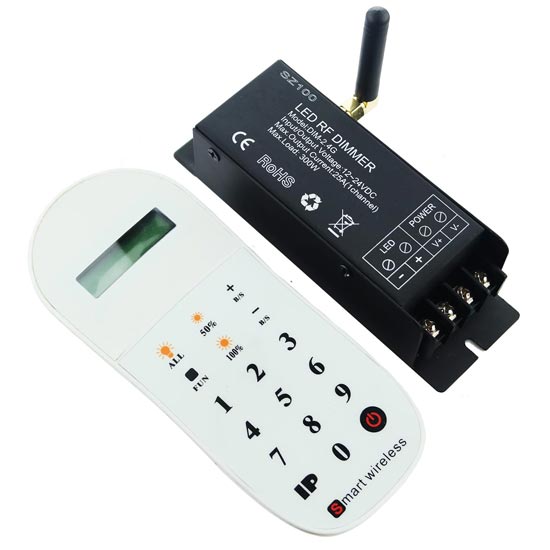

+The 2.4GHz multi-Zone LED dimmer controller works on DC12V or DC24V. It can work with constant voltage, single-color LED strip lights, and LED lamps. The multi-zone units are controllable and achieve independent control up to 10 zones. Friendly design with LCB screen shows the current state and a clear function key area. The RF remote with RF signal sender, RF frequency: 433.92MHz. Sleep-wake-up design, energy conservation. RF remote control distance is less than 30 meters.
Specifications:
- Item NO: TY-L-D-06
- Manufacturer: TYoung
- Working Temperature: -20-60℃
- Static Power Consumption: <1W
- Working Voltage: DC12V-DC24V
- Power: DC12V:300W; DC24V:600W
- Gray Level: 256
- Size: 127 mm*41 mm*32 mm
- RF Frequency: 2.4GHZ
- RF Distance: <30m
- Weight: 200g
Package:
1 * Multi-Zone LED Dimmer
1 * RF Remote
