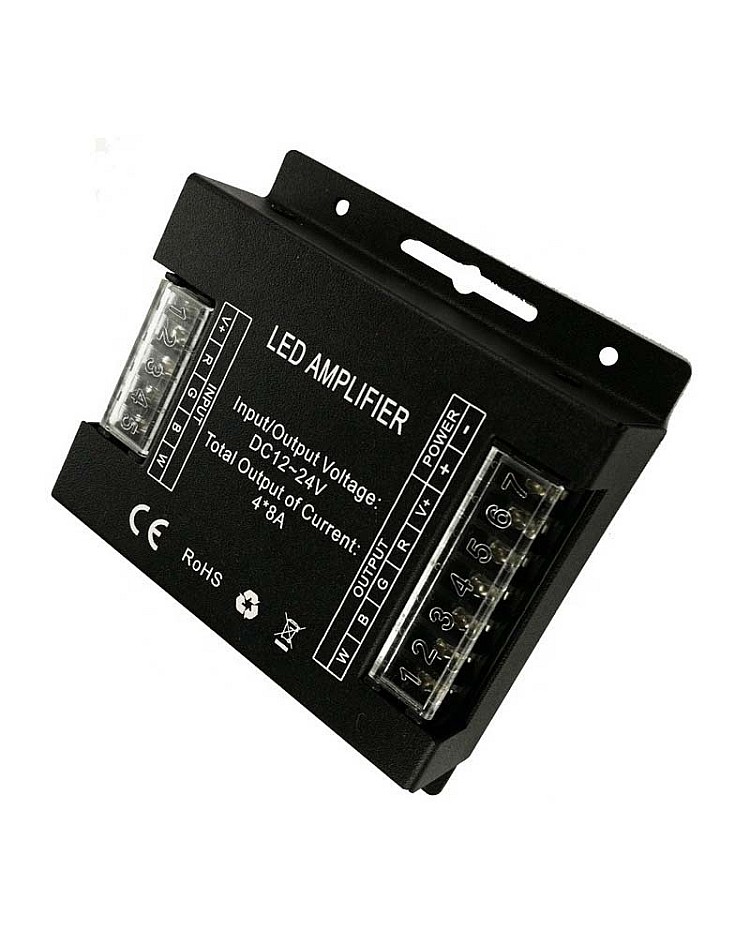

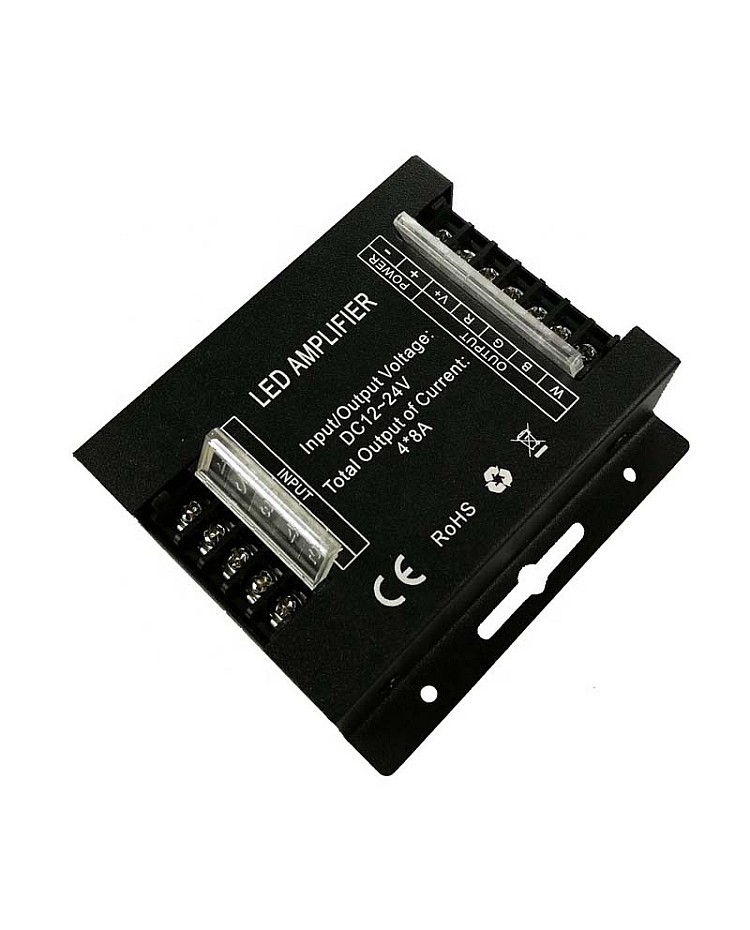

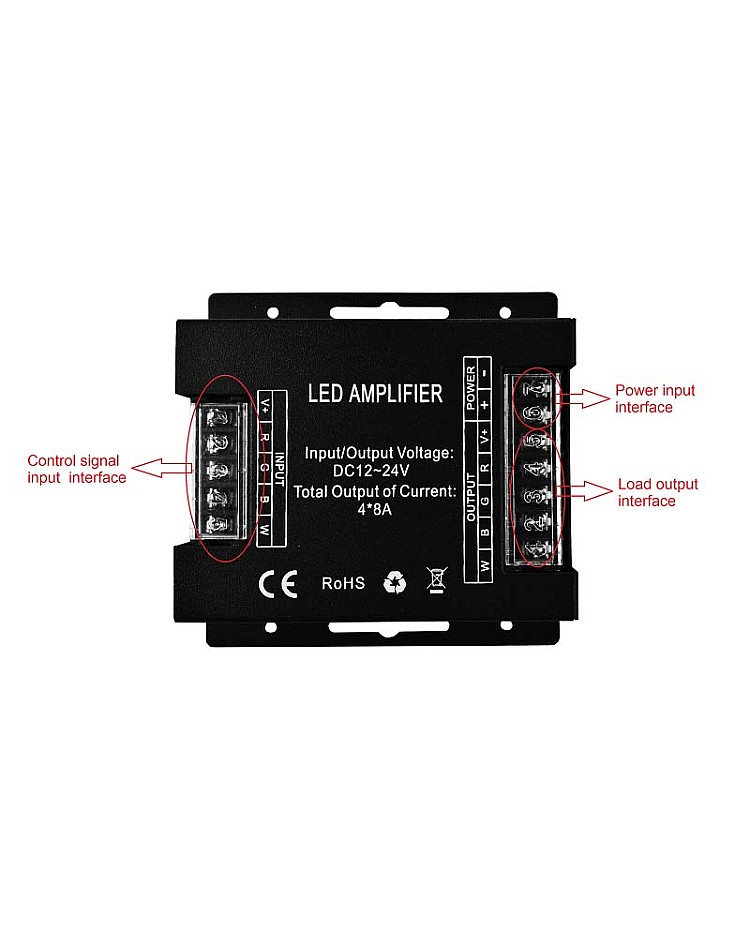

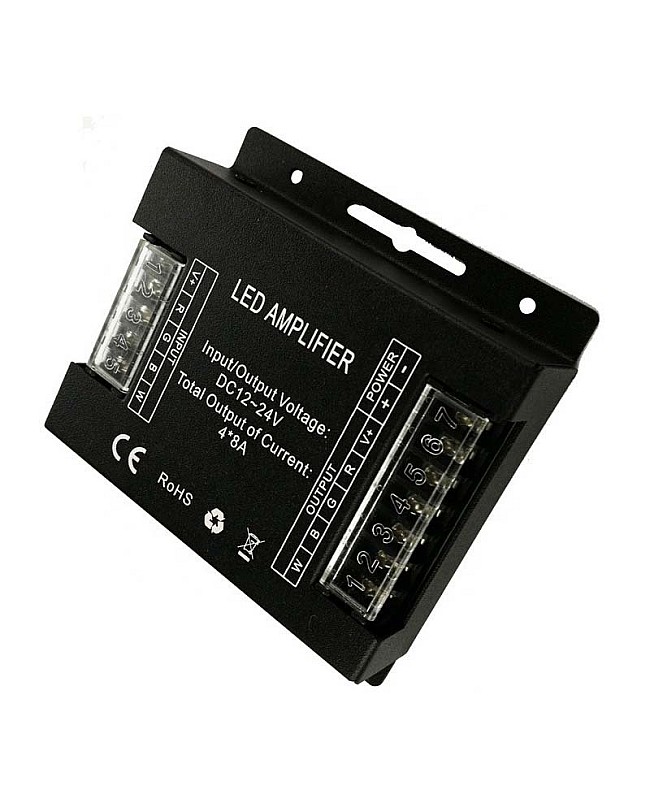

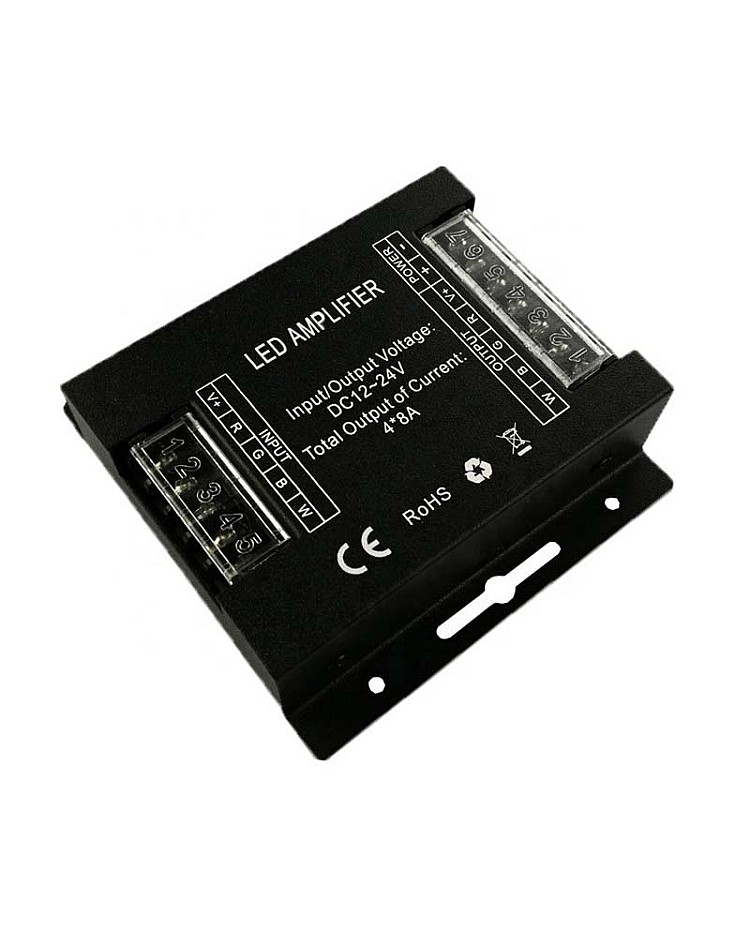

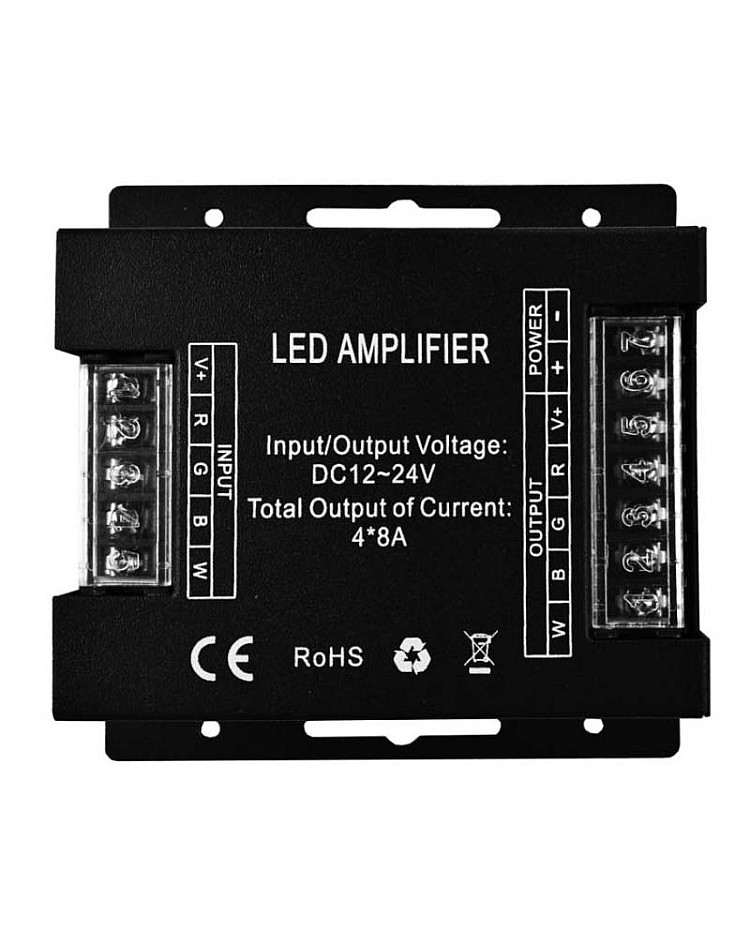

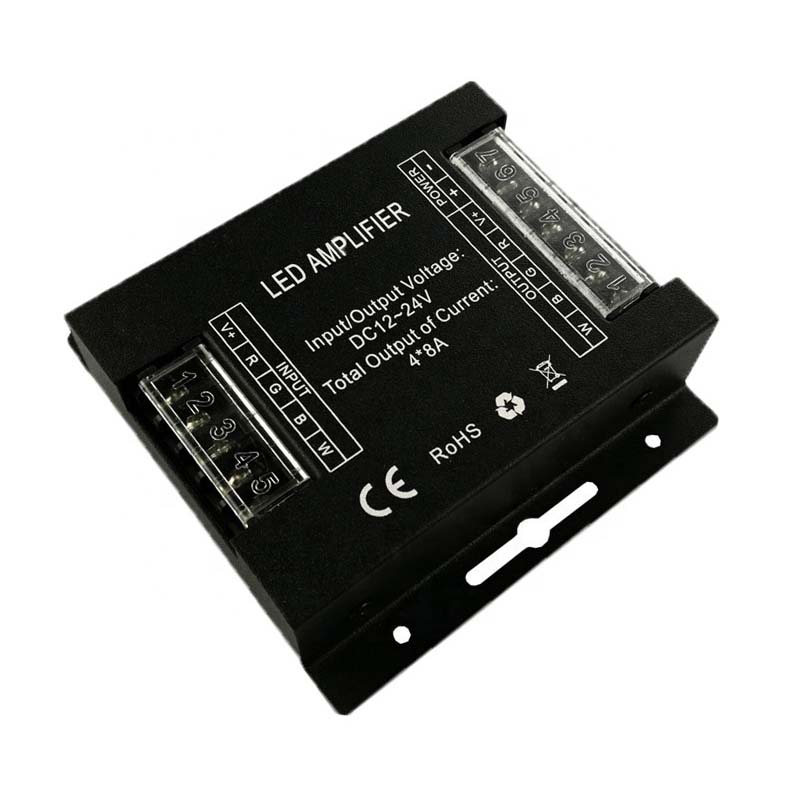

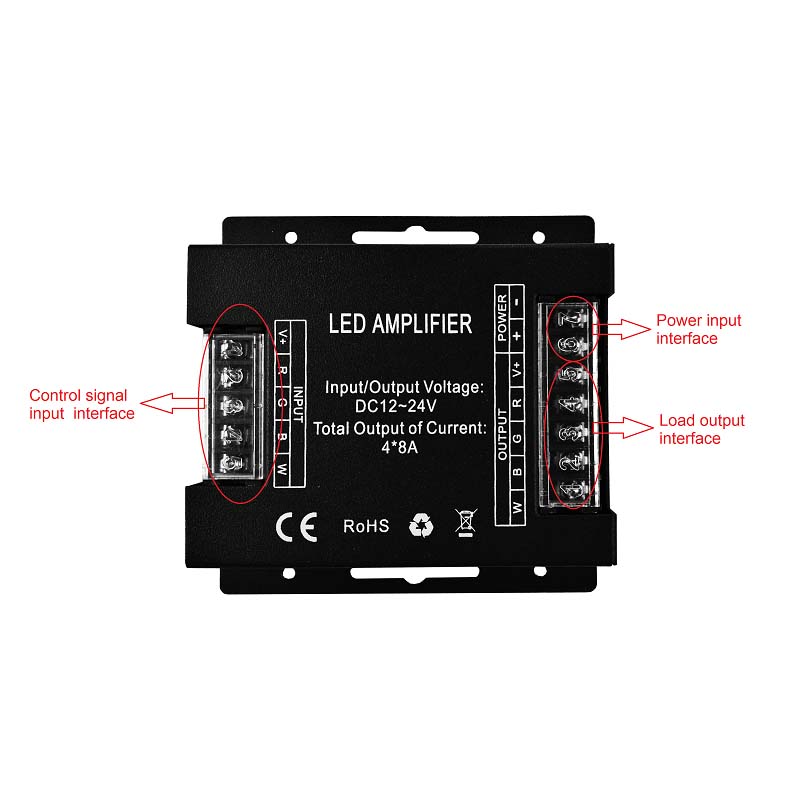

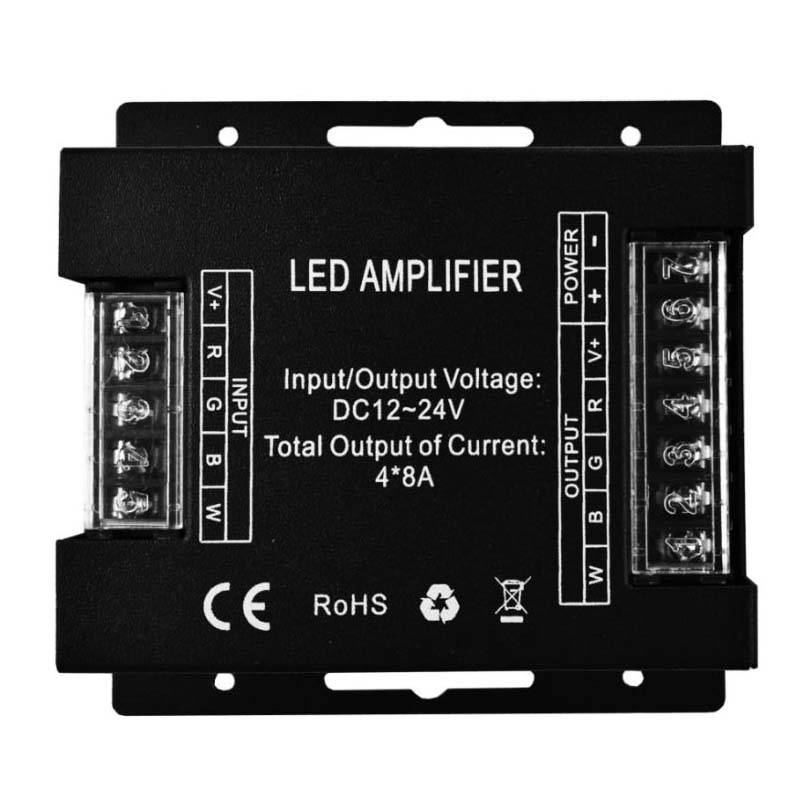

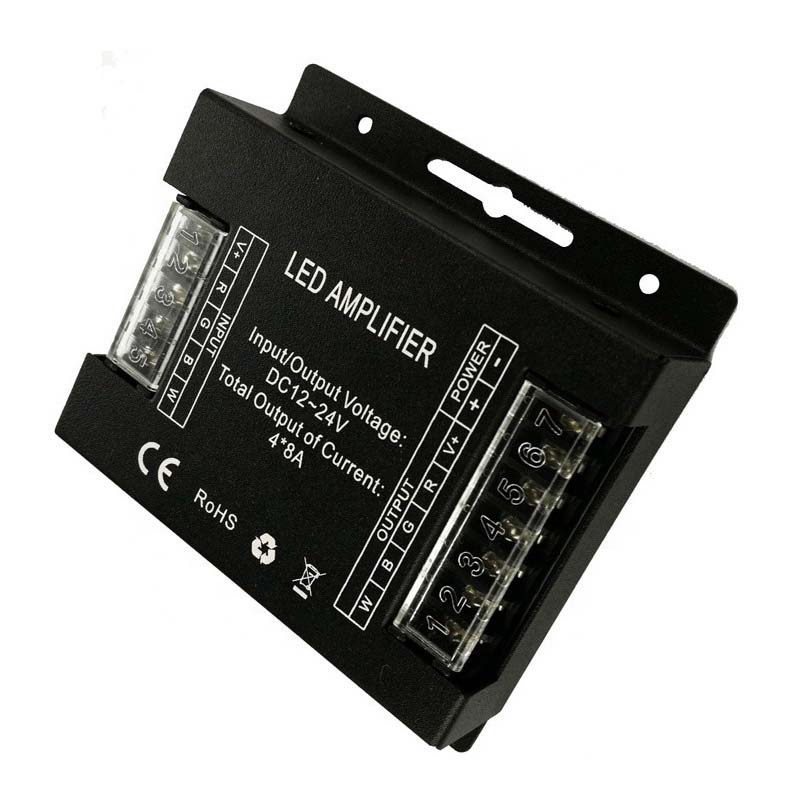

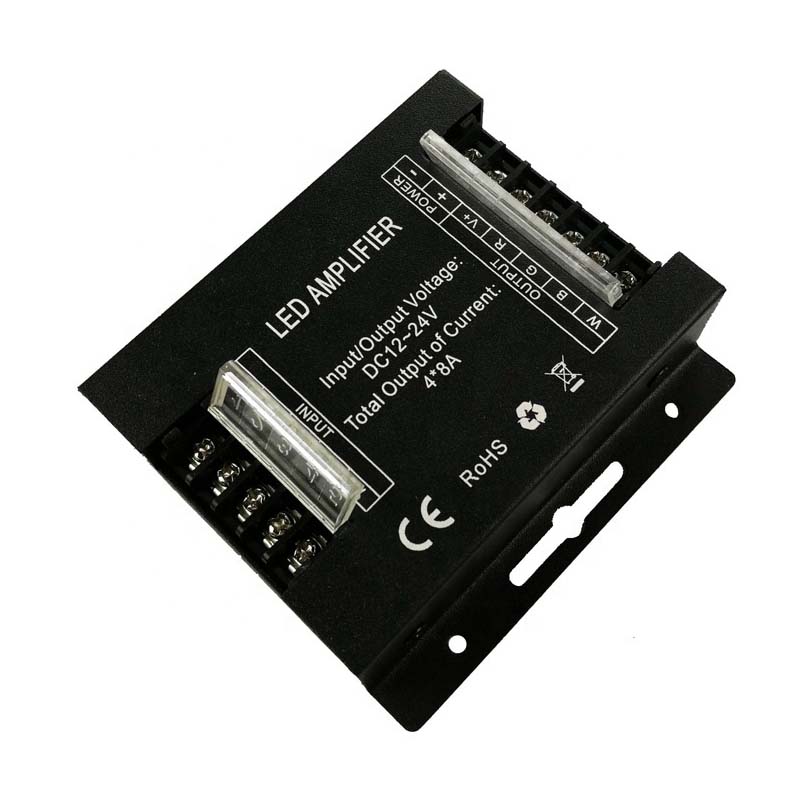

The RGBW LED Repeater is the constant working voltage product, working in DC12V or DC24V, can work with all kinds of the constant voltage 4channels output LED Controllers. the RGBW Repeater with 4 channels output, the max output current of each channel can reach 8A. when working in DC12V, the max output wattage can reach 384W, if working in DC24V, the max output wattage can reach 768W. you can use one RGBW LED Controller as the signal source and connect many LED Booster in parallel. can connect numerous in theory, all of the RGBW LED Strips will change the color or dynamic style at the same time.


  • Model: HX-AMP-03
  • Material: Metal
  • Working Temperature: -20-60℃
  • Size: 91*88*24mm
  • Color: Black
  • Working Voltage: DC12V-DC24V
  • Output Channels: 4
  • Connecting Mode: Common Anode
  • Max Output Current: 8A Each Channel
  • Output Power: <384W(DC12V) / <768W( DC24V )
  • Compatible With All Hoion RGBW LED Controllers
  • Weight: 250g
  • 3 Years Warranty


1*RGBW LED Repeater

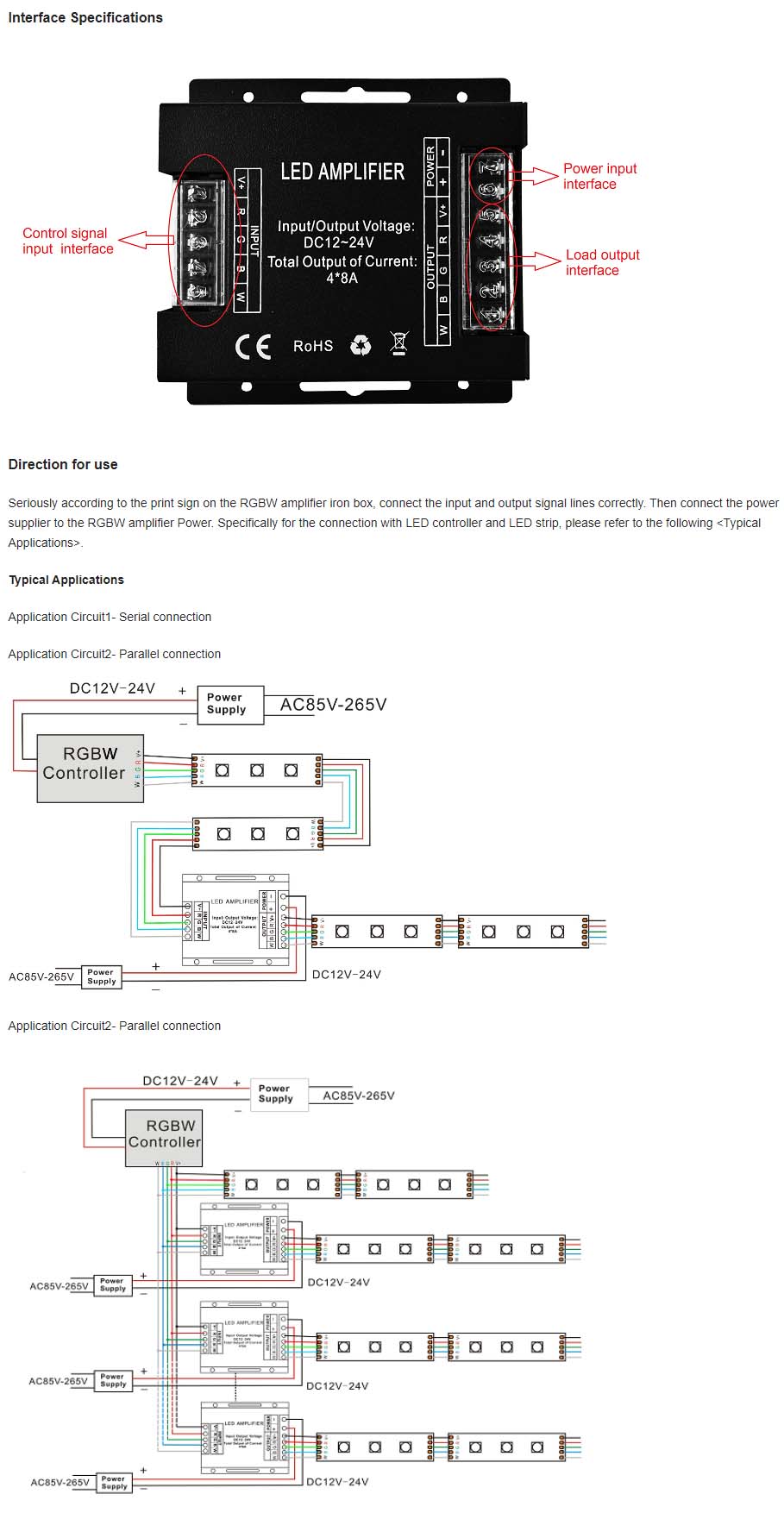

RGBW High Speed Power Amplifier
