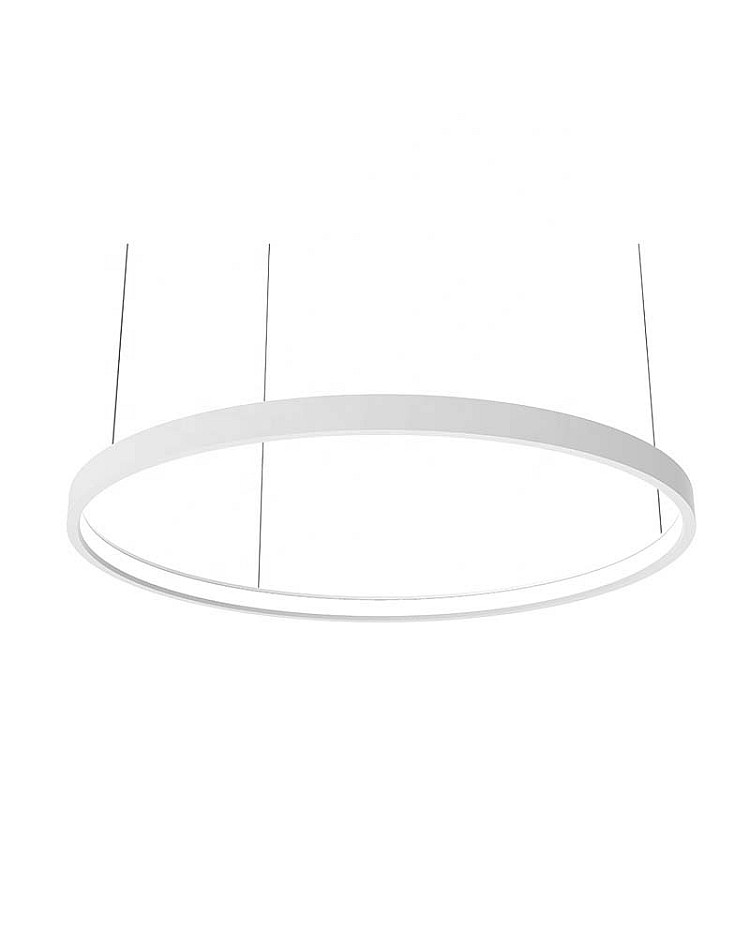

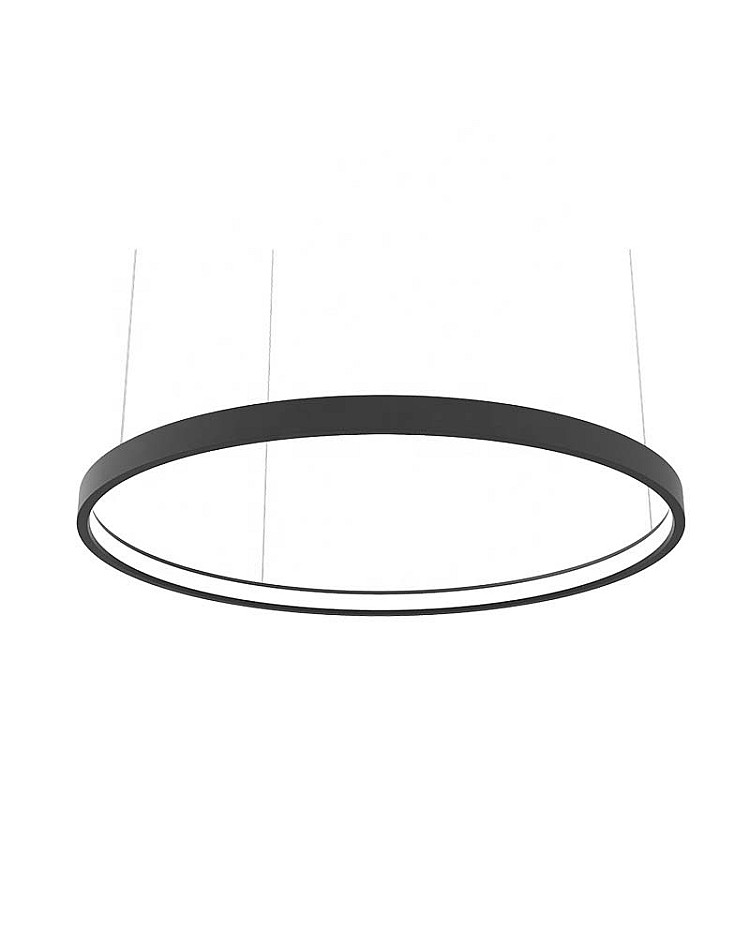

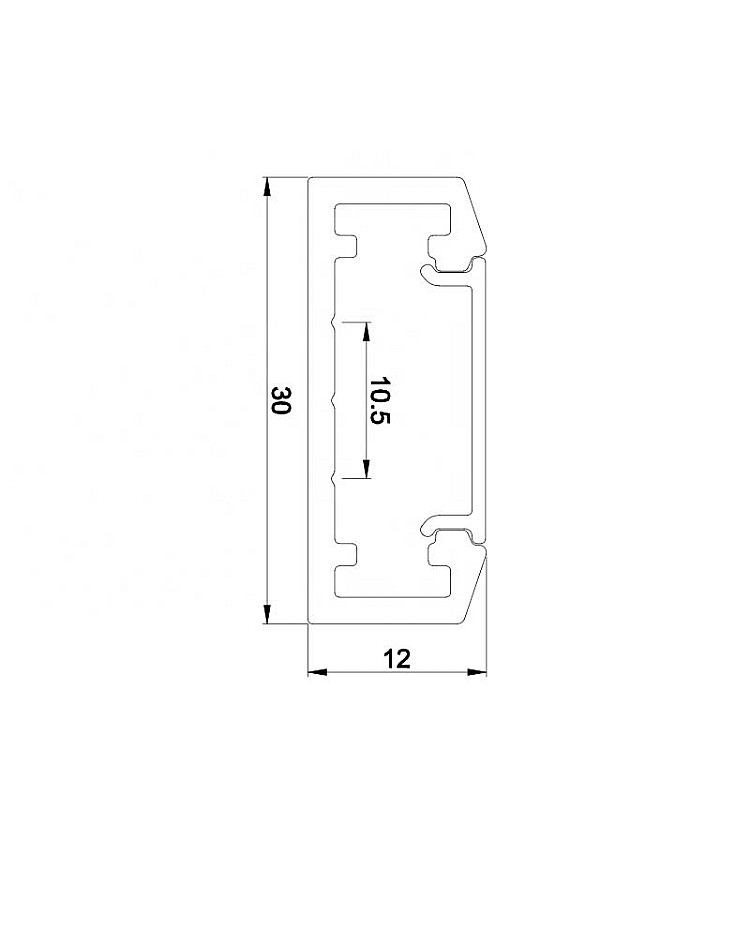

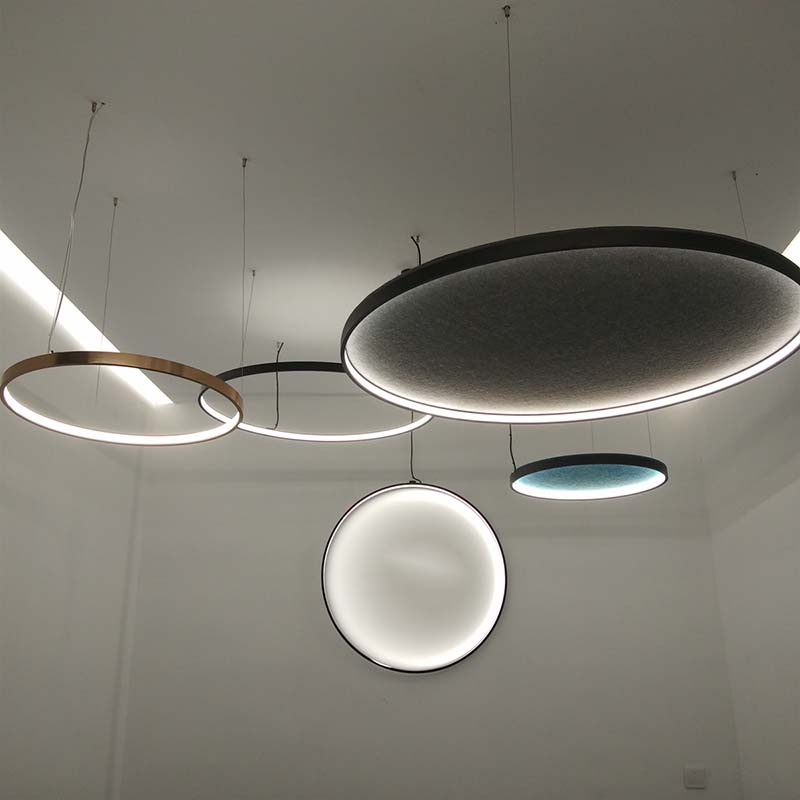

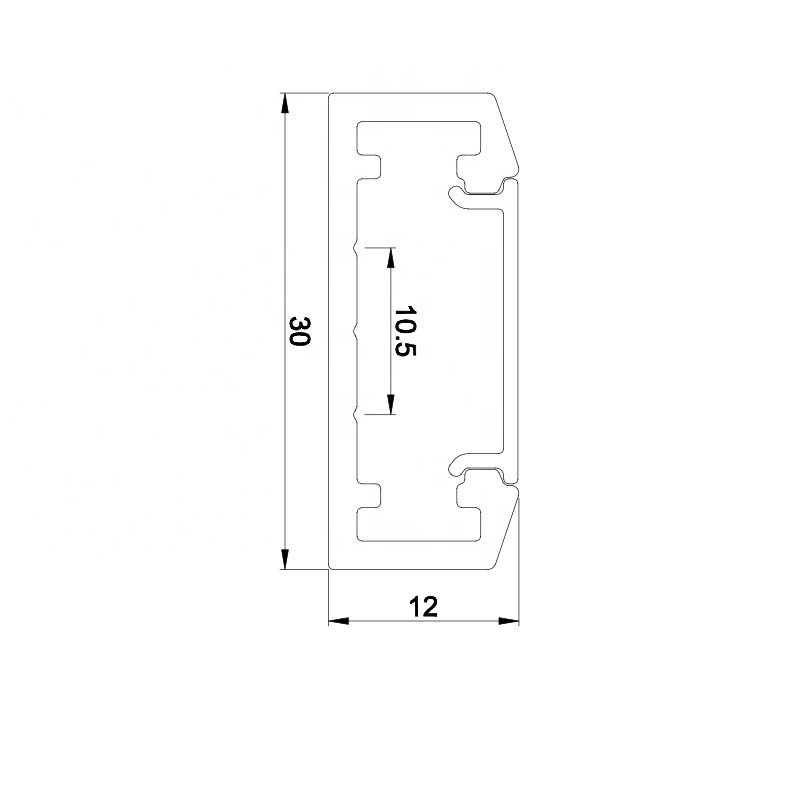

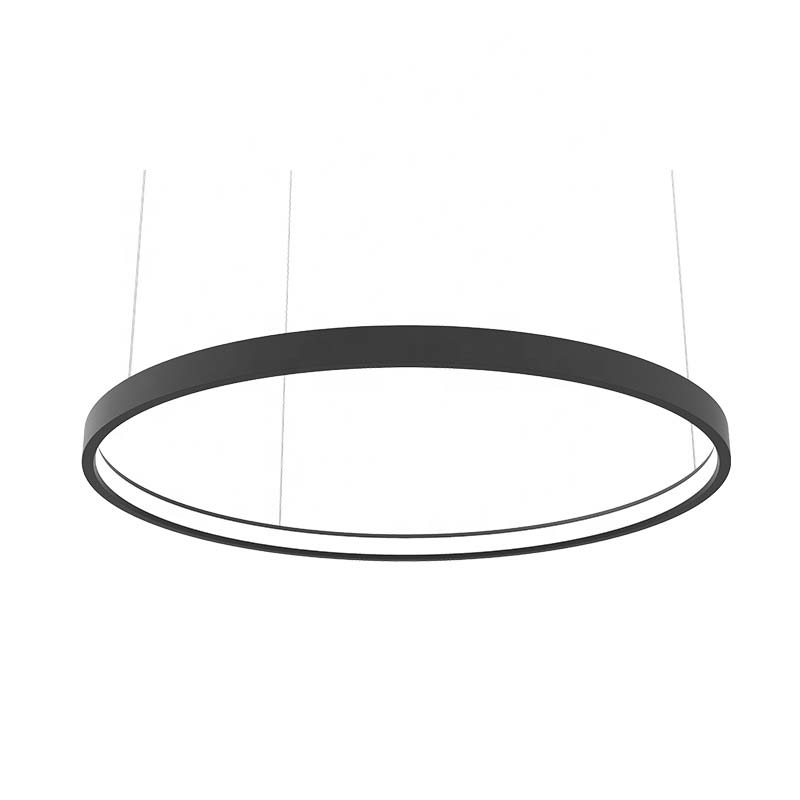

The Circle Aluminium LED Profile for the Ceiling Pendant LED Project, made of 6063-T5 aluminum alloy material and silver anodized surface treatment for a better anti-oxidation feature and a longer lifespan. there are three different diameter Round LED Extrusion available, you can choose the diameter in 577.6mm, 895.6mm or 1182.6mm. there is only PC Opal Diffuser available, which made of brand material with stable quality, anti-yellowing, perfect light distribution and high light output, the surface of the Ring LED Profile has Black and White colors available, other colors customize. the inner of the Ring LED Profile is 10.5mm, recommend works with single row 120LEDs per Meter 2835 LED Strips, comes with end caps with wire hole or without wire hole, you can connect the LED Strips with LED Power Supply or LED Dimmers. comes with the suspension wires, you can hang them on the ceiling. you can use them in offices, retail stores, supermarkets, restaurants.


  • Model: ALP30C
  • Material: AL6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized

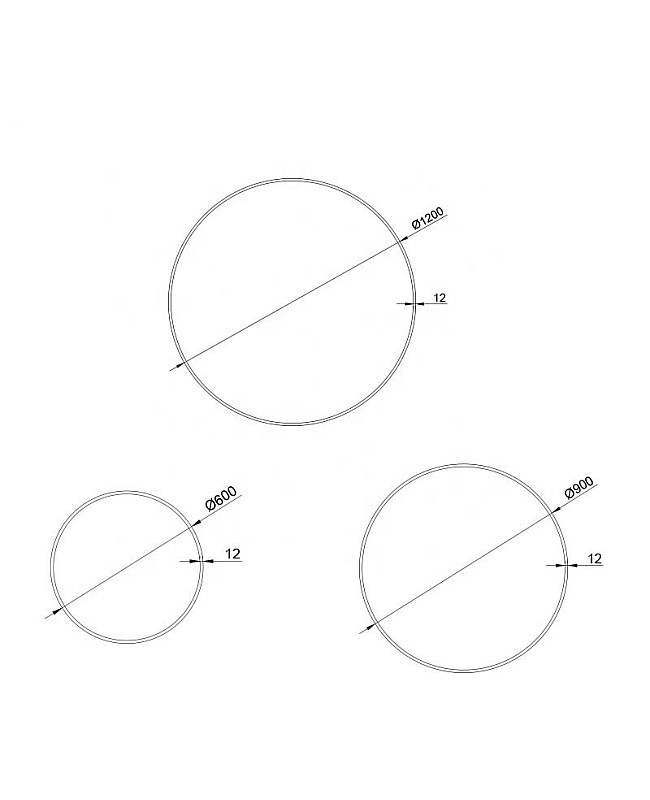

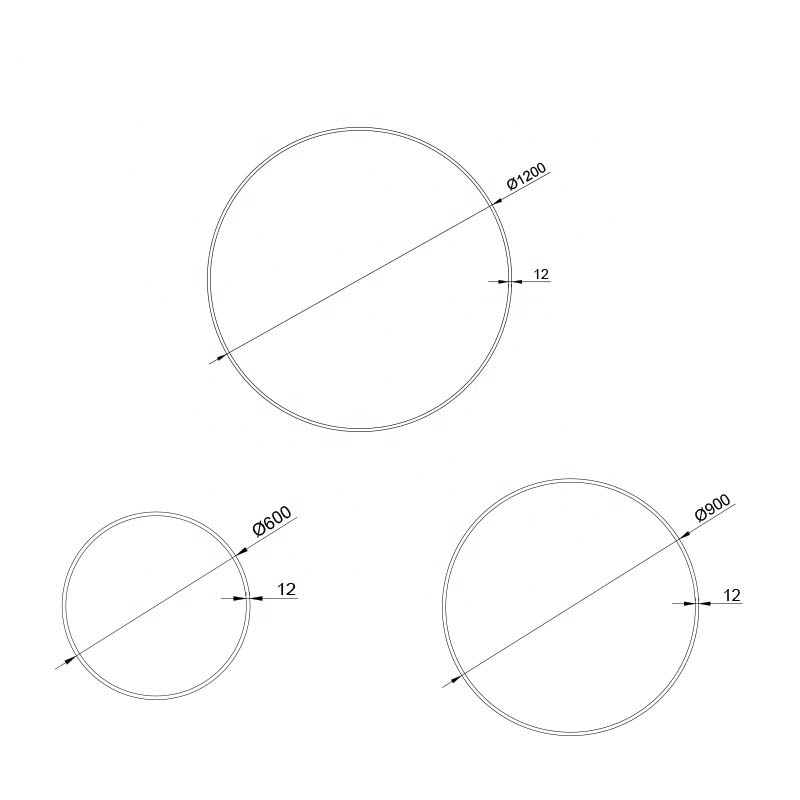

  • Diameter: 577.6mm/895.6mm/1182.6mm
  • Diffuser: PC Opal Diffuser

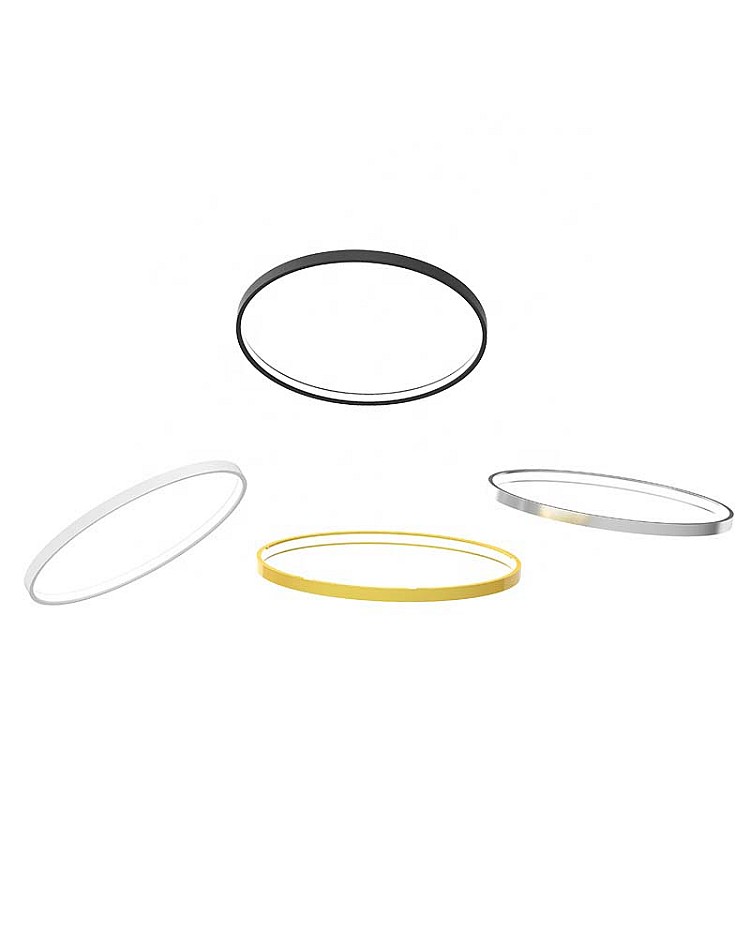

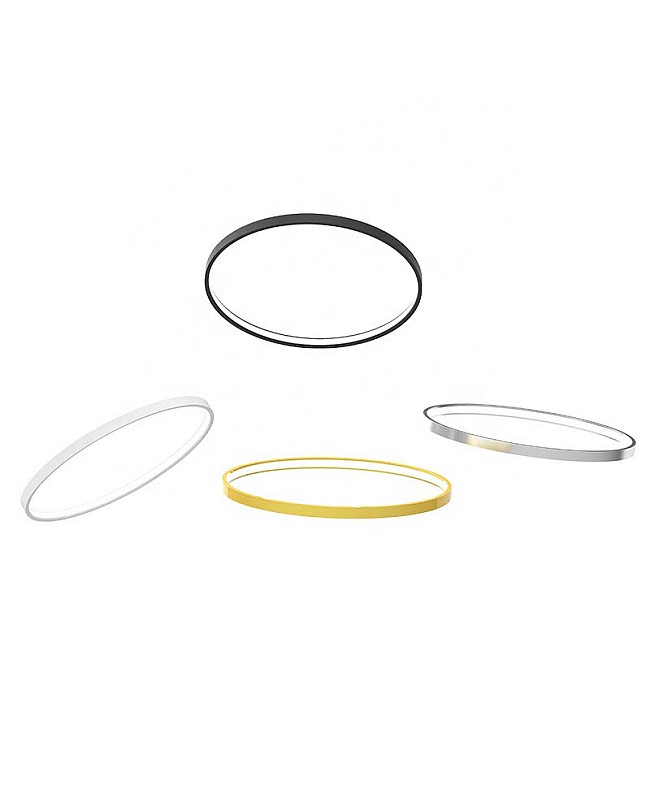

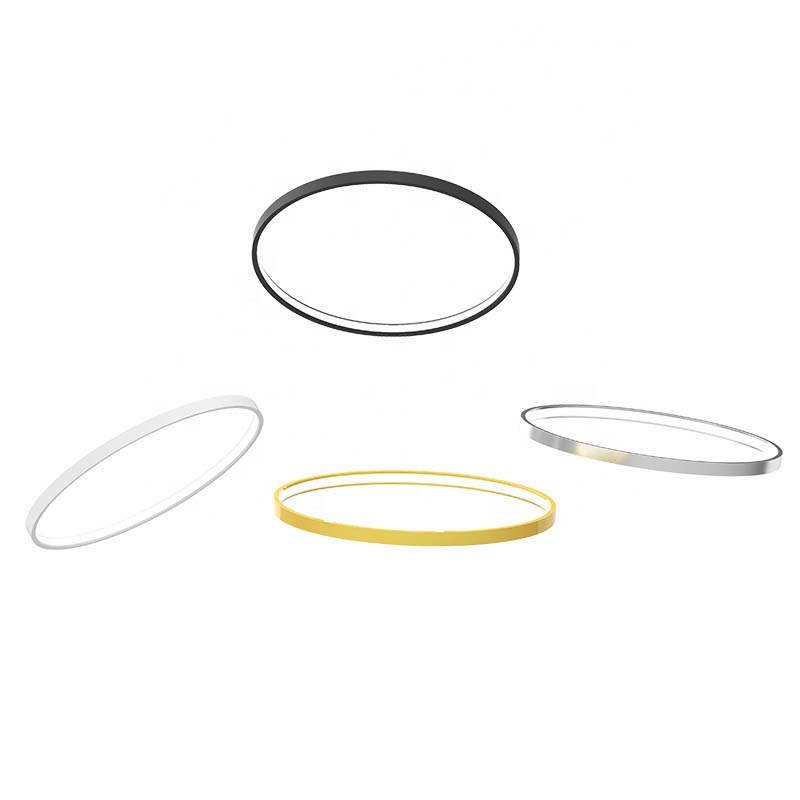

  • Colors: Black, White Or Customize Colors
  • Compatible With Flexible LED Strips: Single Row 120LEDs/M 2835 LED Strips
  • Max Power: <20W/Meter
  • Compatible LED Strips: Single Row 120LEDs/M 2835 LED Flex Strips
  • Aluminum End Caps, Suspension Wires And Couplers Included

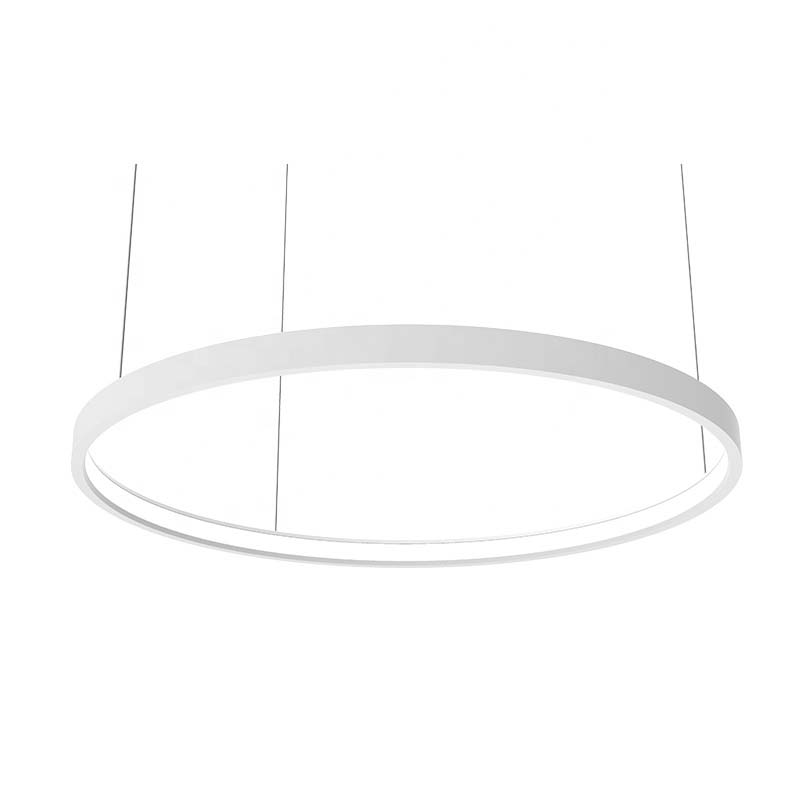

  • Installation: Ceiling Pendant

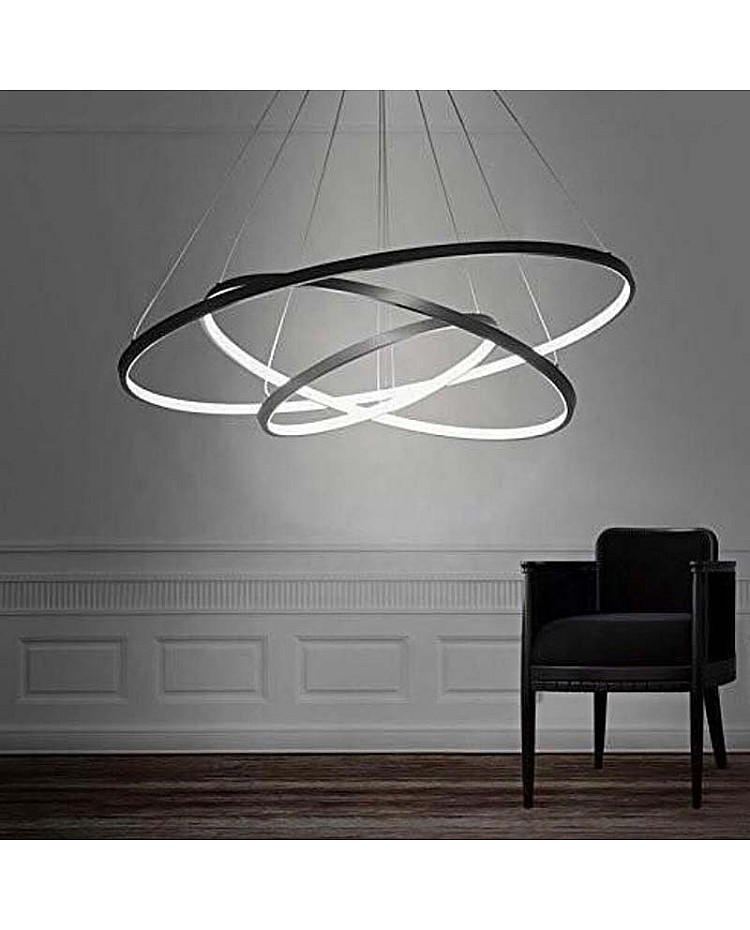

  • Applications: Office, Retail Stores, Supermarket, Shop Lighting
  • Ship As 1/4 Circle
  • LED Strips, LED Power Supply And LED Controllers Sold Separately
  • 5 Years Warranty


1*Circle Aluminium LED Profile

End Caps(With Wire Hole/Without Wire Hole)

Suspension Wires

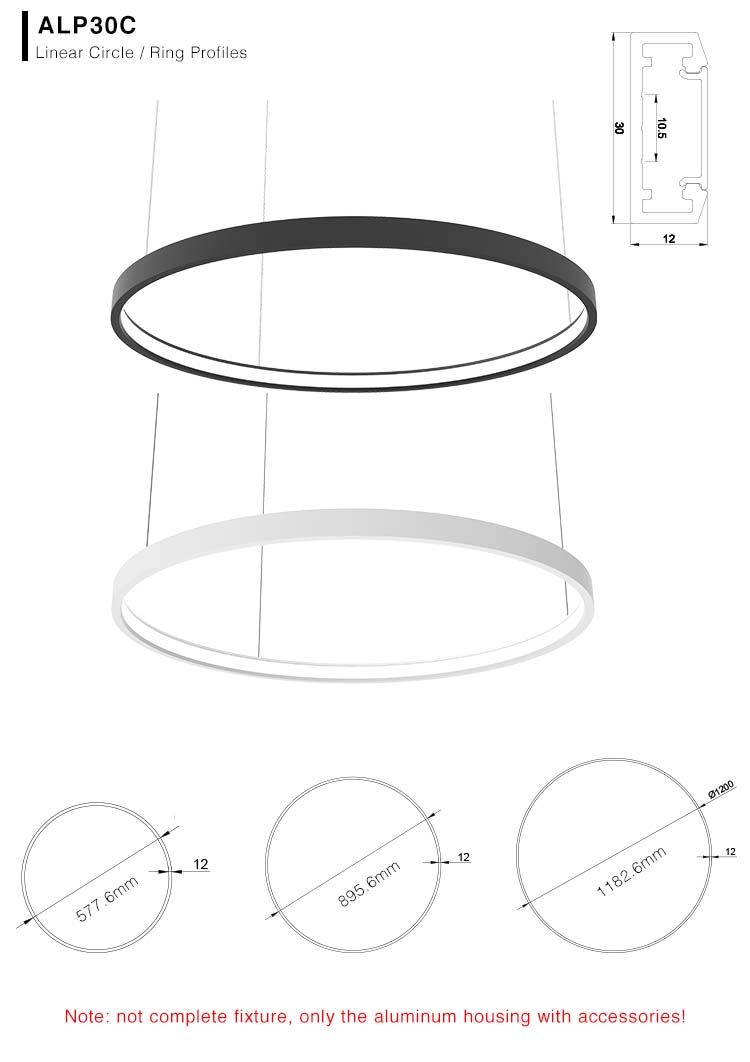

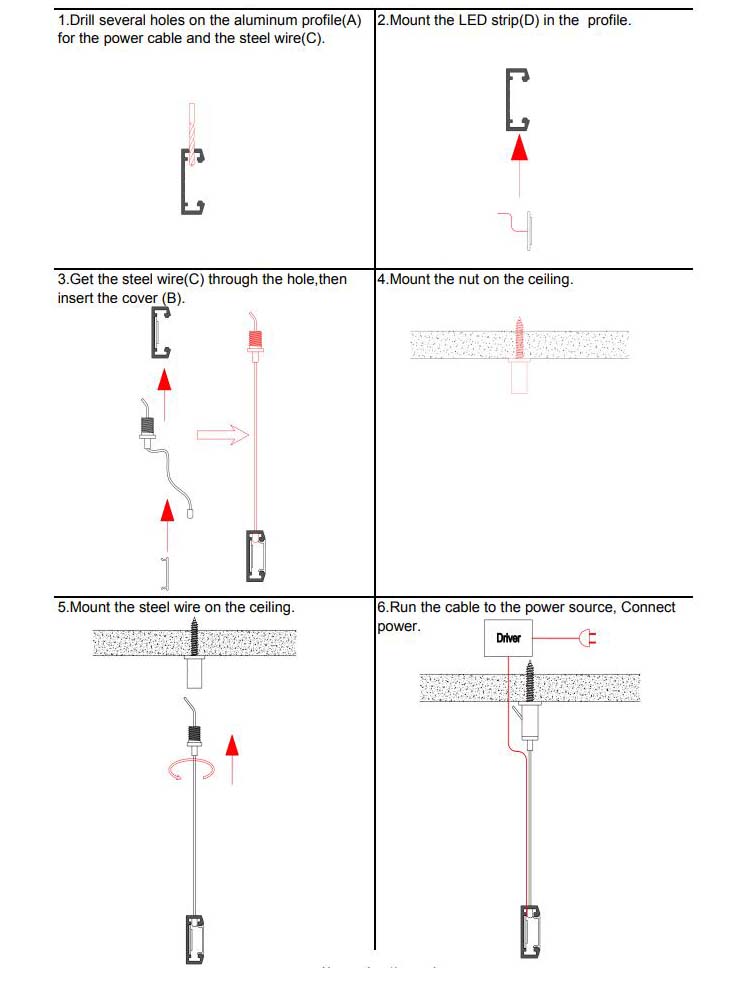

Ring LED Aluminium LED Profile Installation

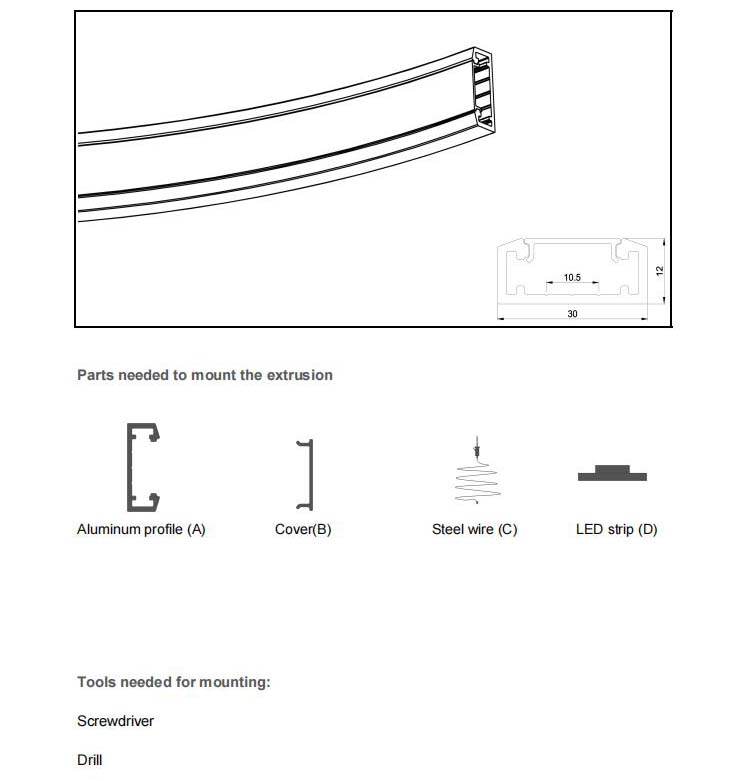

How To Install Circle LED Profile How To Install Circle Aluminum LED Channel Pendant Circle LED Profile
