In Stock
$49.90
Reward Points: 50
-
+
  • Brand: Ledbe
  • Product Code: ALP25C-R

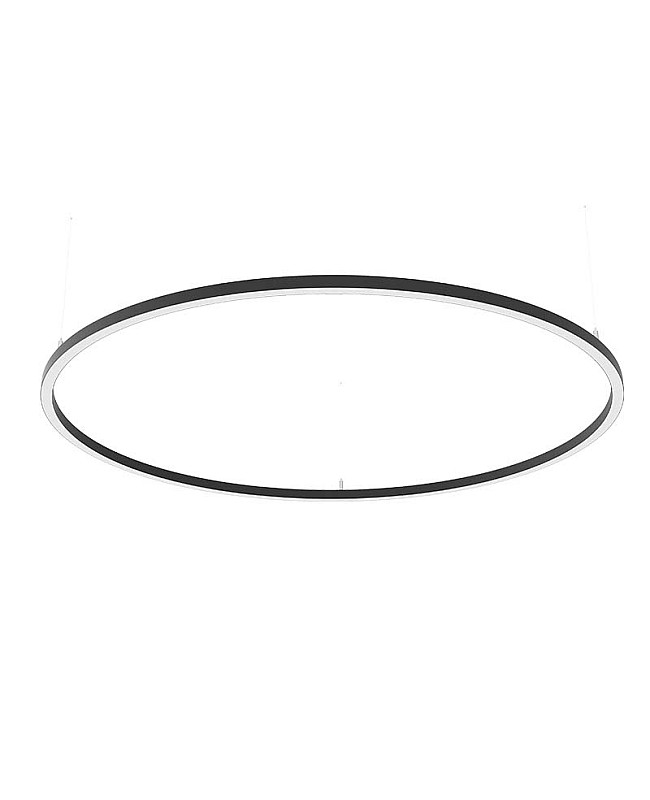

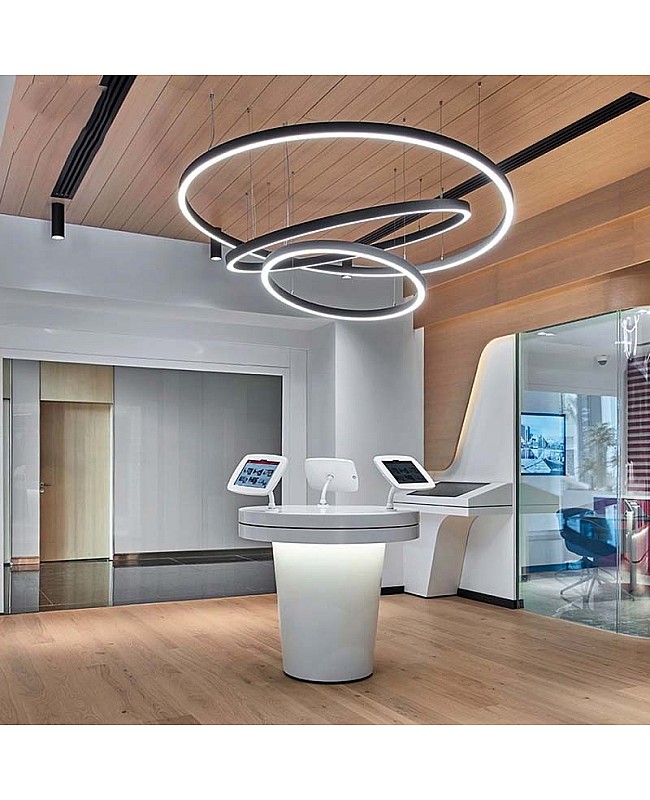

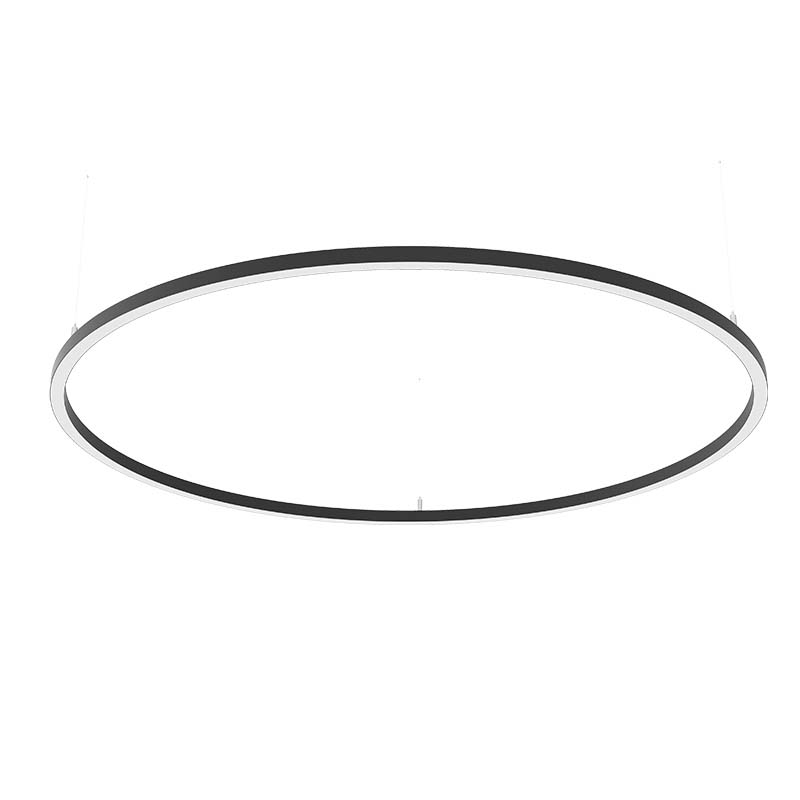

The ring LED strip lighting channel is designed for ceiling installation. Its clean circular shape and uniform light output deliver a modern, sophisticated look, perfect for architectural and decorative lighting designs. Ideal for both residential and commercial settings, it cleanly conceals LED strips and can be suspended to create a smooth, hotspot-free circle of light. Whether used for architectural accents, retail displays, or home feature lighting, this round LED channel offers seamless illumination and a contemporary aesthetic.

It is made of 6063-T5 aluminum material and features a powder-coated surface treatment for enhanced oxidation resistance and a longer lifespan. Four diameter options are available: 600 mm, 900 mm, 1270 mm, or 1800 mm. You can install them separately or combine them. There is only one type of diffused cover available: PMMA opal diffusers. The plastic covers are made from high-quality material with stable properties, anti-yellowing capabilities, and perfect light distribution. They are shipped in 1/4-circle form and come with couplers, making it easy to assemble into a ring. The inner width is 12mm, accommodating the SMD LED modules or zig-zag SMD LED strips as the light source. The aluminum channels can serve as heat sinks to improve heat dissipation. The suspension wire kits are included for easy suspension on the ceiling. The stainless steel wires are cuttable, allowing you to adjust the height of the LED light circle.


Specifications:

  • Material: 6063-T5 aluminium alloy
  • Diameter: 600 mm ( 23.62" ), 900 mm ( 35.43" ), 1270 mm ( 50" ), 1800mm ( 70.87" )
  • Surface treatment: Powder-coated
  • Colors: Black, White

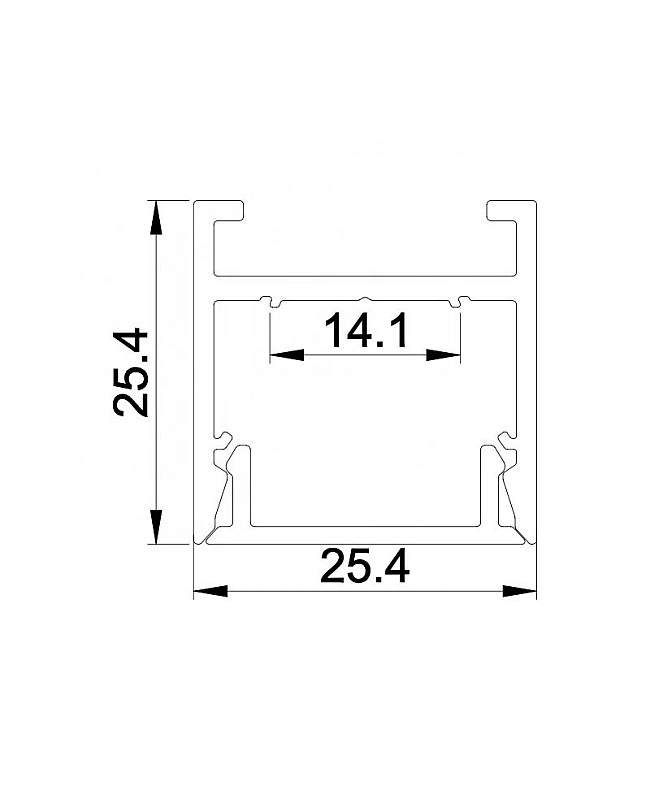

  • Maximum LED strip width: 12 mm ( 0.47" )
  • Compatible LED strips: Customized circular LED modules or S-shaped LED strips
  • Max power: <20W/m
  • Diffuser: PMMA opal diffuser
  • Suspension wires and couplers are included
  • Installation: Pendant
  • Ship as 1/4 circles
  • LED strips, LED power supply, and LED controllers are sold separately
  • Certifications: CE, ROHS
  • Warranty: 5 years


Includes:

1 x Ring LED channel with diffuser

Suspension wires

couplers

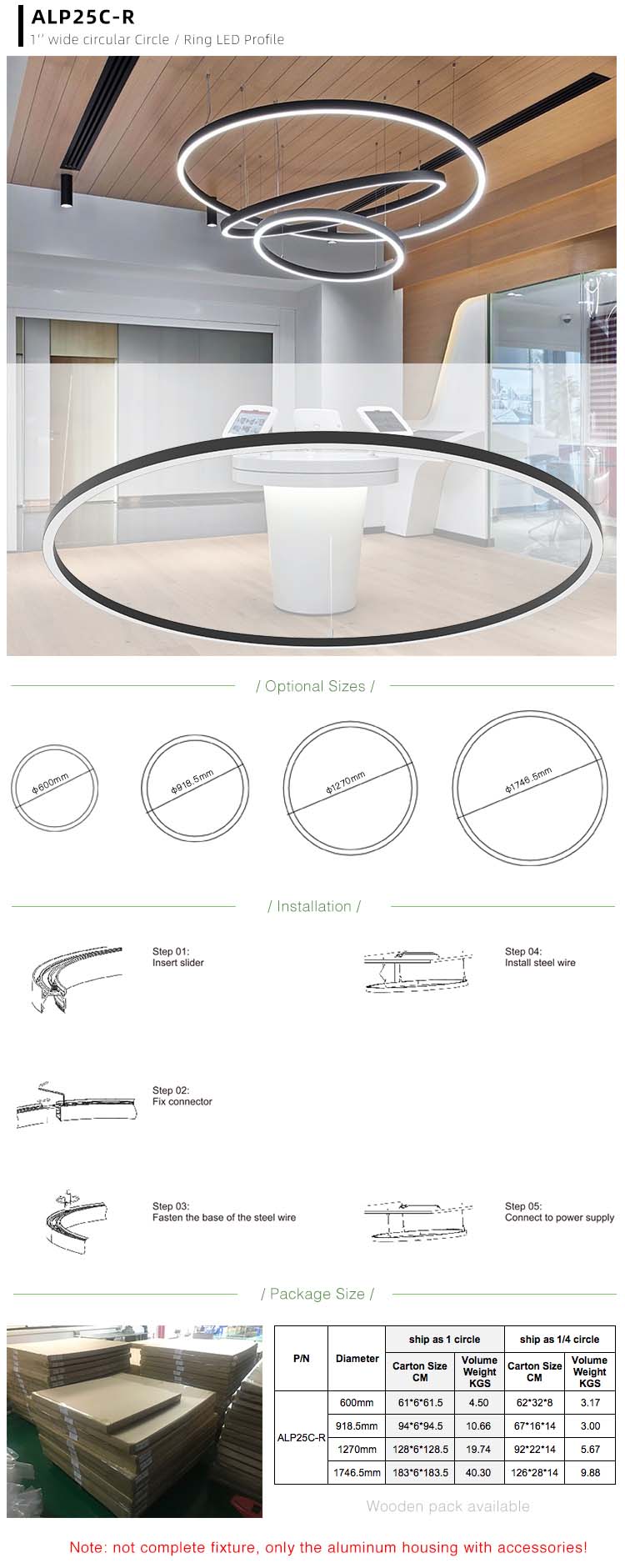

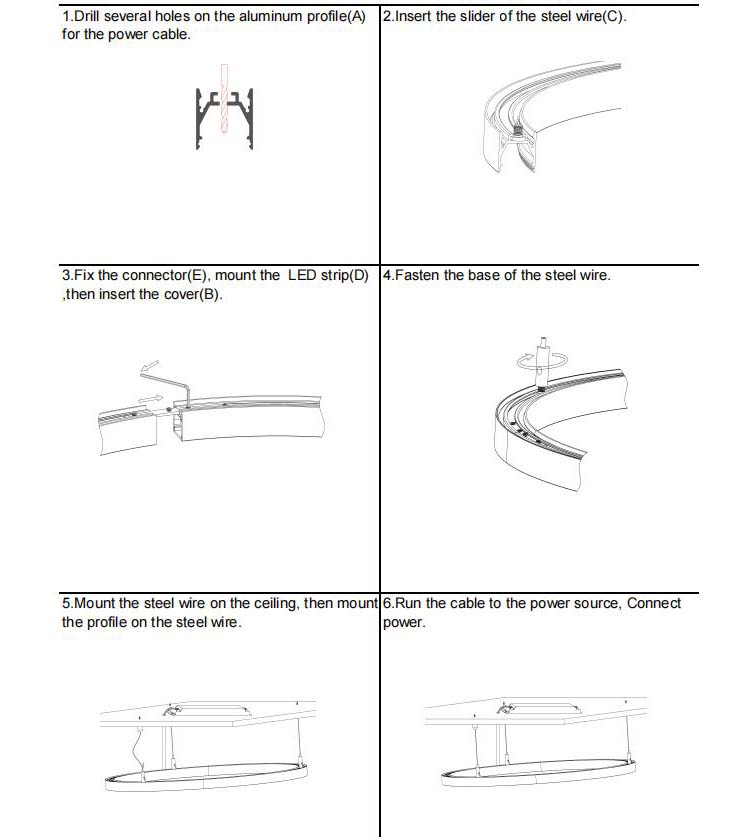

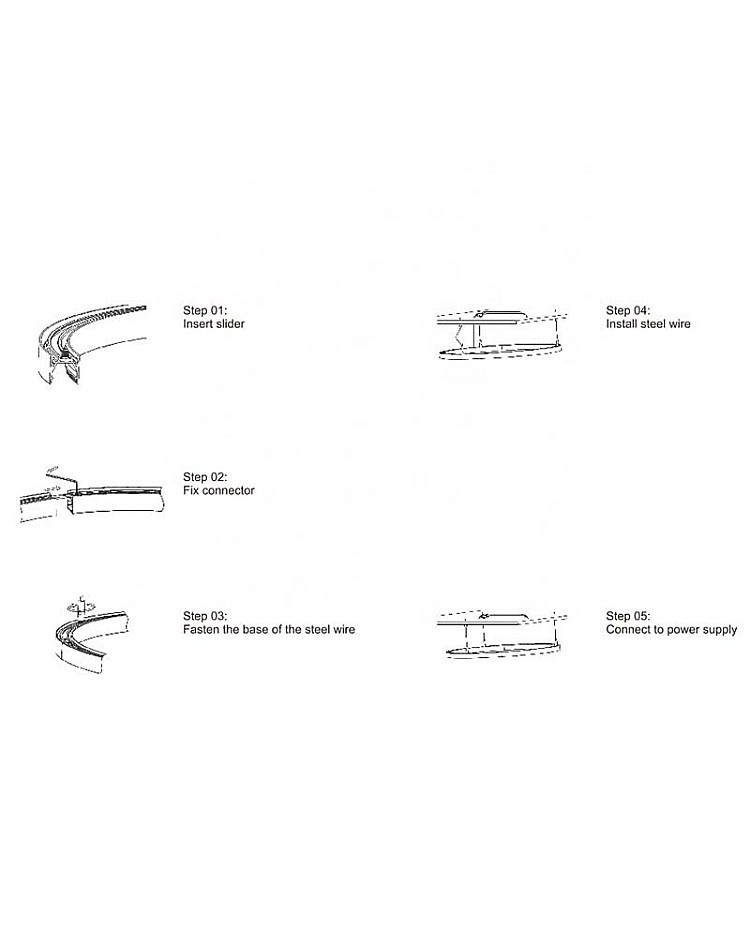

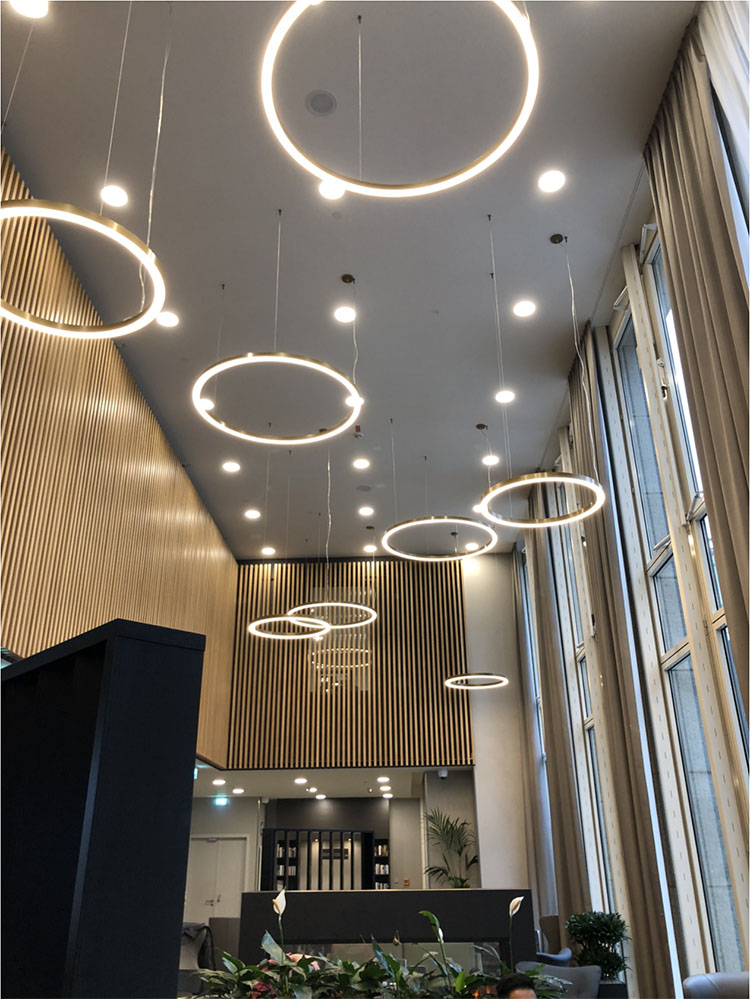

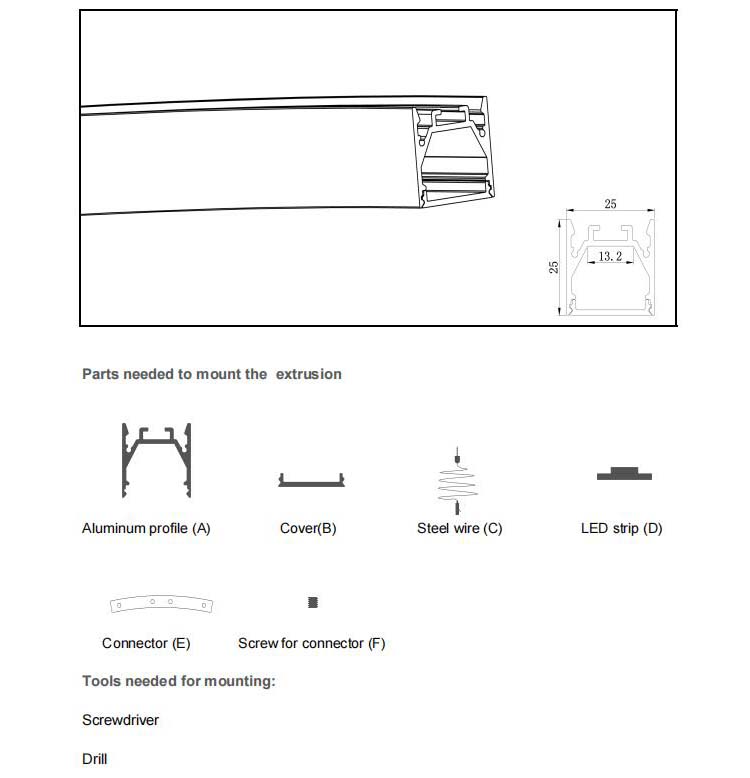

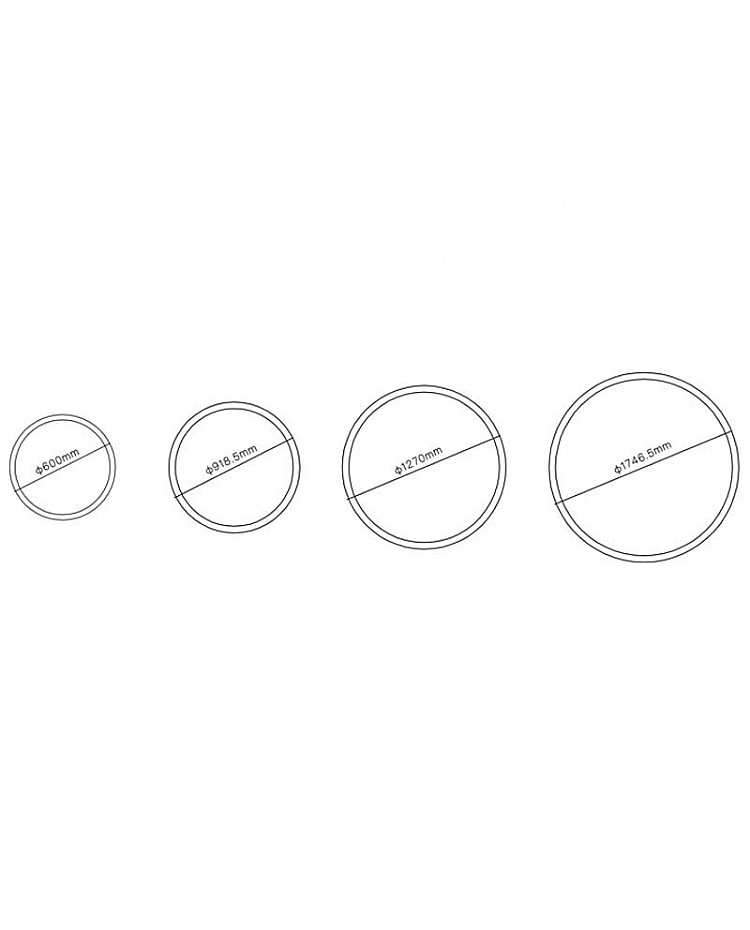

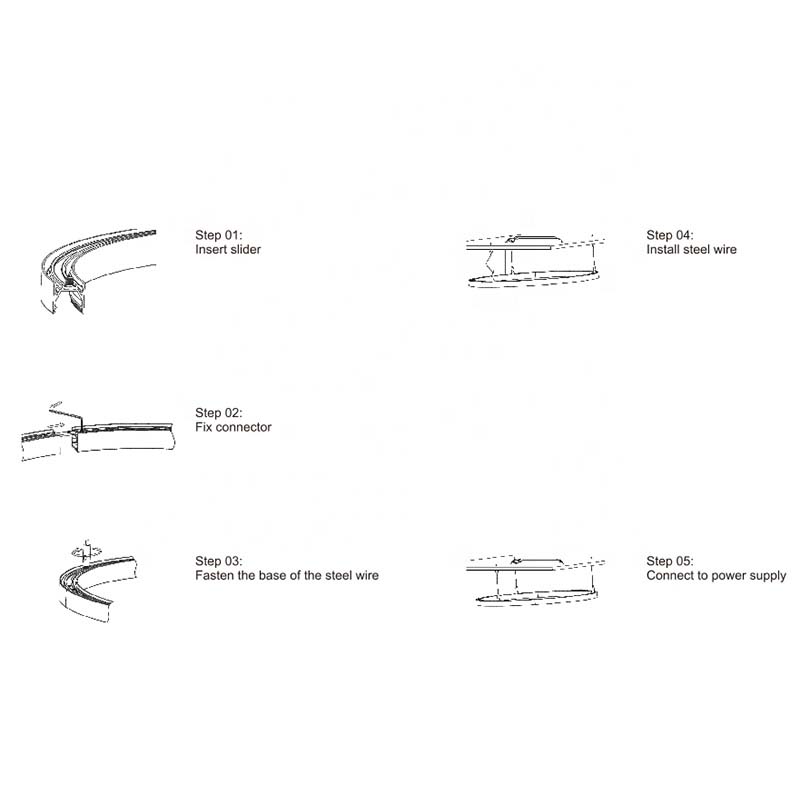

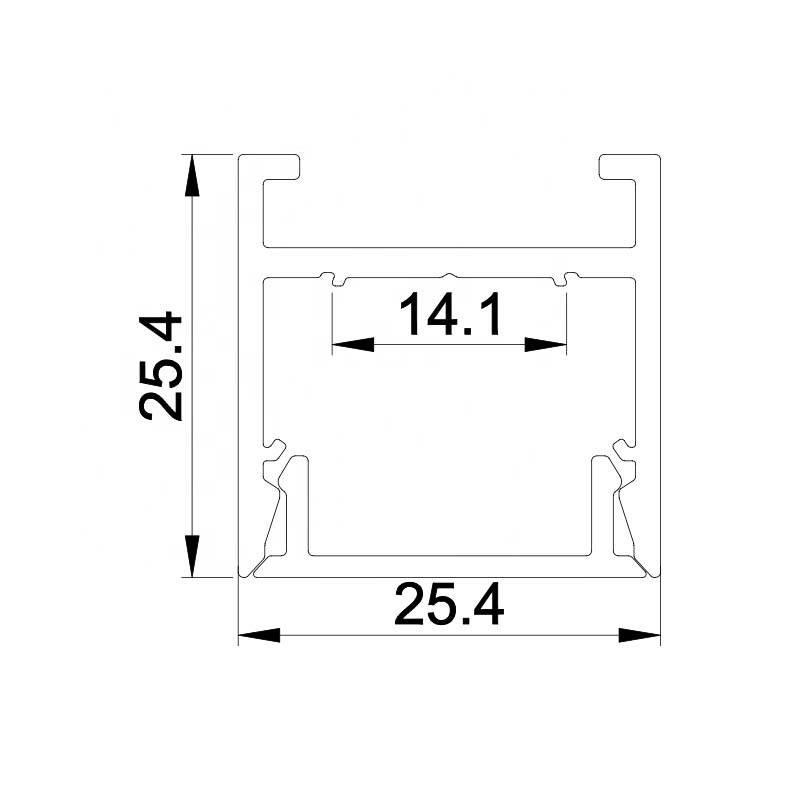

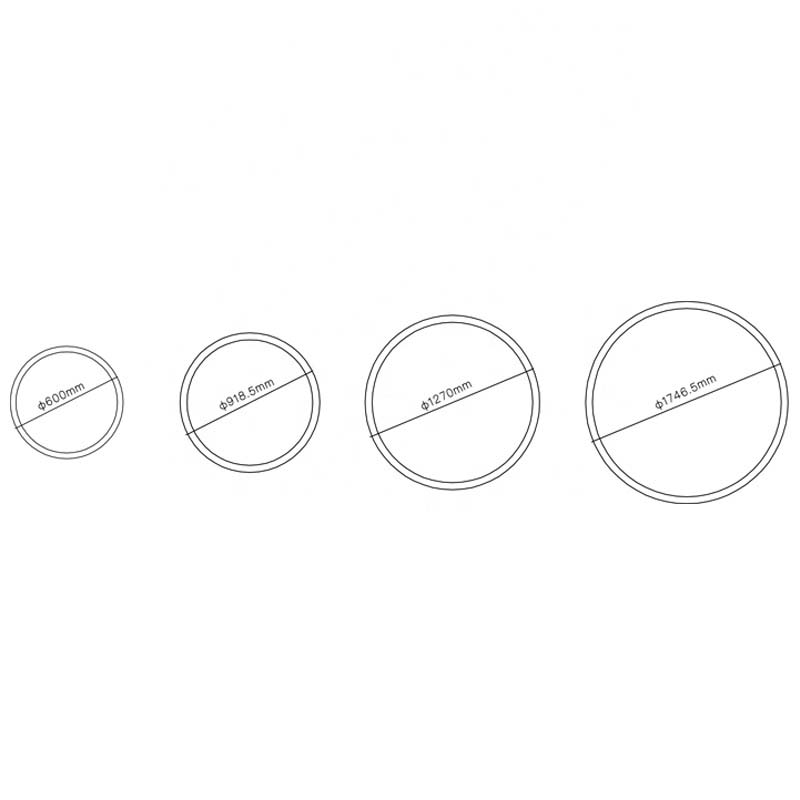

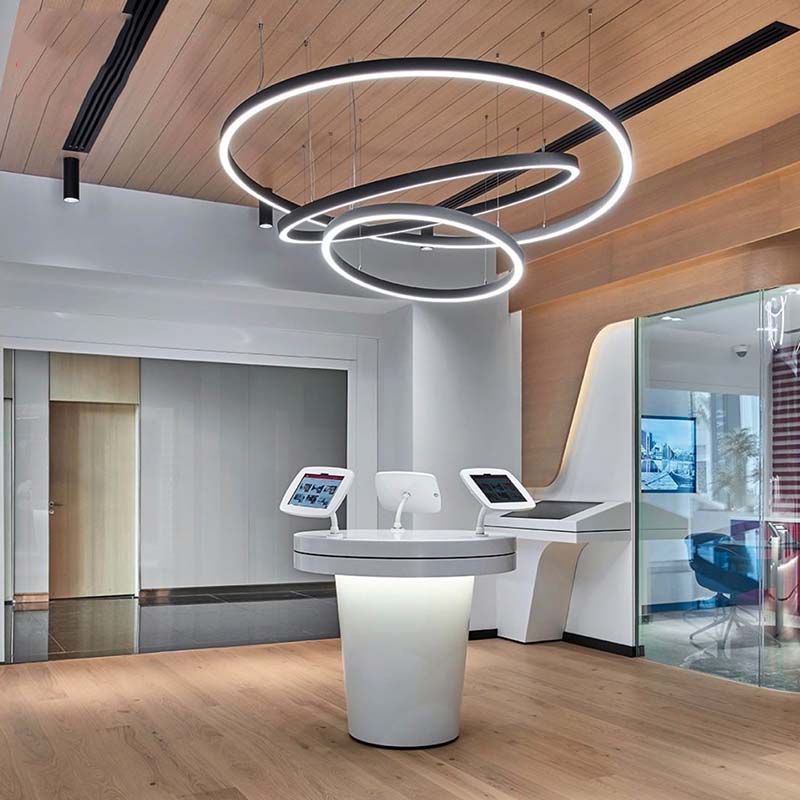

For sizes of circular LED strip lighting channels in stock and how to install them The lighting effects of the gold ring LED light channels in a supermarket The dimension and accessories for the round LED light channels. The steps of how to install the 1/4 circle LED light channels
