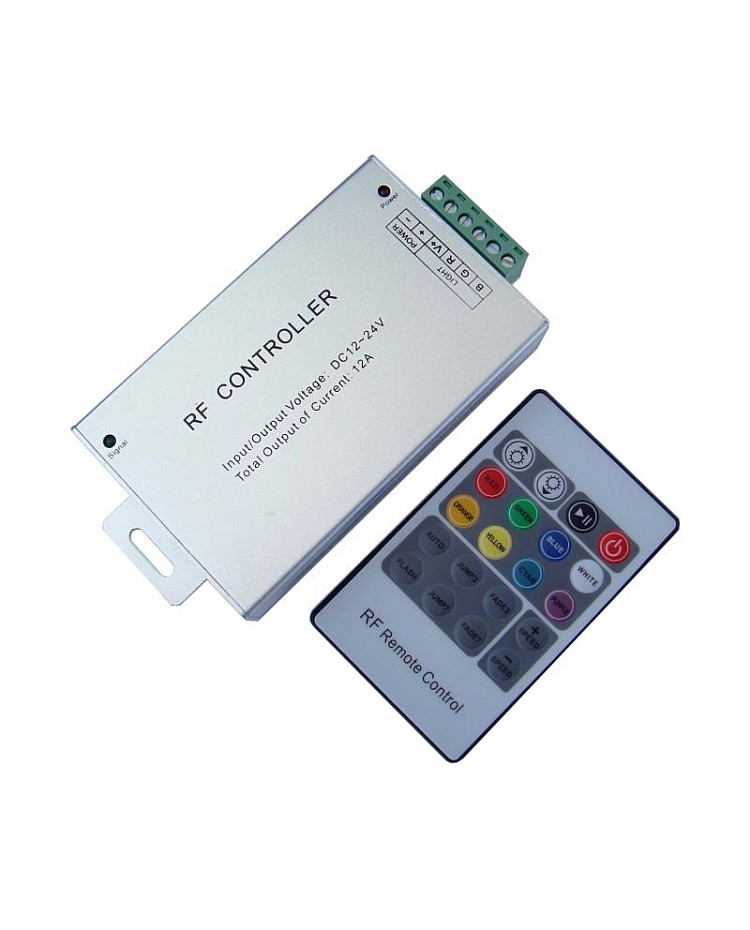

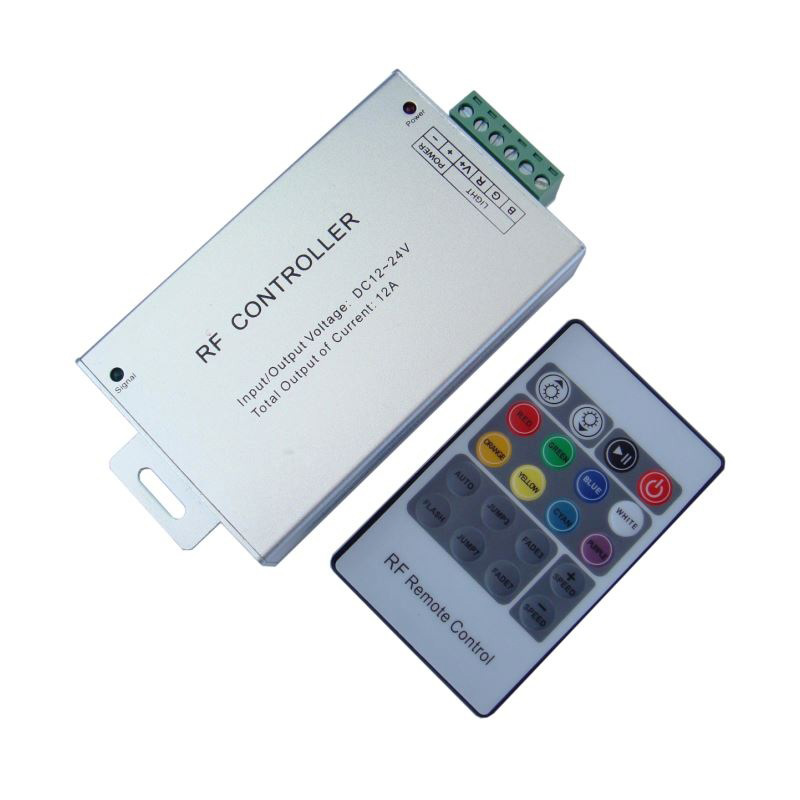

The RF RGB LED controller with 20Keys remote is enclosed in an aluminum shell. With a 3-channel output design, the max output current of each channel is 4A, the max output power can reach 288W when working in DC24V, and can drive the RGB LED strips, color-changing LED lamps, and so on. The 20 Keys remote control is included, and 8 static colors and 6 dynamic modes are available. Can adjust the brightness of static colors or the speed of dynamic modes.
Specifications:
- Size: 90*70*28mm(L*W*H)
- Connecting Mode: Common Anode
- Static Power Consumption: < 1W
- Working Voltage: DC12V-24V
- 3-Channel Output
- Output Current: <4A ( Each Channel )
- Output Power: 144W ( 12V ) / 288W ( 24V )
- 20 Keys Remote Included
- 14 Modes In Total ( 8 Static Colors And 6 Dynamic Modes )
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- Working Temperature: -20℃-60℃
- 2 Years Warranty
Includes:
1 * RF RGB LED Controller
1 * 20 Keys RF Remote Control
