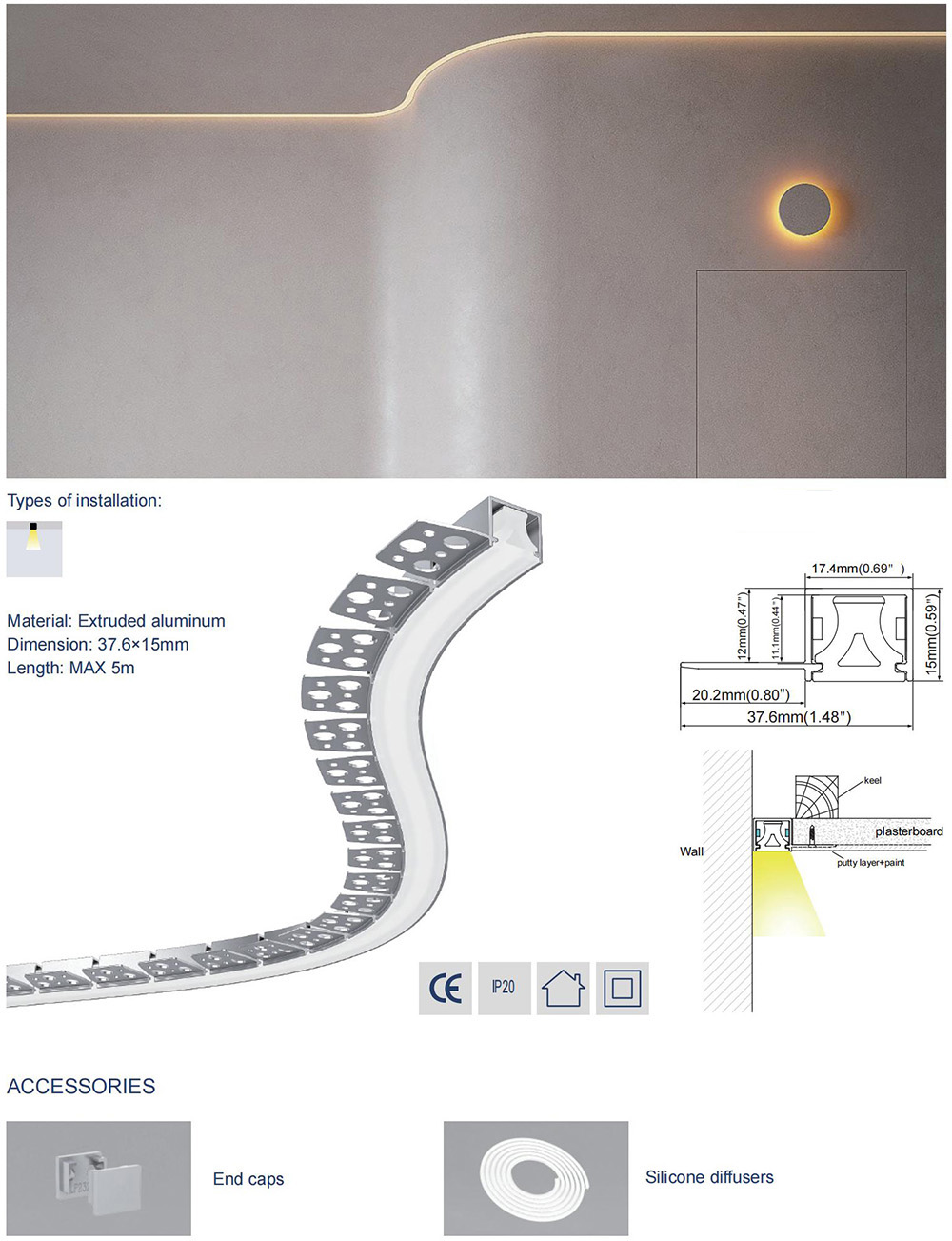

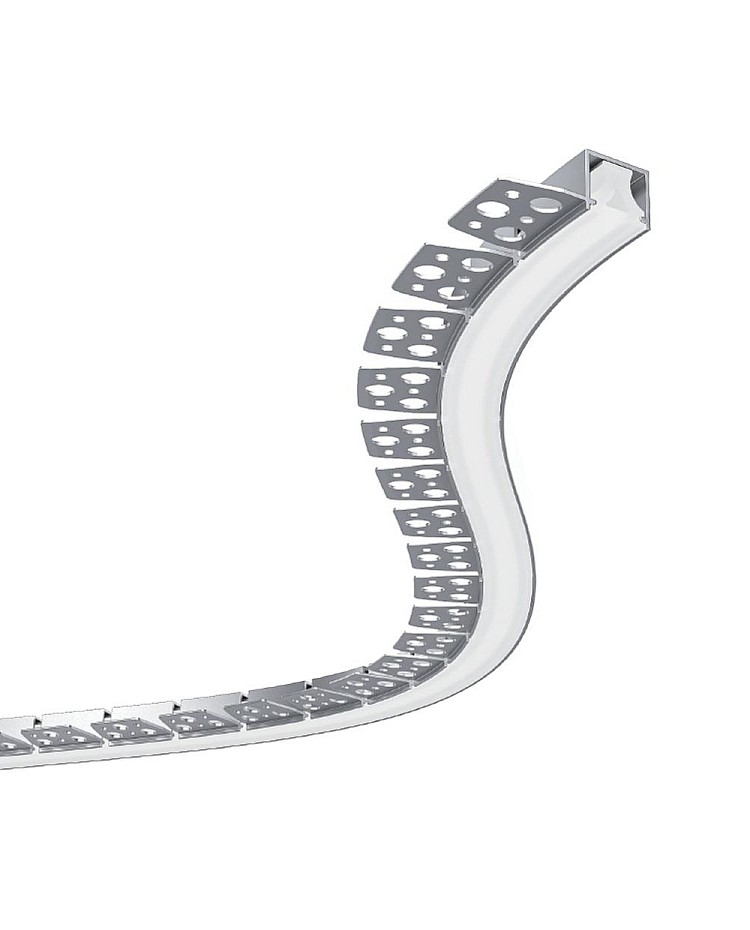

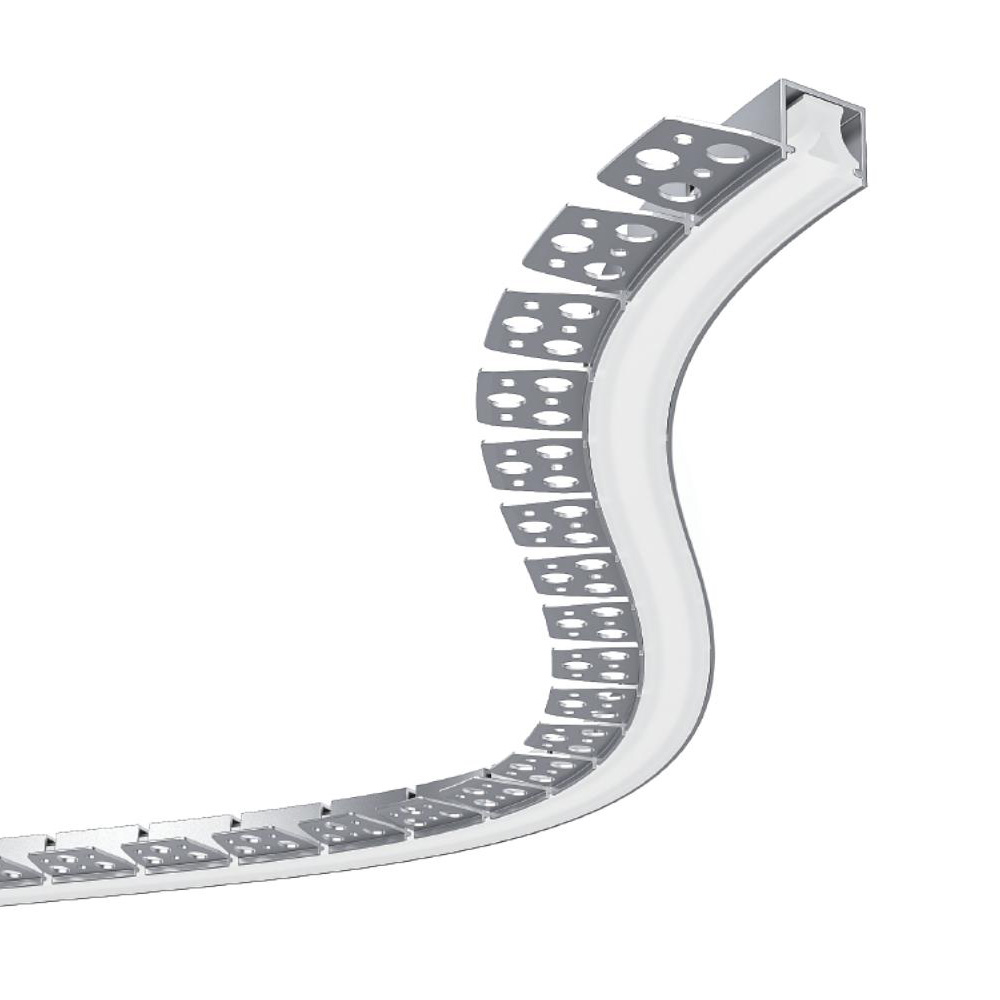

The plaster-in aluminum LED channels feature a side bendable feature, which allows them to be seamlessly integrated into curved ceilings or irregular walls to create smooth curved lighting effects. They enable seamless installation along arches, circles, and wave-shaped surfaces. It's designed to be recessed into 12 mm plasterboard or drywall for a clean, trimless finish. They come with silicone diffusers, which ensure a soft, dot-free linear glow that enhances modern interior spaces. Ideal for indirect cove lighting, curved ceiling accents, and decorative wall edges. The side-bending plaster-in LED channels are perfect for residential, commercial, and architectural projects that demand unique, continuous light lines. The aluminum light channels are made from high-quality extruded aluminum and have anodized surfaces for anti-oxidation and a longer lifespan. The inner width is 11.1mm, allowing a maximum width of 10 mm for strip lights. Recommend adding high-density COB strip lights as the light source for uniform lighting without hotspots. The stock length of the side bendable aluminum channels is 2 meters per piece, and can be cut to any length. The end caps and silicone diffusers are included; no need to order them separately.
Specifications:
- Model: LB232-C
- Material: extruded aluminum
- Surface treatment: Anodized
- Color: Silver

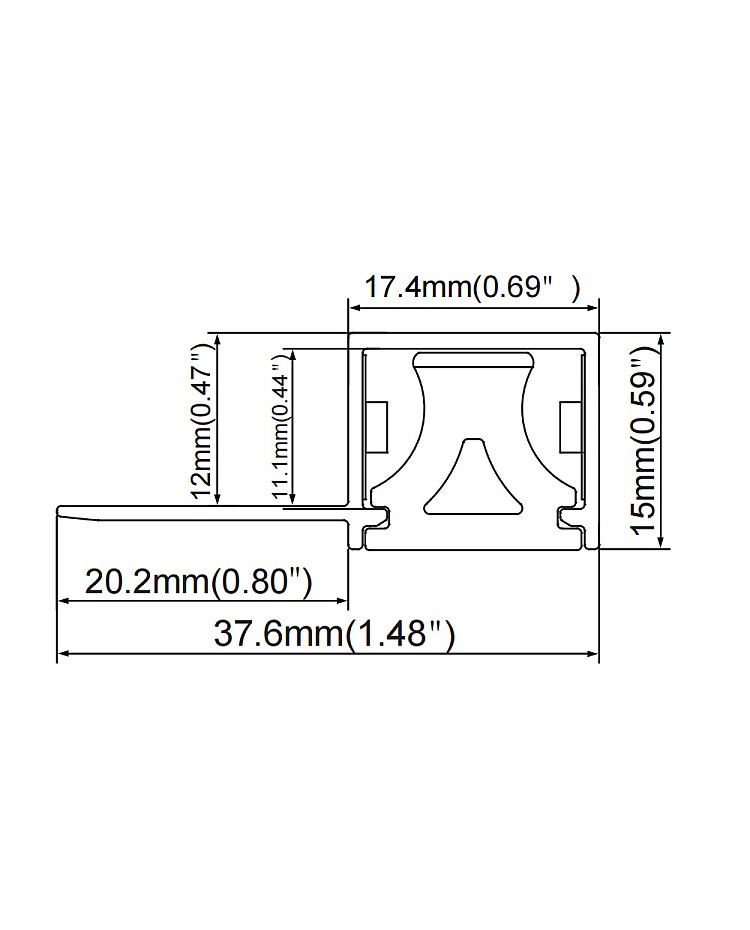

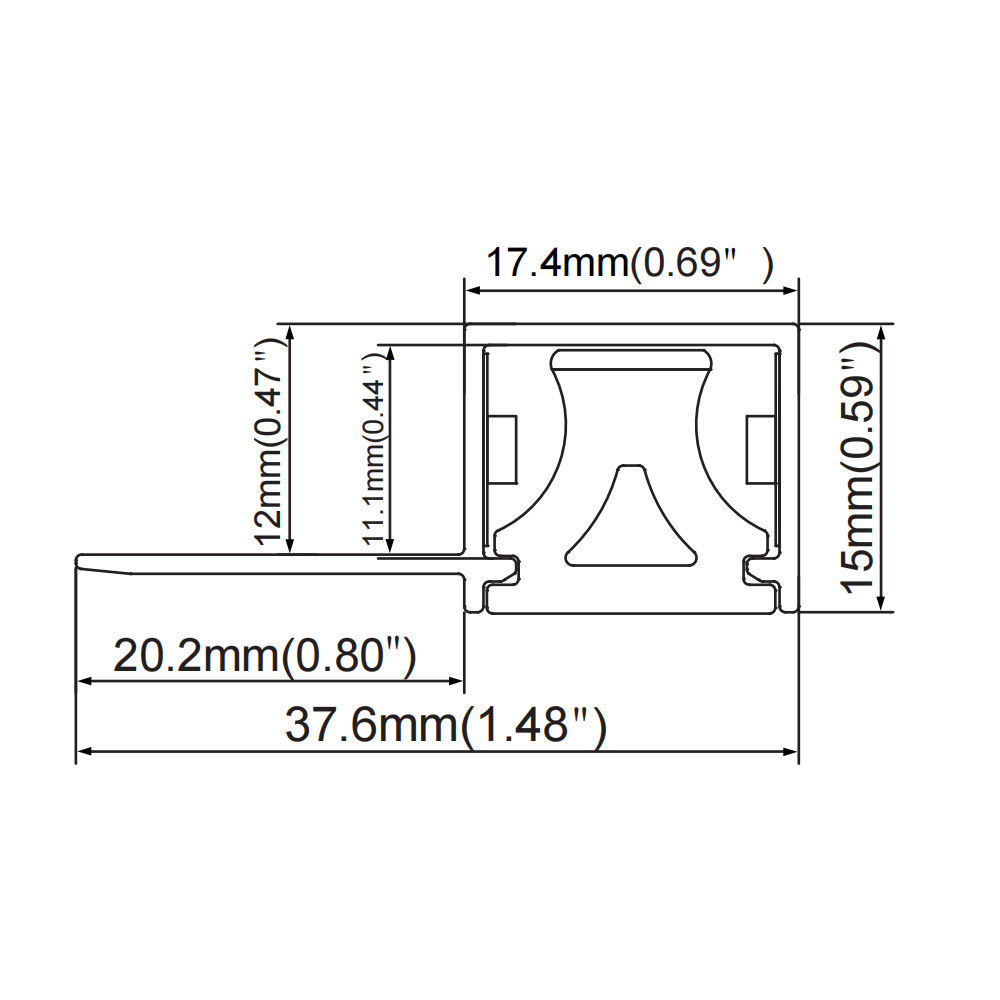

- Size ( W x H ): 37.6 mm x 15 mm ( 1.48" x 0.59" )
- Stock length: 2 m ( 78" )
- Custom length: YES
- Inner width: 11.1 mm ( 0.44" )
- Maximum width of strip lights: 10 mm ( 0.39" )
- Max power: 15W/m
- Diffusers: Silicone diffused cover
- Maximum length of silicone cover: 20 meters/roll
- Beam angle: 100°
- End caps and silicone diffusers are included

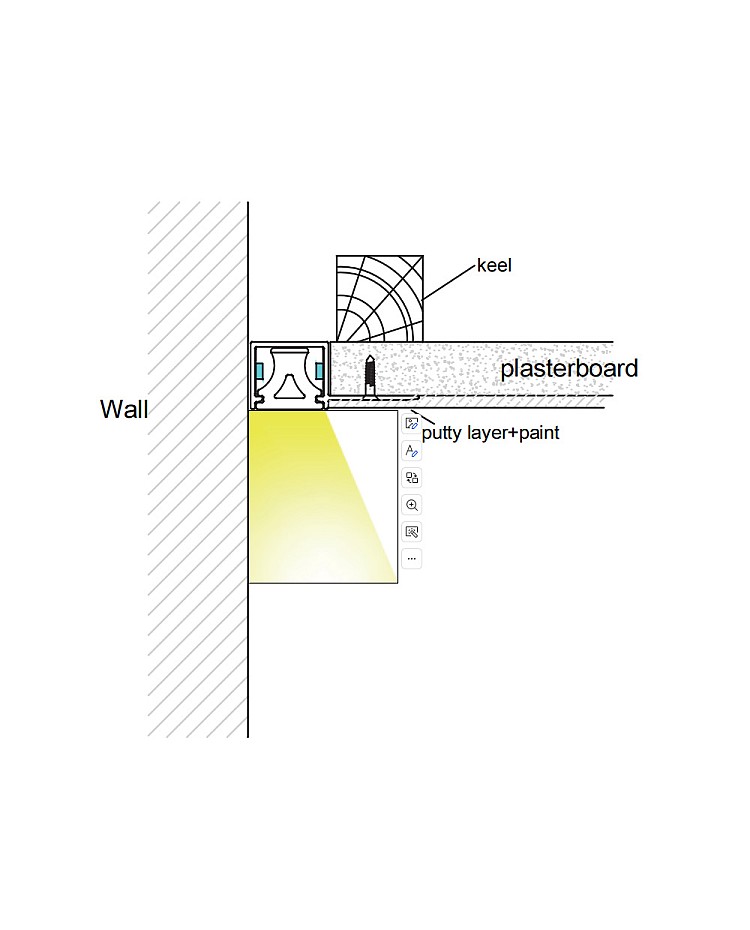

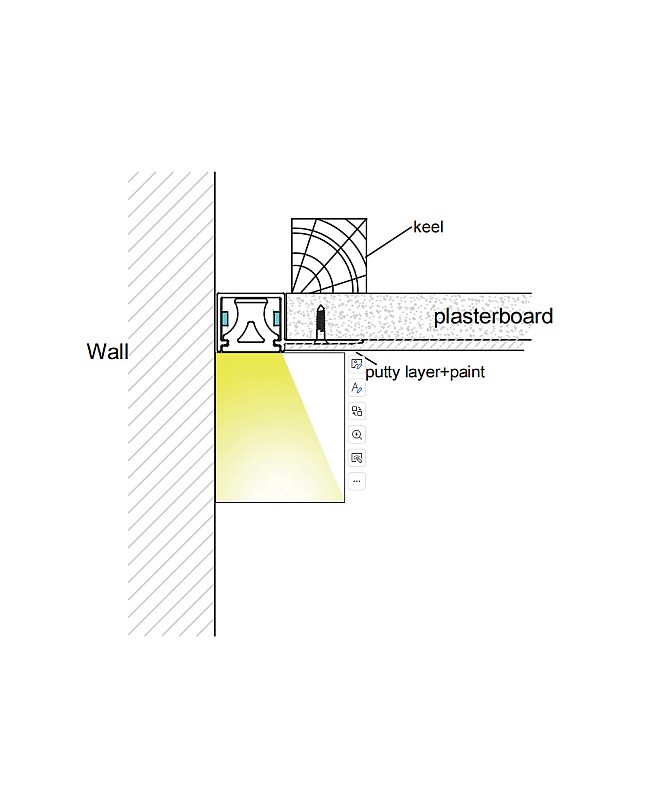

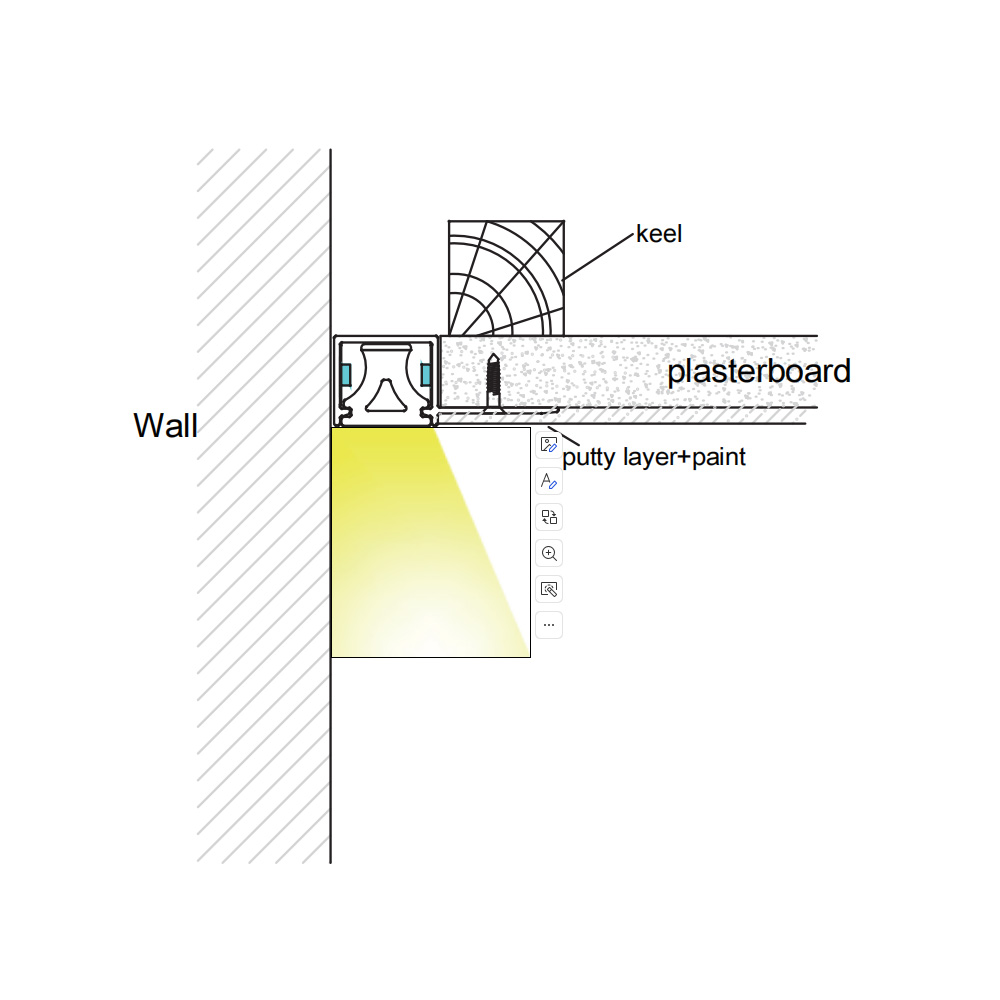

- Installation: Plaster-in
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

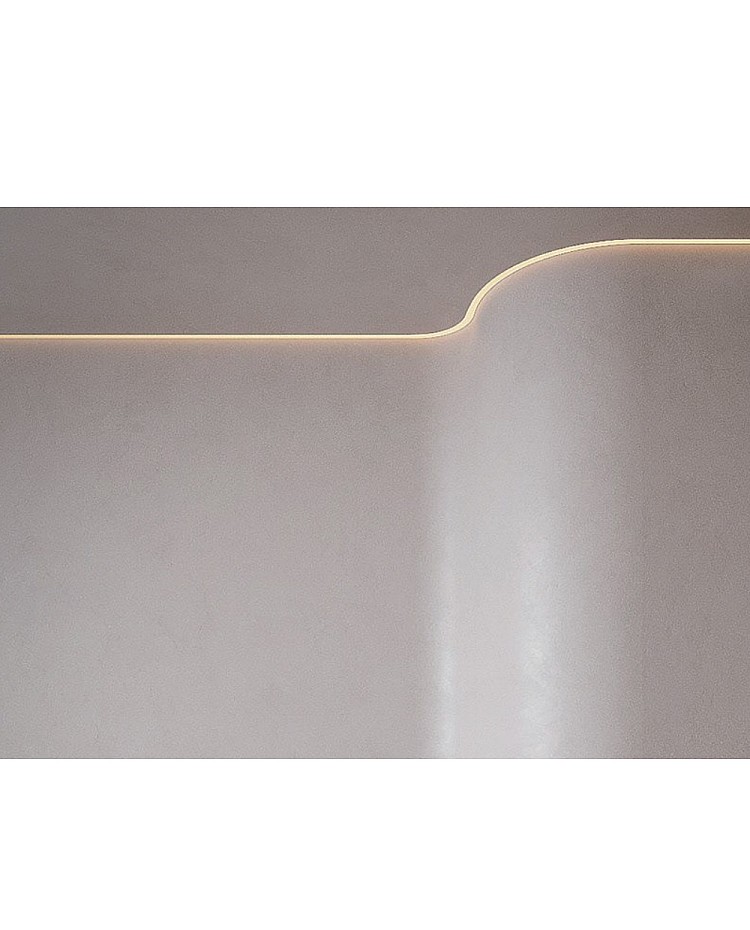

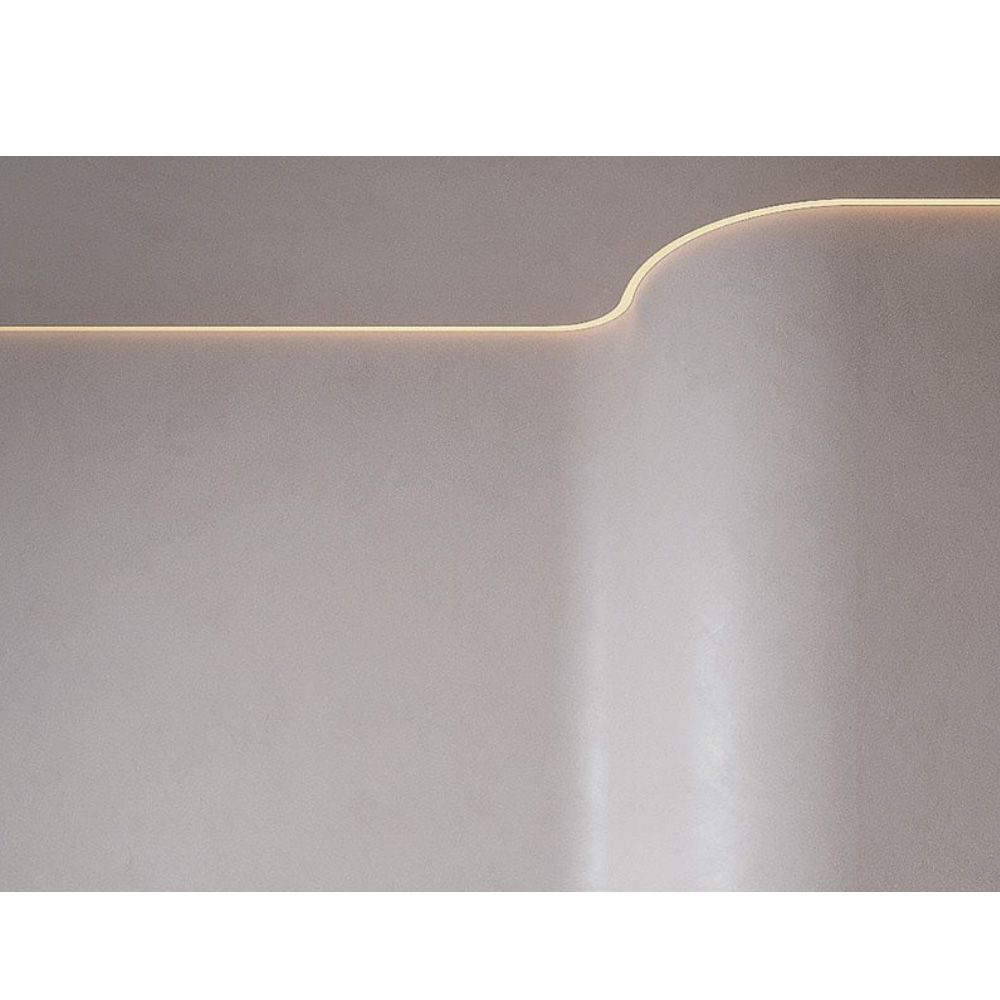

Curved ceiling lighting: Ideal for creating smooth indirect light lines along curved ceilings and architectural details.
Wall edge lighting: Installed along the edge of curved walls, niches, or arcs to provide soft accent lighting.
Custom shape lighting: Support free-form designs such as waves, circles, or irregular curves.
Includes:
1* Plaster-in side bendable LED channel with silicone diffuser
End caps
