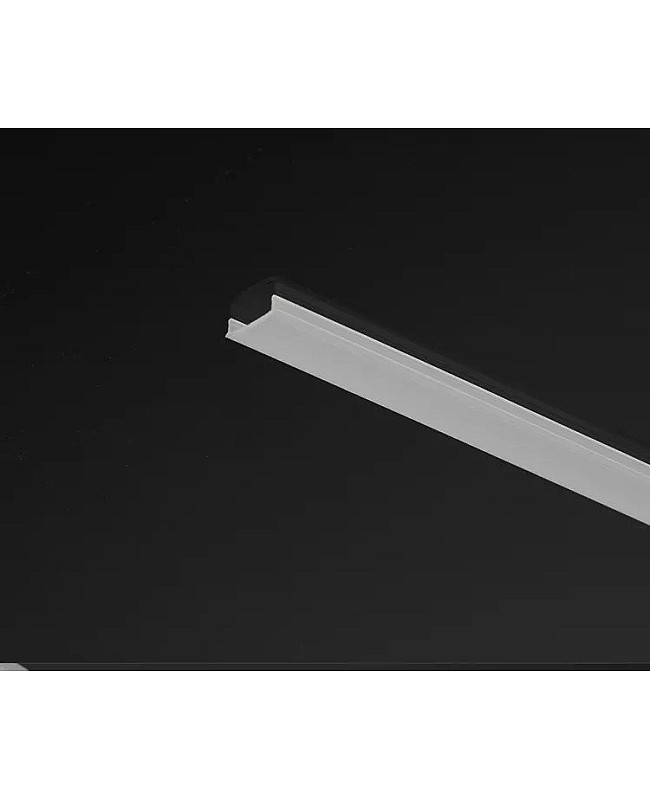

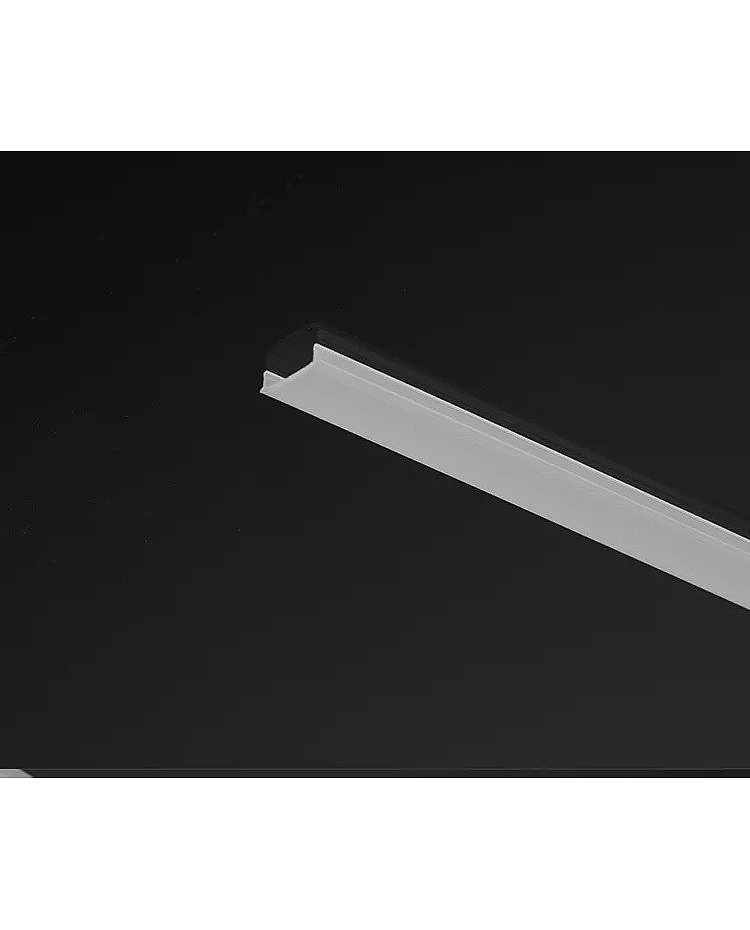

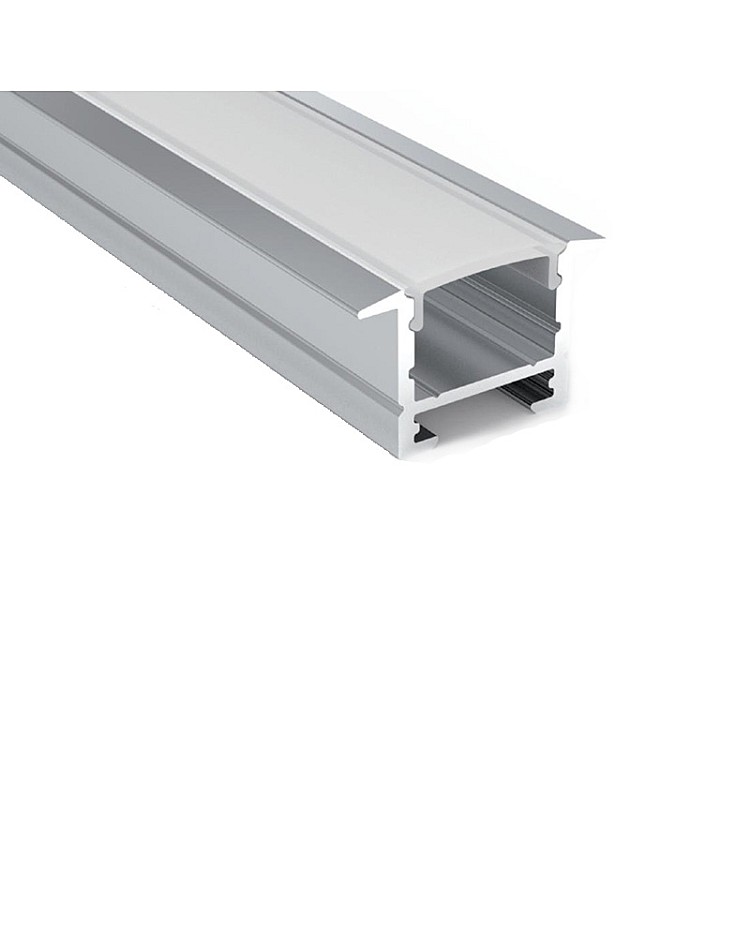

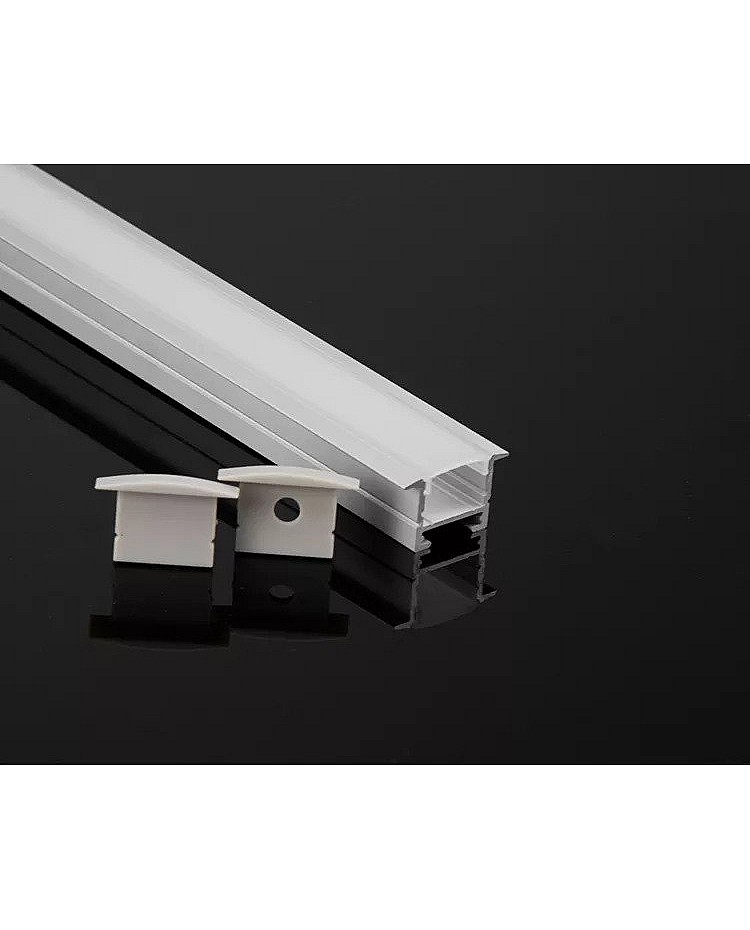

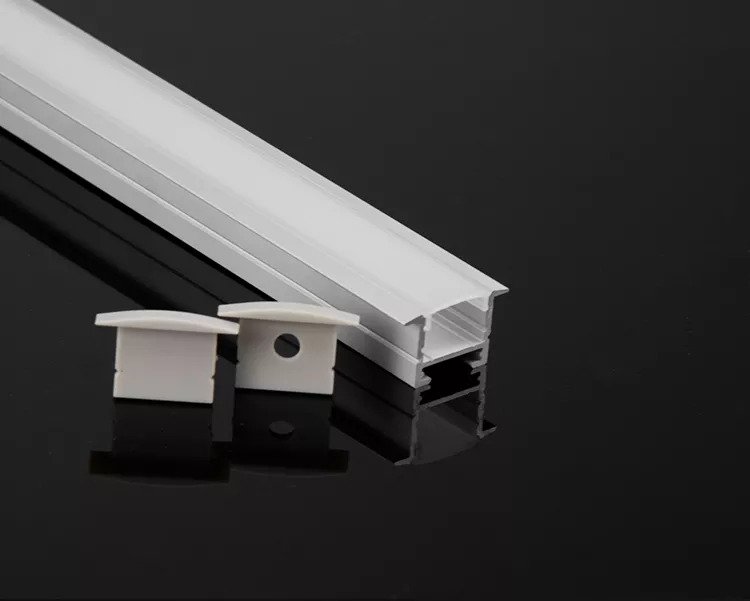

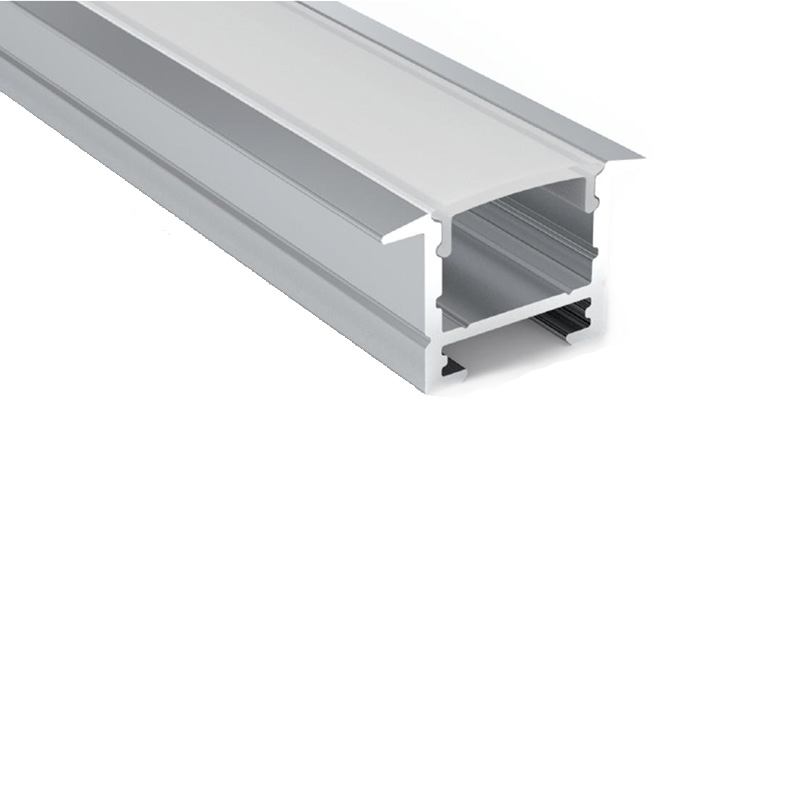

Check the Aluminum Strip Lighting Diffusers, the width is only 18.5mm and can be recessed into the ceiling or wall for indoor linear lighting projects. the LED Strip Diffusers include Aluminum Channels and Covers. the Alu Channels are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance and a longer lifespan than other similar products. there are 3 colors available, black, silver and white, the default color is silver. the Diffuser Covers are also made of brand material, anti-yellowing, perfect light distribution and smooth light output. there are various types of Diffusers available for different light transmission. the standard length is 1 meter and the max length can do 6M, custom lengths available for your need. the inner width is 15.2mm and allows the max width of LED Strips is 15mm. recommend installing the high-density of COB LED Strips to avoid any dark areas and light dots, to create a great seamless linear lighting effect. there are 5 different types of connectors sold separately, you can purchase them for corner installation or extend the length for longer.


Features:

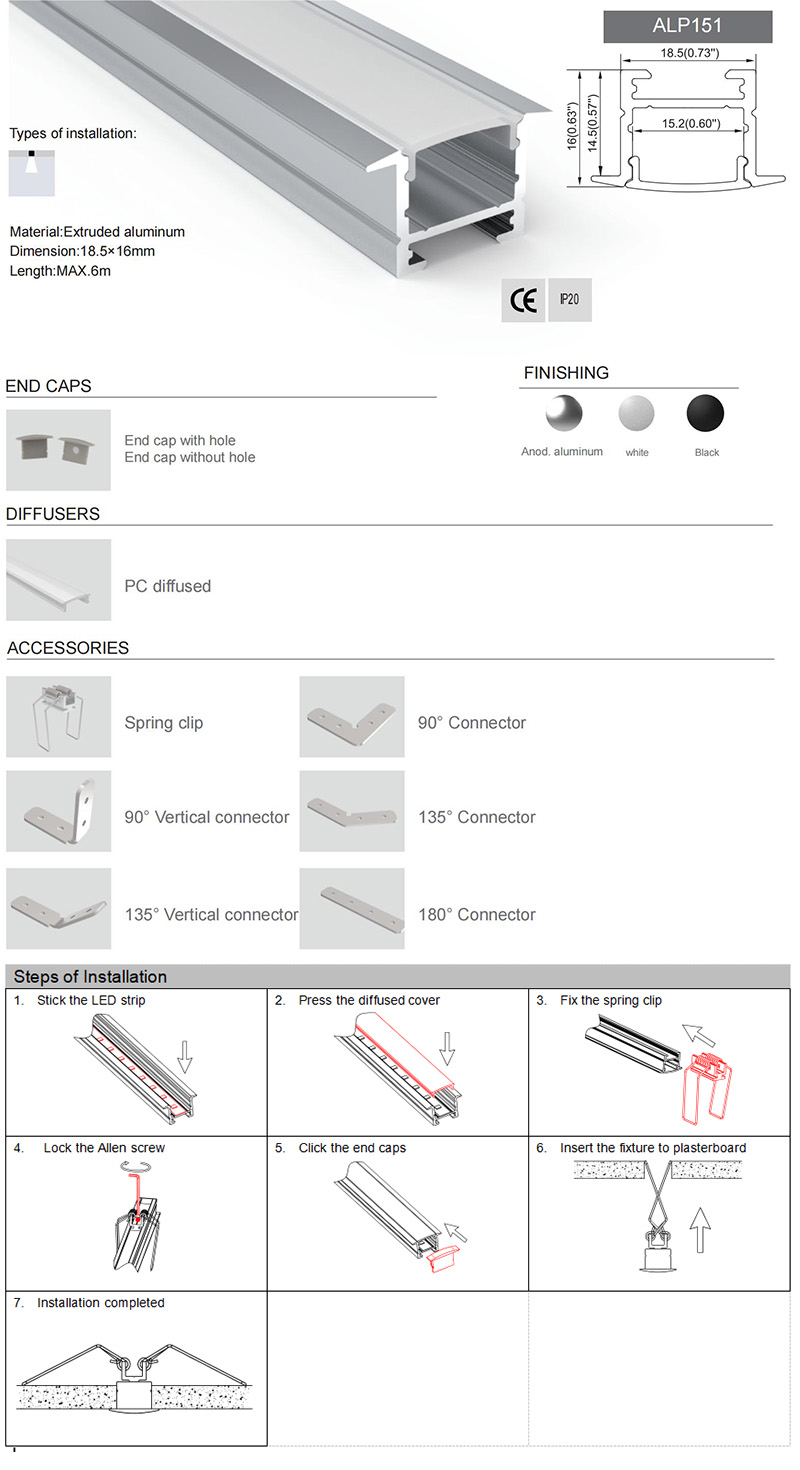

  • Model: ALP151
  • Colors: Silver(Default), Black, White
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

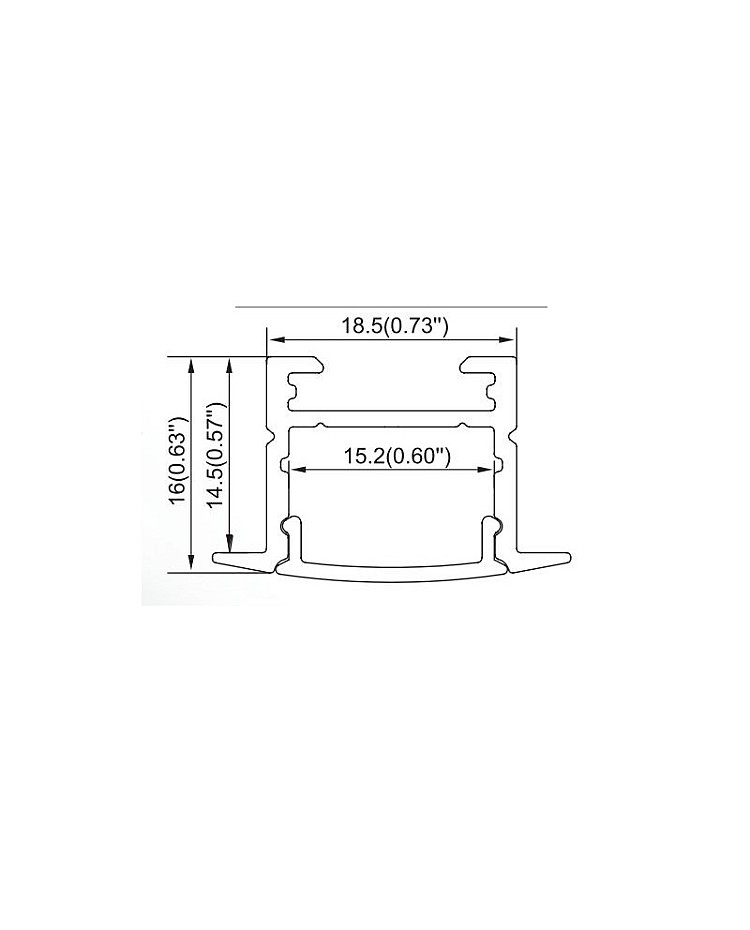

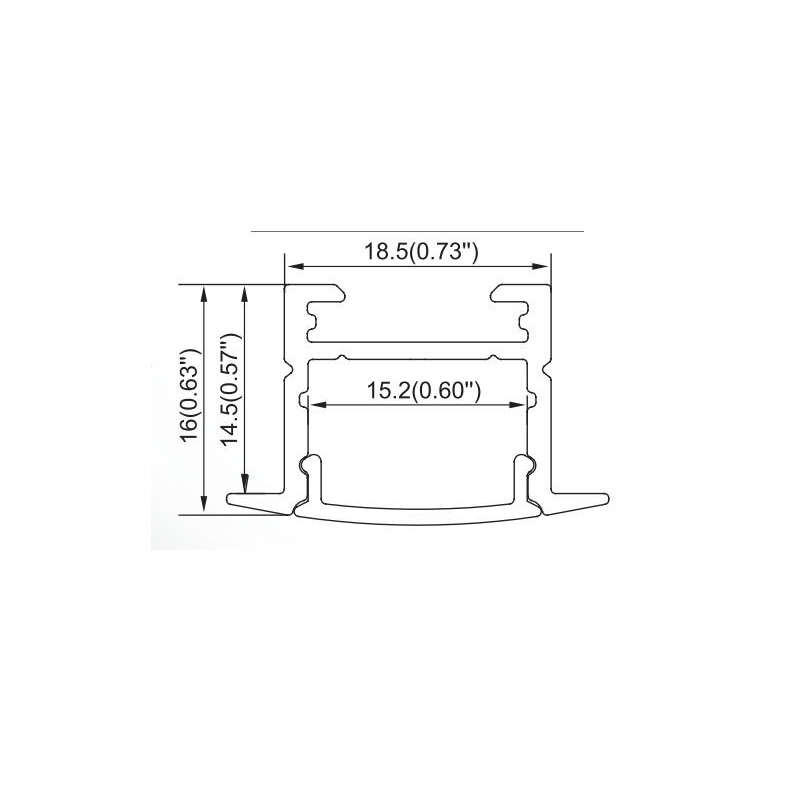

  • Size: 18.5*16mm(W*H)
  • Standard Lenght: 1M
  • Other Lengths Available: 1.5M, 2M, 3M, 6M
  • Custom Length: YES

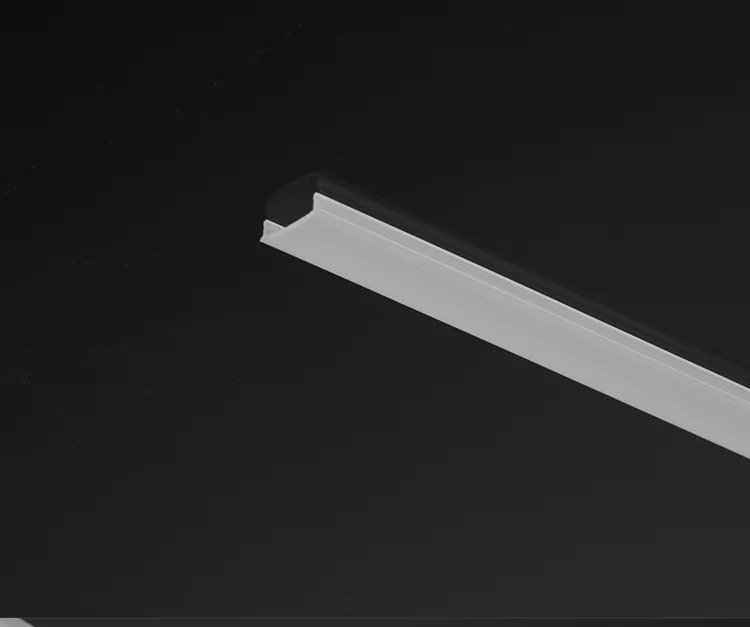

  • Diffusers Available: PC Diffused Cover, PC Semi-Clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
  • Inner Width: 15.2mm
  • Max LED Strips Width: 15mm
  • Max Power: 18W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • End Caps And Metal Spring Clips Included

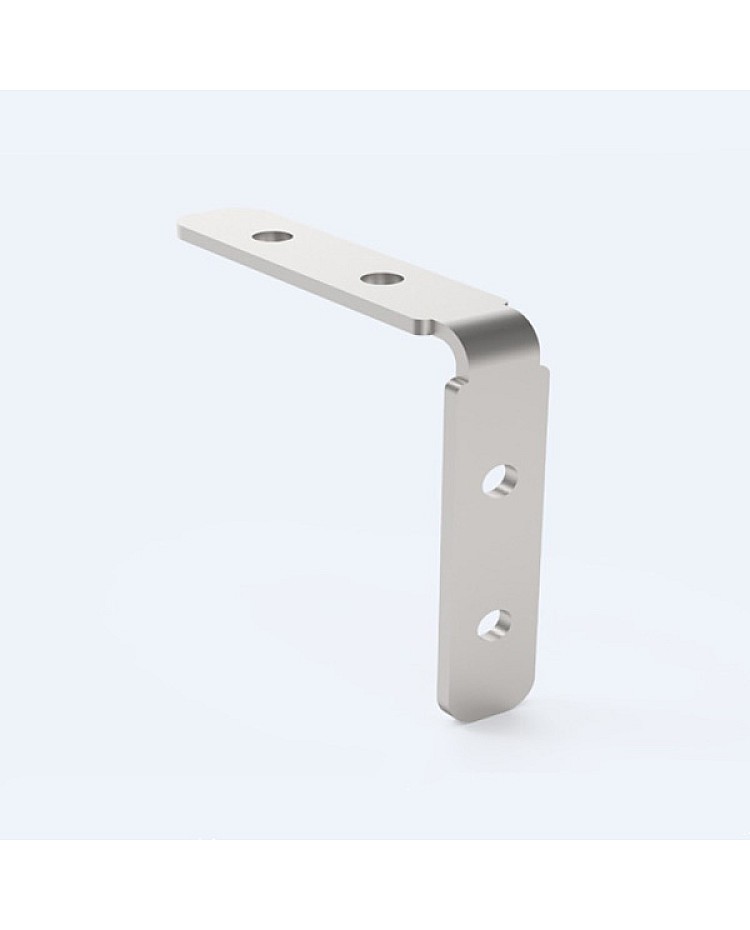

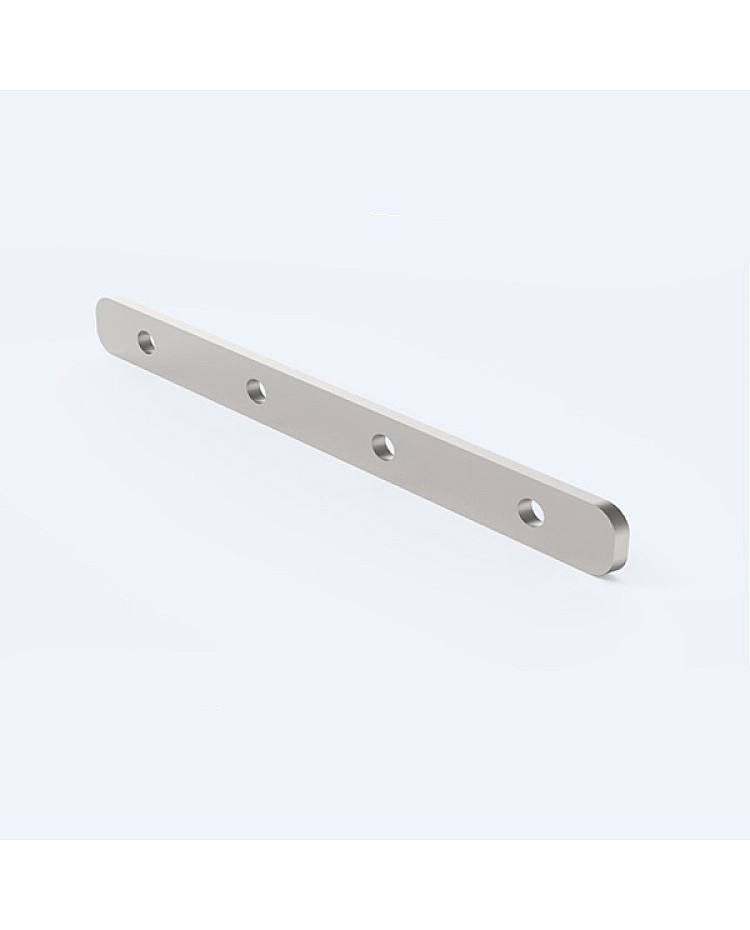

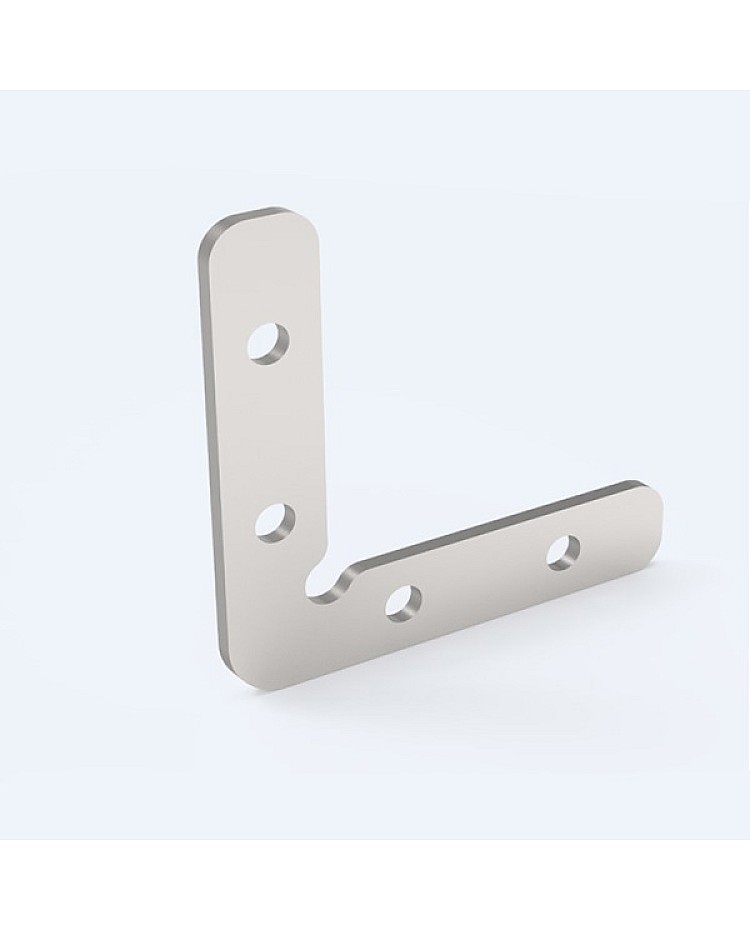

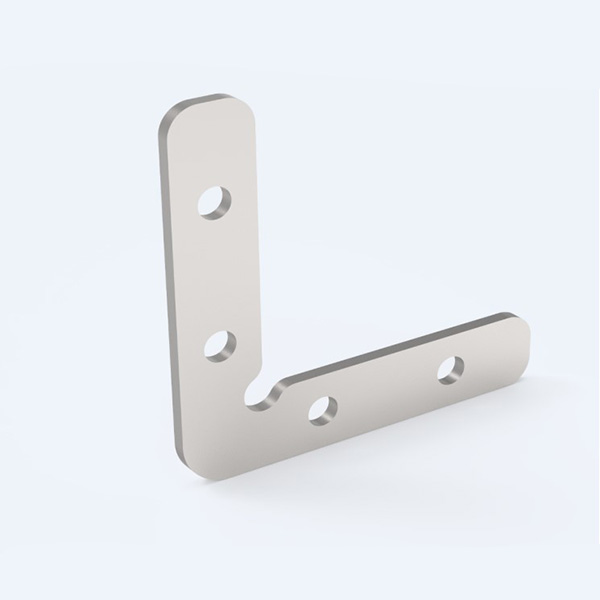

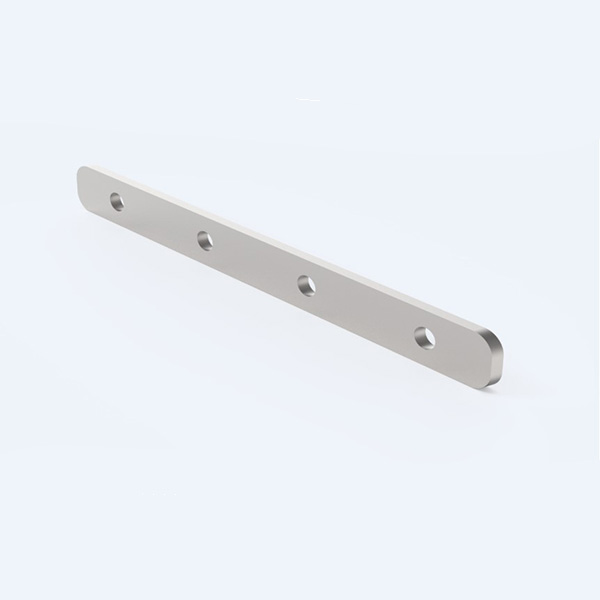

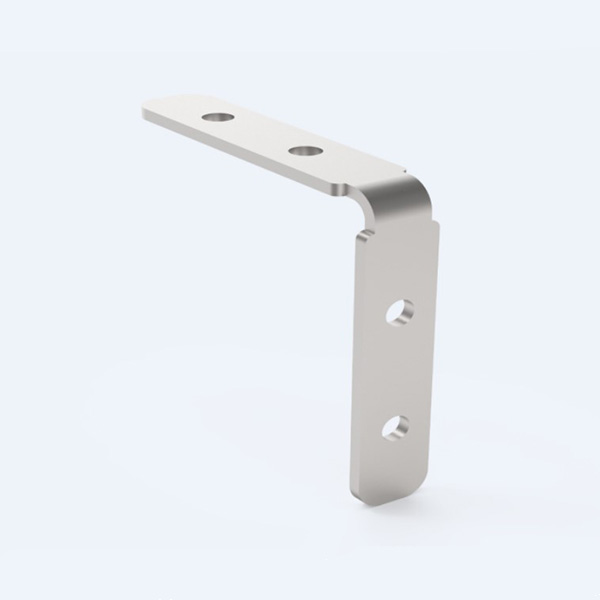

  • 90°,90° Vertical, 135°, 135° Vertical and 180° Connectors Sold Separately
  • Installation: Recessed Mounting
  • 5 Years Warranty


Includes:

1*Aluminum Strip Lighting Channel And Diffuser

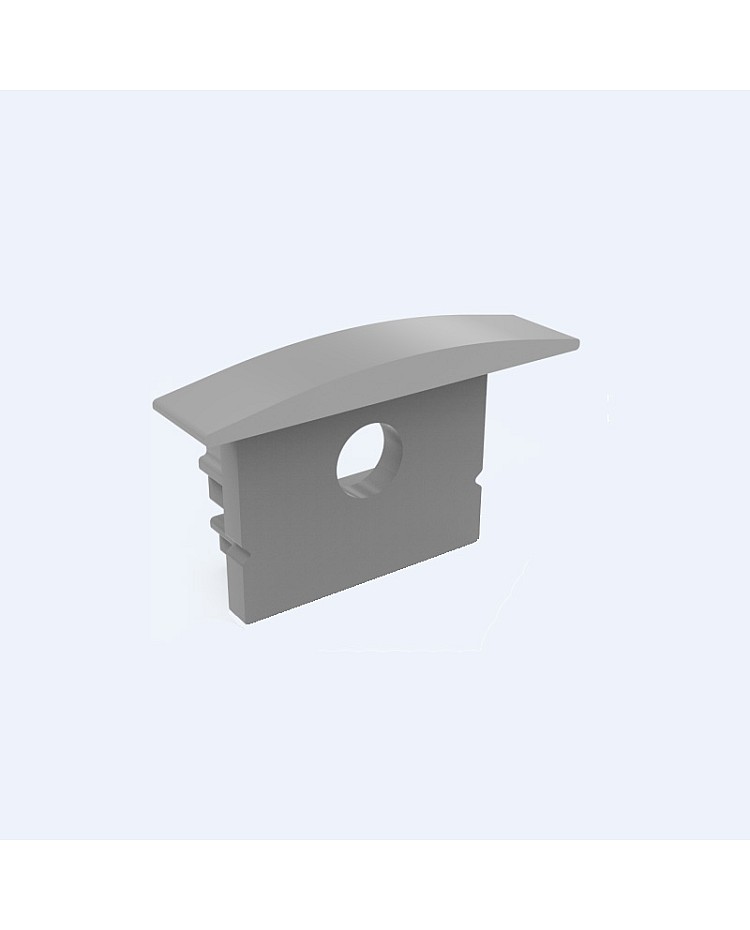

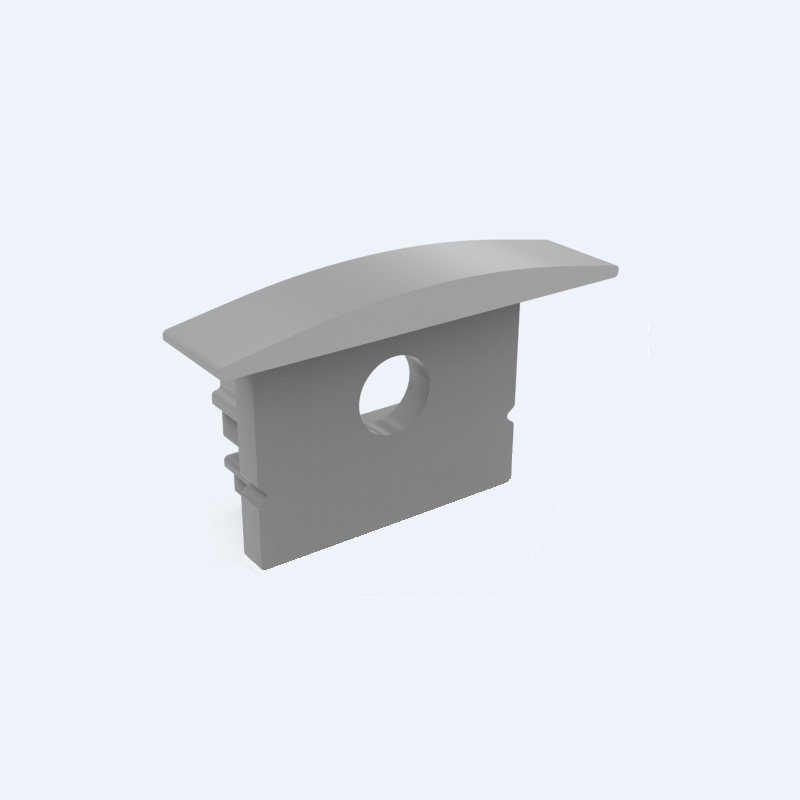

End Caps(With Wire Hole And Without Wire Hole)

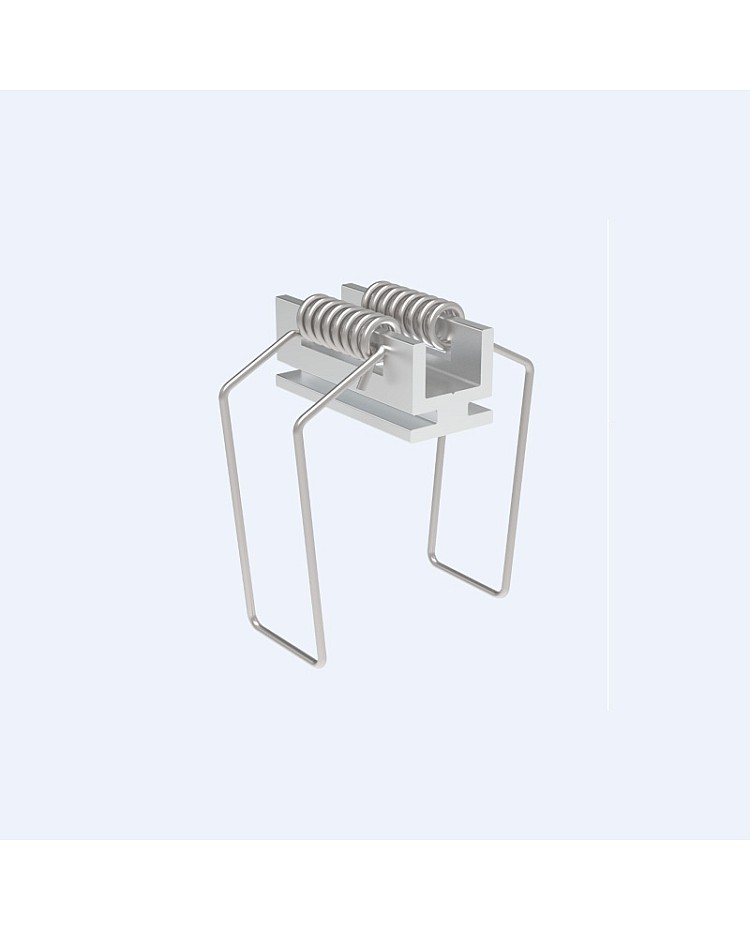

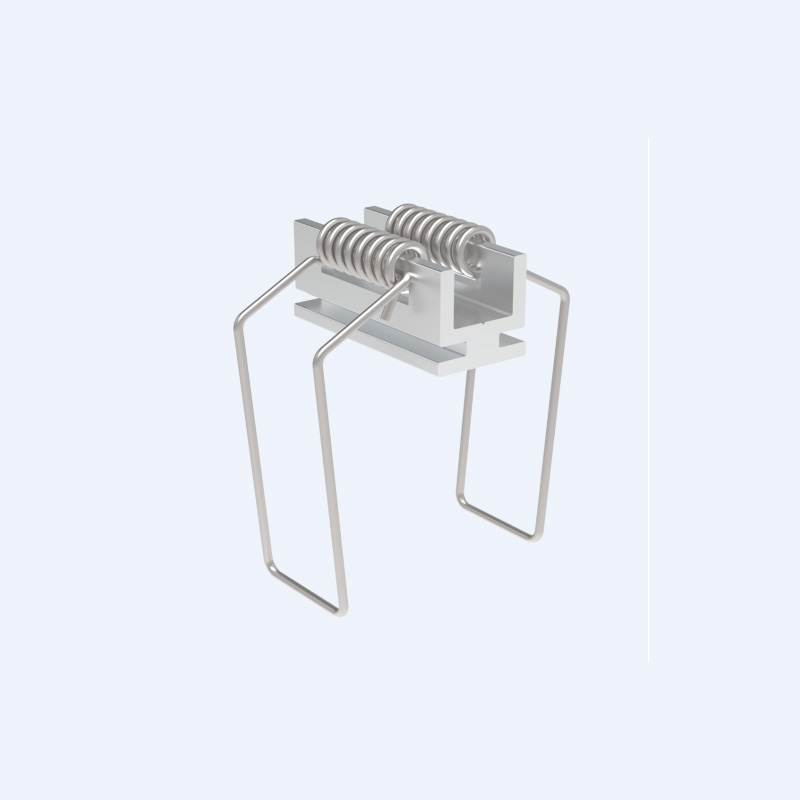

Metal Spring Clips

Aluminum Strip Light Diffuser
