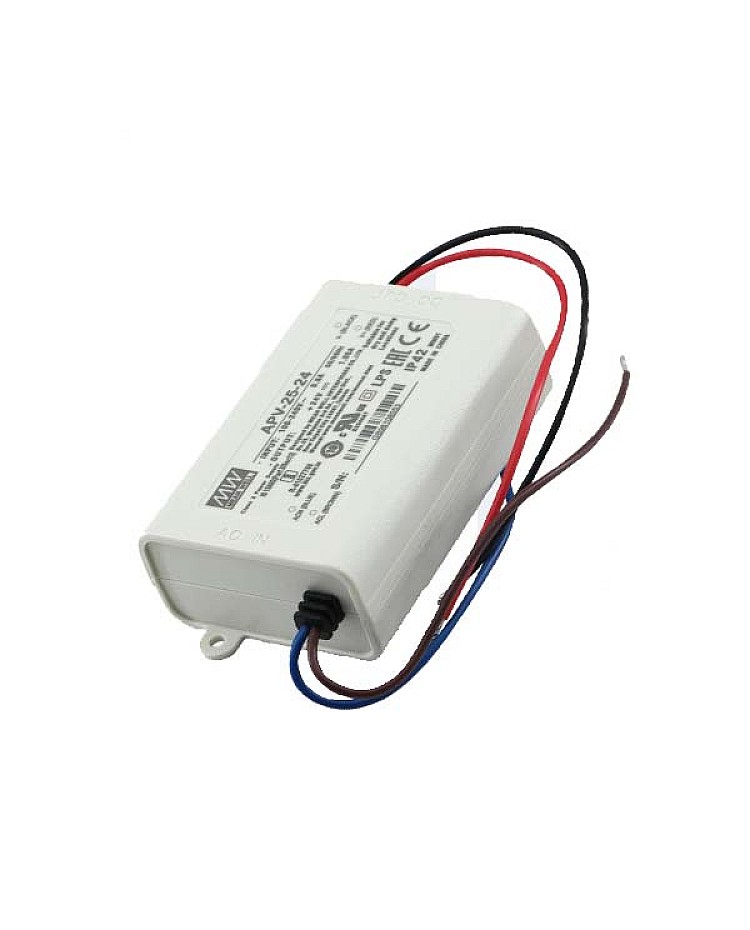

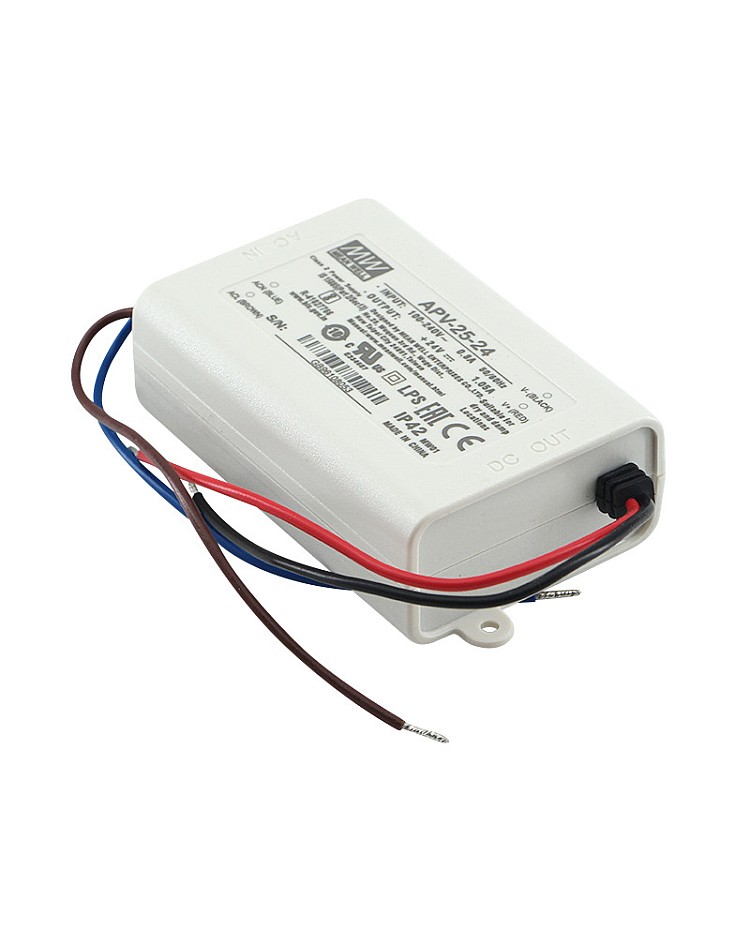

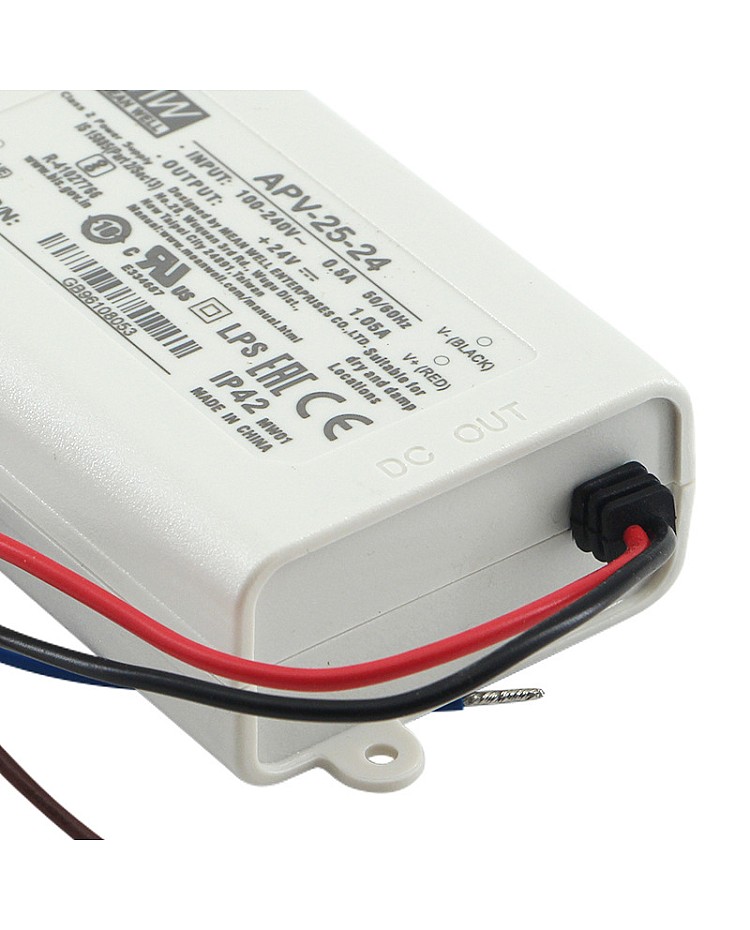

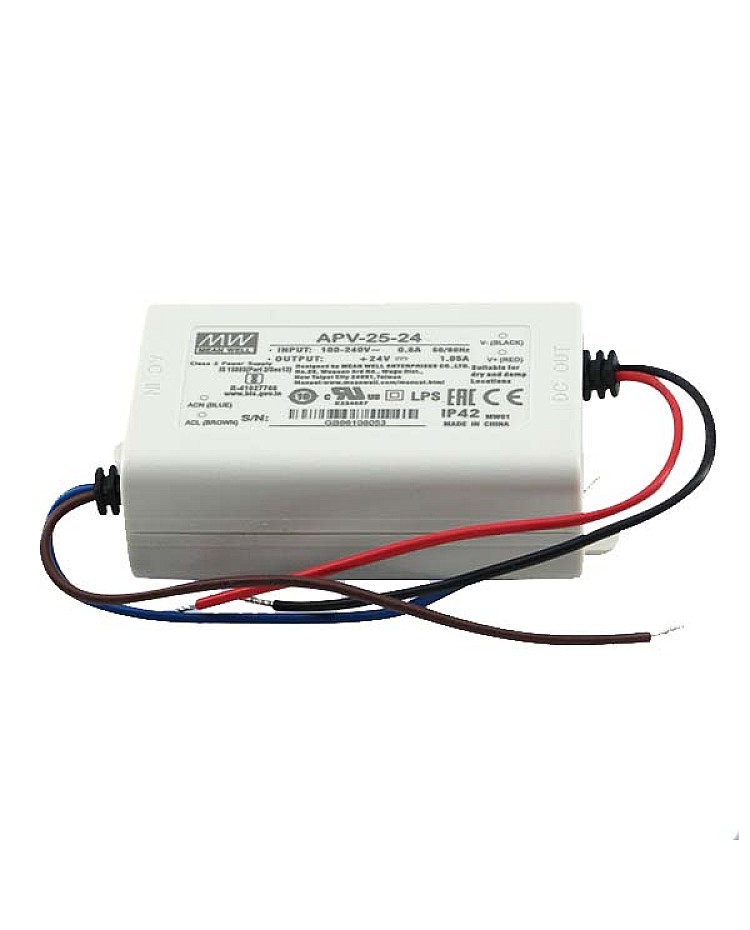

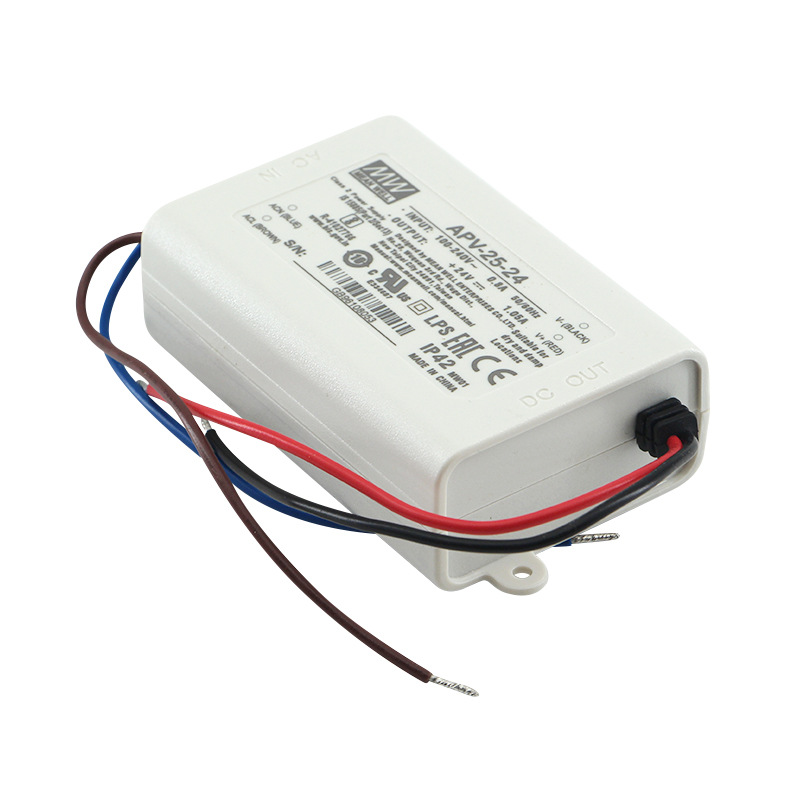

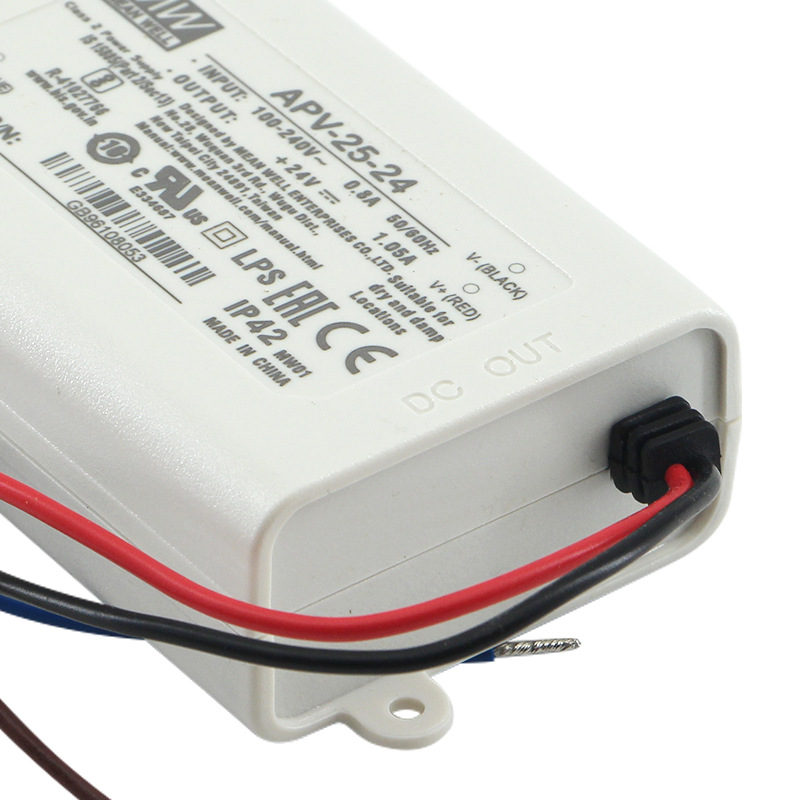

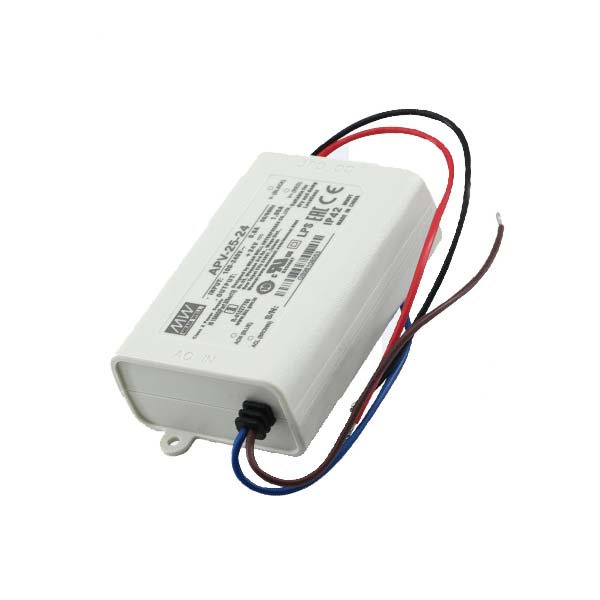

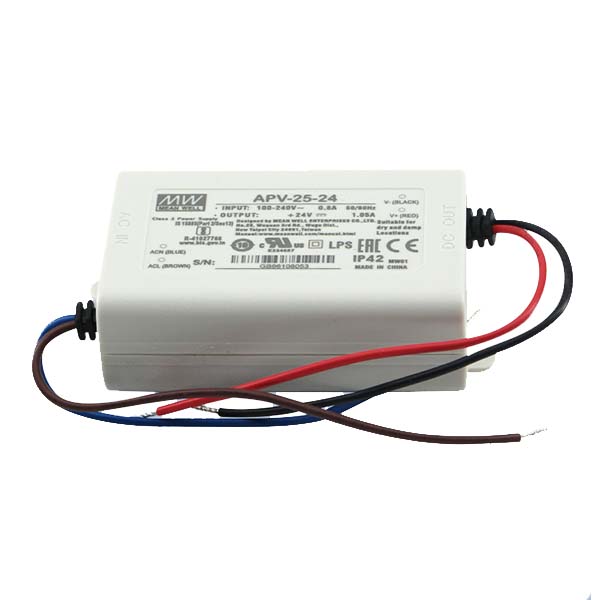

Check the Meanwell APV-25 constant voltage mode AC DC Power Supply, with universal AC input range from 90V to 264V, the single-output type LED Power Supply with a fully isolated plastic case design, with small and compact size, suitable for LED Fixture, LED Decoration or Advertisement Devices. you can choose the various output voltage products from DC5V to DC36V. the working efficiency rate up to 84% and cooling by free air convection for better heat dissipation.

  • Constant Voltage Mode Power Supply
  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • Protections: Short Circuit / Over Load / Over Voltage
  • Fully Isolated Plastic Case
  • Cooling By Free Air Convection
  • Small And Compact Size
  • IP42 Design
  • Class 2 Power Unit
  • Pass LPS
  • 100% Full Load Burn-In Test
  • Low Cost, High Reliability
  • Suitable For LED Fixture, LED Decoration Or Advertisement Devices
  • 2 Years Warranty

Quick Links:

Mean Well APV-25 Specification Document


Features:

  • Mode: APV-25
  • Size: 84*57*29.5mm(L*W*H)
  • Input Voltage Range: AC90V-AC264VAC
  • Frequency Range: 47-63Hz
  • AC Current: 0.4A/230VAC, 0.8A/115VAC
  • Efficiency: 75.5%(DC5V),  82%(DC12V), 83V(DC15V), 83%(DC24V), 84%(DC36V)
  • Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC36V
  • Rated Current: 3.5A(DC5V), 2.1A(DC12V), 1.68A(DC15V), 1.05A(DC24V), 0.7A(DC36V)
  • Rated Power: 17.5W(DC5V), 25.2W(DC12V), 25.2W(DC15V), 25.2W(DC24V), 25.2W(DC36V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, period for 60min.each along X, Y, Z axes
  • Safety Standards: UL8750, CSA-C22 No.250.0-13, BIS IS15885(Except For 15V, 36V), EAC TP TC 004, IP42 Approved; Design Refer To EN 62368-1
  • Over Loading Protection
  • Over Voltage Protection


Includes:

1*Meanwell APV-25 AC DC Power Supply

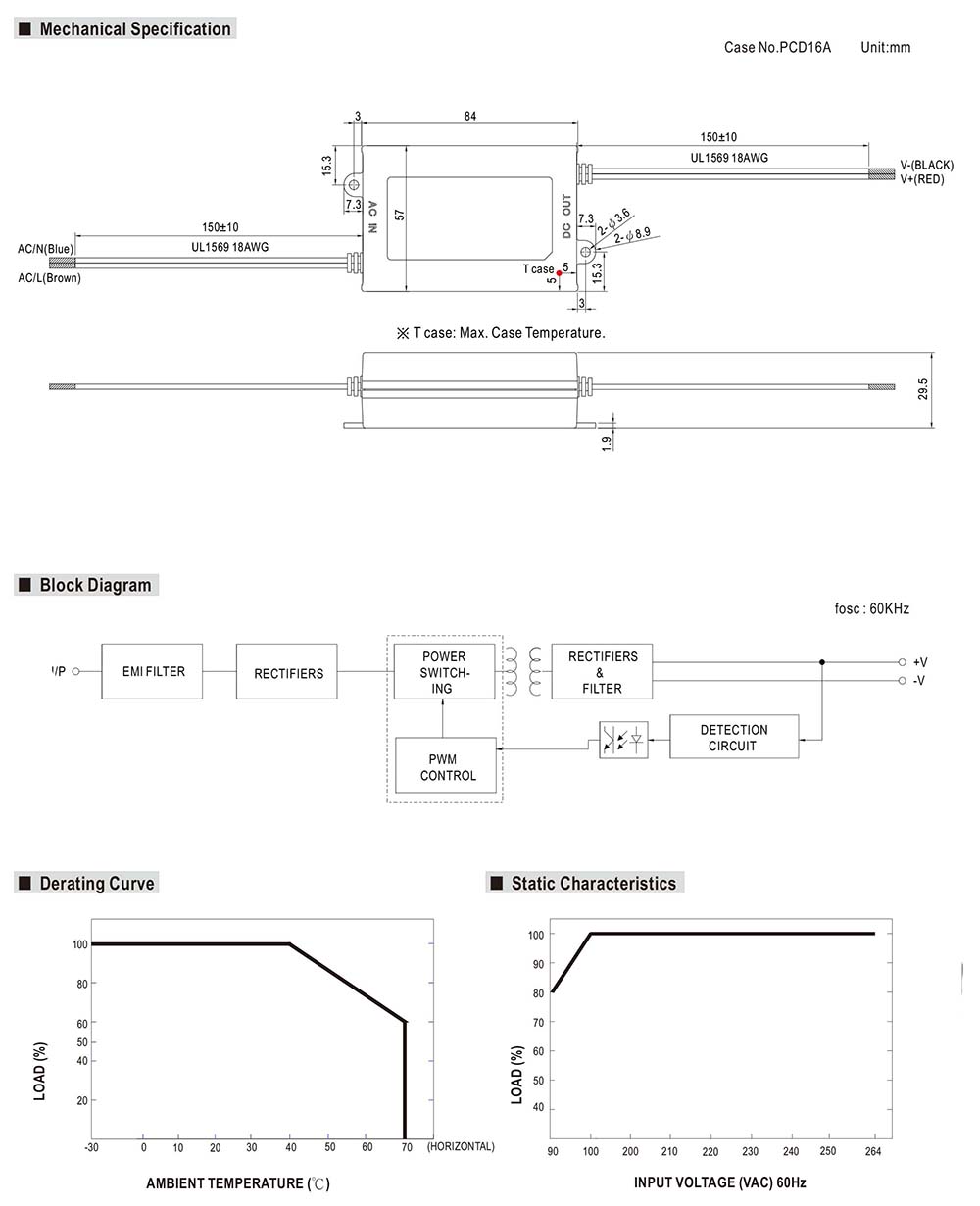

Mean Well AC DC Power Supply 12V
