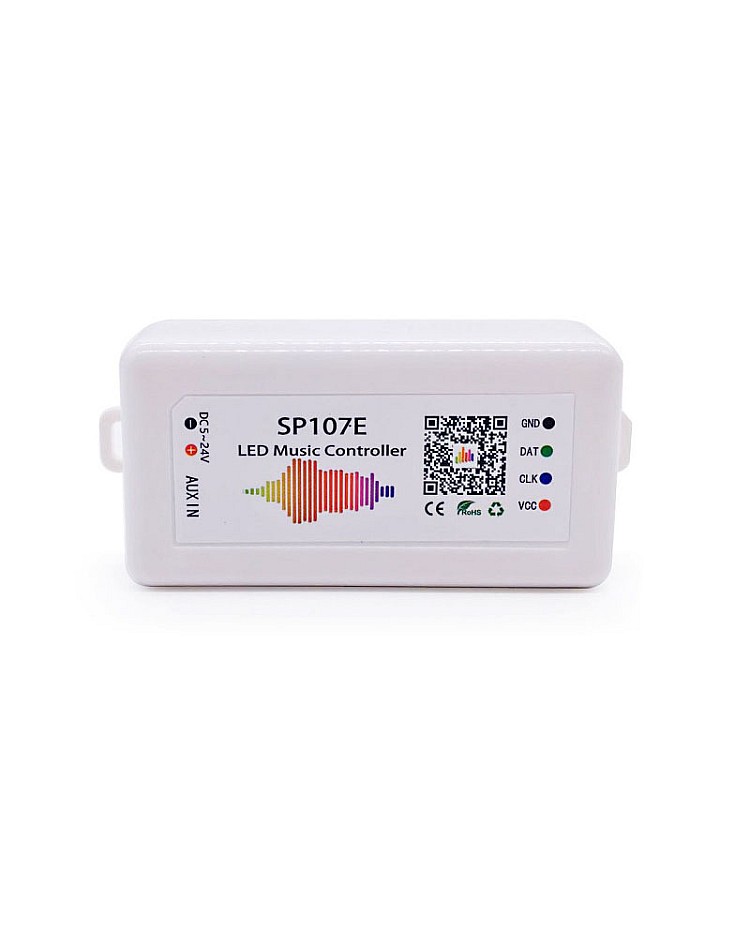

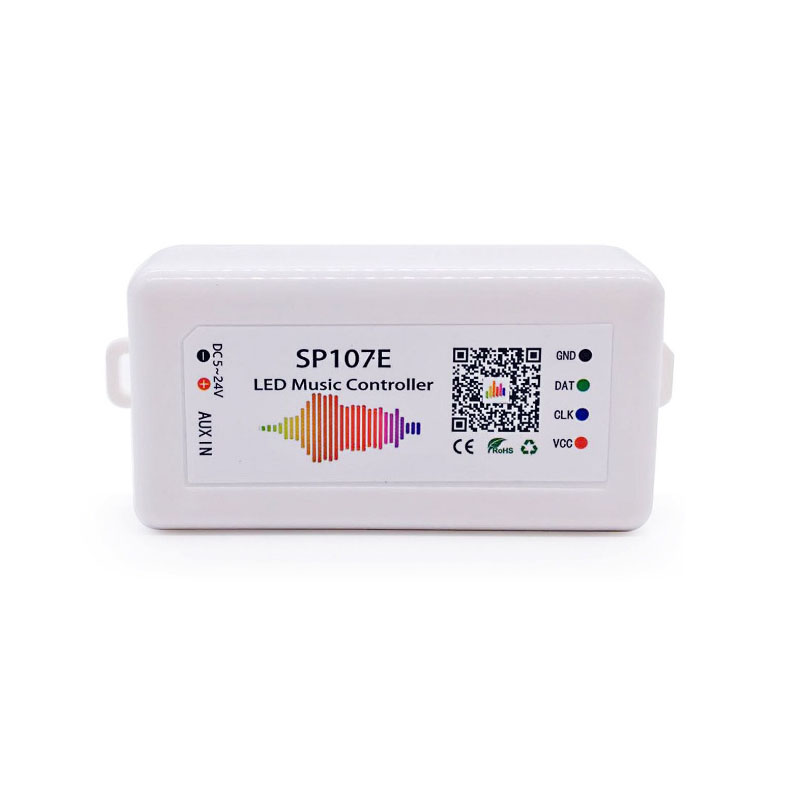

The SP107E Bluetooth-Compatible Music LED Controller, which is designed for the Pixel Addressable Dreamcolor Strip Lights, is compatible with most of the ICs, like 2812 LED Tapes, WS2811, SK6812, WS2813, SK6812-RGBW, etc. The LED Music Controller has sound/music-activated working modes, with an AUX input port and built-in microphone; the colors will change automatically following the beats. The SP107E LED Controller includes 1 to 2 audio cables, which can receive the music you input and exclude the noise, and the sensitivity of the music modes can be adjusted. There are 180 kinds of non-music modes, 30 kinds of music-sync modes for LED Matrix, and 18 kinds for Addressable LED Strips. The music modes and non-music modes can be arbitrarily changed. You can download the app and connect your mobile phone to the LED Controller through Bluetooth, easily set the working mode, and adjust the speed of dynamic modes or the brightness of lighting. The SP107E Controller also supports the RGBW Digital Strips, and the pure white can be adjusted separately.

Quick Links:

SP107E Manual


  • Type: SPI Music Bluetooth Controller
  • Working Temperature: -20℃-+60℃

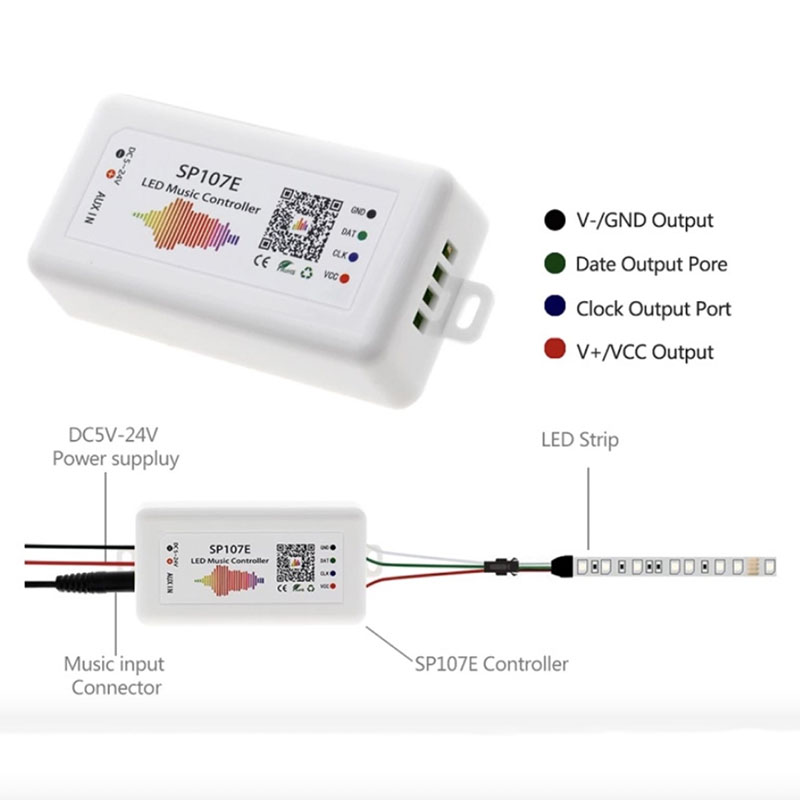

  • Working Voltage: DC5-24V

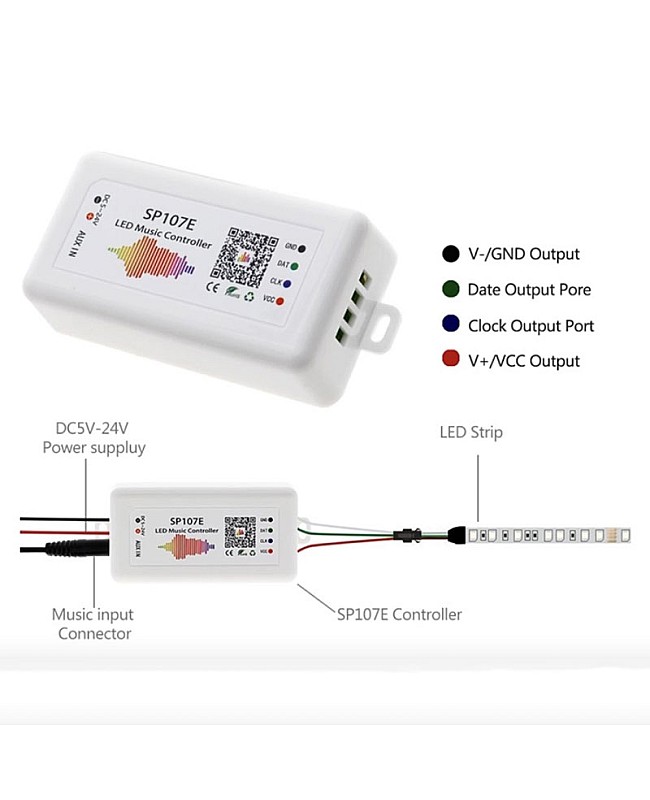

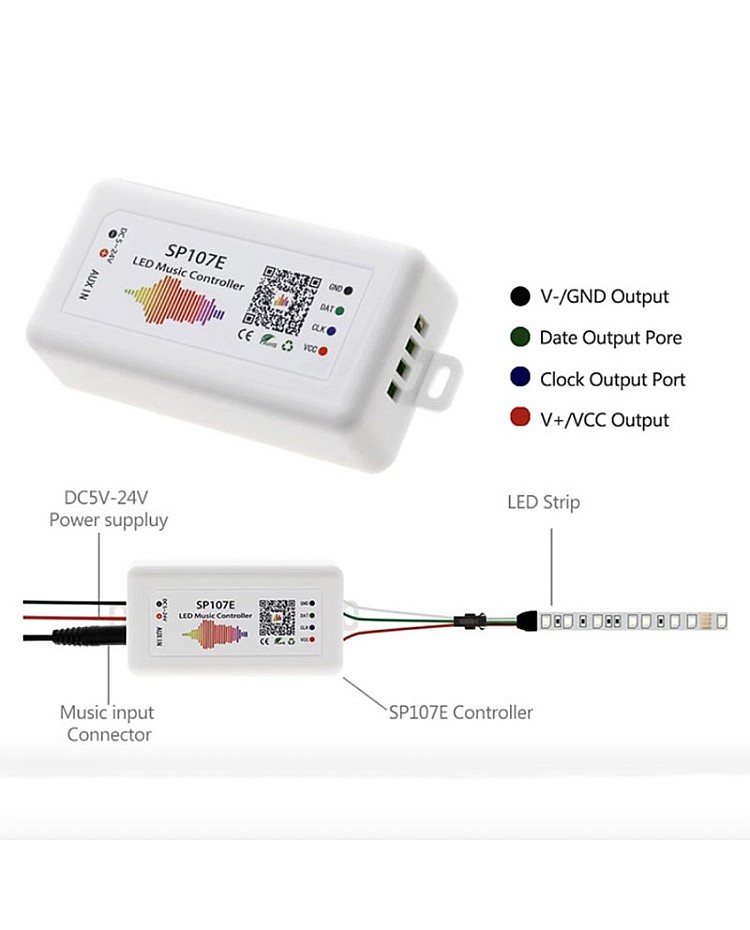

  • Output Signal: SPI
  • Control Method: Bluetooth
  • Remote Control Distance: 20 Meters

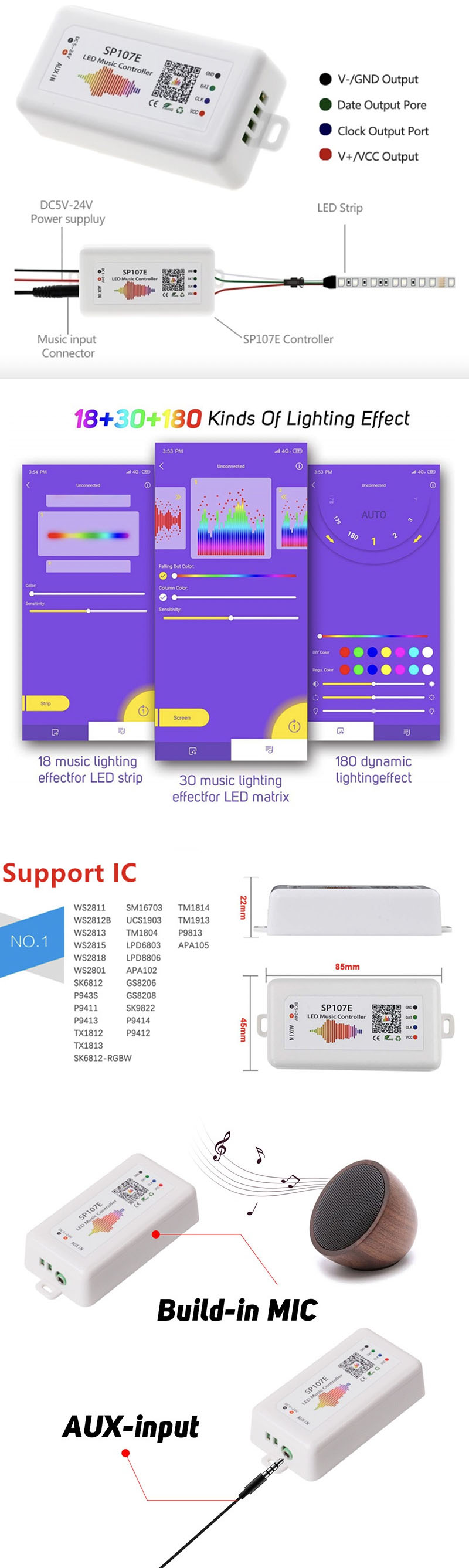

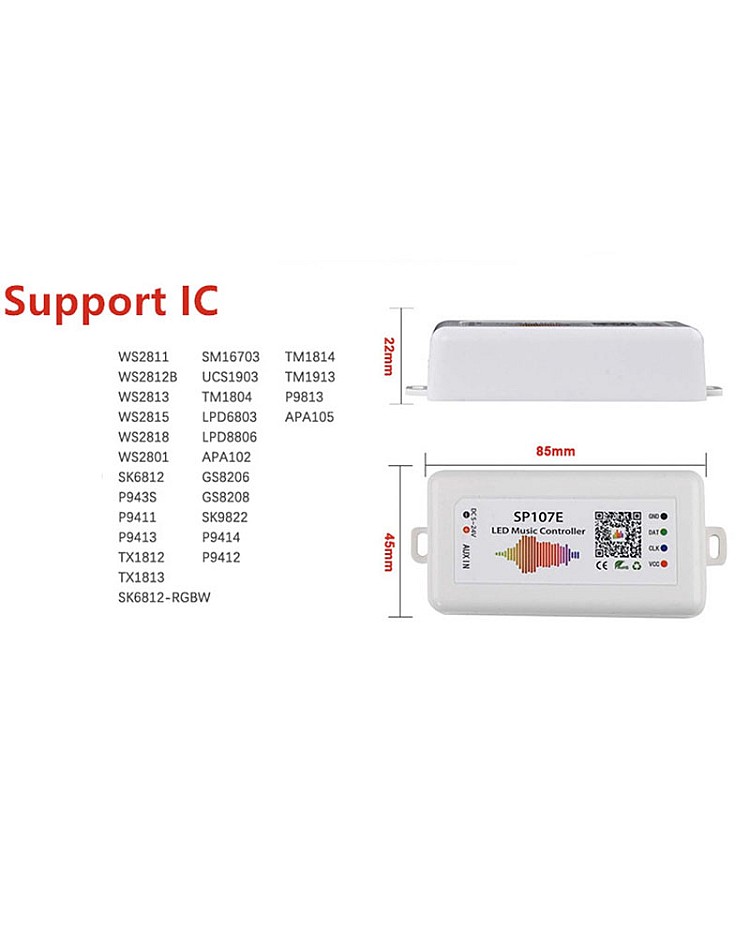

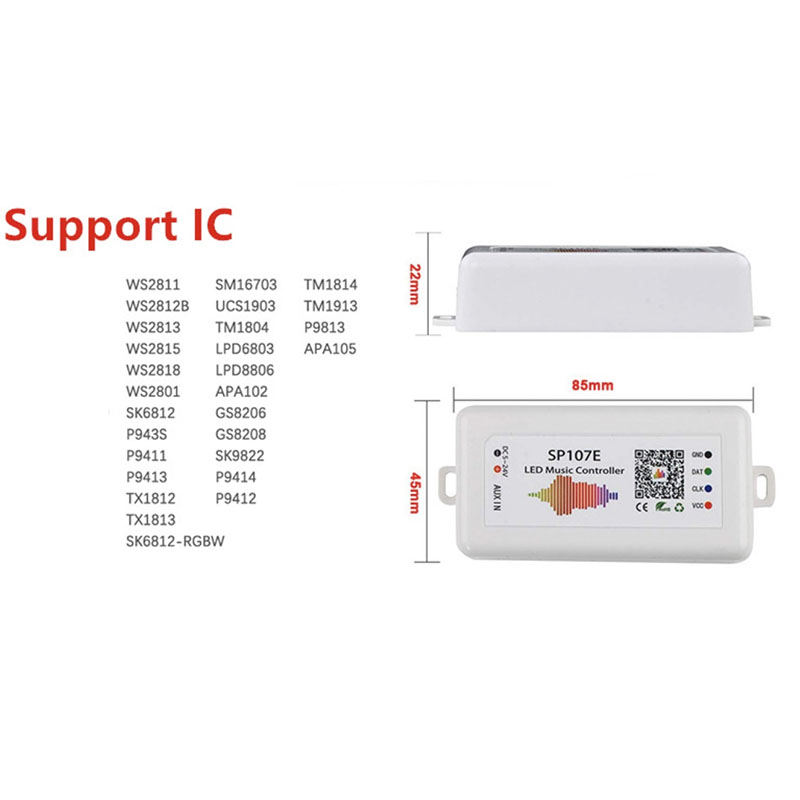

  • Compatible With WS2812B, WS2811, SK6812, WS2813, SK6812-RGBW, etc
  • Control Up To 960 Pixels

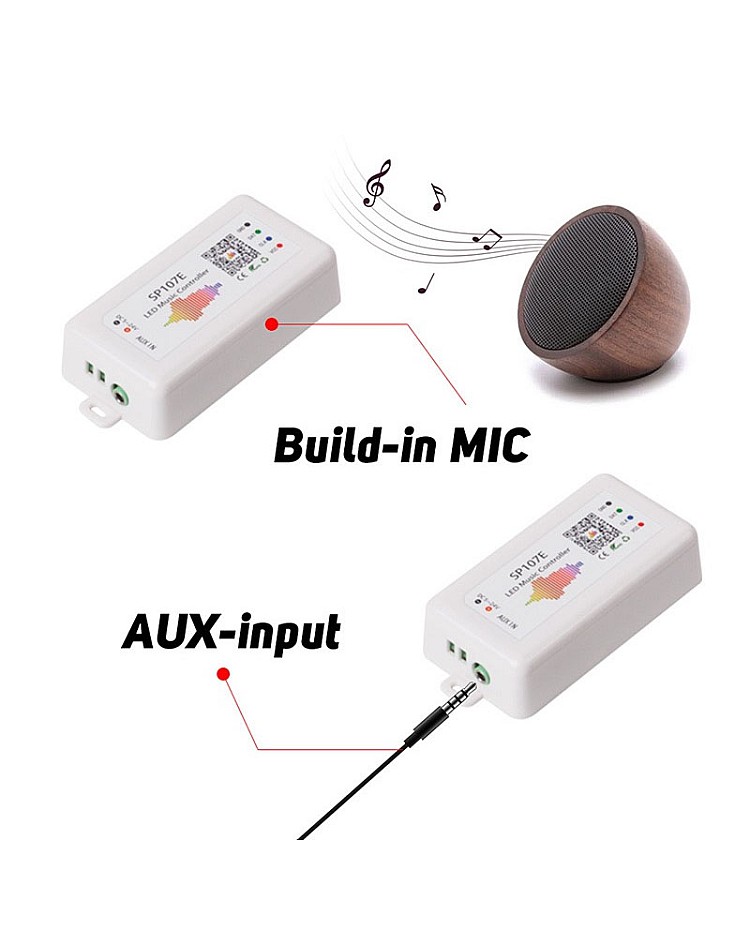

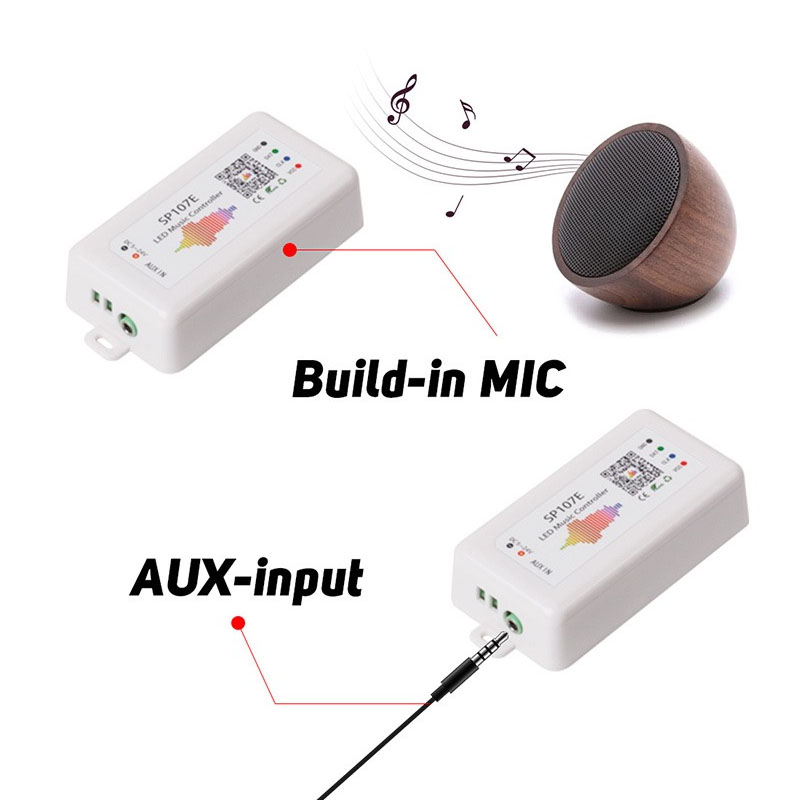

  • Built-in Microphone And Supports Audio Input
  • Sound/Music Activated Working Modes
  • IOS 10.0 And Android 4.4 Above

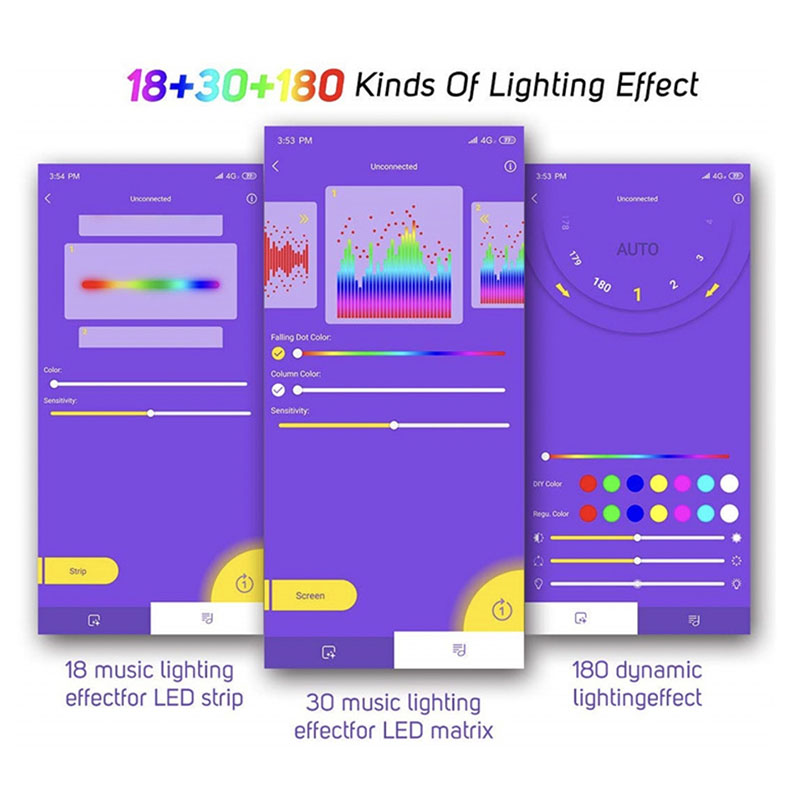

  • App Name: LED Chord

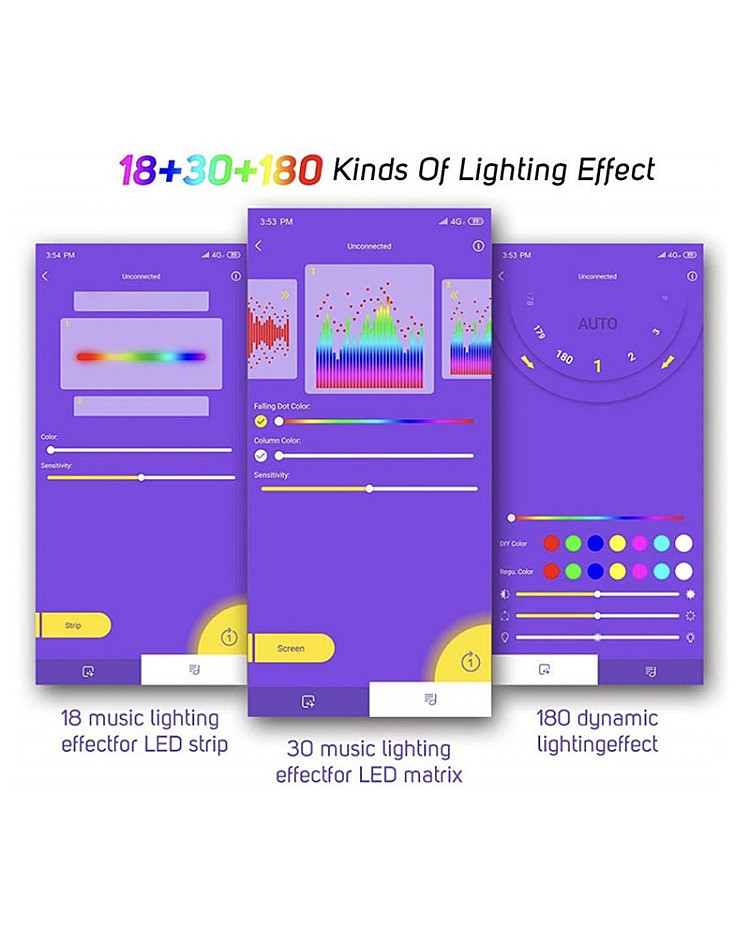

  • 30 Music-Sync Color Modes For LED Matrix
  • 18 Music-Sync Color Modes For Digital LED Strips
  • 180 Dynamic Modes
  • Color And Brightness Adjustable
  • 2 Years Warranty

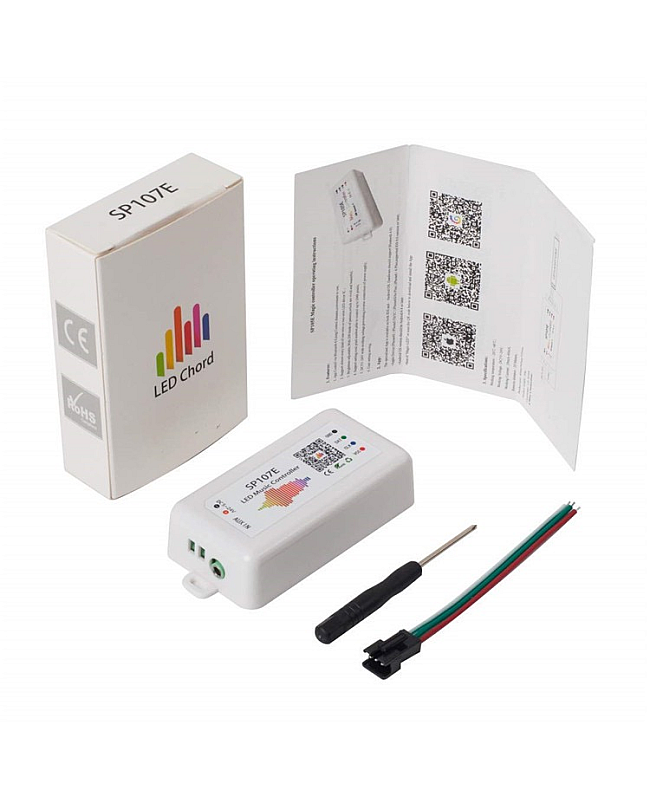

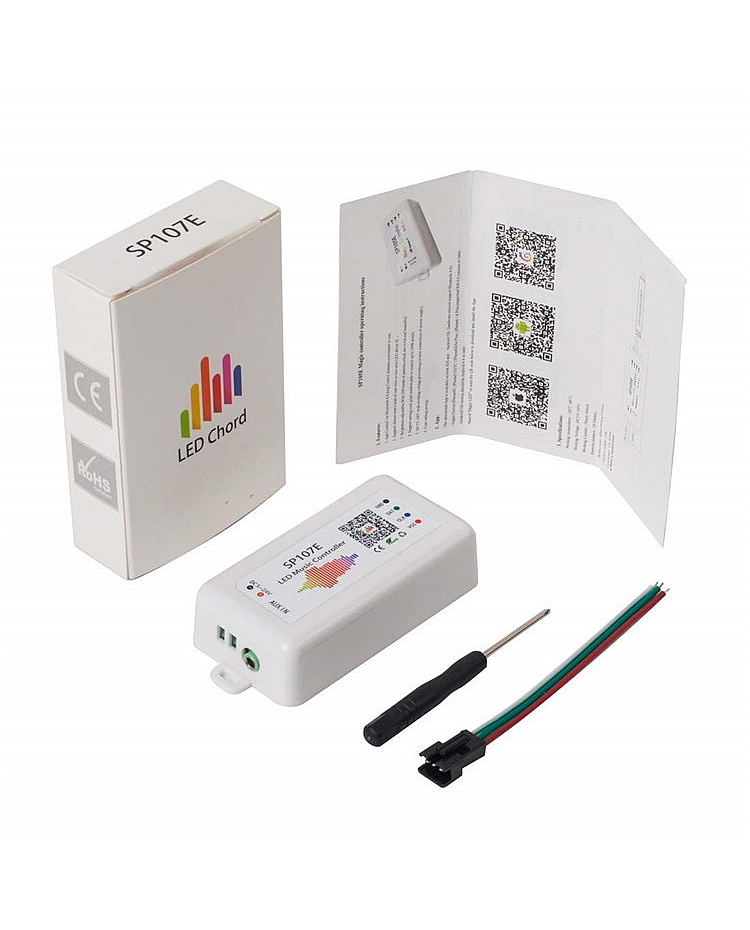

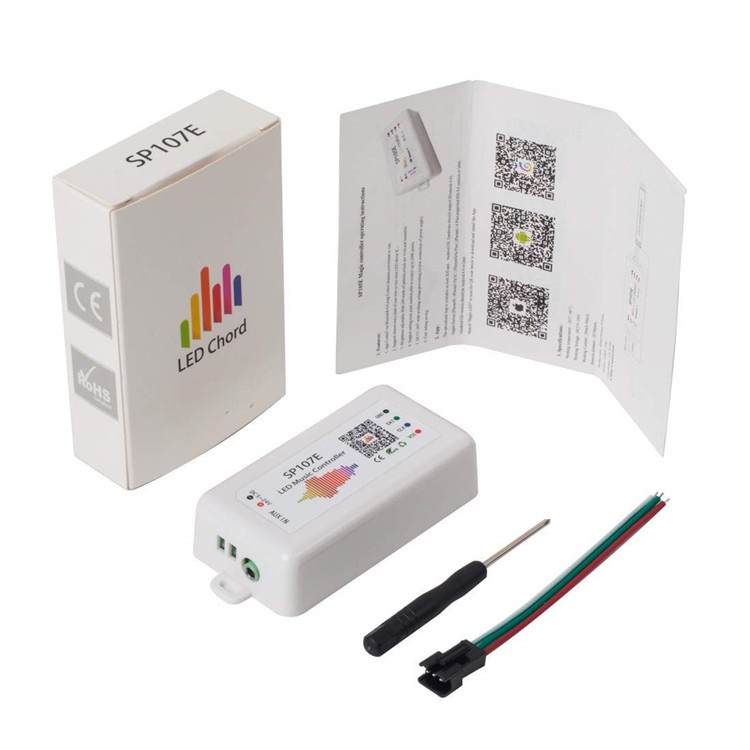

1*SP107E Bluetooth Dream Color Music LED Controller

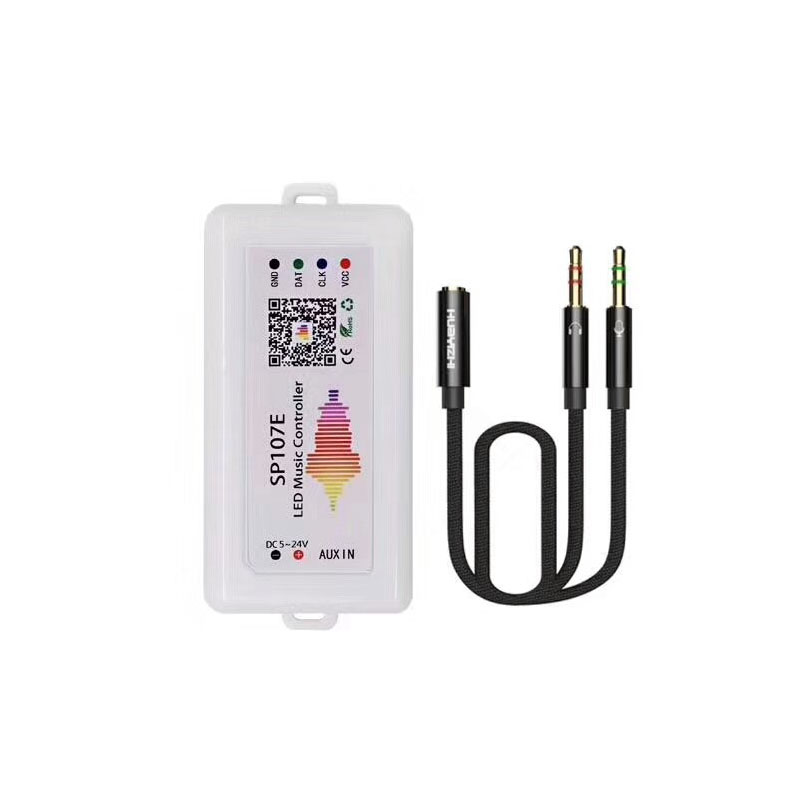

1*1 To 2 Audio Cable

1*3 Pin JST Connector

1*Female DC Connector

1*Mini Screwdriver

1*User Manual

SP107E LED Musik Controller
