Out Of Stock
$6.90
Reward Points: 7
-
+
  • Brand: Hoion
  • Product Code: HX-RGB4-RF20K

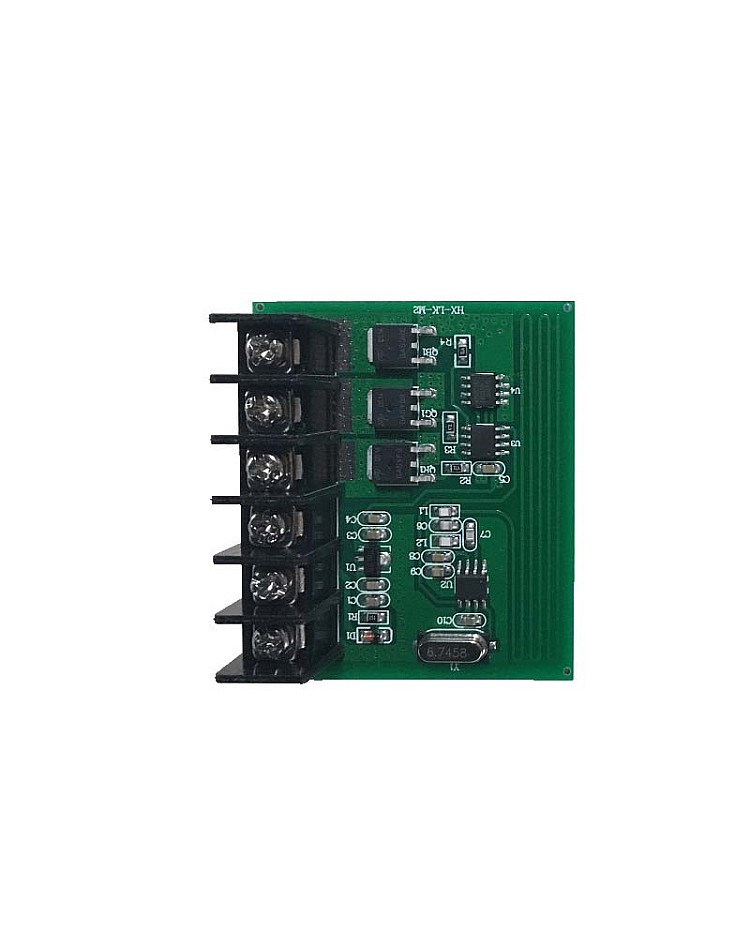

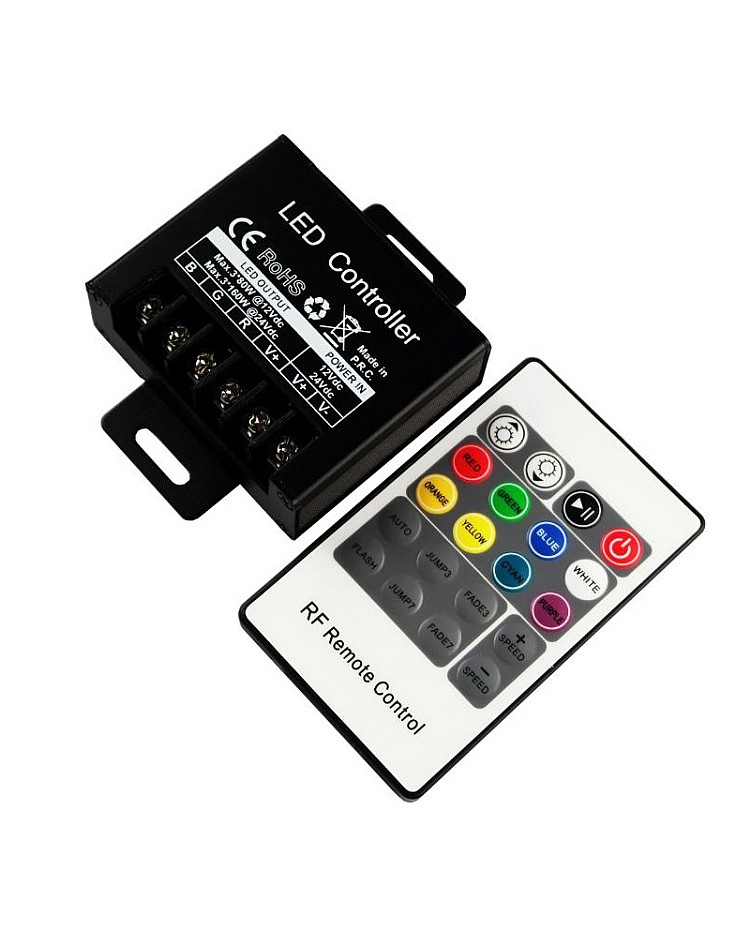

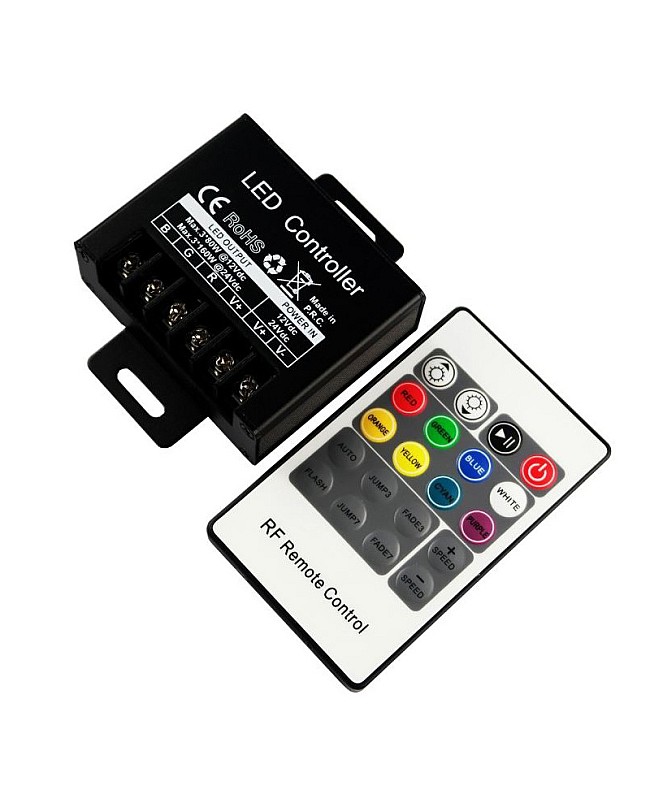

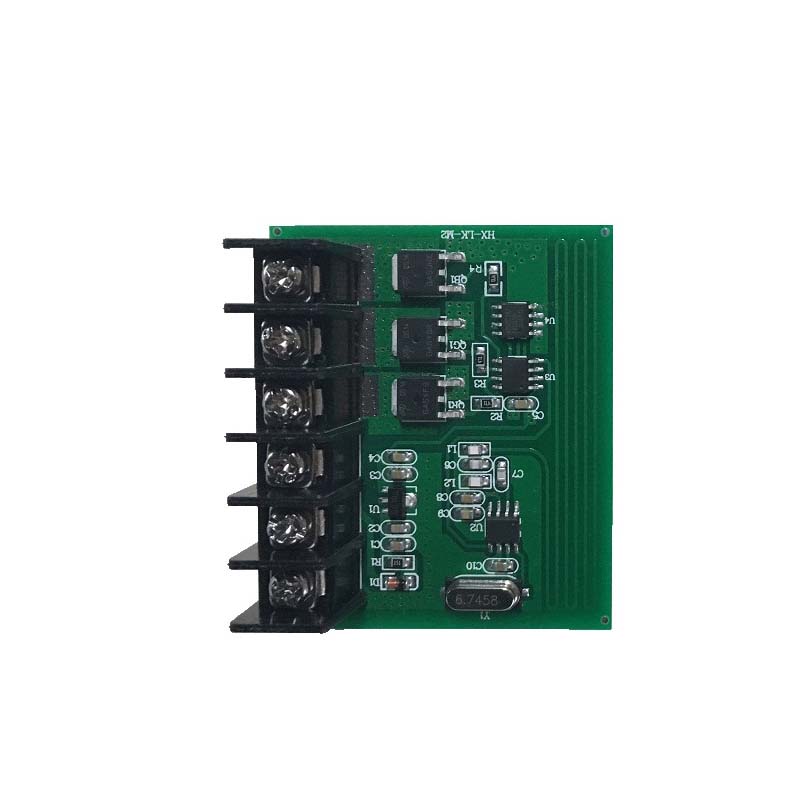

The RGB strip controller is a mini-sized controller enclosed in a small black metal shell, which makes it ideal for installation in a narrow space. The RGB controller has a three-channel output design and adopts an advanced micro control unit, working in DC12V to DC24V. The max output current of each channel can reach 6.6A, and the max loading power is up to 480W when working in 24VDC. You can use it to control many RGB LED lights, color-changing LED strips, and LED lamps. The 20 Keys wireless remote control with 14 modes includes 8 static colors and 6 dynamic modes. You can use the remote to control static colors' brightness and adjust the dynamic mode's speed.

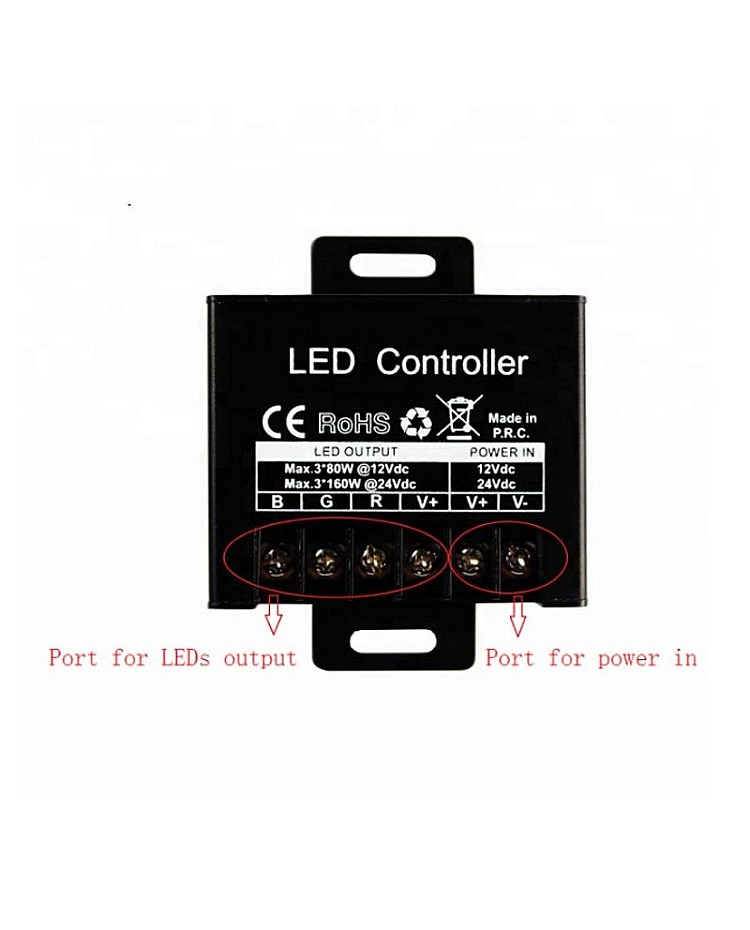

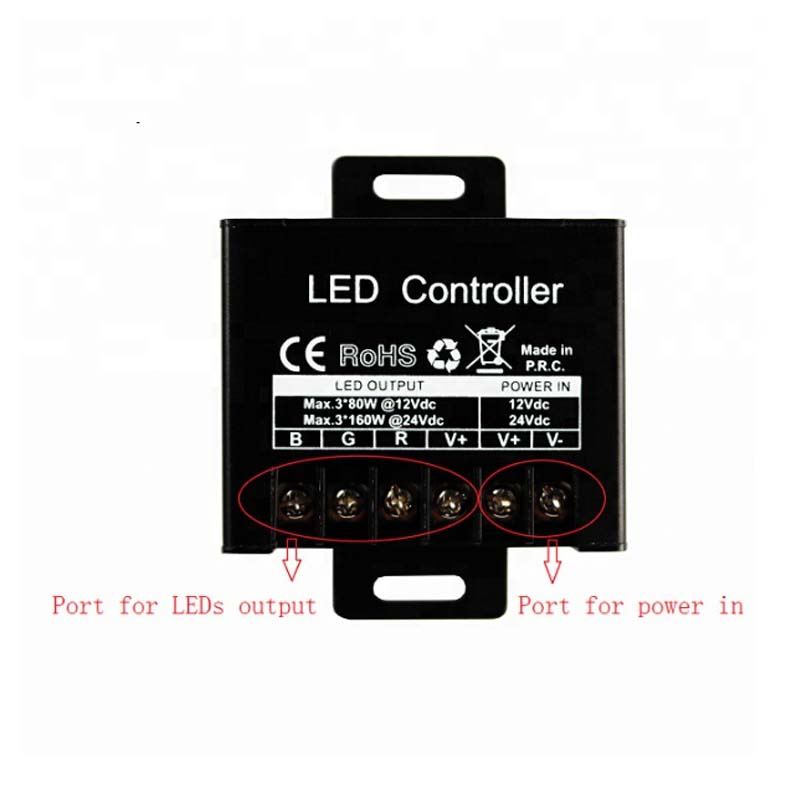

RGB Strip Controller Specifications:

  • Size: 80*64*24mm(L*W*H)
  • Working Temperature: -20-60℃
  • Working Voltage: DC12-24V

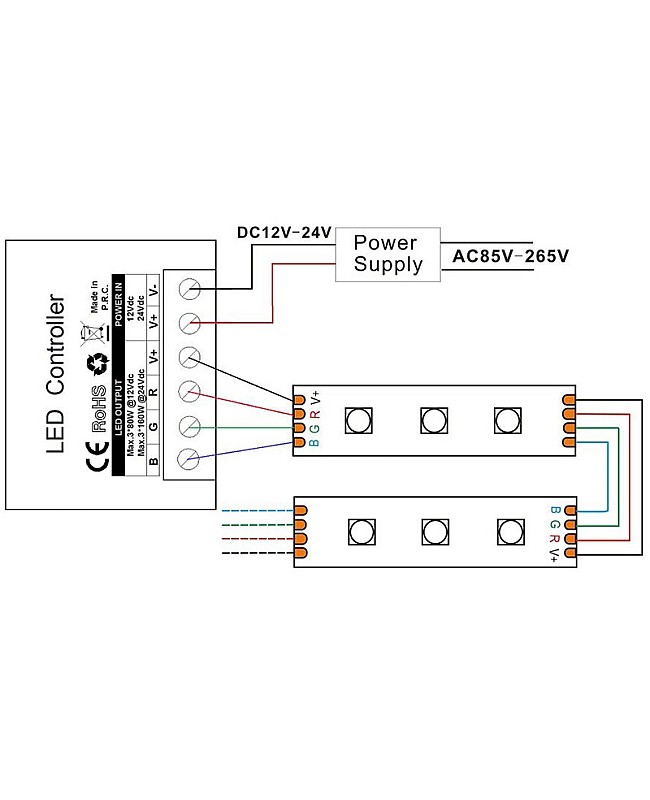

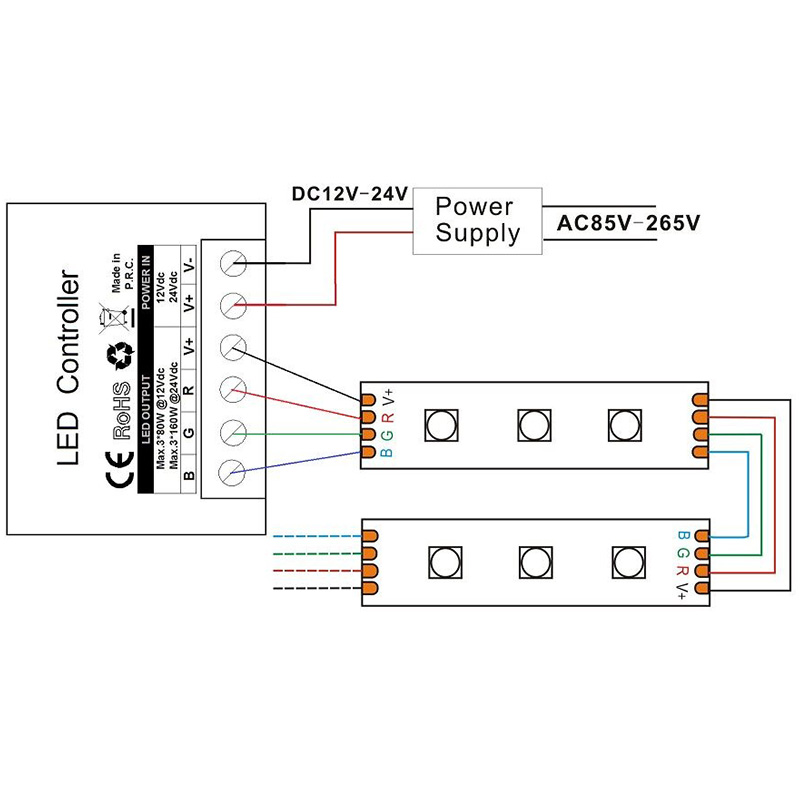

  • Connecting Mode: Common Anode
  • Output: 3Channels
  • Output Current: <6.6A Each Channel
  • Max Output Power: 240W ( 12V ) / 480W ( 24V )
  • Mode: 14
  • Grayscale: 64 Levels
  • Speed Stage: 100 Grade
  • PWM  Frequency: 433.MHz
  • Remote Distance: 20M
  • Memory Function: YES

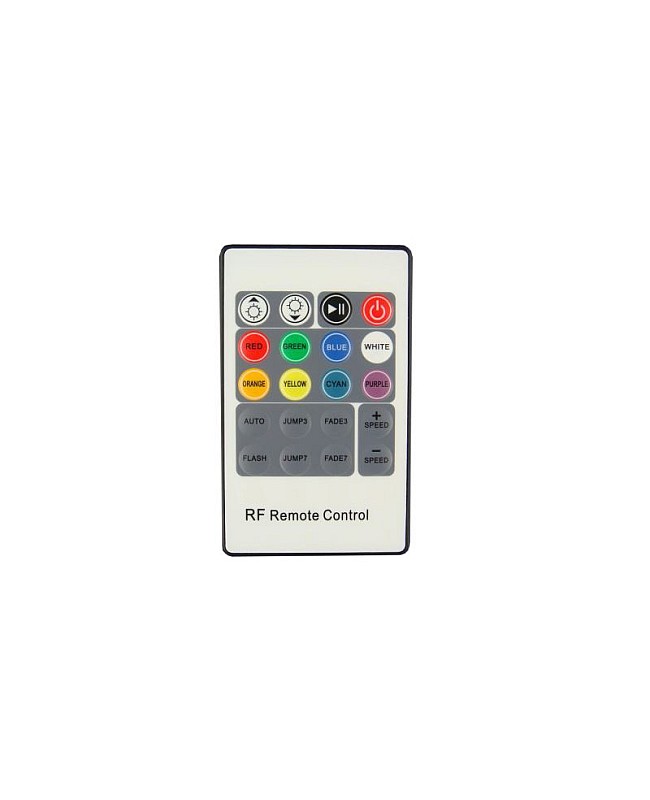

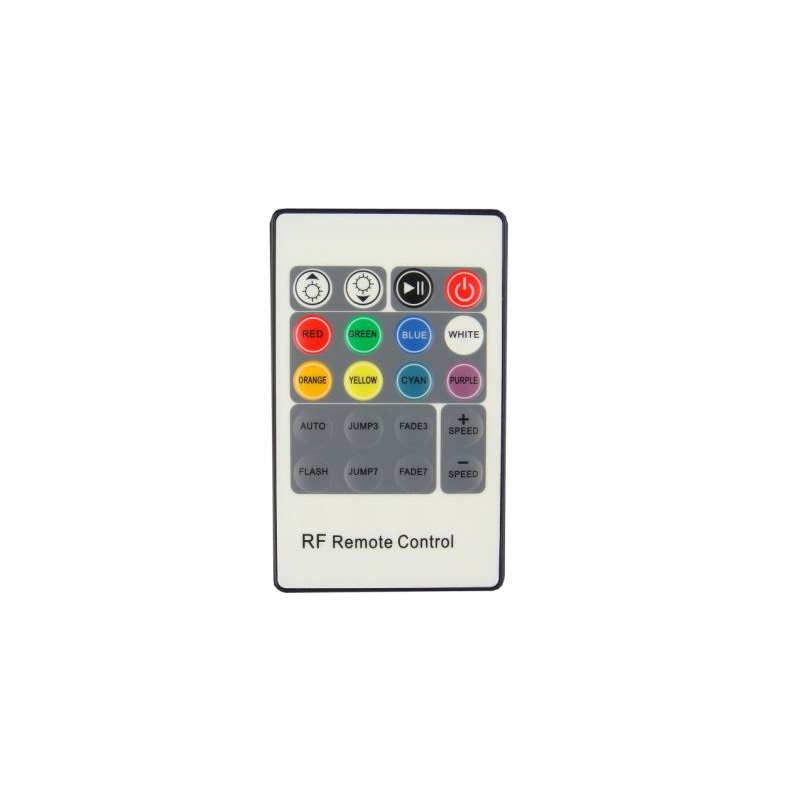

Wireless Remote Control Specifications:

  • Working Temperature: -20-60℃
  • Size: 85*51*6mm(L*W*H)
  • Working Voltage: DC3V(CR2025)
  • Standby Current: <3.3uA
  • Working Current: <12mA
  • Standby Power: 9.9uW
  • Working Power: 36mW
  • RF Frequency: 433.92MHz
  • RF Distance: ≤20m

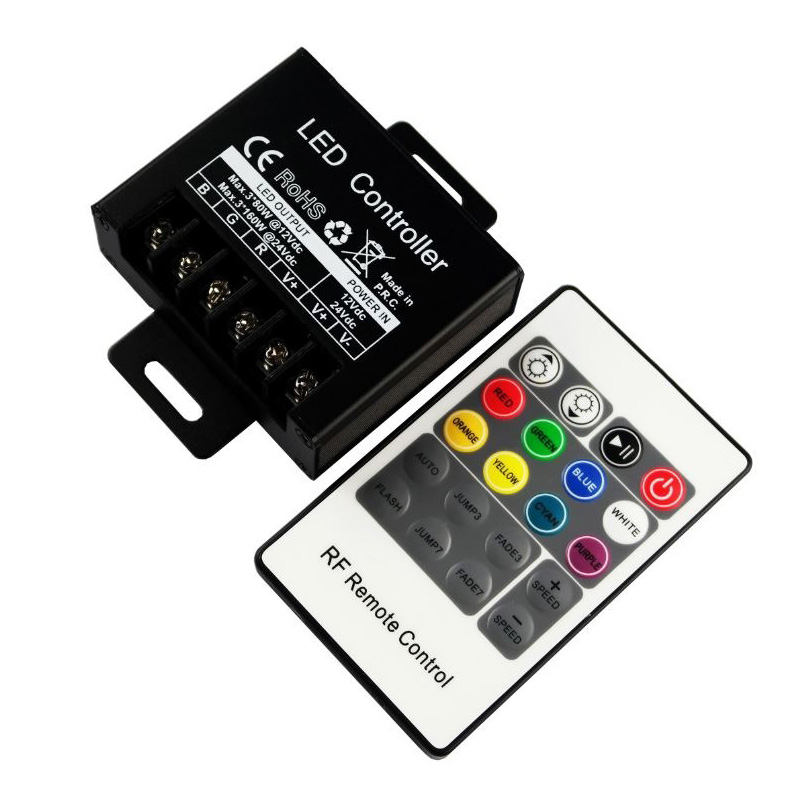

Includes:

1 * RGB Strip Controller

1 * 20 Keys Wireless Remote Control

RGB LED Light Strip Controller
