In Stock
$13.40 $9.90 Sale -26% OFF
Reward Points: 10
  • Brand: Ledbe
  • Product Code: HX-LWP86-RGB

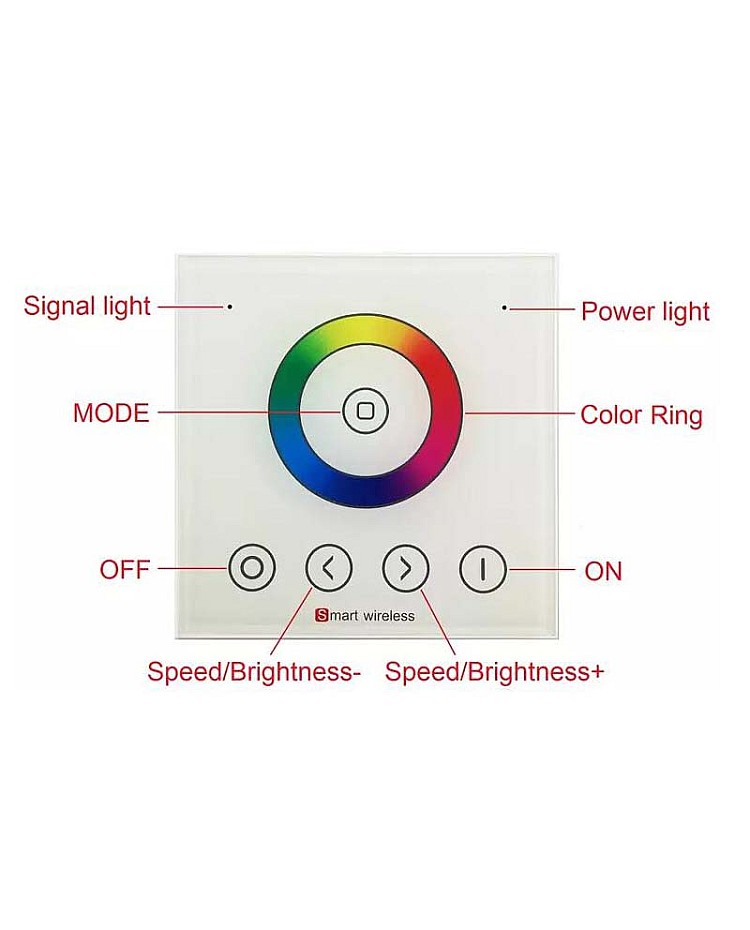

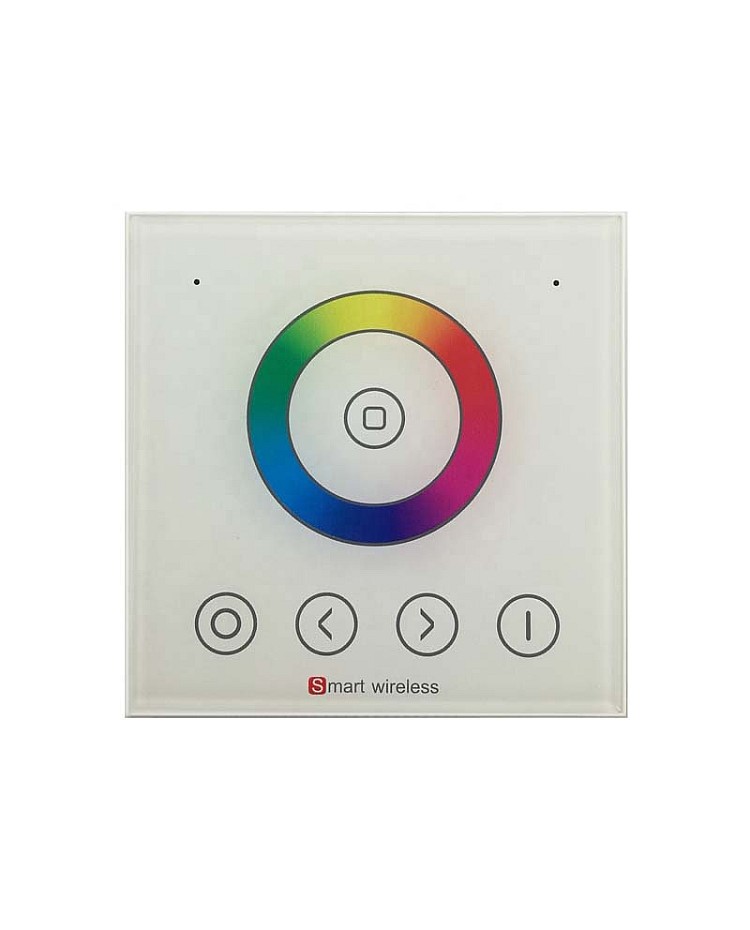

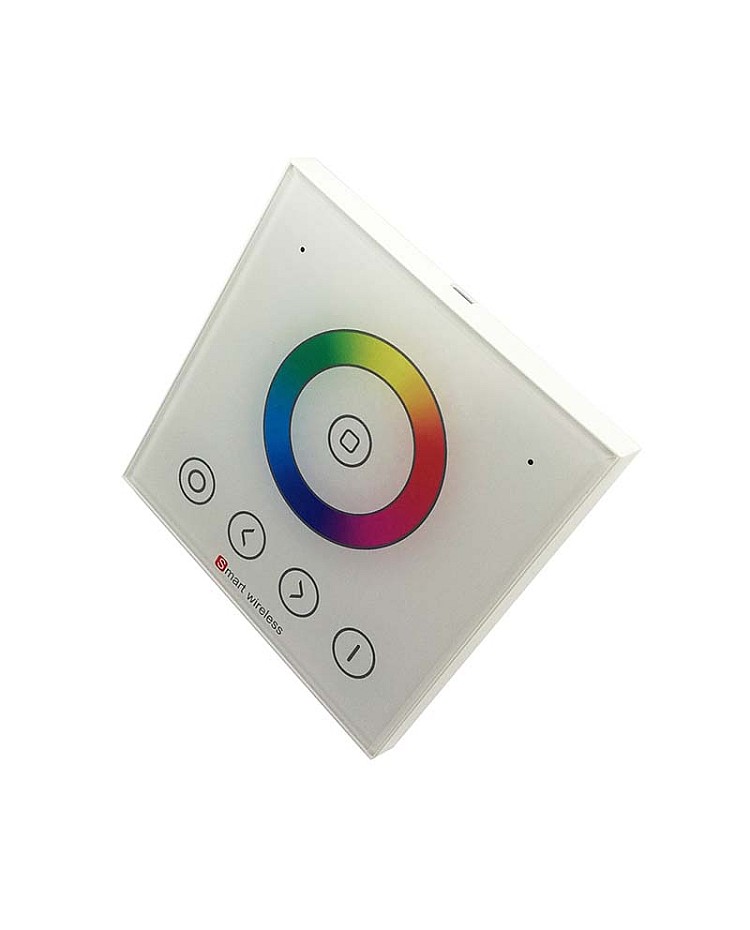

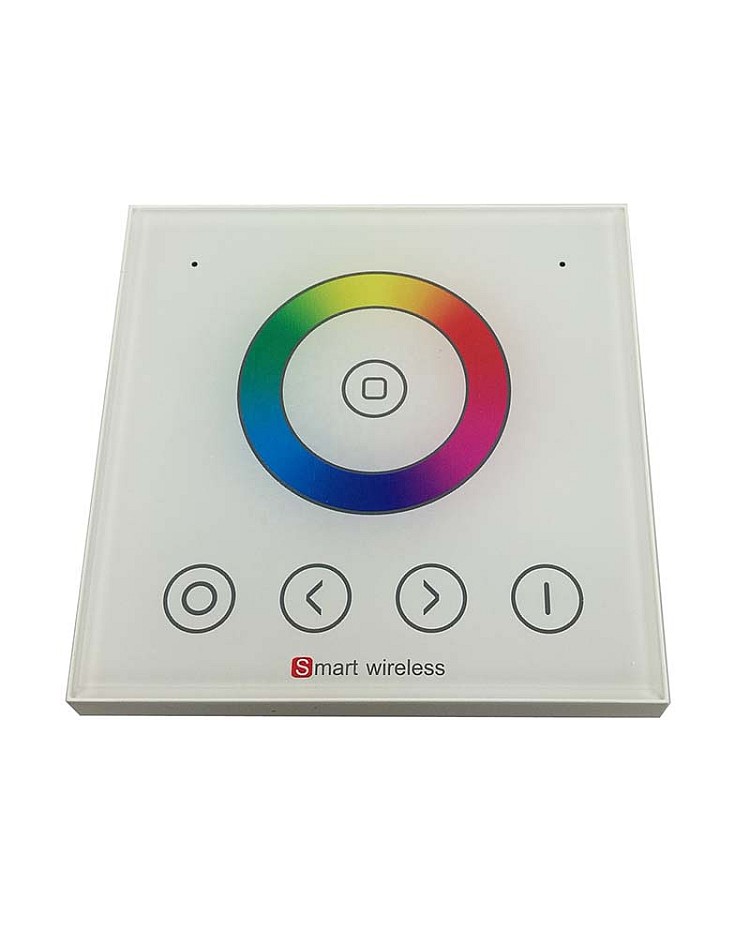

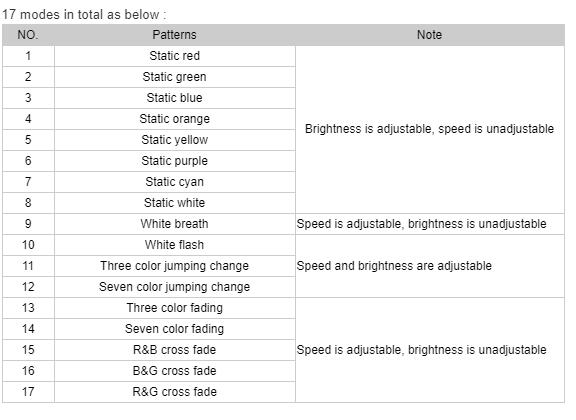

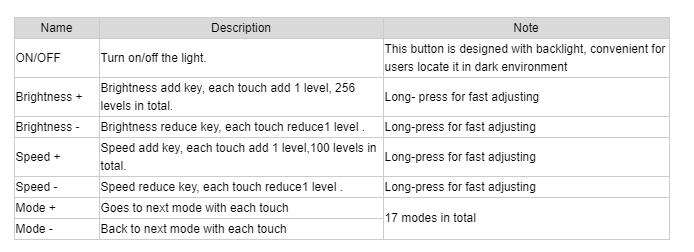

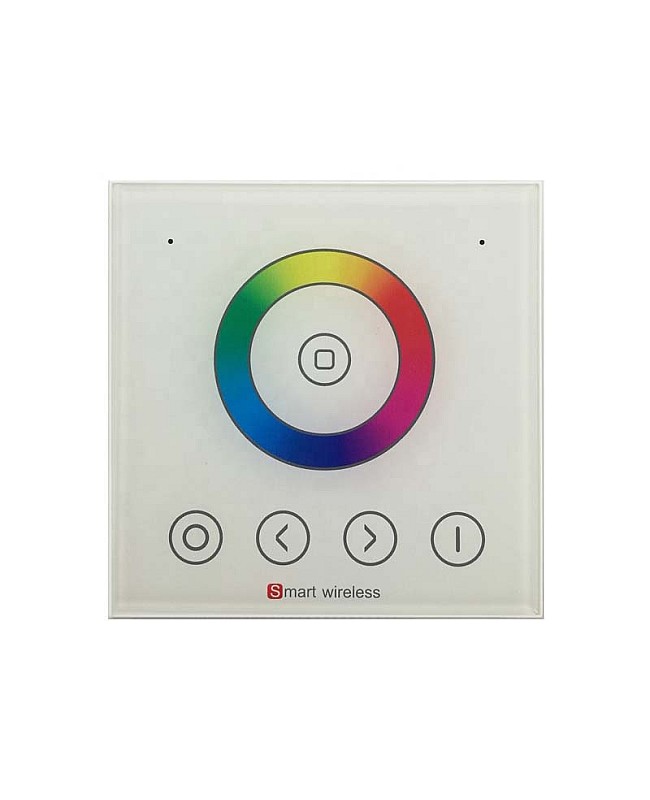

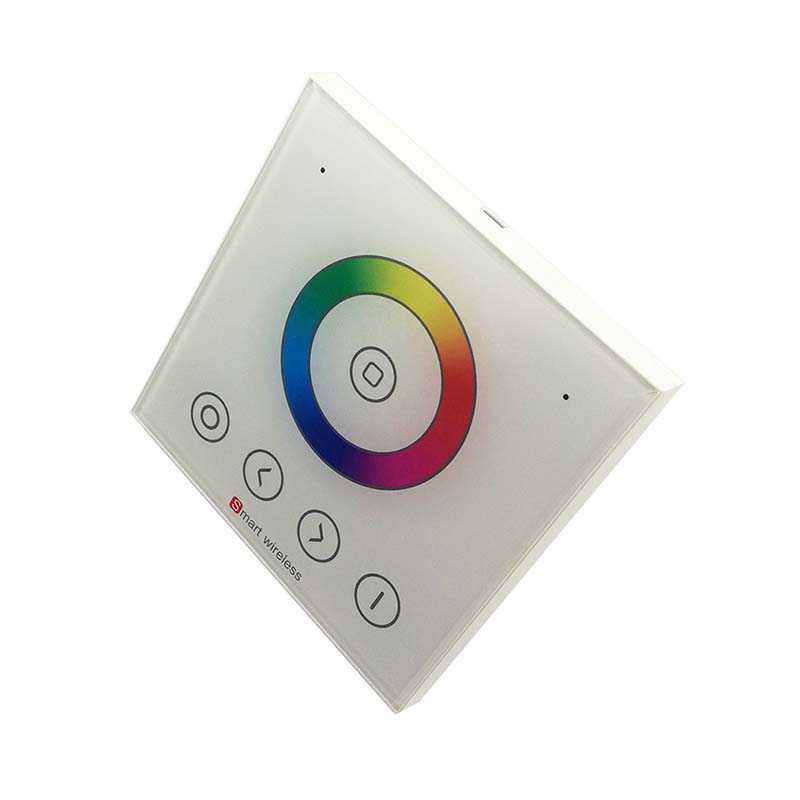

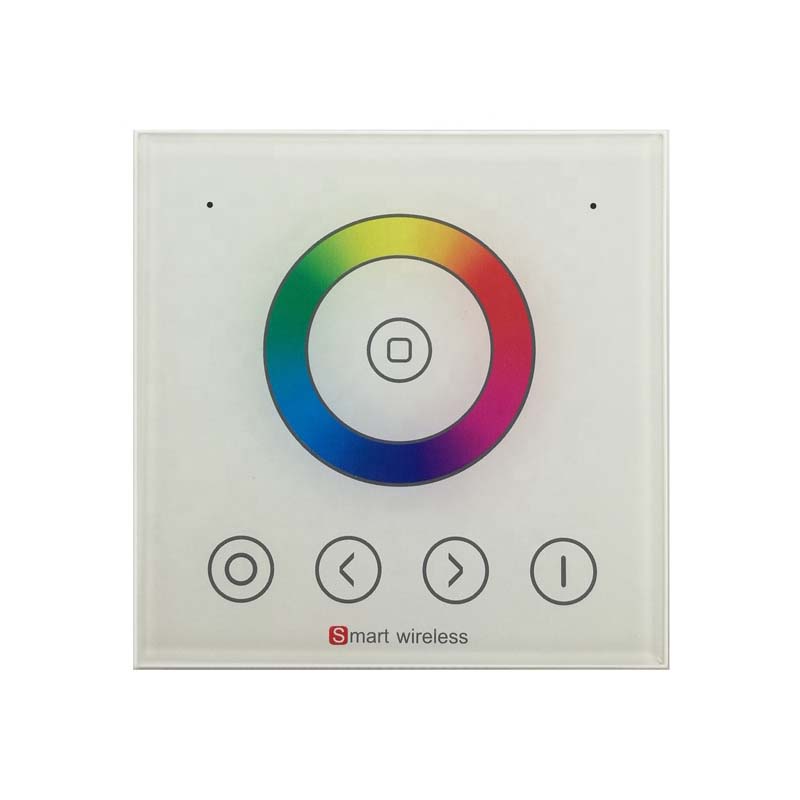

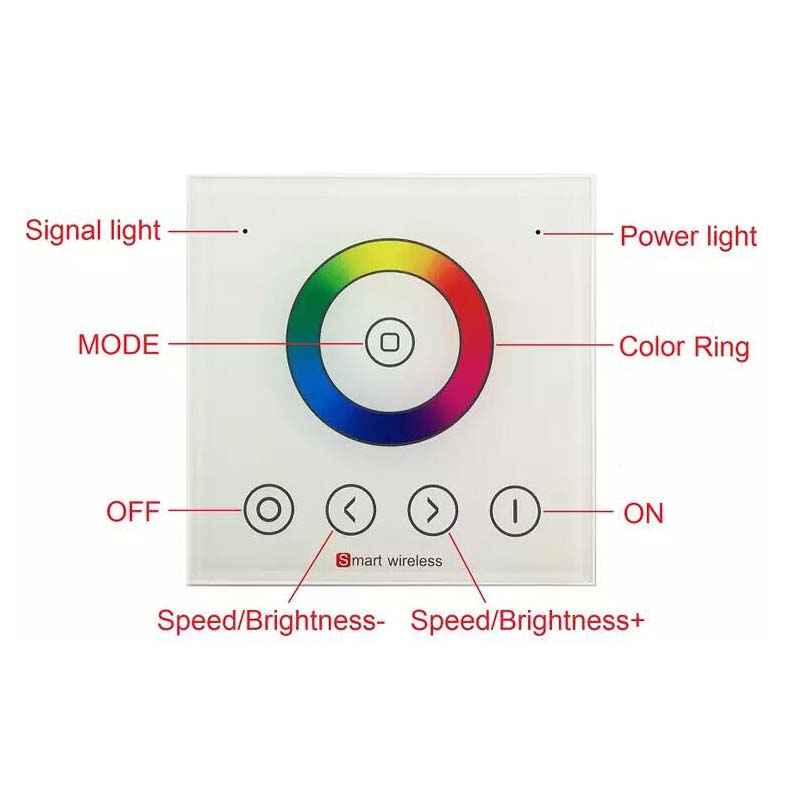

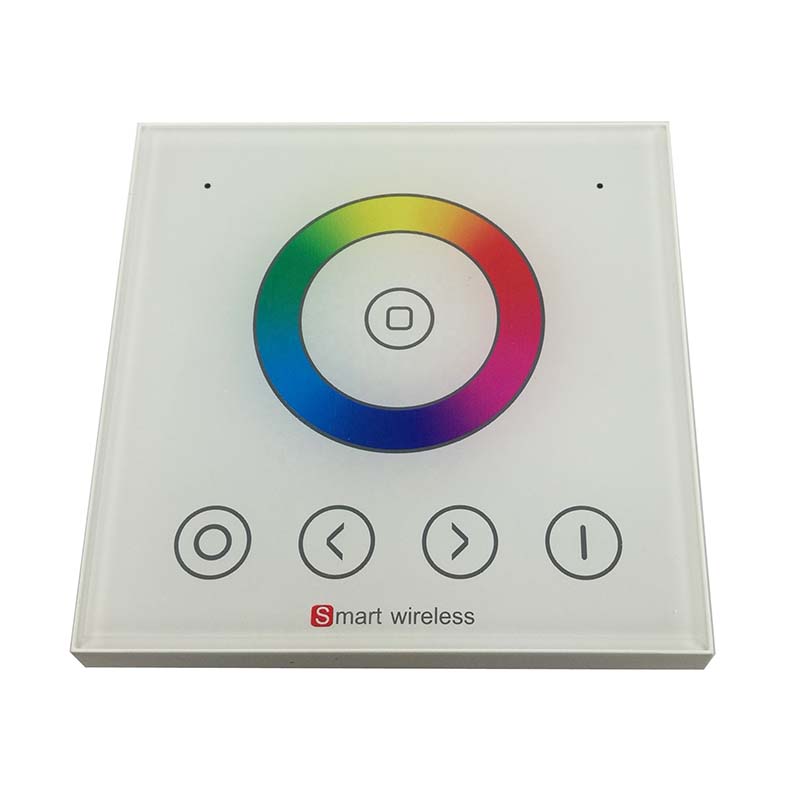

Check out the RGB Wall Panel Touch LED Controller, designed for the constant working voltage RGB LED Lights, working in DC12V or DC24V, with 3 output channels design, the max output current of each channel is 4A, the max output power up to 288W. the structure, dimension and installation of the Wall Panel Controller fulfill the 86-type European standards. adopts the capacitive touch-sensitive design, unique appearance and easy operation. you can press the brightness + and brightness - buttons to adjust the brightness of the LED Light, press the speed + and speed - buttons to adjust the changing speed of dynamic mode. you can press the mode button to switch the working mode, 17 modes in total.


  • Size: L150*W90*H60mm
  • Working Voltage: DC12V/DC24V
  • Static Power Consumption: <1W

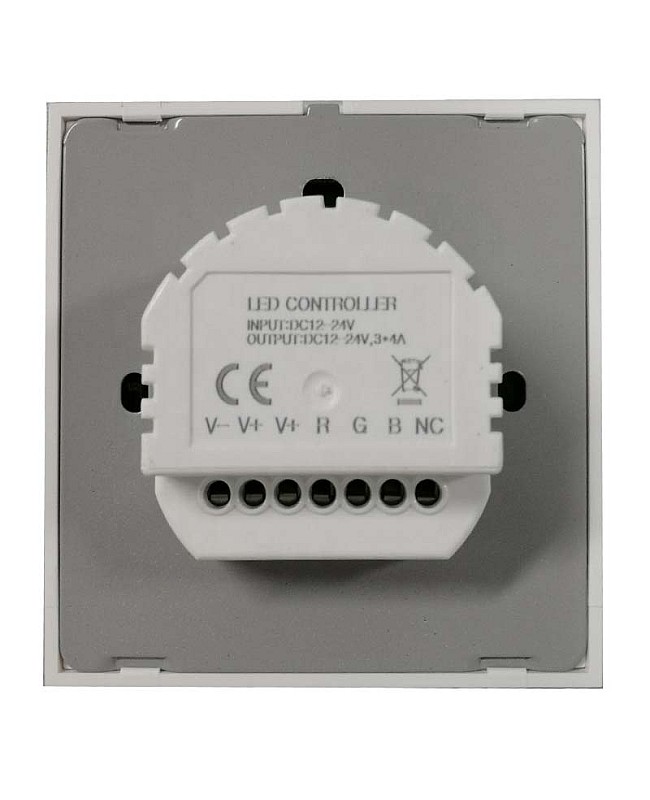

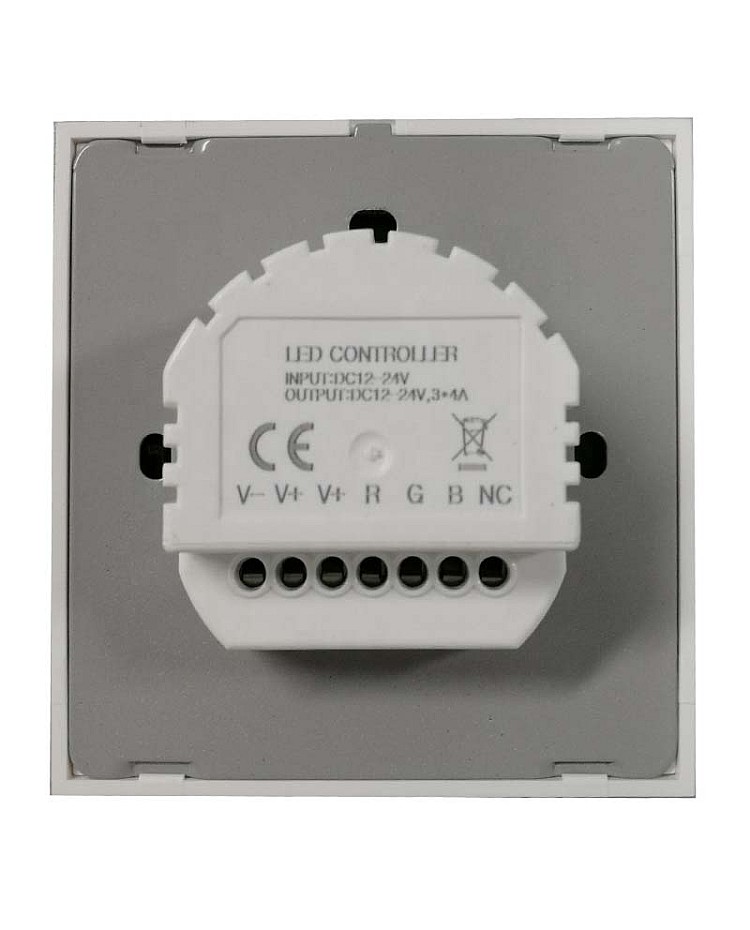

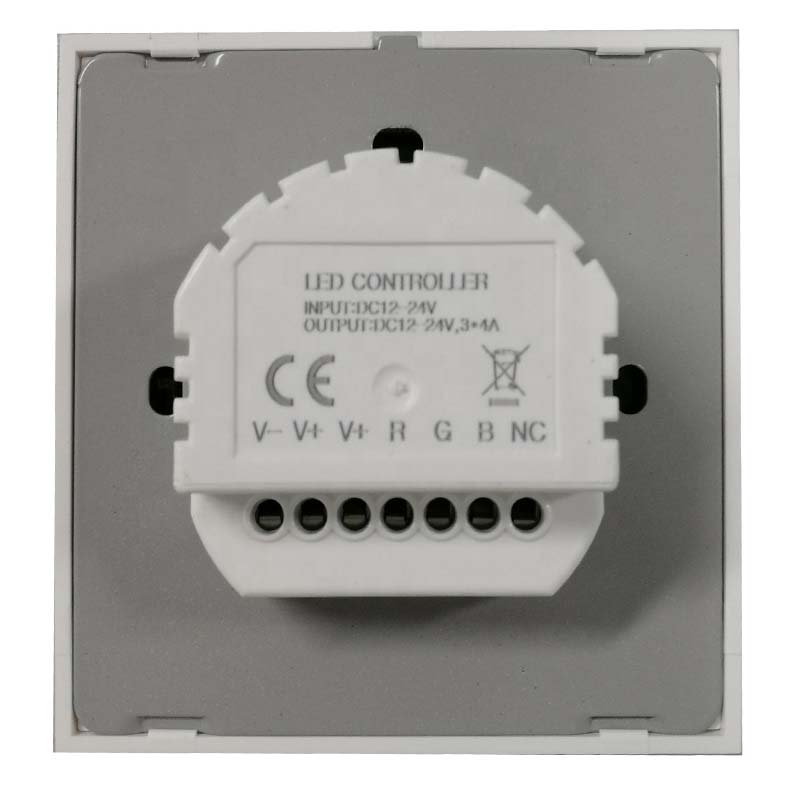

  • Connecting Mode: Common Anode
  • Output: 3Channels
  • Max Output Current: 4A Each Channel
  • Max Output Power: 144W(DC12V)/288W(24V)
  • Gray Scale: 256 Levels
  • PWM Frequency: 700Hz
  • Adopts The Capacitive Touch-Sensitive Design
  • Memory Function

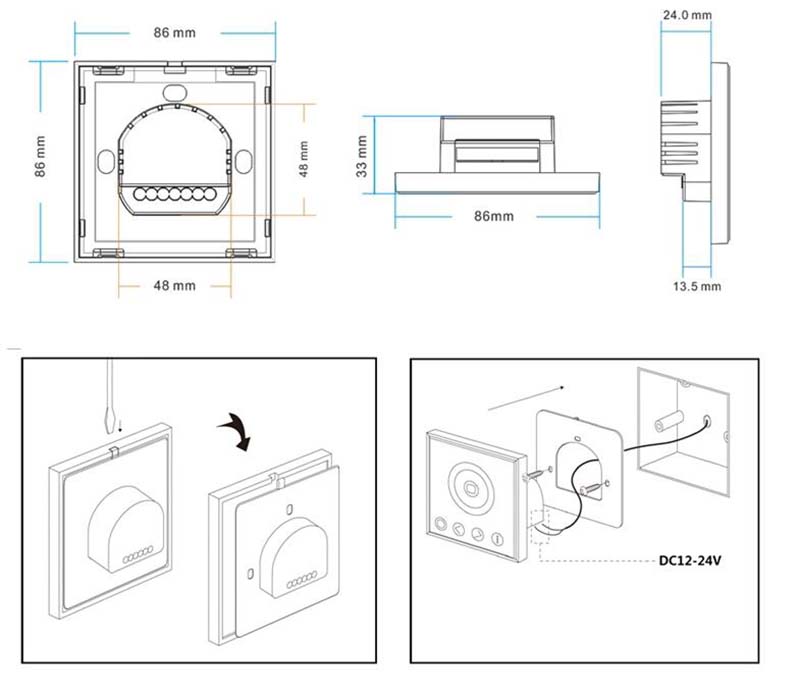

  • Structure/dimension/Installation According To The 86 Type European Standards.
  • Weight: 160g


1*Wall Panel Touch LED Controller

RGB Wall Panel Touch Controller Wall Panel RGB LED Controller Wall Panel RGB LED Controller Wall Panel LED Controller
