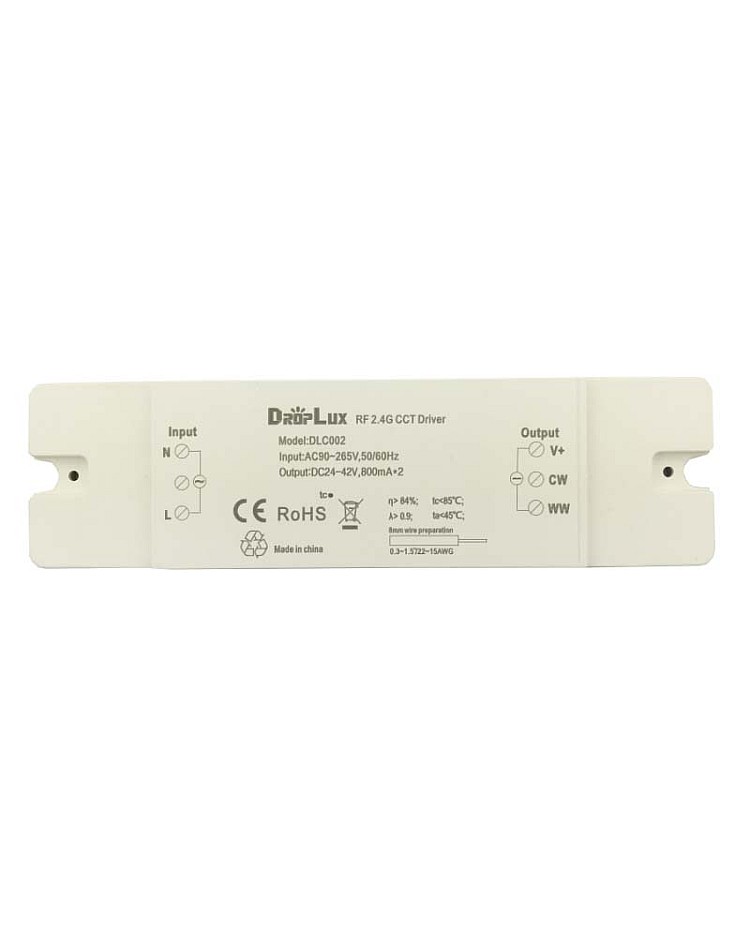

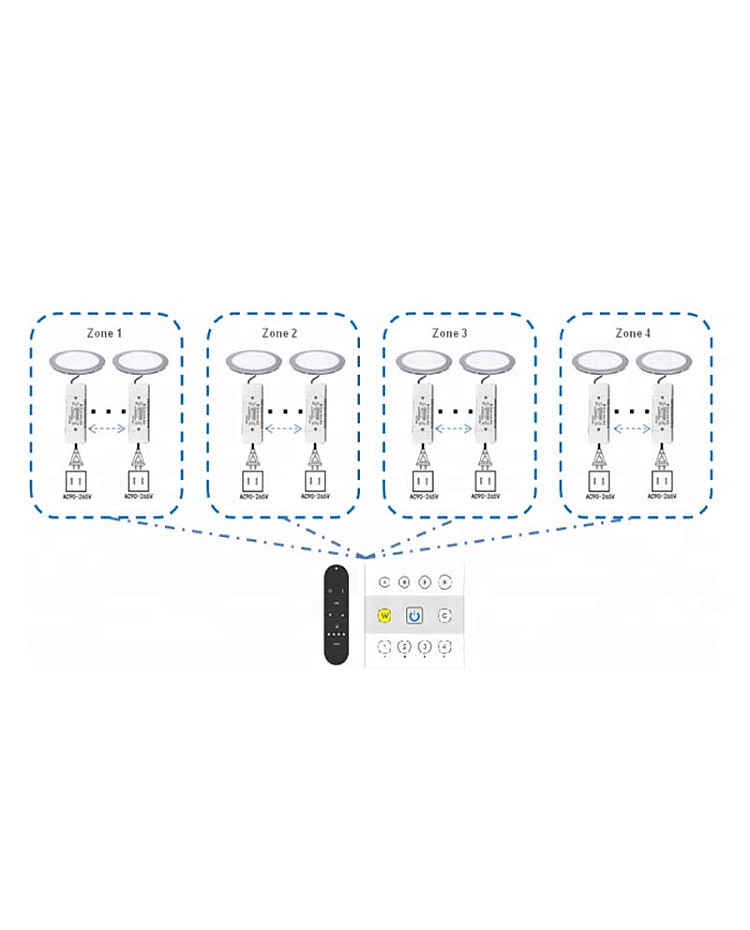

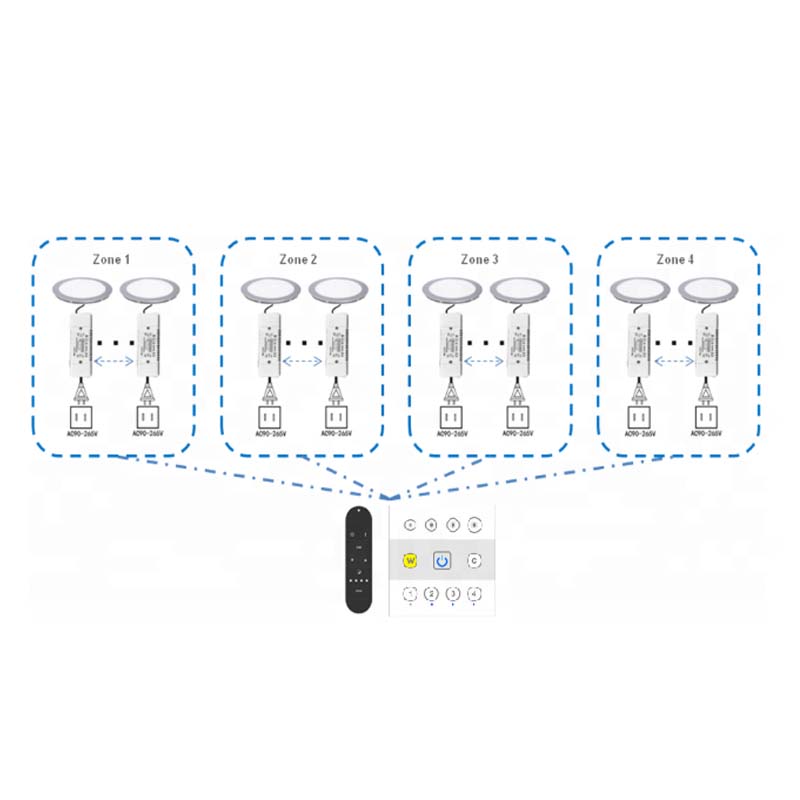

The CCT dimmable LED power supply has various working current switchable, and you can choose the 500mA, 600mA, 700mA, or 800mA by pressing the DIP switch. The dimming power supply has an isolated design with multiple protections to ensure working safety and reliability. It works between AC90V and AC264V and can connect to the public power system directly without needing extra adapters. It adopts the advanced PWM(pulse width modulation) digital control technology used for controlling the constant current CCT LED lights, CW+WW LED panels, ceiling lamps, downlights, etc., and can achieve stepless and smooth dimming from 3% to 100%, soft and flicker-free. It has a 2.4GHz wireless control module and air self-inspection sync control technology. It is compatible with RF CCT LED remotes to adjust the brightness or change the color temperatures, and power up to 32W. The air self-inspection sync control not only makes the product more advantageous than similar products in wireless sync function, but also makes 1 remote controller out of the limitation of remote control distance, theoretically achieves controlling numerous drivers' wireless connection sync control function.
Quick Links:
Specifications:
- Size: 163*46*25mm(L*W*H)
- Input Voltage: AC90V-AC264V
- Frequency Range: 47- 63Hz
- Rated Current: 0.2A(Full Load)
- Surge Current: <50A
- Standby Power: ≤0.9W
- Overall Efficiency: 85%(Full Load)
- THD: 17%

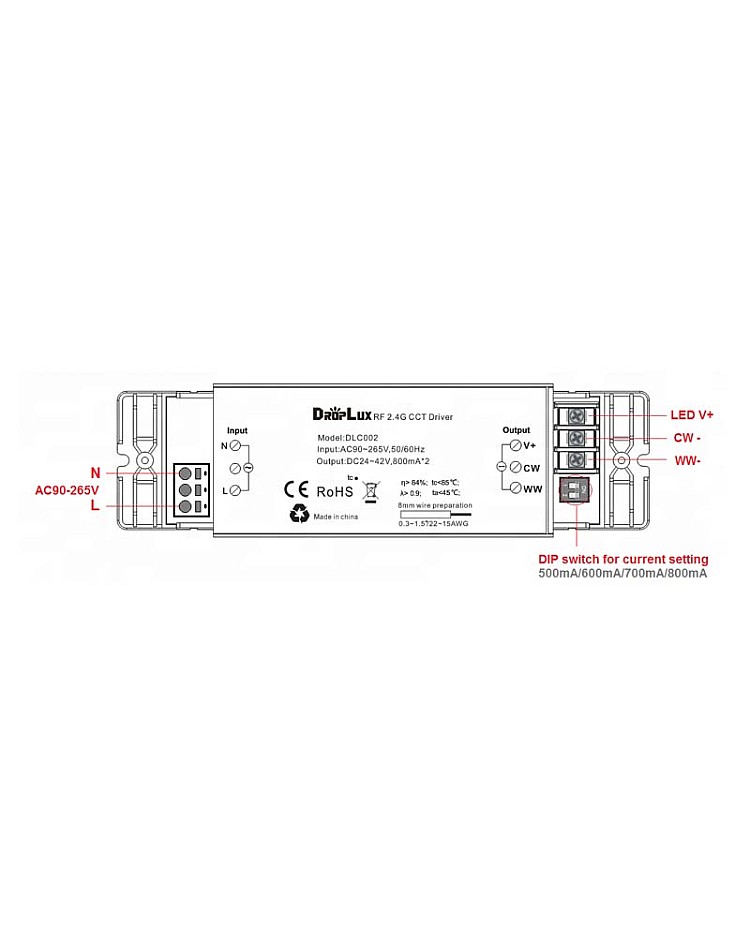

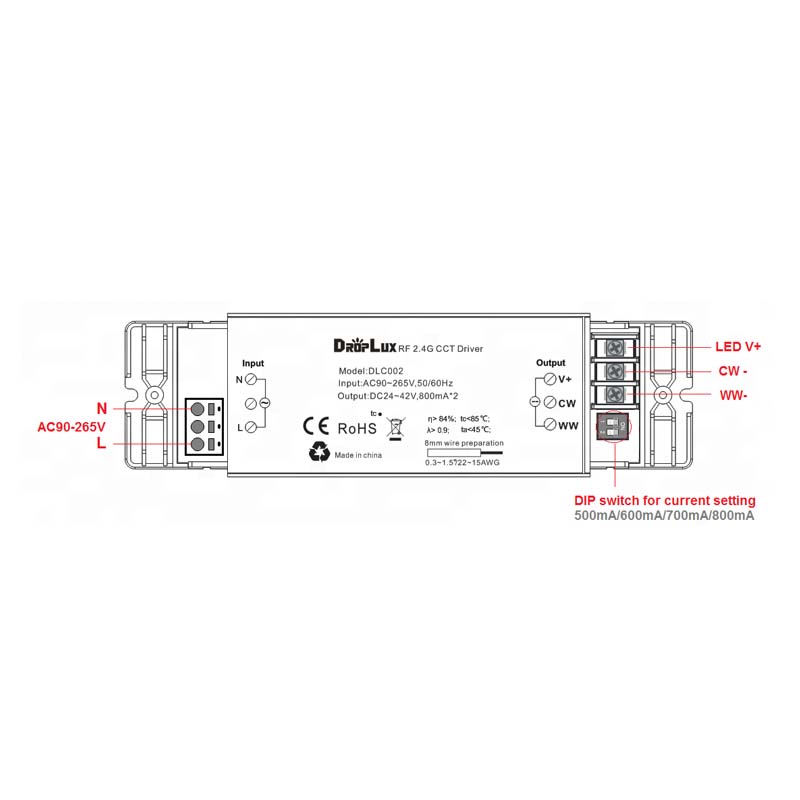

- Input Port: Two-Wire Input(L/N)
- Output Port: V+, CW-, WW-
- Unloaded Voltage: 53V
- Voltage Range: DC18V-DC42V
- String Number: 6-12

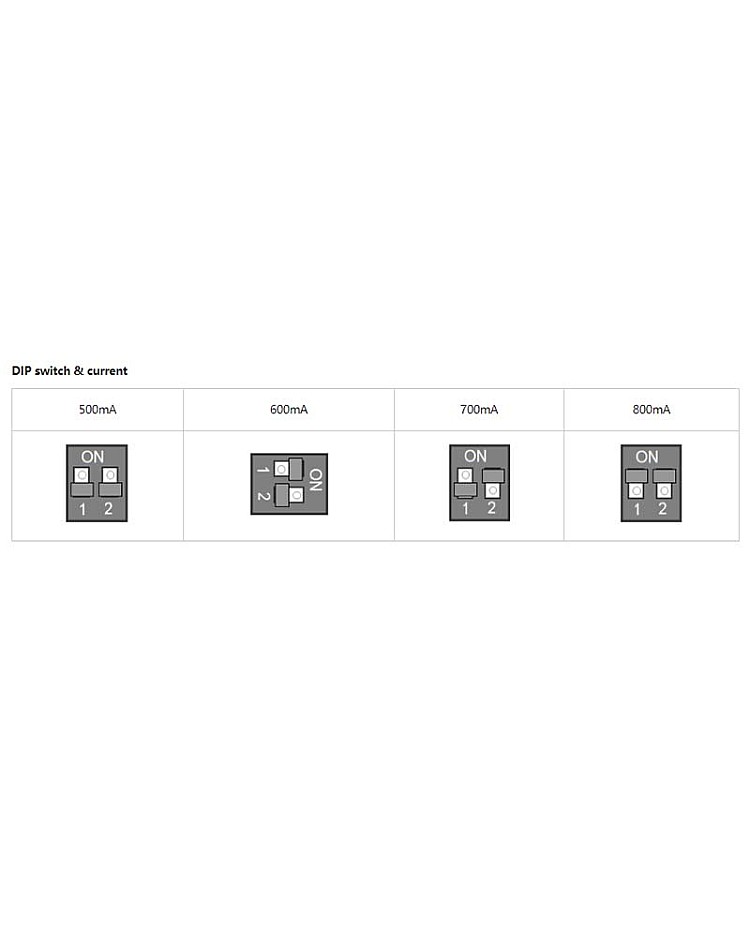

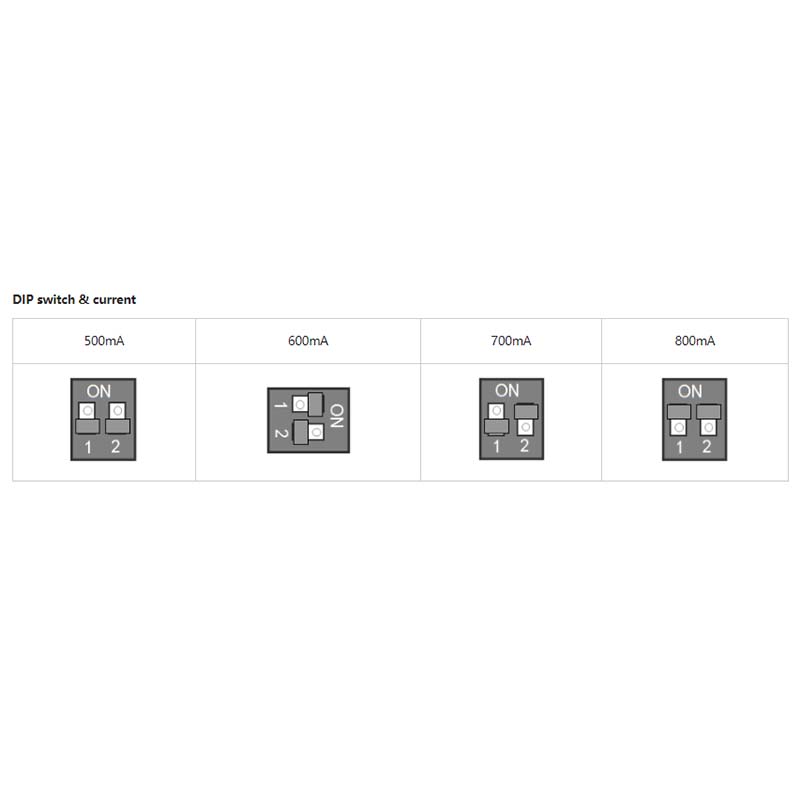

- Rated Current: 500mA, 600mA, 700mA, 800mA(DIP Switch For Current Setting)
- Max Power: 32W
- Current Accuracy: ±5%
- PWM Signal Output Frequency: 3KHz
- Dimming Grade: 1024
- Dimming Range: 3-100%
- Video Effect: Free-Flicker
- Power Supply: Isolated Power Supply
- Working Temperature: -20-45℃
- IP Rate: IP40
- Wireless Control: 2.4GHz
- Remote Control Distance: 30m
- Over Voltage Protection: YES
- Short Circuit Protection: YES
- Memory Function: YES

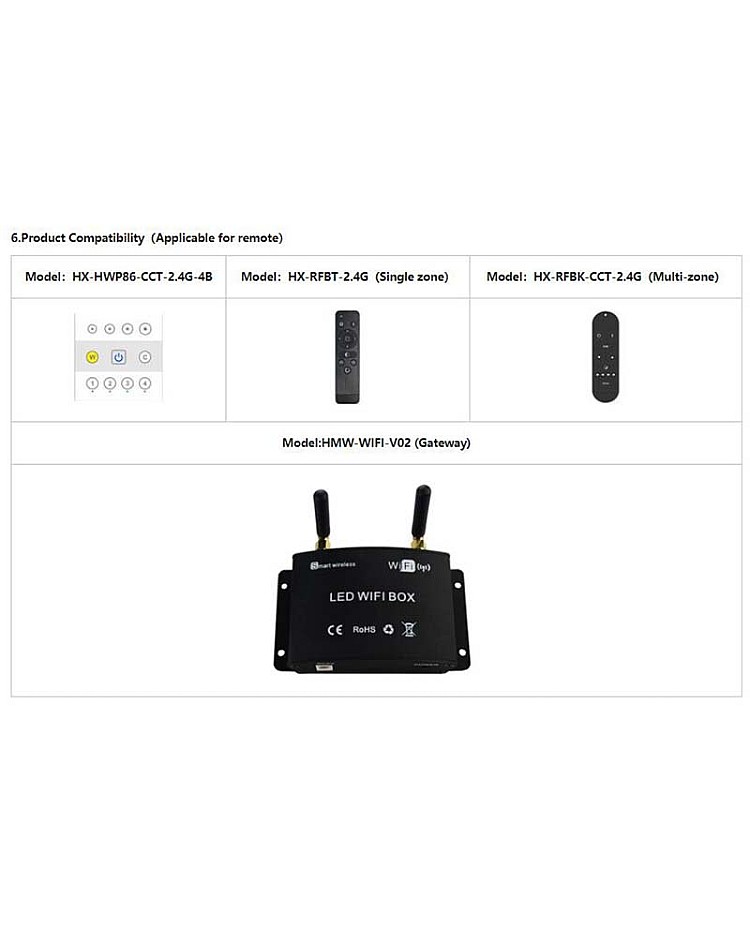

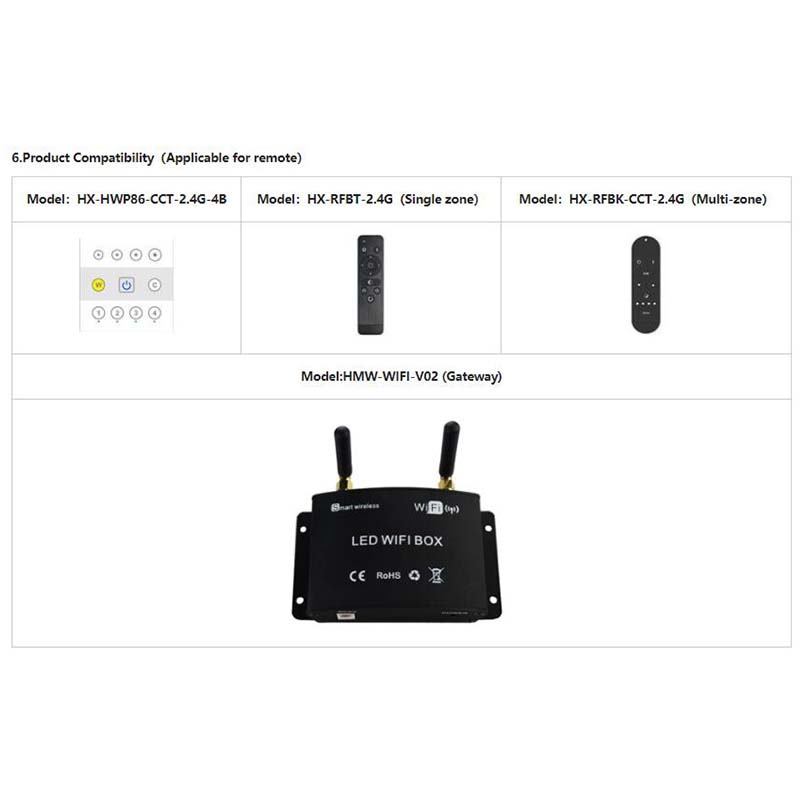

- Compatible With RF LED Remote: HX-RFBT-2.4G(Single Zone), HX-RFBK-CCT-2.4G(Multi-Zones), HX-HWP86-DIM-2.4G-4B(Multi-Zones), HMW-WIFI-V02(Gateway)
- Applicable Lights: CW+WW LED Panels, Ceiling Lamps, Downlights, And Other Constant Current Lights
- Applications: Home, Shop, Hotel, Office, Household/Commercial Indoor Lighting
- Weight: 200g
- Certificates: CE/R&TTE/LVD/ROHS
- Lifespan: 45,000 Hours
- 3 Years Warranty
Includes:
1 * Dimmable LED Power Supply
1 * HX-RFBT10-2.4G Remote Control
