In Stock
$20.70
Reward Points: 20
-
+
  • Brand: Hoion
  • Product Code: HX-SZ600-WP86-RGB

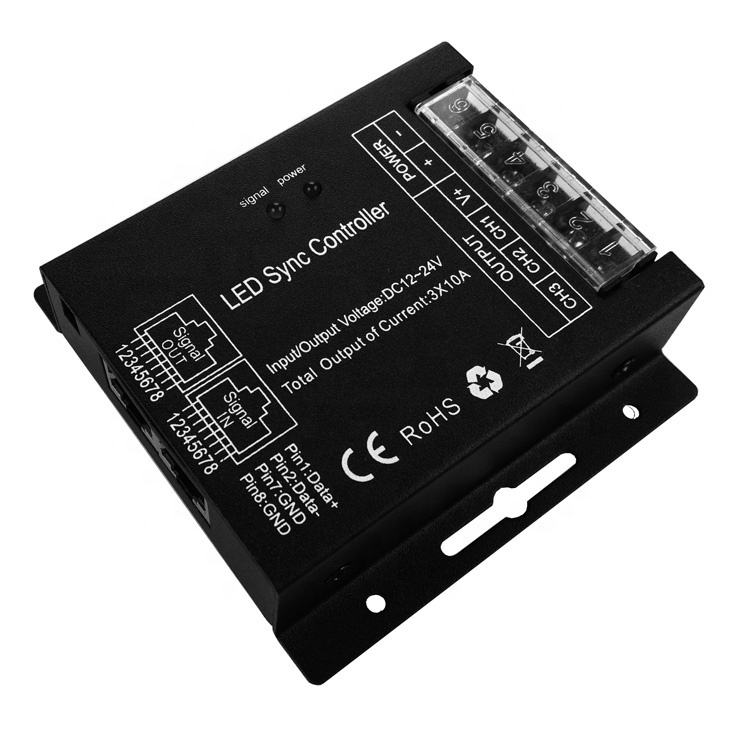

The RGB LED controller has the RJ45 Ports for the sync-work, multiple controllers can work synchronically when connected by network cable through the RFJ45 connectors, the network cable between 2 ports up to 80meters, you can use the first LED controller as the master control to adjust the brightness or change the dynamic mode, all of LED Light will change synchronically. The RGB LED controller is designed for the constant voltage LED light, working in DC12V or DC24V, with 3 output channels. The max output current of each channel is 10A, and the max loading power is up to 720W when working in DC24V. comes with the touch wall panel remote control, which works in AC90V-265V, you can connect it to the AC110V or AC220V power system directly, without needing an extra LED Driver. The remote's structure, dimensions, and installation are according to the 86-type European standards, making it easy to install and use. You can use the Remote to adjust the brightness of static color, 256 levels; the speed of dynamic changes is adjustable, 100 levels in total. Long-press the brightness and speed key to get fast adjustment and convenience for operation. Each time powered on, the LED RGB controllers with memory function reserve the mode that was stopped at the last power off.

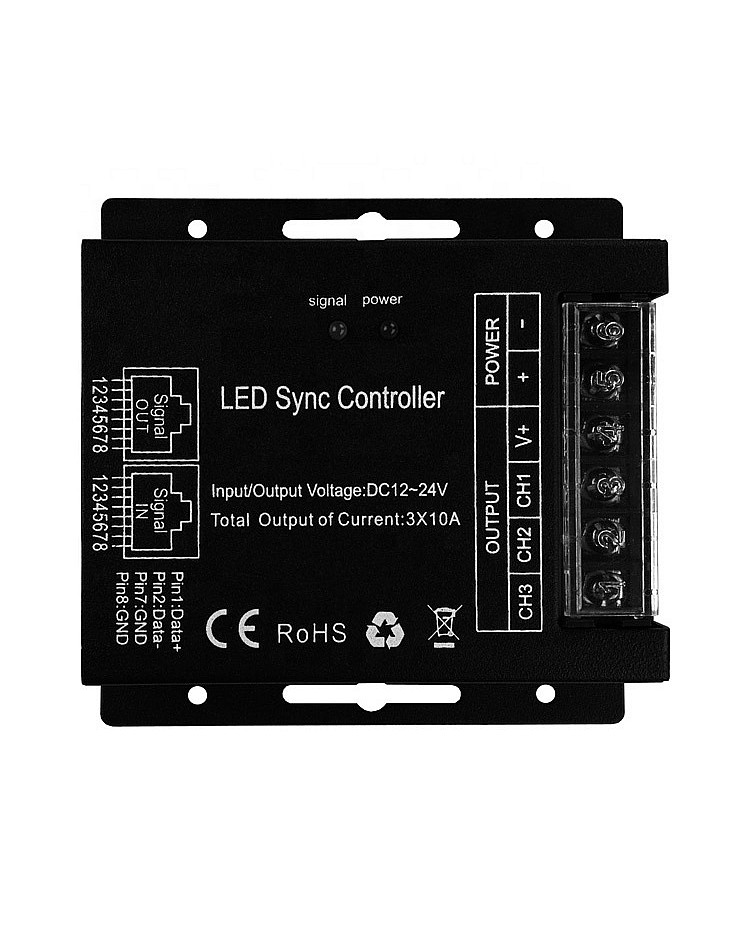

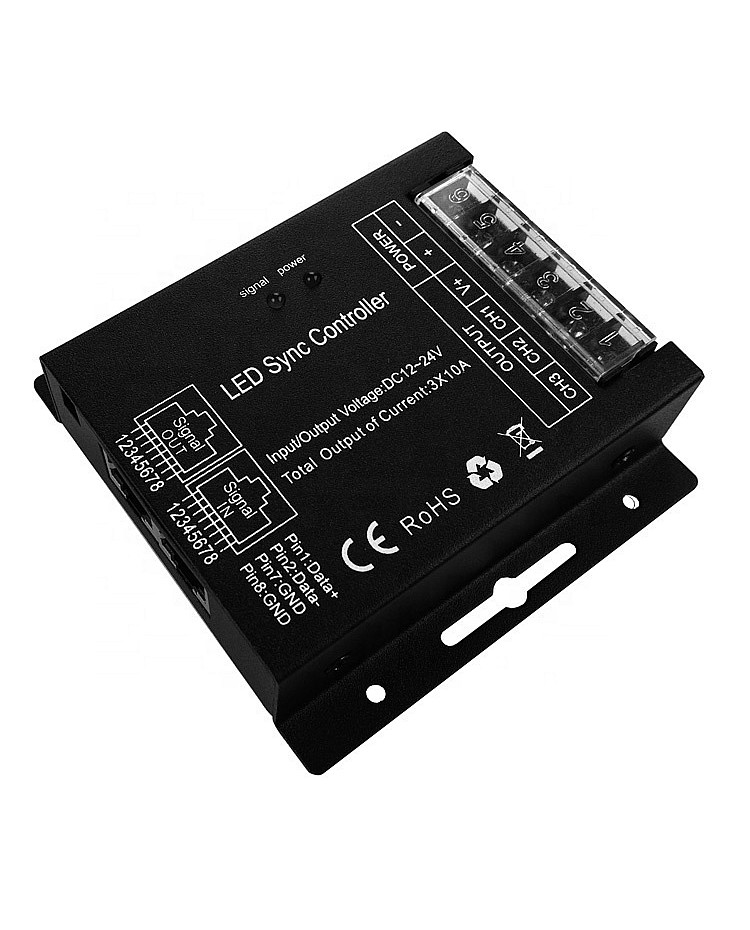

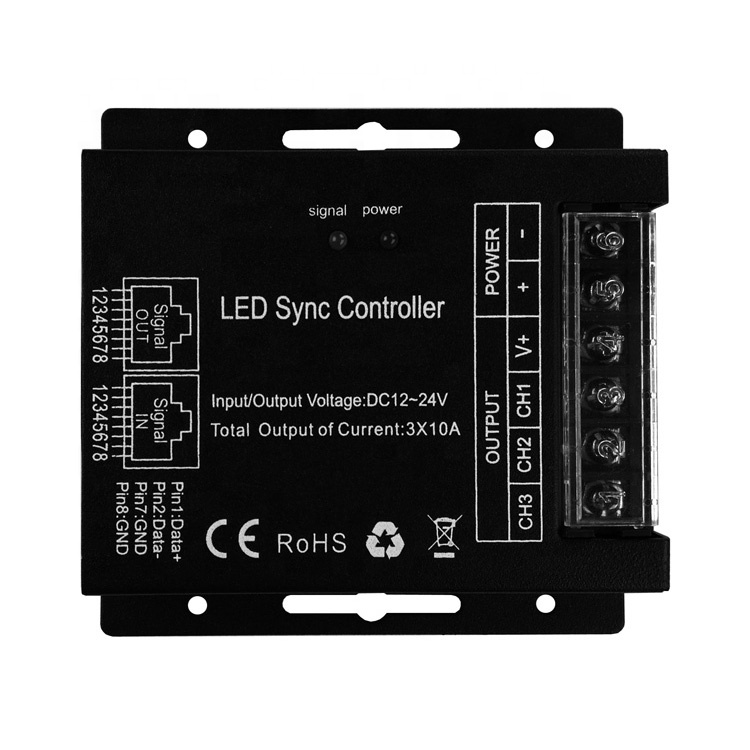

RGB LED Controller Specifications:

  • Size: L91* W88* H24 mm
  • Working Temperature: -20℃-60℃
  • Working Voltage: DC12V-DC24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Grayscale: 256 Levels
  • Speed Stage: 100 Grade
  • Output: 3 Channels
  • Max Output Current: 10A Each Channel
  • Max Output Power: 360W(DC12V) / 720W(DC24V)
  • Modes: 9
  • RF Distance: <20M
  • PWM Frequency: 433.92MHz

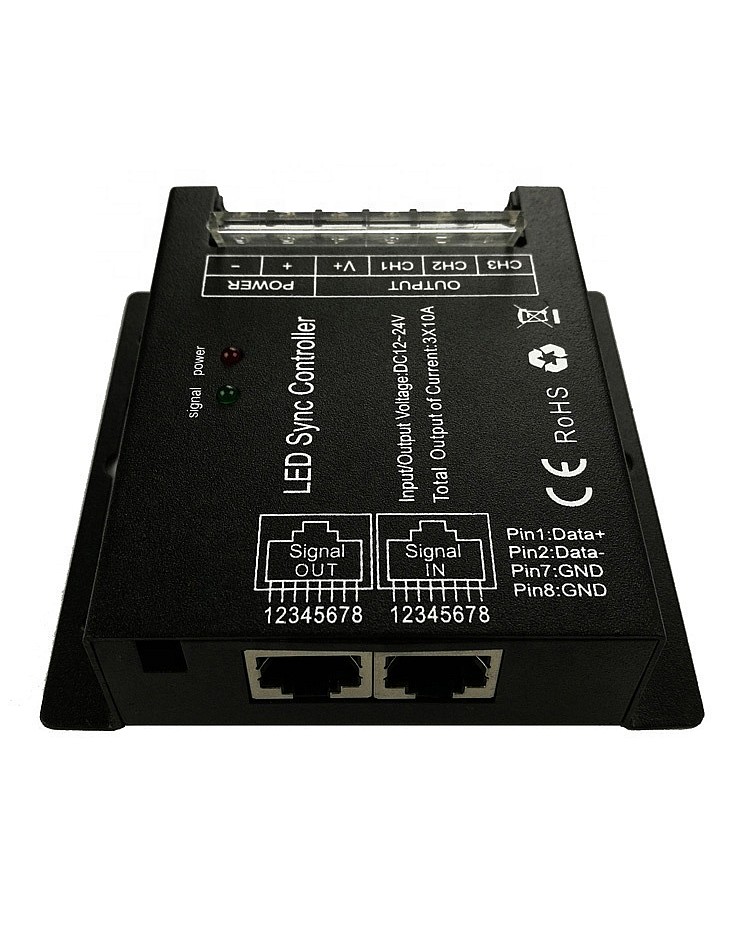

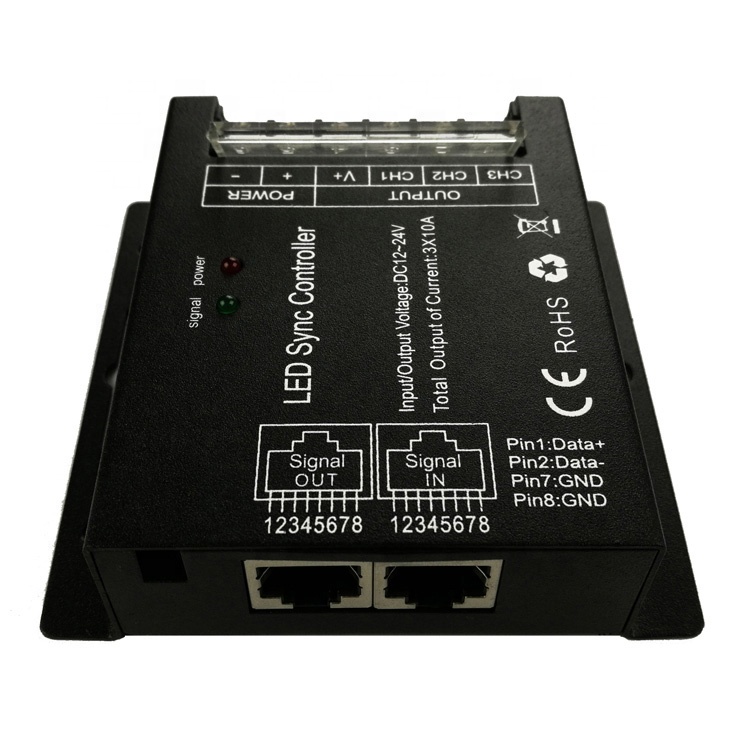

  • With RJ45 Ports For Sync-Work Function
  • Multiple Controllers Can Work Synchronically When Connected By RJ45 Network Cable Ports

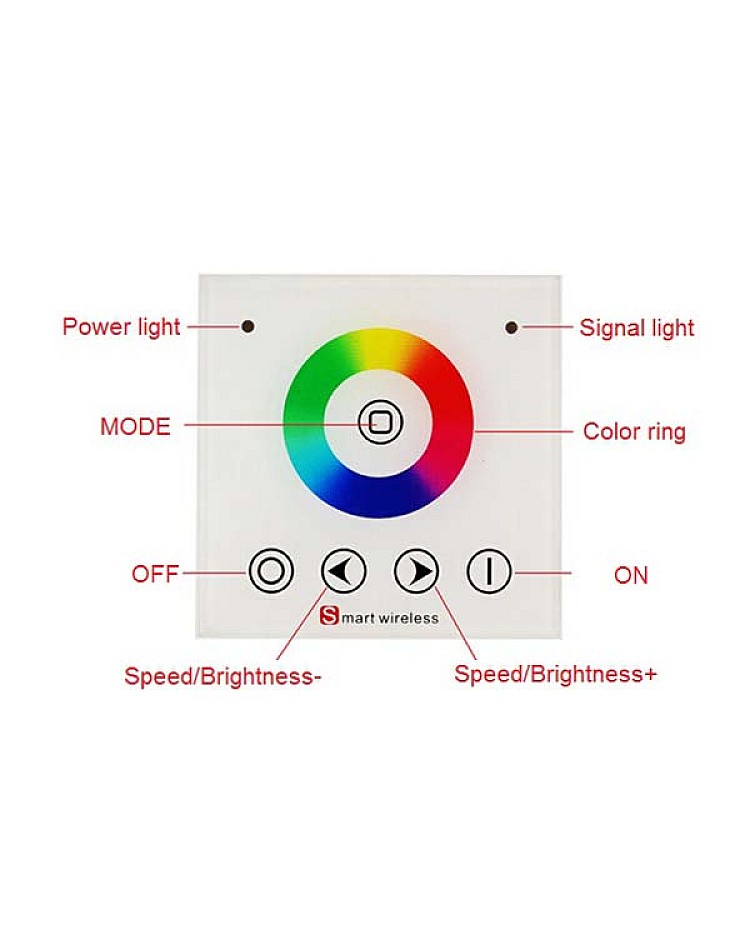

  • Long Long-press the Brightness And Speed Key Can Get The Fast Adjustment
  • Brightness Of Static Colors Adjustable, And Speed Of Dynamic Modes Adjustable
  • Memory Function: YES
  • Short Circuit Protection: YES
  • Weight: 300g
  • 3 Years Warranty

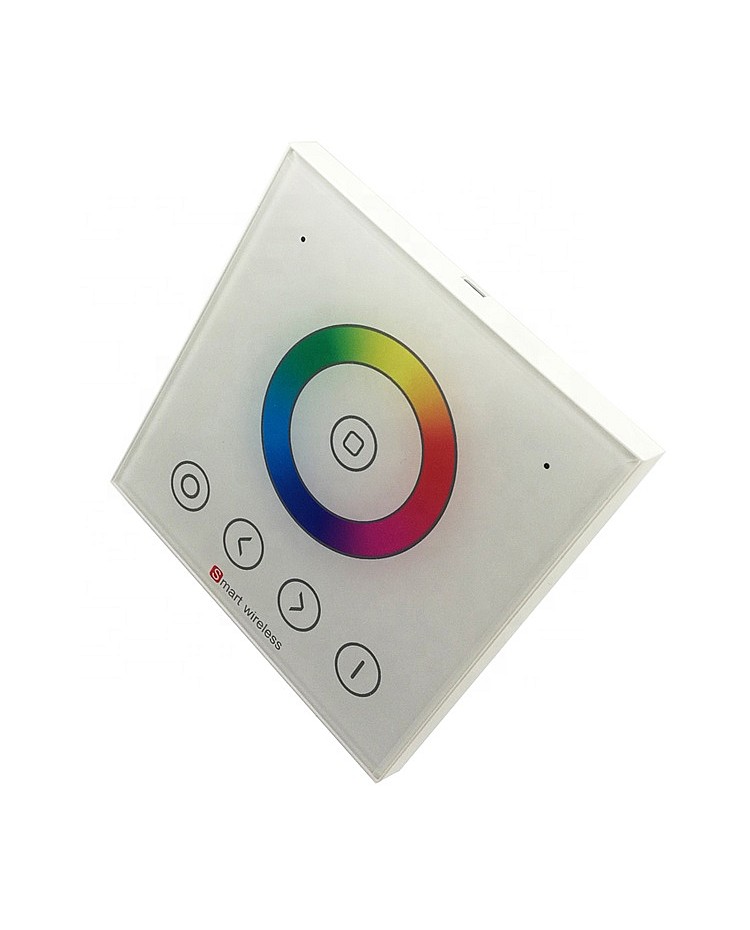

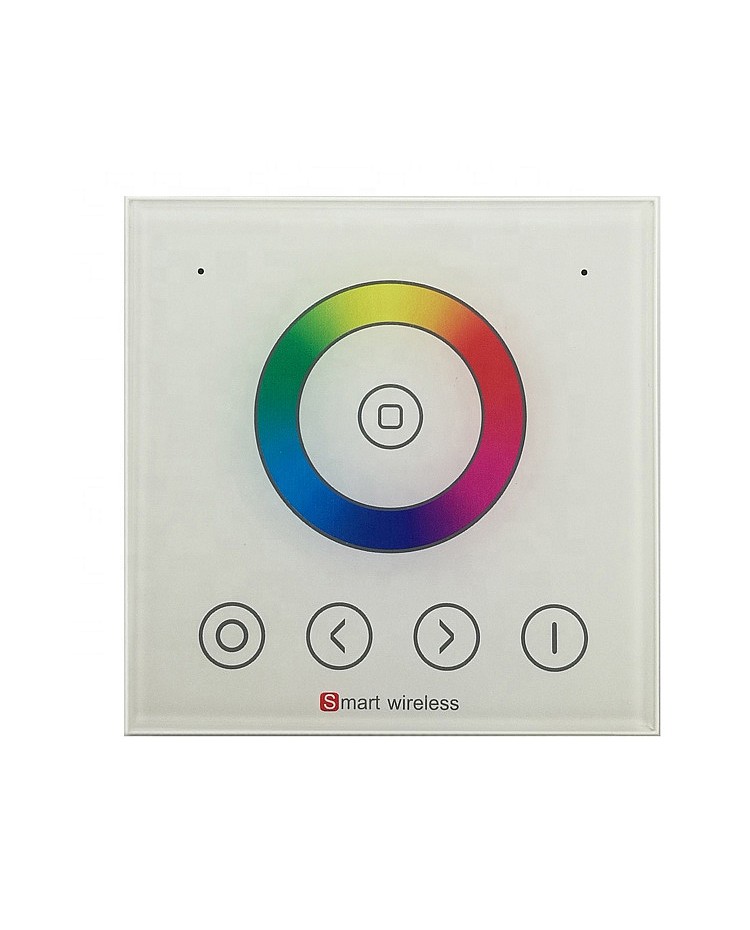

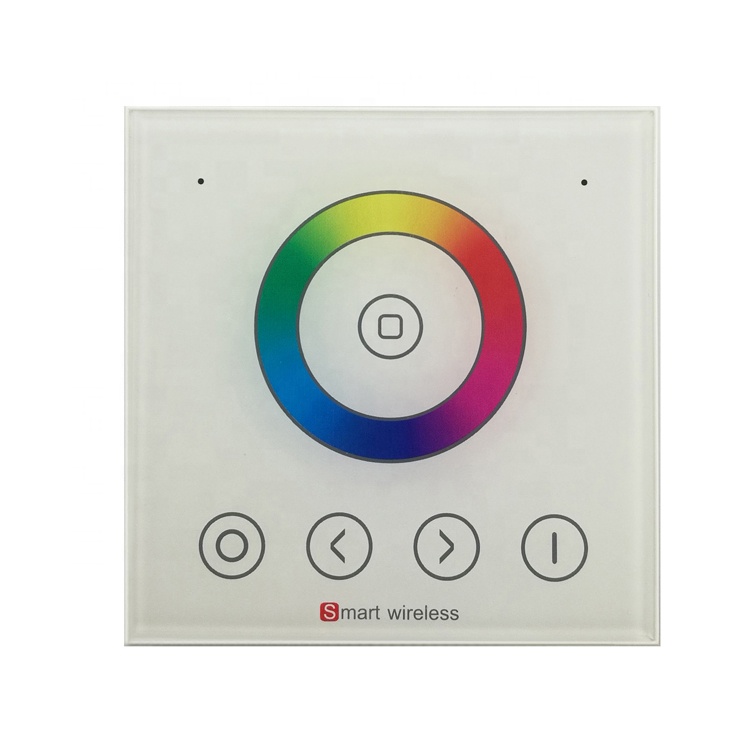

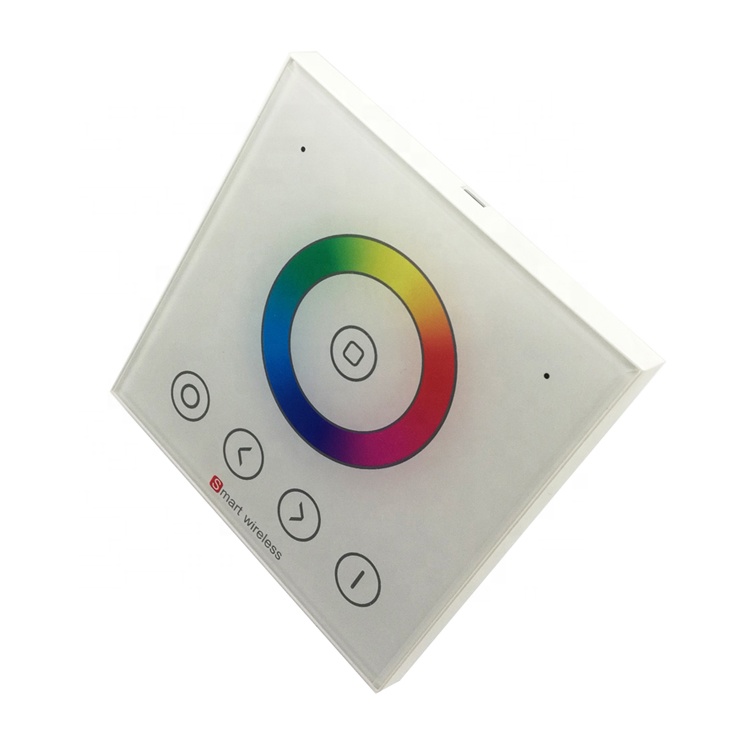

Wireless Wall Panel Remote Specifications:

  • Size: 86*86*34mm(L*W*H)
  • Working Temperature: 0℃-45℃
  • Working Voltage: AC90-265V(50/60Hz)
  • Standby Power: 0.2W
  • Working Power: 2W
  • RF Frequency: 433.92MHz
  • RF Distance: <20M
  • Structure / Dimension / Installation According To The 86-Type European Standards
  • Weight: 130g
  • 3 Years Warranty

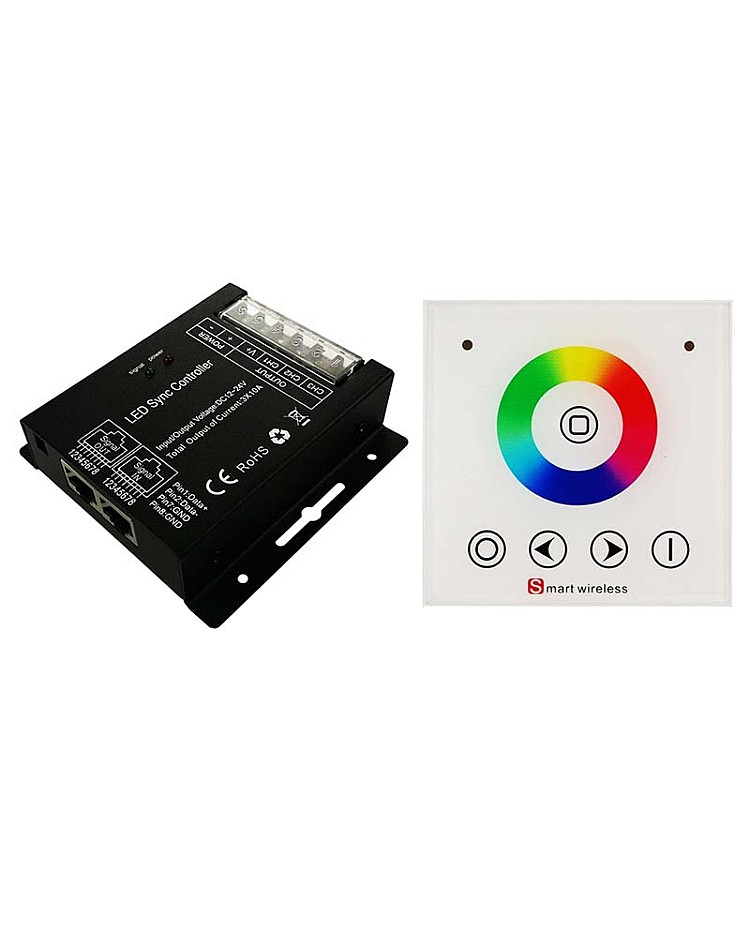

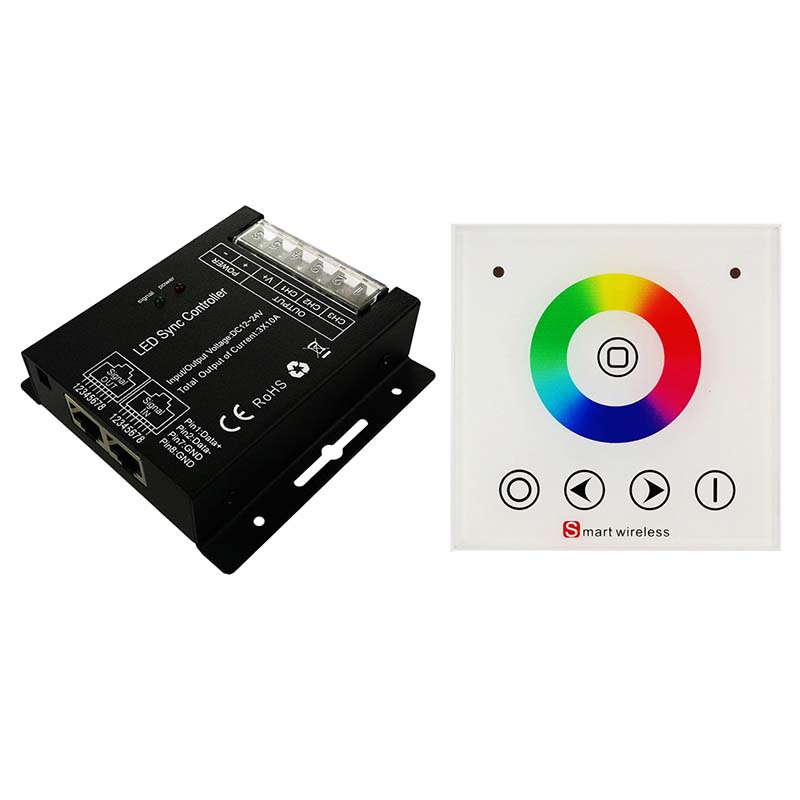

Includes:

1 * RGB LED Controller With RJ45 Port

1 * RF Wireless Touch Wall Panel Remote

RGB LED Controller
