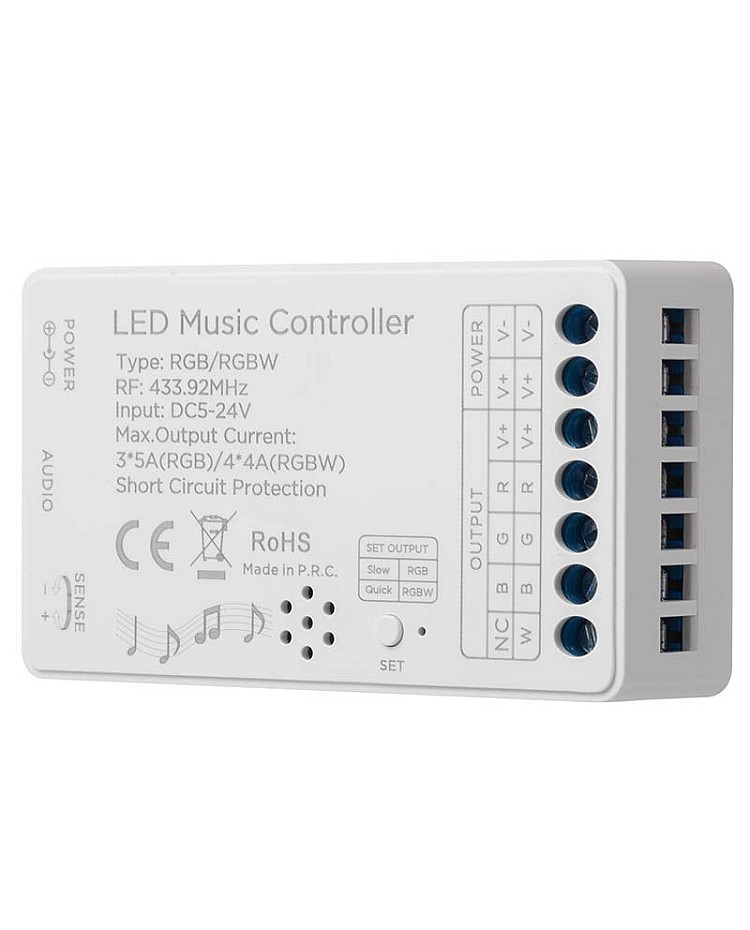

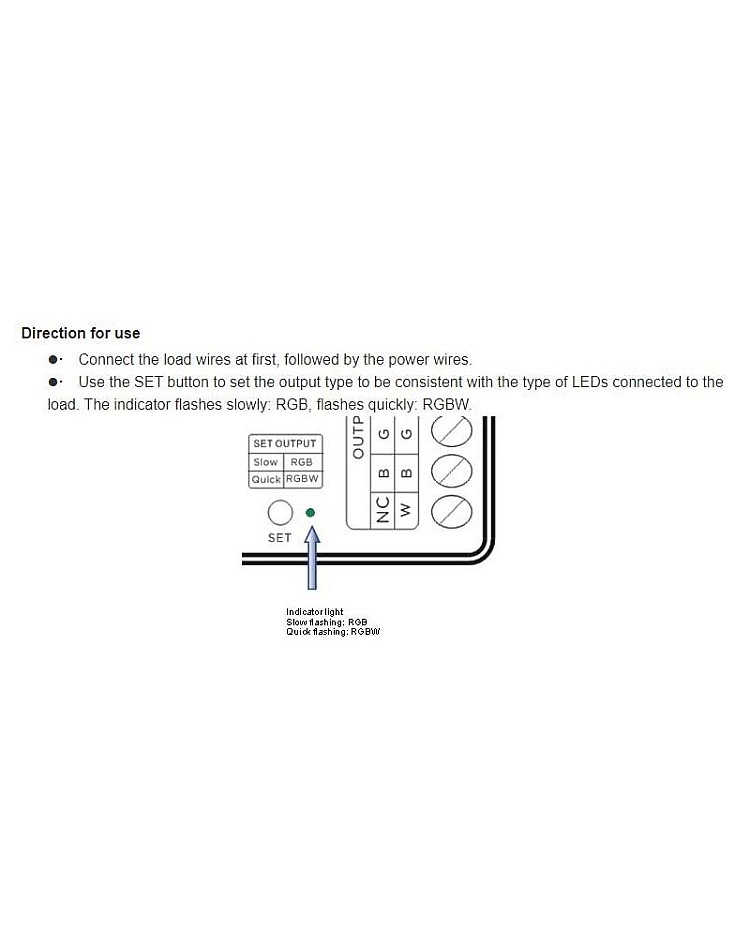

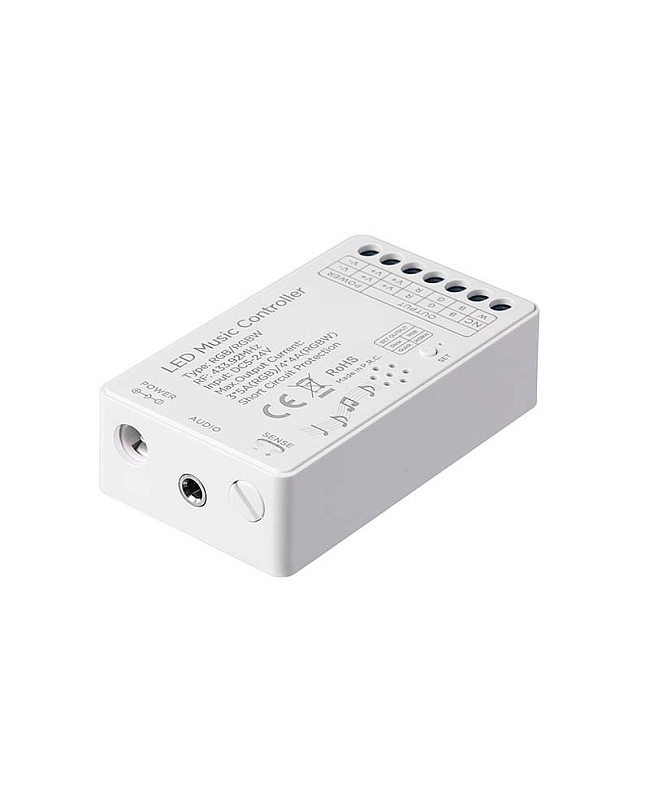

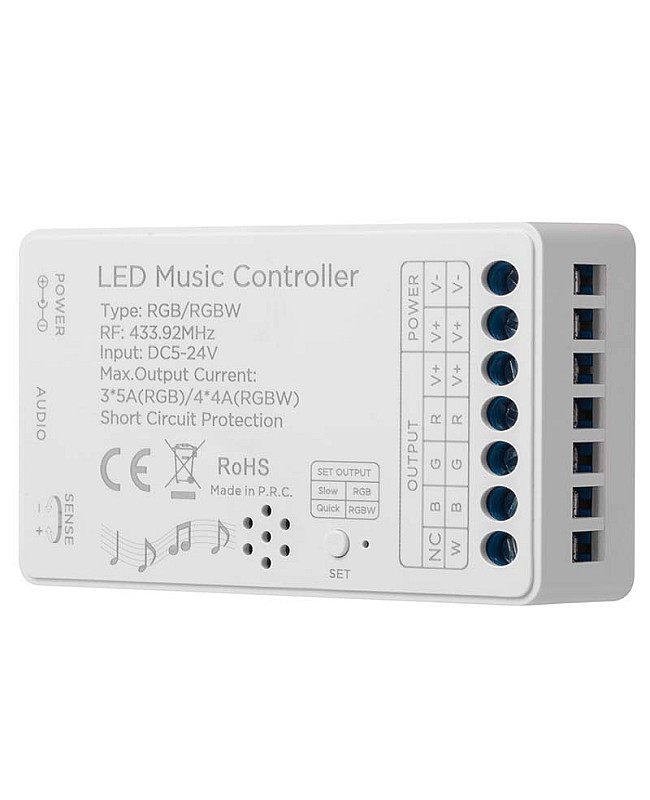

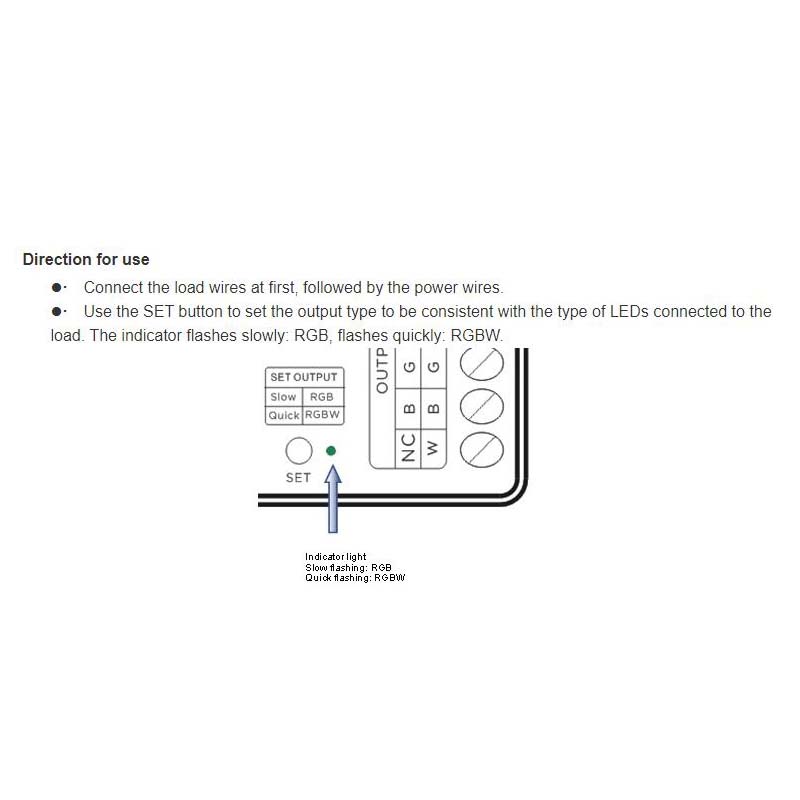

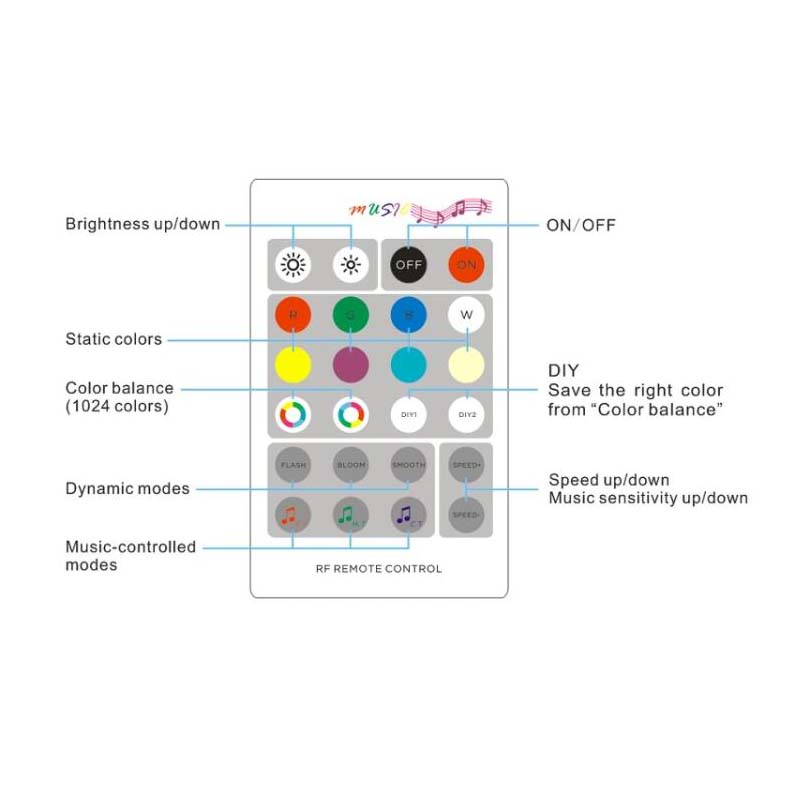

The RGB/RGBW 2 IN 1 LED music controller offers three music control modes: Sound Control I (fast track), Sound Control II (My Track), and Sound Control III (My Track). On the side of the LED music controller with the voice sensitivity adjustable dial, you can rotate it to adjust the sensitivity. The LED music controller is designed for constant-voltage RGB and RGBW LED lights. Press the one-set button to switch the output type from RGB to RGBW. The LED indicator flashes slowly, indicating it works in RGB mode; otherwise, it works in RGBW mode. The output is 3 or 4 channels for RGB or RGBW, and the maximum output current is 5A or 4A. The 24 Keys RF remote has a maximum control distance of 20 meters, and you can use it to control the light ON or OFF and adjust the brightness of static colors and the speed of dynamic modes. There are three buttons for music-controlled modes. After pressing the buttons, the music will activate the RGB or RGB LED lights, and the color-changing style will change in time with the music.

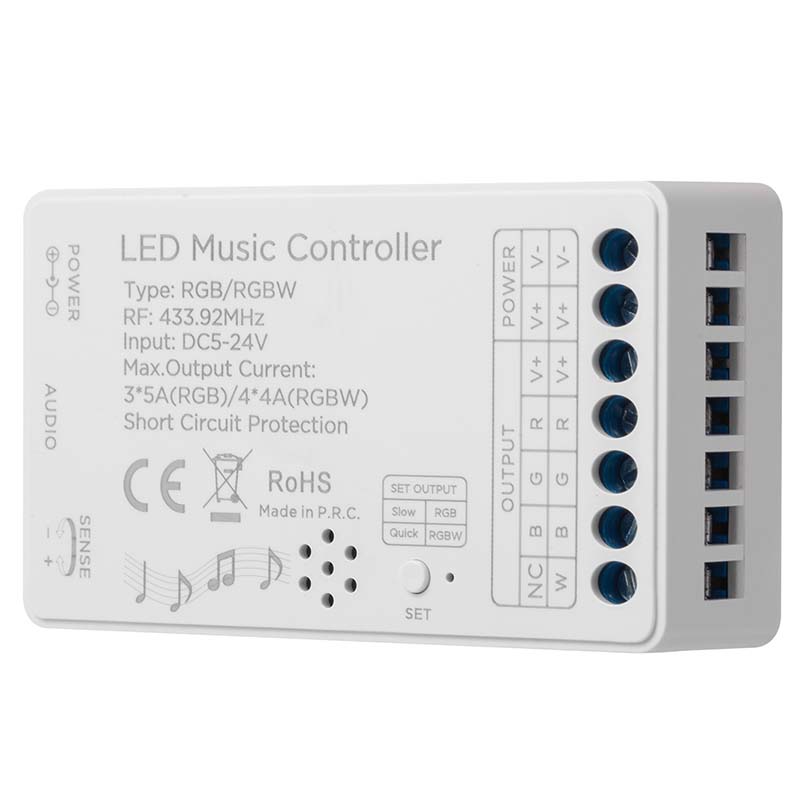

RGB/RGBW LED Music Controller Specifications:
- Size ( L x W x H) : 72 x 42 x 20mm
- Working voltage: DC5V-DC24V
- Static power consumption: <1W
- Connecting mode: Common anode
- Grayscale: 1024 levels ( RGB each )
- Speed stage: 100 grade
- Output channels: 3 channels (RGB) / 4 channels (RGBW)
- Max output current: 5A each channel (RGB) / 4A each channel (RGBW)
- Max output power: RGB: 75W(DC5V), 180W(DC12V), 360W(DC24V) / RGBW: 80W(DC5V), 192W(DC12V), 384W(DC24V)

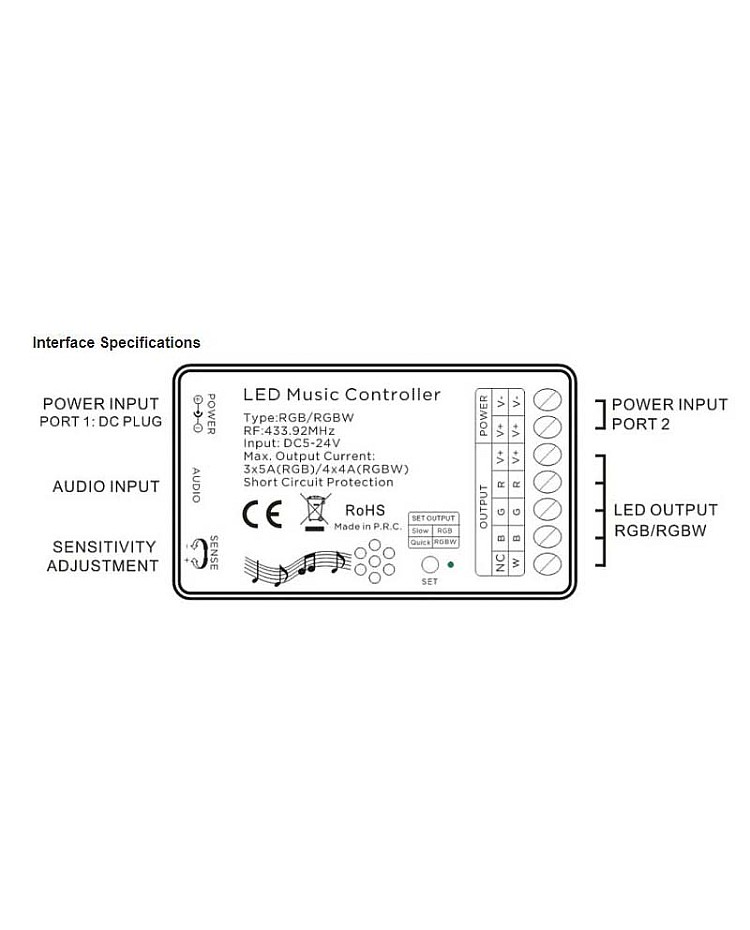

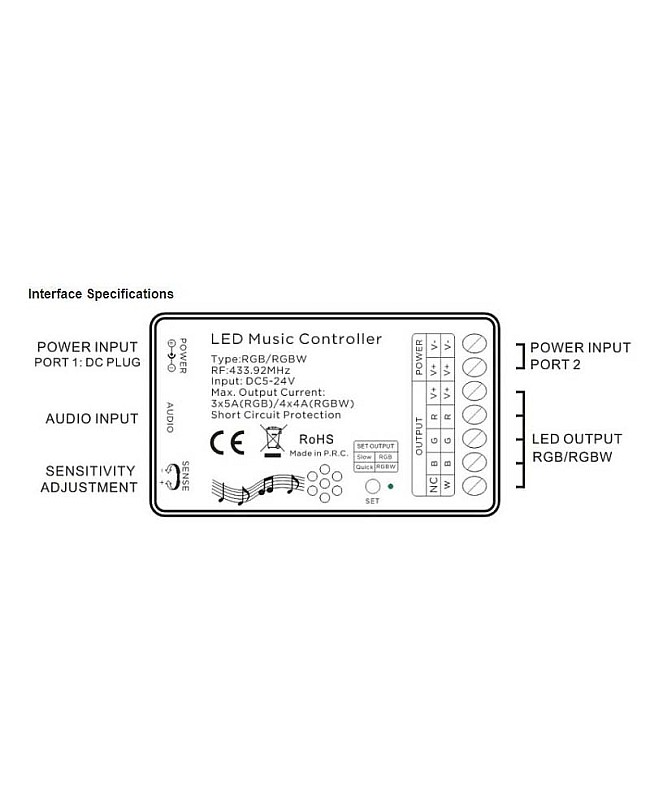

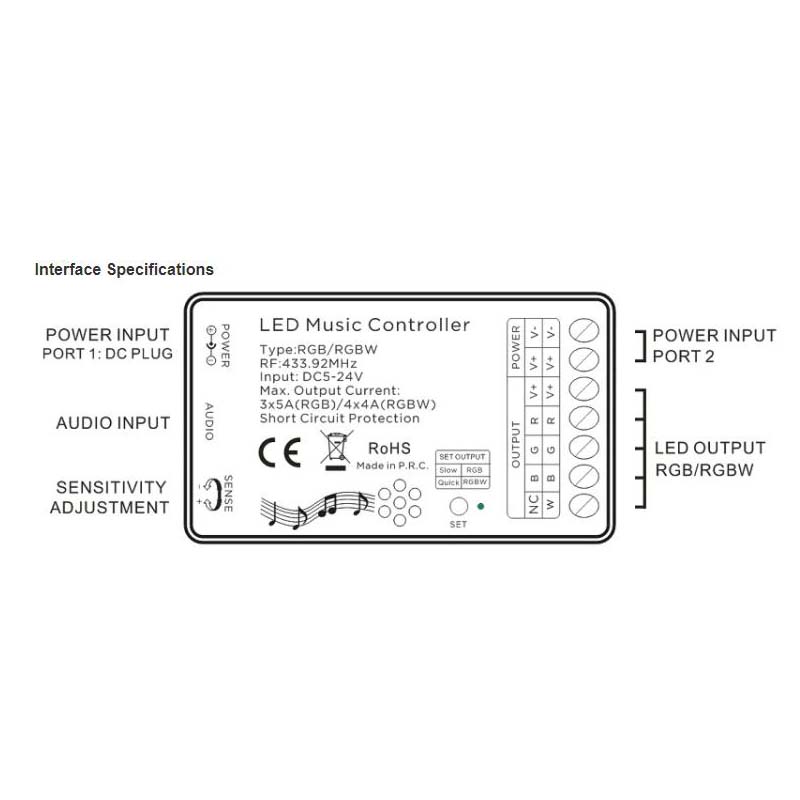

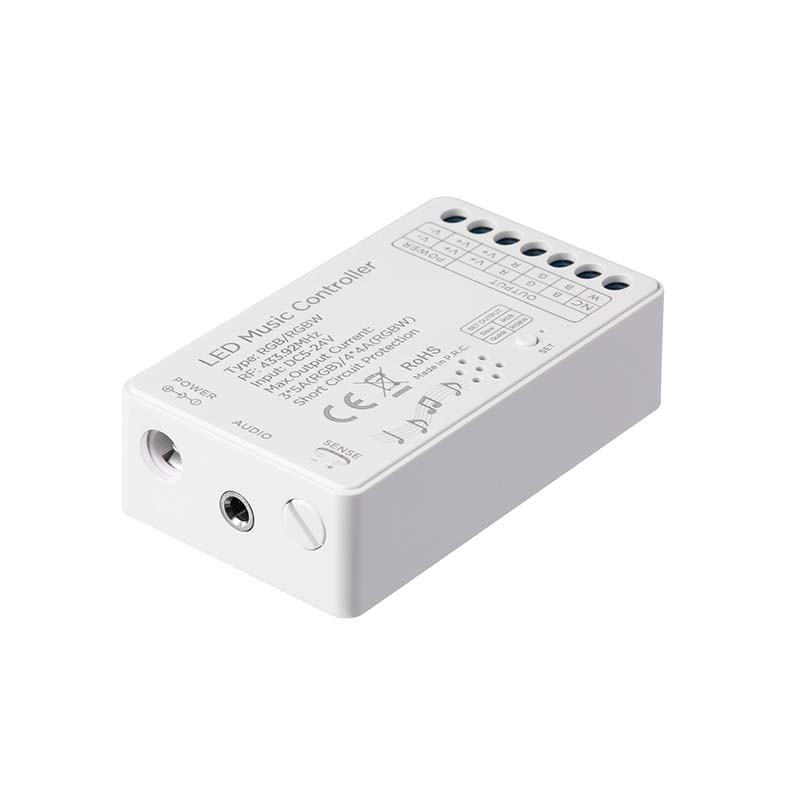

- Voice sensitivity dial and audio input port included
- RF frequency: 433.92MHz
- PWM frequency: 1.95 KHz
- Memory function: YES
- Short circuit protection: YES
- Weight: 80g
- Warranty: 3 years

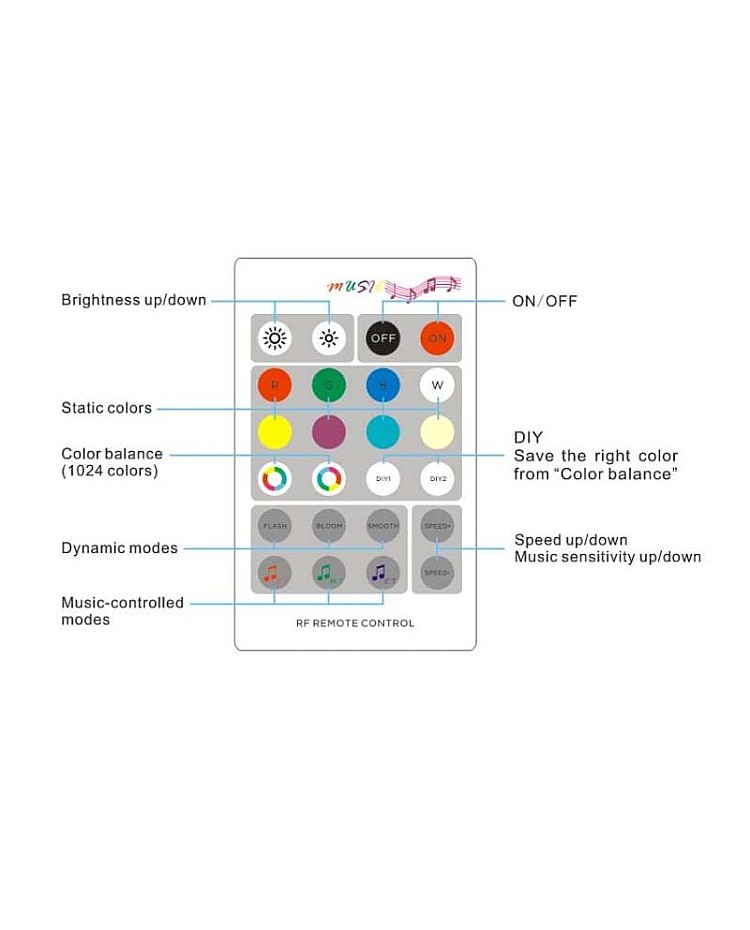

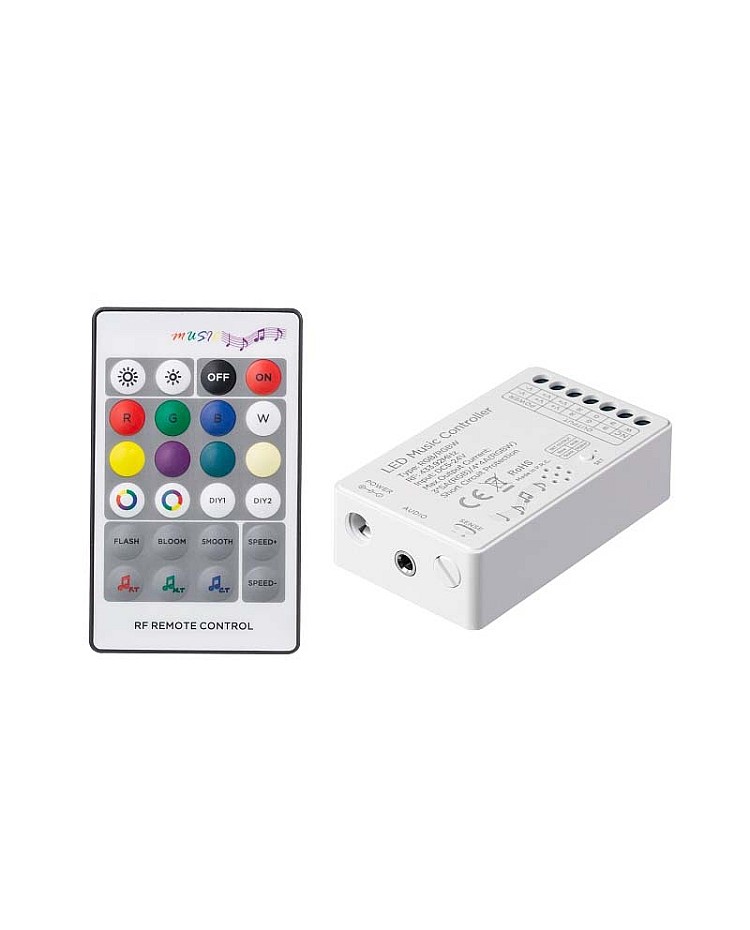

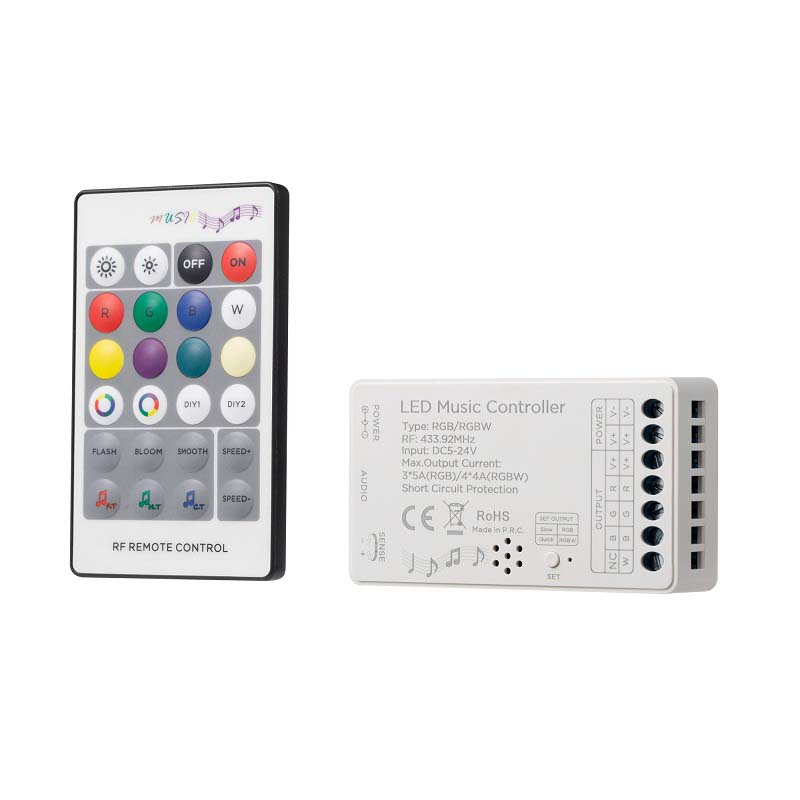

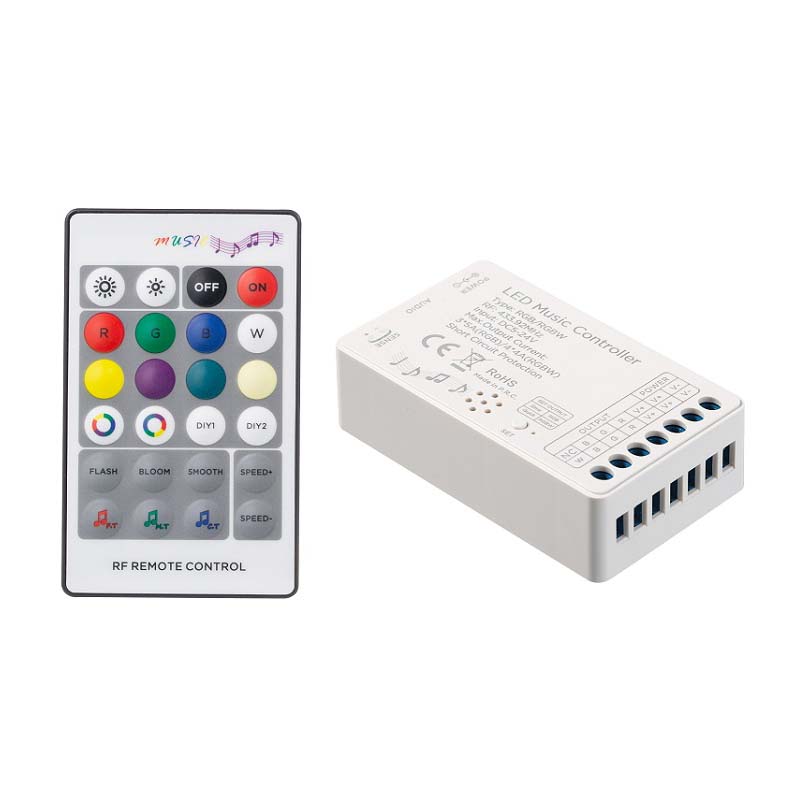

RF Remote Specifications:
- Size ( L x W x H ) : 85 x 51 x 6mm
- Working voltage: DC3V(CR2025)
- Standby current: 3.3uA
- Working current: 12mA
- Standby power: 9.9uW
- Working power: 36mW
- 3 types of music working modes available: Sound control I, Sound control II, Sound control III
- RF frequency: 433.92MHz
- RF distance: 20 meters
- Weight: 25g

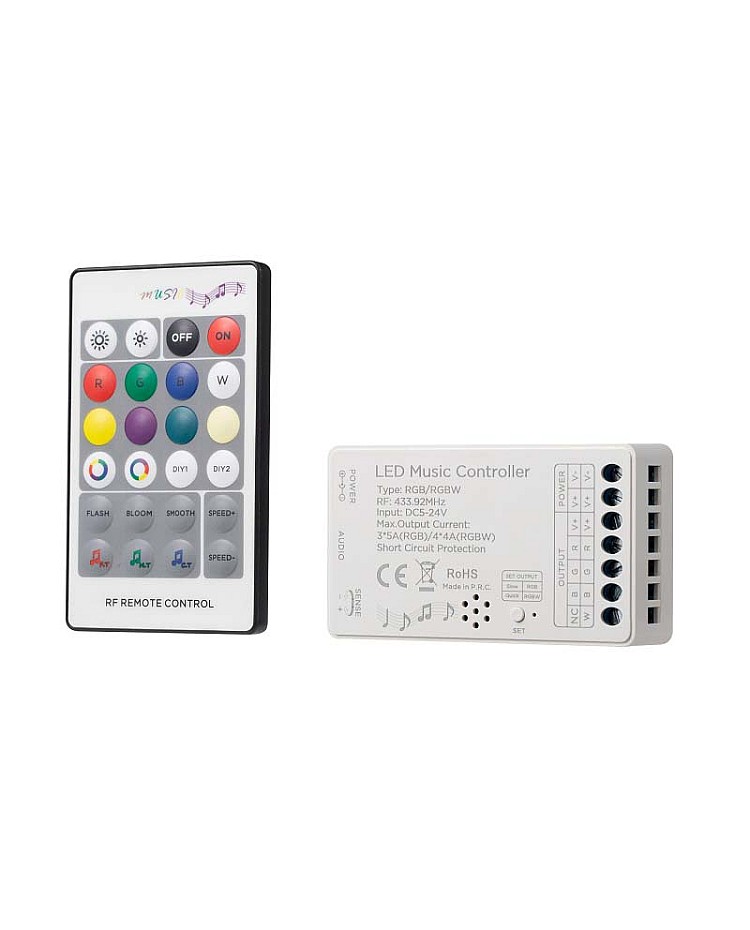

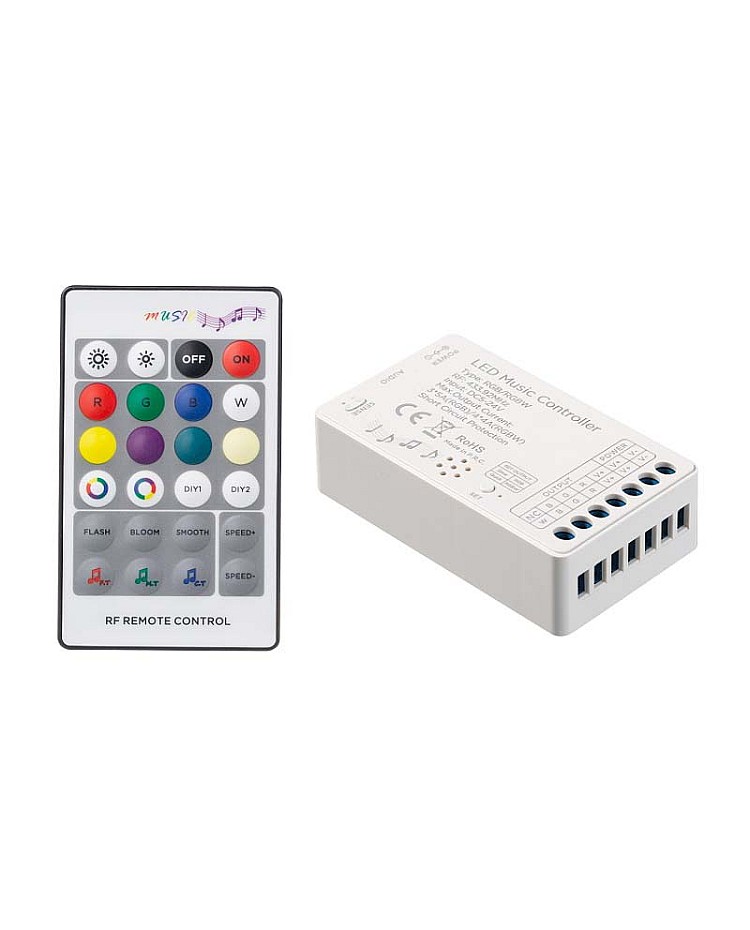

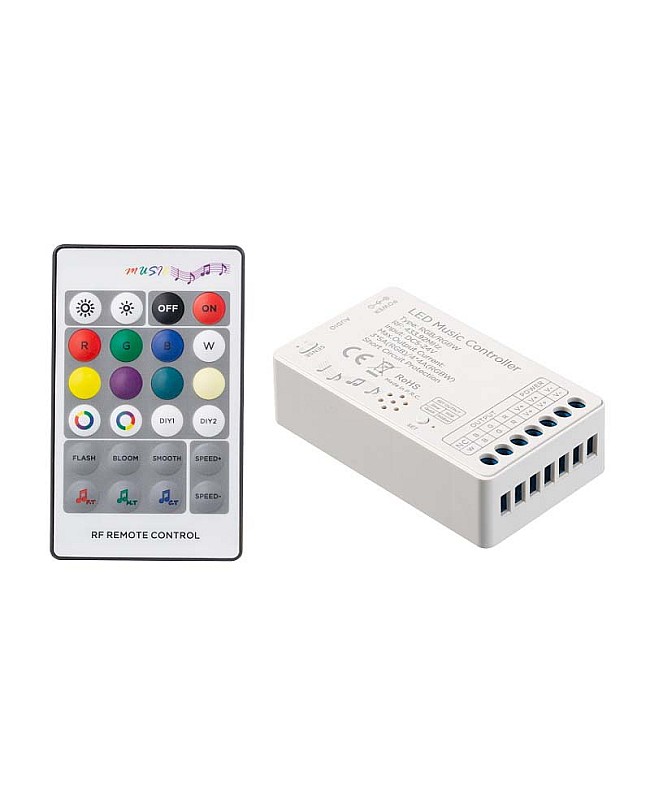

Includes:

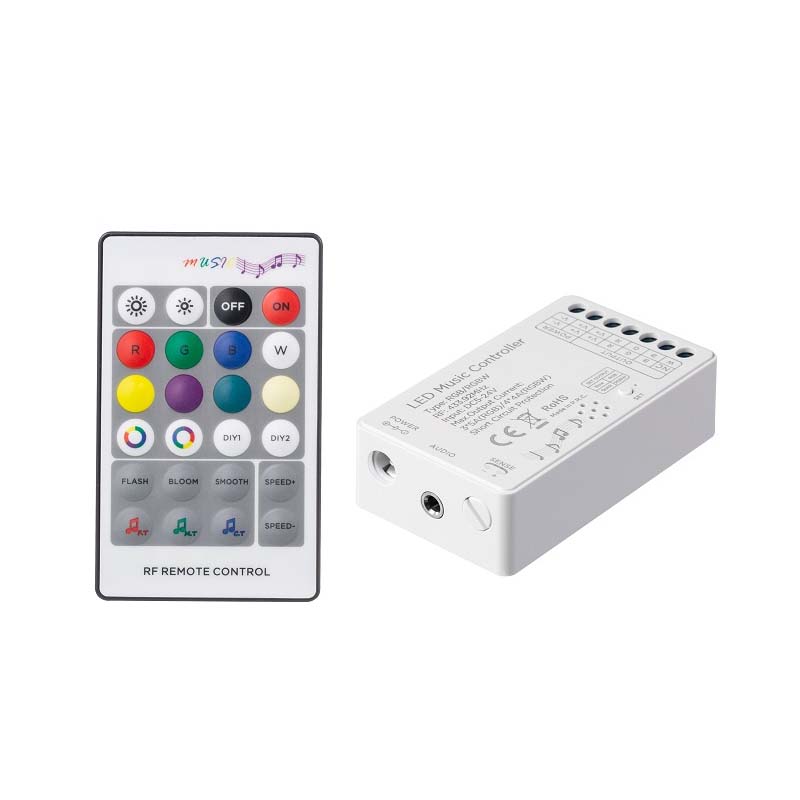

1 x LED music controller
1 x RF remote control
1 x Audio connector
