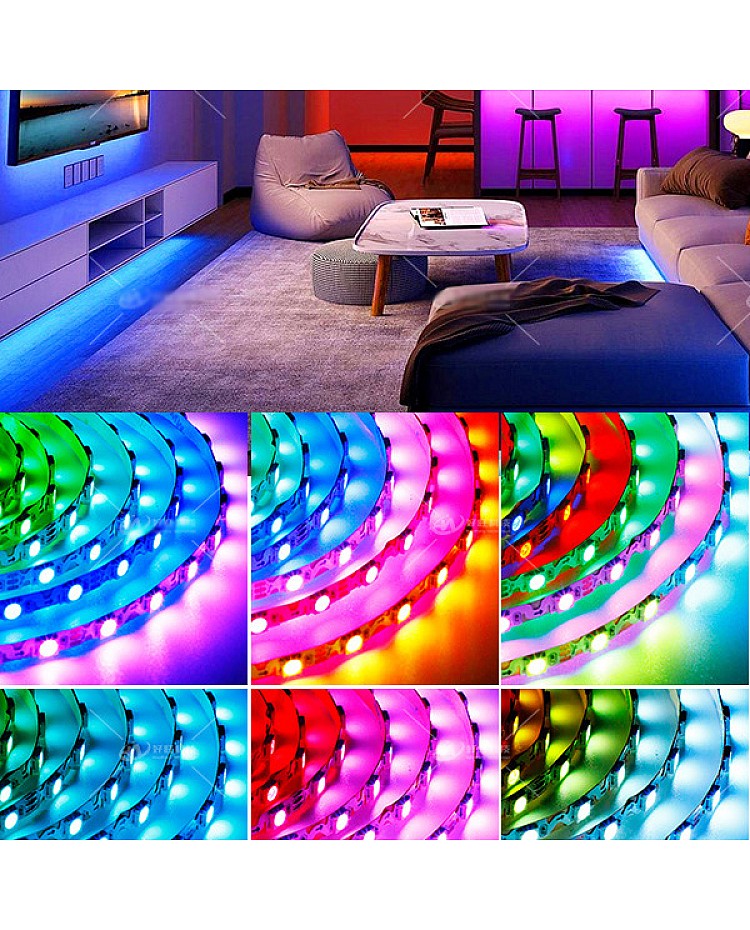

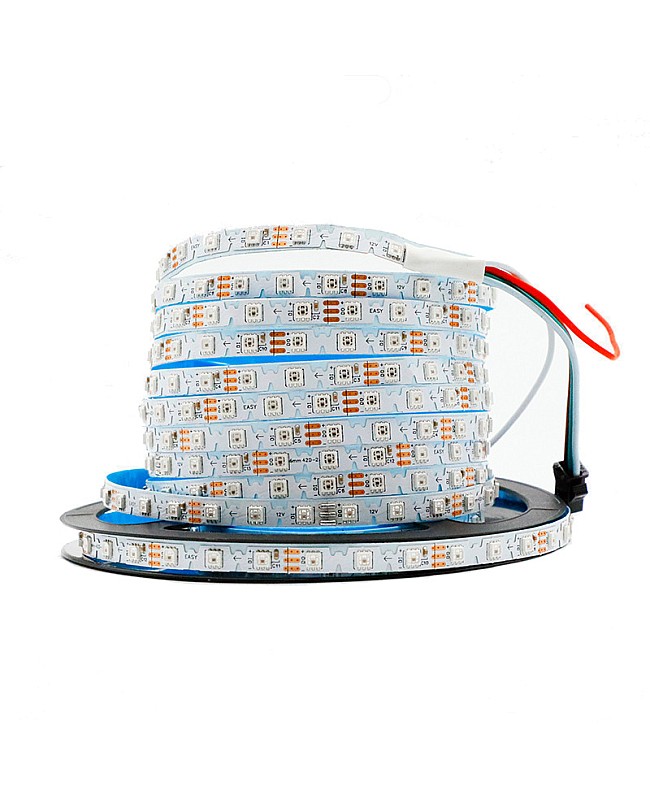

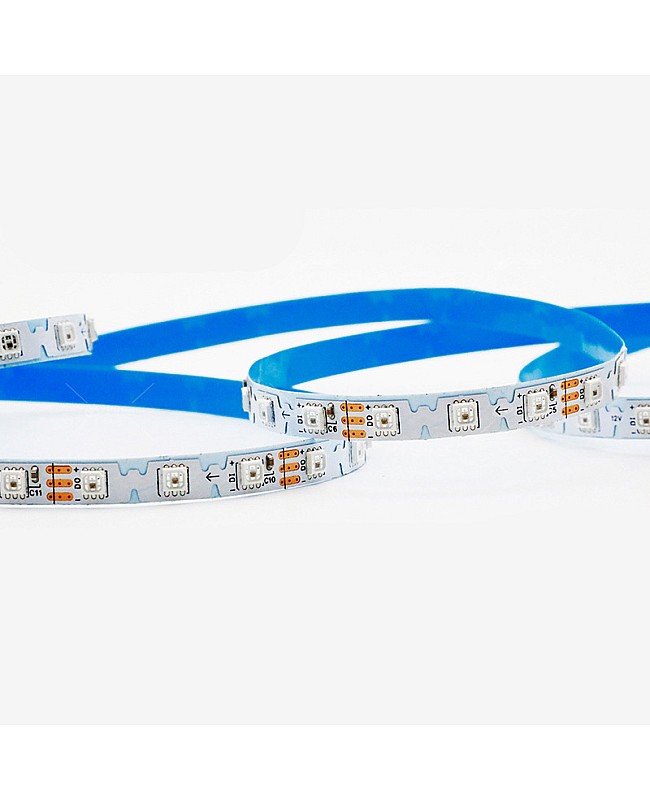

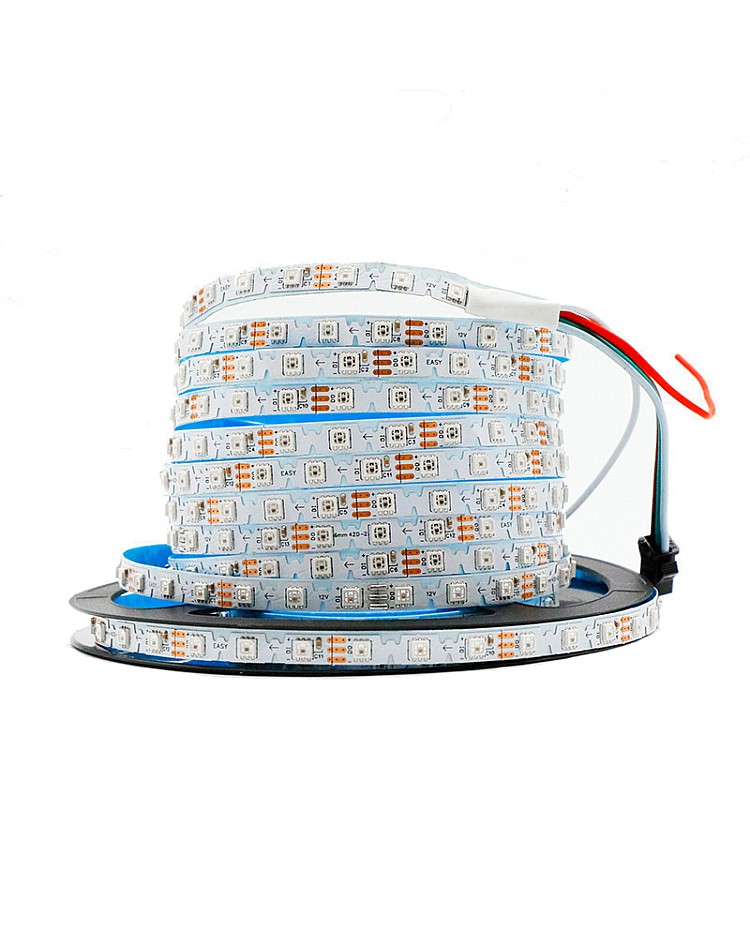

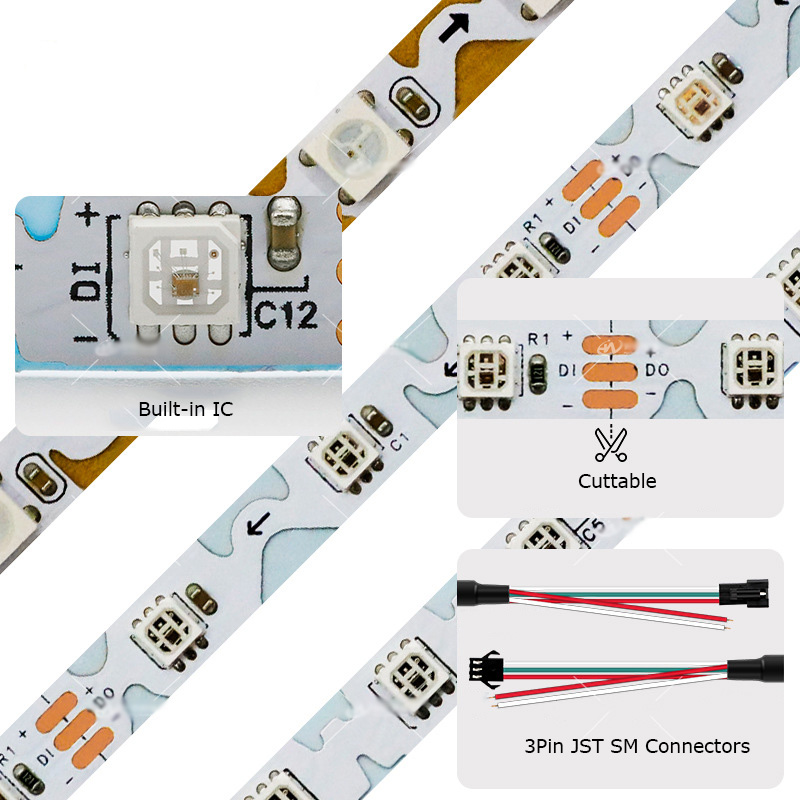

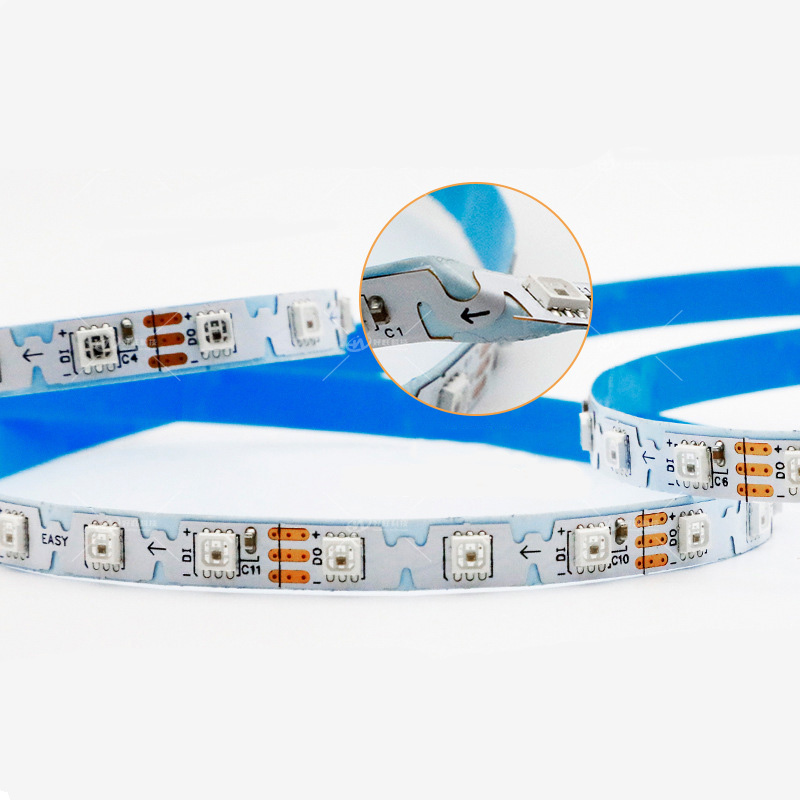

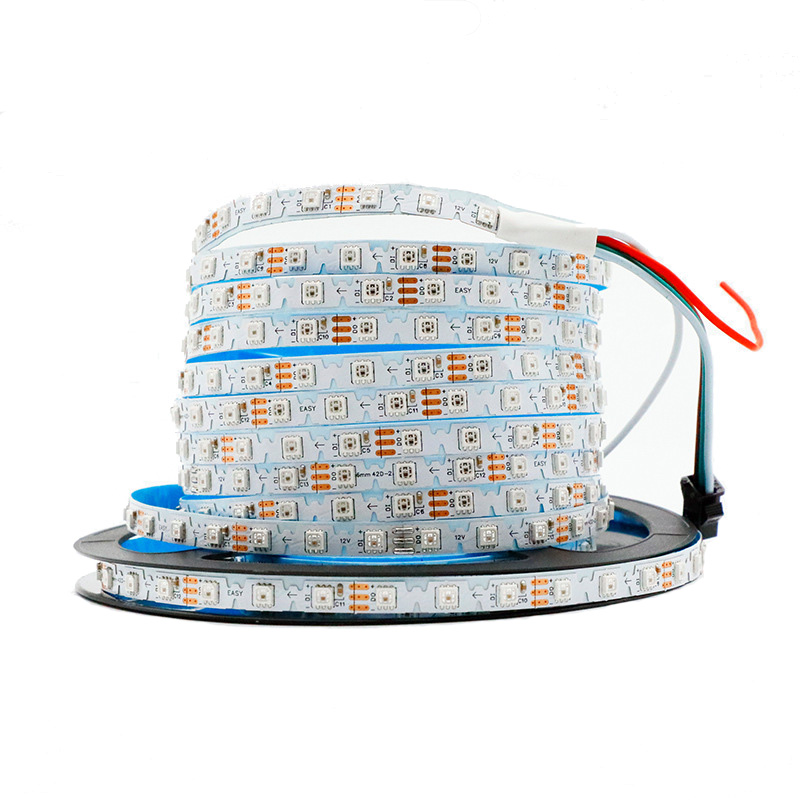

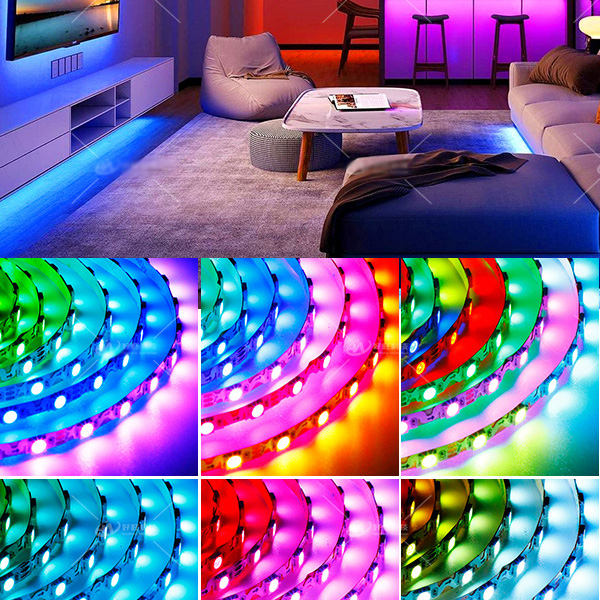

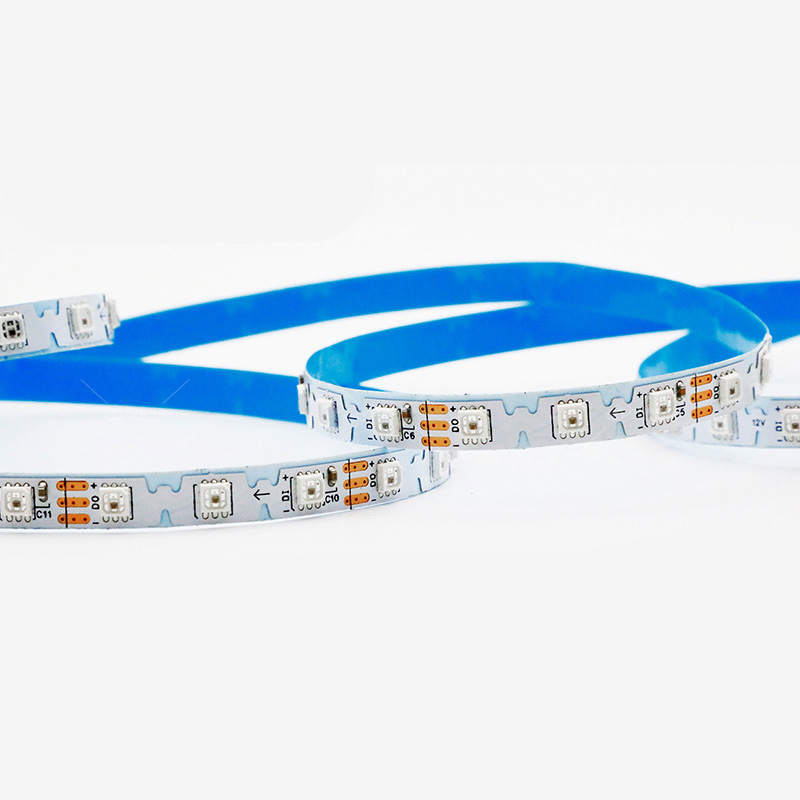

Check the S Shape Foldable Pixel LED Strips; the width is only 6mm. The white PCB board features an S-shaped design, allowing for sharper horizontal turns and bendability in both horizontal and vertical directions. An excellent solution for architectural and accent lighting projects for cove lighting, pathway lighting, decorative lights, under-cabinet lighting, etc. The Zig-Zag LED Strips utilize 3535 or 5050 SMD LED Strips as the light source, and the LEDs are equipped with SK6812 ICs to achieve intelligent lighting control. Each LED features a single PC IC for individually addressable control, making it easy to connect to the RGBIC Controller. This allows for hundreds of lighting effects, 24-bit full-color display, and 256 brightness levels. The Smart LED Strips are cuttable, allowing you to cut to any length required for your project from the designated cutting point. The back features double-sided adhesive tape, making it easy to remove the protector and stick it in place where you want to install it. Both ends come with 3PIN JST SM Connectors, making it easy to connect the Controller. Only IP30 non-waterproof products are available, and they can only be used in dry locations.
Specifications:

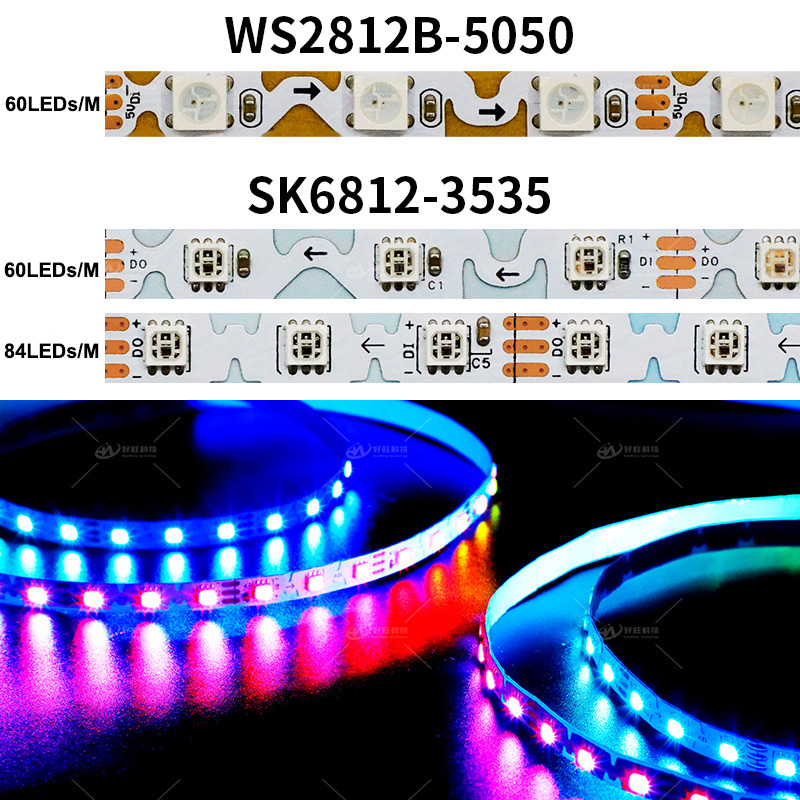

- Models: SK6812-S-60, SK6812-S-84, WS2812-S-60
- Size: 6mm*1.9mm(Width*Thickness)
- Length: 5Meters/16.4FT
- Color Of PCB Board: White
- LED Chip: Epistar
- LED Type: 3535/5050

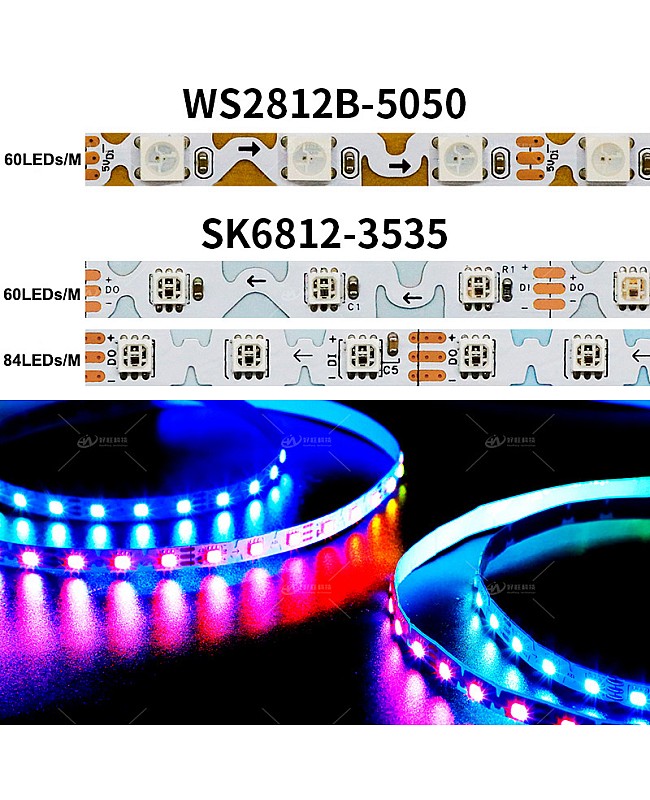

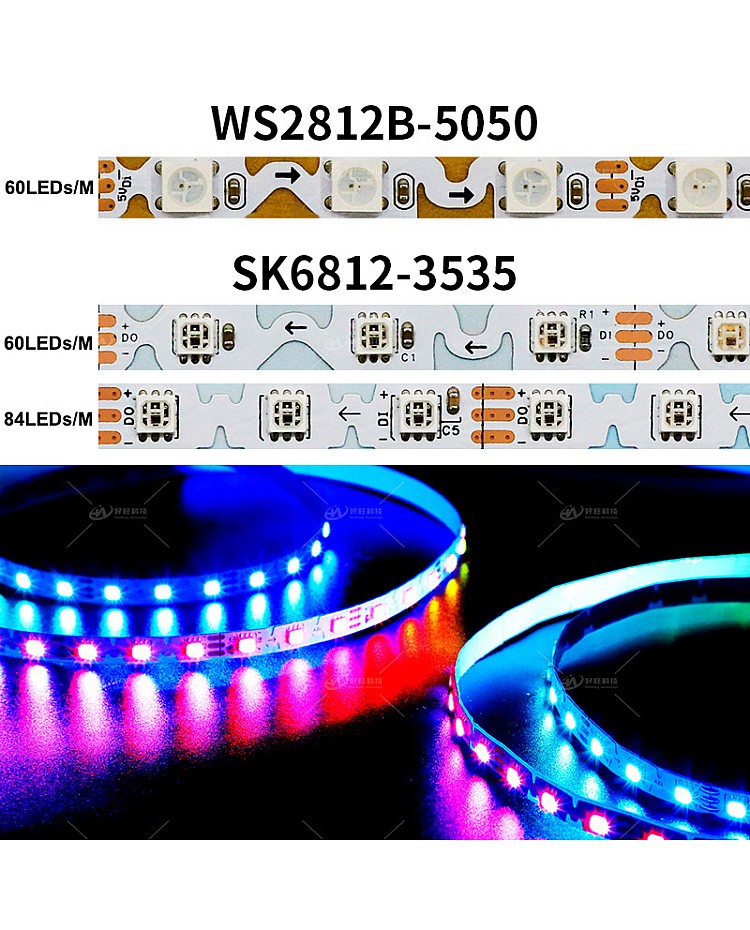

- LED Quantity: 60LEDs/M(SK6812-S-60), 84LEDs/M(SK6812-S-84), 60LEDs/M(WS2812-S-60)
- IC Type: SK6812/WS2812
- IC Quantity: 60PCS/M(SK6812-S-60), 84PCS/M(SK6812-S-84), 60PCS/M(WS2812-S-60)
- Working Voltage: DC5V/DC12V
- Power: 0.24W/LED
- Luminosity: 18-22lm/LED
- Emitting Colors: 24-Bit Full Color
- Grayscale Levels: 256
- Angle View: 120°
- Brightness Adjustable: YES

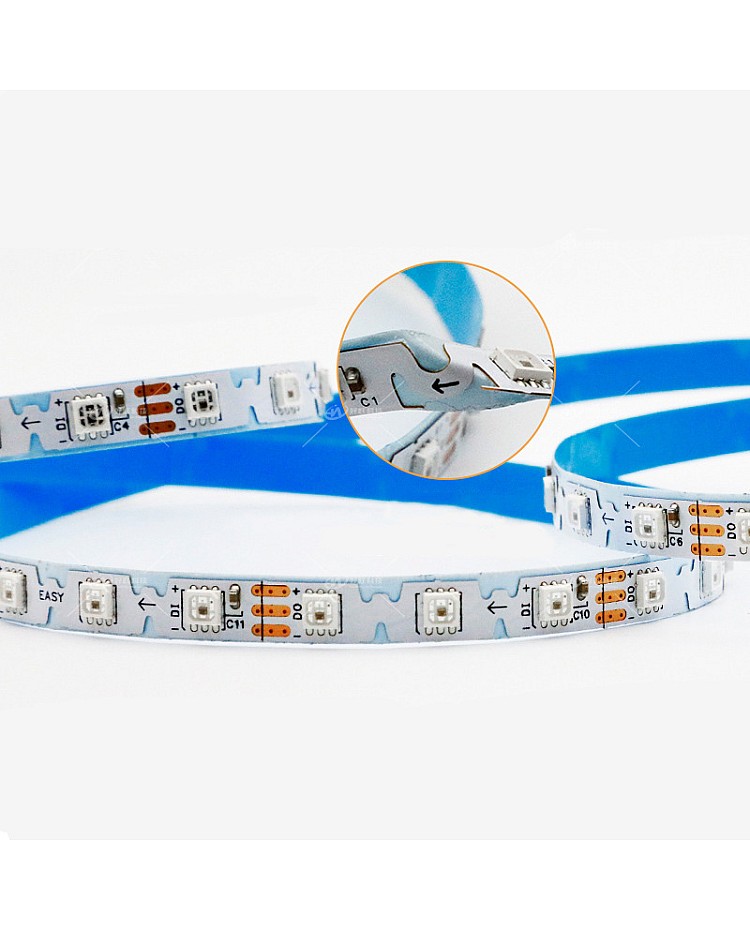

- Unit Cutting Length: 50.01mm(SK6812-S-60/5050-S-60), 36.5mm(SK6812-S-60)
- Color Order: GRB
- Waterproof Level: IP30 Non-waterproof
- Wave Length(nm): Red: 620-650nm; Green: 520-525nm; Blue: 465-470nm
- Back With Double-Sided Adhesive Tape

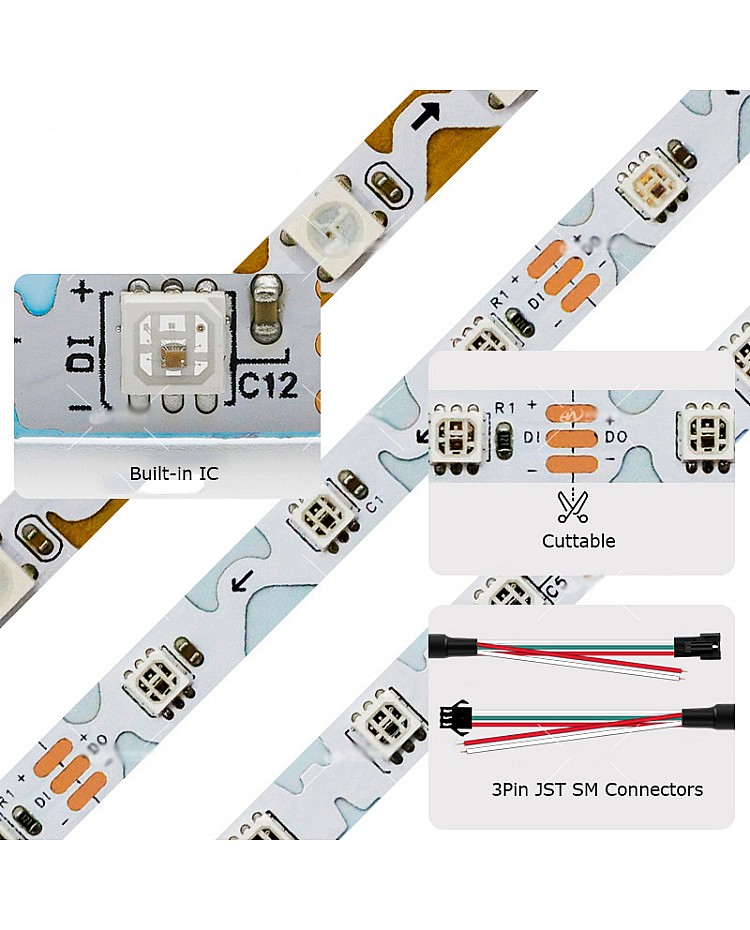

- 3Pin JST SM Connectors Included
- Lifespan: >30,000 Hours
- 2 Years Warranty
Includes:
1 * S Shape Pixel LED Strips(5Meters/Reel)
