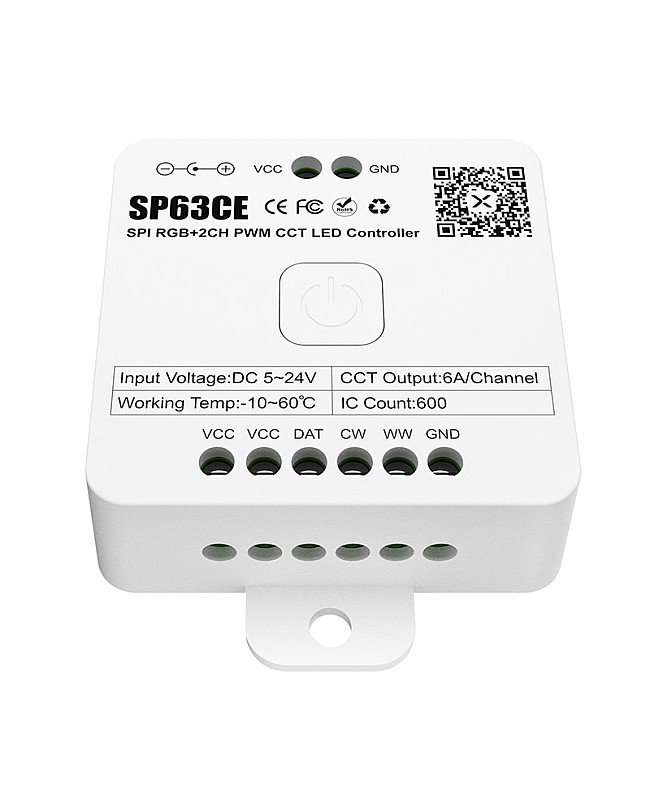

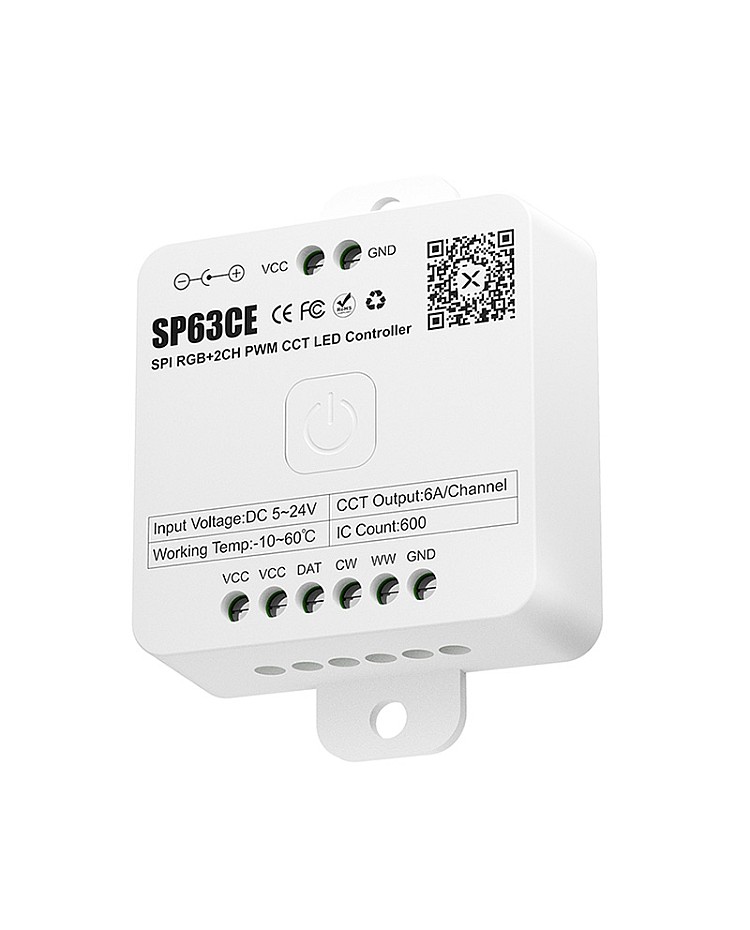

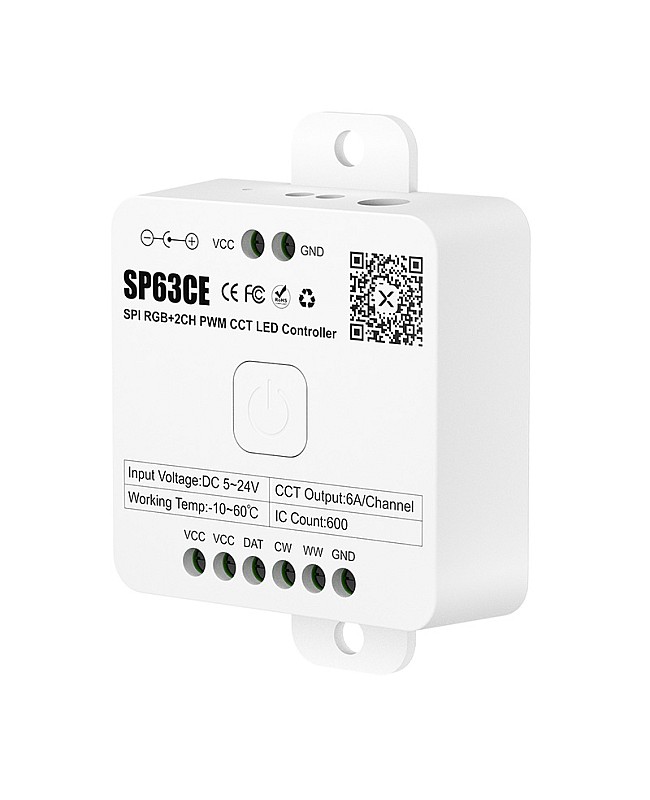

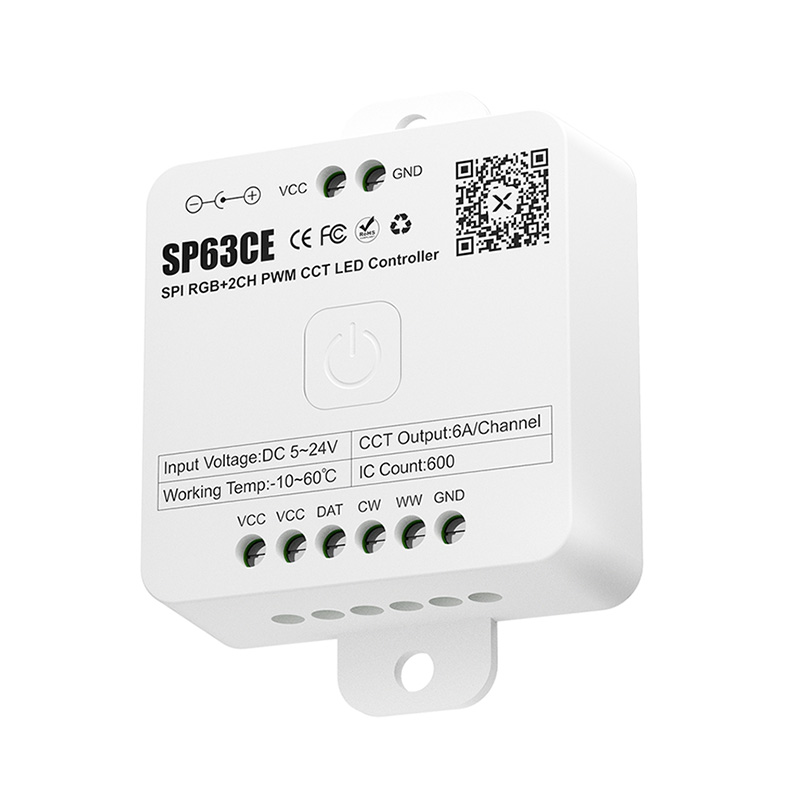

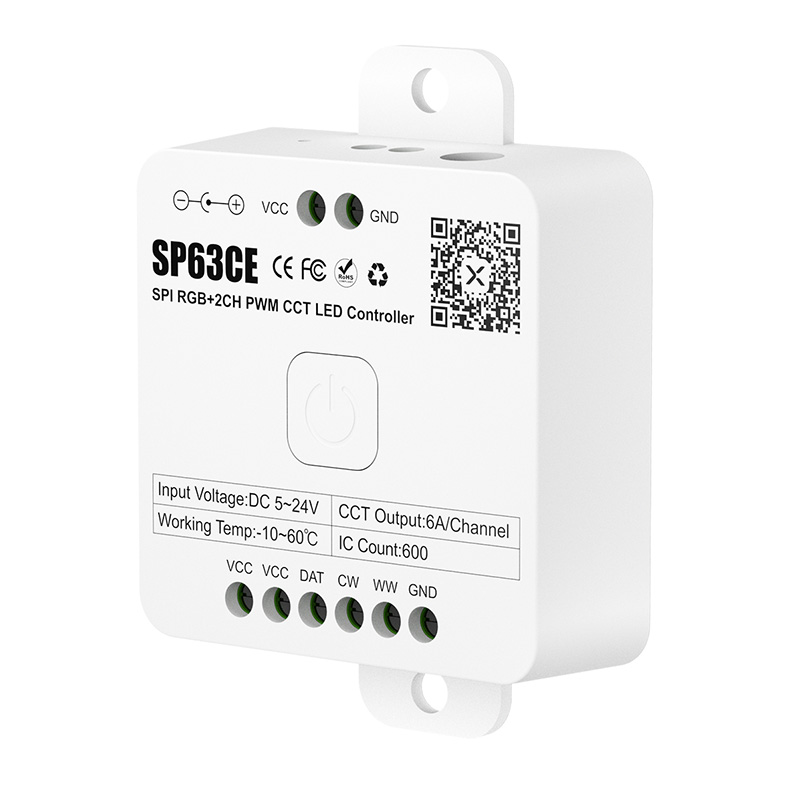

The SP63CE Bluetooth LED light controller with SPI RGB + 2 channels PWM CCT design supports RGBIC+dual white LED lighting strips, which allows you to select the various RGB and white effects and adjust the brightness, speed, direction, and effect length for multiple scenes. The Sperll controller with SPI and PWM signal design, with 6 ports, allows the RGBIC and dual white LED strips to be lit up simultaneously. The SPI design allows controlling the common ICs like WS2811, WS2812B, WS2813, WS2814, WS2815, etc., and supports a maximum of 600 pieces of ICs is 600PCS, and the maximum output current of CW and WW is 6A per channel. 2.4 G RF Remotes and APP can control it. Download the app " BanlanX " to your phone to achieve more remote functions, and it supports IOS 10.0 and above and Android 4.4 and above. The SP63CE controllers have built-in multiple music and dynamic effects and support brightness, speed, direction, and effect length adjustments. Supports a cell phone microphone, player streaming, and an onboard microphone for music capture.
Specifications:
- Type: RGBIC+Dual White Bluetooth Controller

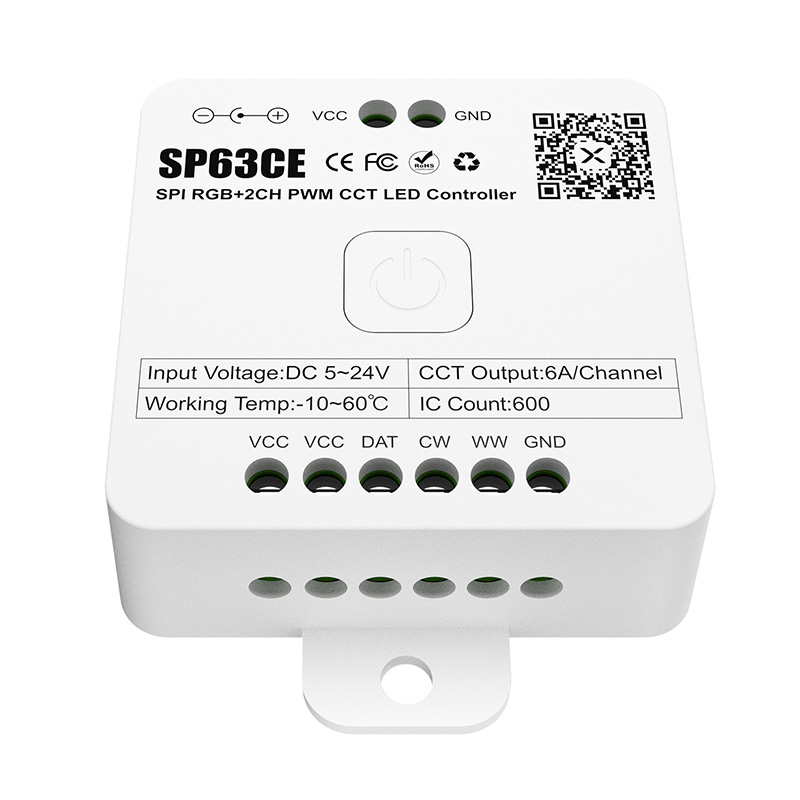

- Model: SP63CE
- Size: 56*56*20mm(L*W*H)
- Input Voltage: DC5-24V
- Working Current: 1mA-10mA
- CCT Output Current: Max 6A/Channel
- Support Number Of ICs: 600PCS
- Input Ports: DC Ports 5.5*2.1mm / V+ & V-

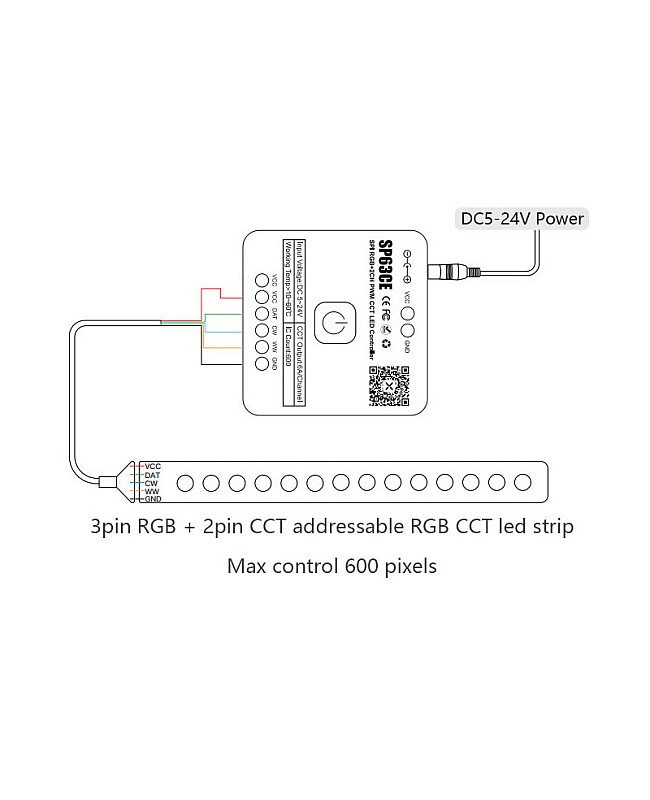

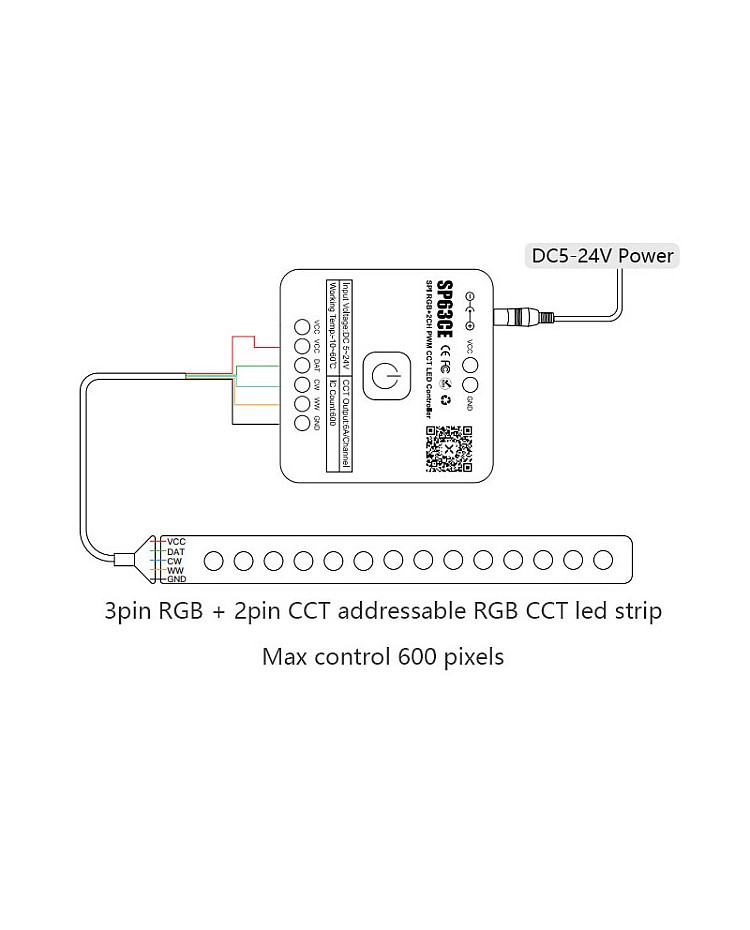

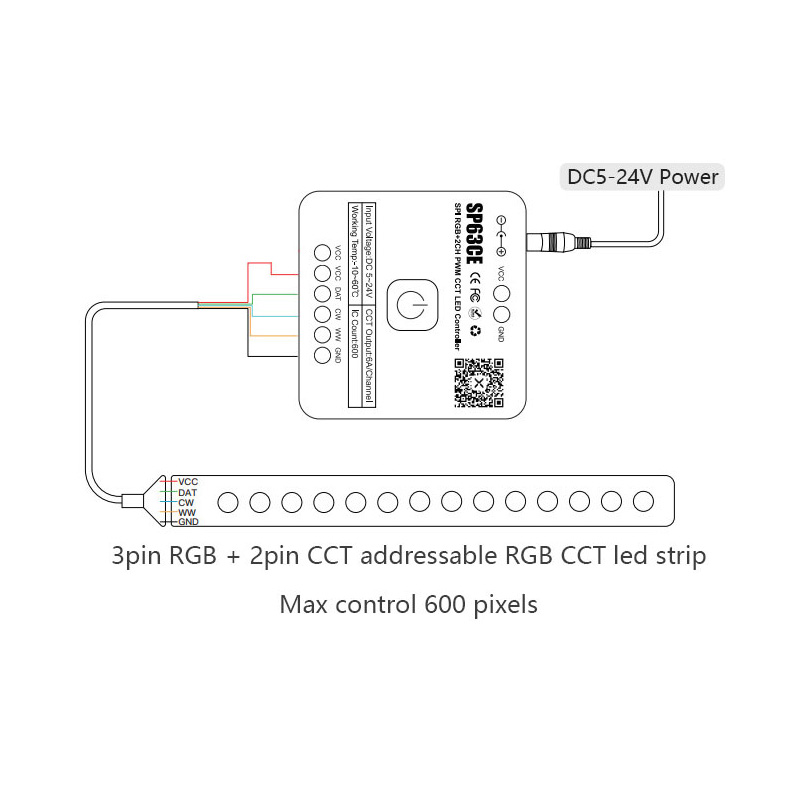

- Output Ports: VCC, DAT, CW, WW, GND
- Built-in Dynamic RGB And White Effects, Pause Function, Support Brightness, Speed, Direction, And Effect Length Adjustable
- Built-in Music Dynamic RGB And White Effects, Support Effect Length, and Sensitive Adjustable

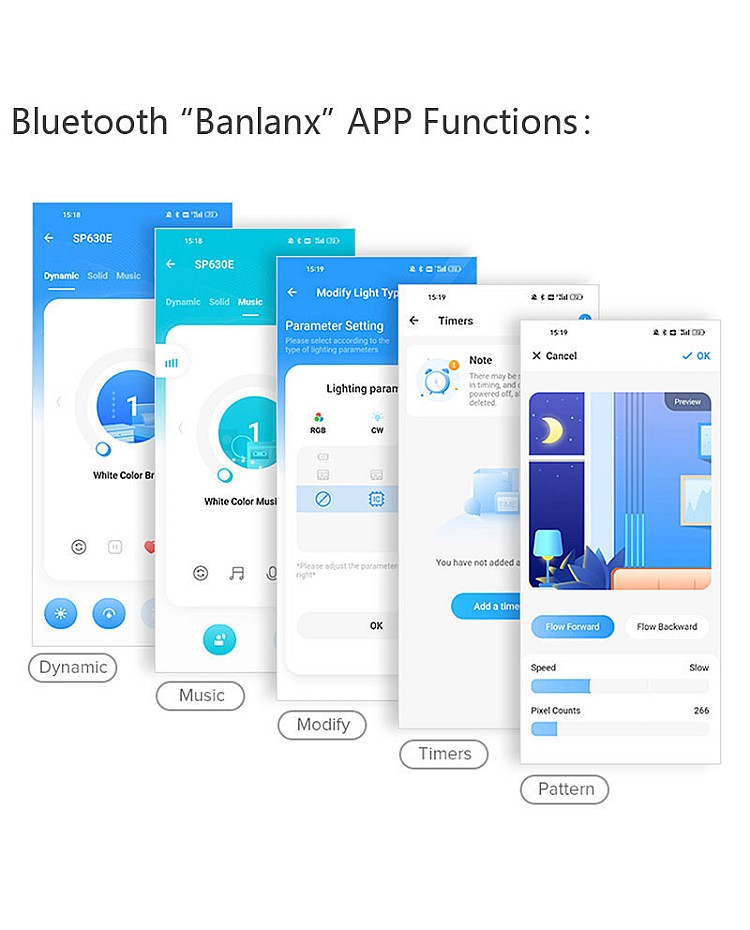

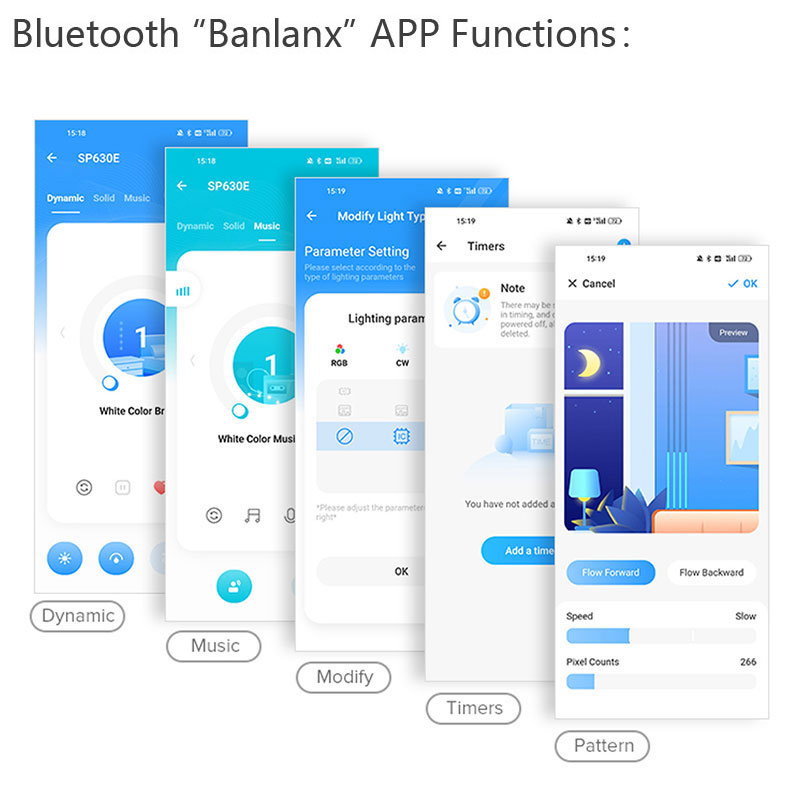

- APP Control And RF Remote Control
- APP Name: BalanX
- Mobile Operating Systems: Android 4.4 And Above, And IOS 10.0 And Above
- Timer ON/OFF Function: YES
- Color Sequence Adjustable: YES
- Support OTA Firmware Upgrade
- 2 Years Warranty
Includes:
1 * SP63CE Bluetooth LED Light Controller
