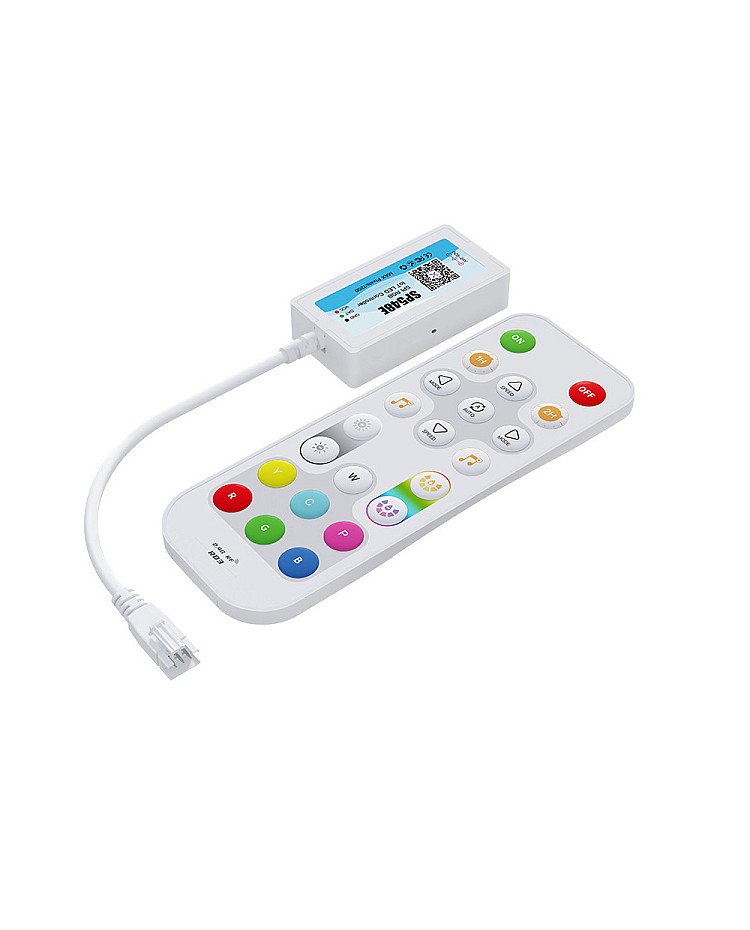

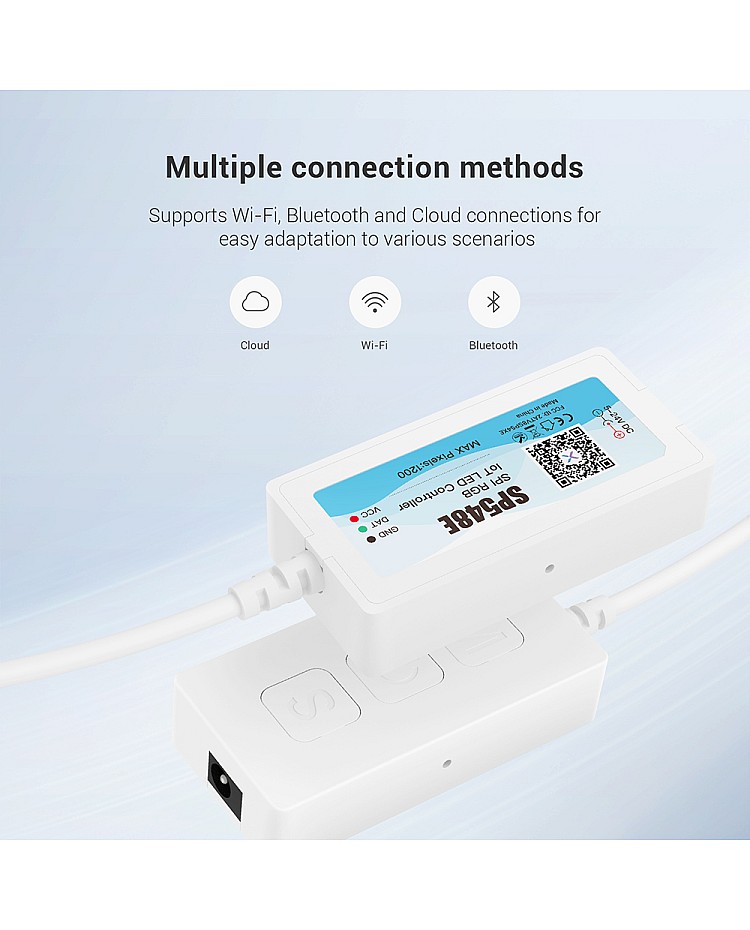

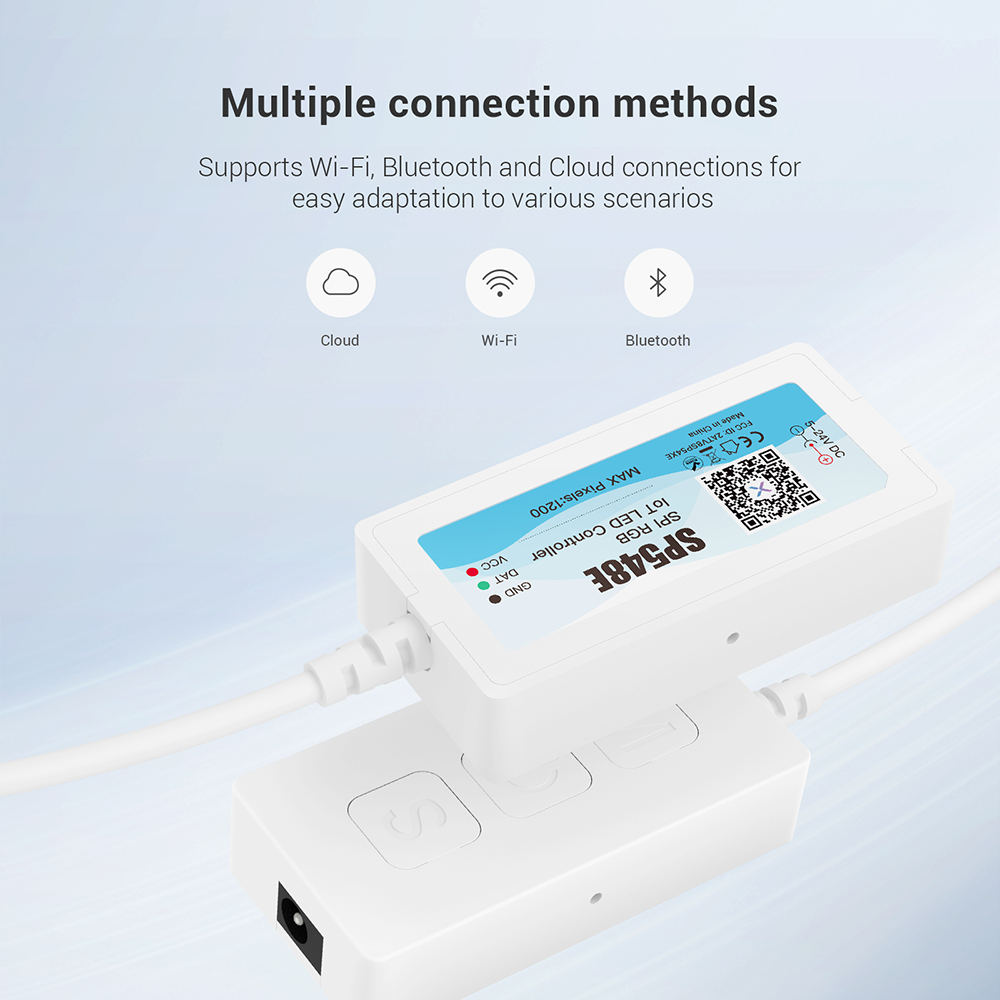

The SP548E mini inline controllers are designed for 3-channel addressable RGB lights and support a wide range of SPI ICs, offering dynamic visual effects such as chasing, breathing, and rainbow animations for holidays or home decoration. Utilizes a dual-mode master control chip to support Bluetooth, WiFi, and remote cloud connections. They help with app, remote, and voice control, giving you multiple ways to control your digital lights. Built-in 180 dynamic and 8 musical effects, and allows you to adjust brightness, speed, and direction. It also supports customization of both static and dynamic effects in solid and gradient colors, catering to personalized needs. You can voice-control the digital lights via smart speakers; it supports Amazon Alexa, Google Home, XiaoDu, and XiaoAi, allowing you to control lighting on/off, brightness, and color via voice commands. There are three music collection methods: smartphone microphone, player streaming, and onboard microphone. In music mode, the lighting will automatically change to keep pace with the beats. One side has a DC connector for easy connection to a power supply with a DC connector, and the other side has a 3P or 4P JST SM connector for easy connection to addressable strip lights.
Features:
- Type: WiFi SPI music light controllers
- Models: SP548E ( For RGB ) / SP549E ( For RGBW )
- Size ( L x W x H ): Controller ( 60 mm x 30 mm x 14 mm / 2.36 " x 1.18 " x 0.55" ) / Remote ( 135 mm x 48 mm x 10 mm / 5.31" x 1.89" x 0.39" )
- Input voltage: 5V - 24V DC
- Working current: 14mA - 50mA
- Static power consumption: ≤1W
- SP548E supports up to 1200 conventional zero-code three-channel single-line ICs
- SP549E supports up to 900 pieces of zero-code four-channel single-line ICs
- Built-in 8 music effects and 180 non-music dynamic effects
- Brightness and color-changing speed are adjustable
- Control methods: APP control / 2.4G remote control/voice control via smart speakers
- APP name: BanlanX ( Requires IOS 10.0 or higher, and Android 4.4 or higher )
- Featuring a variety of dynamic and music effects
- Supports customization of both static and dynamic effects in solid and gradient colors
- Diverse music collection methods: Smartphone microphones, player streaming, and onboard microphones
- Smart speakers support: Google Home, Amazon Alexa, XiaoDu, XiaoAi

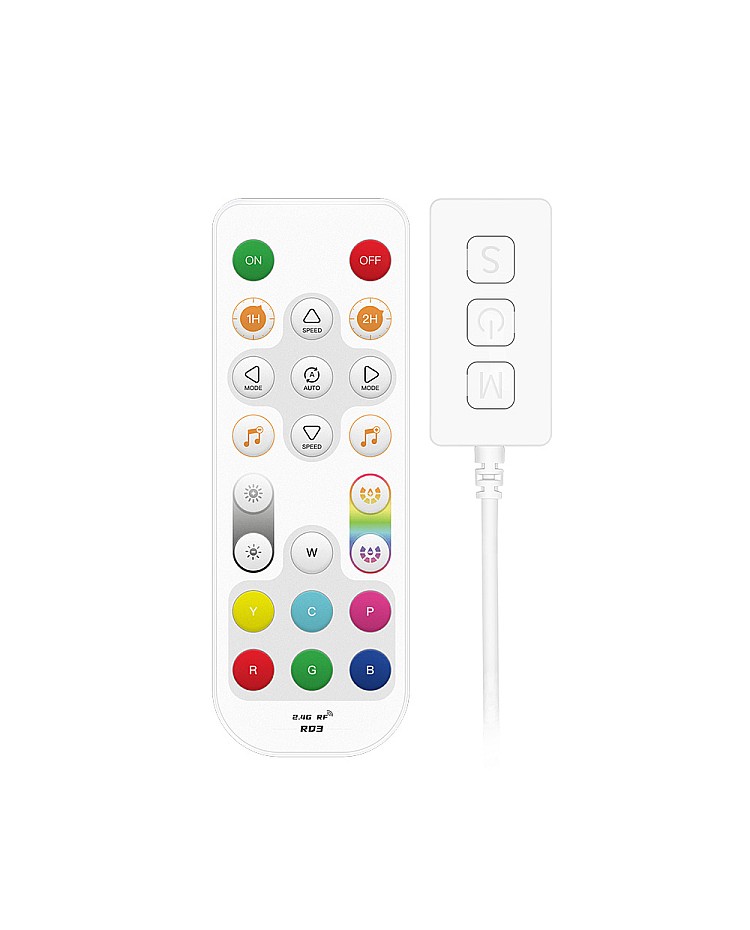

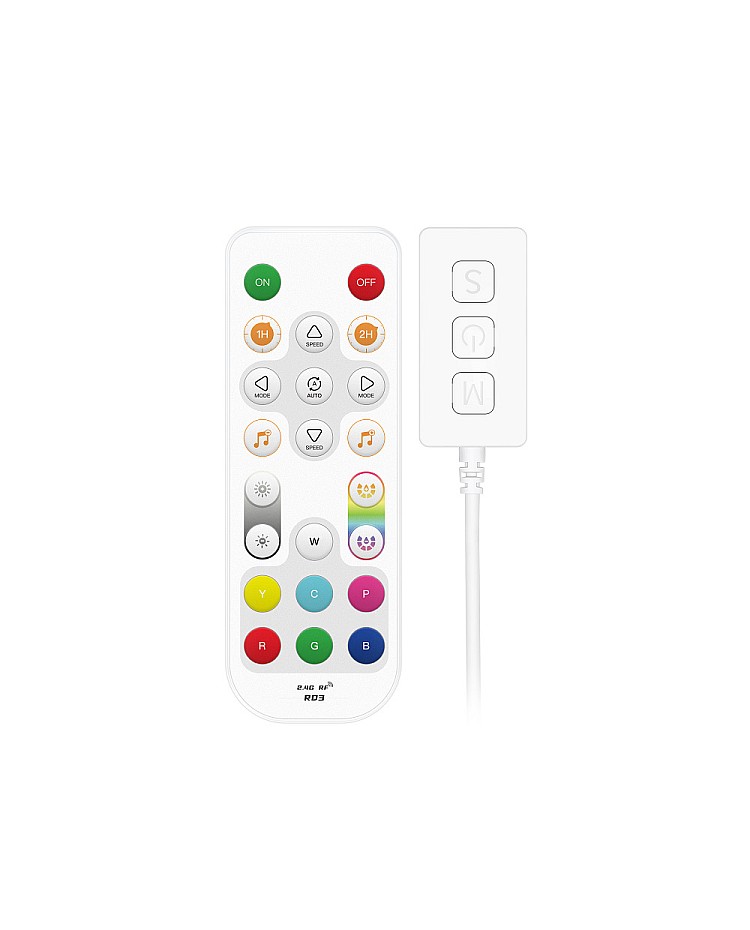

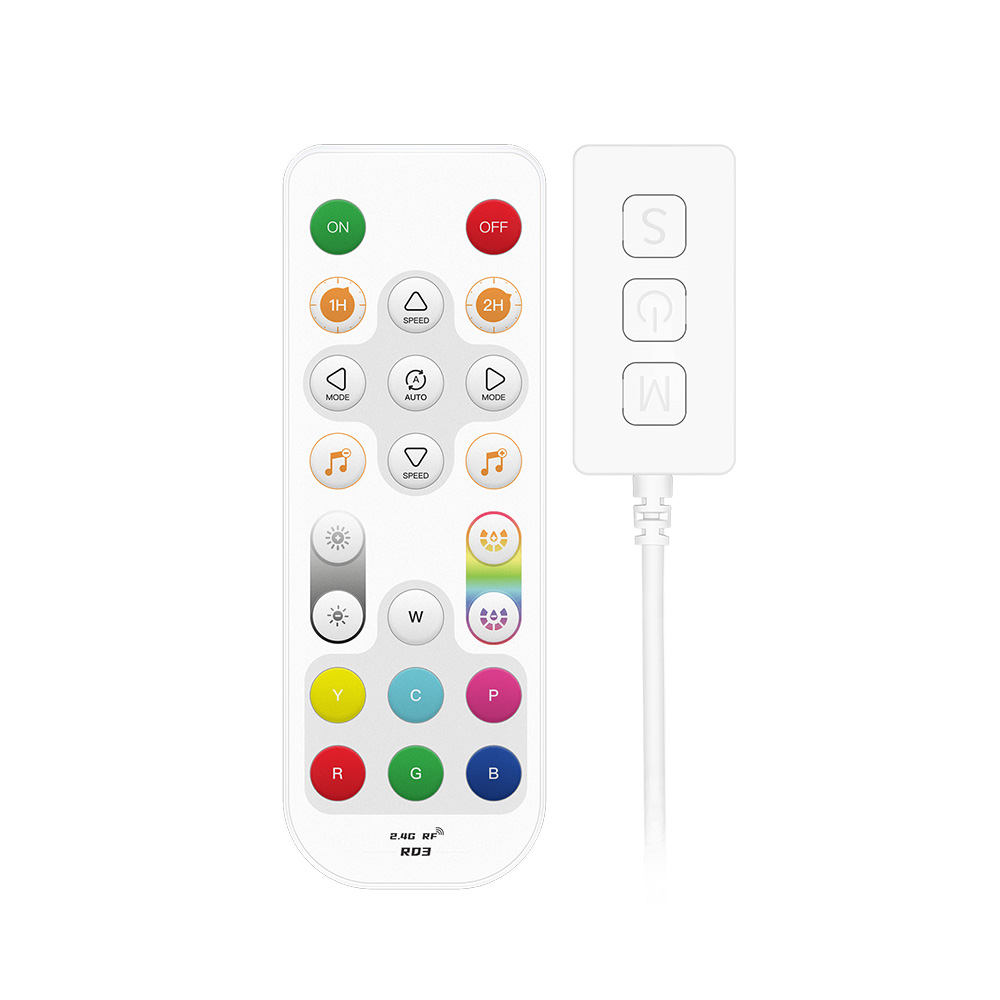

- RD3 2.4G remote control is included ( Powered by one CR2025 battery)
- Remote control distance: ≤30m
- Working temperature: -10℃ - 40℃
- Certifications: CE, ROHS
- Warranty: 2 years

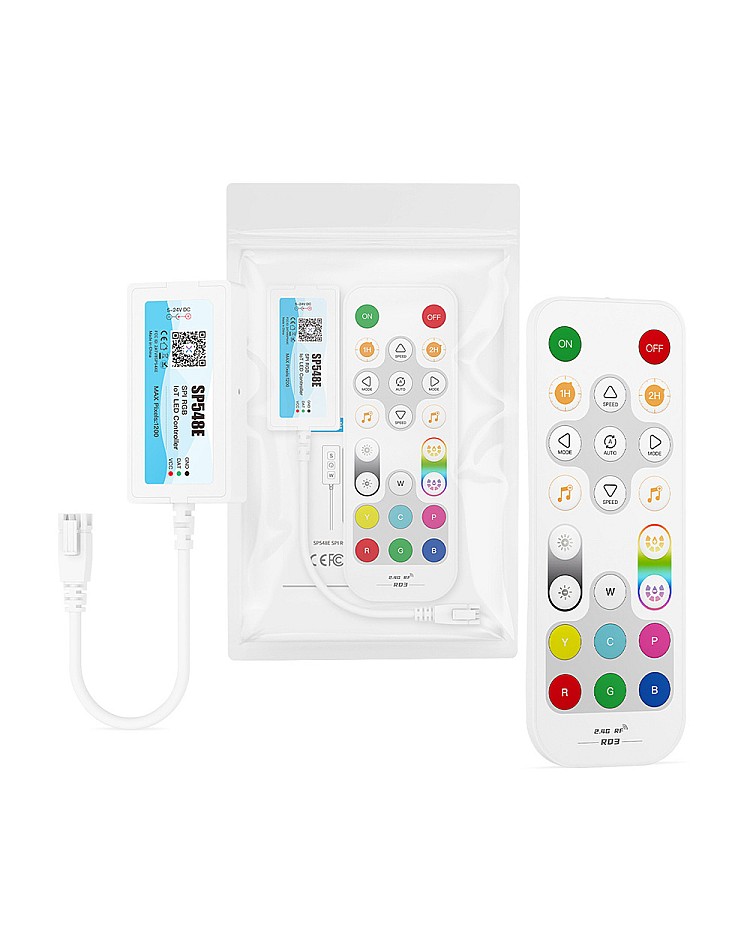

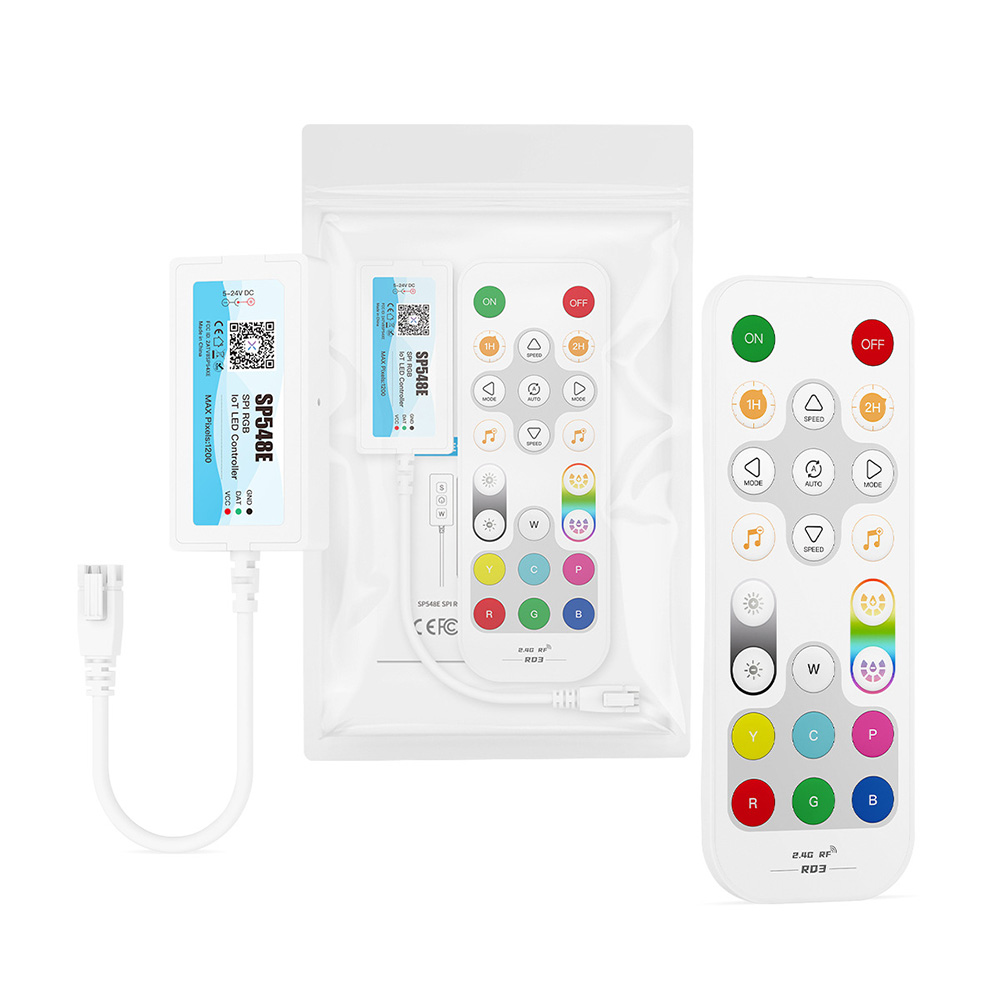

Includes:

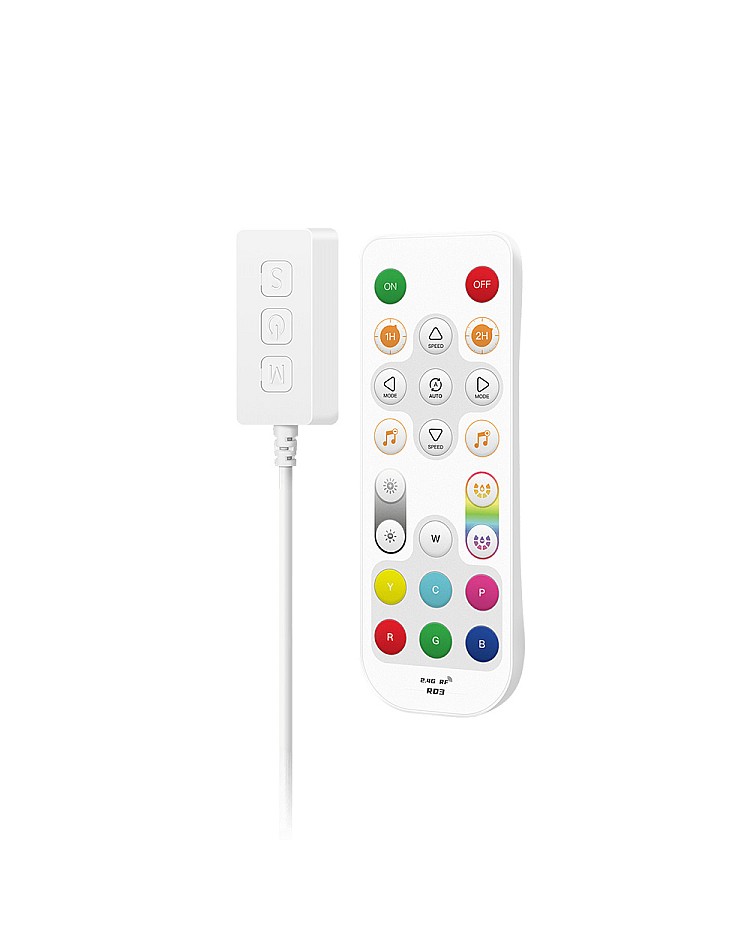

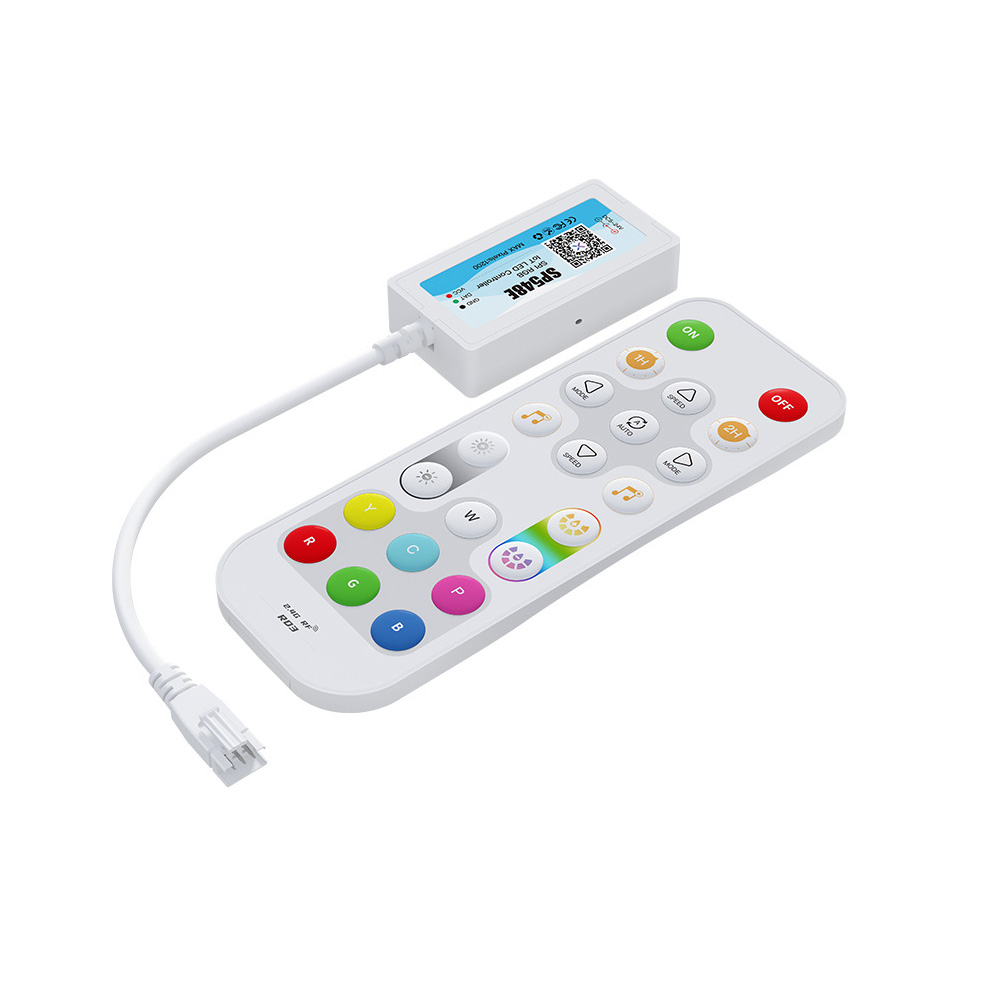

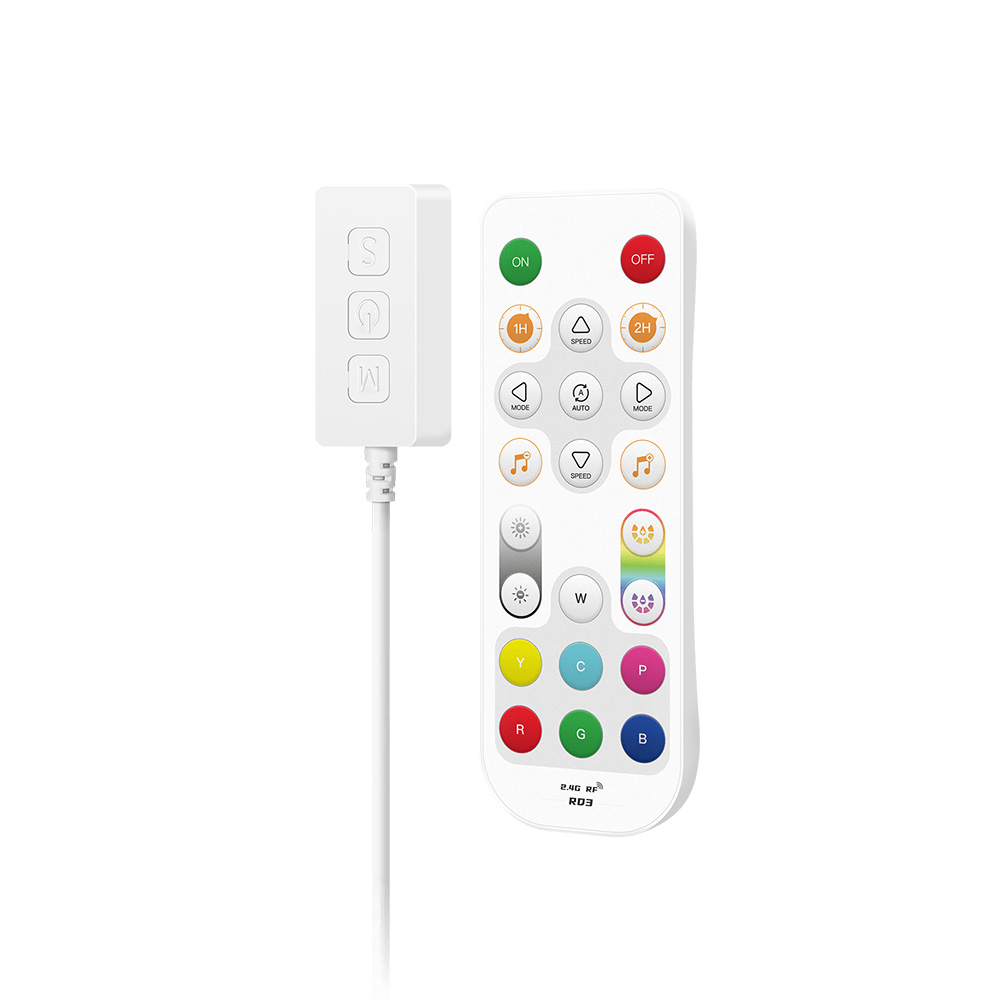

1 x RGB / RGBW WiFi music LED controller
1*RD3 RF remote control
