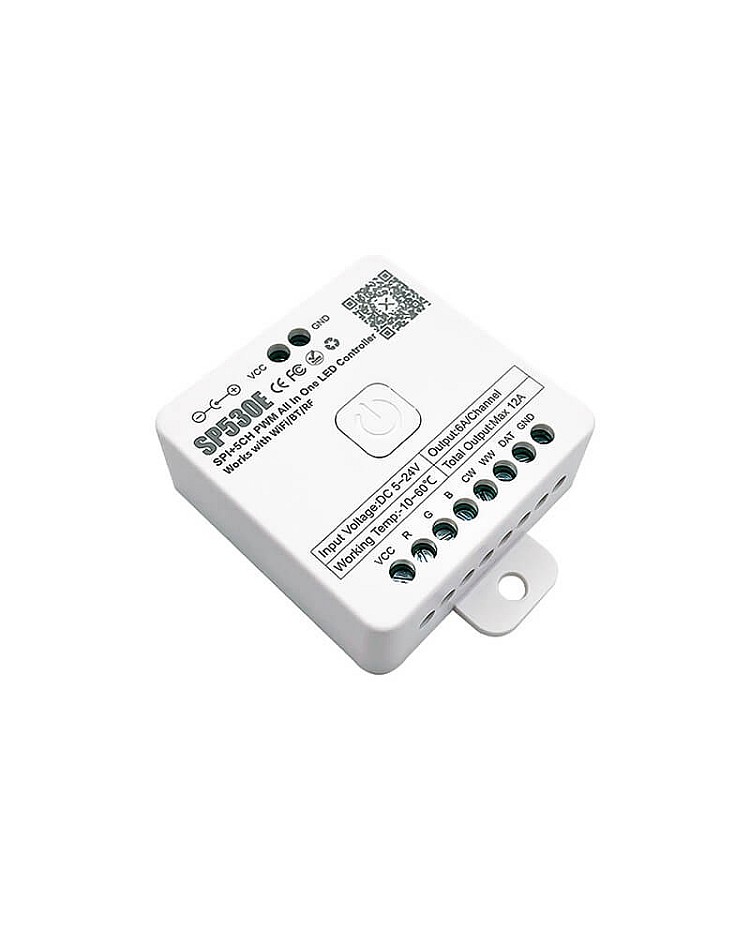

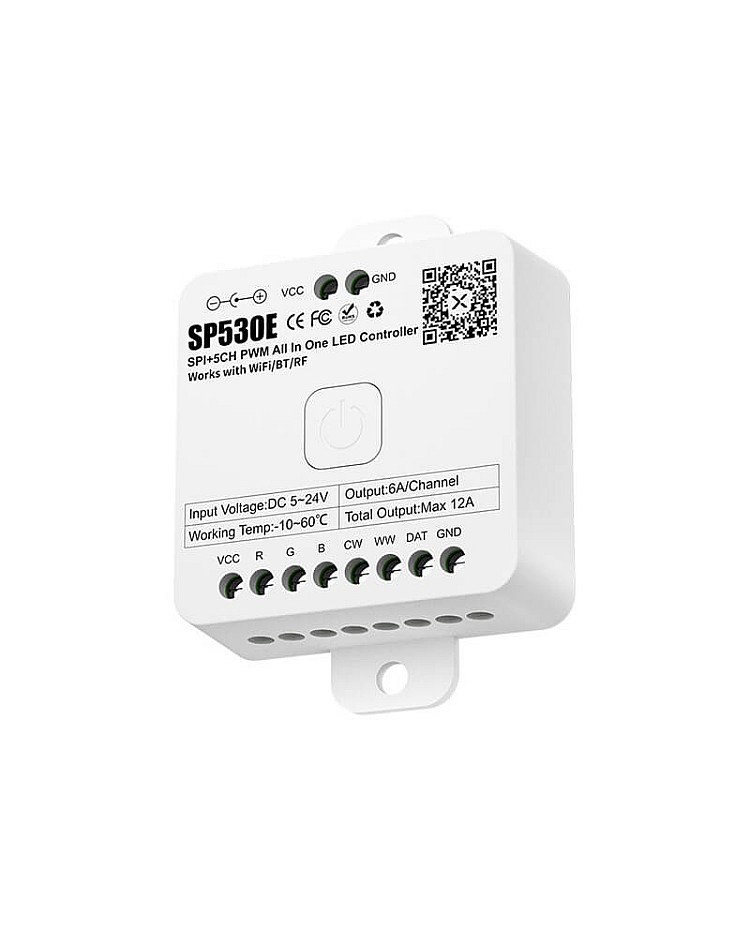

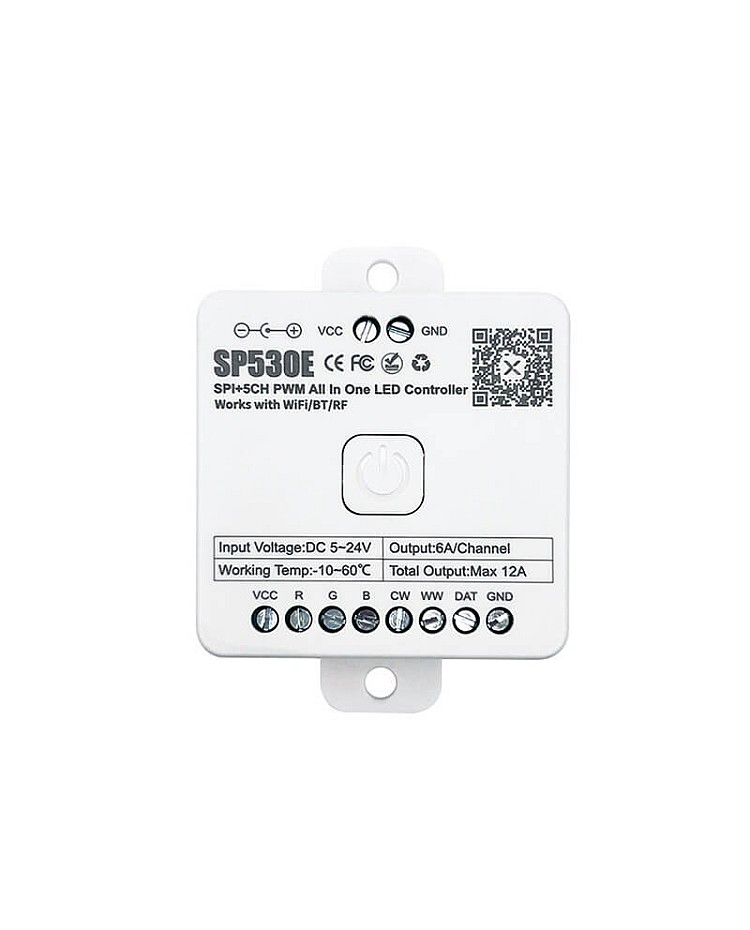

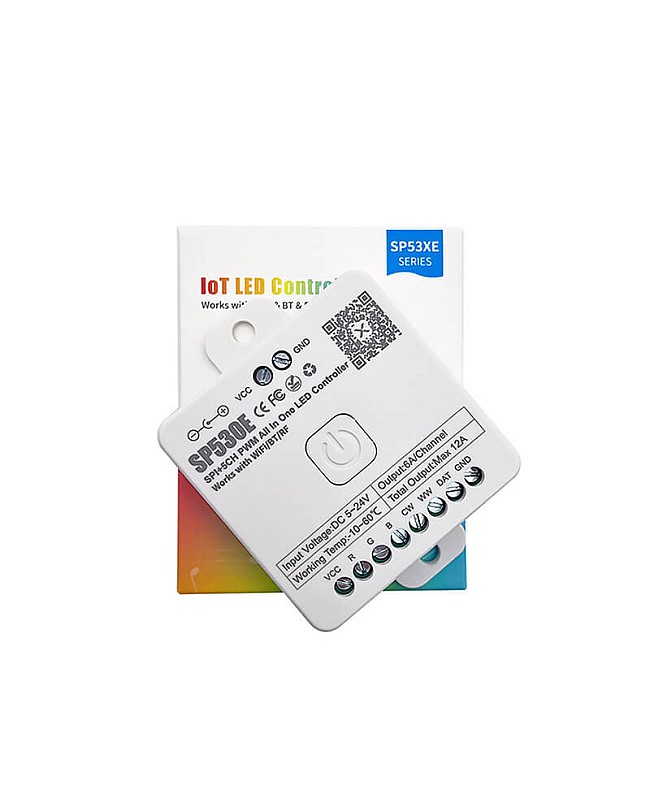

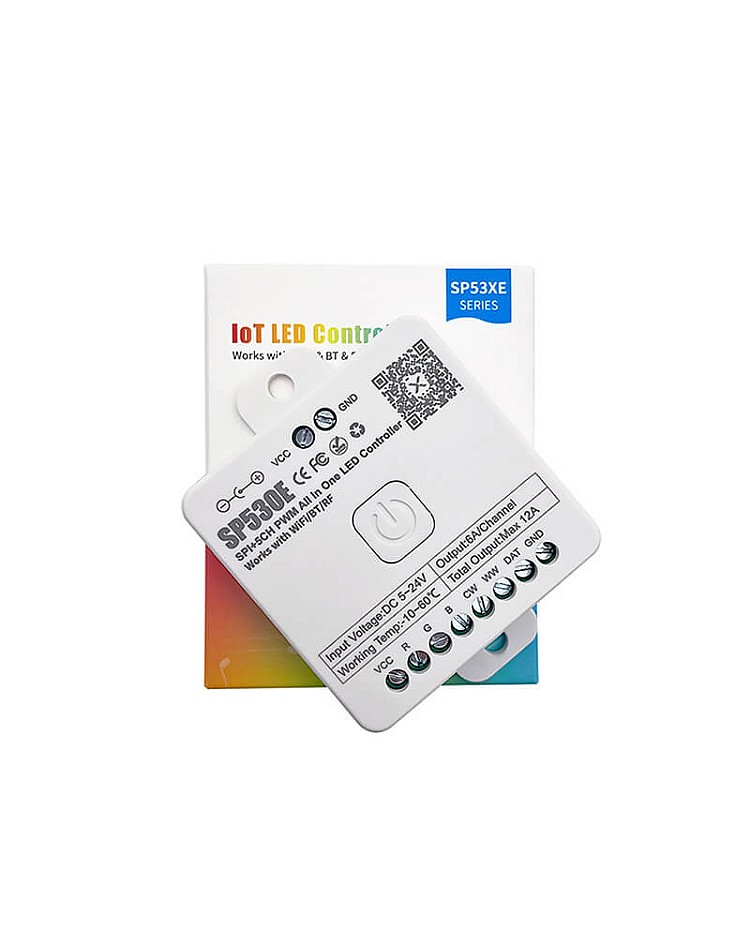

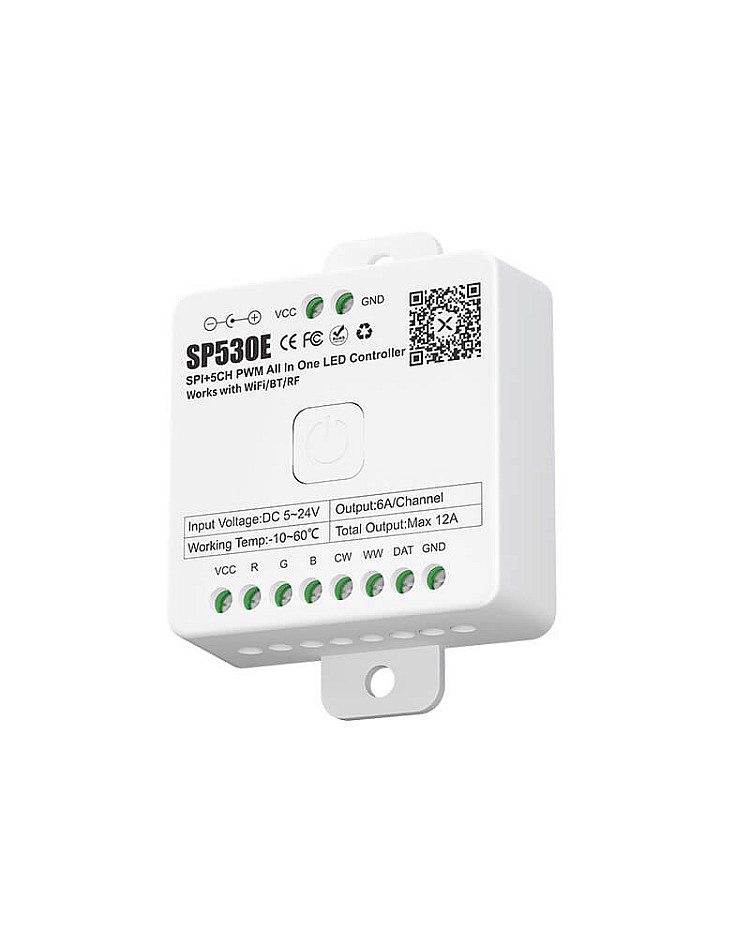

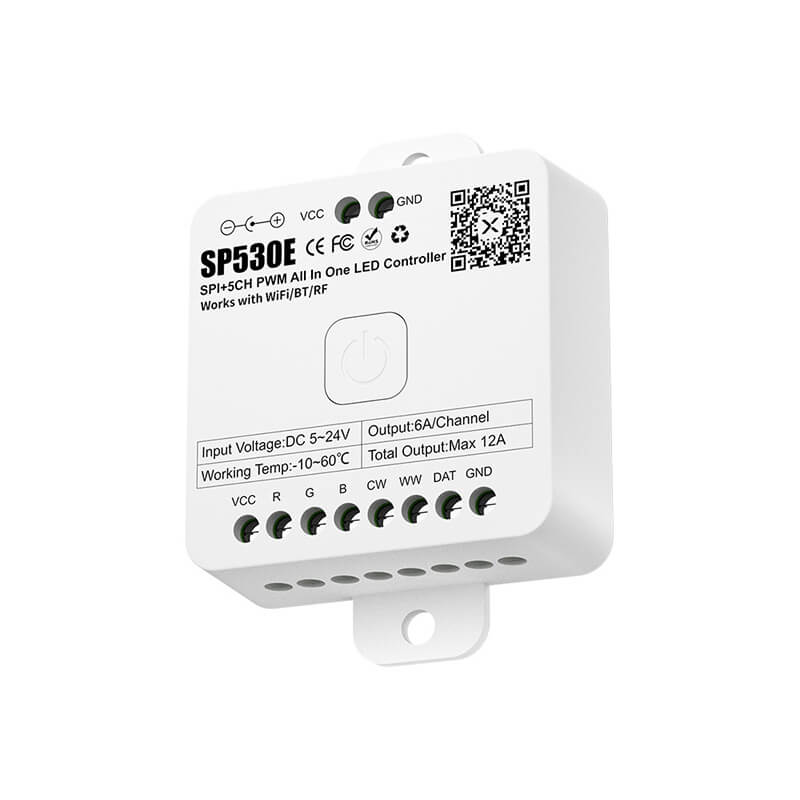

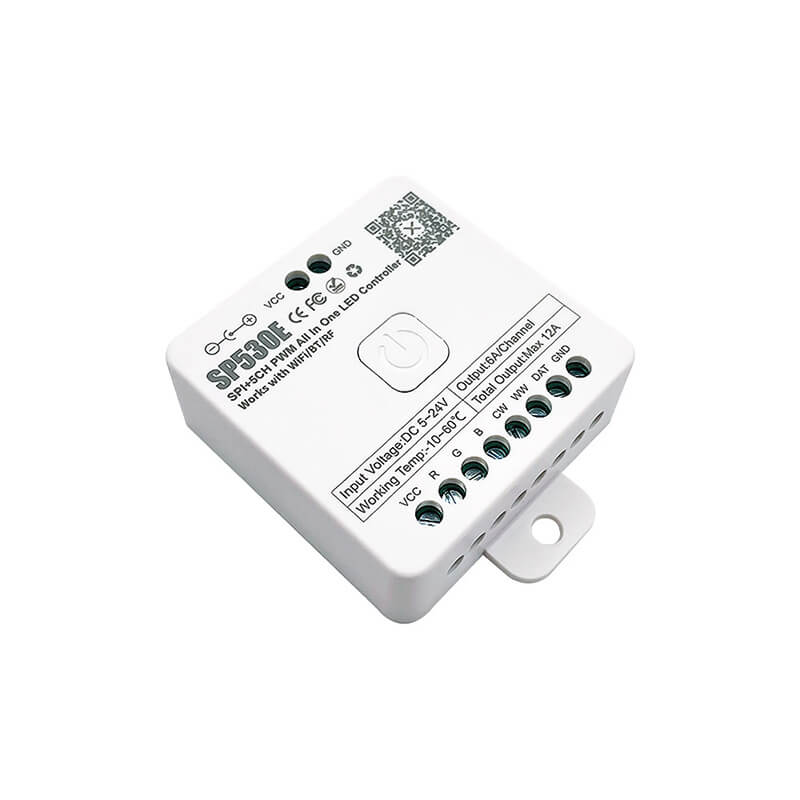

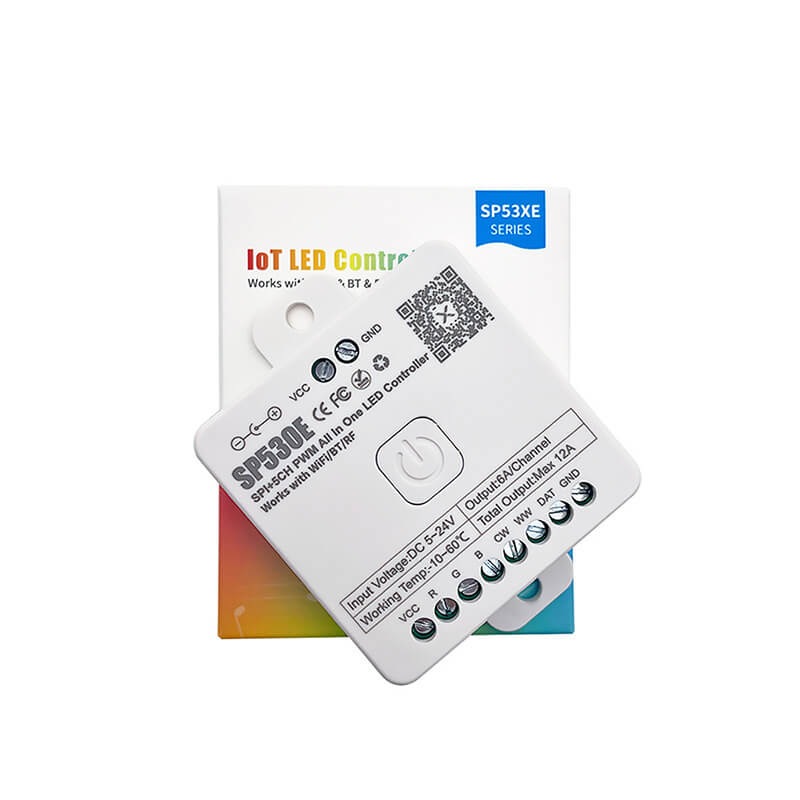

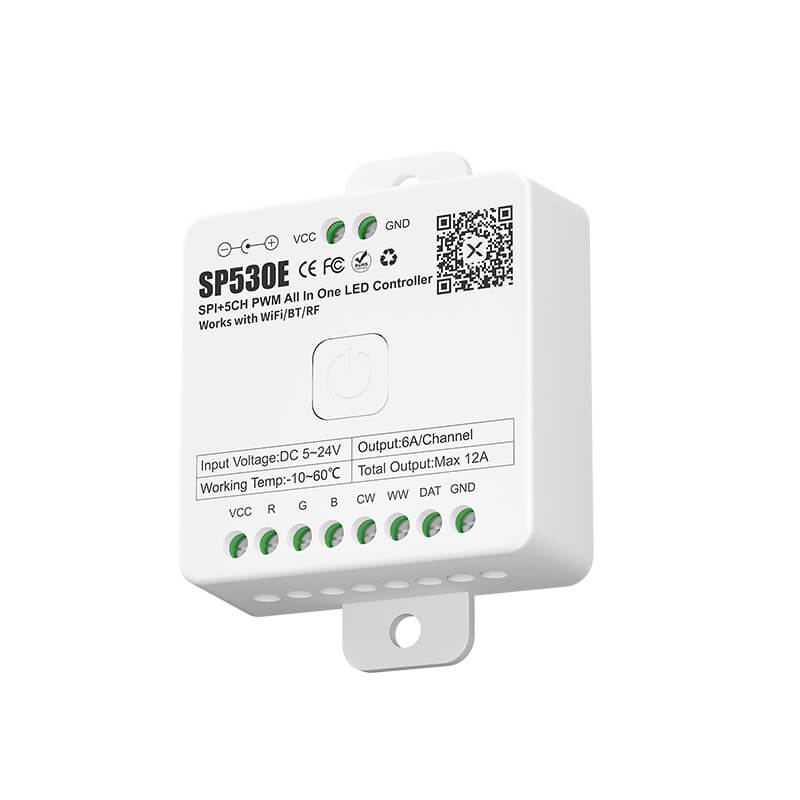

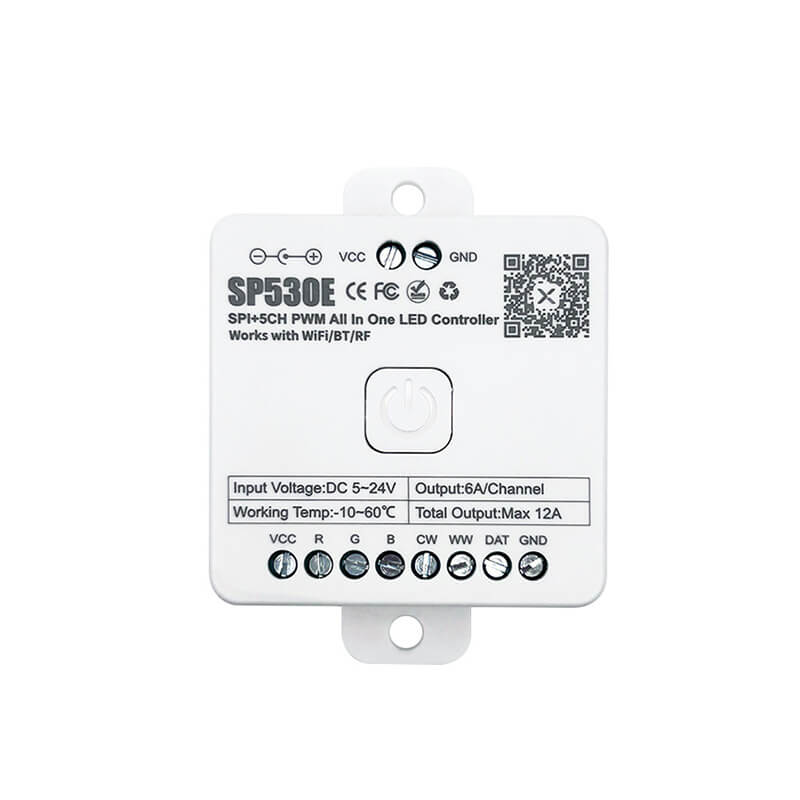

The SP530E is a versatile LED controller designed for use with various types of LED strips, including regular(SMD & COB), addressable, and digital LED panels. It utilizes a dual-mode connection, featuring a 2.4GHz Wi-Fi and Bluetooth LE 5.0 chip, which enables connections via Bluetooth, Wi-Fi, local network, or cloud connection through the mobile app. You can control the LED lights with remotes, an app, and voice commands from smart speakers. You can adjust colors, brightness, color temperature, and effects remotely and conveniently. It is built with 146 dynamic effects and 18 music modes. Under the music mode, the lighting will change automatically in sync with the beats. It has three ways to receive music signals: mobile phone mic, player streaming, and onboard mic. It supports all standard PWM LED strips, except for 2-wire CCT LED tapes. When connected to addressable LED strips, it supports up to 1800 pieces of ICs when working with white digital LED strips. Adding our Pixel LED amplifiers, you can use the SP530E to drive hundreds of meters of addressable LED strips for synchronization.
Features:
- WiFi, Bluetooth, and Remote Control - Conveniently set the LED lights.
- Voice Command - Works with Alexa, Google Home, Xiaoai, and Xiaodu smart speakers.
- Music Sync Mode - Lights pulse and change in time to the music for an immersive party or gaming setup.
- Wide Compatibility - It supports almost all types of LED strips on the market (except 2-wire CCT strip lights): WS2812B, WS2811, SK6812, etc.
- Easy Setup - Connect to WiFi in seconds, no hub required.
- Timer & Schedules - Automate lighting for energy savings or ambiance.
Specifications:
- Size(L*W*H): 78*56*20mm
- Working Voltage: DC5V-24V
- Working Current: 20mA-85mA
- PWM Single Channel Maximum Output Current: 6A
- PWM Total Maximum Output Current: 12A
- Maximum support quantity of ICs: 3600PCS(Single Color), 1200/1800PCS(CCT), 1200PCS(RGB), 900PCS(RGBW), 600/720PCS(RGBCCT)
- Built-in 146 dynamic effects and 18 music modes
- Integrates WiFi, Bluetooth, and 2.4G RF communication protocols
- Music Mode: Mobile phone mic, player streaming, onboard mic
- Mobile APP Control / 2.4G remote control / 86-type panel control
- APP Name: BanlanX
- Smart speaker voice command control: Alexa, Google Home, Xiaoai, Xiaodu, etc
- Suitable for various types of LED: 1CH PWM Single Color, 2CH PWM CCT, 3CH PWM RGB, 4CH PWM RGBW, 5CH PWM RGBCCT, SPI RGB+1CH PWM Single Color, SPI Single Color, SPI CCT, SPI RGB, SPI RGBW, SPI RGBCCT, SPI RGB+2CH PWM CCT
- Supports LED panel music effects
- Support ICs: WS2811, WS2812, WS2813, WS2814, WS2815, WS2805, SK6812, TM1804, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, GS8208, etc
- Support PWM Types: FCOB, 5050, 3014, 3528, 5730,5630, etc
- Support Size Of WS2812B LED Panels: 8*8, 8*16, 8*32, 11*44, 16*16, 32*32, etc (Maximum 1200 pieces of pixels)
- Time setting function
- Compatible with RF remotes: RB1, RB2, RB3, RB4, RC1, RC2, RC3, RC4
- IP Rating: IP20 Non-waterproof
- Operation Temperature: -10℃-60℃
- Storage Temperature: -10℃-40℃
- Lifespan: >35,000 hours
- Warranty: 2 years

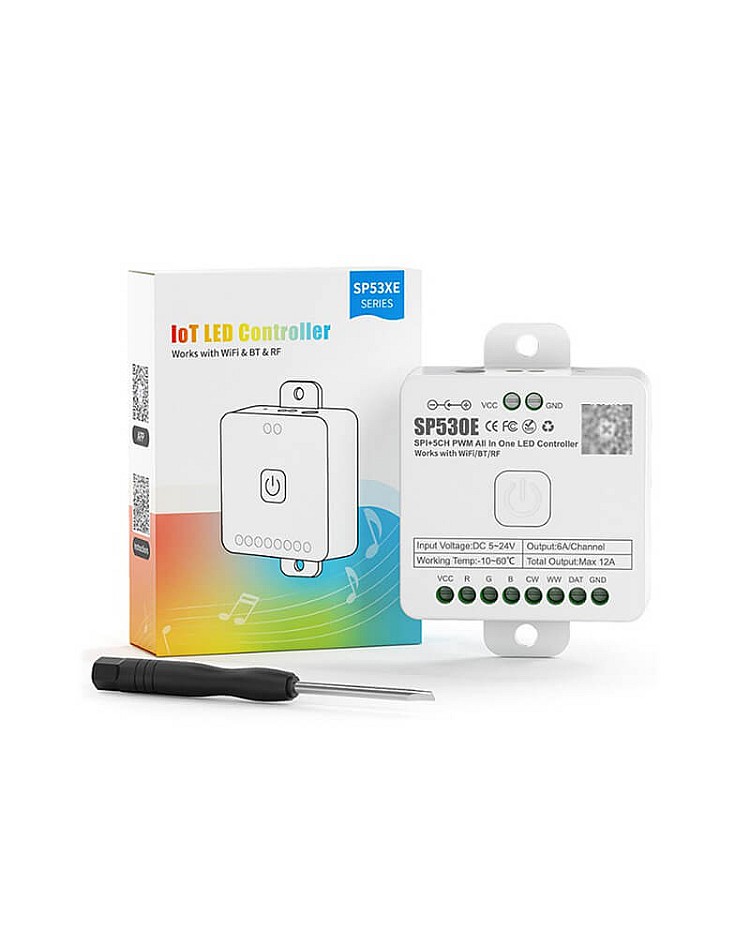

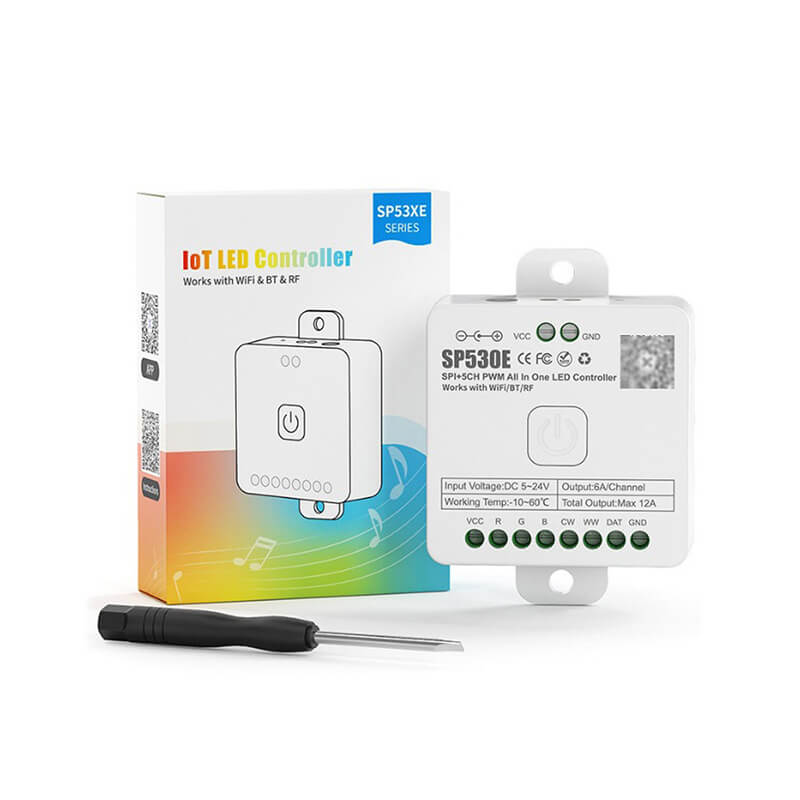

Includes:
1*SP530E WiFi WLED Pixel Controller
1*Screwdriver
1*User Manual
