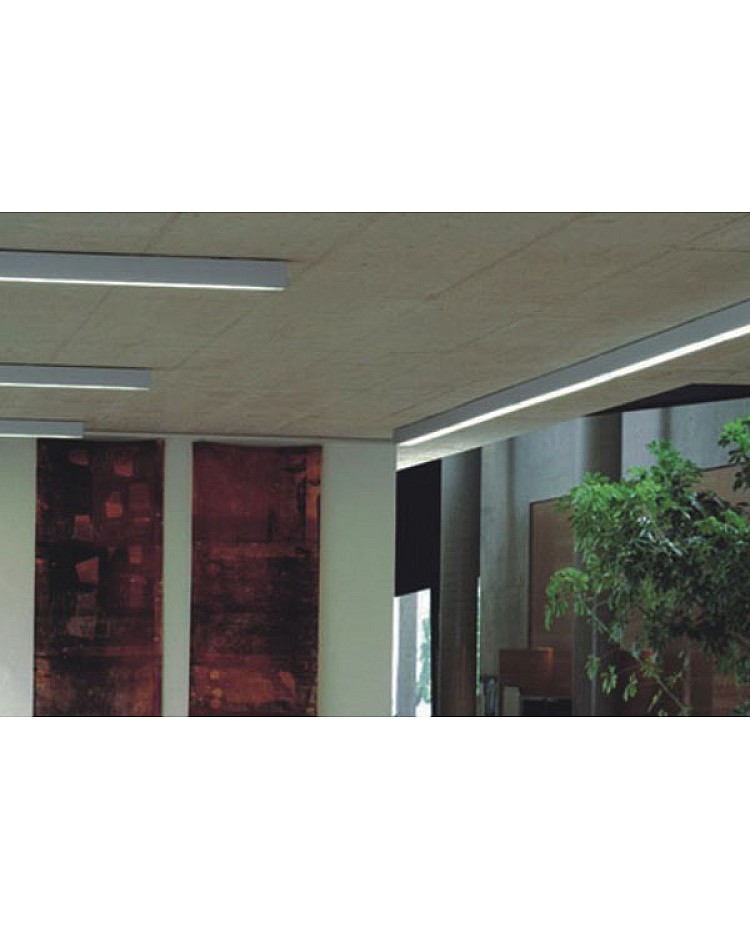

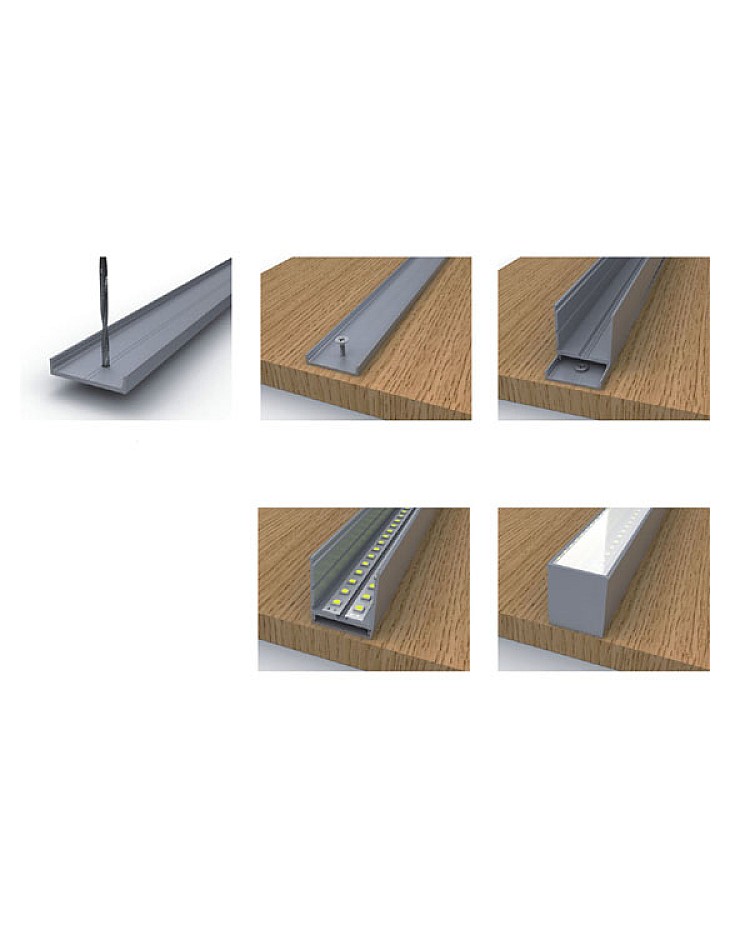

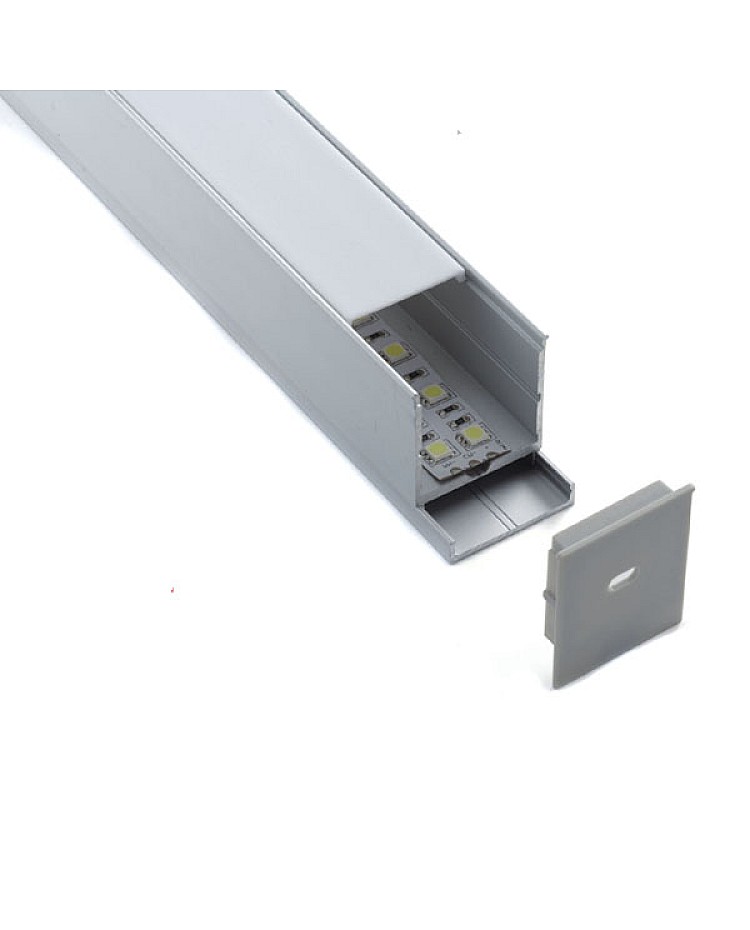

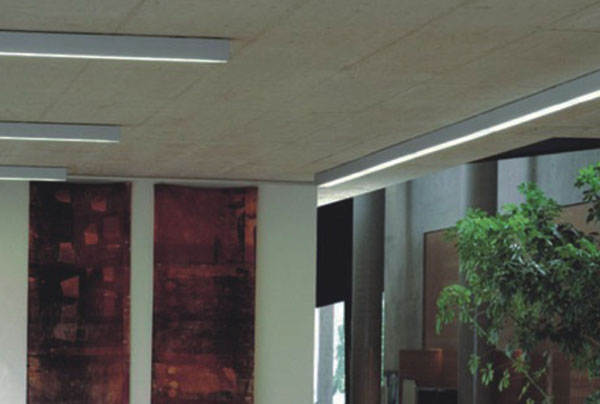

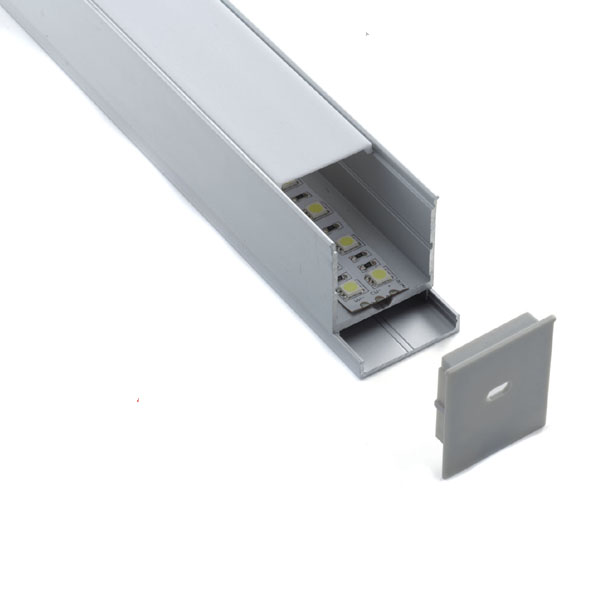

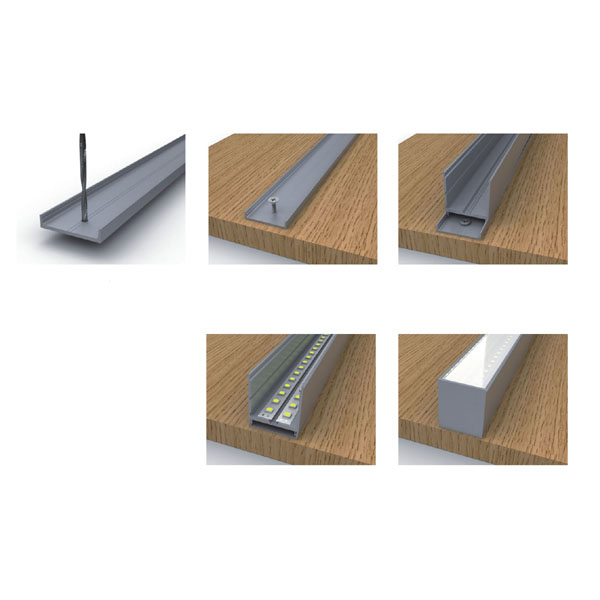

The LED Strip Light LED Mounting Profile, which is made of 6063-T5 aluminum alloy material and silver anodized surface treatment for a better anti-oxidation feature and a longer lifespan than other similar products. The default length is 1 meter, 0.5 meter, 1.5 meter, 2 meter, 2.5 meter, and max 3 meter length available, you can cut to any length you want. There are three different covers available for the different lighting effects, you could choose the PMMA opal matte cover, PMMA semi-clear cover and PC diffused cover, the covers are made of brand material, anti-yellowing, and perfect light distribution. The High Power LED Einbauprofil for ceiling surface-mounted installation, easy to fix the bottom layer Aluminium Profile on the surface of the LED Project with the help of screws, and install the upon LED Profiles, take off the protector of 3M Tape on the back of LED Strips, you could mount them on the upon Aluminium Profile, easy to install and use. The Aluminium LED Profiles can be used as a heat sinker for better heat dissipation. You can use them as the main lighting in homes, offices, supermarkets, and schools.



Features:

  • Model: ALP020
  • Color: Silver
  • Material: Aluminum Alloy(6063-T5)
  • Surface Treatment: Silver Anodized

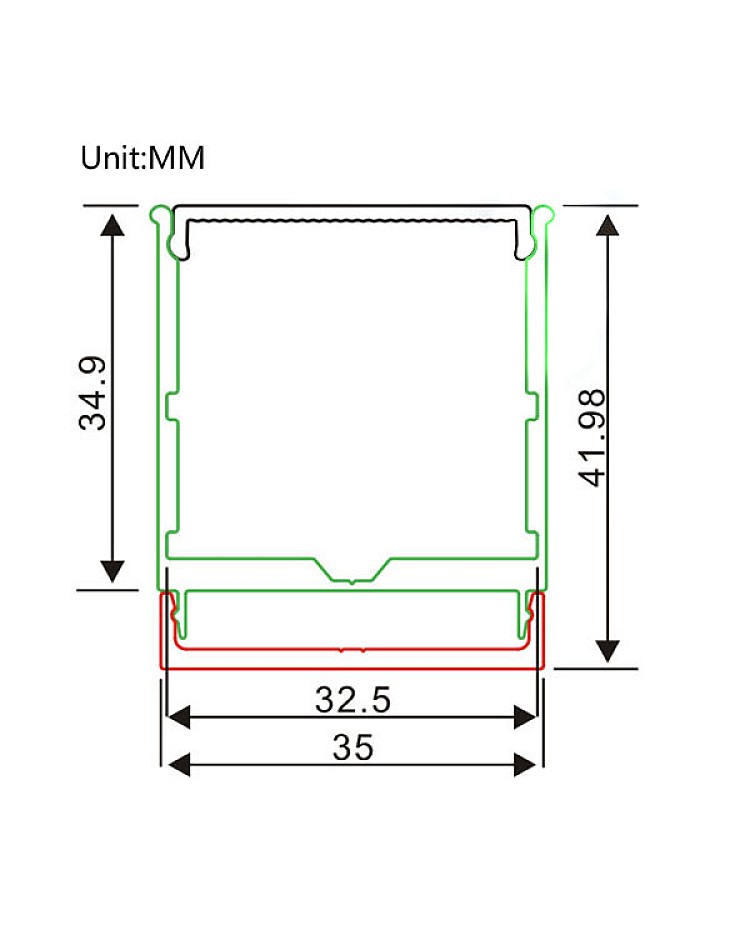

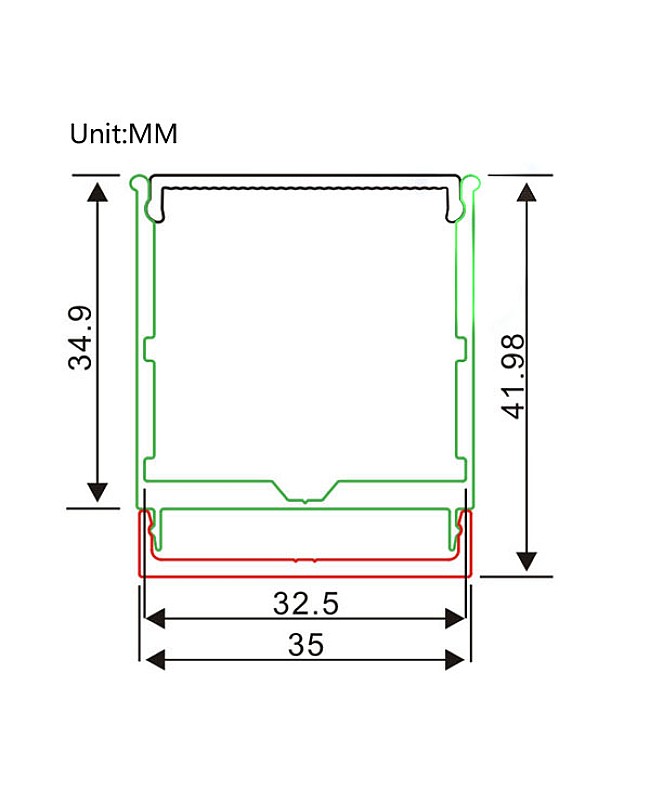

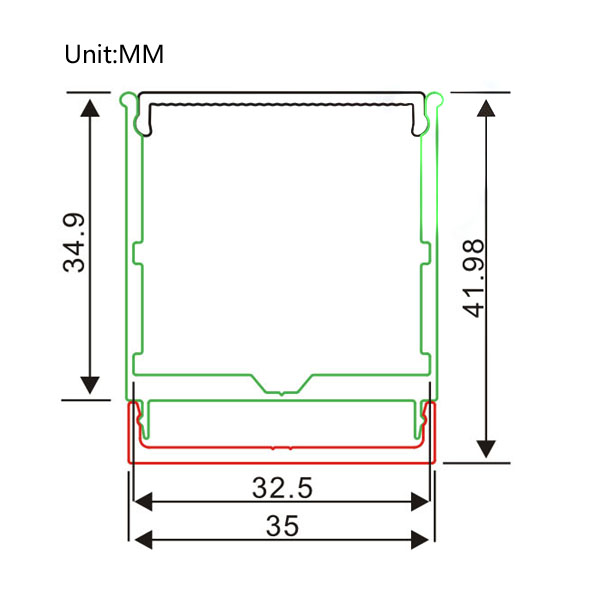

  • Size: 35mm(W)*41.98mm(H)
  • Covers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PC Diffused Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length: YES

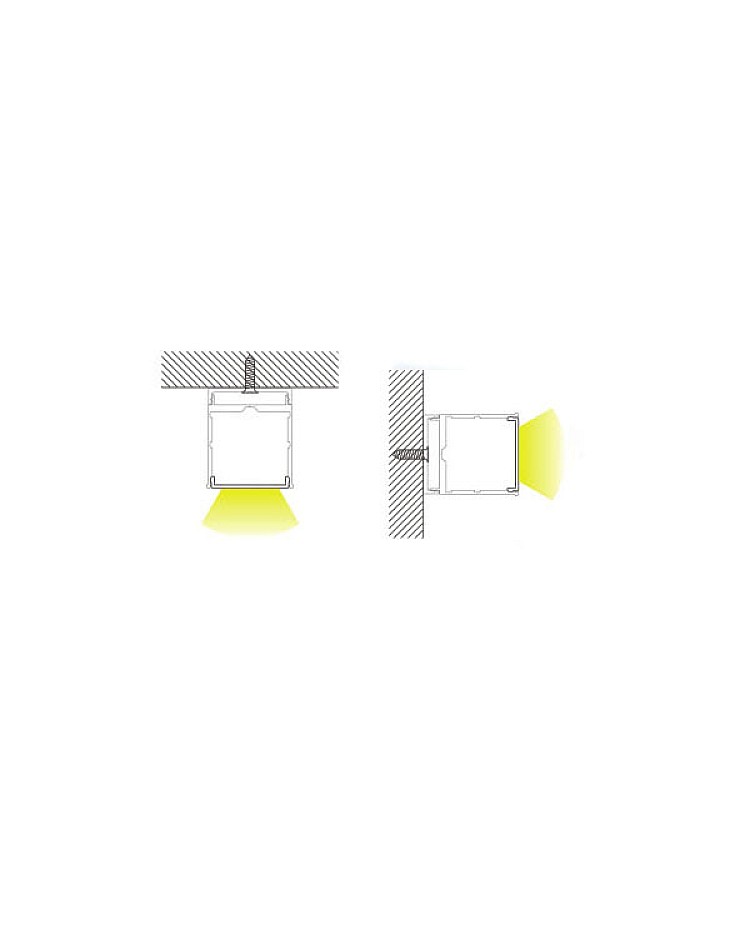

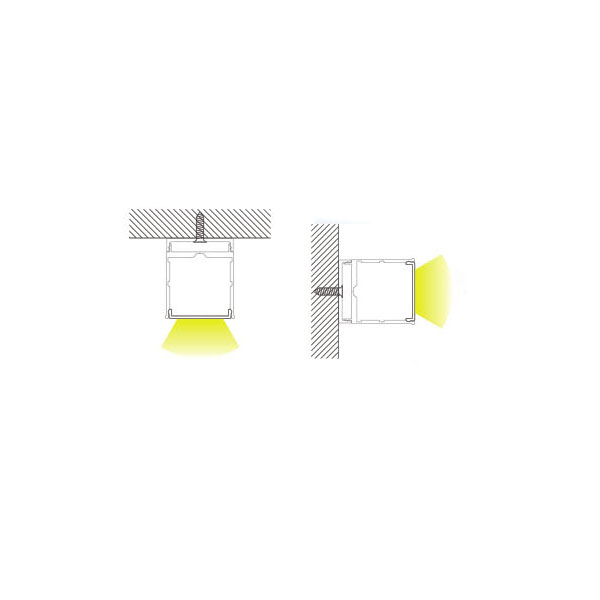

  • Installation: Surface Mounted
  • Inner Width: 32.5mm
  • Recommend LED Strips: 5730, 5630, 5040, 5050, 3528, 2835 LED Strips In Multi-Rows
  • Applications: Home, Office, Bar, School, Hospital, Airport, Supermarket, etc


Package:

1*LED Mounting Profile

End Caps(With Hole/Without Hole)

Strip Light Aluminum Profile
