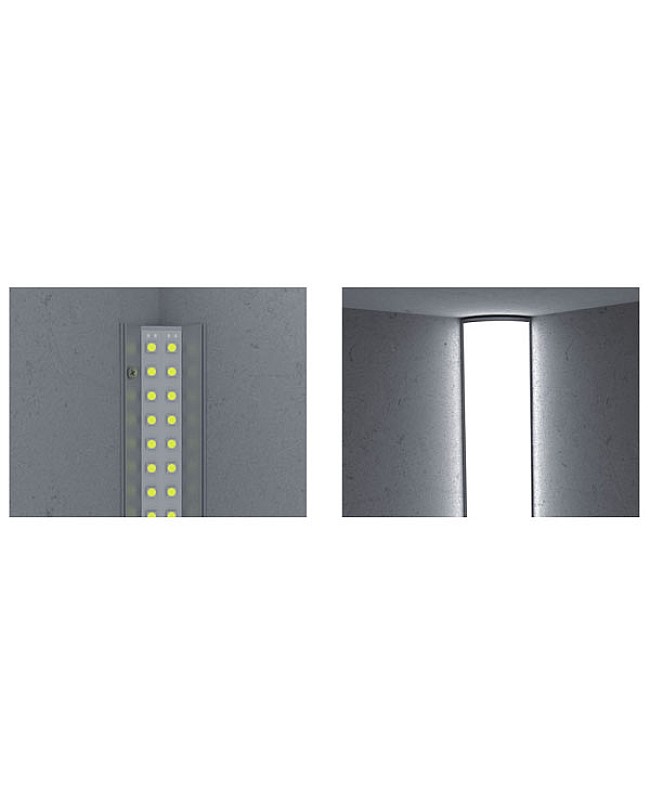

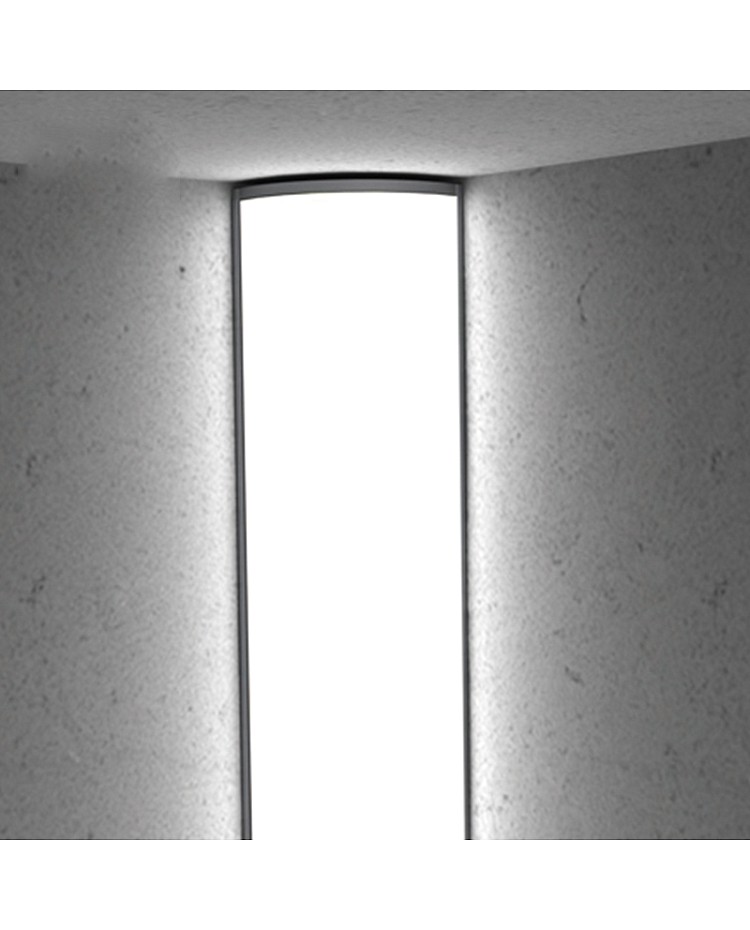

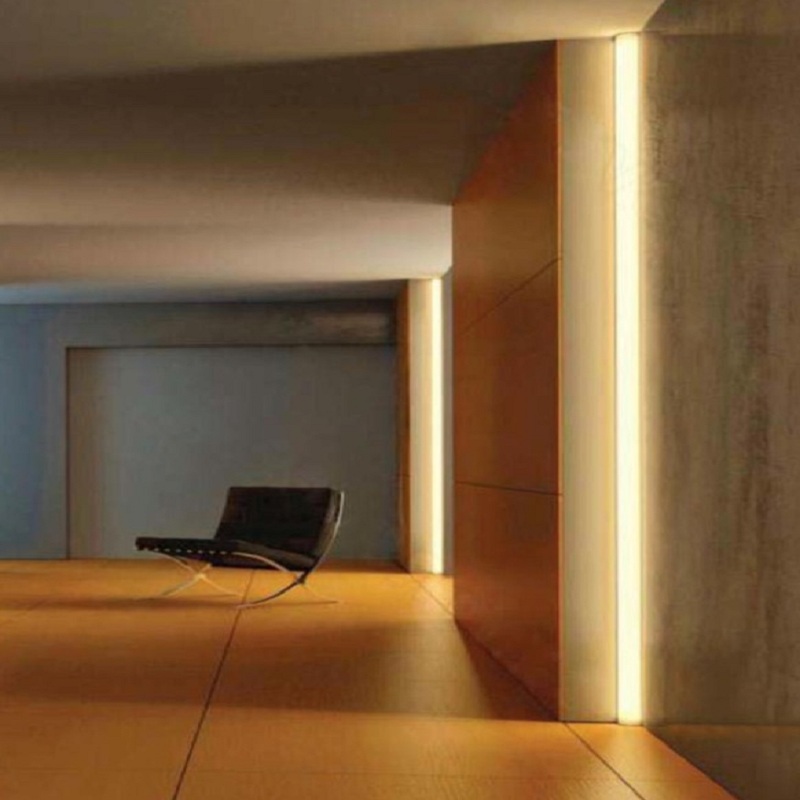

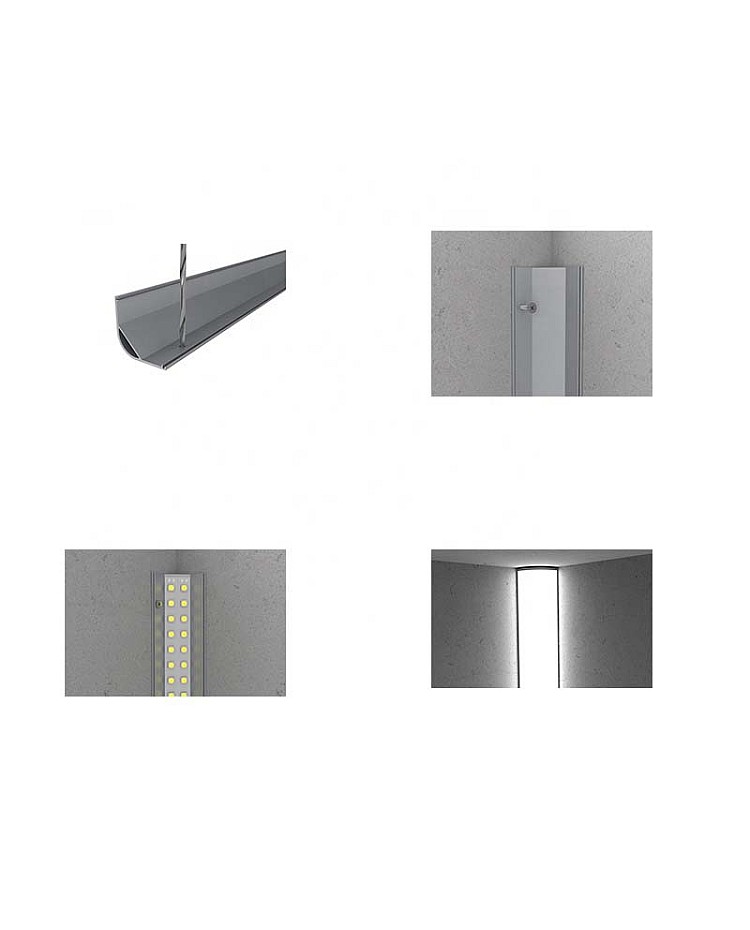

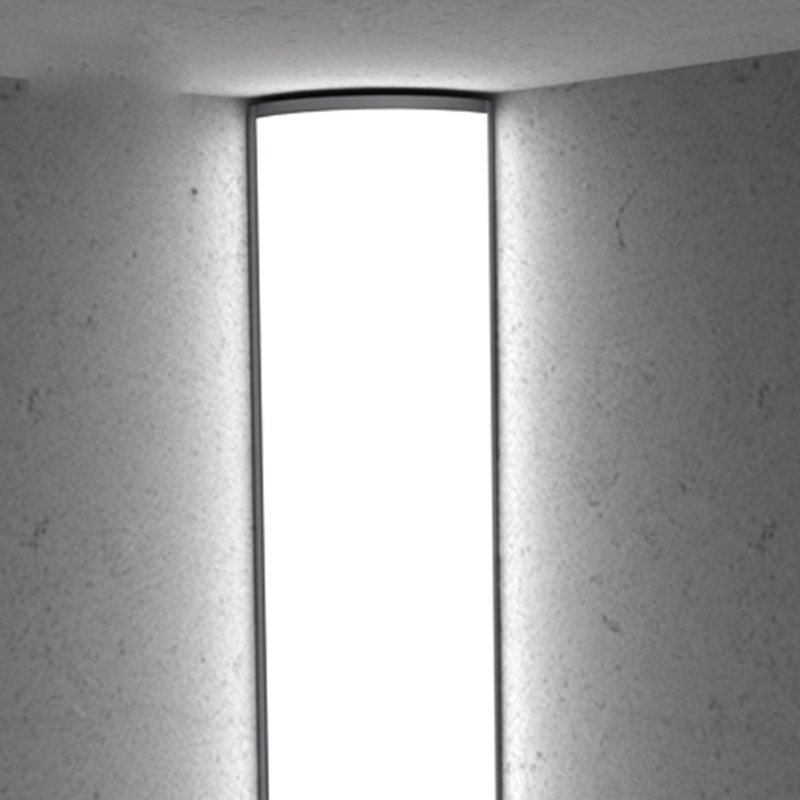

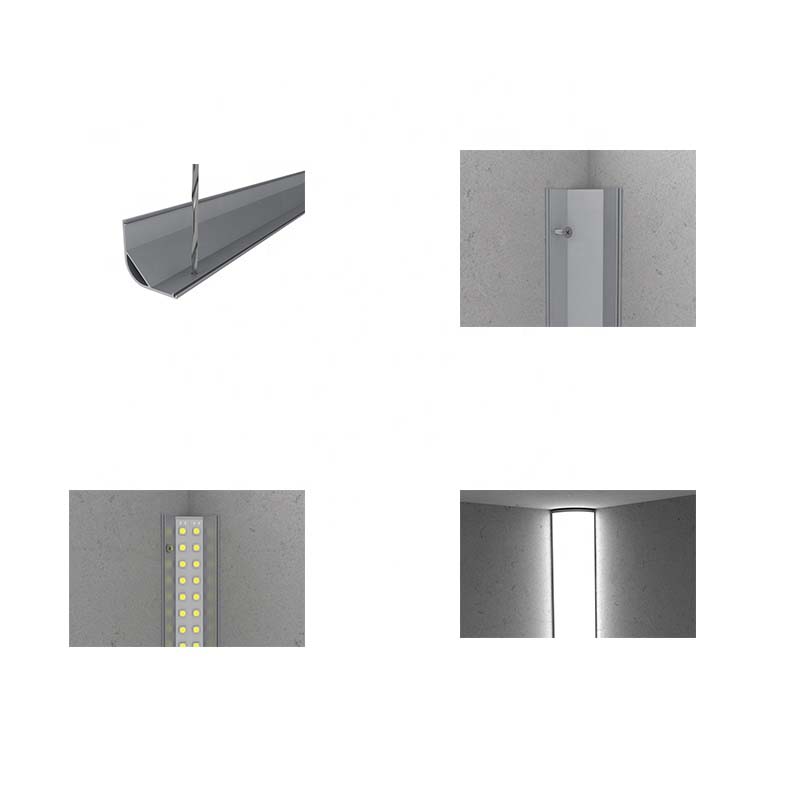

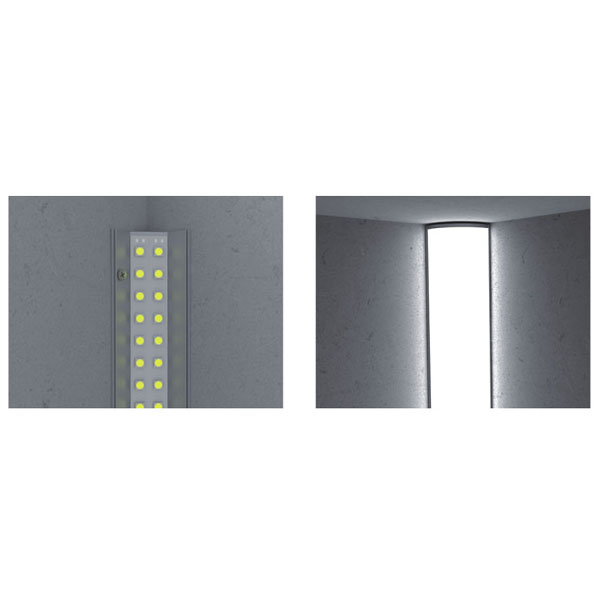

The 30mm LED channels are an excellent way to provide bright, even lighting that fits snugly in corners, brightening dark spaces while adding a modern architectural touch to interiors. The corner mount design allows installation at a 90-degree angle in both horizontal and vertical orientations, making it ideal for coves, shelves, wardrobes, wall-ceiling transitions, and architectural features.
Constructed from high-quality 6063-T5 aluminum alloy with an anodized finish, offering oxidation resistance and a longer lifespan than similar products. The standard lengths are 1m and 2m, and can be cut to any size to meet your needs. The inner width is 20.2mm, allowing for a maximum width of 20 mm for the LED strips. Recommend adding high-density COB or SMD strip lights as the light source, with no visible light spots or dark areas. The aluminum base serves as a heat sink, facilitating better heat dissipation and extending the lifespan of linear LED lights.
Six different covers are available: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC clear cover, PC semi-clear cover, and PC diffuser cover, each with varying lighting transmittance. The channel LED diffusers are made of brand-stable, anti-yellowing material and have perfect light distribution. End caps (with and without wire holes) and metal clips are included, are easy to install, and are suitable for both indoor and outdoor use (need to add IP67 or IP68 waterproof LED strips).
Specifications:

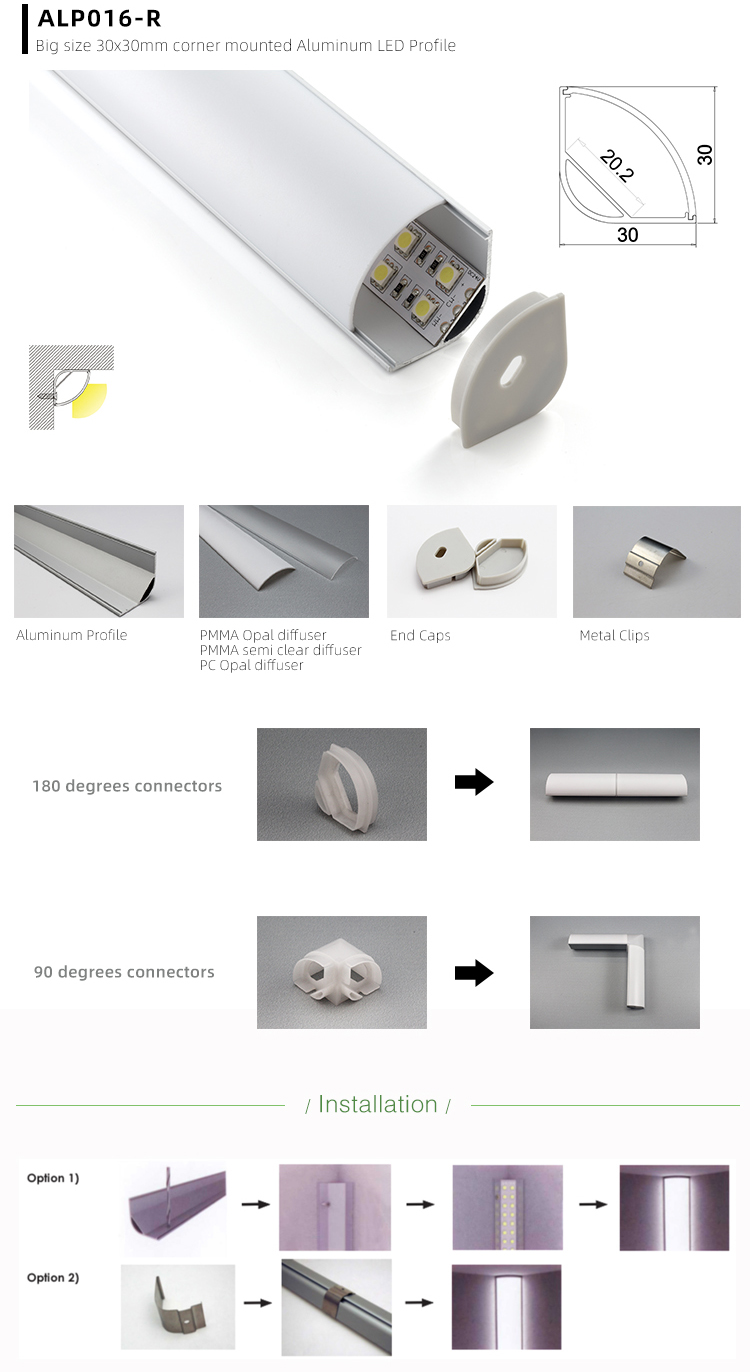

- Model: ALP016-R
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized
- Colors: Silver

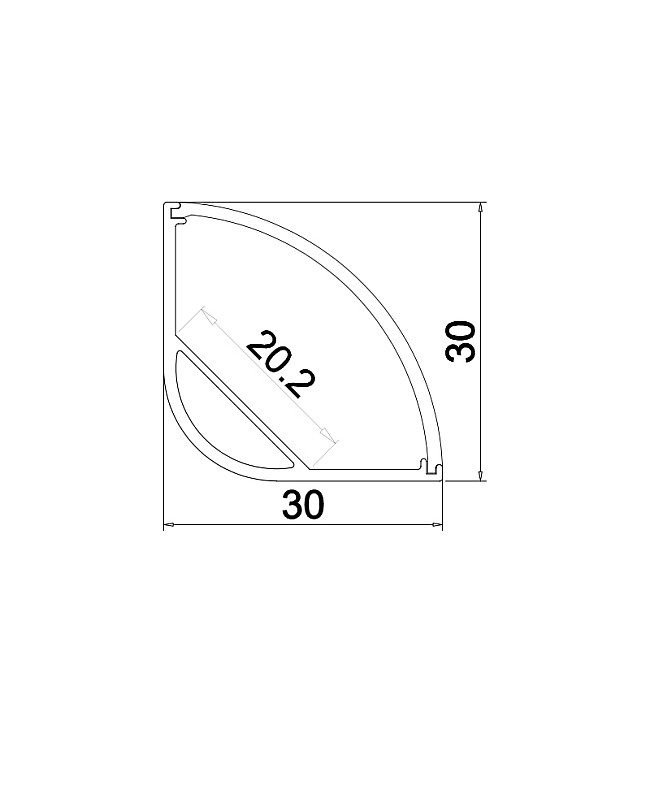

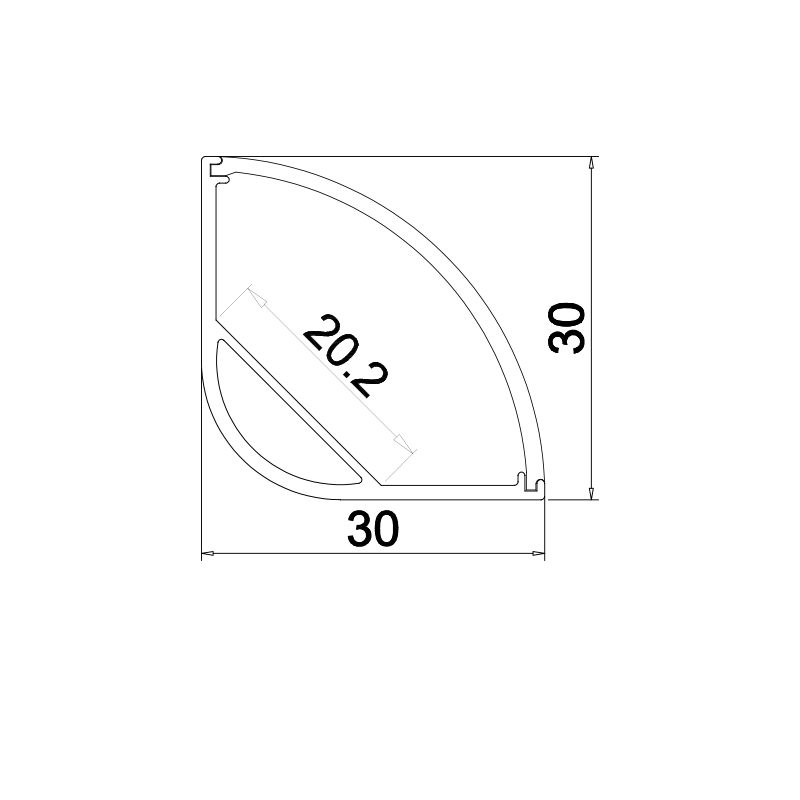

- Size ( Width x Height ): 30mm x 30mm (1.18" x 1.18")
- Lengths available: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length Available: YES
- Inner width: 20.2mm (0.8")
- Max power: ≤20W/m
- Covers: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear diffuser, PC clear cover, PC diffused cover, PC semi-clear cover

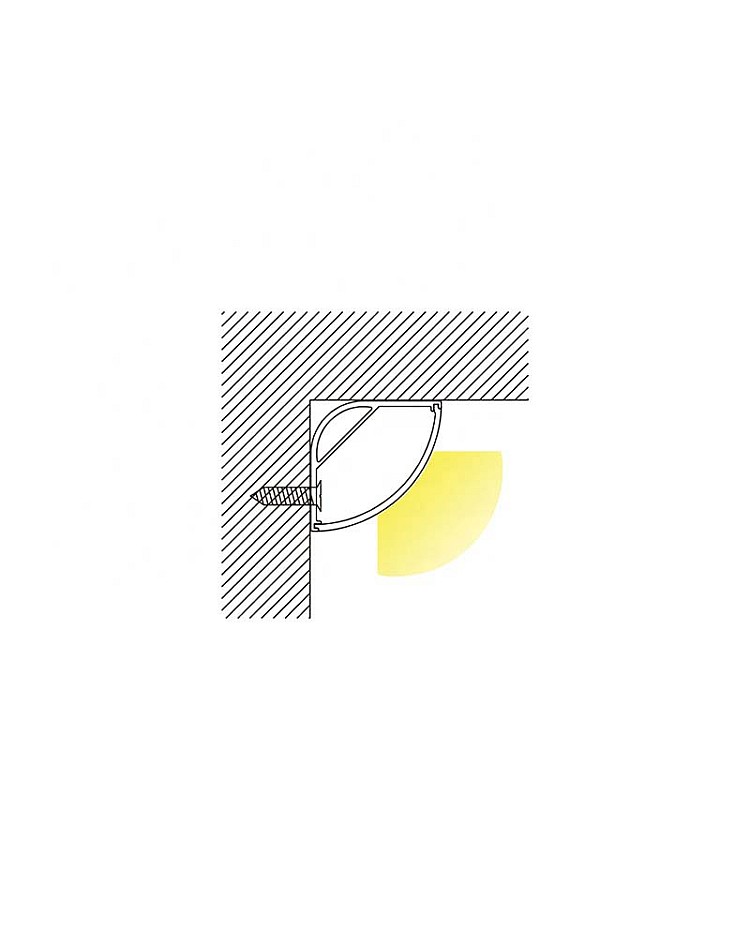

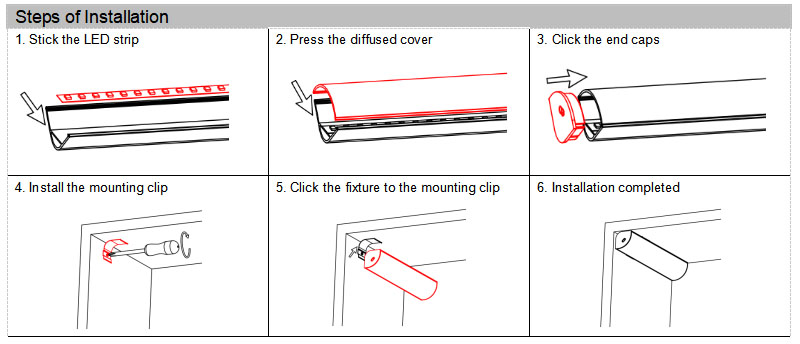

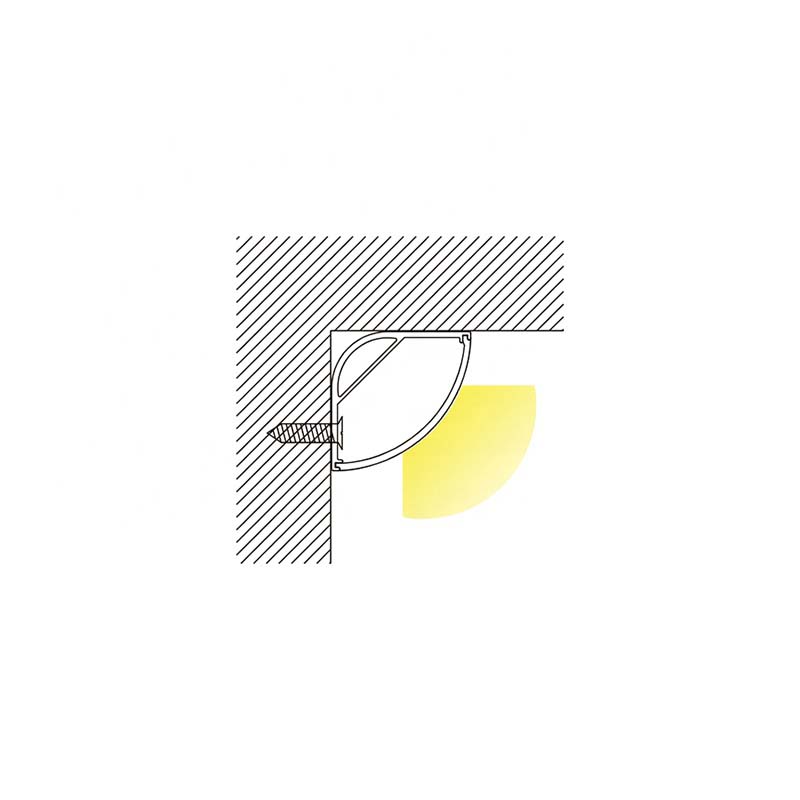

- Installation: Corner-mounted
- End caps and metal clips included
- LED strips, controllers, and transformers sold separately
- 180° and 90° connectors optional
- 5 years warranty
Package:

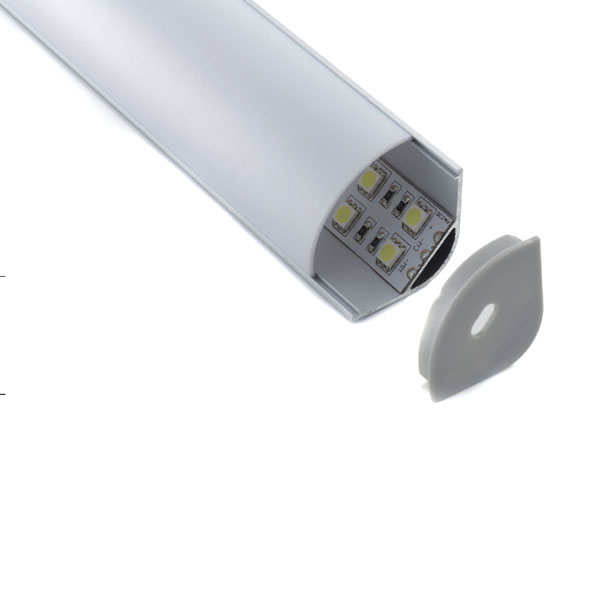

1 * LED corner channel with round diffuser

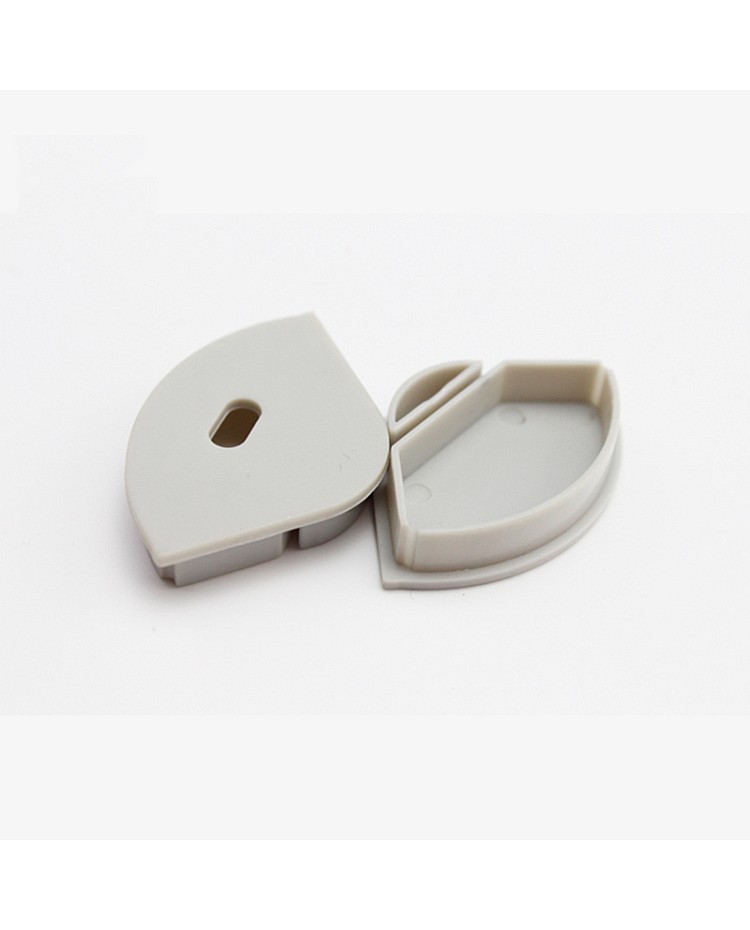

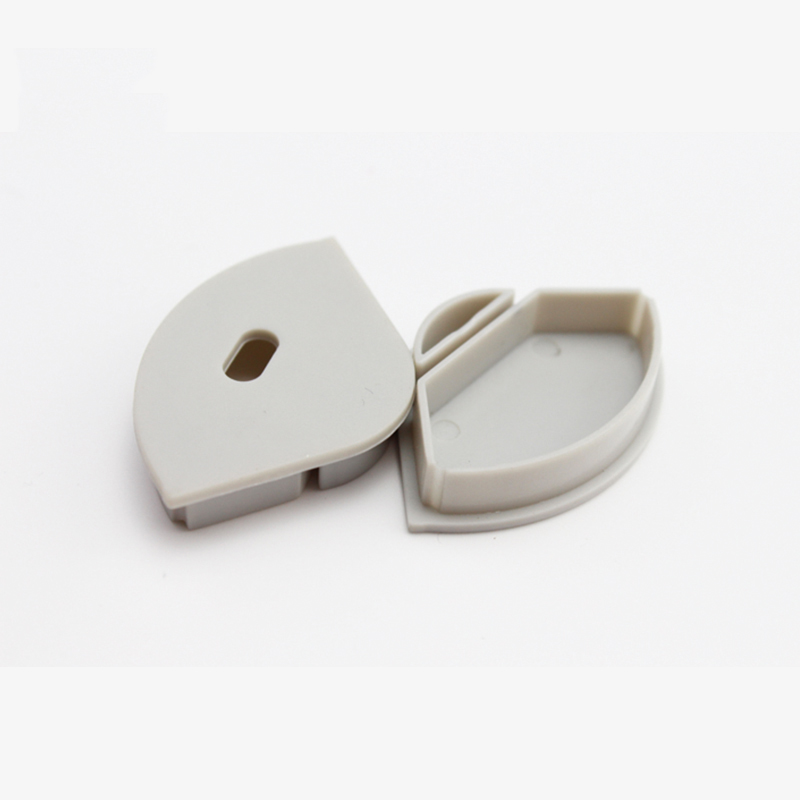

End caps(With and without wire holes)
Metal clips
