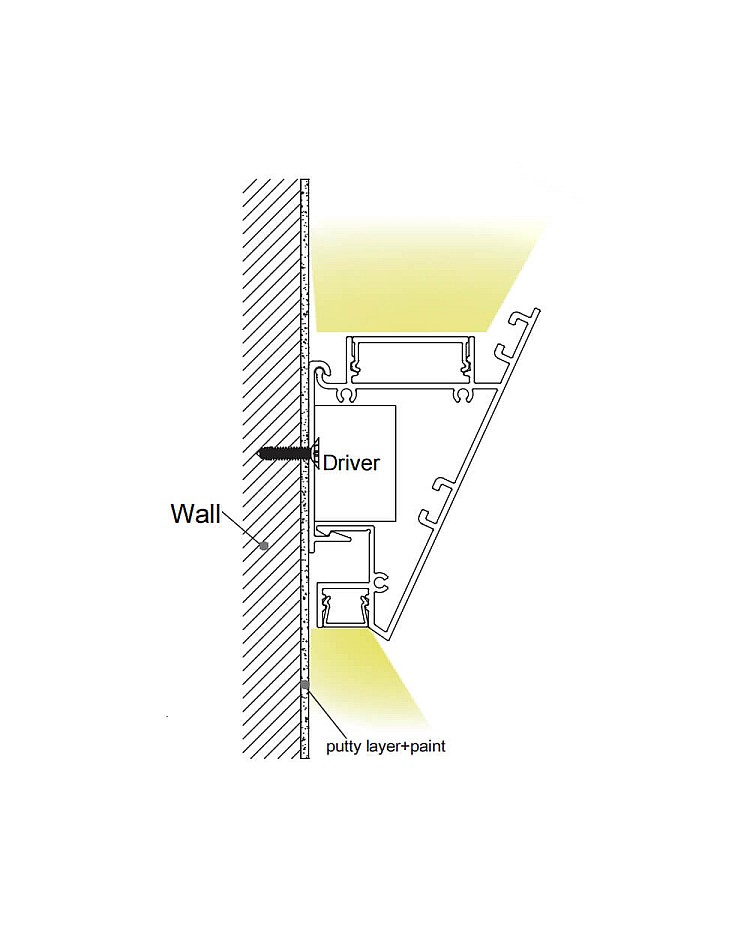

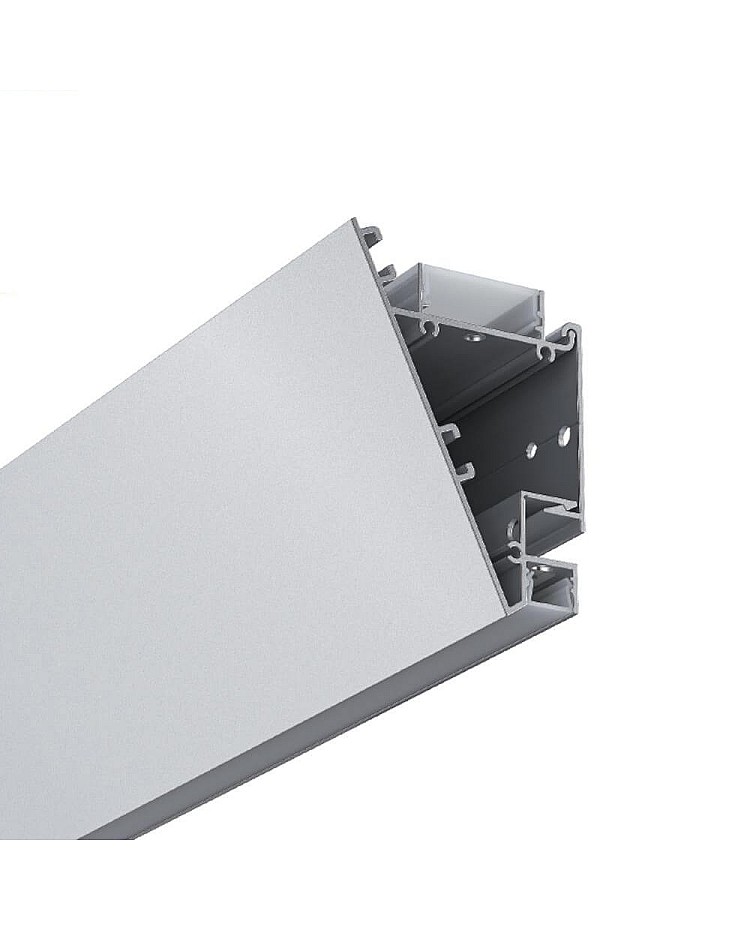

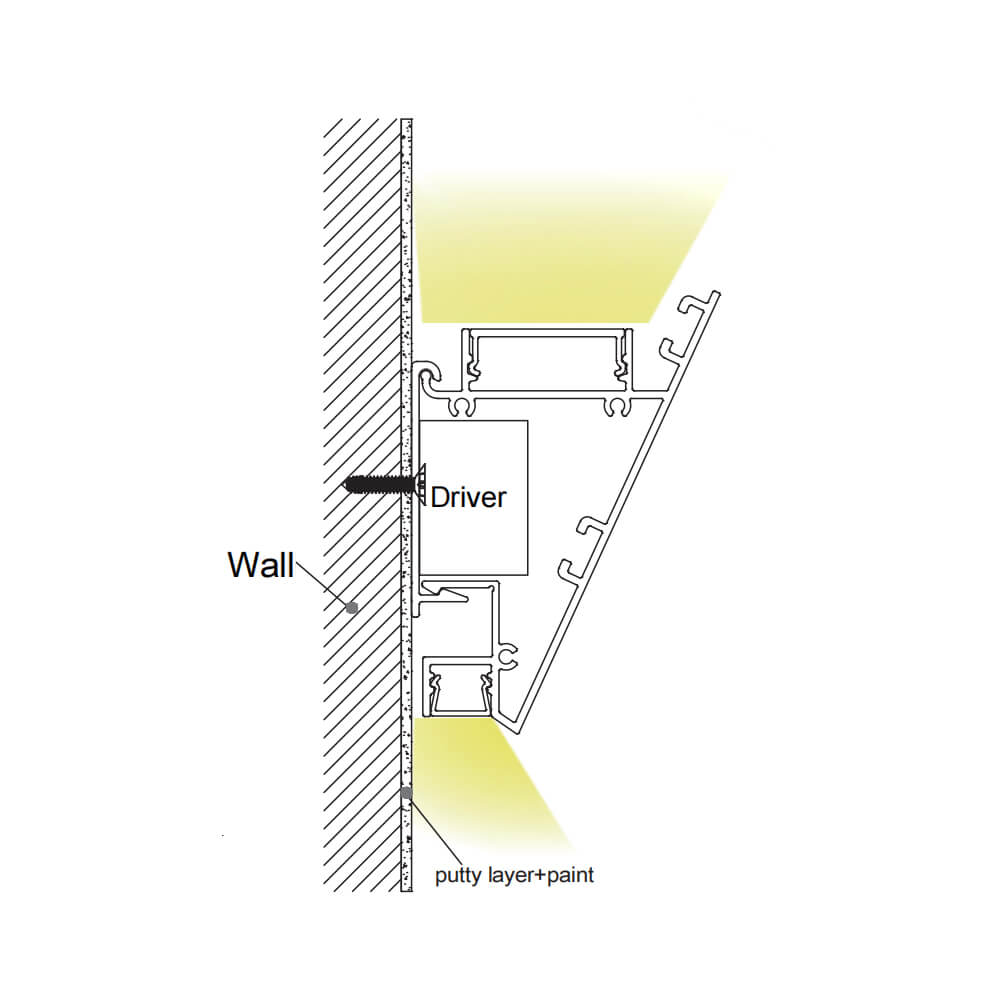

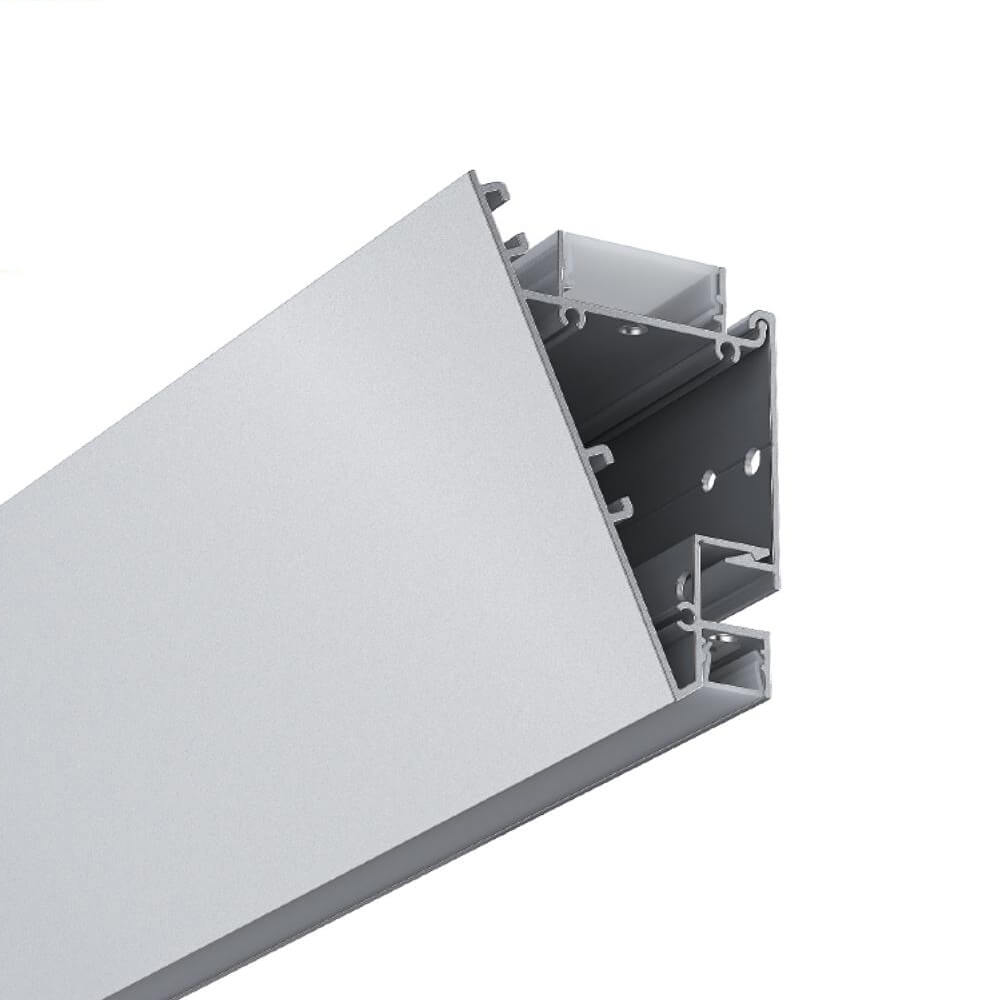

This premium LED channel is designed for surface-mounting directly on the wall. The unique asymmetric profile throws a wide, soft indirect beam that washes the wall or ceiling evenly, and downward it shoots a narrow accent line. It has barely any glare for a clean, modern appearance. Perfect for living rooms, hallways, hotel lobbies, retail spaces, restaurants, or any contemporary interior where lighting needs to work both ways.
Crafted from high-quality extruded aluminum alloy, the surface features a powder-coated finish for oxidation resistance and longevity. The standard lengths are 1m and 2m, and custom lengths are supported. The extruded aluminum profiles can serve as heat sinks to enhance heat dissipation and protect your LED strips from dust, moisture, and physical damage, helping them operate more reliably and extend their lifespan.

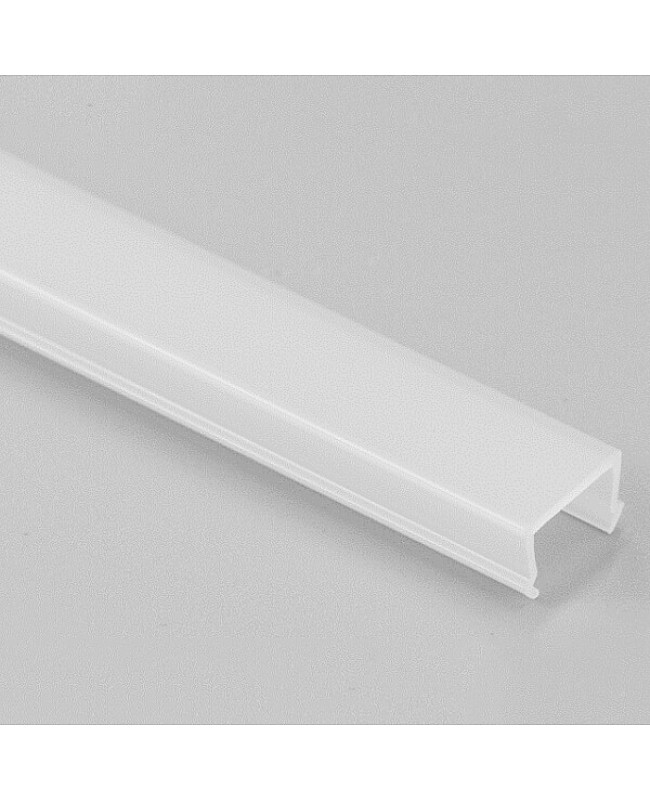

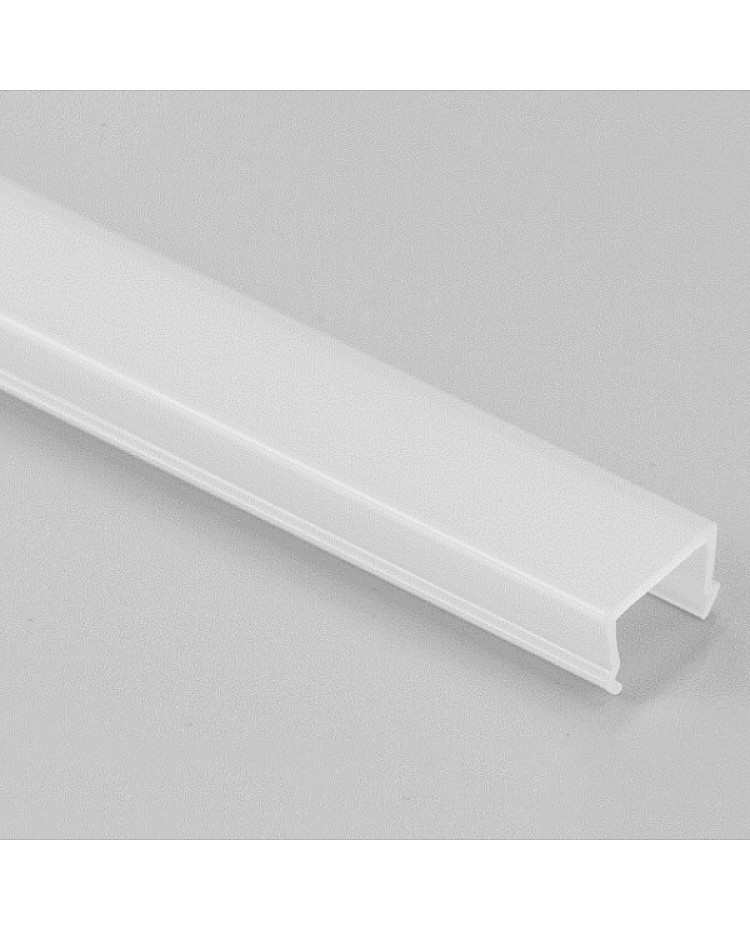

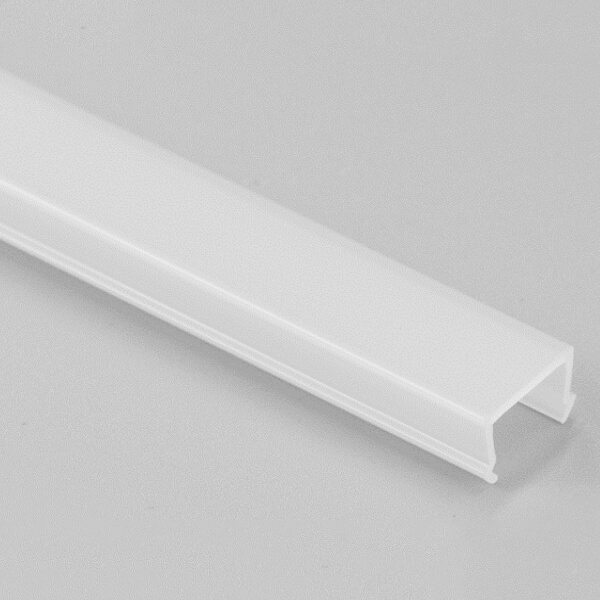

The upward inner width is 30.4mm to allow you to add two or three lines of high-density COB or SMD strip lights as the light source; the downward is 11.9mm, allowing you to install our 8mm or 10mm LED strips. The PC diffusers will spread the light evenly for uniform illumination, without LED dots or dark areas. The diffused covers are designed to sit slightly behind the aluminum channels for anti-glare performance.

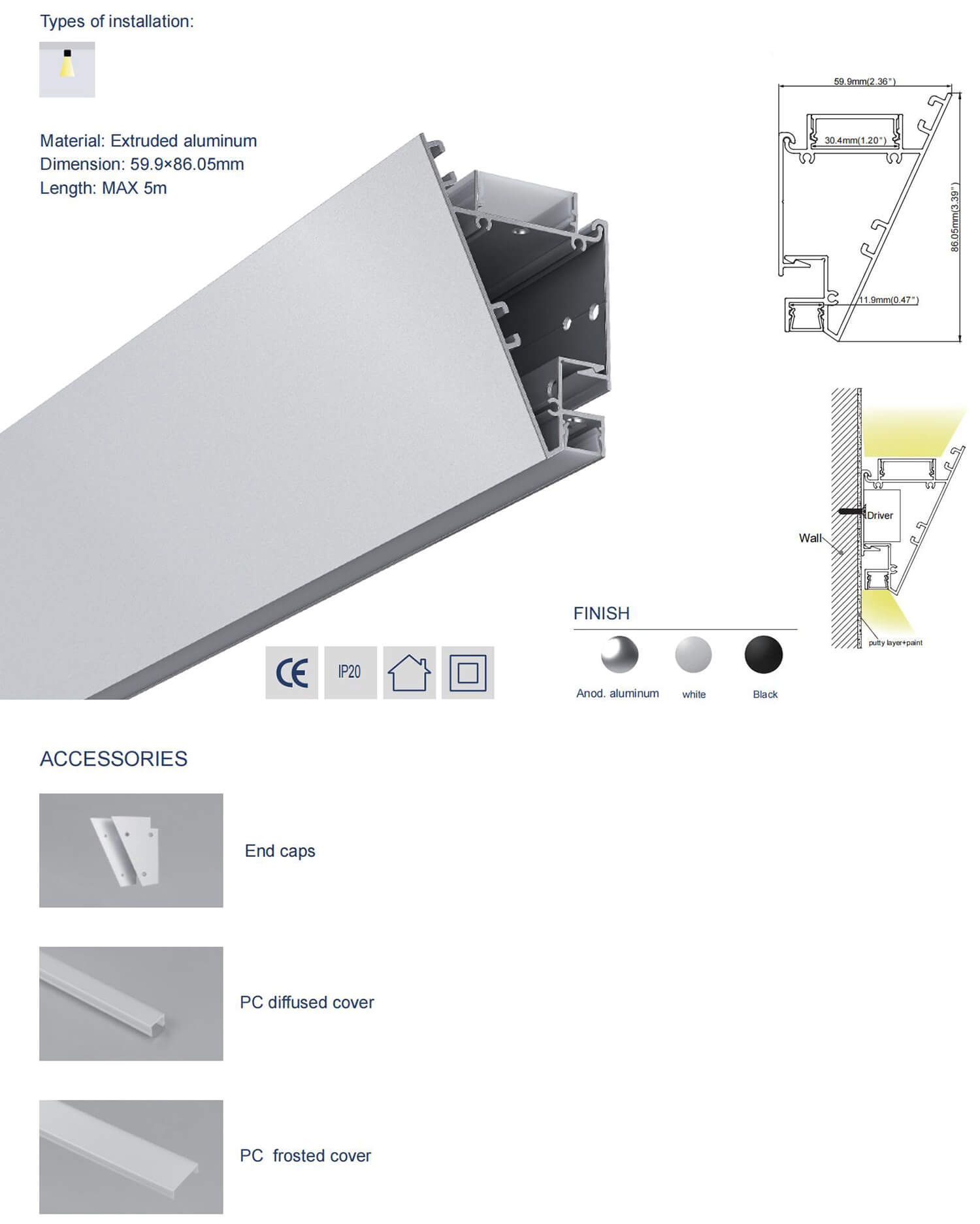

Specifications:
- Model: LB252
- Material: Extruded aluminum alloy
- Surface treatment: Powder-coated
- Color: White

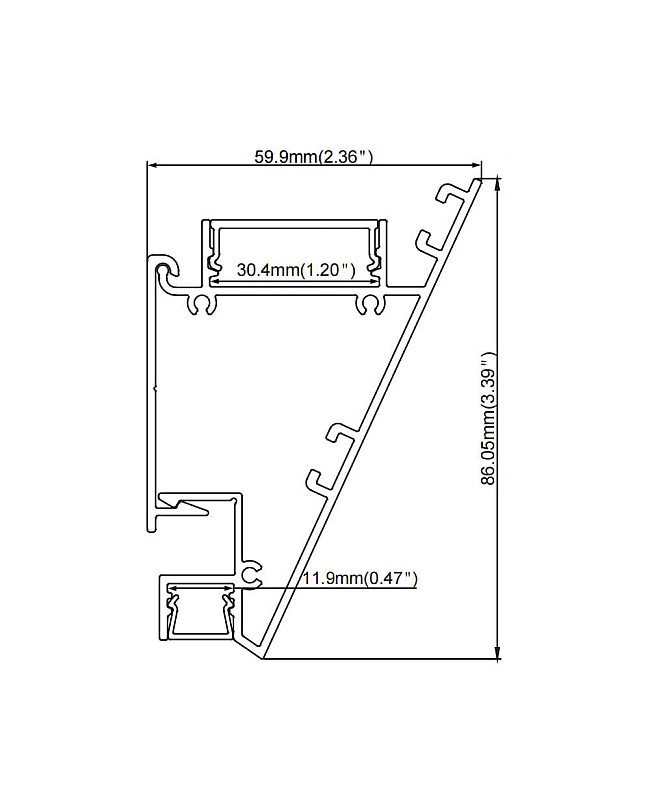

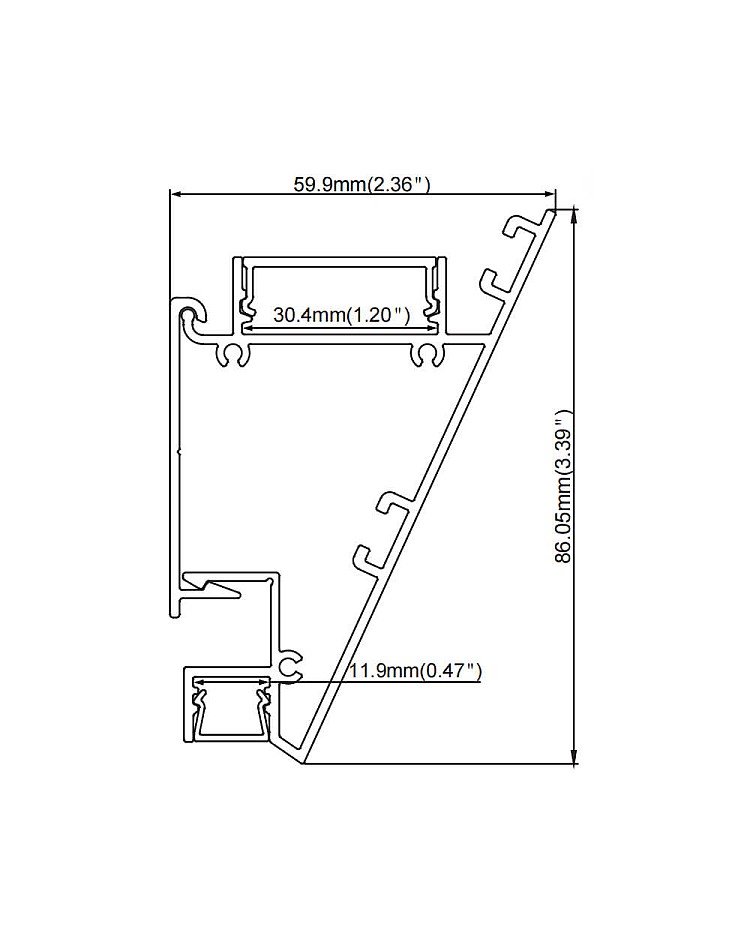

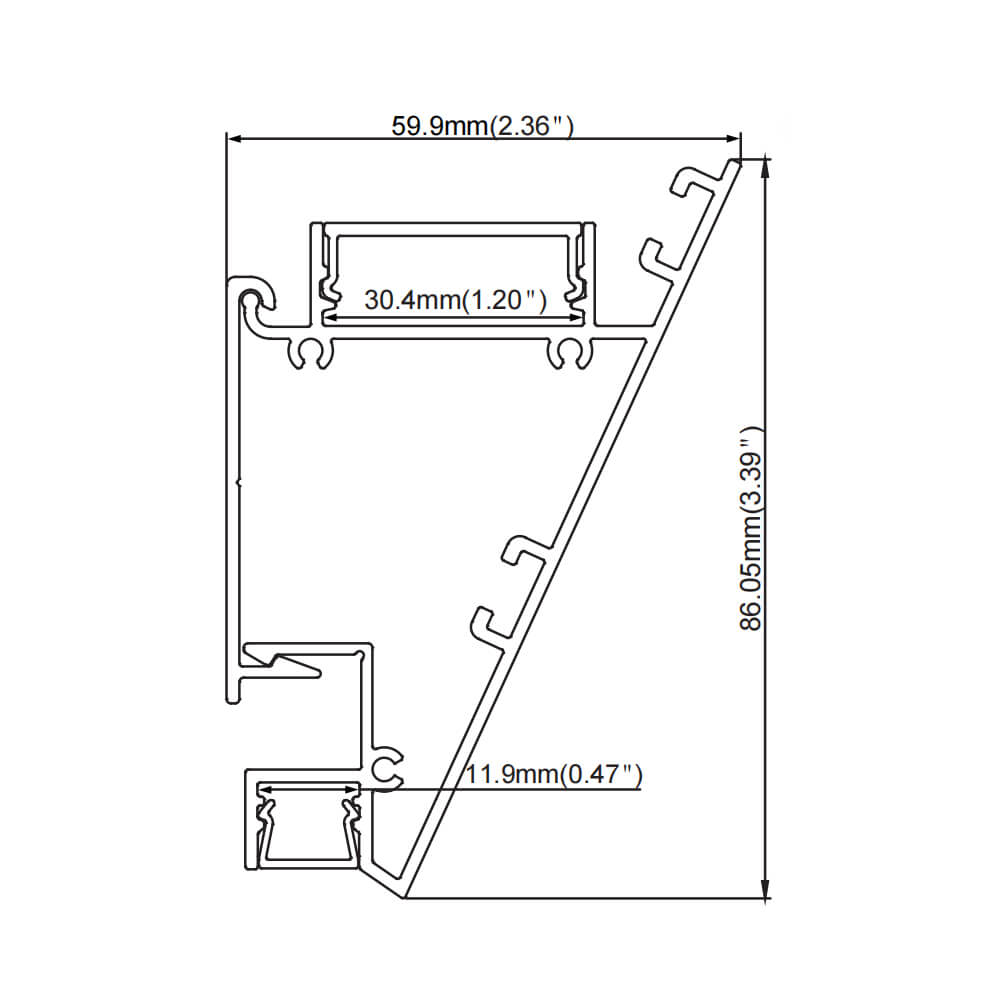

- Size ( Width x Height ): 59.9mm x 86.05mm ( 2.36" x 3.39")
- Lengths available: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length available: YES
- Inner width: upward: 30.4mm/1.2"; downward: 11.9mm/0.47"
- Max power: upward: ≤30W/m: downward: ≤15W/m
- Diffusers available: PC diffused cover(upward), PC frosted cover( downward)
- IP rating: IP20 non-waterproof

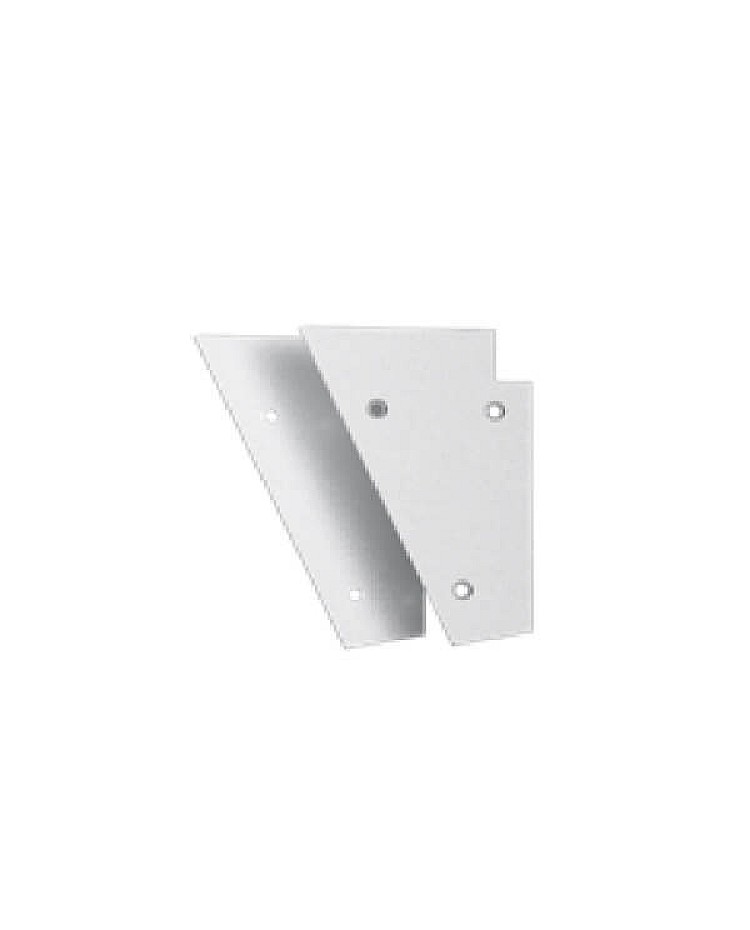

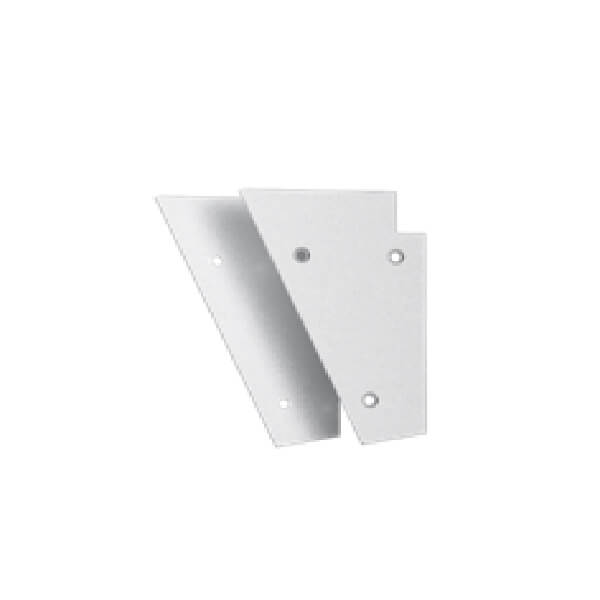

- End caps included
- Installation: Surface-mounted
- Applications: Wall washing
- 5 years warranty
Includes:
1 x Up-down wall wash LED channel
1 x PC diffused cover
1 x End caps
