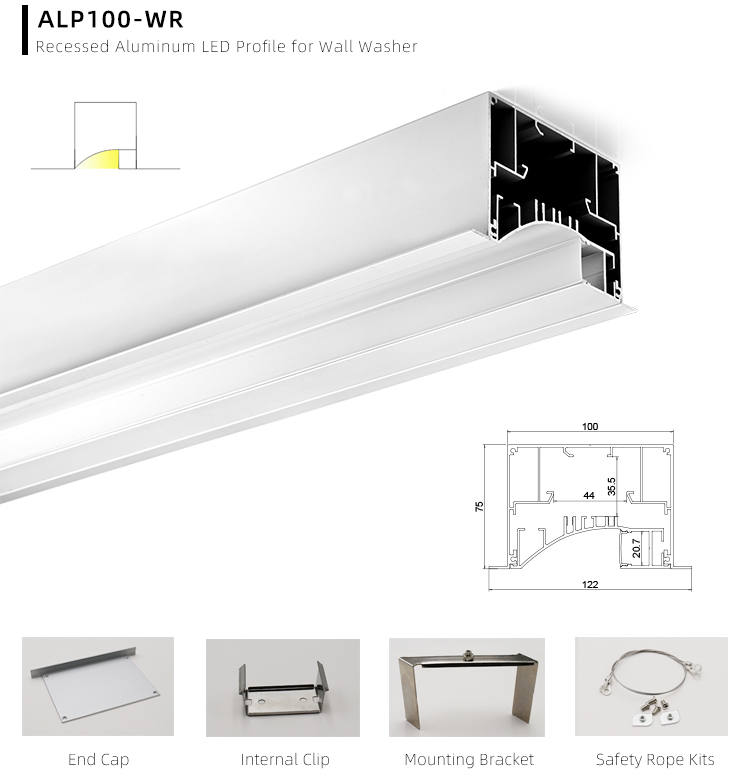

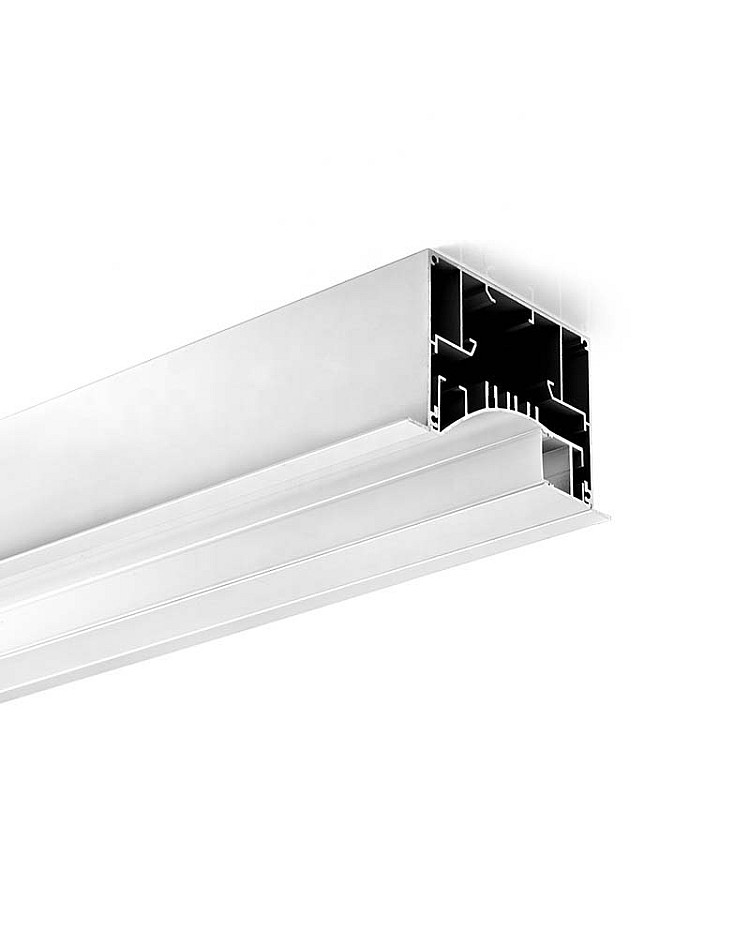

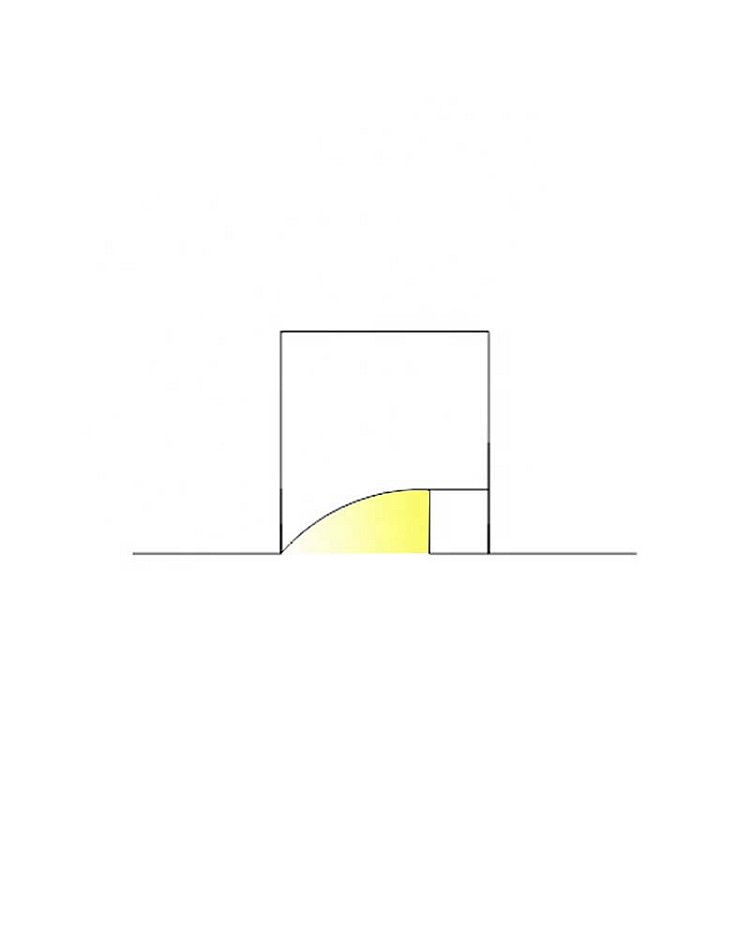

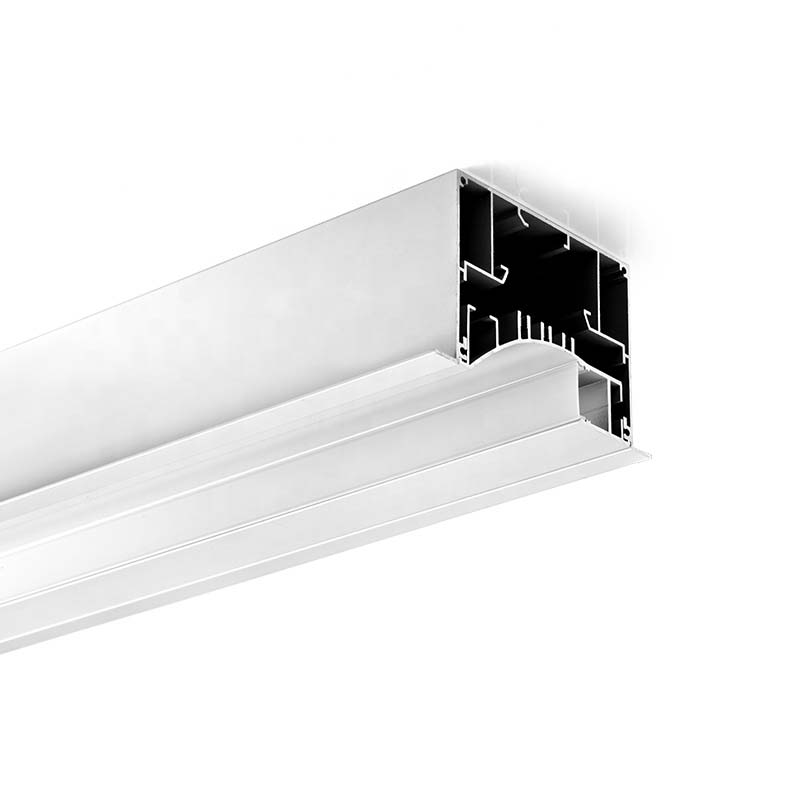

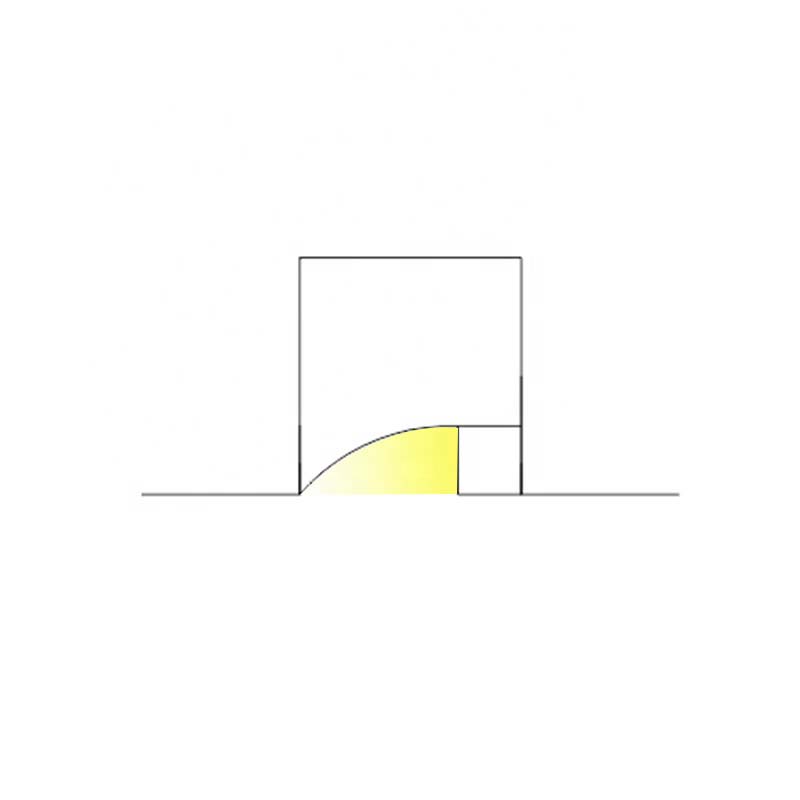

Check the Recessed LED Profile Extrusion for Wall Washer, made of high-quality 6063-T5 aluminum material and with the anodized surface treatment, for the better anti-oxidation feature and a longer lifespan than other similar products, provides 3 years warranty. the standard length of LED Extrusion is 1meter per piece, the max length can do 3meter per piece, you can cut to any length you want. there is only one type of diffuser available, you can choose the PC frosted opal cover for the smooth light effect, the inner width under the diffusers is 20.7mm, you can install the Flexible LED Strips 3528 0r 5050 in double rows, Rigid LED Strips or LED Modules as the light source, the 2 inches Recessed Aluminium LED Profile with 15mm long dropped cover, the end caps, mounting brackets and clips included, you can recess them into the ceiling as the wall washer light. you can use them in offices, shops, retail malls and hotels.


  • Model: ALP100-WR
  • Material: AL6063-T5 Aluminium Alloy

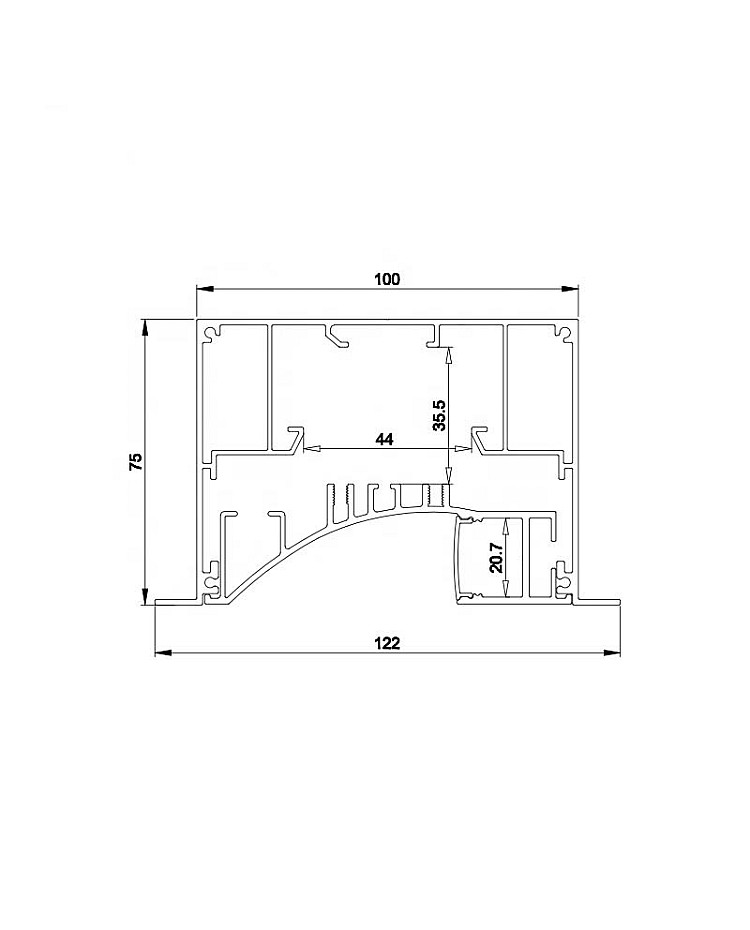

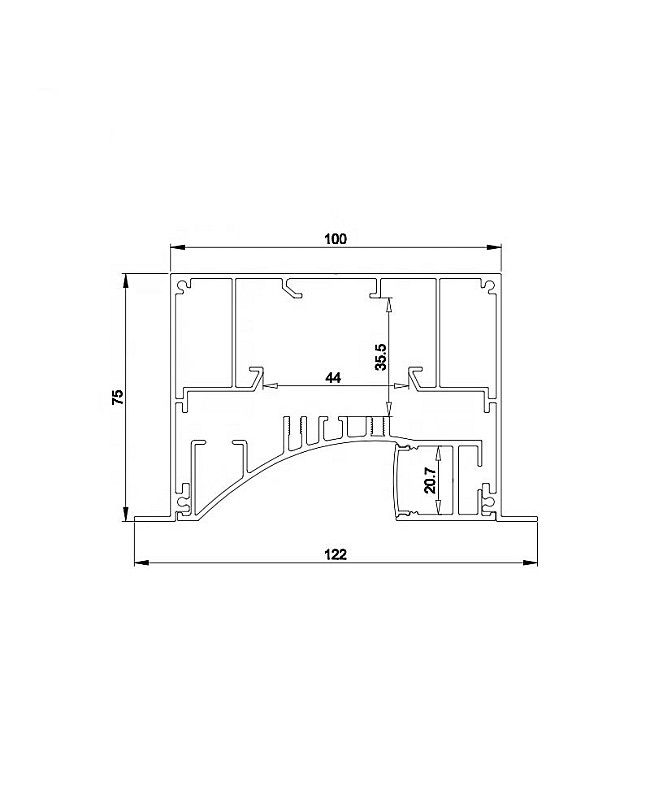

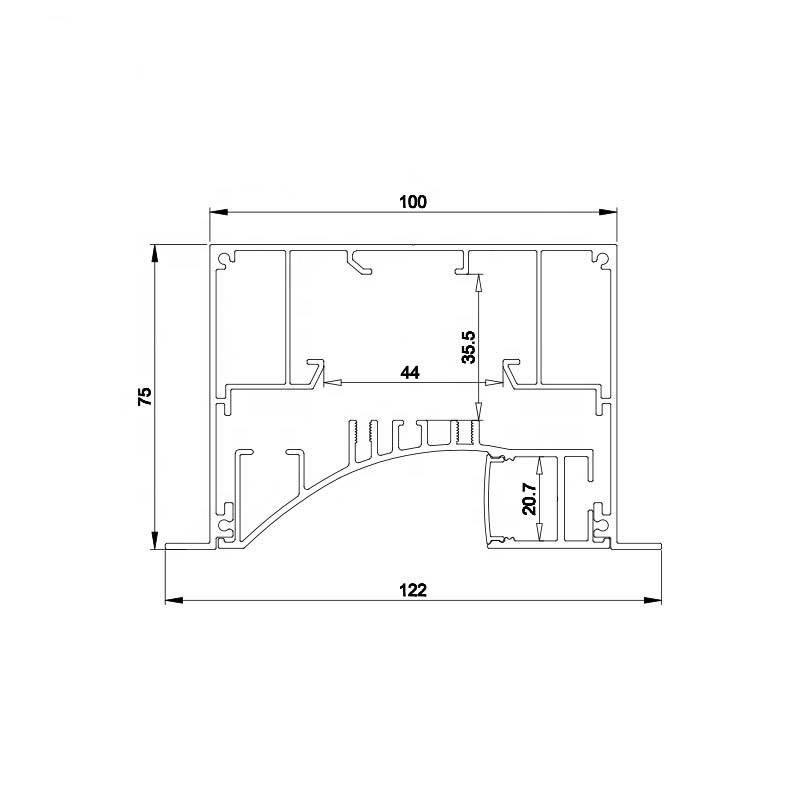

  • Size: 122*75mm
  • Surface Treatment: Anodized Silver
  • Colors: Silver, White, Black
  • Diffusers: PC Frosted Opal Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Inner Width: 20.7mm
  • Compatible Double Rows 2835 Or 5050 Flexible LED Strips
  • Max Power: 45W/Meter

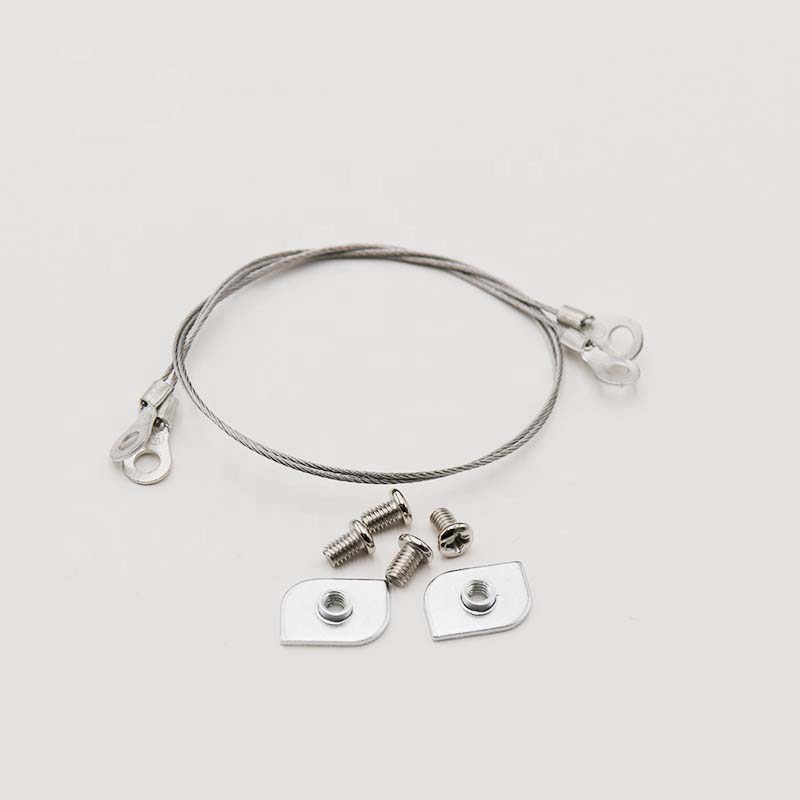

  • Aluminum End Caps, Mounting Brackets, Clips Included
  • Installation; Recessed
  • Application: Office Lighting, Shop Lighting, Retail Lighting, Hotel Lighting
  • Warranty: 5 Years


1*LED Profile Extrusion

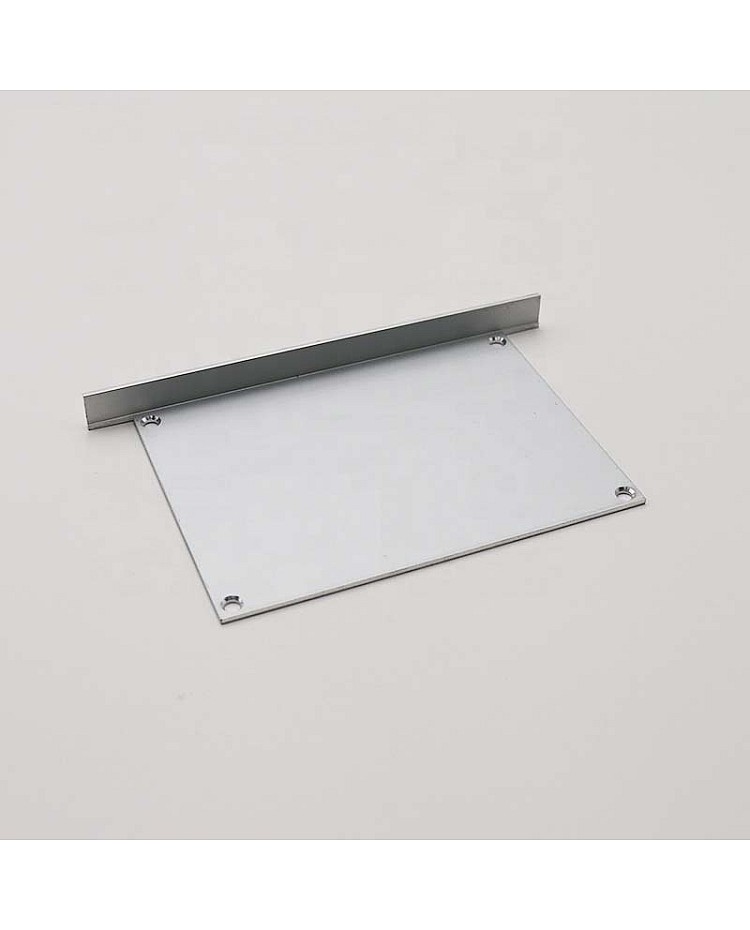

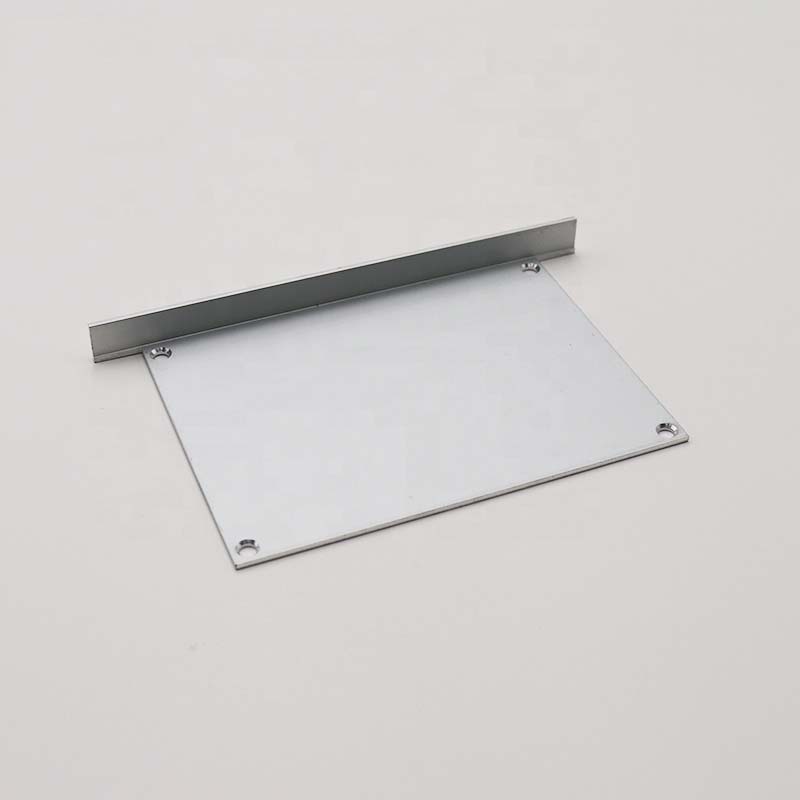

Aluminum End Caps

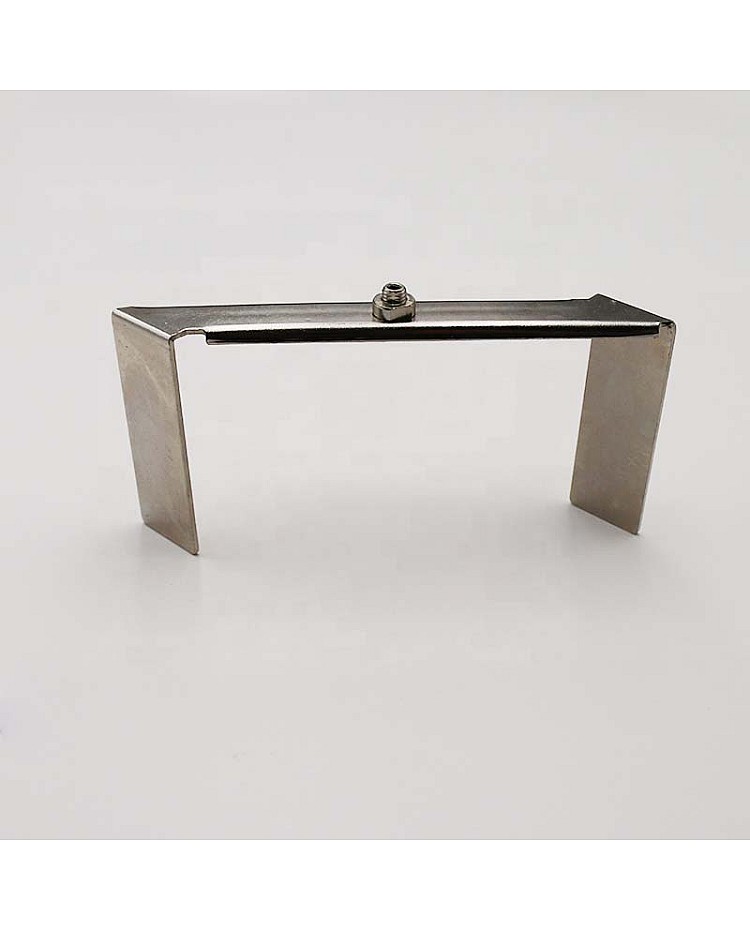

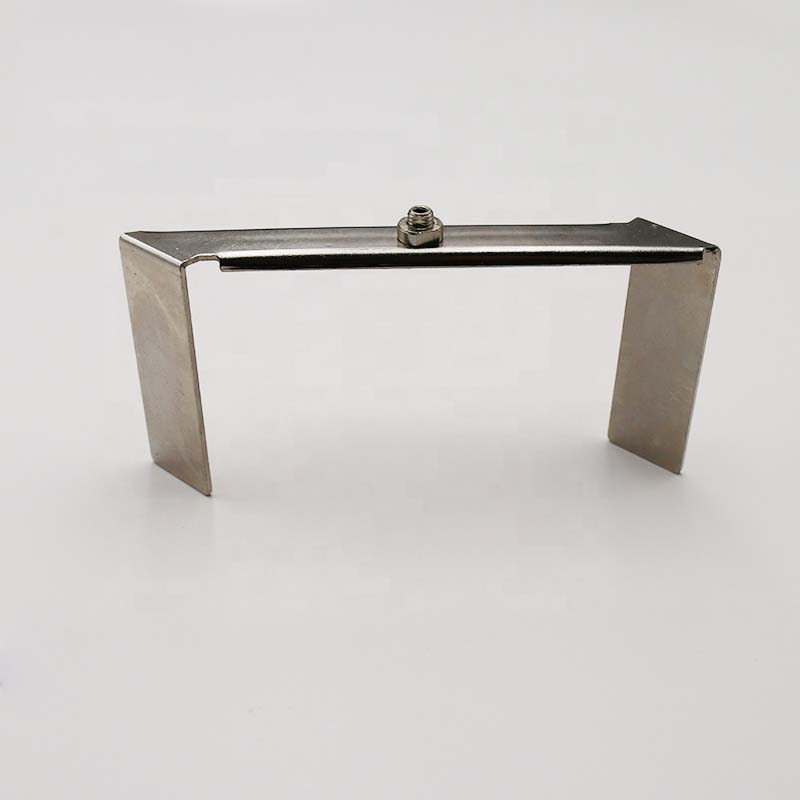

Mounting Brackets

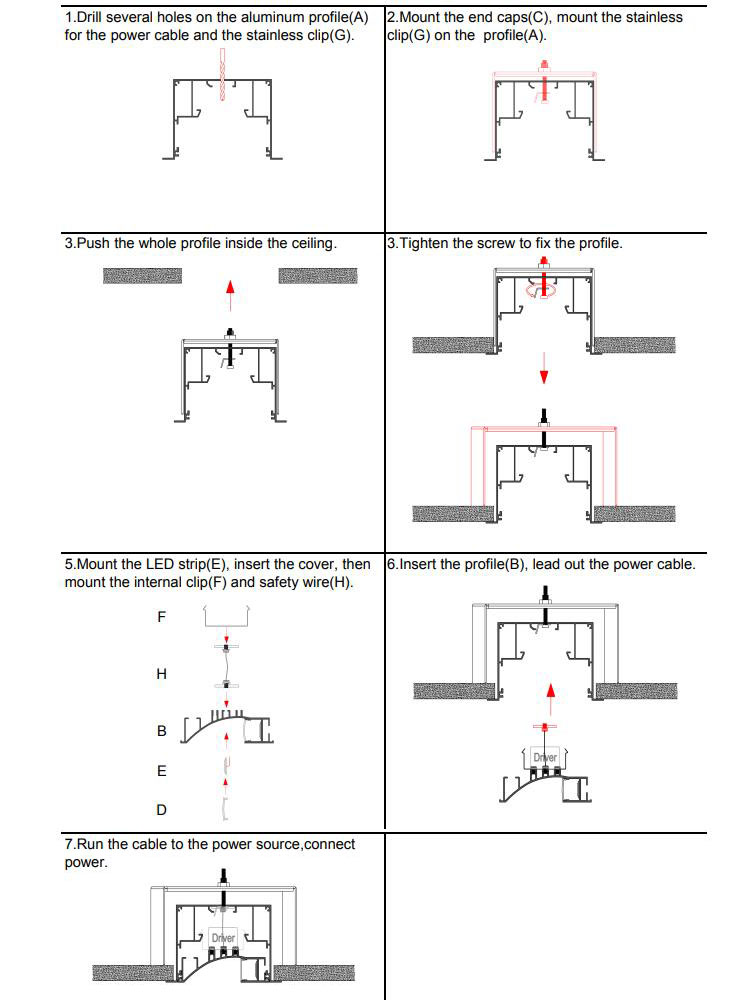

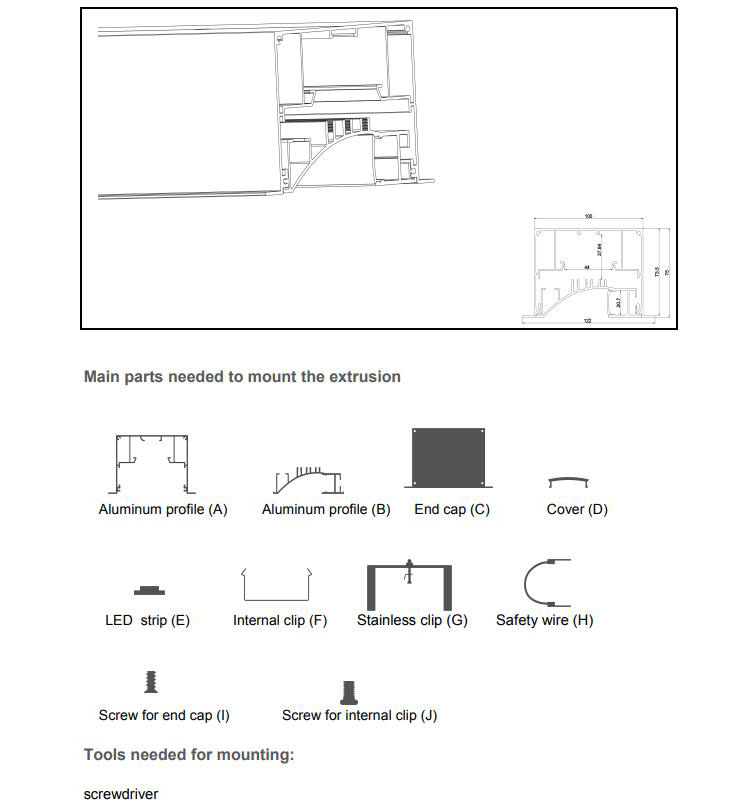

Cuttable LED Profile Extrusion LED Profile Extrusion How To Install LED Profile Extrusion For Wall Washer
