The Cabinet Toe Kick Moulding Lighting Profiles allow the creation of a beautiful linear lighting look along the foot line under the cabinets and provide a sleek, modern look. There are three light space products available: 5mm, 10mm, and 18mm. The inner width is 10.5mm and allows the max width of LED Strips to be 10mm. Recommended using the dotless COB LED Strips as the light source; you can use them to light up the floor areas. LED Cabinet Kickboard Channels are made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length is 1M and 2M, and you can cut to any length for your project. The 90° and 180° connectors are sold separately, and you can use them to reconnect the Kitchen Cabinet Toe Kick Profiles together. There is only one type of diffuser available: the PC Diffused Cover, which is made of brand-stable material, anti-yellowing, perfect light distribution, and even light output. End caps with wire holes included, easy to connect the LED Strips to 12V LED Driver to light up. They can be used as a heat sinker for better heat dissipation. They provide both functionality and aesthetics, enhancing the overall look of your cabinets.

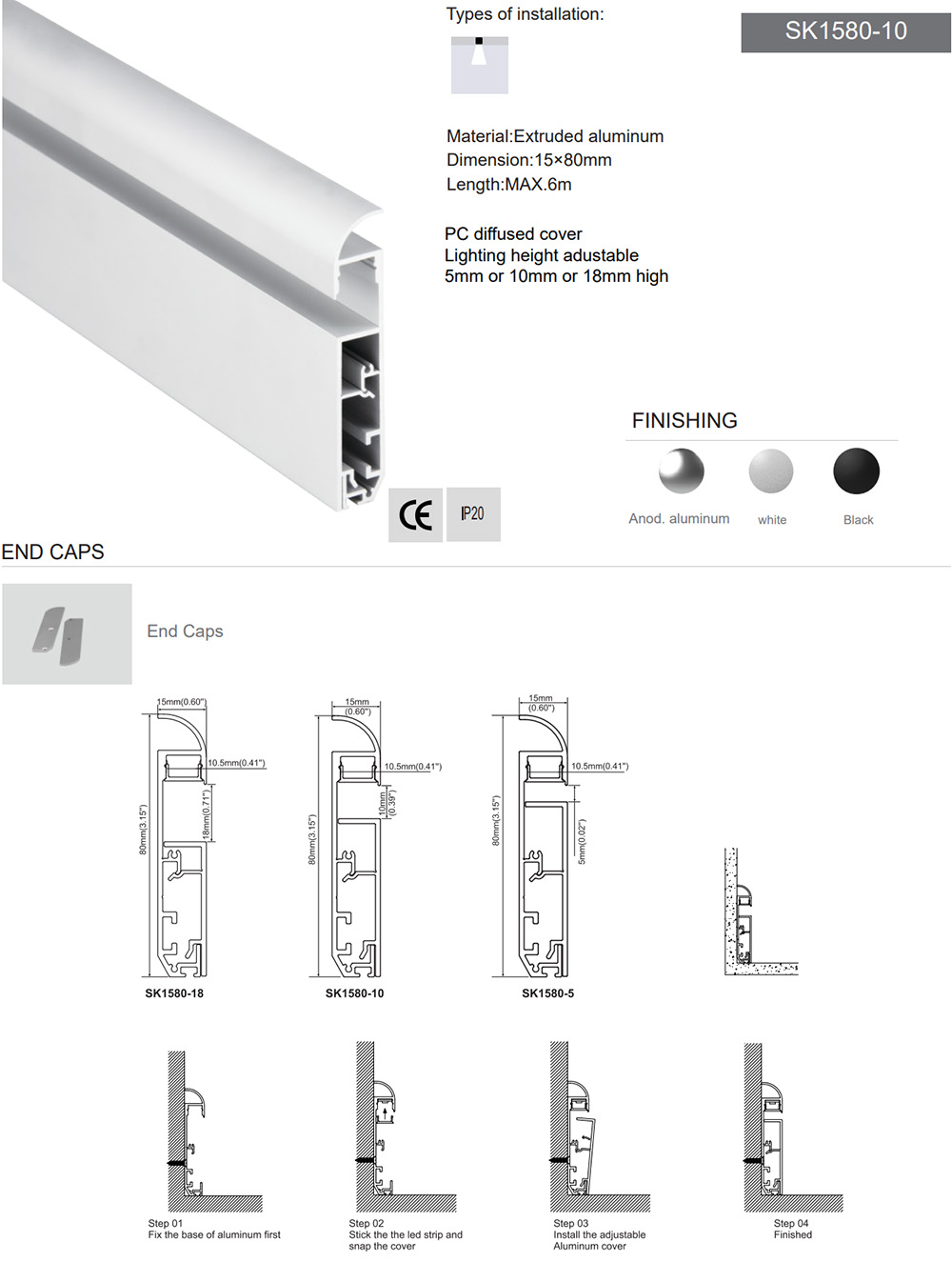

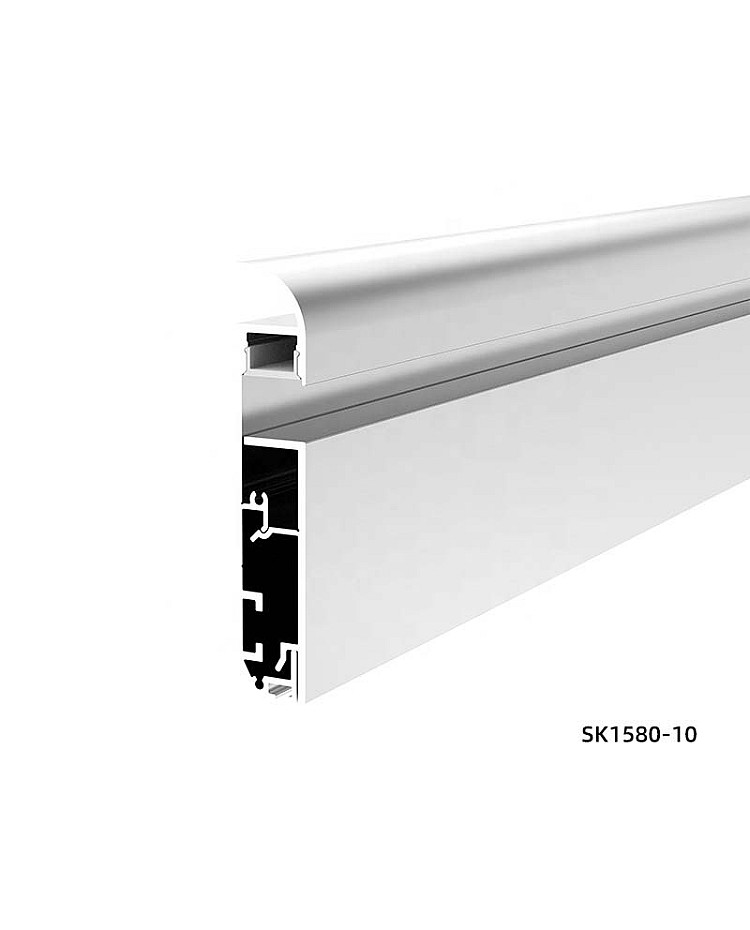

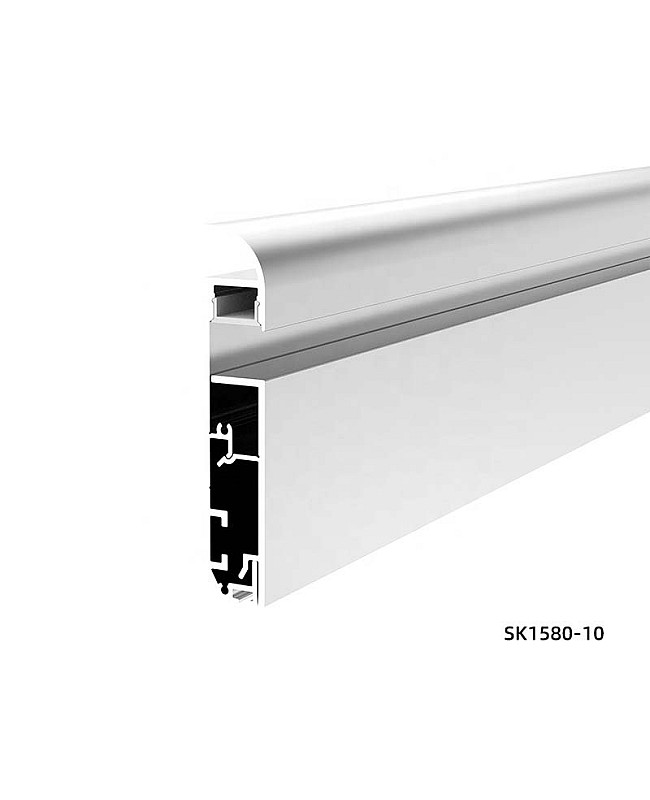

  • Model: SK1580
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

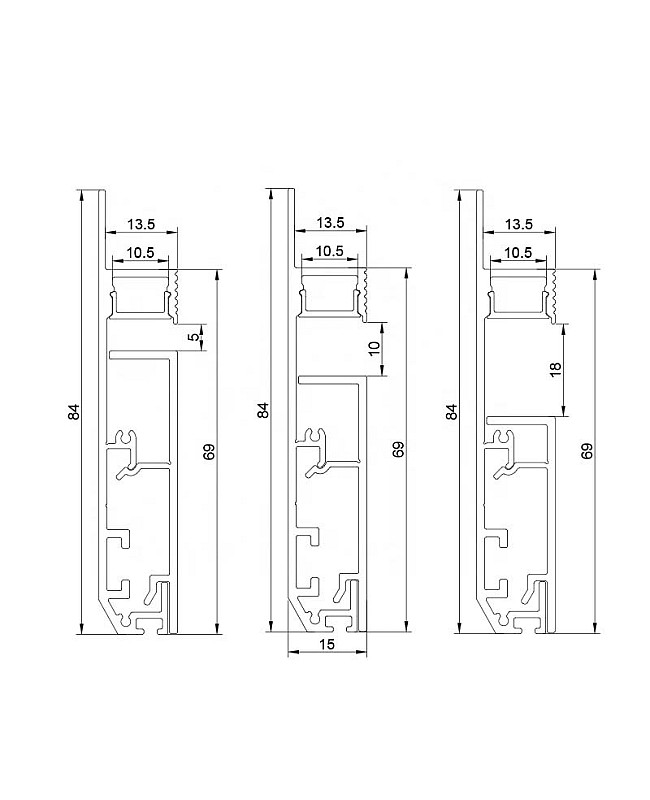

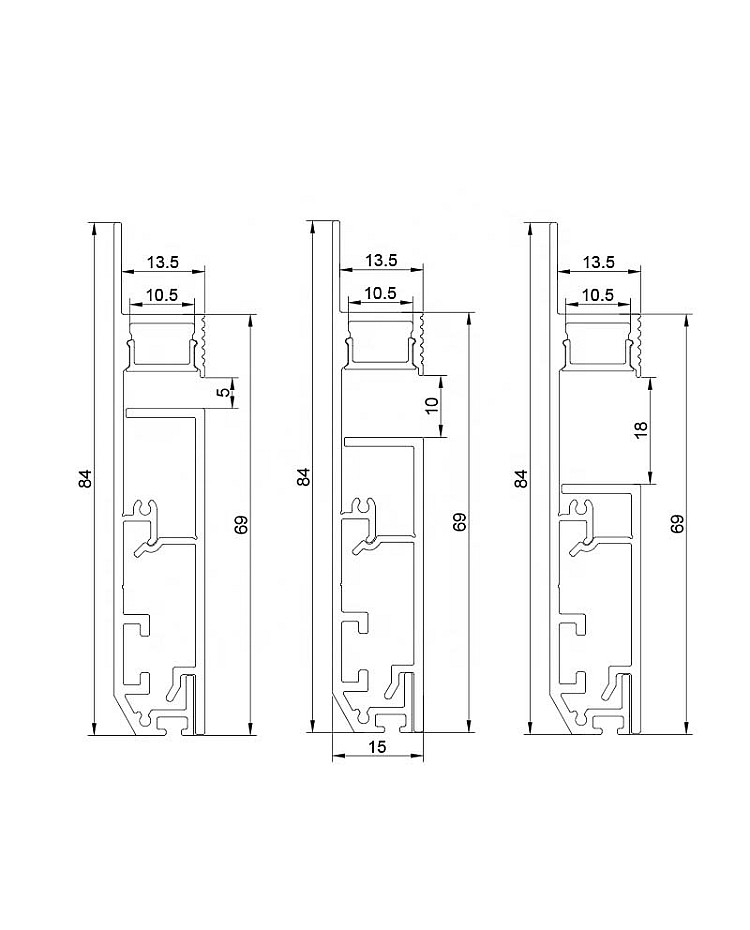

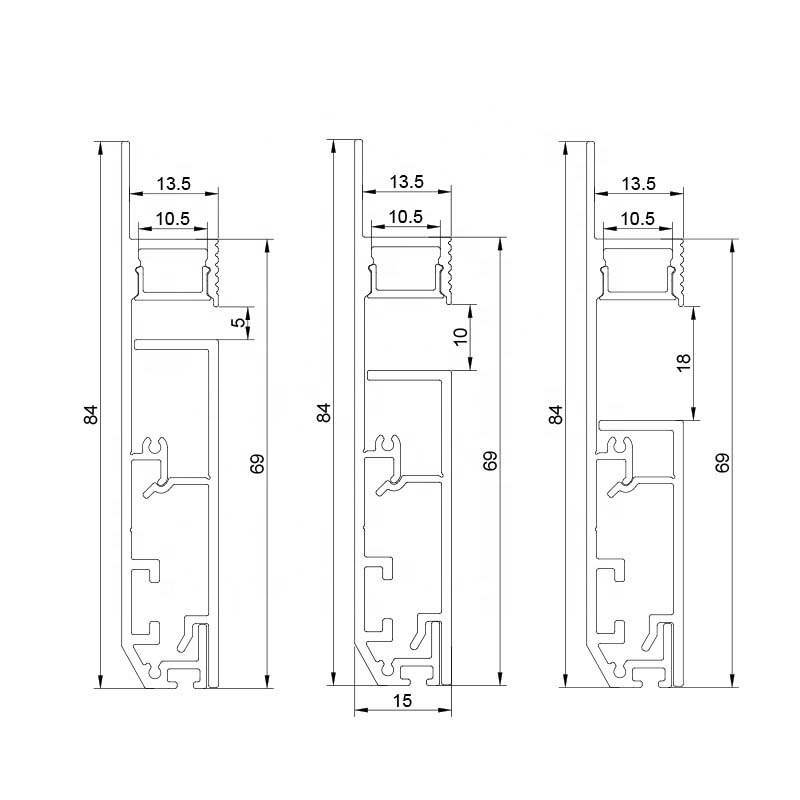

  • Size: 80*15mm(H*W)
  • Inner Width: 10.5mm
  • Compatible With Single Row 10mm COB or SMD 5050 LED Strips
  • Max Power: <20W/M
  • Standard Length: 1M
  • Other Lengths Available: 2M
  • Custom Length Available: YES
  • Diffuser: PC Diffused Diffuser

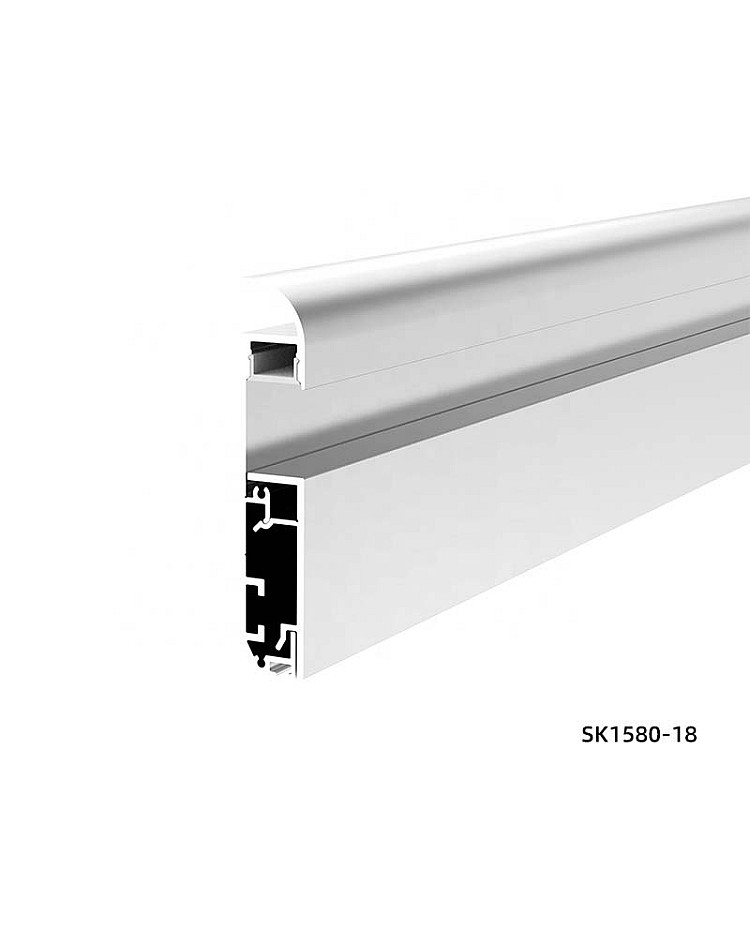

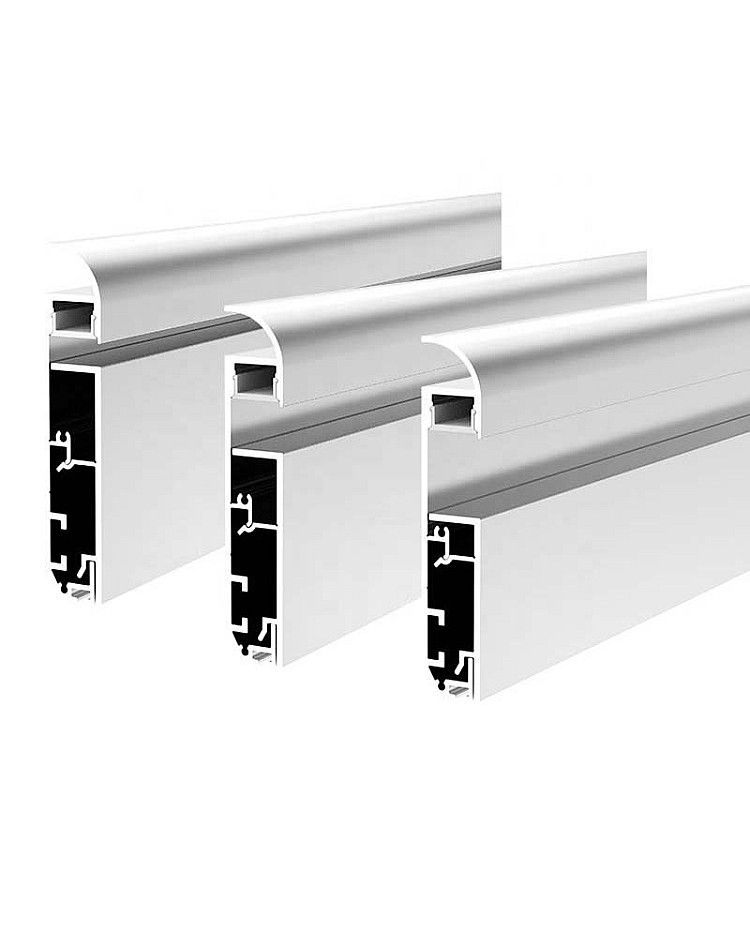

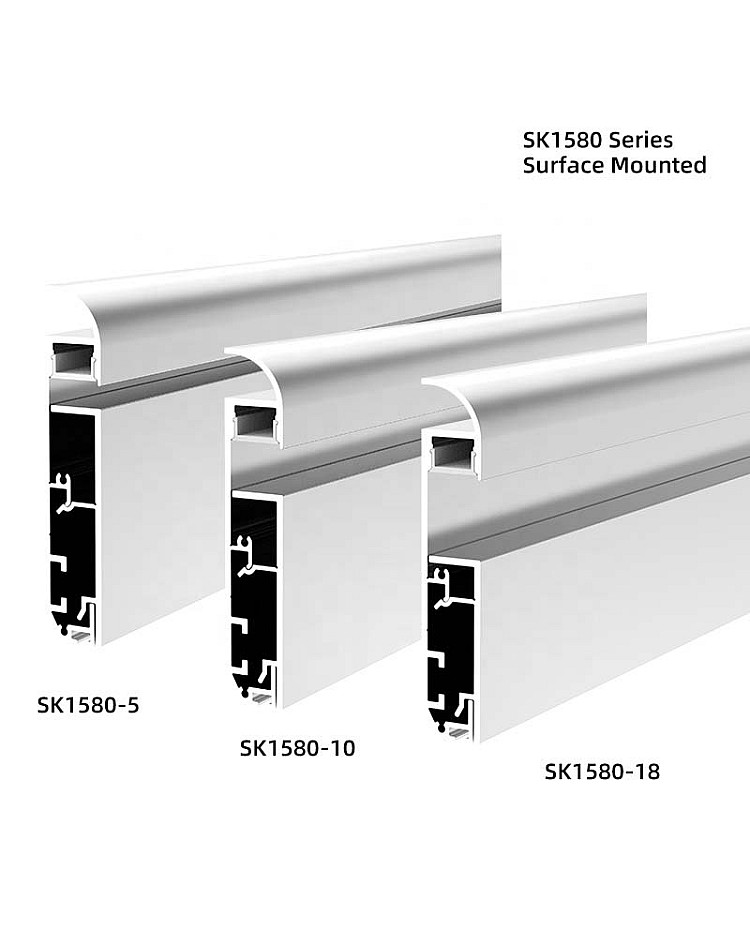

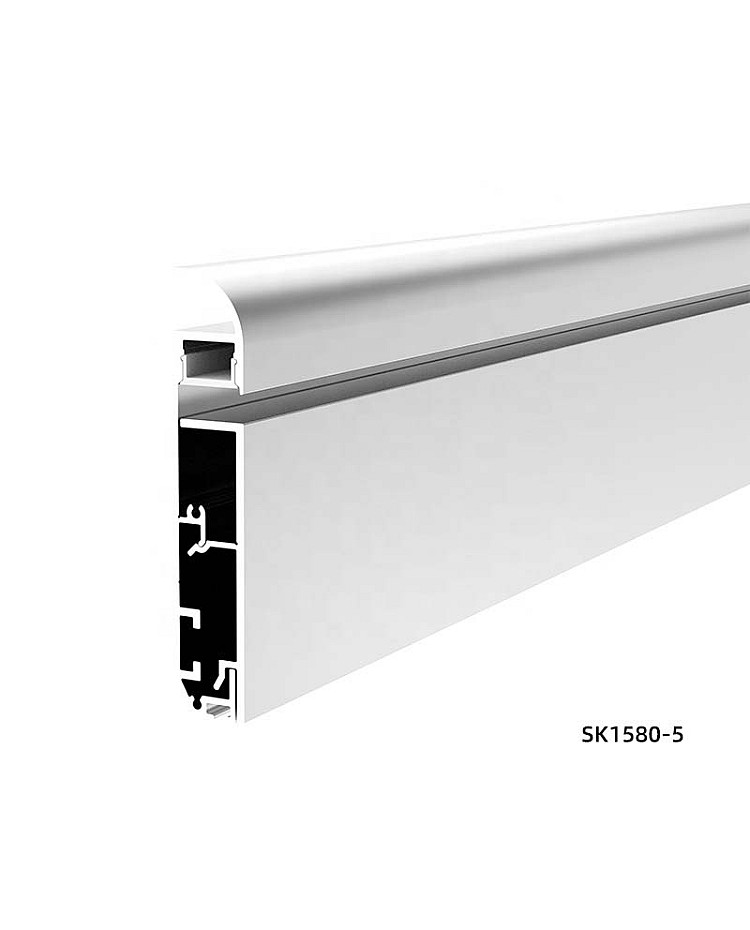

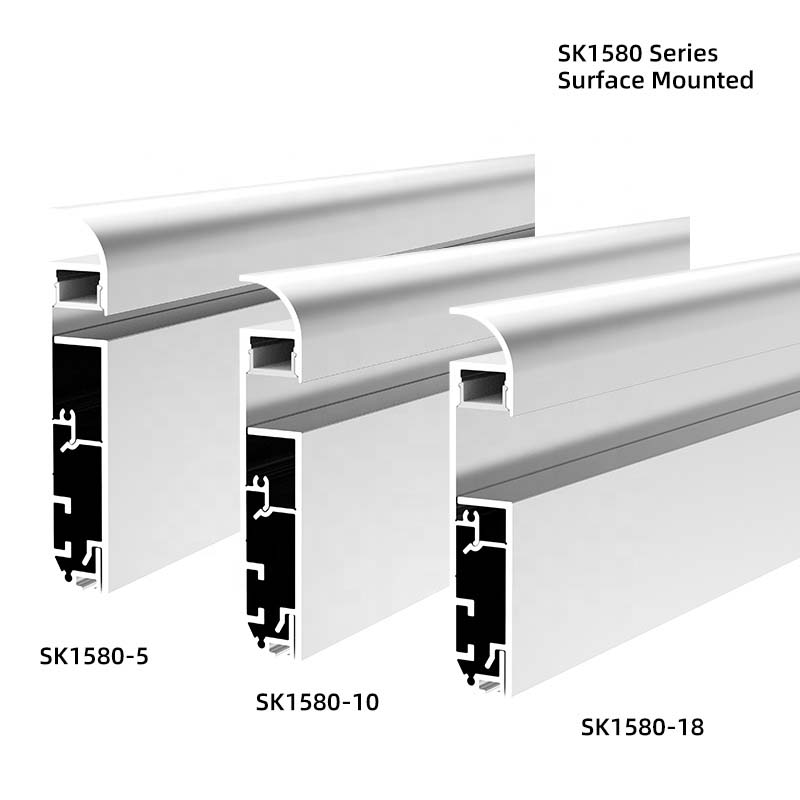

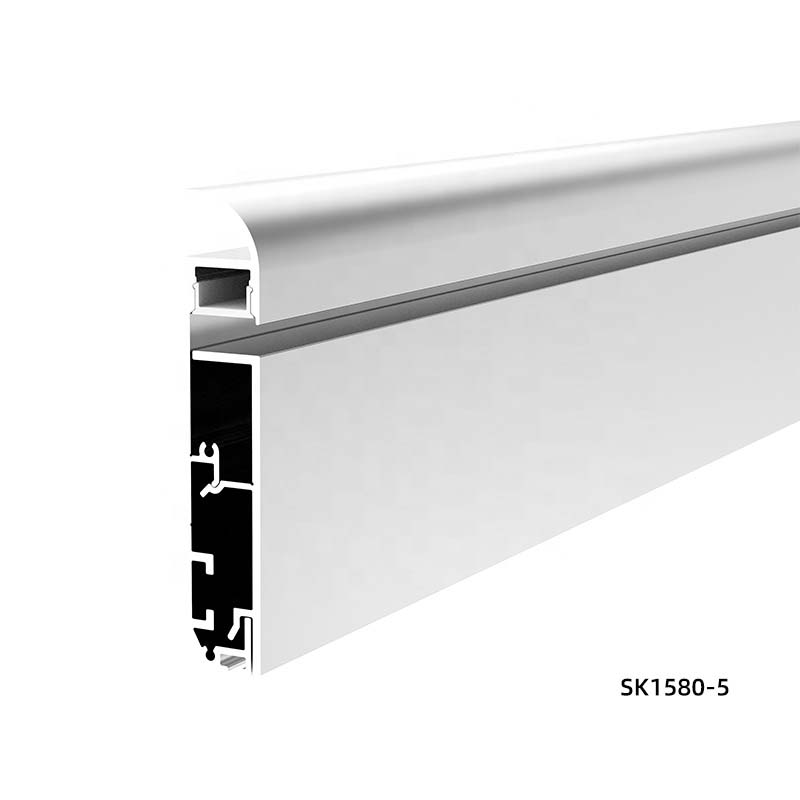

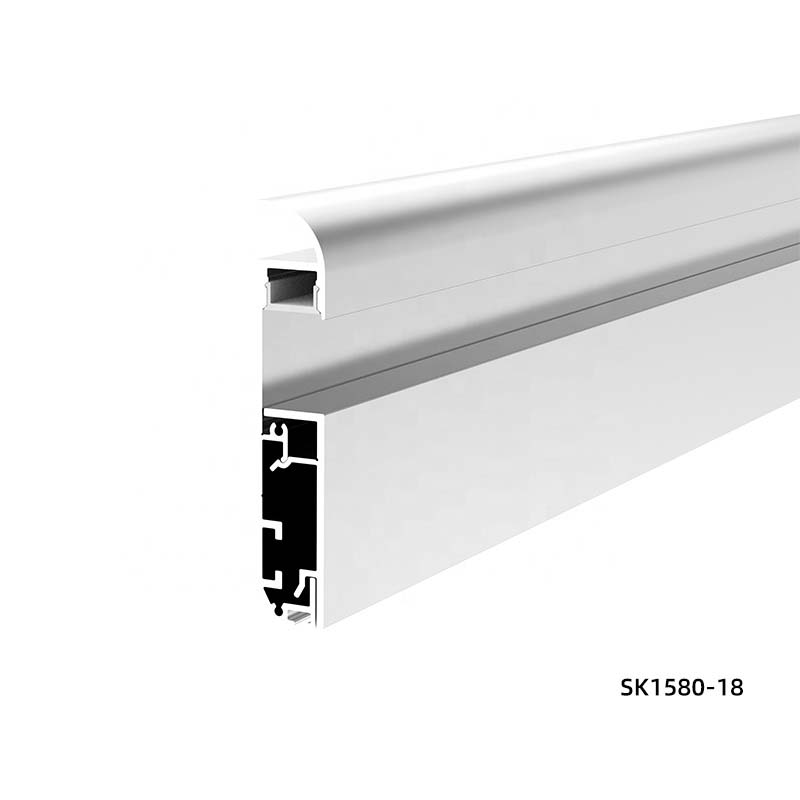

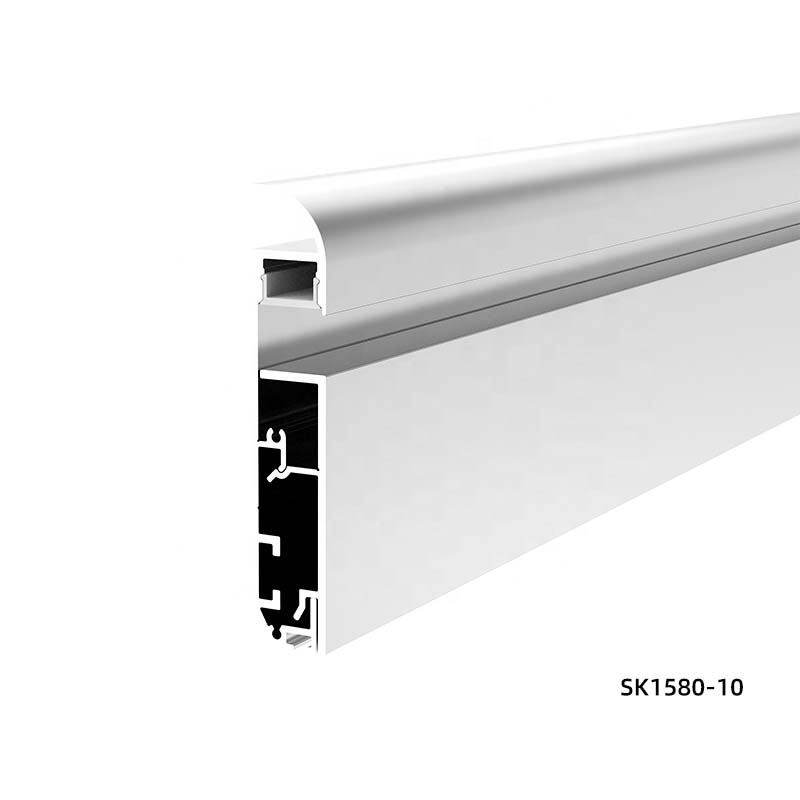

  • Lighting Space Selectable: 5mm, 10mm, 18mm
  • 90° And 180° Connectors Sold Separately
  • LED Strips, Controllers, and Transformers Sold Separately

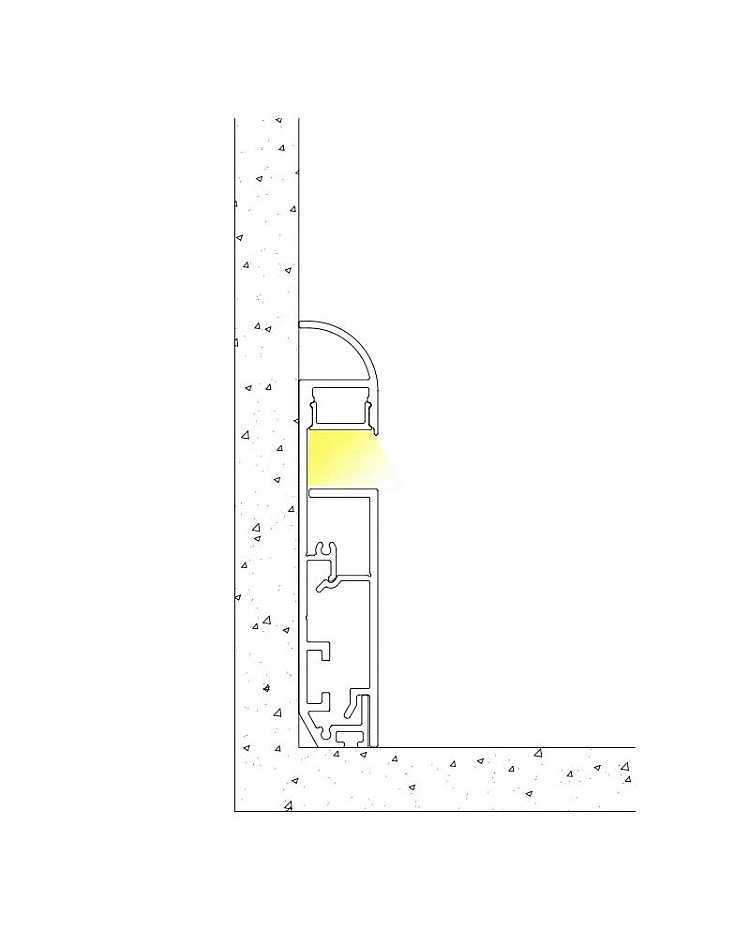

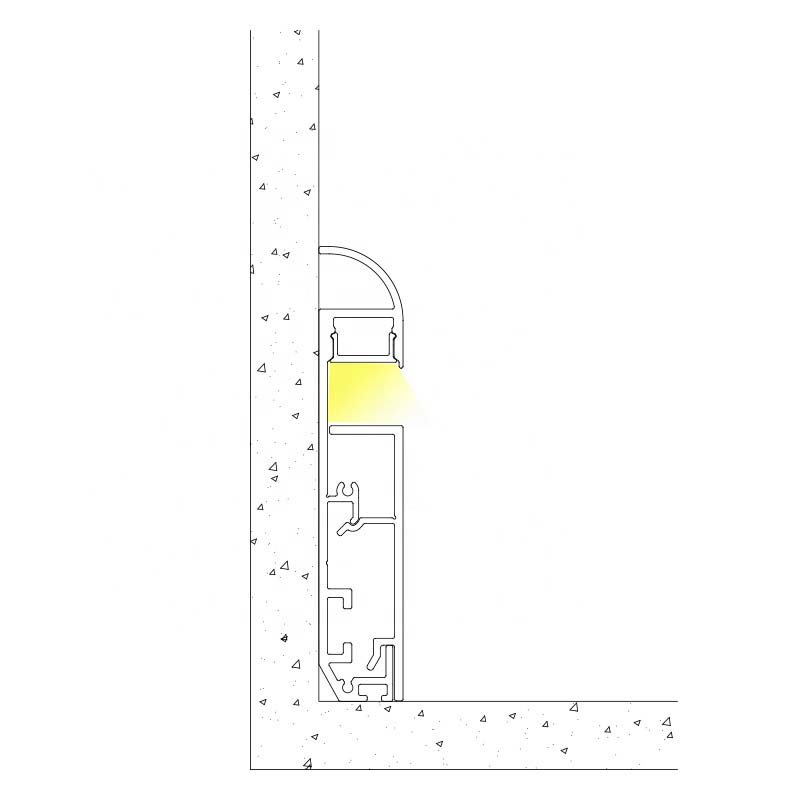

  • Installation: Surface Mounted

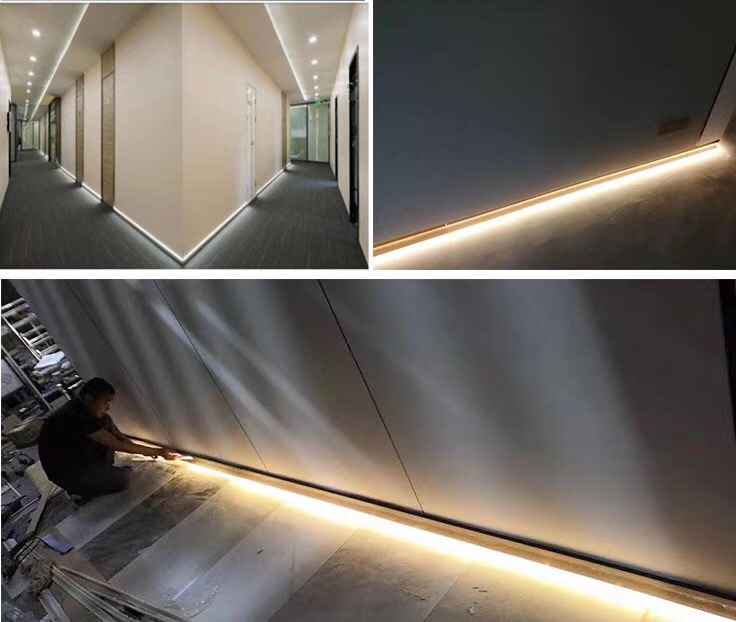

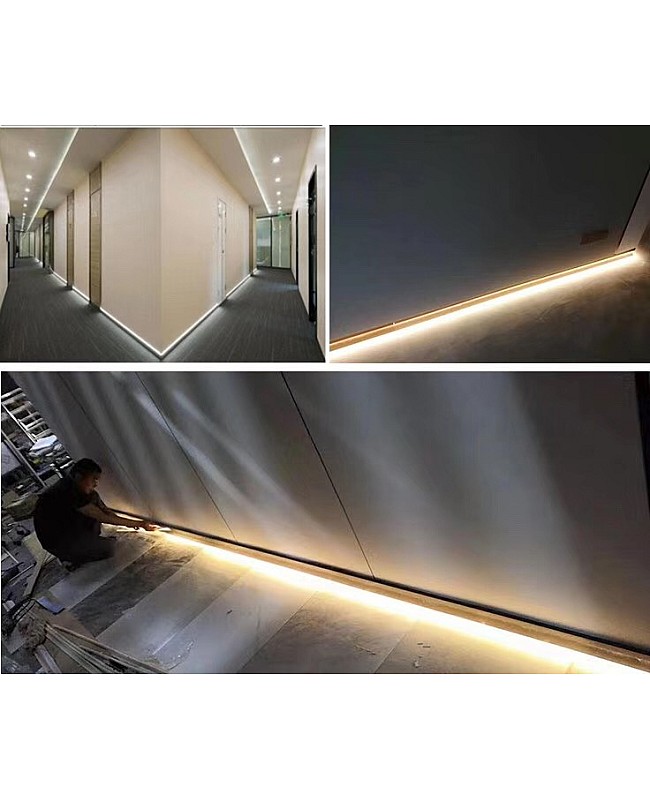

  • Applications: Cabinet Toe Kick Lighting In Dining Room, Entryway, Basement, Laundry Room, Office, Living Room, Garage, Wet Bar, Attic, etc
  • End Caps With Wire Holes Included
  • 5 Years Warranty


1*Office Cabinet Toe Kick Light Profile

End Caps(With Wire Hole And Without Wire Hole)

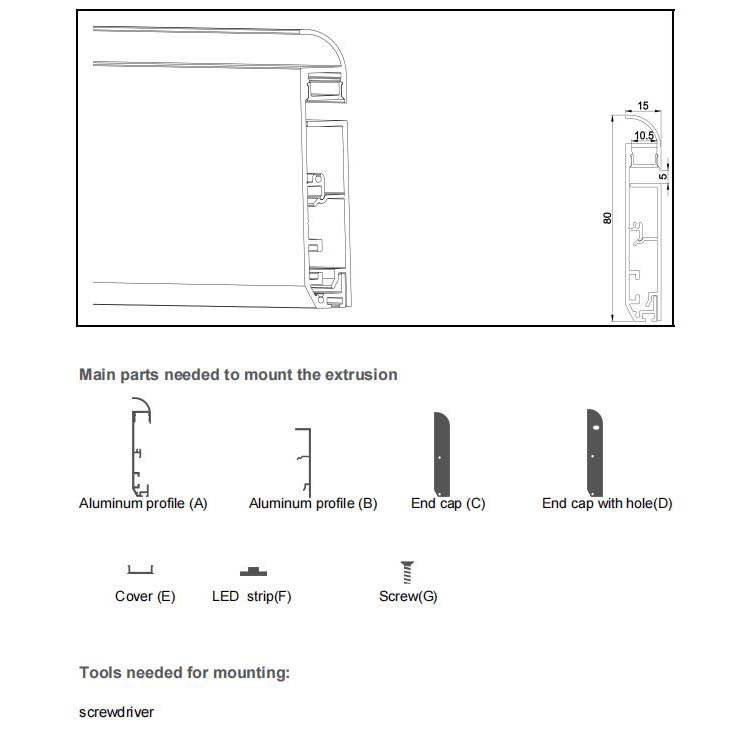

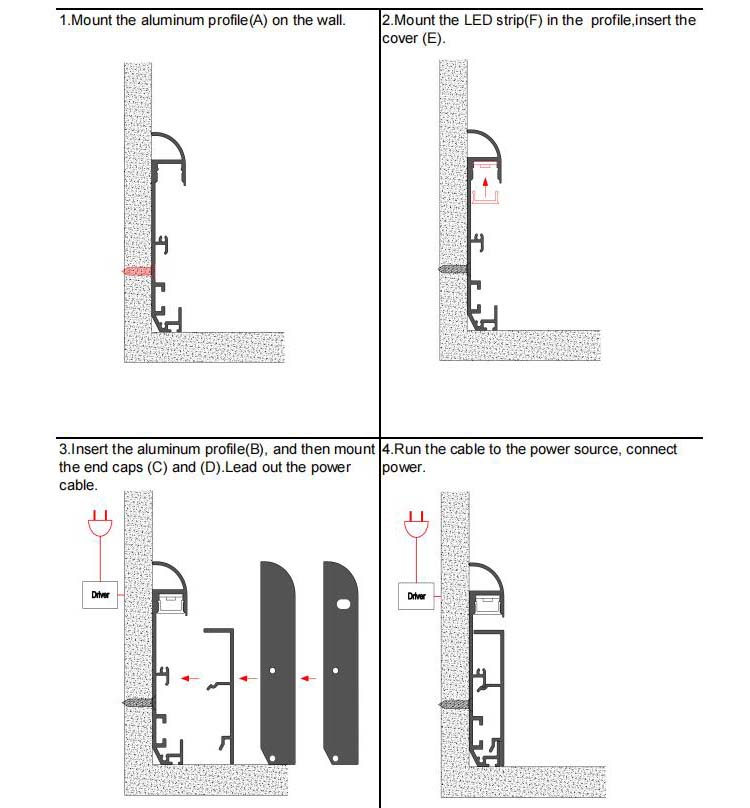

Cabinet Toe Kick Light Profiles Kitchen Kick Toe Light Channels how to install Toe Kick Moulding LED Profiles Kitchen Board Aluminum Profiles
