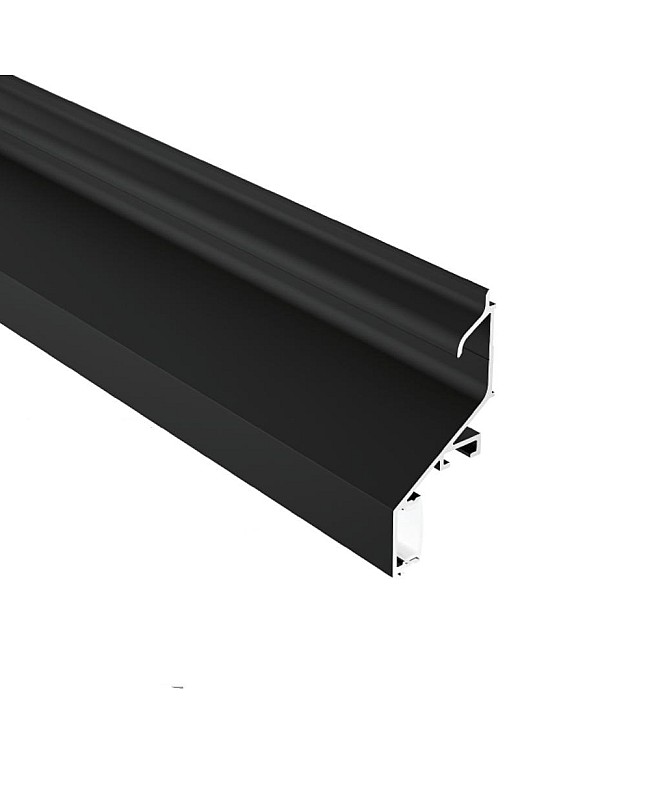

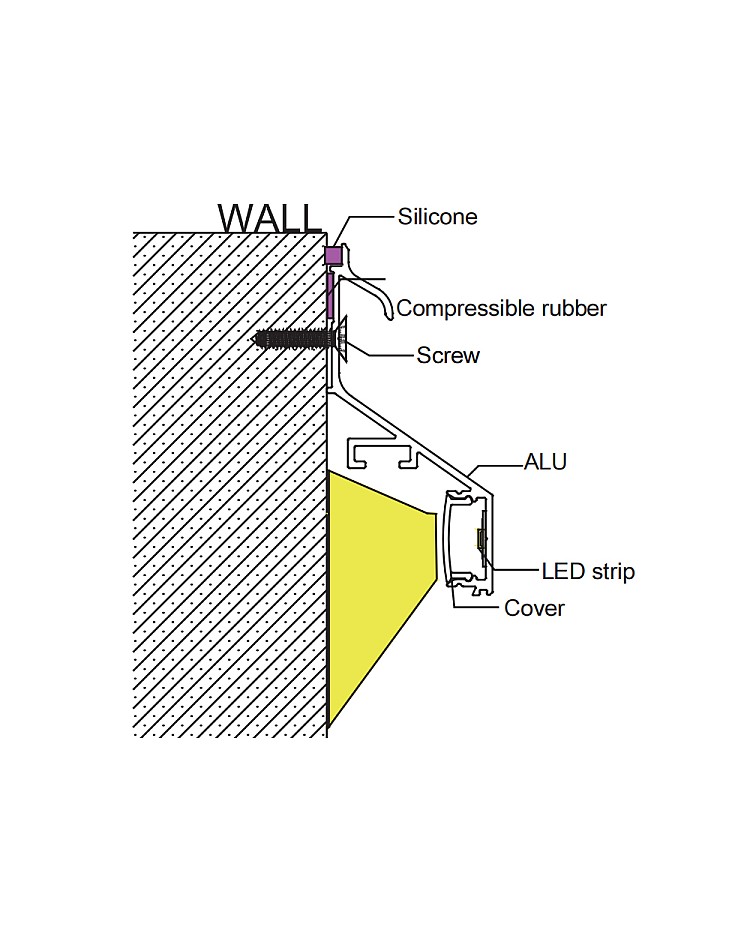

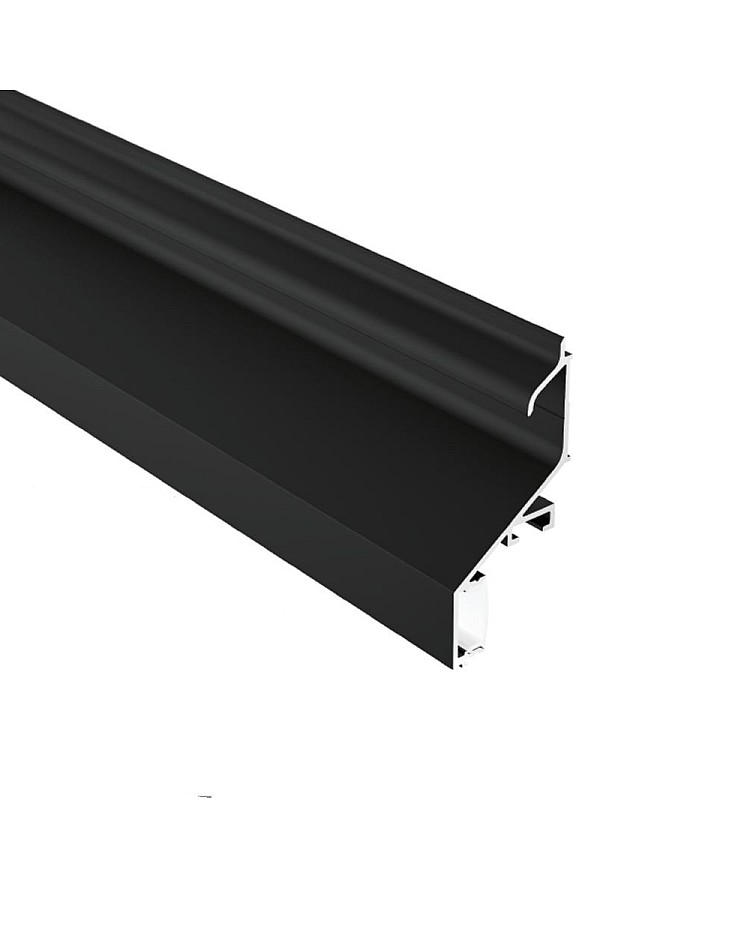

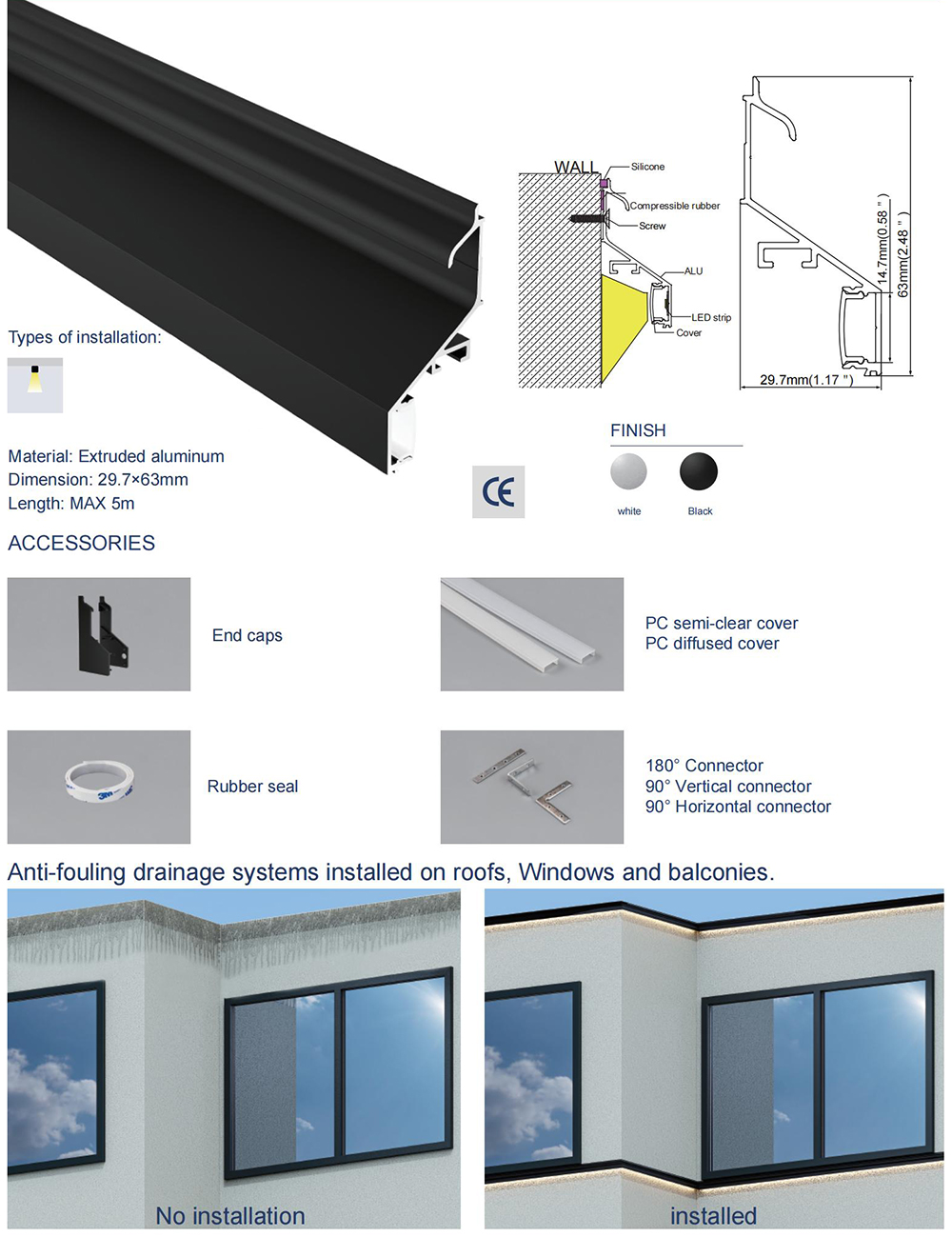

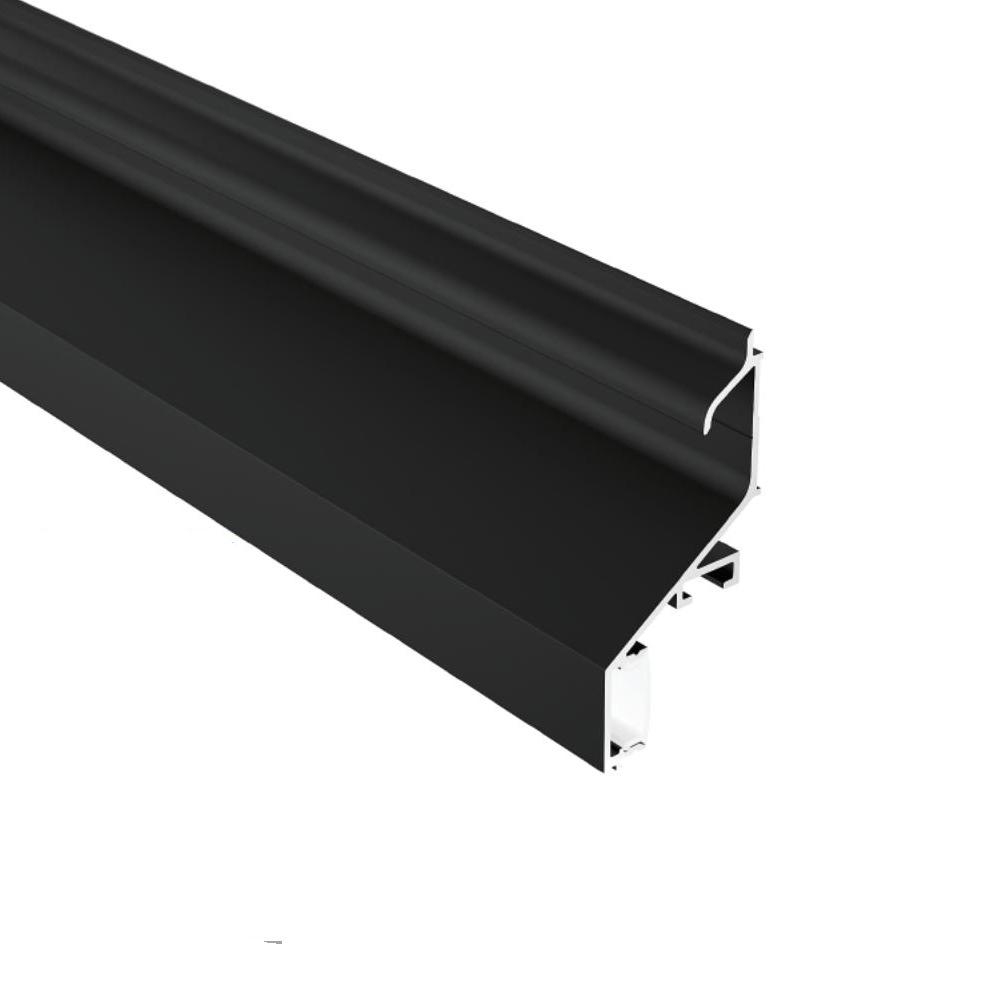

The black aluminum LED channels are designed for roof and window edge lighting. The surface-mounted installation method allows them to be easily mounted on building facades, roofs, balconies, and window edges. Those channels feature a built-in drainage system that prevents dirt and rainwater from staining walls and windows. They are made from 6063-T5 extruded aluminum material and have a black powder-coated finish for superior corrosion resistance and heat dissipation while ensuring a clean, professional finish. The standard lengths are 1 m and 2 m; custom lengths are also supported. The inner width is 14 mm, allowing a maximum strip light width of 12mm. You could add our high-density single-color or color-changing LED strip lights as the light source. The PC cover diffuses the light for smooth, continuous light without glare. Three types of LED joiners are available: 90°, 90° vertical, and 180°. You can use them for straight and angled connections.
Features:
- Type: Roof and window edge lighting channels
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coated
- Color: Black

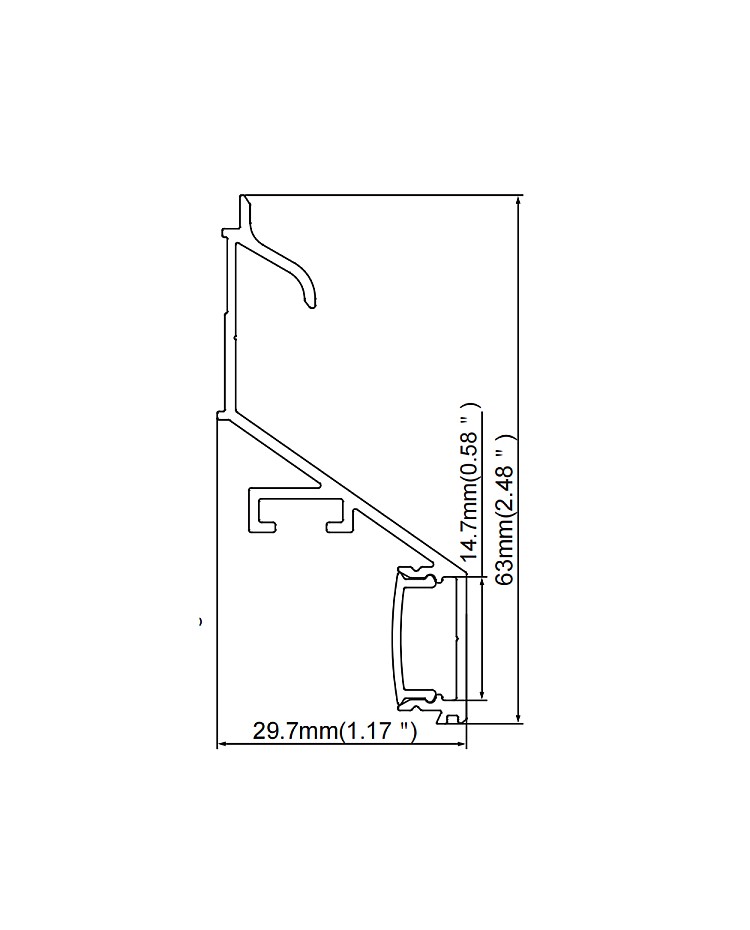

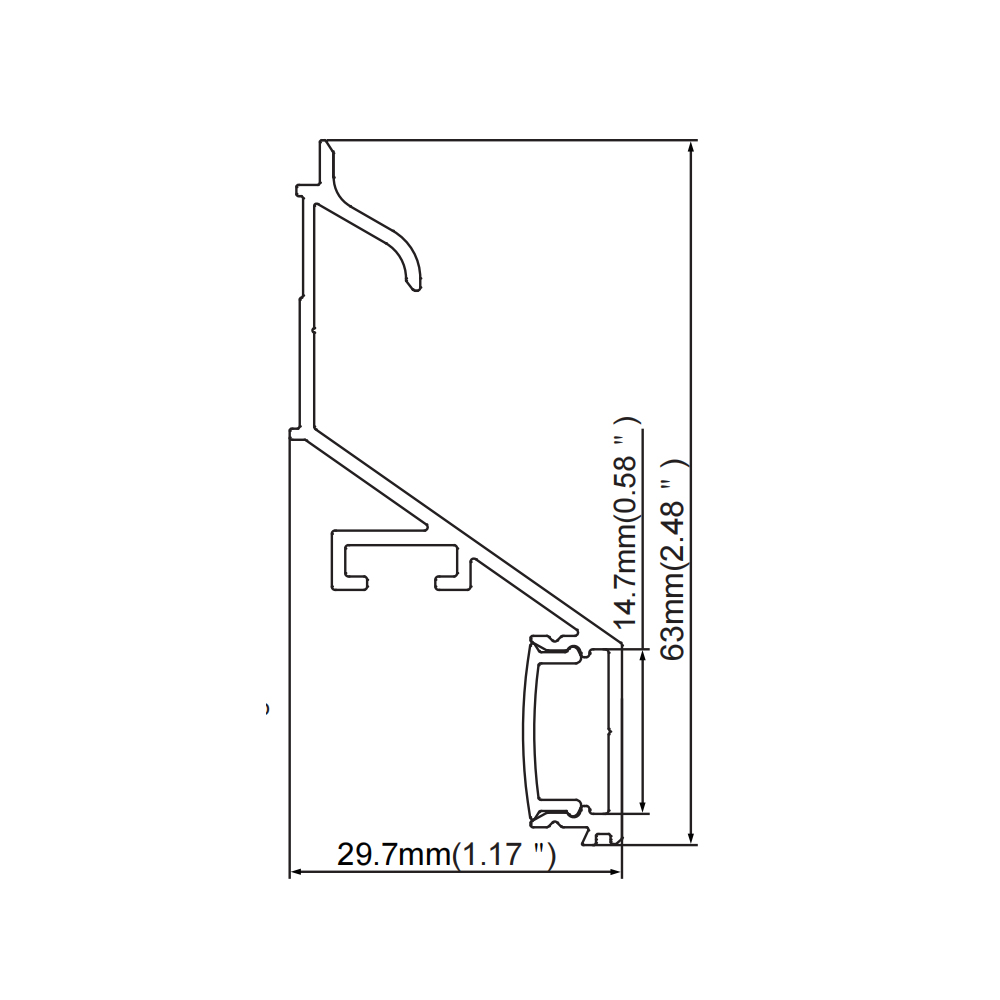

- Size ( W x H ): 29.7 mm x 63 mm / 1.17" x 2.48"
- Lengths available: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 14.7 mm / 0.58"
- Max width of strip lights: 12 mm / 0.47"
- Max power: 15W/m
- Diffusers: PC diffused covers / PC semi-clear covers
- End caps with and without wire holes are included
- Joiners available: 180°, 90°, 90° vertical

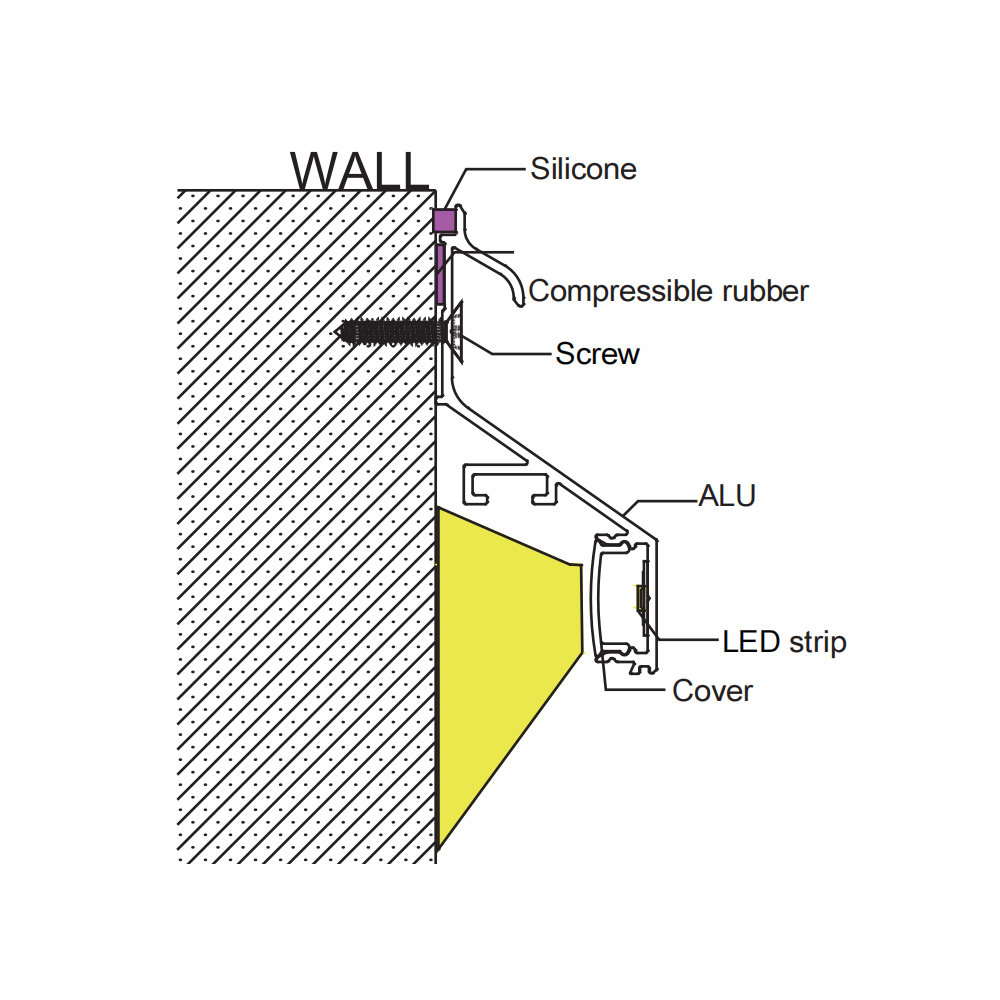

- Installation: Surface-mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

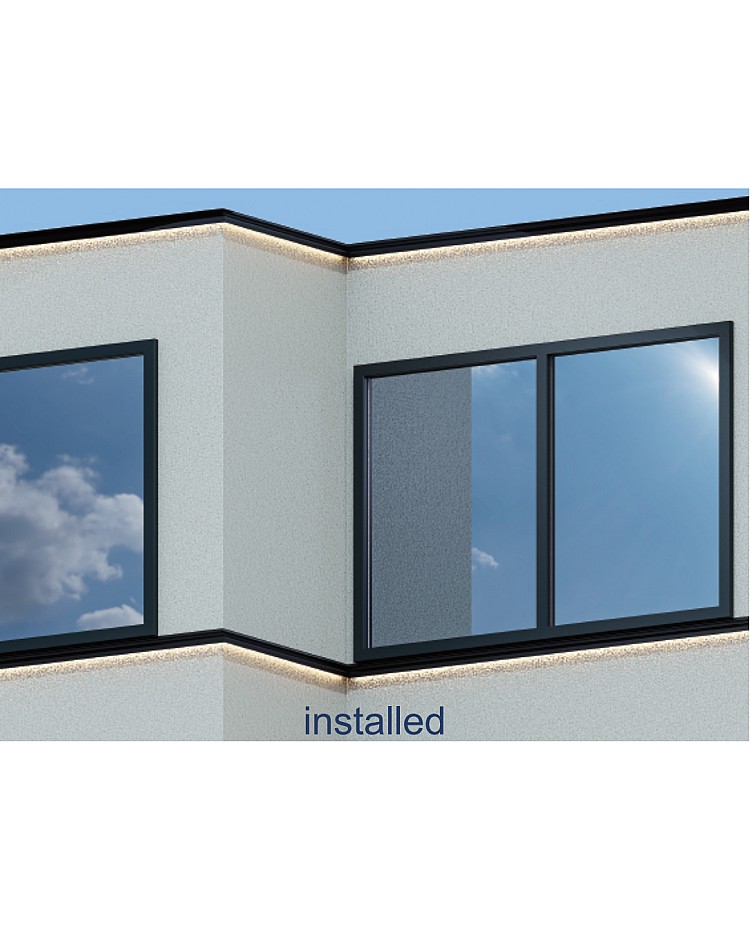

- Architectural facade lighting for commercial and residential buildings
- Window frame perimeter lighting with water drainage protection

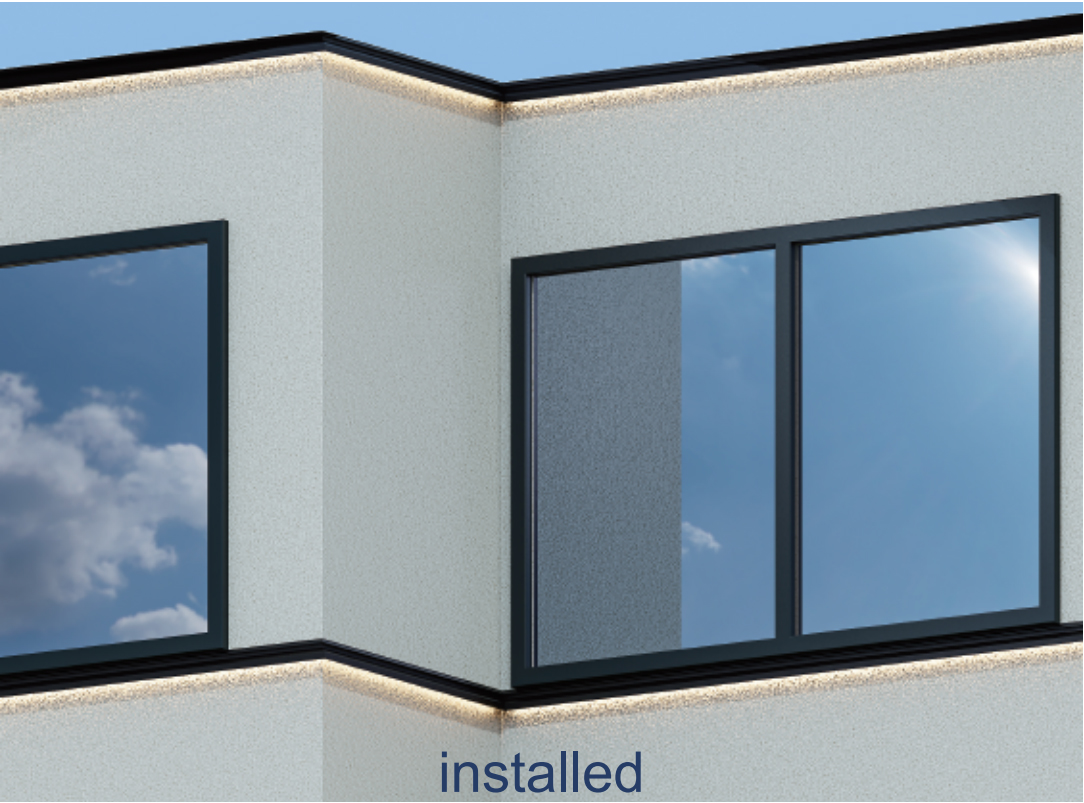

- Roof edge and balcony lighting with anti-fouling design
- Outdoor linear LED lighting for eaves, canopies, and parapets
Includes:
1 x Roof edge light channel and diffuser
1 x End caps ( With and without wire hole)
