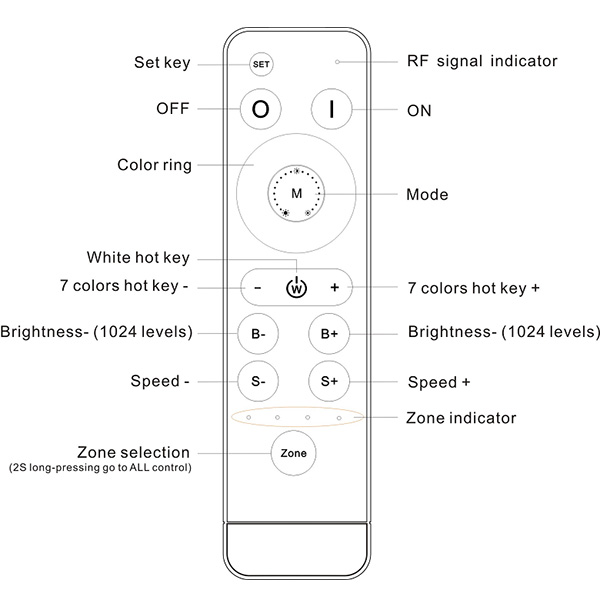

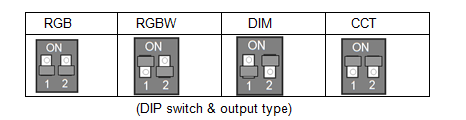

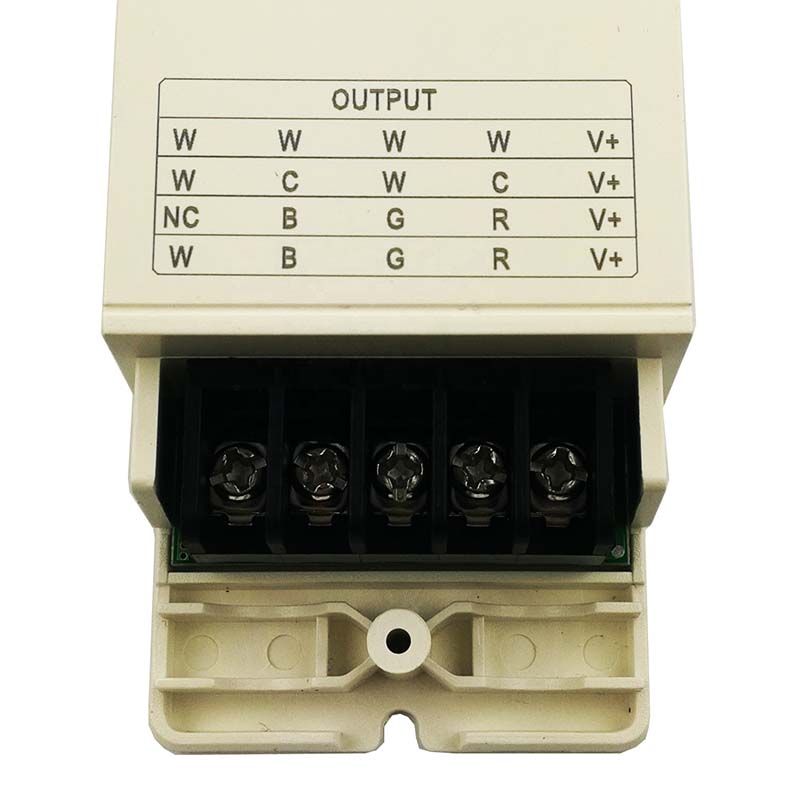

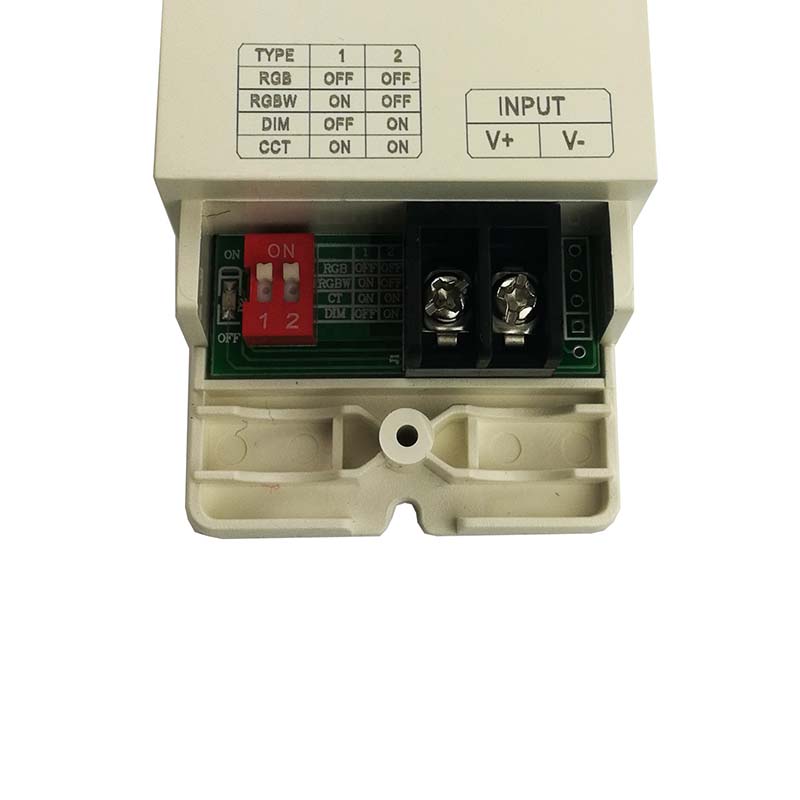

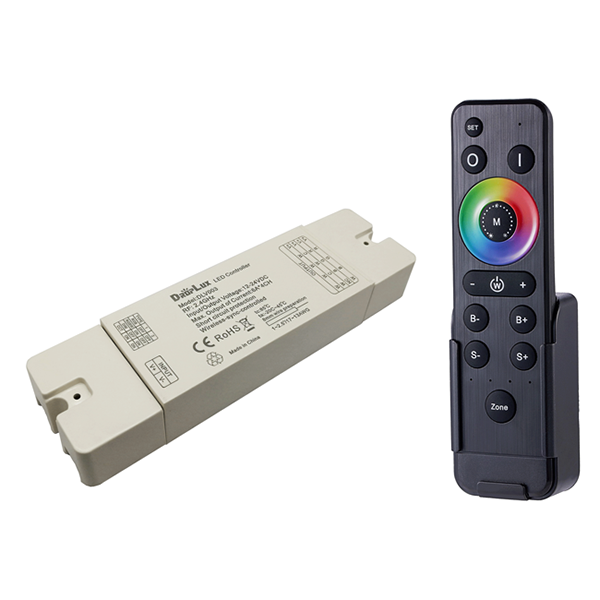

The wireless sync controller for LED lights with a 4-In-1 design can be used for single color, tunable white, RGB, and RGBW. The wireless LED controller adopts the most advanced PWM digital control technology for controlling constant voltage strip lights, LED lamps, point-source lights, LED modules, and LED strings. It has a low-voltage DC input and 5 output interfaces, working on DC12V or DC24V. There is a DIP switch for LED color type selection. 4 options are available: RGB, RGBW, DIM, and CCT. Please ensure the DIP switch is correct according to the loading LED type. The RF remote control is included, which is powered by 2 AAA batteries and works on DC3V. You can use the RF remote to adjust the brightness and color temperature or choose the static color or dynamic mode. The brightness of the static color is adjustable, with 1024 levels in total. The speed of dynamic changes is adjustable, with 100 levels in total. Each time powered on, the wireless RGB LED controller with memory function remembers the mode that was stopped last. The remote has a 4-zone design; you can press the "Zone" button to select the zone and control the zones separately, or long-pressing 2S goes to overall control.

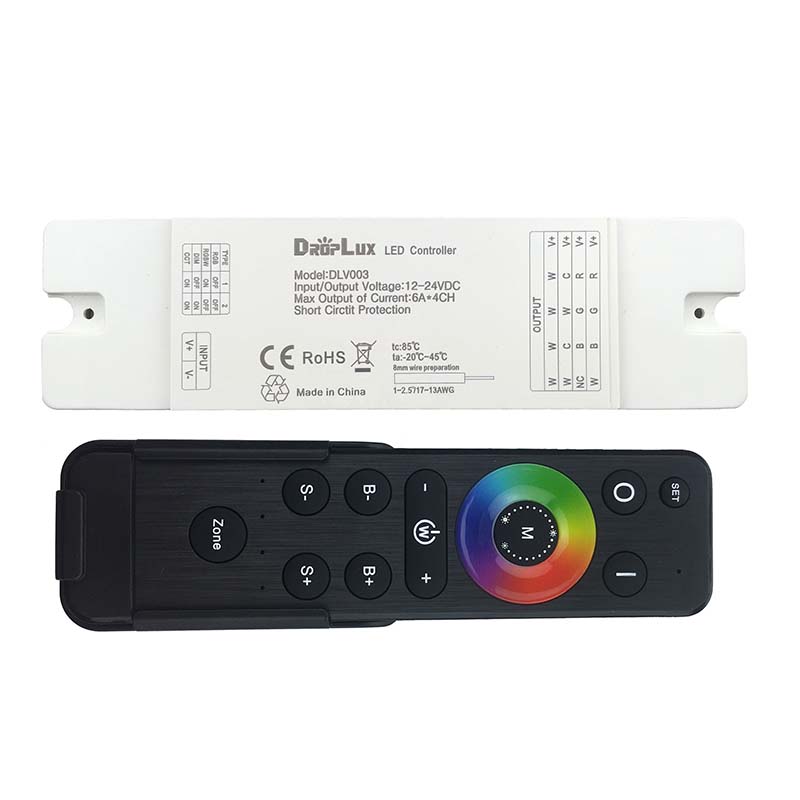

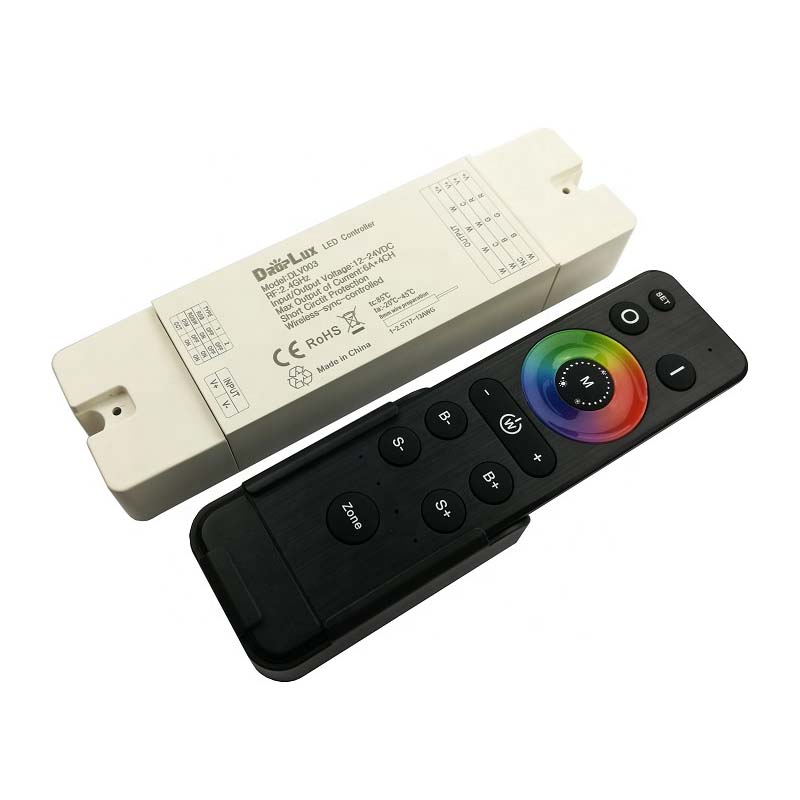

Sync RGB LED Controller Specifications:
- Model: HX-DLV003
- Size: 160*46*25mm(L*W*H)
- Working Voltage: DC12V-24V
- Connecting Mode: Common Anode
- Output: 4 Channels
- Output Current: ≤6A Each Channel
- Max Output Power: 288W ( 12V ) / 576W ( 24V )
- RF Frequency: 2.4GHz
- RF Distance: ≤20m
- Static Power Consumption: <1W
- Grayscale: 1024 Levels
- Speed Stage: 1024
- PWM Frequency: 1KHz
- Memory Function: Yes
- Working Temperature: -20-60℃
- Short Circuit Protection
- 3 Years Warranty

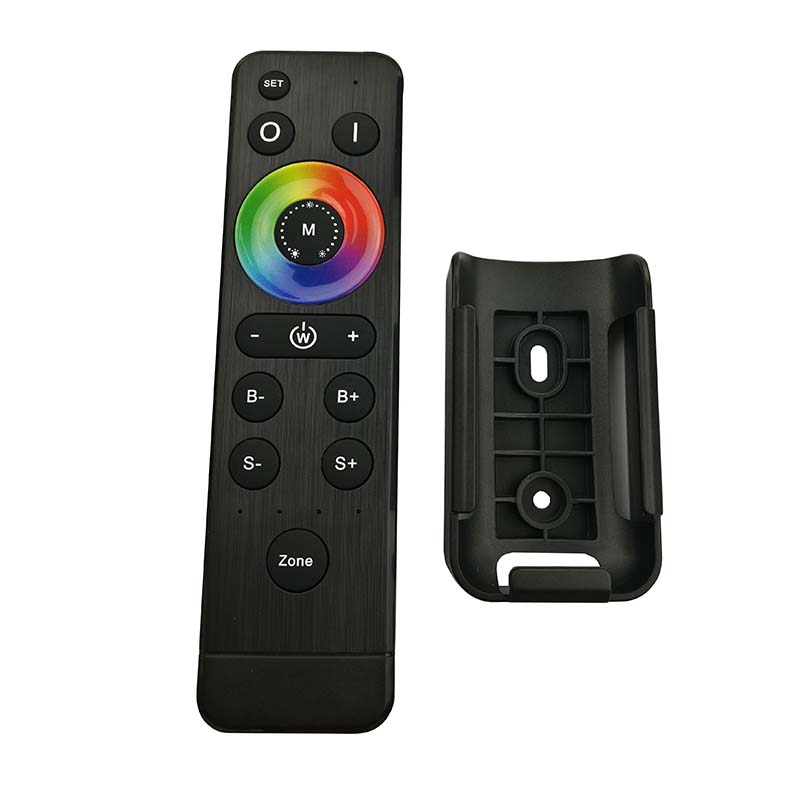

Wireless RF Remote Specifications:
- Model: HX-RFBK-RGB-2.4G
- Size: 150*40*20mm(L*W*H)
- Working Voltage: DC3V ( AAA*2 )
- Standby Current: <18uA
- Working Current: <25mA
- Standby Power: 54uW
- Working Power: 75mW
- RF Distance: <20m
- RF Frequency: 2.4GHz
- Working Temperature: -20℃-60℃
Includes:
1 * Sync RGB LED Controller
1 * Wireless Remote Control
