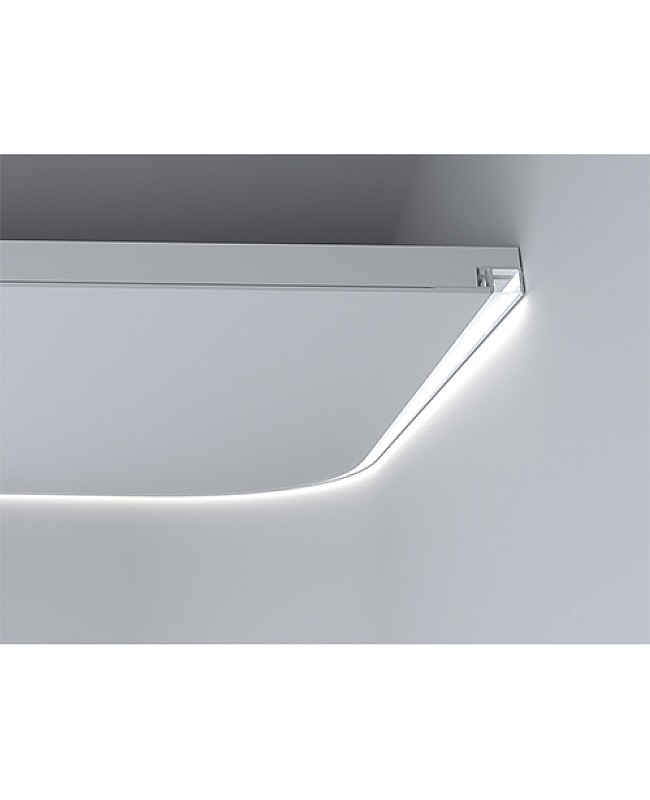

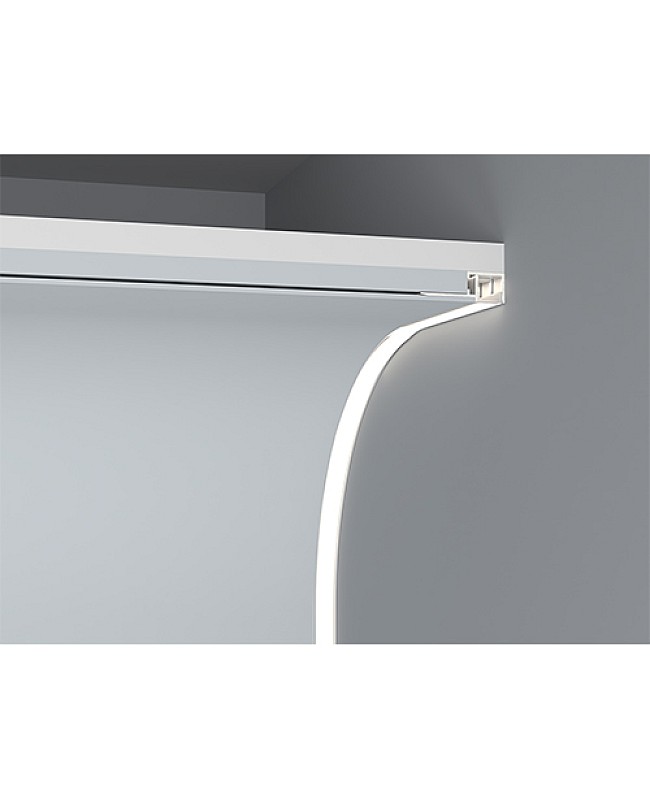

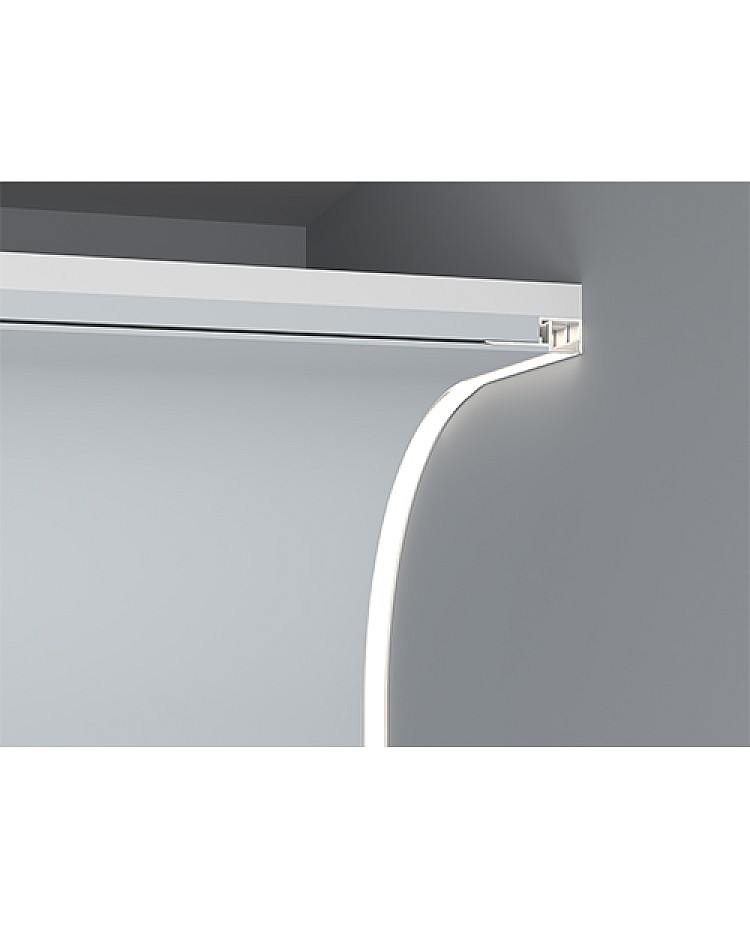

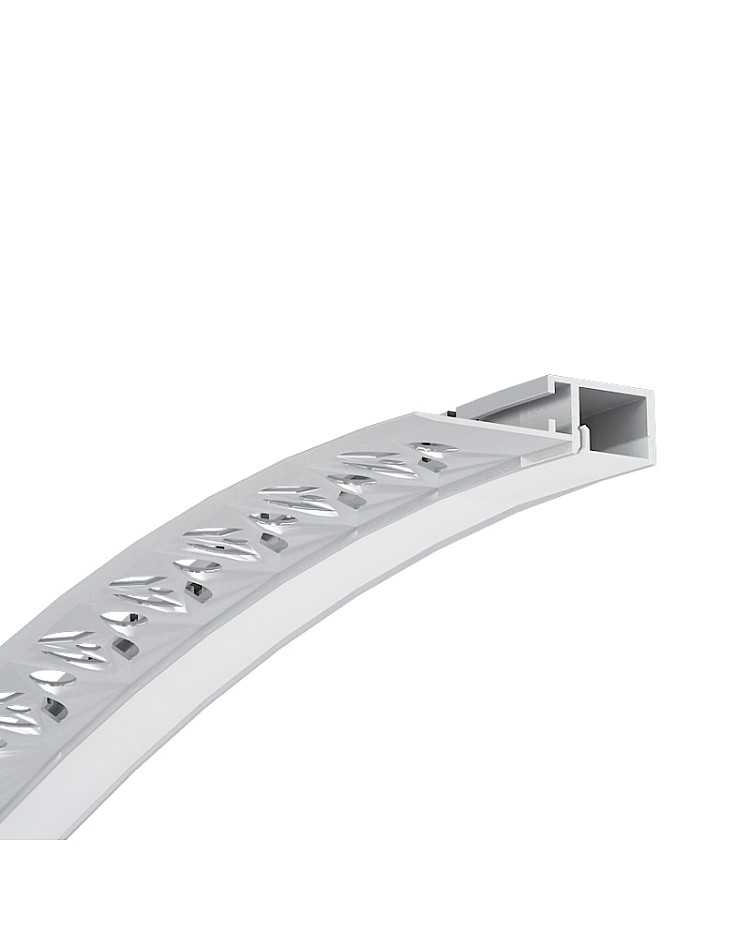

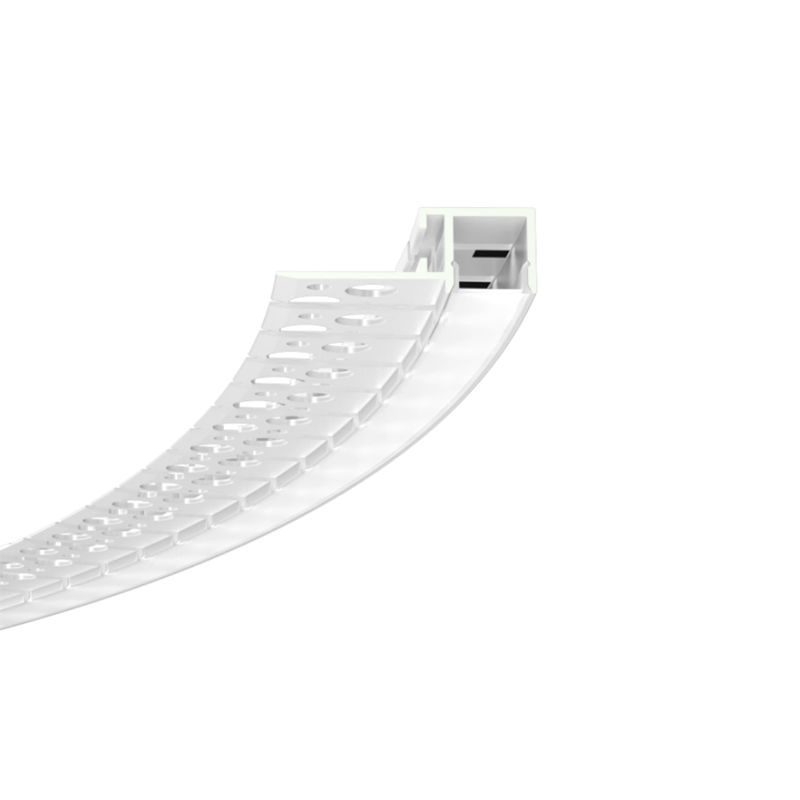

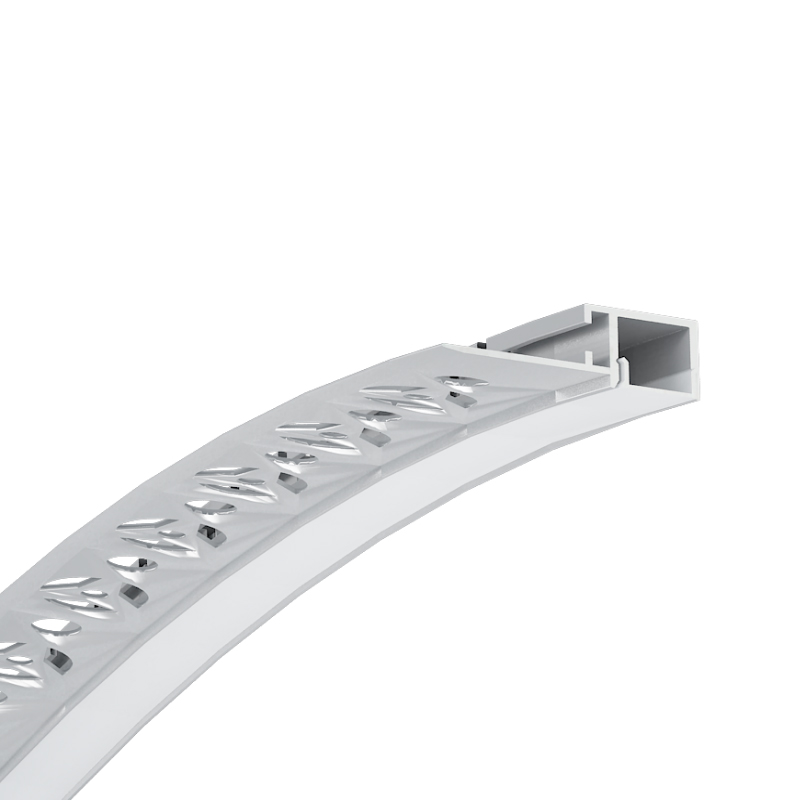

The bendable mud-in LED channels are designed for architectural and interior decorative lighting applications. The flexible design allows them to be seamlessly integrated into curved or irregular drywall, plaster, or other mudded surfaces. Additionally, the mud in LED channels can house and conceal LED strips, and comes with a silicone tape light diffuser to soften the light without visible light dots. The maximum length of the silicone cover is 50 meters per roll for continuous linear lighting, enhancing the aesthetic of your space. They are made of 6063-T5 extruded aluminum and feature surface anodizing for improved oxidation resistance. The stock lengths are 1 m, 2 m, and 3 m, and can be cut to any size to meet your needs. Only one color of aluminum channels is available: silver. The colors are customizable. The inner width is 10.3 mm, allowing a maximum LED tape width of 6 mm (side bending) or 10 mm (up-down bending). Recommend adding our COB LED tapes as the light source, with uniform lighting illumination, to eliminate light dots and dark areas. Only one type of light diffuser is available: semi-clear silicone covers, made of high-quality silicone that evenly distribute light and reduce glare, creating a soft, uniform lighting effect. The silicone cover is available in 50- or 100-meter rolls, providing long, continuous linear lighting without gaps.
Specifications:
- Type: Mud-in flexible LED channels
- Model: 3612-LR(side bending), 3612-UD(up-down bending)
- Material: 6063-T5 extruded aluminum

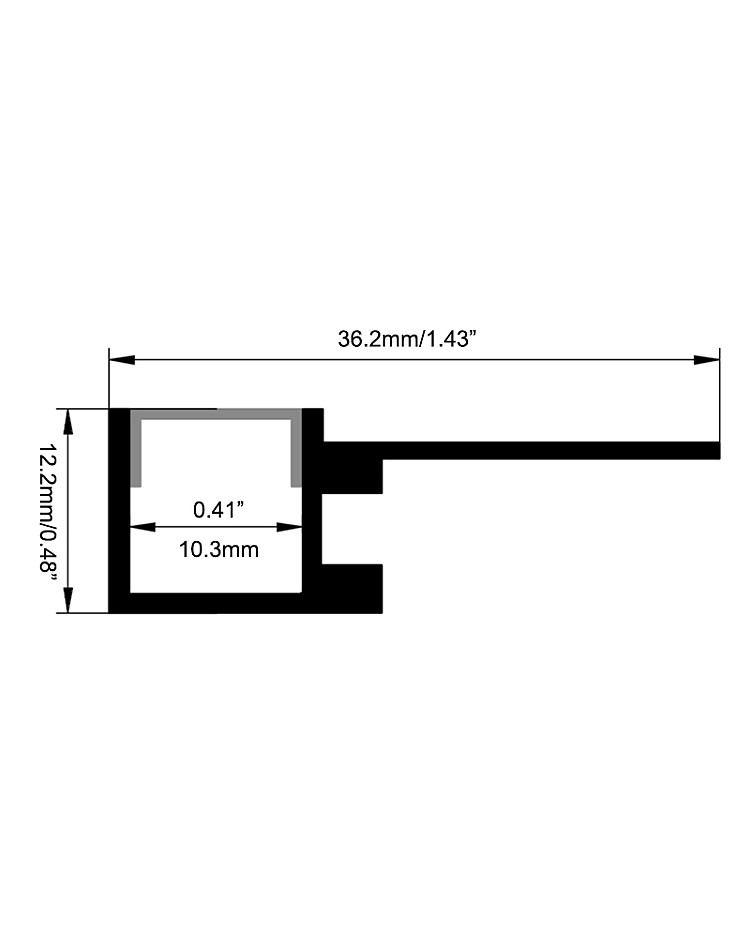

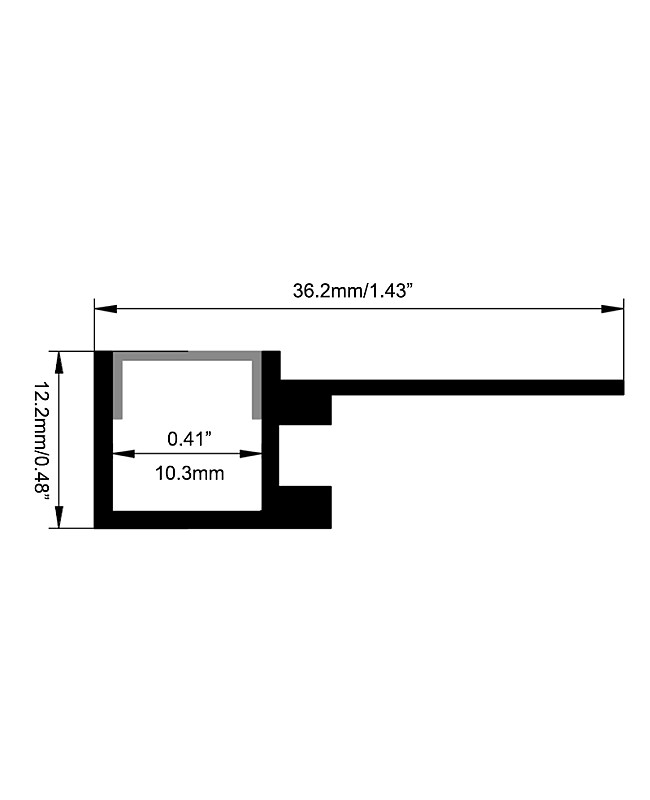

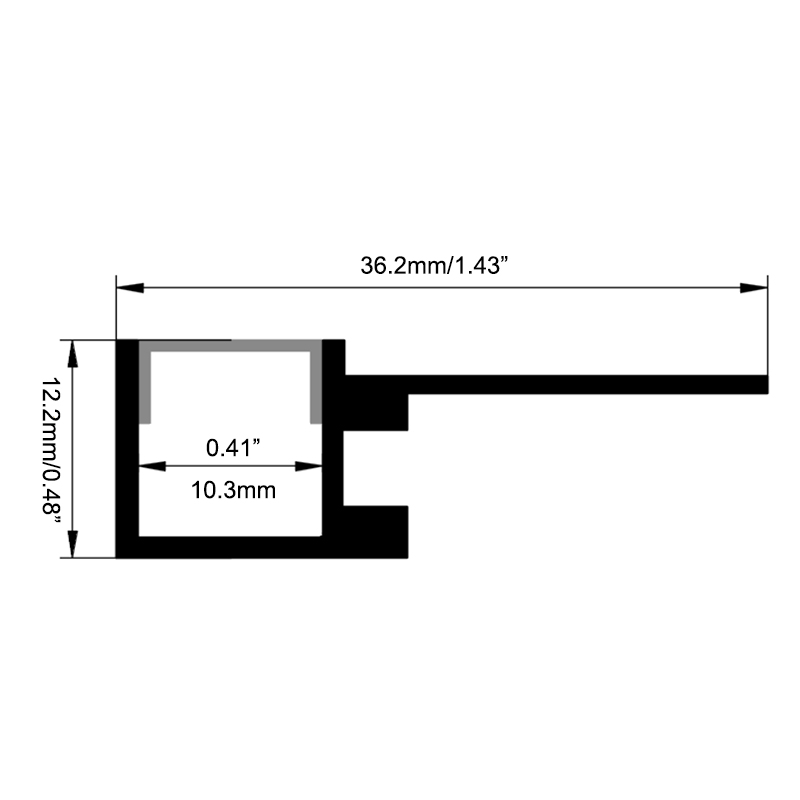

- Size(W*H): 36.2mm/1.43"*12.2mm/0.48"
- Colors: Silver(aluminum channel) / milky(silicone cover)
- LED Channel's Lengths Available: 1M(39"), 2M(78"), 3M(118")
- Silicone Diffuser's Max Length: 50M/100M per roll
- Custom Length: YES
- Diffusers: Silicone semi-clear
- Inner Width: 10.3mm/0.41"
- Max Width Of Strip Lights: 5mm regular tape lights on the side or 10mm flexible Zig Zag tape lights on the bottom(3612-LR) / 10mm(3612-UD)

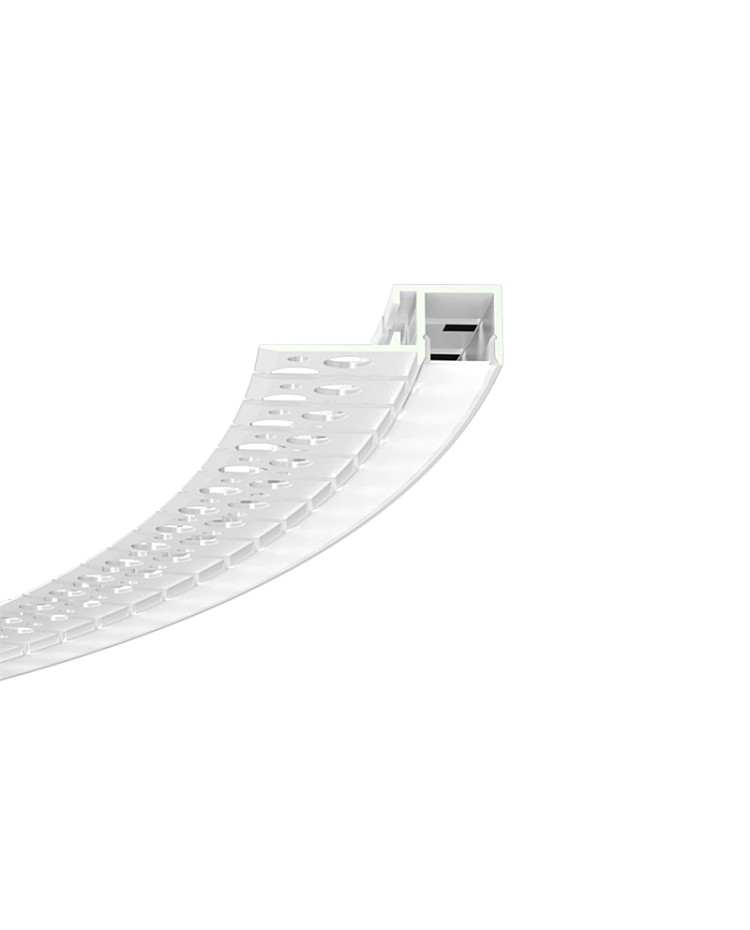

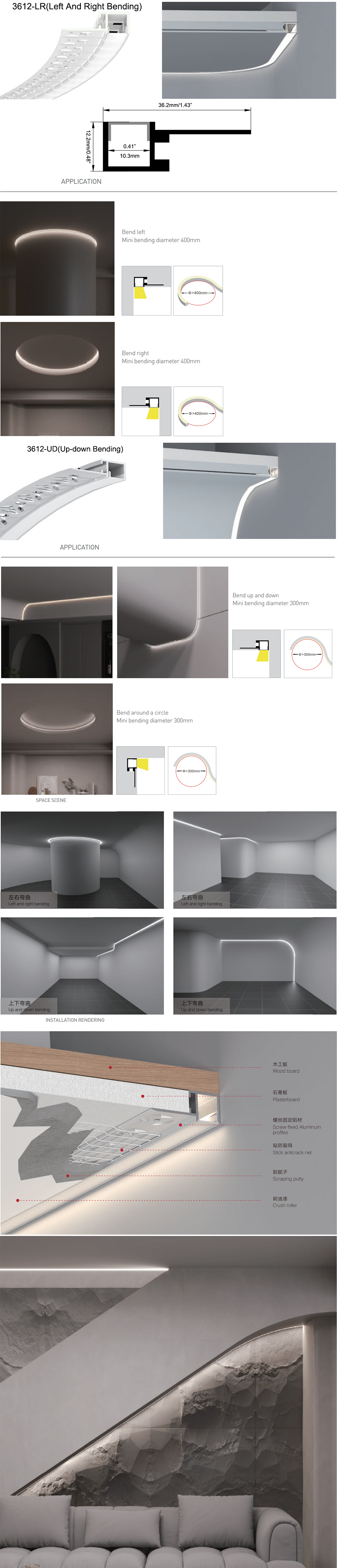

- Mini Bending Diameter: 3612-LR: 400mm(left bending), 450mm(right bending) / 3612-UD:300mm(up-down bending and circle bending)

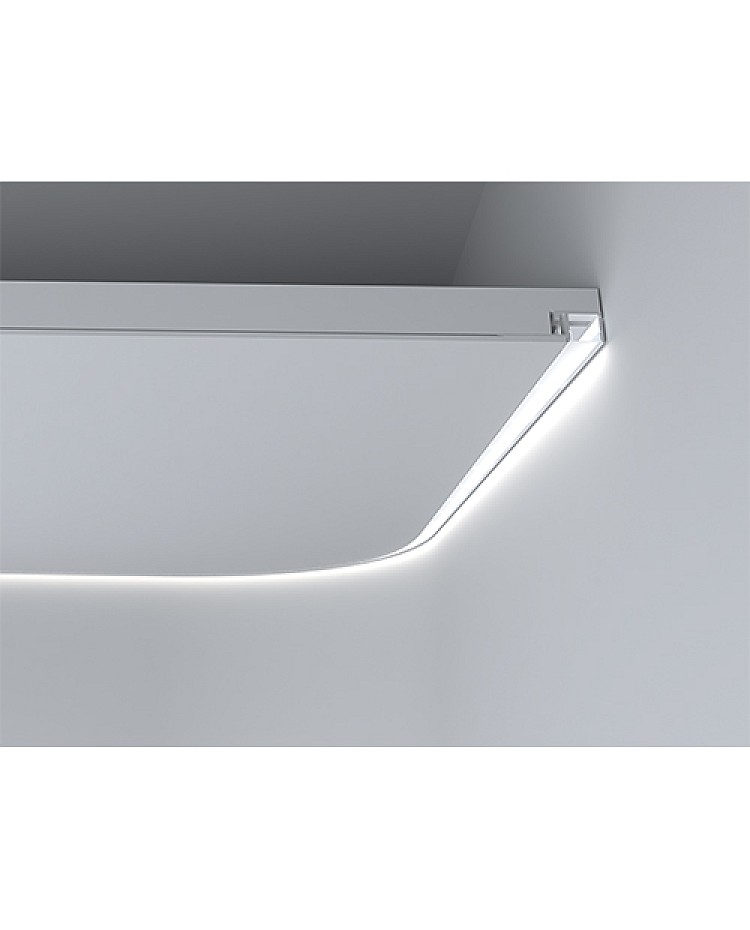

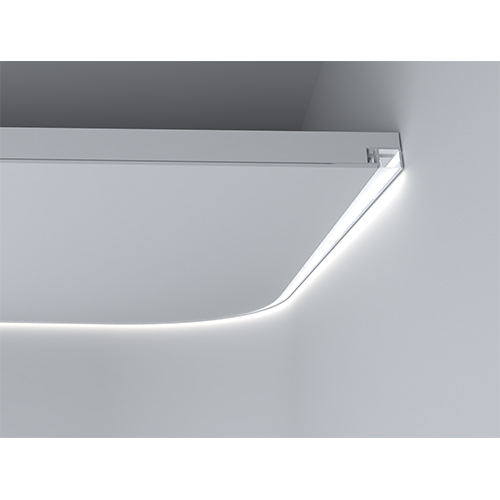

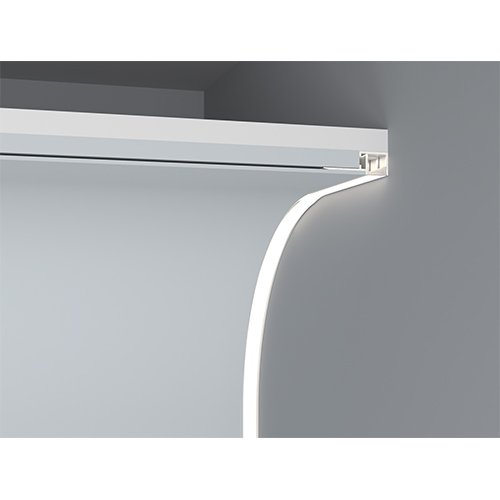

- Installation: Mud-in

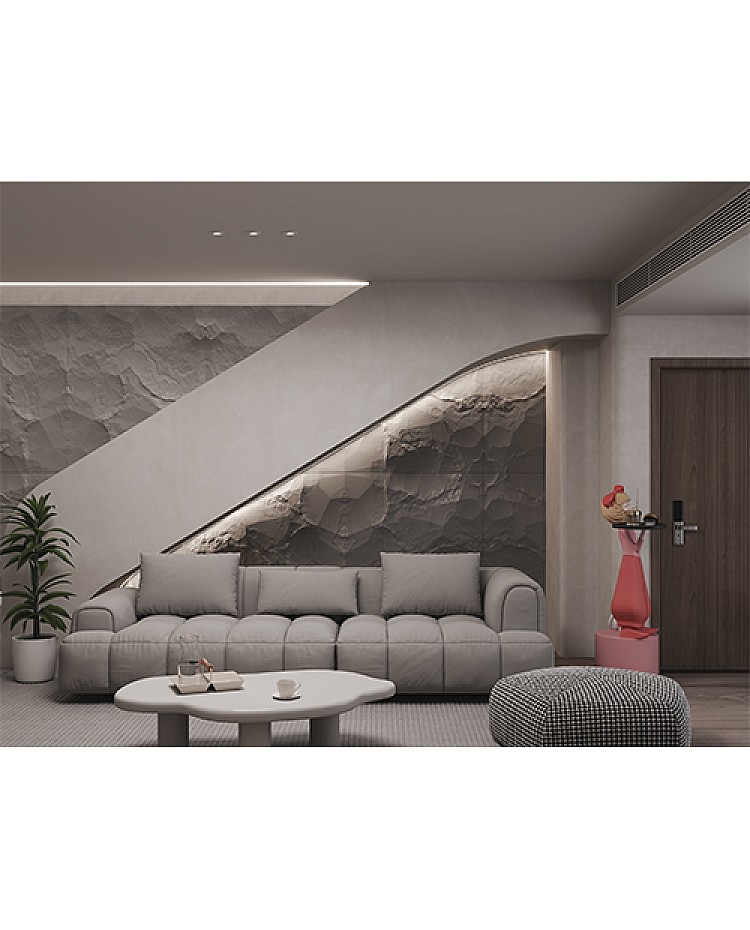

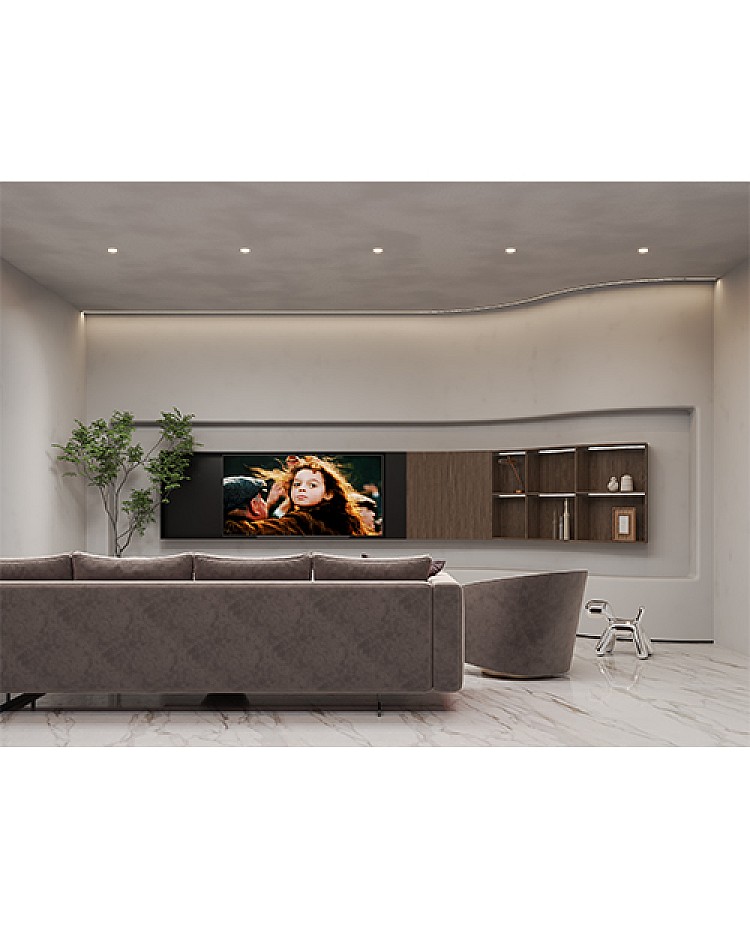

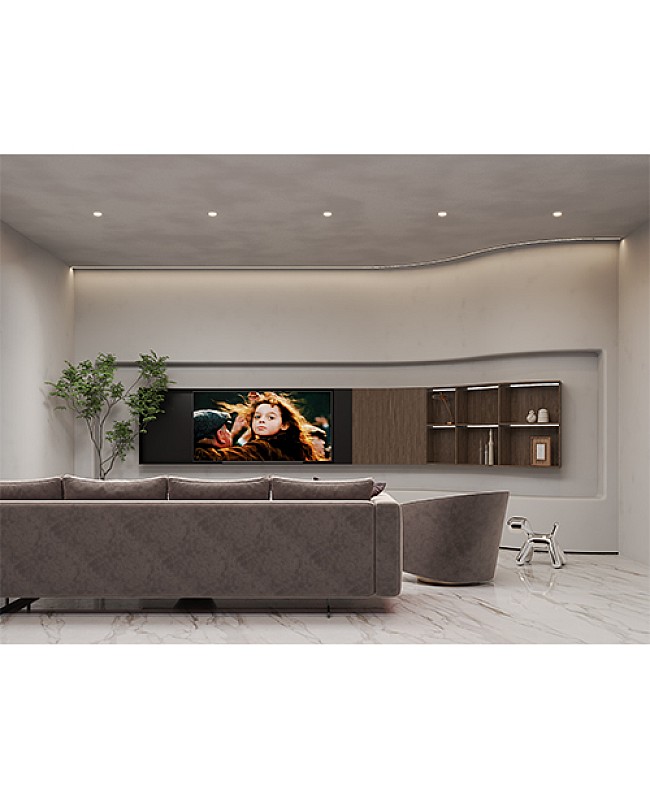

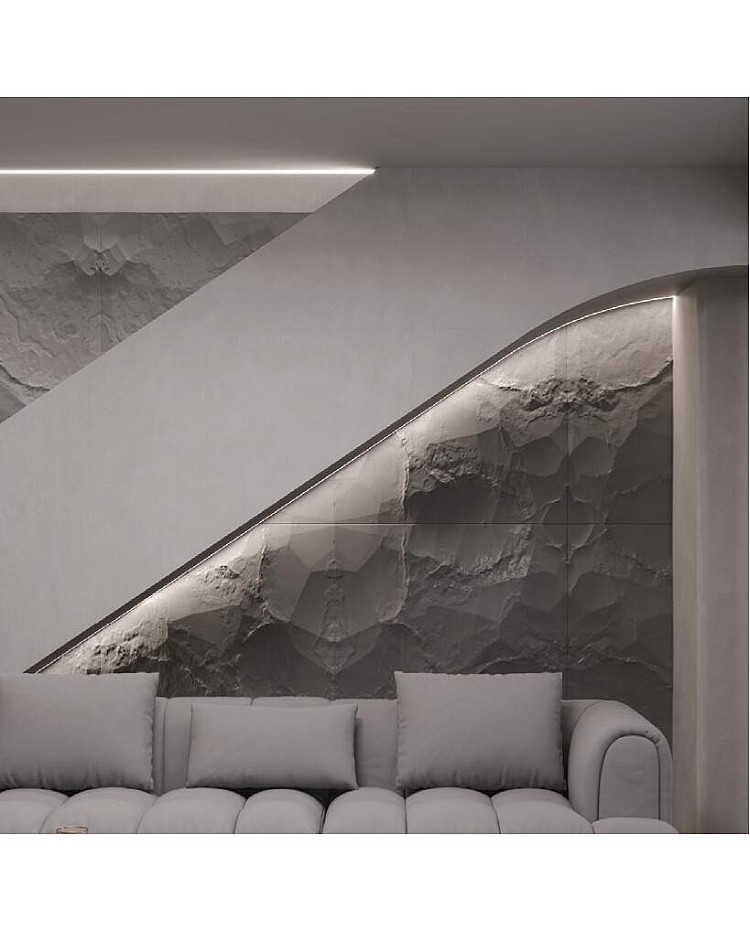

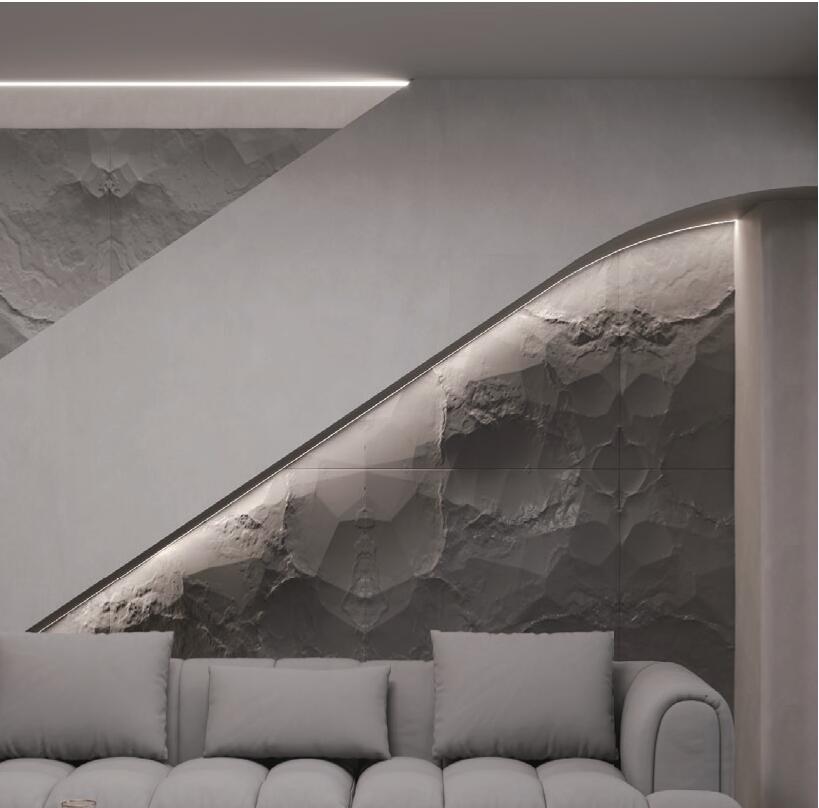

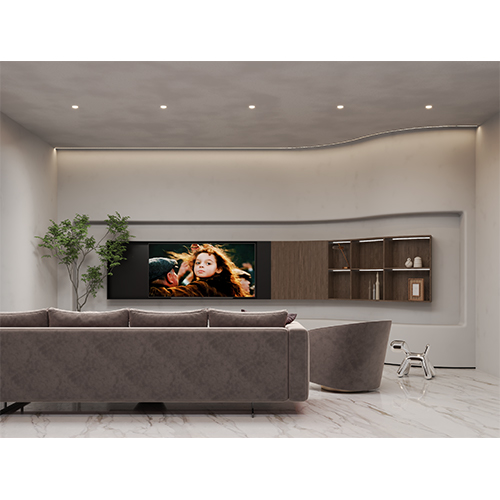

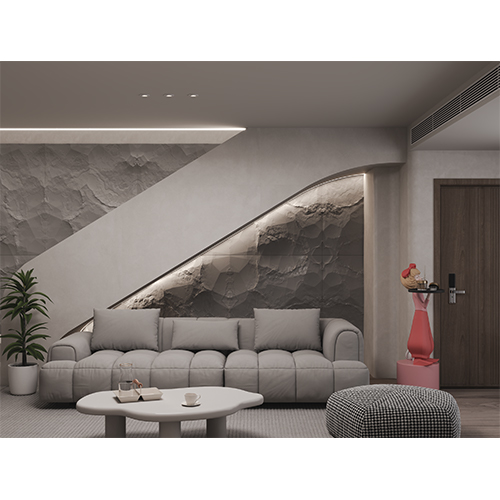

- Applications: Border curved line lighting for marble board, plasterboard, wooden panel, decorative panels
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Flexible mud-in LED channel
1 * Silicone light cover
End caps
