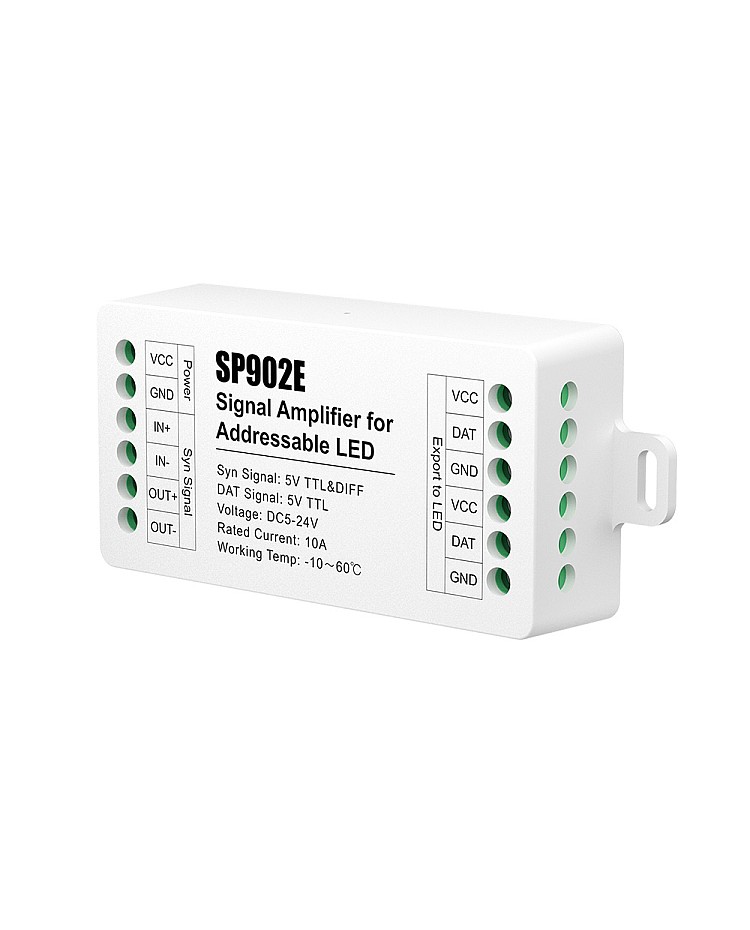

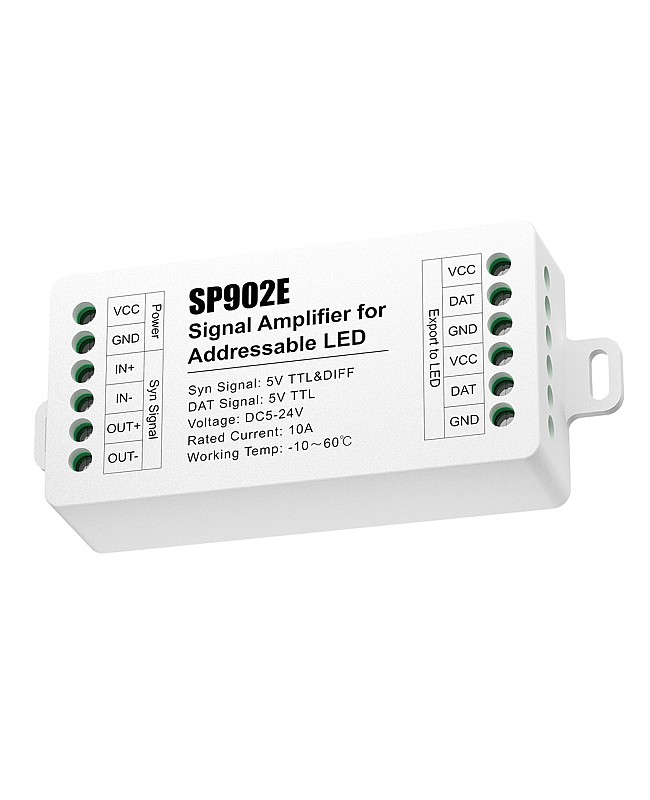

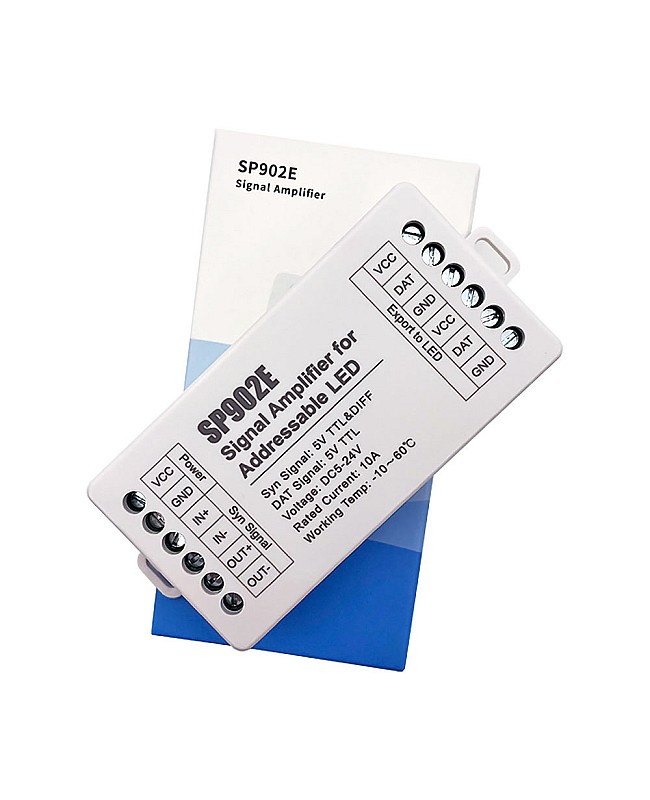

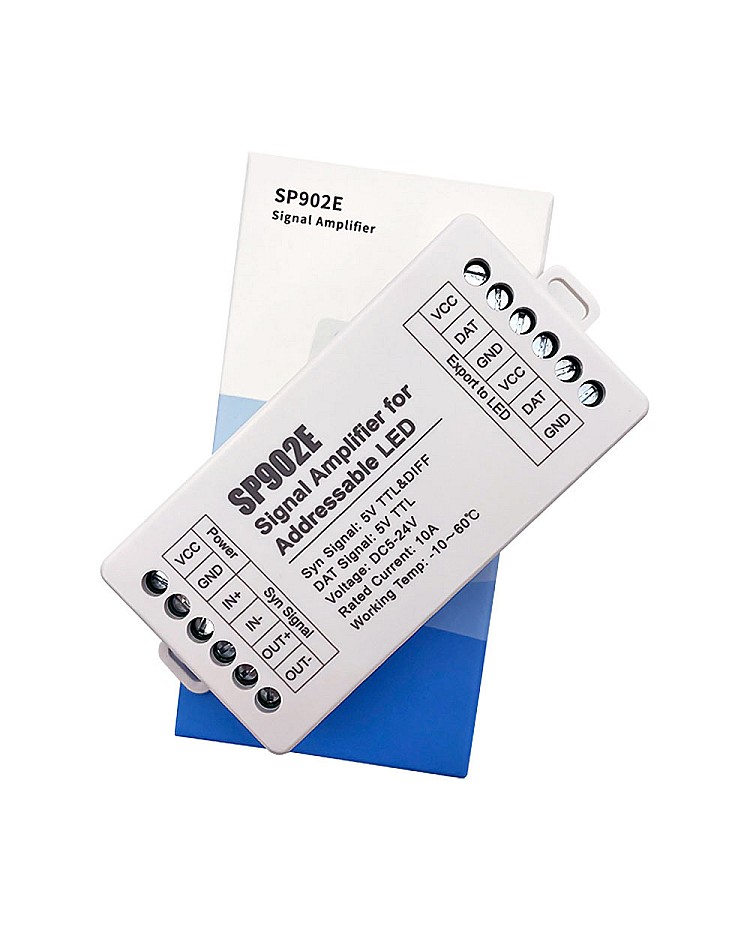

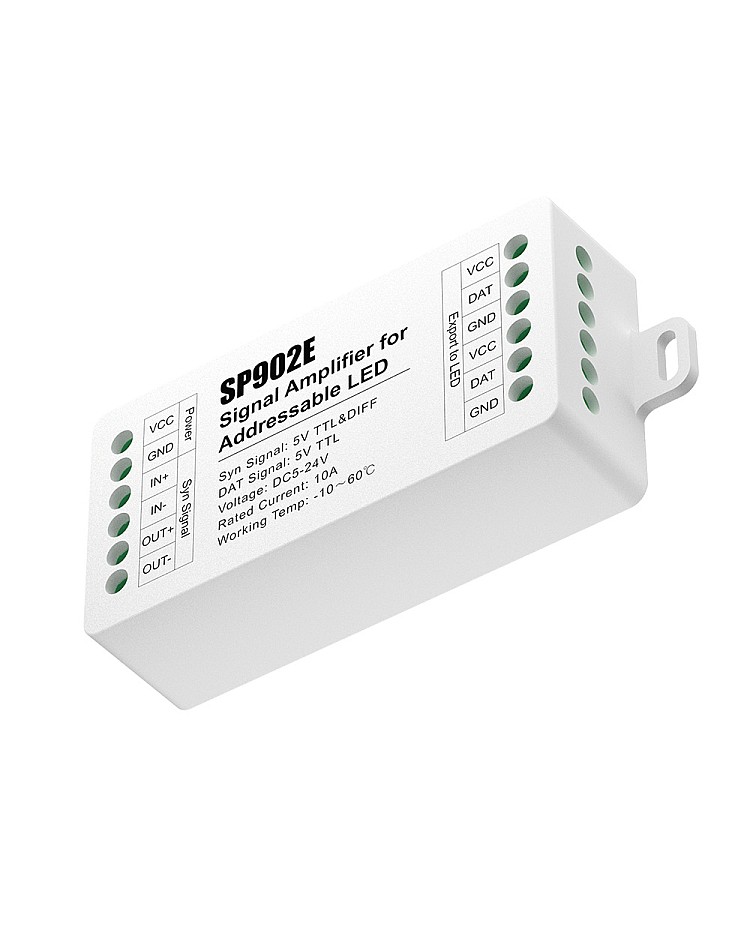

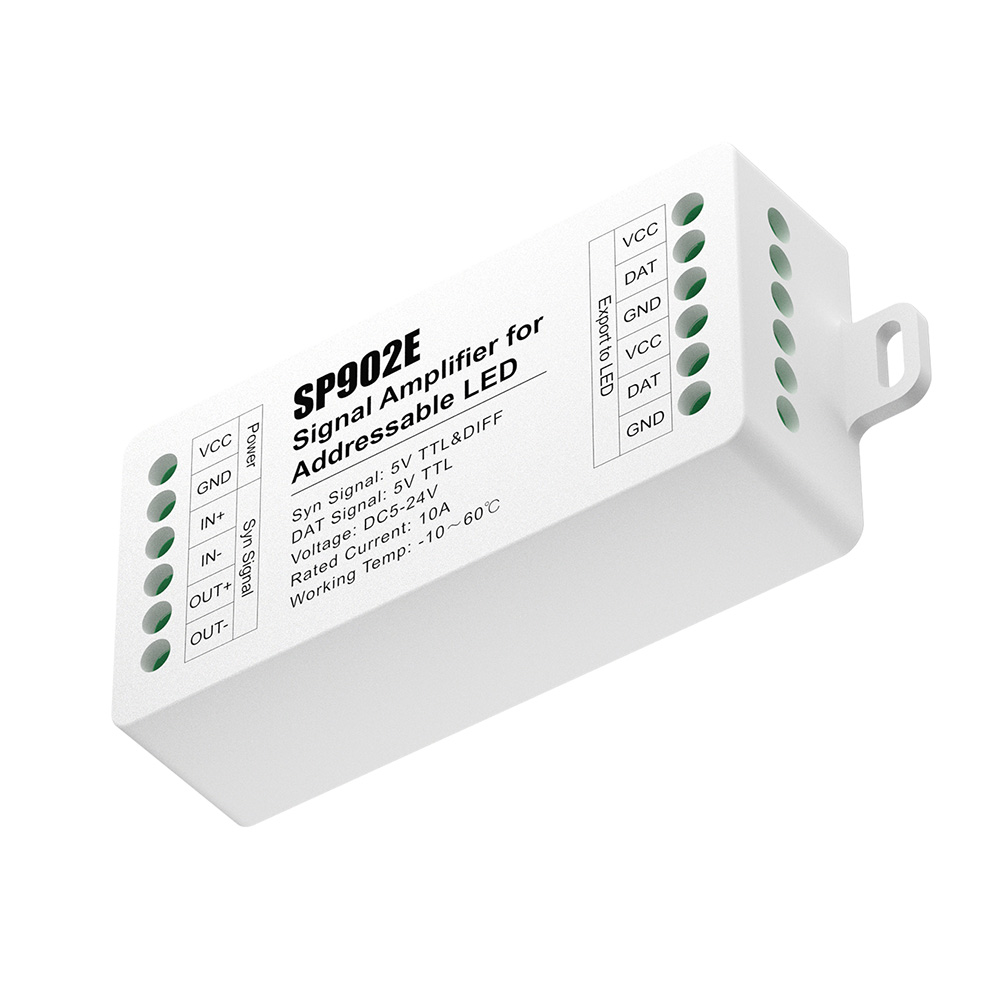

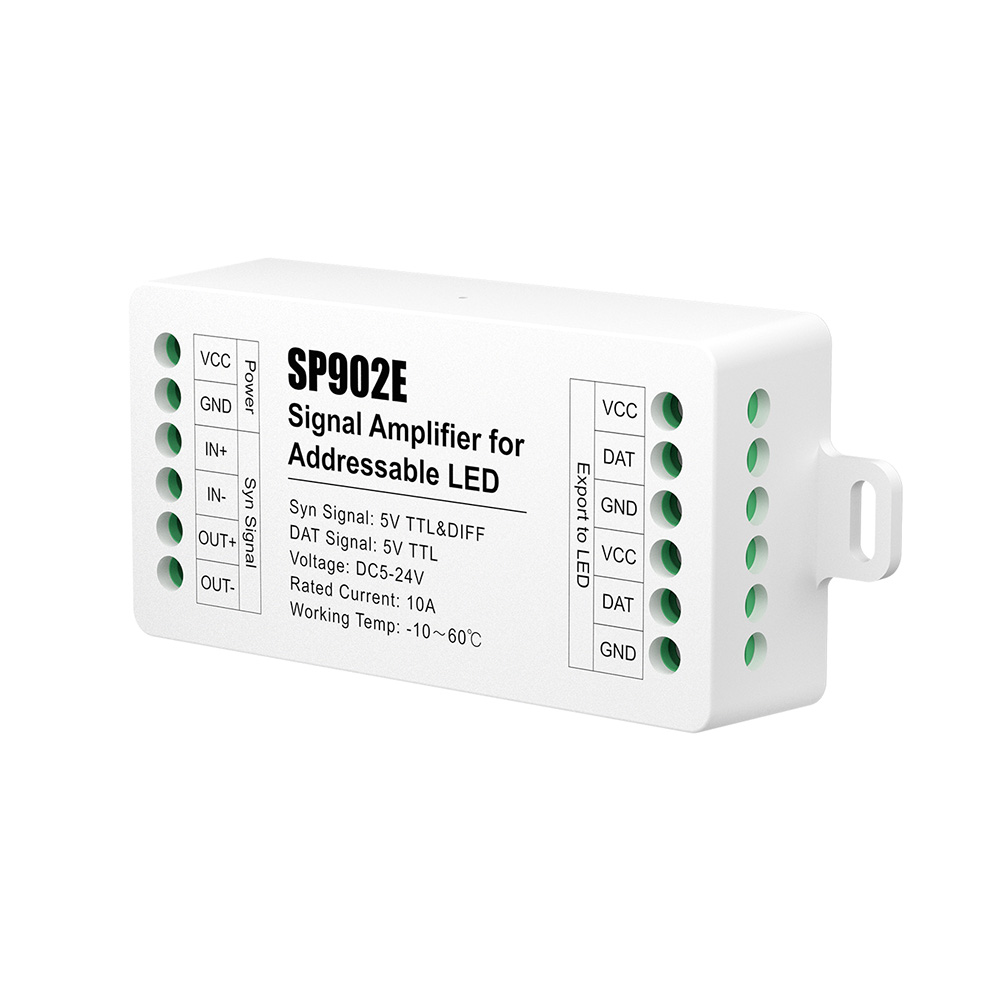

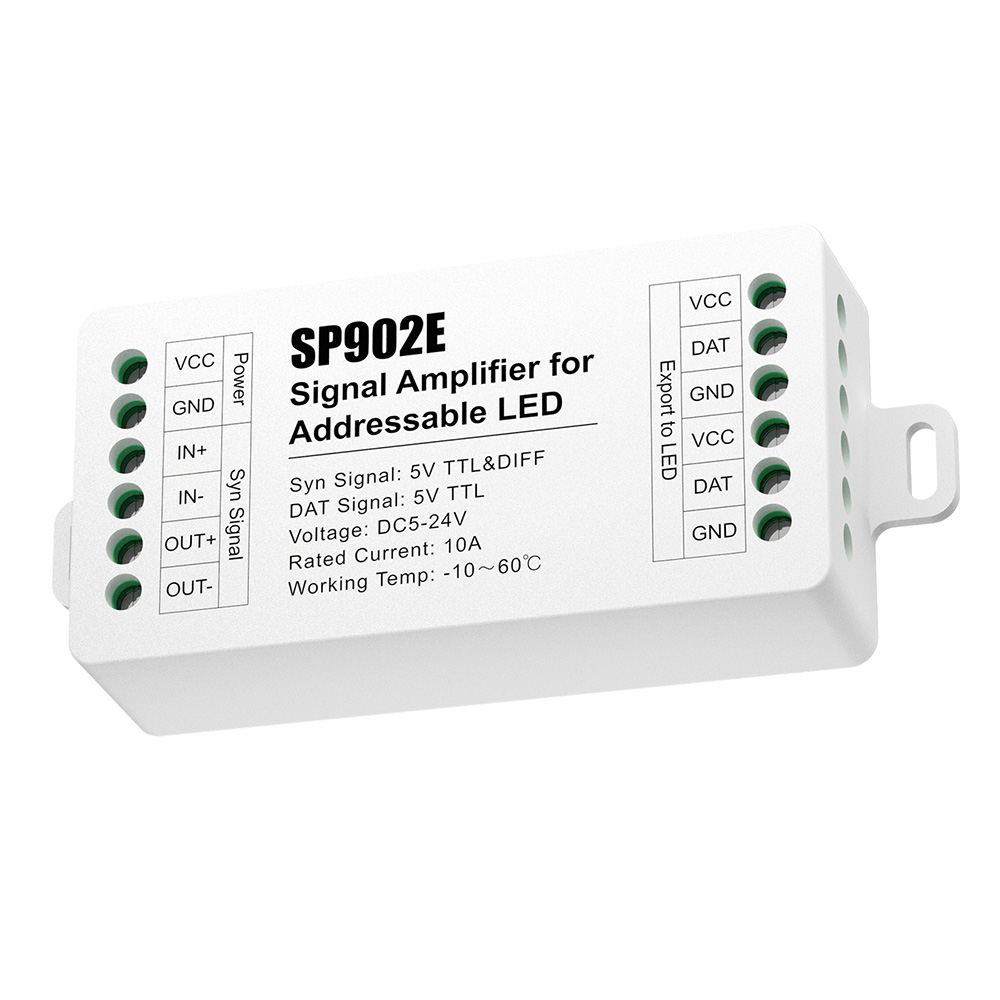

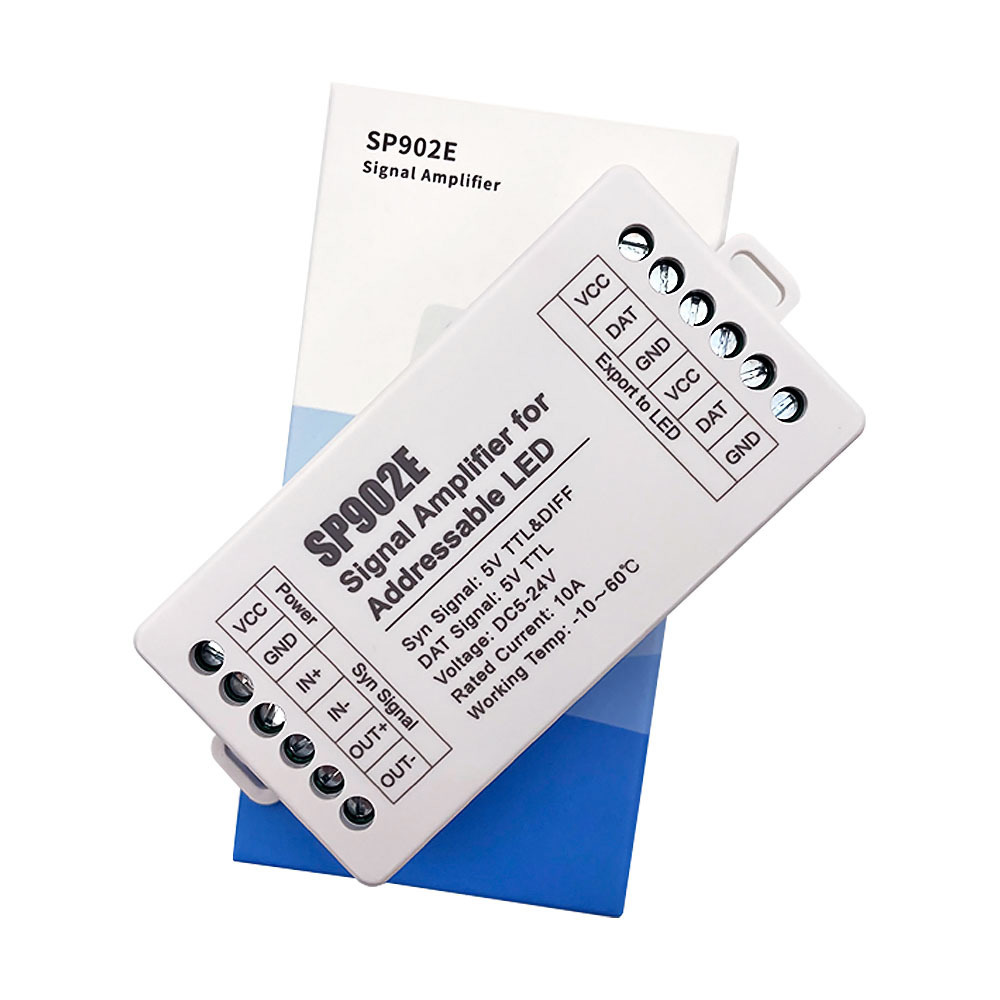

The SP902E SPI Signal Amplifiers can seamless integrate with Digital LED Strips, and offer a boost in signal strength to ensure a steady and dependable connection. The SPI Signal Amplifiers are compatible with all kinds of 5V TTL signals. Will receive signals and simultaneously 2 output channel signals. Each channel can control the same quantity of ICs as the main Pixel LED Controllers. The Signal Repeater can work with single data wire Digital Strip Lights, such as WS2812B, WS2811, SK6812-RGB, SK6812-RGBW, SM16703, etc.


Note:

1. The Amplifier can not identify the input voltage at the VCC port, so please ensure the Power Supply output is the same as the working voltage of your Pixel LED Strips. The max current of the Amplifier is 10A, when the consumption current is higher, you will need to add power supply of the corresponding voltage.

2. The strength of the TTL Signal is related to the type of IC used in the LEDs or on the LED Strips, the length and thickness of the connecting wires, and the number of LEDs connected in parallel.

3. The signal transmission distance between the Amplifiers is affected by the type of wires and the environment. If you want to transmit the signals to a long distance, please use a shielded twisted pair of cables.


Features:

  • Type: SPI Signal Repeater
  • Model: SP902E
  • Size: 98*43*21mm(L*W*H)
  • Input Voltage: DC5V-24V
  • Rated Current: 10A
  • Output Channels: 2
  • Syn Signal: 5V TTL&DIFF
  • DAT Signal: 5V TTL
  • Compatible With Singal Data Wire ICs: WS2812B, WS2811, SK6812, SK6812-RGBW, SM16703, WS2814
  • Can Work With K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry PI, Arduino X2, etc
  • Static Power Consumption: <1W
  • Working Temperature: -10-60℃
  • 2 Years Warranty

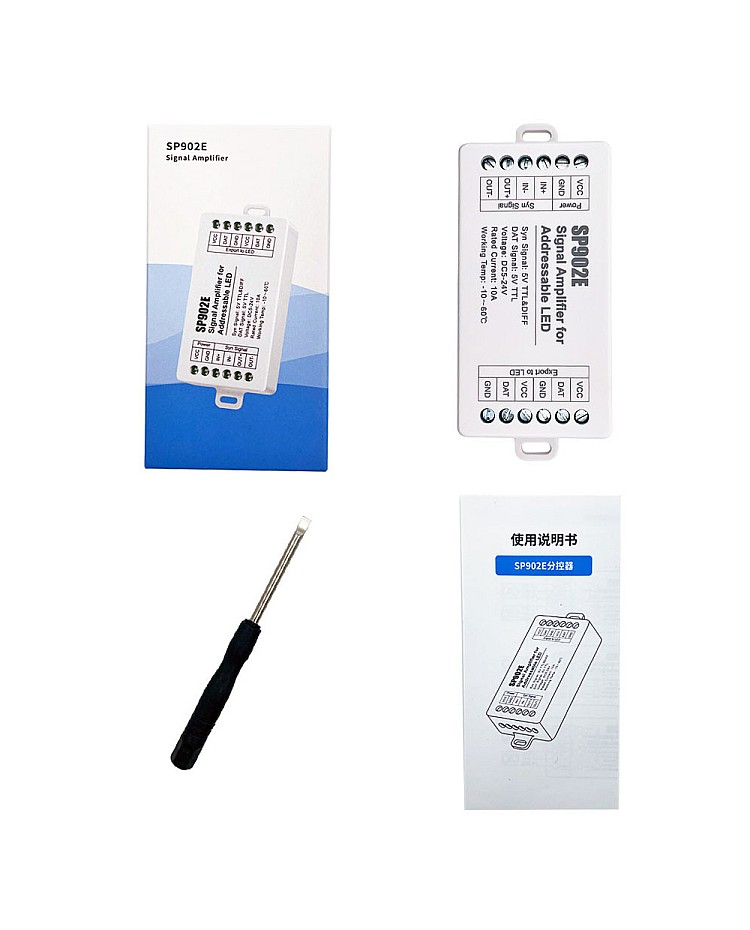

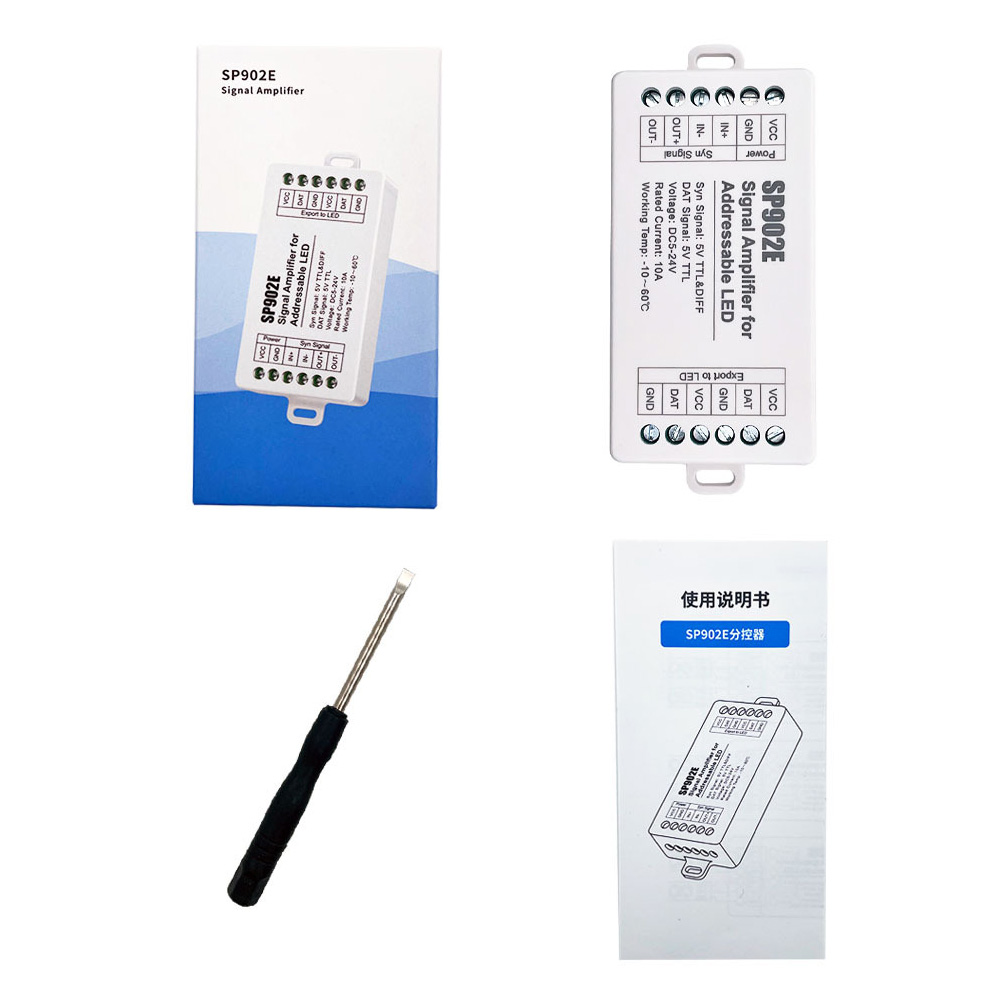

Includes:

1*SP902E SPI Signal Amplifier

1*Screwdriver

1*User Manual

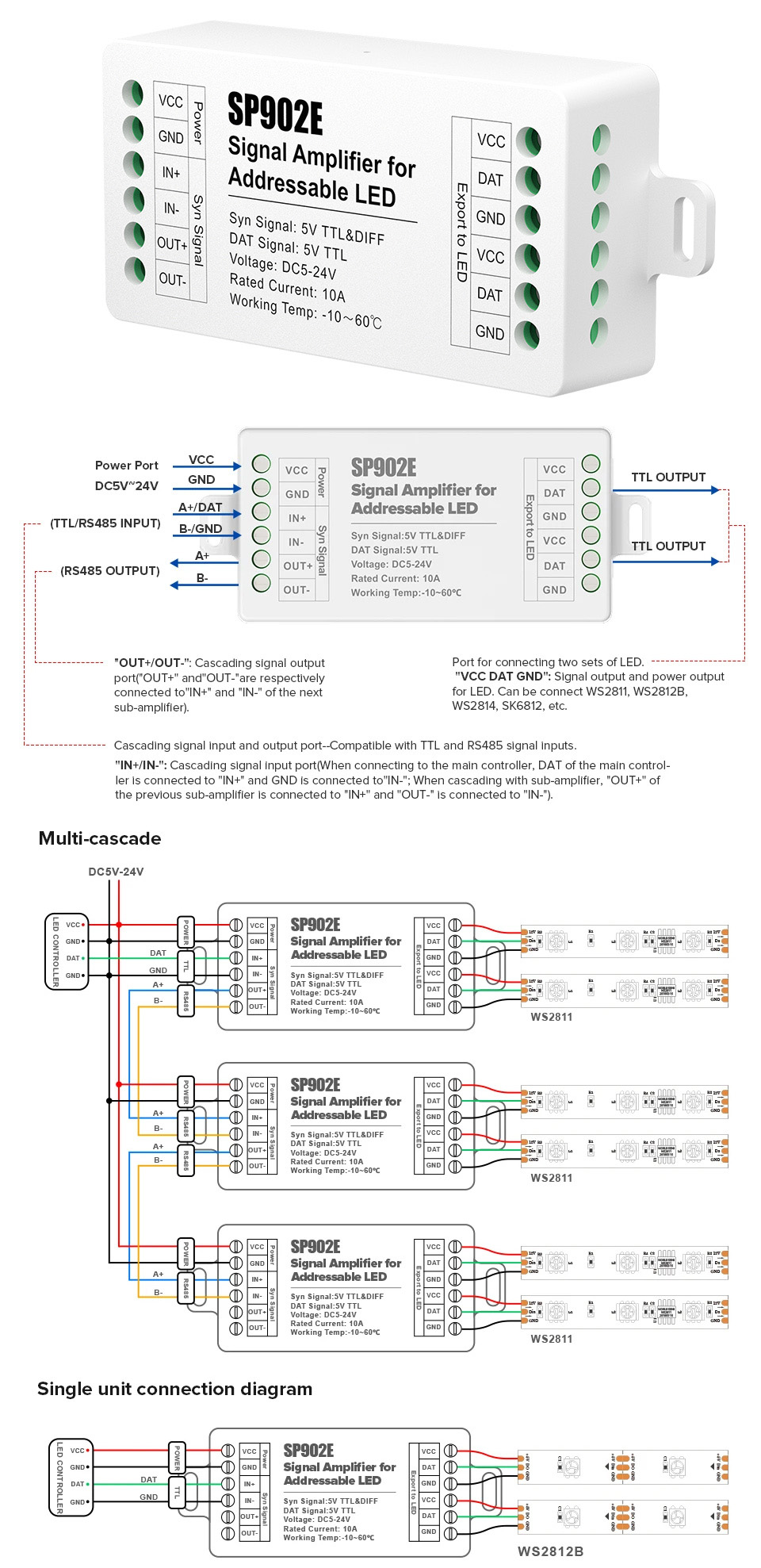

SP902E SPI Signal Amplifier
