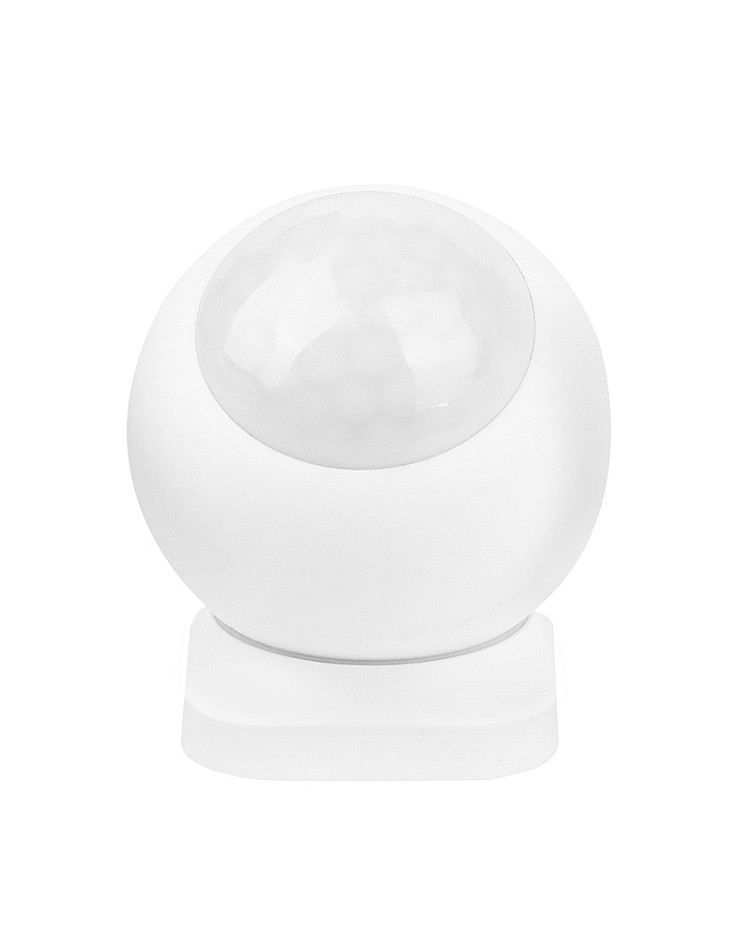

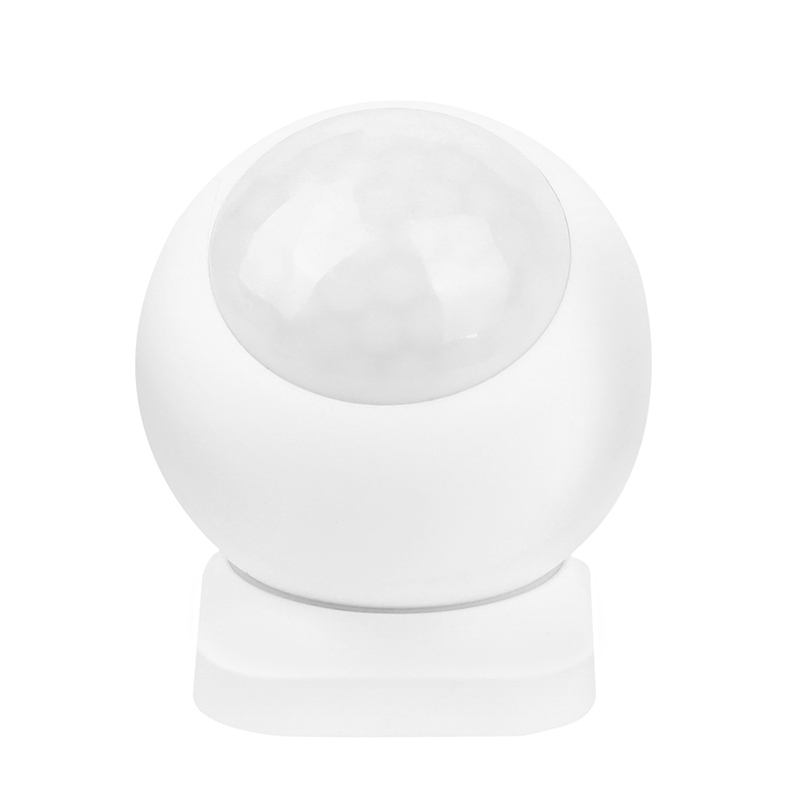

Check the Infrared PIR Sensor MiBoxer PIR1-ZB, powered by one CR123A cell battery with low power consumption. Follow the Zigbee 3.0 standard protocol, linkage control through Tuya APP by matching MiBoxer Lamps and Controllers, the Zigbee 3.0 Gateway needed. The detection angle is 120°, and the max detection distance is 7m, which will sensitively identify heat changes and intelligently sense human movement. When the home is abnormally broken into after leaving home, the remote push reminder will be sent to your mobile phone.

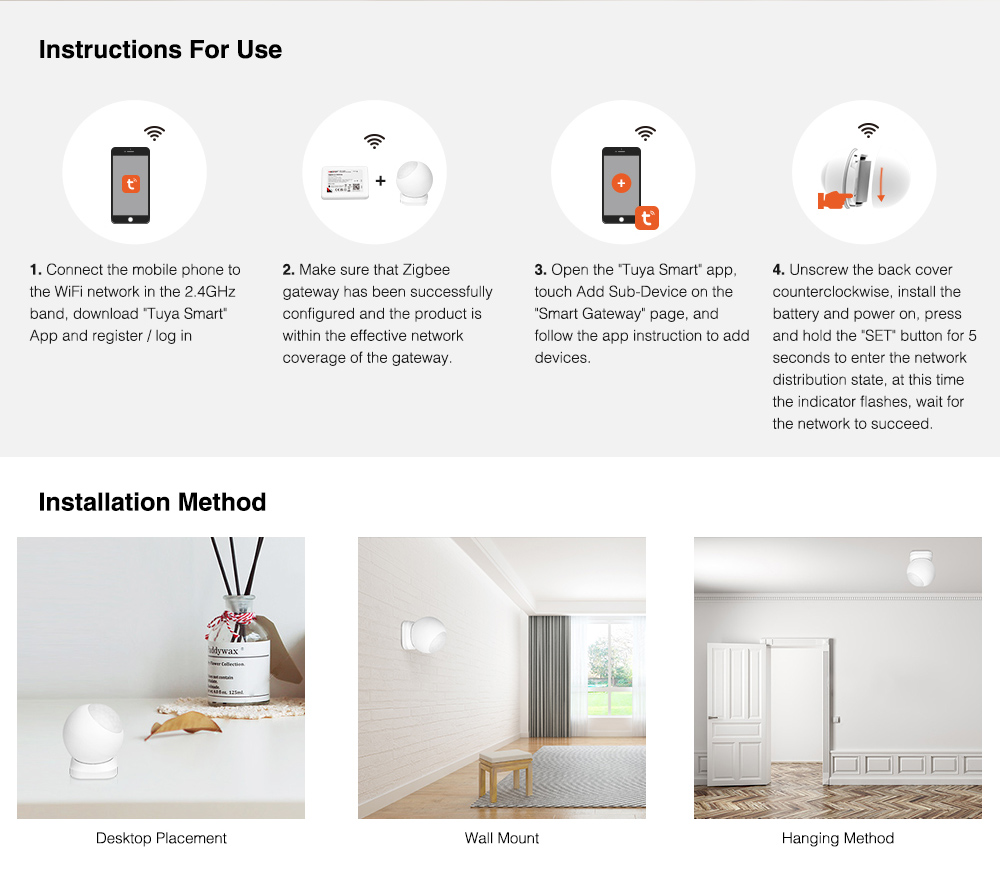

Connection Instructions:

1. Connect the mobile phone to the WiFi network in the 2.4GHz band, download the " Tuya Smart " APP, and register/log in

2. Make sure that Zigbee Gateway has been successfully configured and the product is within the effective network coverage of the gateway

3. Open the " Tuya Smart " APP, touch add sub-device on the " Smart Gateway" page, and follow the APP instruction to add devices

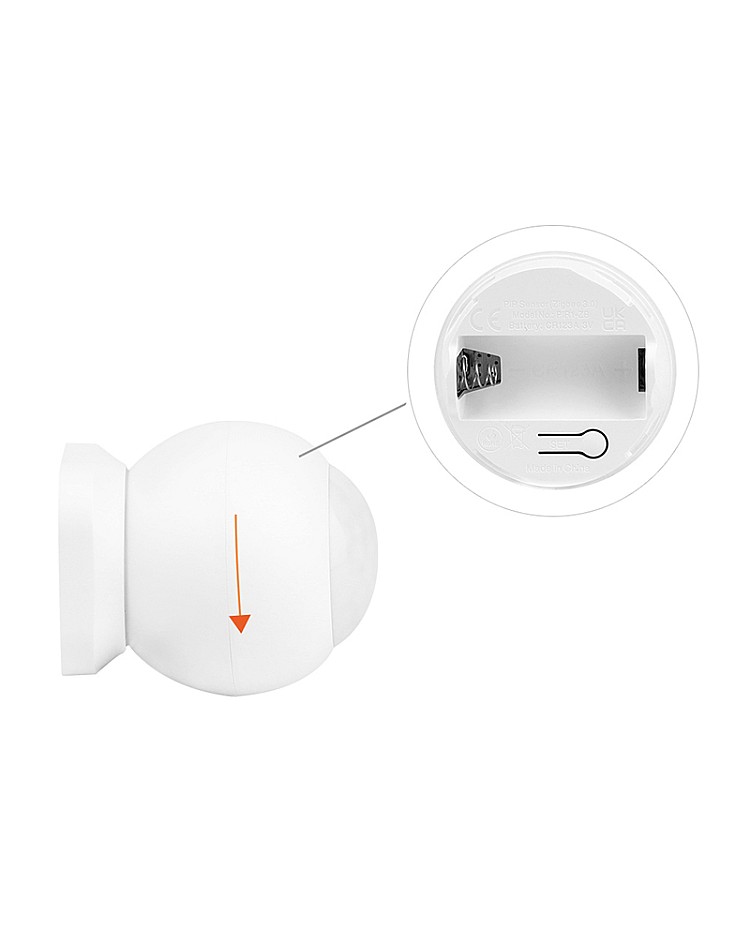

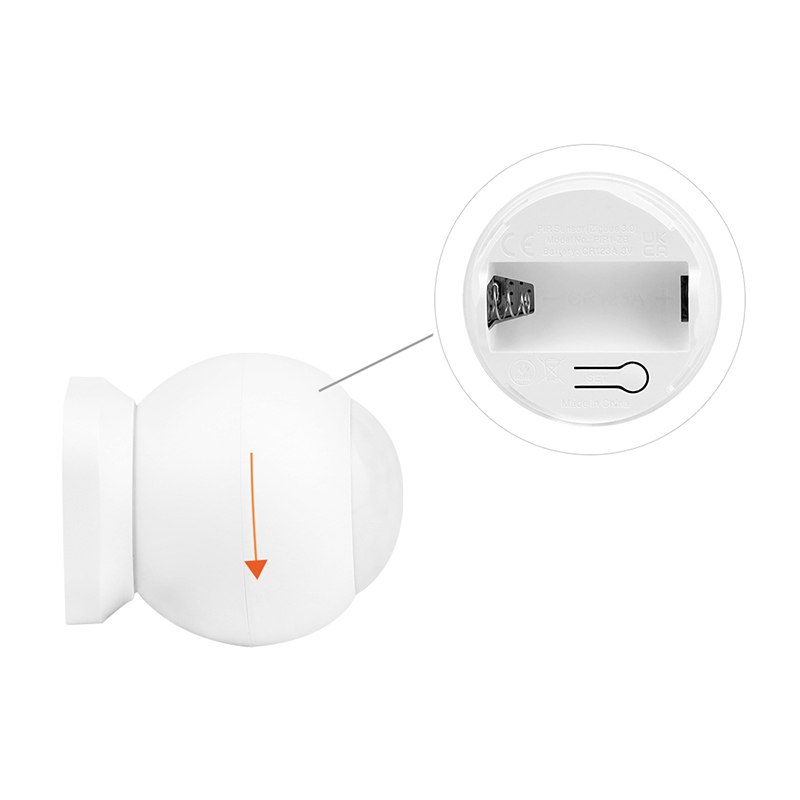

4. Unscrew the back cover counterclockwise, install the battery, power it on, and press and hold the " Set “ button for 5 seconds to enter the network distribution state. At the same time, the indicator flashes, and wait for the network to succeed


  • Type: PIR Sensor(Zigbee 3.0)
  • Model: PIR1-ZB
  • Working Voltage: DC3V(Powered By One CR123A Cell Battery)
  • Standby Power Consumption: 12μA

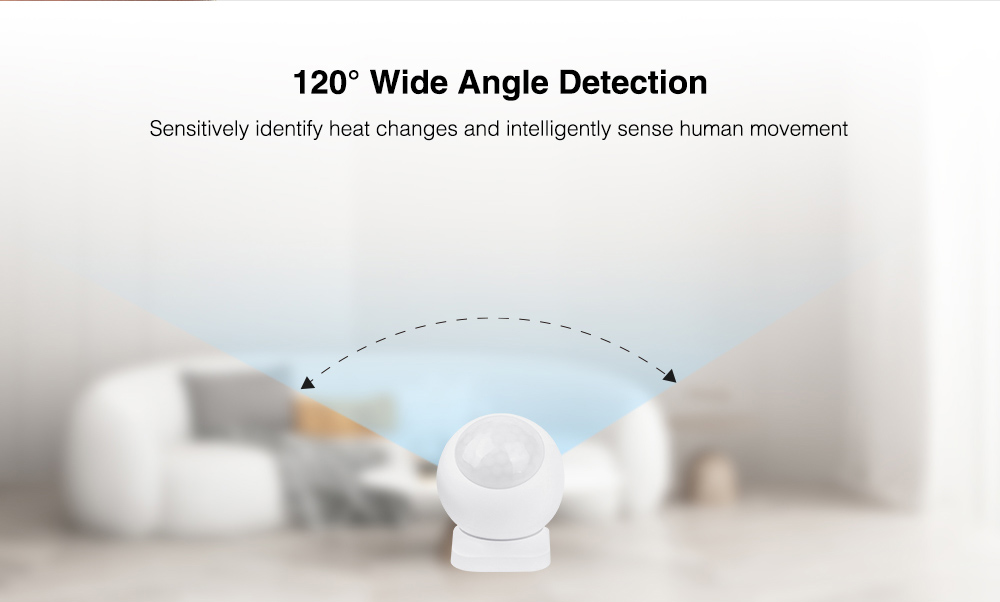

  • Detection Angle: 120°
  • Detection Distance: 7m
  • Wireless Technology: Zigbee 802.15.4
  • Zigbee Control Distance: ≤100m(Open Area)
  • IP Rate: IP54
  • Linkage Control Through Tuya APP By Matching MiBoxer Lamps And Controllers(Zigbee 3.0 Gateway Needed)
  • Abnormal Break-In Reminder Immediately

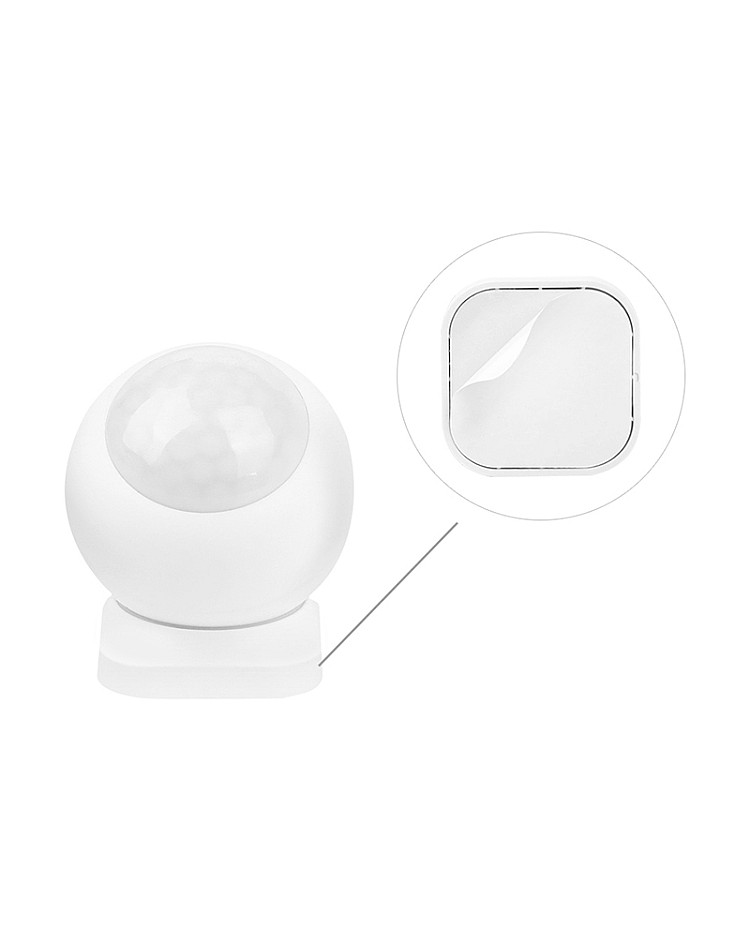

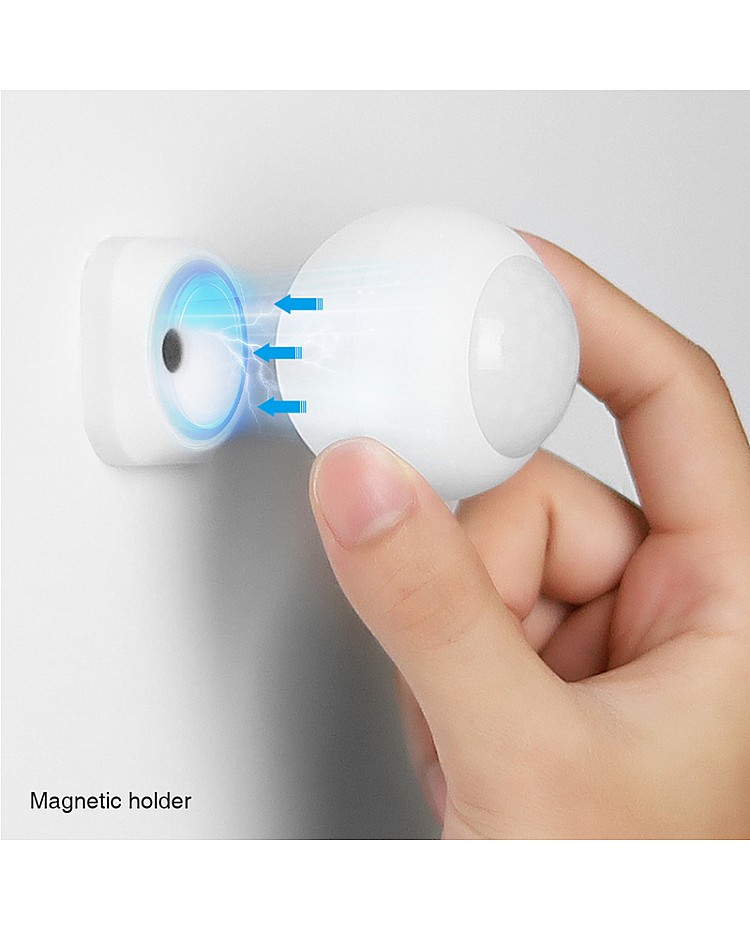

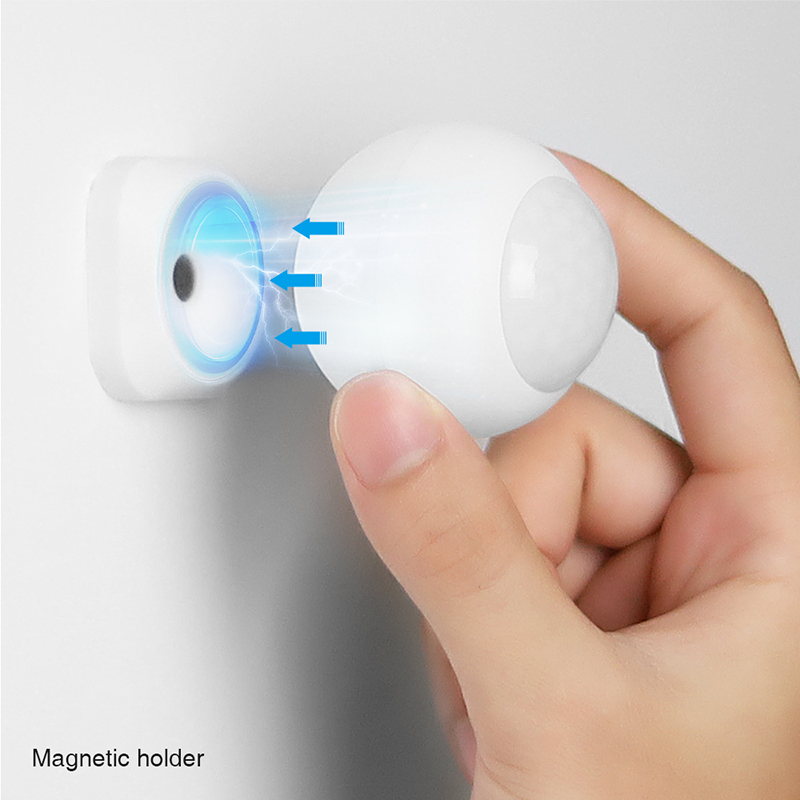

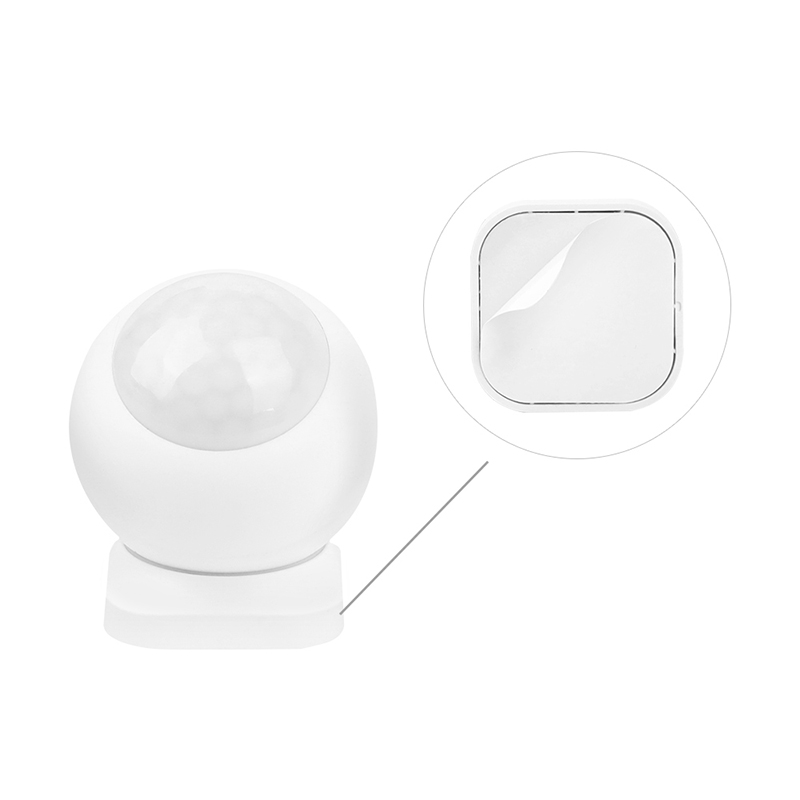

  • Installation: Desktop Placement, Wall Mount, Hanging Method
  • Working Temperature: -10-40℃
  • 3 Years Warranty


1*Zigbee 3.0 Infrared PIR Sensor
