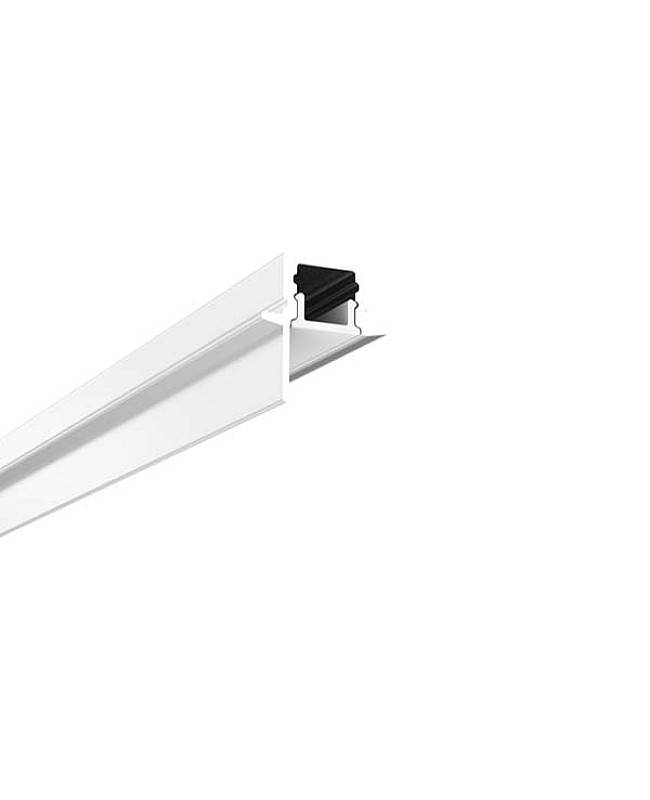

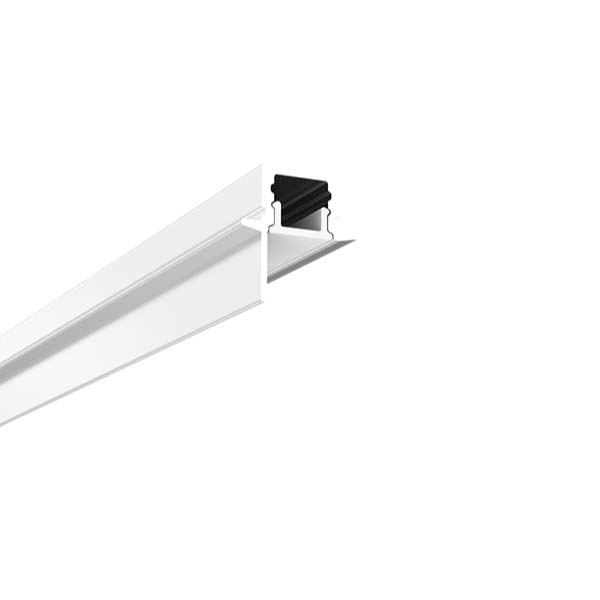

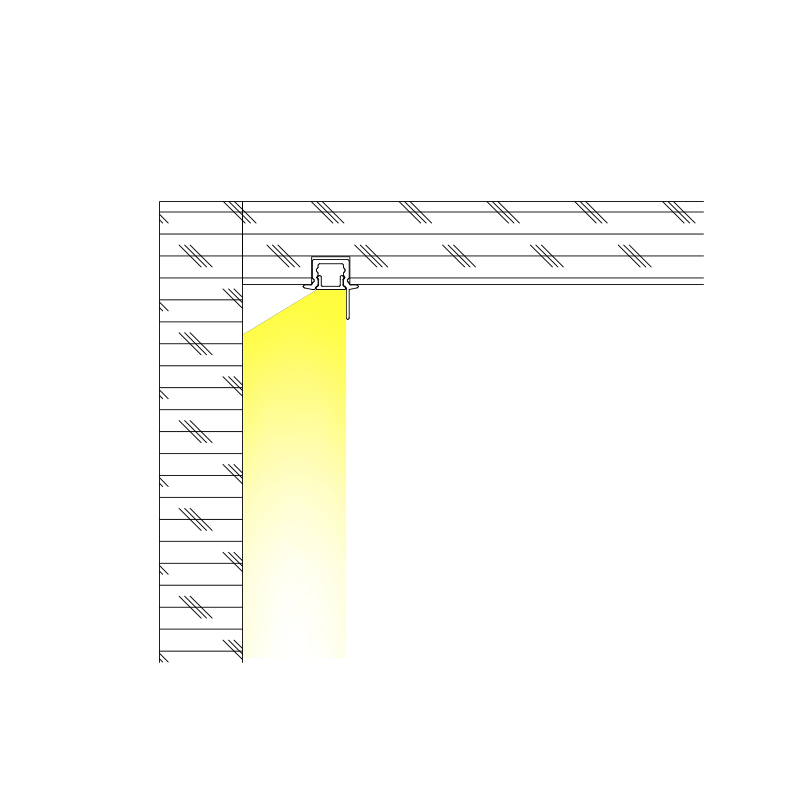

The ALP135 is a super tiny recessed aluminum LED profile that is designed for 4mm or 5mm LED strip lights. With its ultra-slim body, it's the perfect choice for discreet and seamless lighting installations in tight spaces. With an anti-glare design, the flange shields light from shining outward, creating cozy illumination without harshness. Ideal for under-cabinet lighting, furniture integration, display showcases, and more. The aluminum profiles are made of 6063-T5 aluminum alloy with a silver anodized surface treatment, offering anti-oxidation resistance, durability, and long-lasting performance. The standard lengths are 1 m and 2 m, and can be cut to any size for your project. The inner width is 5.5 mm, allowing the maximum width of LED strips to be 5 mm. We recommend adding a high-density 4mm dotless COB light strips as the light source for uniform lighting without hotspots. There are two types of diffusers available: PC frosted covers and black PC covers. They are made of brand-stable, anti-yellowing material, and will diffuse the lighting evenly. End caps (with and without wire holes) and diffusers are included; no need to order them separately.

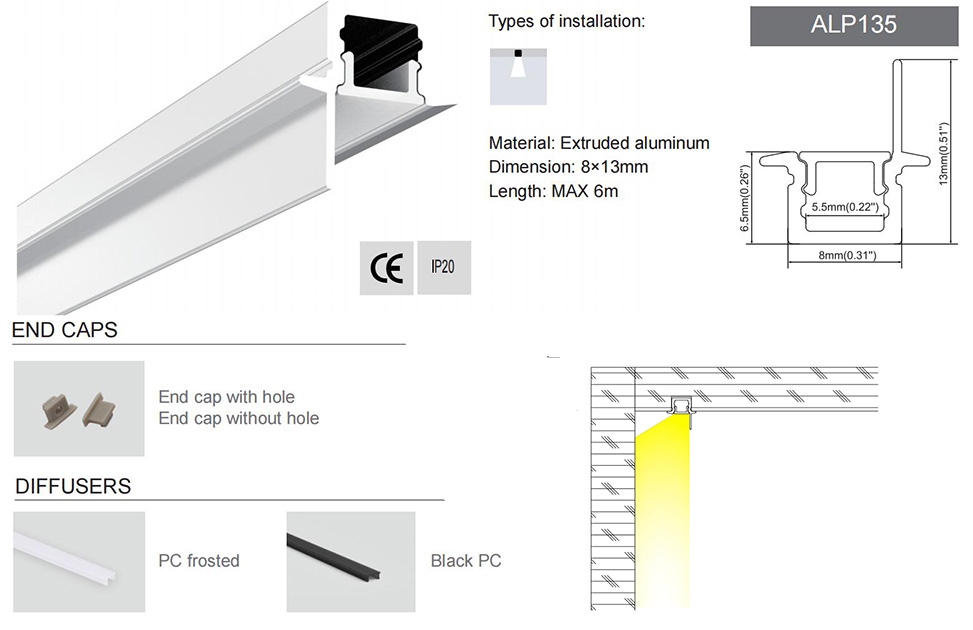

Specifications:
- Model: ALP135
- Material: 6063-t5 extruded aluminium
- Surface treatment: Anodized
- Colors: Silver

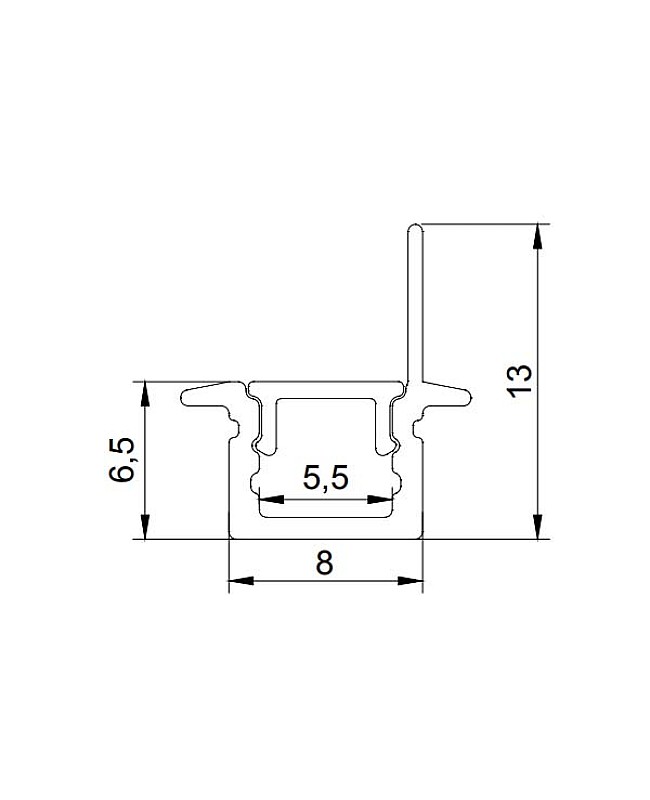

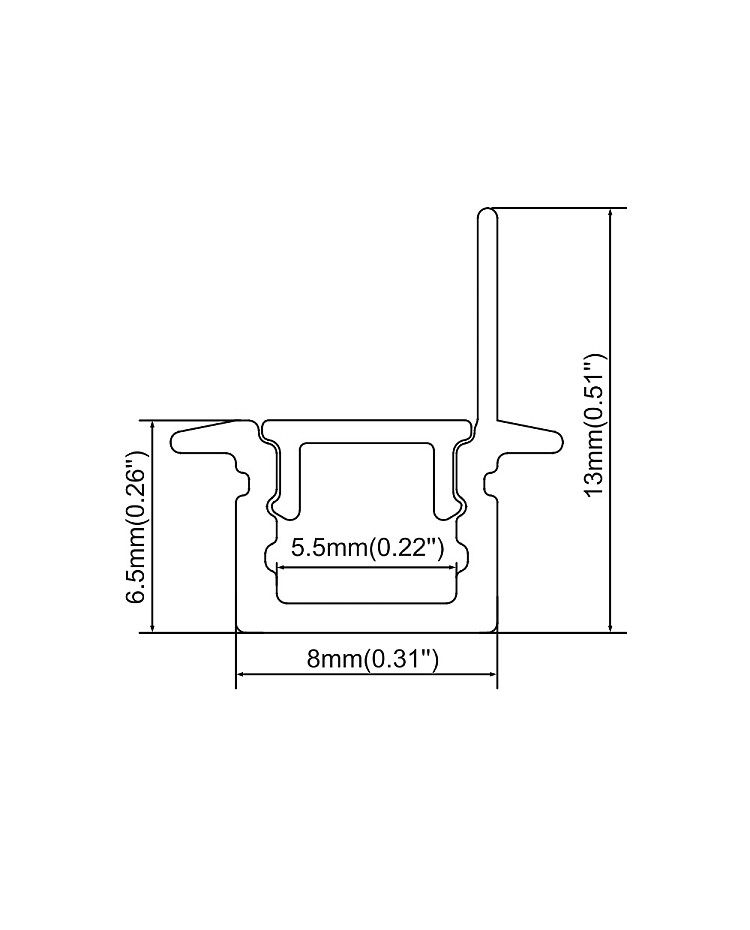

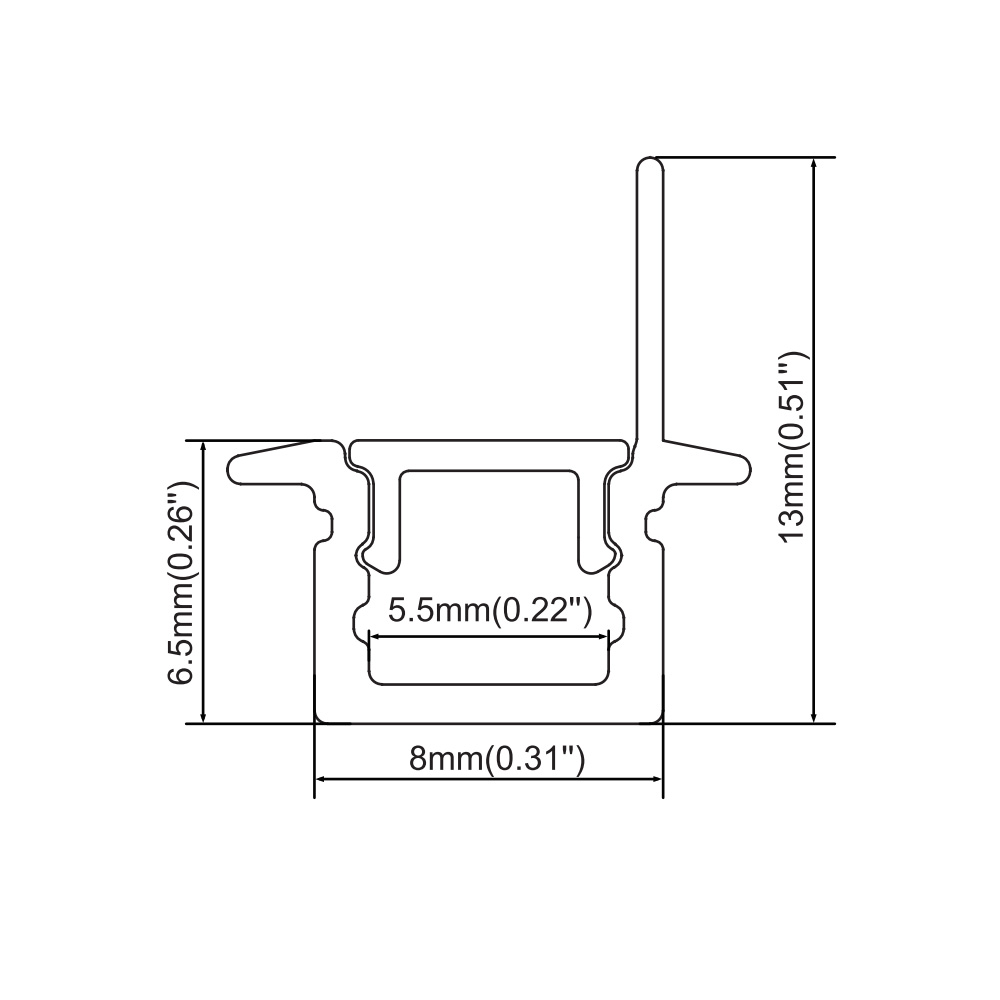

- Size ( W x H ) : 8 mm x 13 mm ( 0.31" x 0.51" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 5.5 mm ( 0.22" )
- Maximum width of strip lights: 5 mm ( 0.2" )
- Max power: 10W/m
- Diffuser: PC frosted covers, black PC covers
- Tolerance: ±1%
- Beam angle: 100°
- End caps with and without wire holes are included

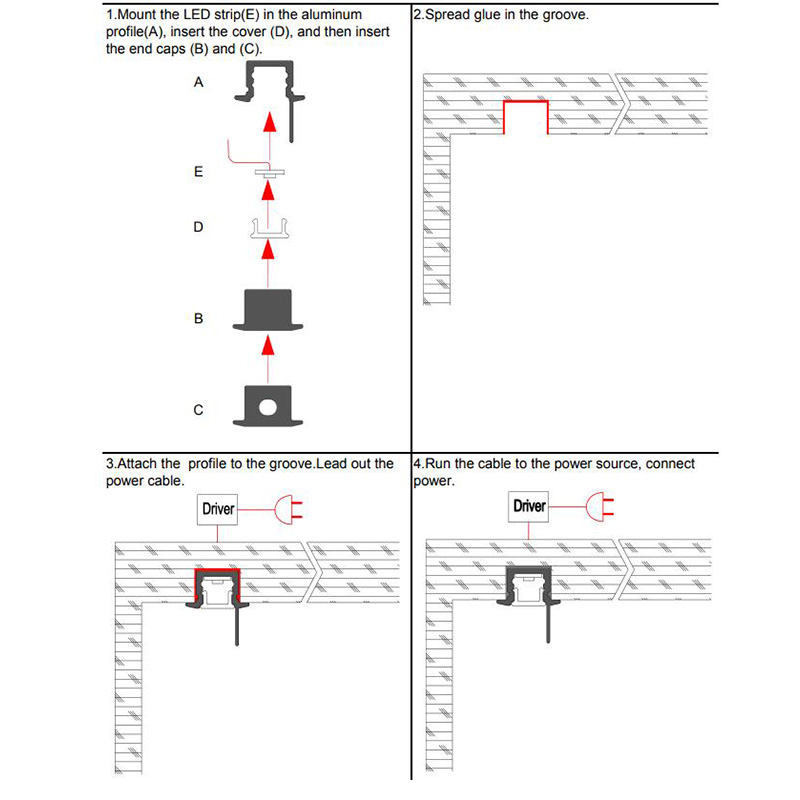

- Installation: Recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

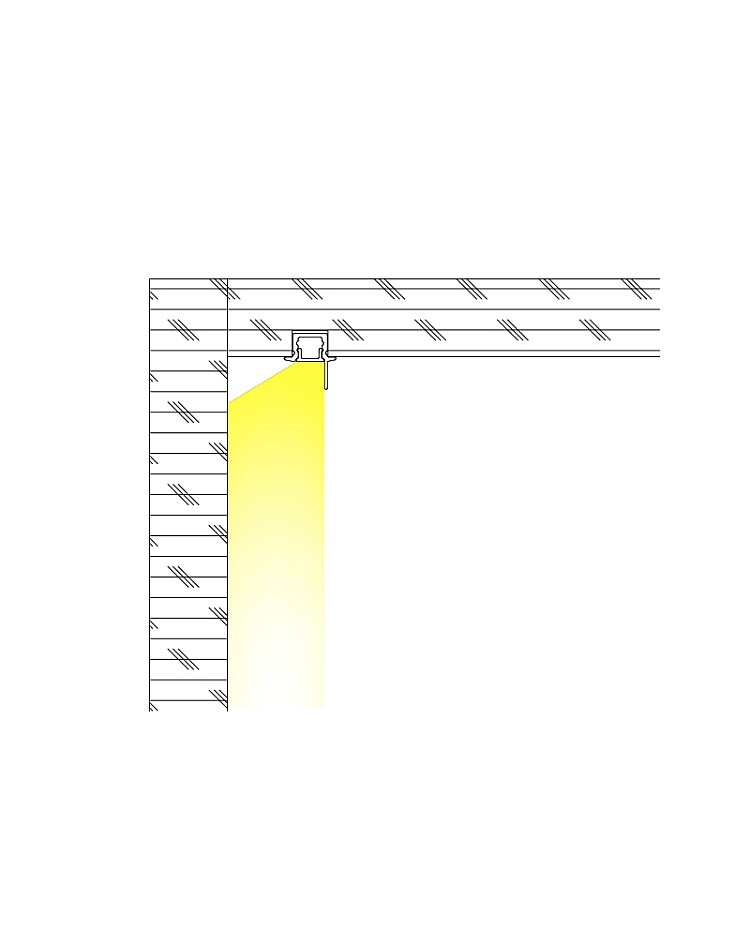

- Under cabinet lighting
- Furniture lighting
- Display & showcase lighting
- Cove & edge lighting
- Architectural accent lighting
- Commercial lighting

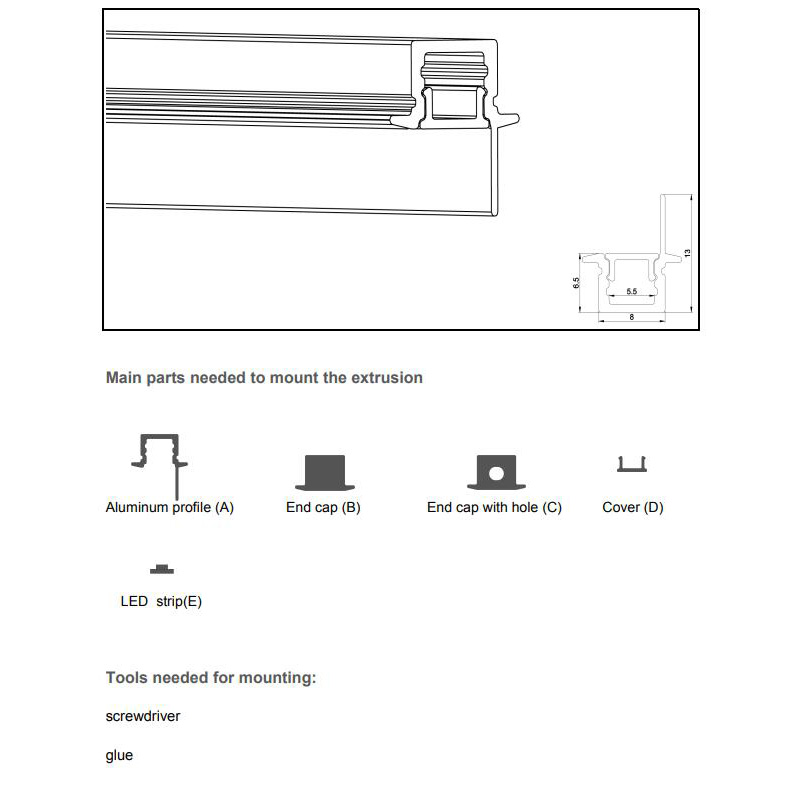

Includes:
1 * Mini size LED profile with diffuser
End caps(With and without wire holes)


+
+
+
