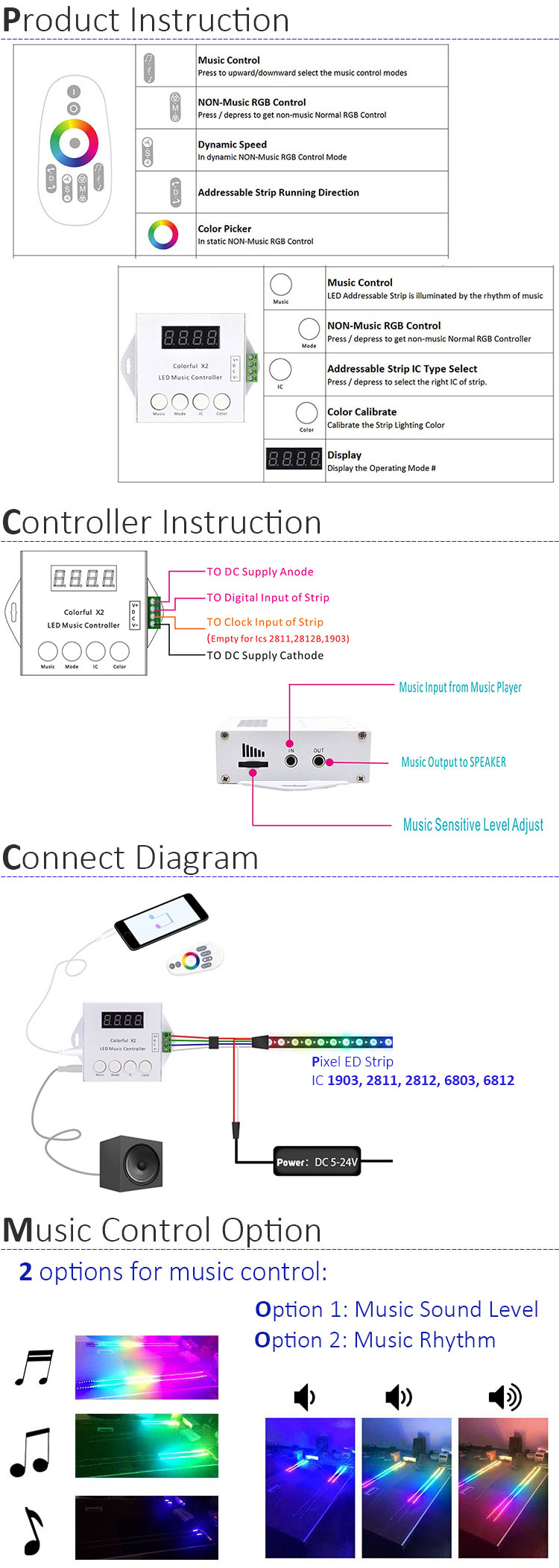

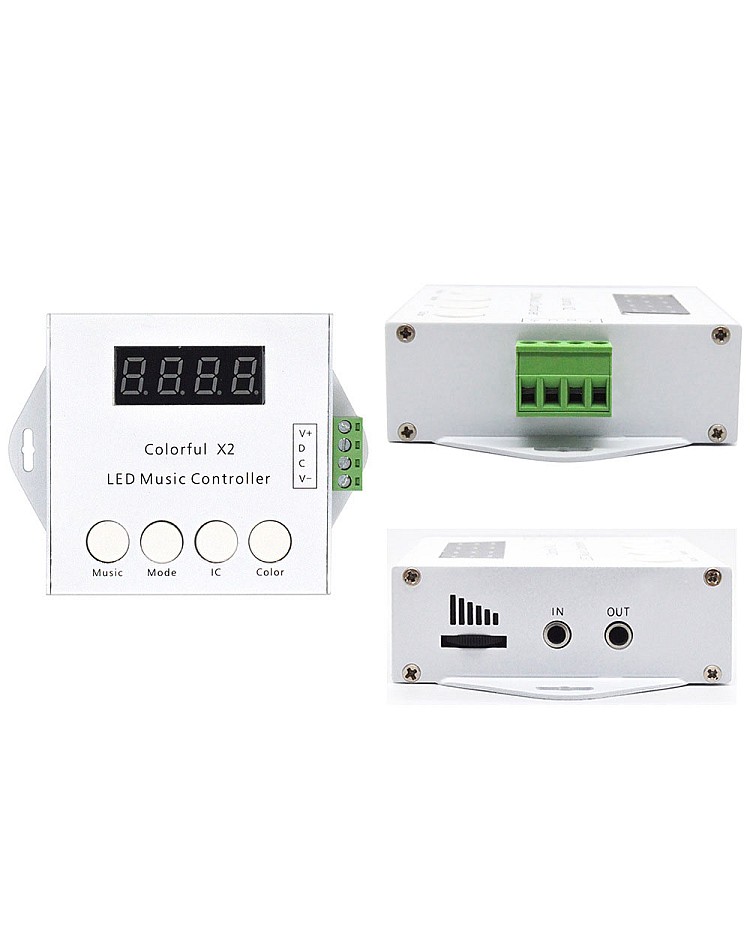

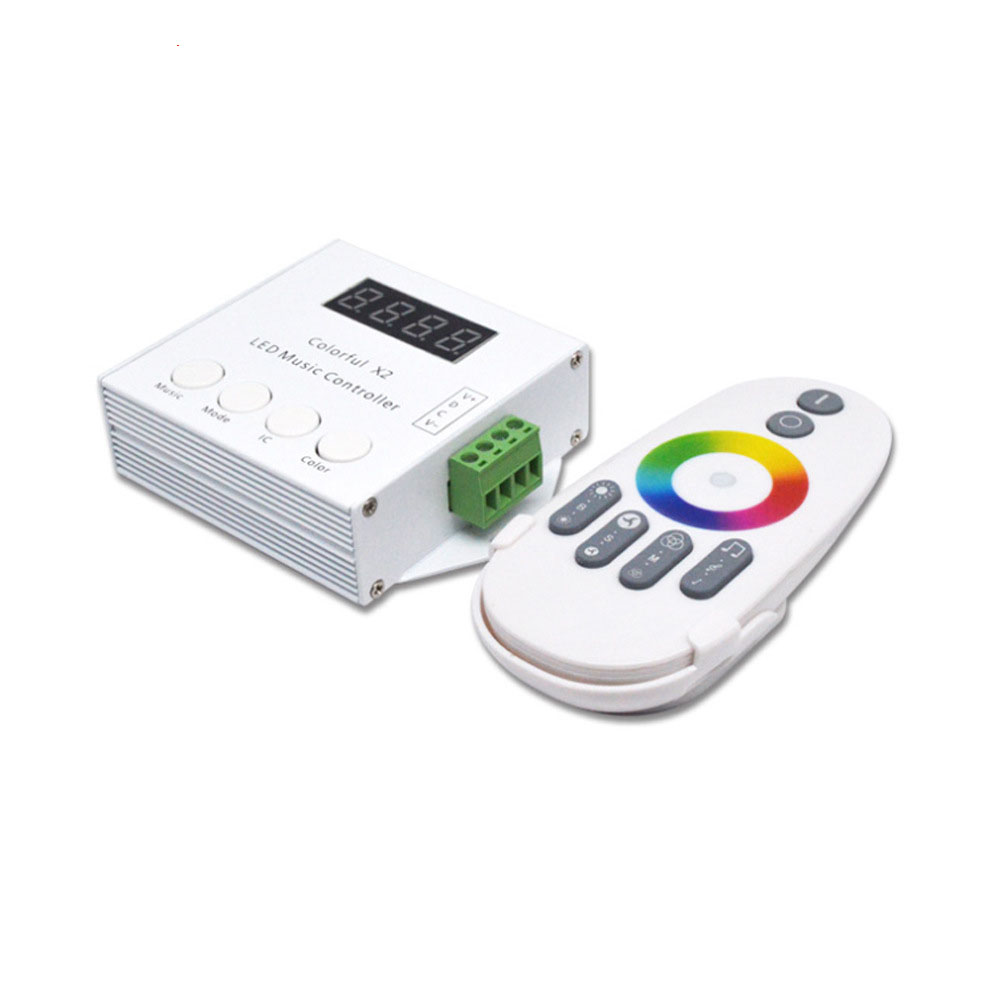

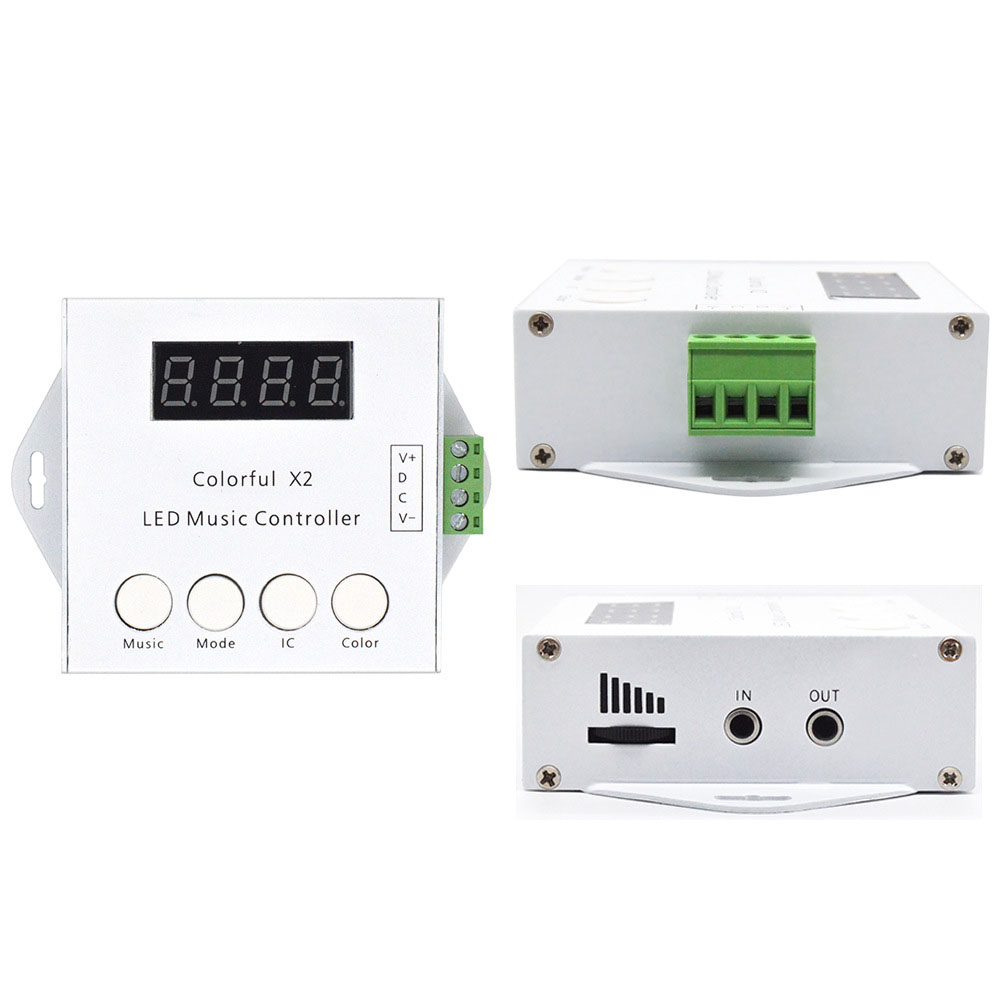

The Colorful X2 Programmable Digital Music LED Controller, which is designed for the Digital Pixel Flexible LED Strips, working in DC5V-24V, the max loading number of pixels up to 1000PCS, supports the primary type of ICs, WS2811, WS2812B, WS2813, WS2815, USC1903 and 6803, easy to connect to the Programmable LED Strips. On the left side of the Music LED Controller with audio in and output ports, you can connect to an audio player and output the music signal to a speaker. There is a rotary switch that allows adjusting the output music volume. The Colorful X2 Controller provides 27 music dynamic modes and 14 no-music dynamic modes, you can use the RF Remote Control or the physical buttons on the Controller to choose your favorite working mode, and the color of the Digital LED Strips will change automatically following the music beats. Different music mode has different lighting effect, and every music program is adjustable. You can use the RF Remote Contol to choose your favorite mode, choose the color, adjust the speed, etc.


Features:

  • Working Voltage: DC5-24V
  • Output: Data Signal
  • Support ICs: WS2811, WS2812B, WS2813, USC1903, 6803, 6812
  • Max Loading Pixels: 1000PCS
  • Voice Control: 70db
  • TX Power: 6db
  • Remote Control Battery: 1.5V/AAA*2(Battery Not Included)
  • Remote Standby Power Consumption: 0.08mW
  • Remote Control Distance: <20M
  • Remote Control Frequency: 433MHz
  • Standby Power Consumption: 10uA
  • 27 Music Modes And 14 No-Music Modes
  • 3.5mm Audio Input And Output Ports Included
  • Music Input Volume Adjust Knob Included
  • Operating Noise Level: <80dB
  • Can Not Work With RGB LED Strips And RGBW LED Strips Without ICs
  • Working Temperature: -20℃-+55℃
  • 2 Years Warranty


Includes:

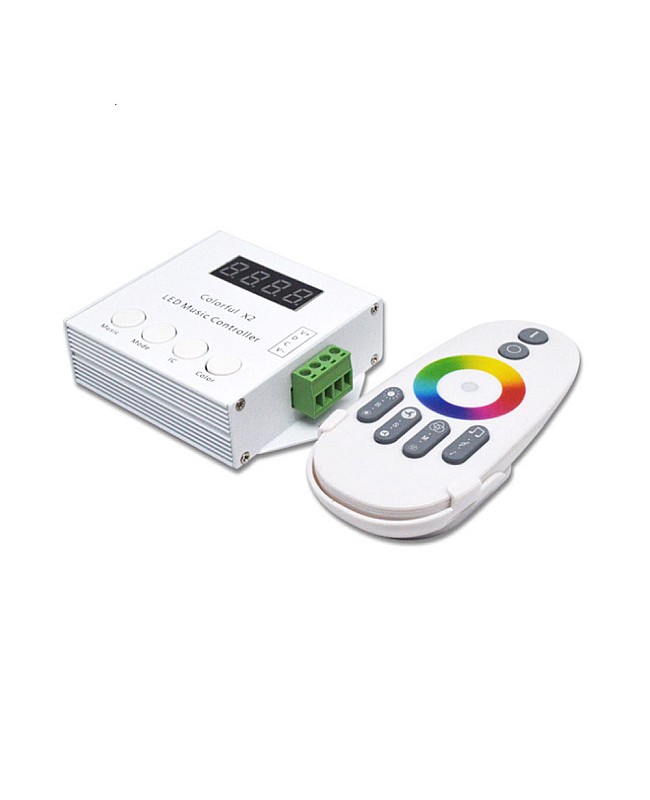

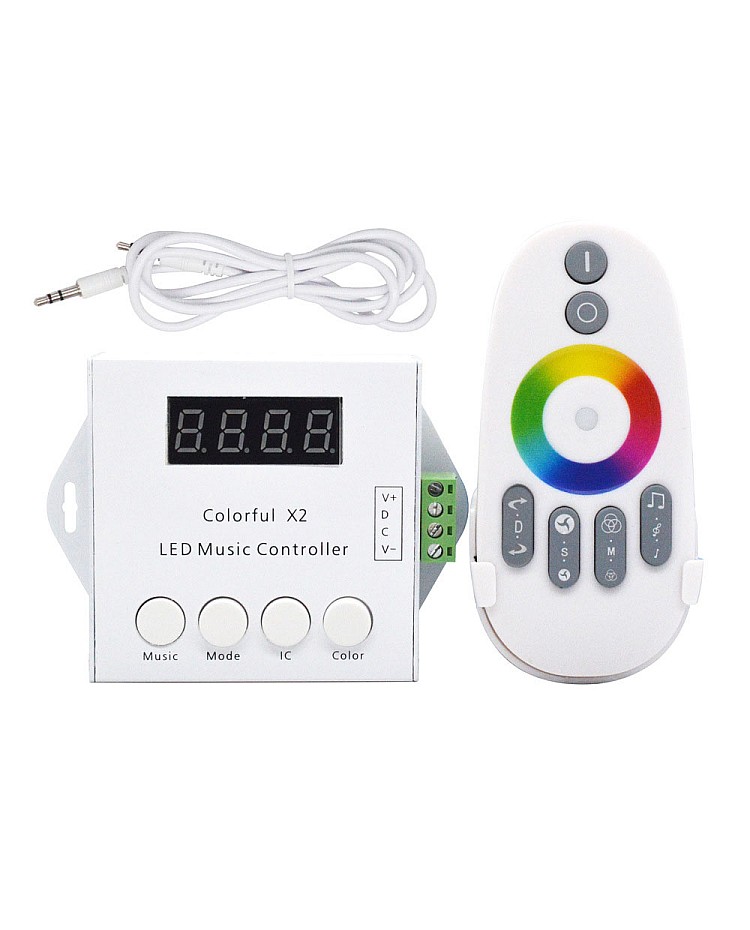

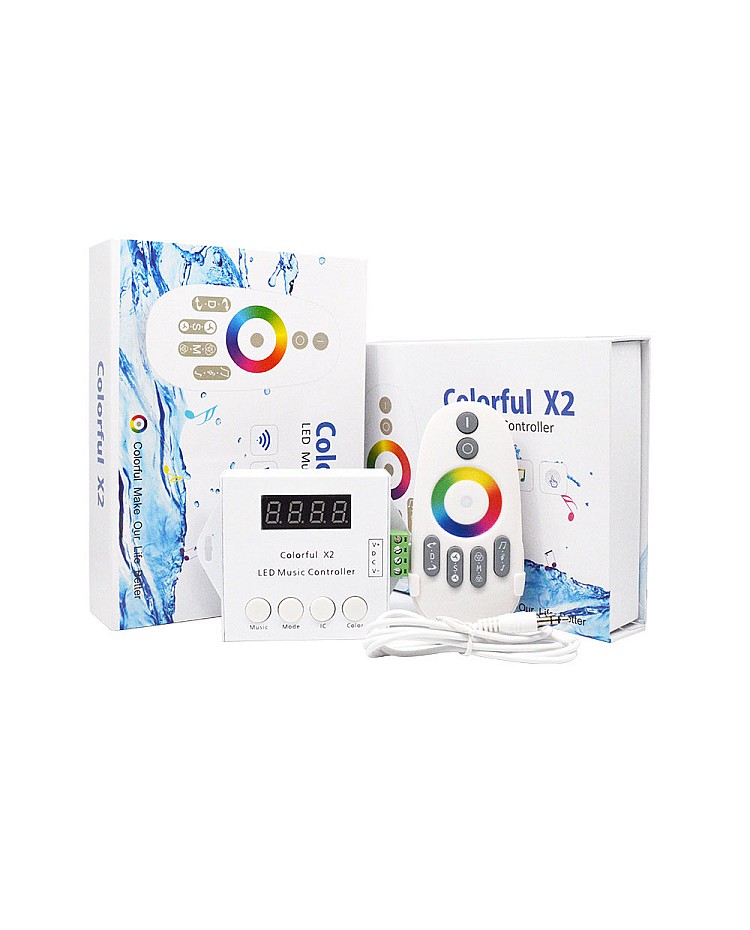

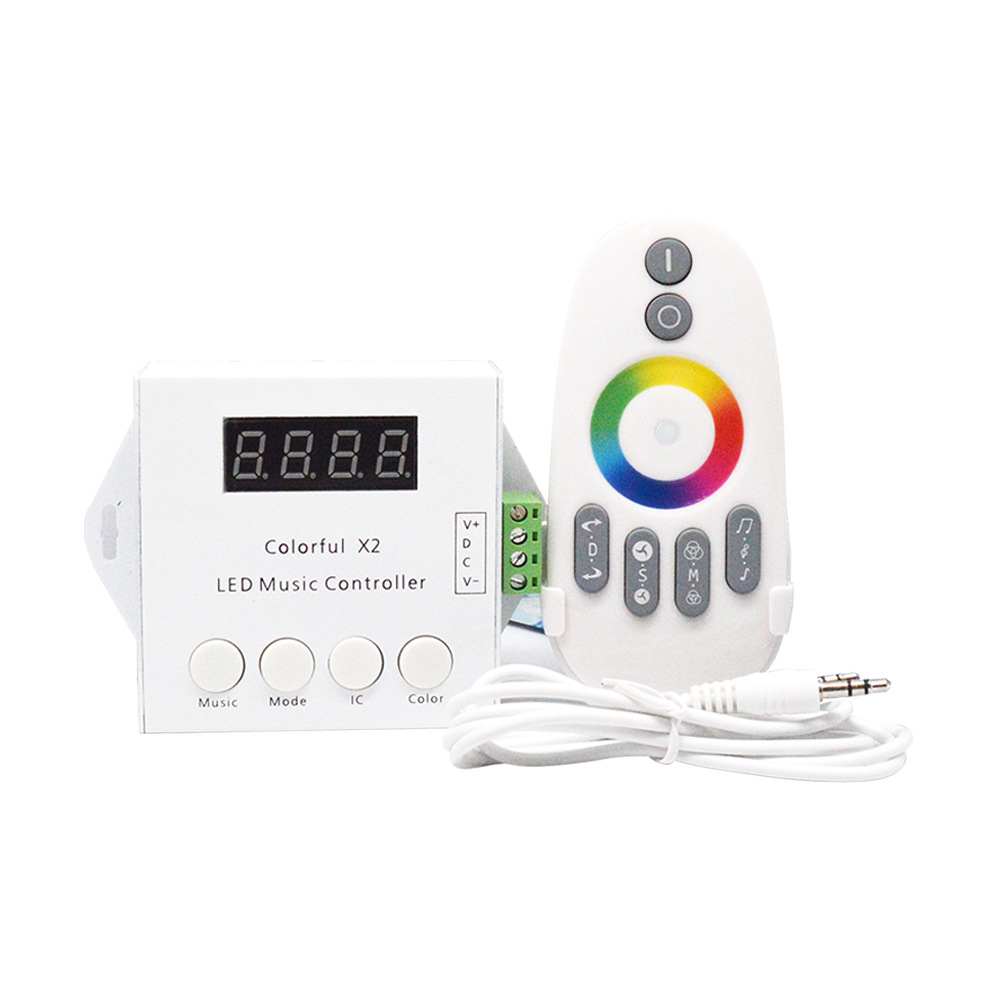

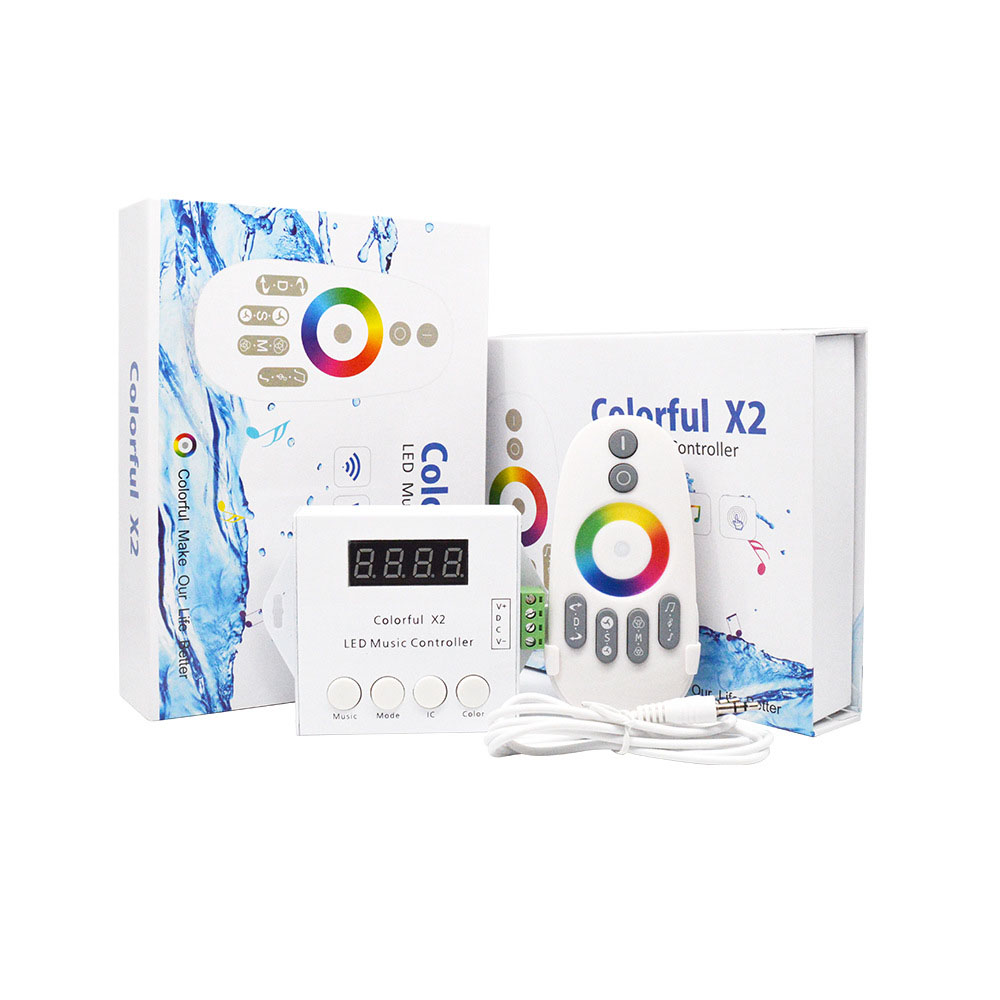

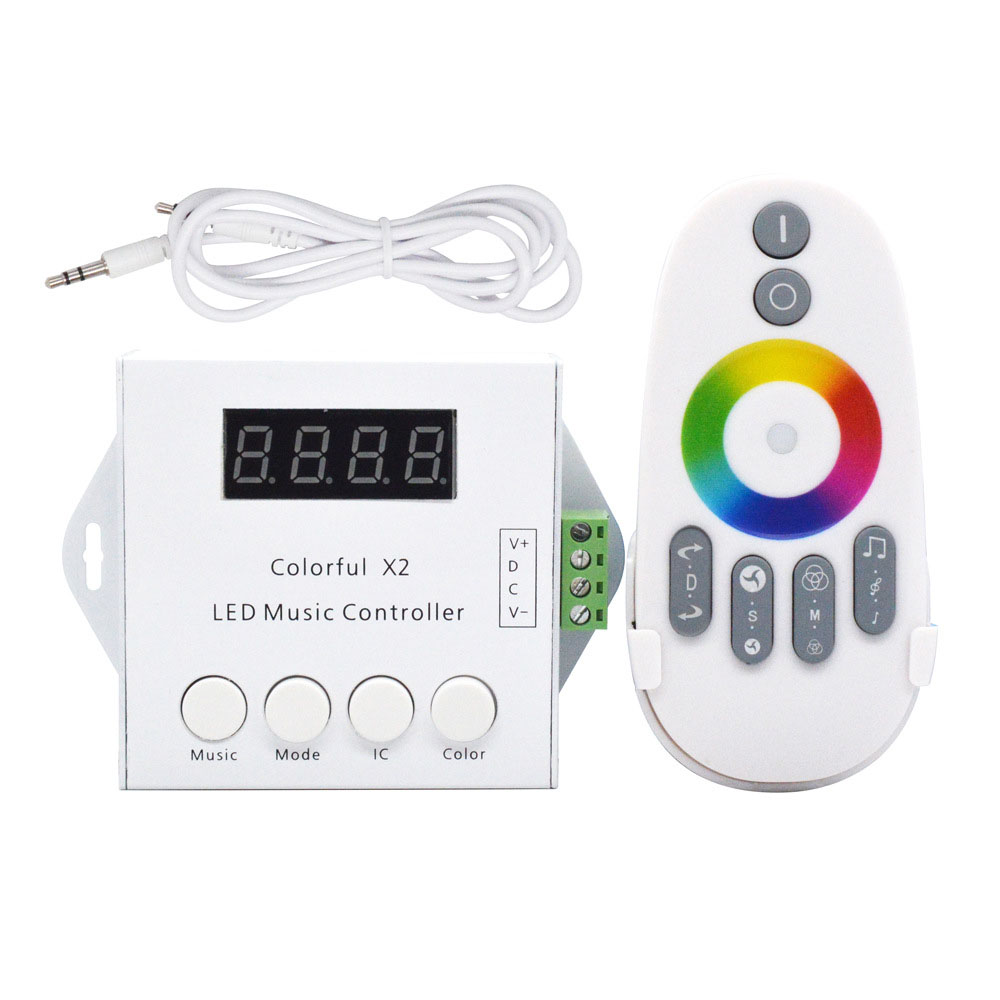

1*Colorful X2 Programmable Digital Music LED Controller

1*RF Remote Control

1*3.5mm Audio Cable
