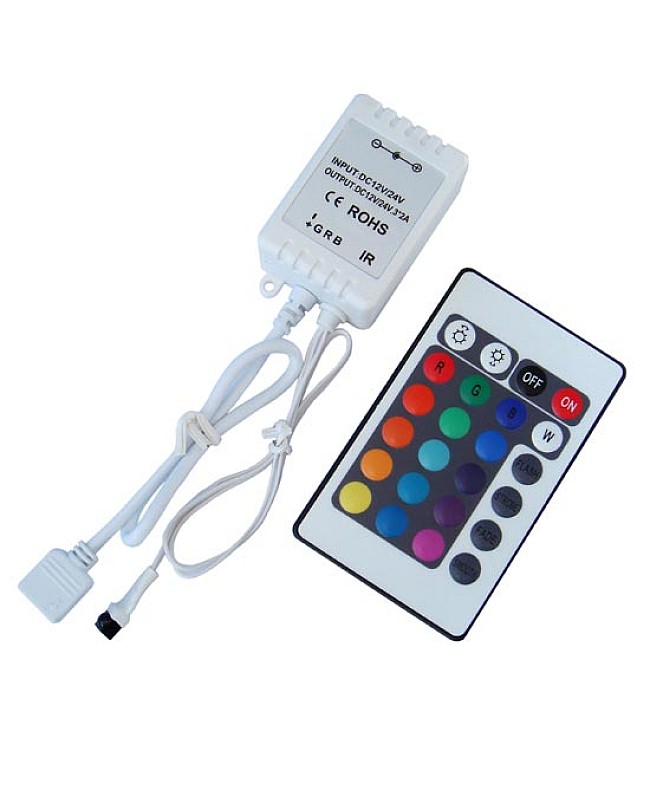

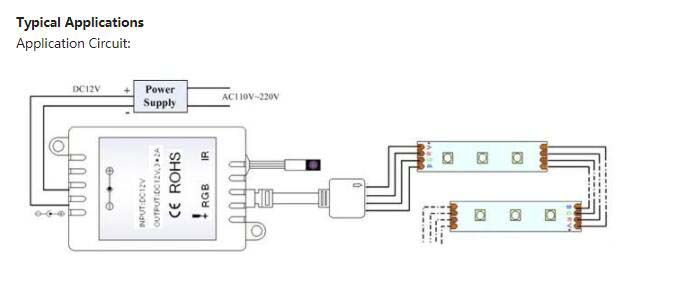

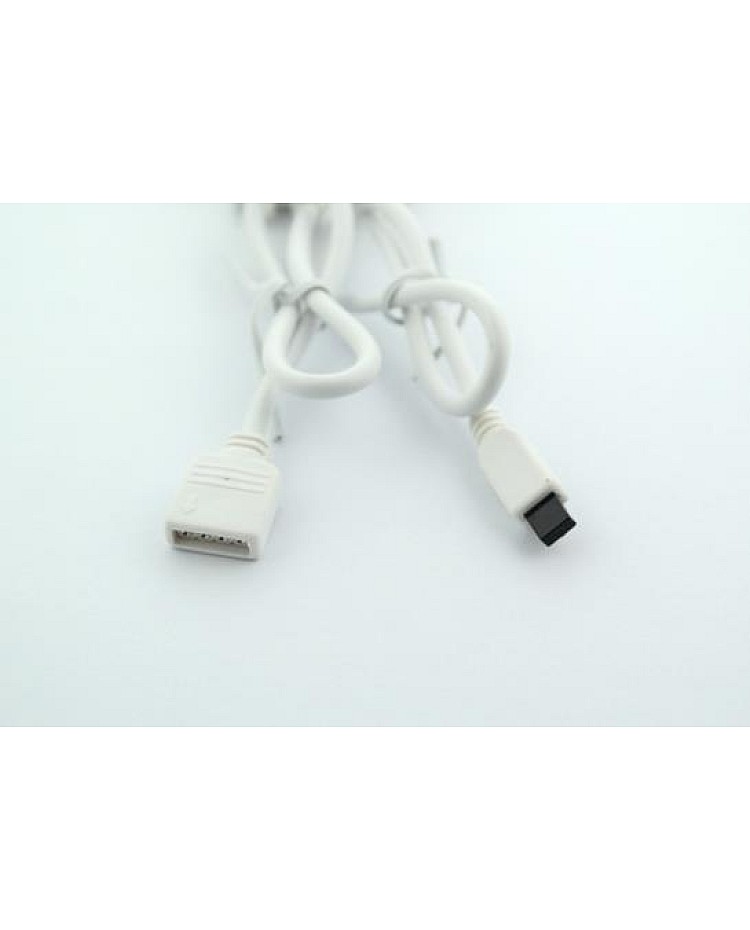

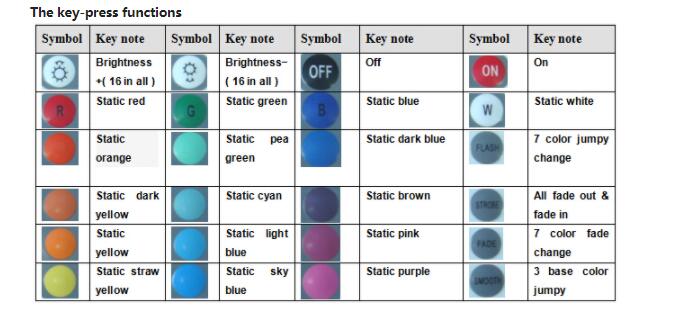

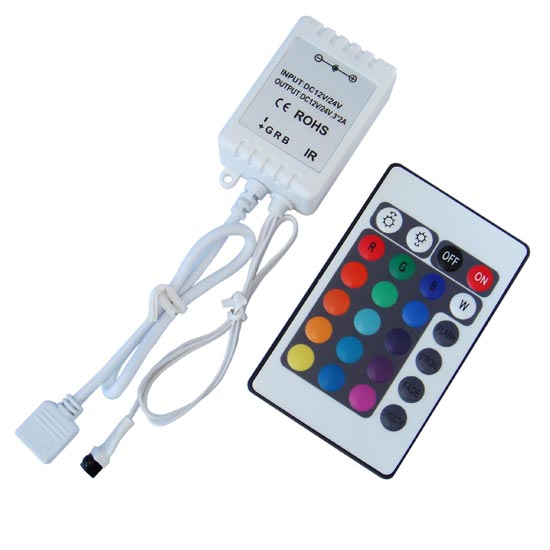

The 24 Keys IR LED strip controller works on the constant voltage of DC12V, DC5V, and DC24V, which are optional, and can work with a variety of constant voltage RGB LED Lights. With 3 3-output channel design, the max output current of each channel is 2A. The 24-key IR remote included has 20 modes in total, including 16 static and 4 dynamic changes. The brightness of static color and the speed of dynamic changes are adjustable. The LED strip controller with a female DC connector and 4-pin RGB LED connector allows you to easily connect the RGB LED strips and the LED power supply.
Specifications:
- Item NO: TY-L-C-002
- Manufacturer: Ledbe
- Size: 61 mm*35 mm*22 mm
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V(DC24V, DC5V Optional)
- Output Channel: 3
- Power: DC5V:≤30W; DC12V:≤72W: 24V:≤144W
- Current: ≤3*2A
- Weight: 60g

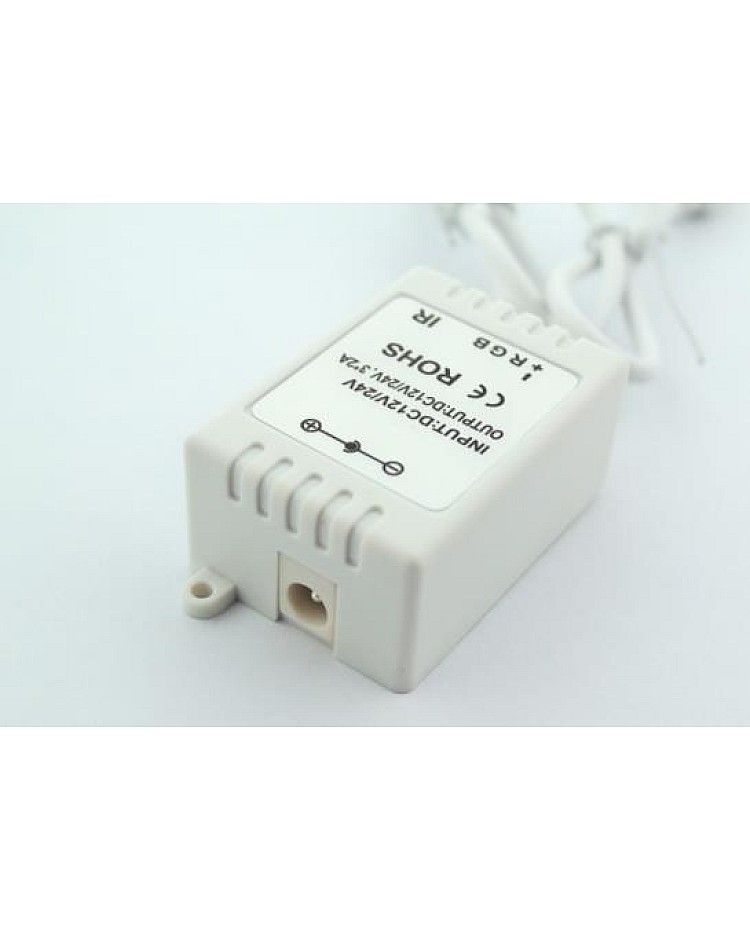

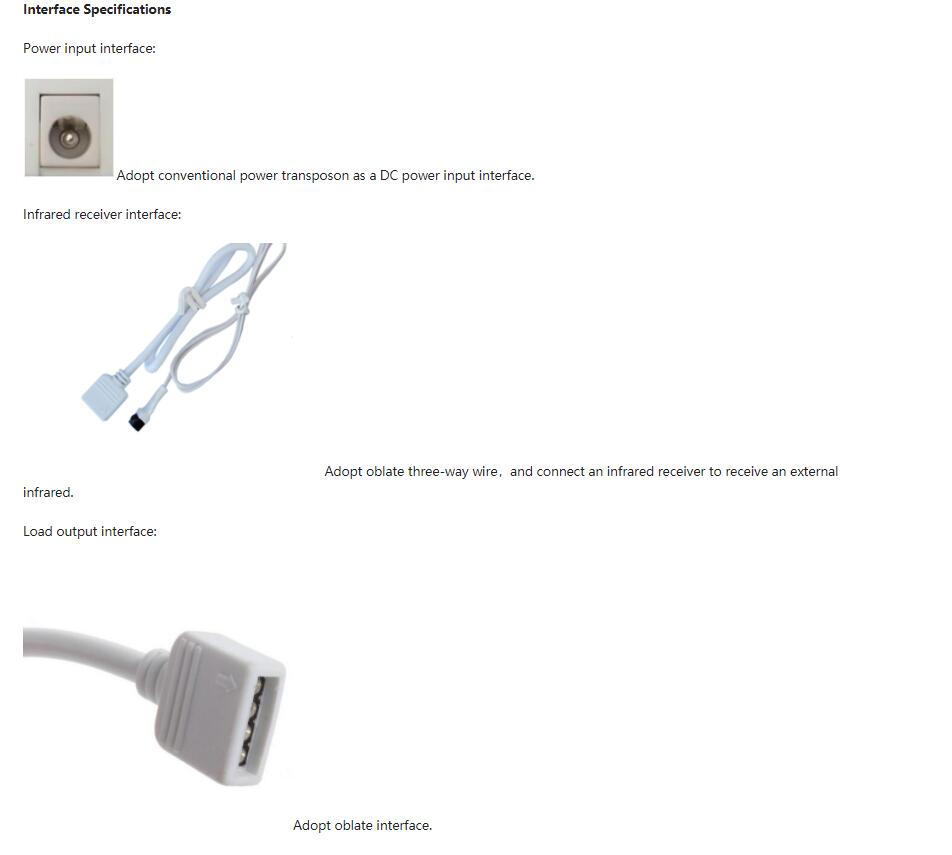

- Adopts A Conventional Power Transposon As A DC Power Input Interface

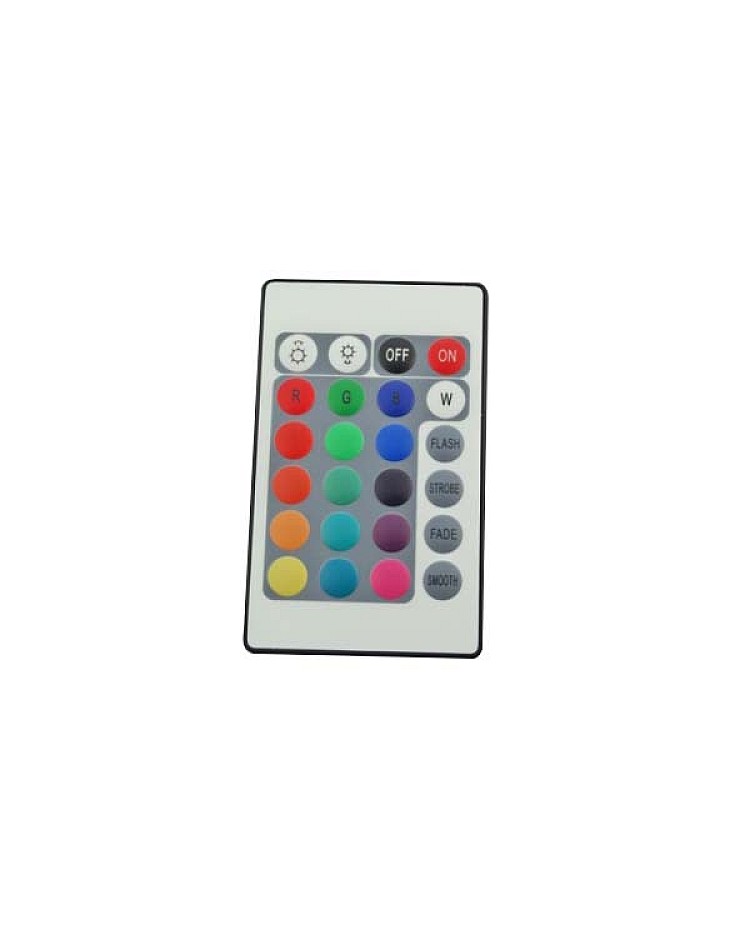

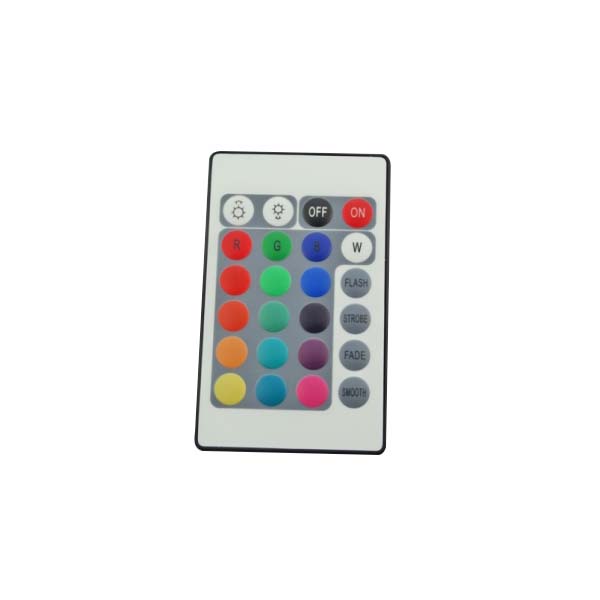

- 24 Keys IR Remote Included
- Certificate: CE, ROHS
Package:
1 * IR LED Strip Controller
1 * 24Keys Remote
