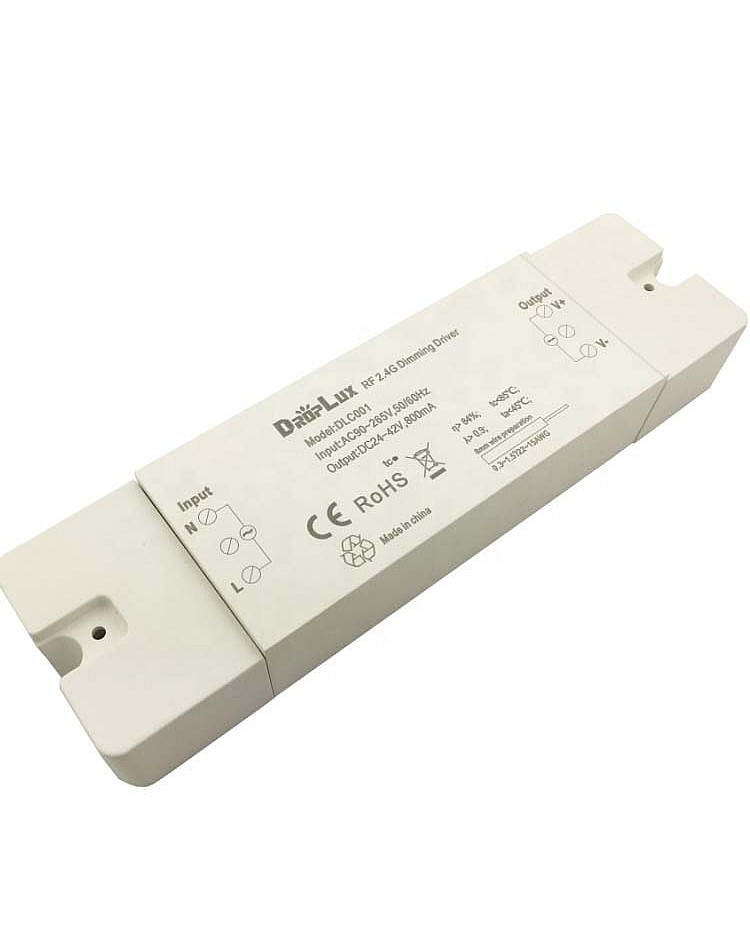

The Dimming LED Driver Constant Current, which has an isolated power supply design, is Protected from mis-wire, overloading, over-voltage, and short circuits. Adopts the advanced PWM digital control technology for smooth dimming from 3% to 100%. The output current of the Constant Dimming LED Driver is adjustable by pressing the DIP switch, and you can press the DIP switch to set the output current to 500mA, 600mA, 700mA, or 800mA. With the memory function, each time power-on reserves the mode which stops in the last power-off. The RF LED Dimming Driver adopts a 2.4G wireless control module with the air self-inspection sync control technology, compatible with a Freelighting control system, realized phone, Pad, and WIFI Smart Control System. You can use them for LED Panels, Ceiling Lamps, and Downlights in the home, shop, hotel, office, etc.


  • Size: 163*46*25mm(L*W*H)
  • Input:
  • Working Voltage: AC90V-AC264V
  • Frequency Range: 47-63Hz
  • Rated Current: 0.2A (Full Load)
  • Surge Current: <50A
  • Standby Power: ≤0.9W
  • Overall Efficiency: 85%(Full Load)
  • Power Factor: 0.93(Full Load)
  • THD: 17%

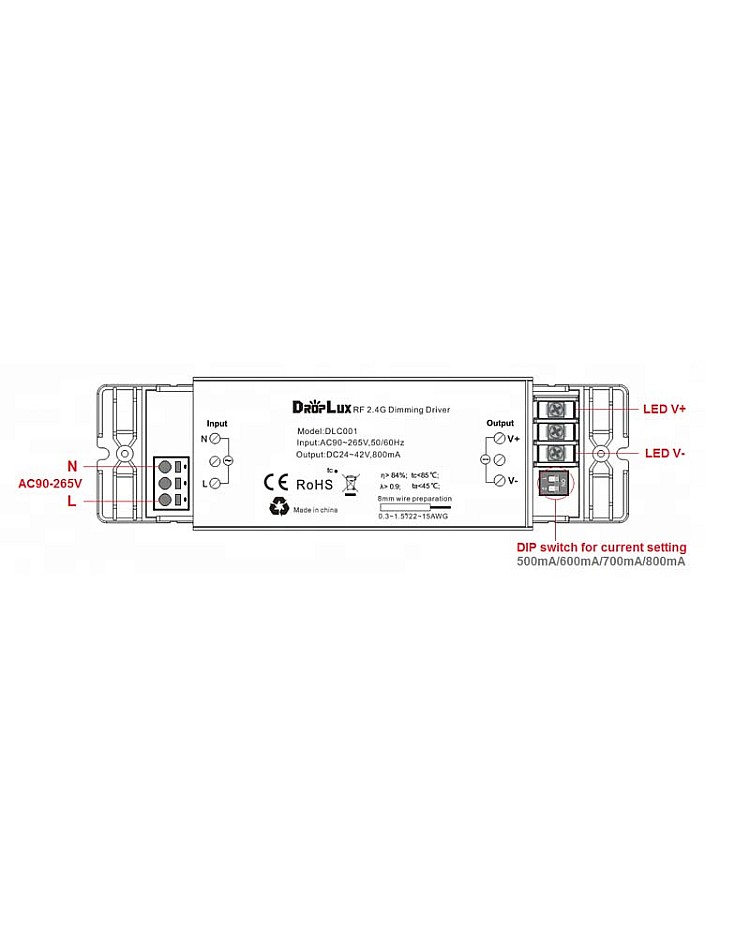

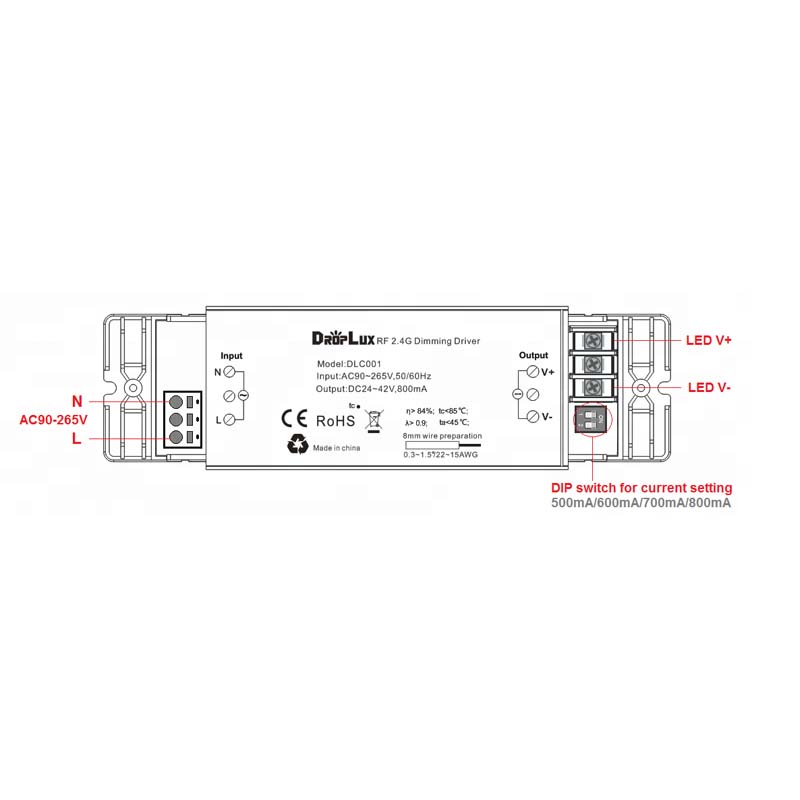

  • Port: Two Wire Input(L/N)
  • Output:
  • Unloaded Voltage: 53V
  • Voltage Range: 18-42VDC
  • String Number: 6-12

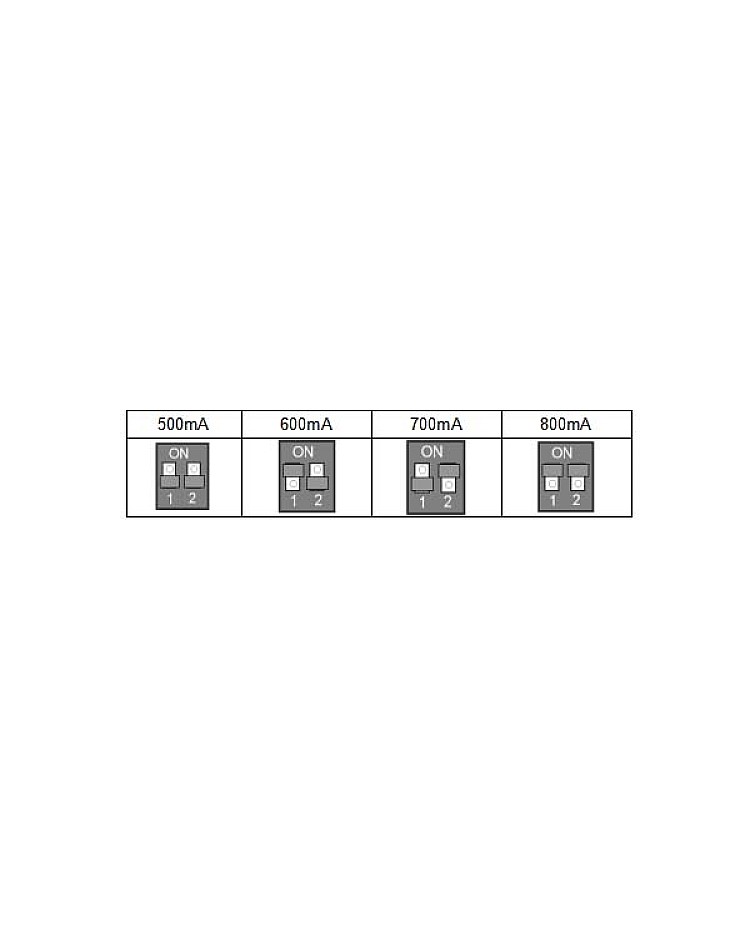

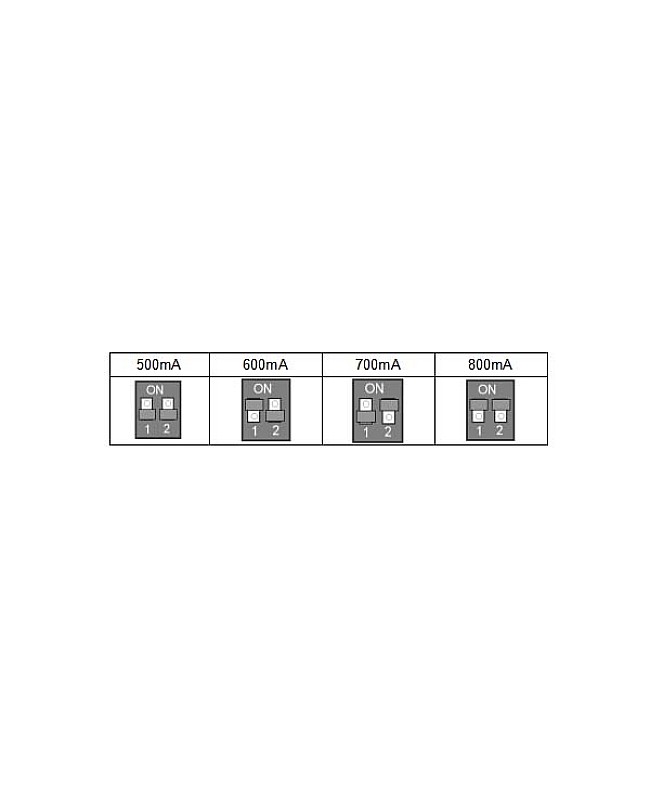

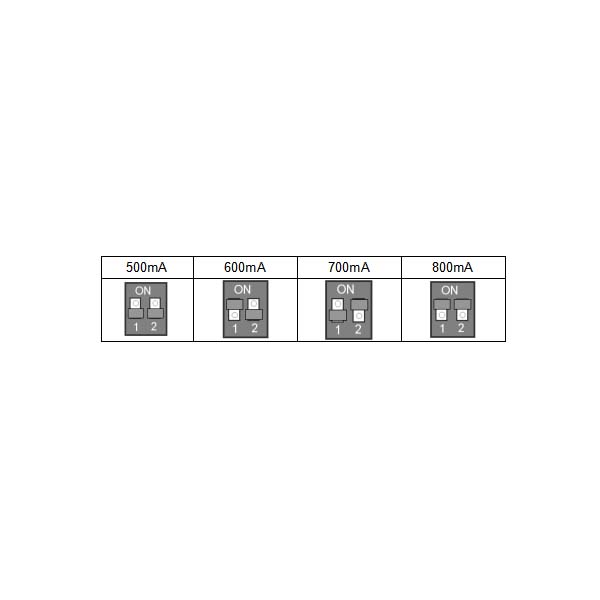

  • Rate Current: 500-800mA(Adjustable By DIP Switch)
  • Max Loading Power: 32W
  • Current Accuracy: ±5%
  • PWM Signal Output Frequency: 3KHz
  • Dimming Grade: 1024
  • Dimming Range: 3-100%
  • Video Effect: Free-flicker
  • Wireless Control: 2.4G
  • IP Rating: IP40

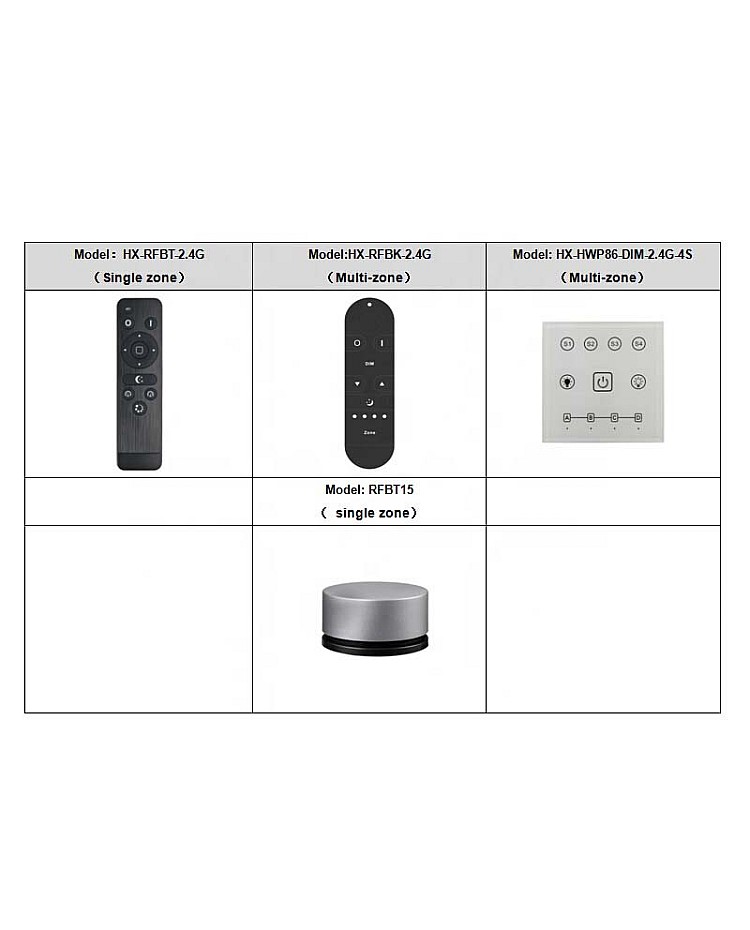

  • Compatible With 2.4G RF Remote Controls
  • Remote Control Sold Separately
  • Working Temperature: -20℃-45℃
  • Memory Function: YES
  • Over Voltage Protection: YES
  • Short Circuit Protection: YES
  • Lifespan: 45,000 Hours
  • 3 Years Warranty


1*2.4G Dimming LED Driver Constant Current

1*HX-RFBT15 1 Zone Remote Control
