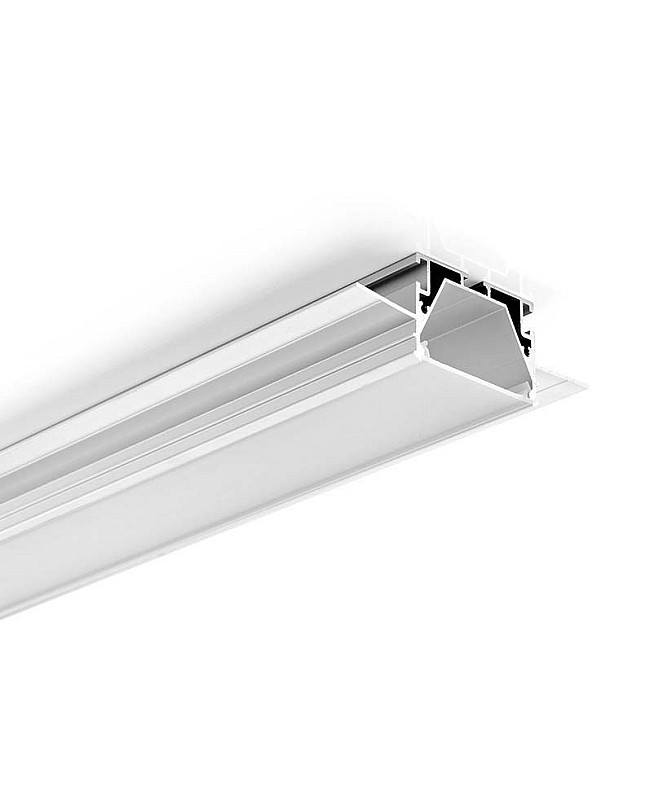

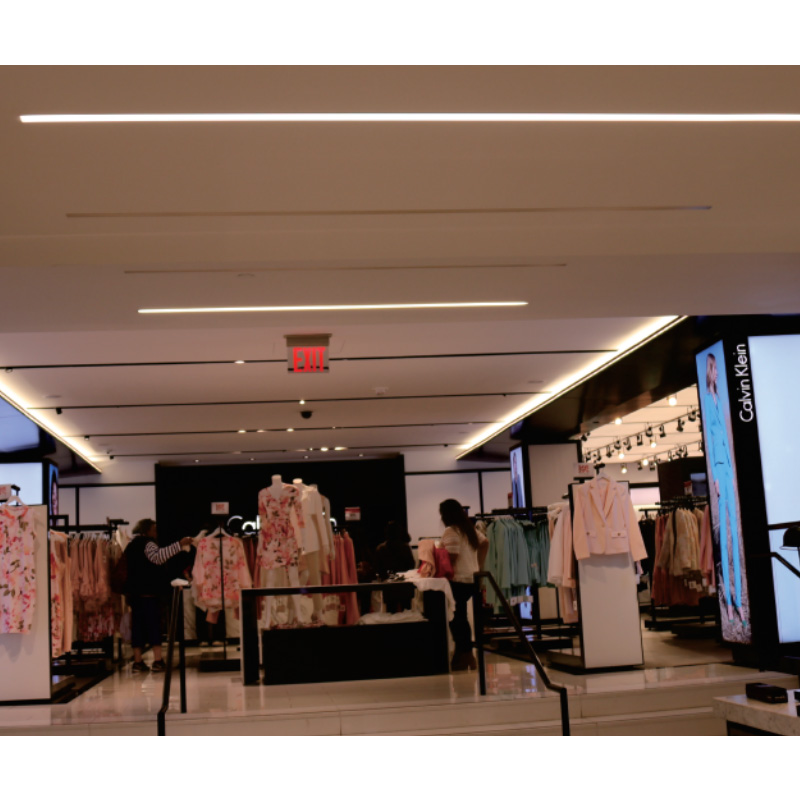

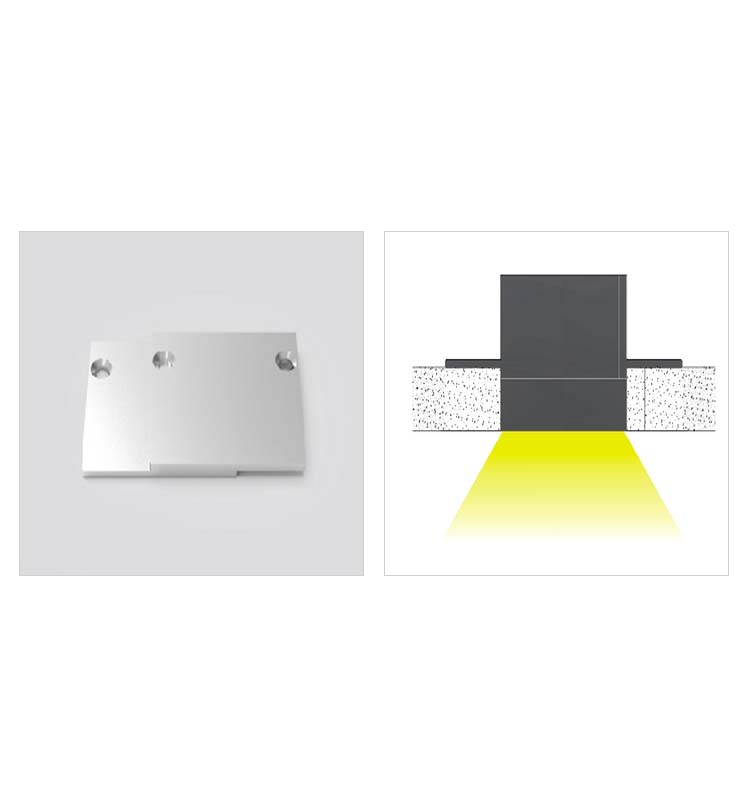

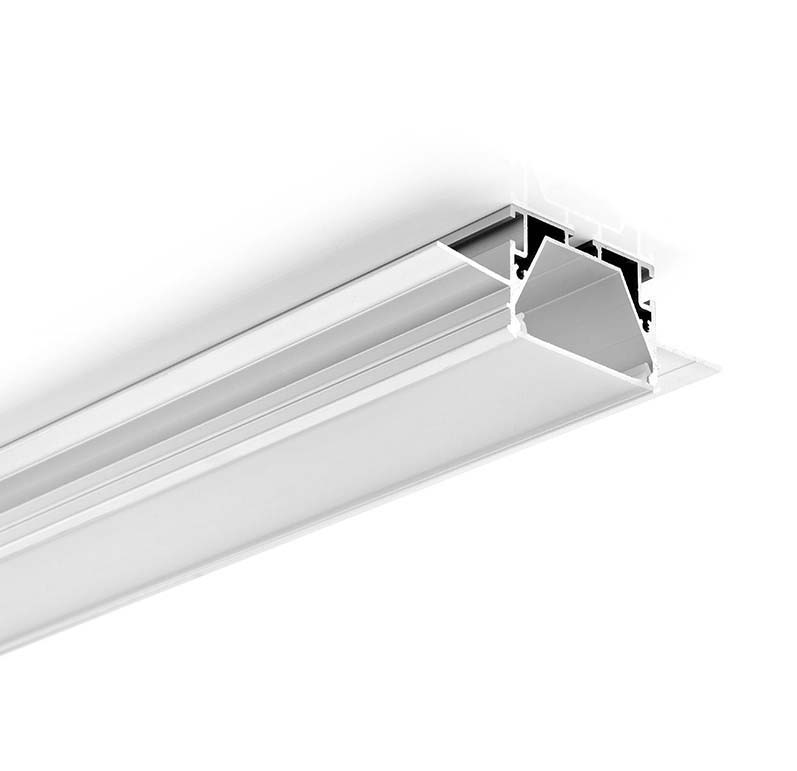

The Trimless Recessed LED Light Profiles, which can be recessed into a 12.5mm plasterboard or drywall for flush mount installation. They are designed to be flush with the wall or ceiling, providing a seamless, modern look. The inner width is 52mm and allows the max width of LED Strips to be 52mm, compatible with multiple rows of 8mm, 10mm, or 12mm LED Strips, rigid module lights as the light source for main lighting, accent lighting or task lighting in homes, offices, hotels, restaurants, etc. The standard length is 1M and 2M and can be cut to any size for your project. There are only PC diffused cover diffusers available, which are made of imported brand stable material, anti-yellowing, perfect light distribution, and smooth light output. The LED Lighting Profiles are made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. Aluminum Channels can be worked as heat sinkers for better heat dissipation to extend the lifespan of LED Lights.


  • Model: ALP095
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized

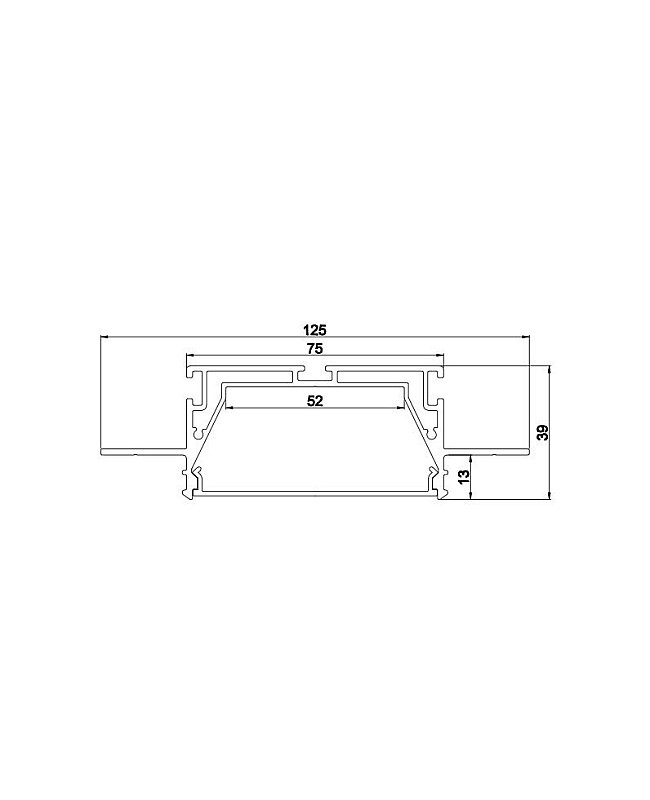

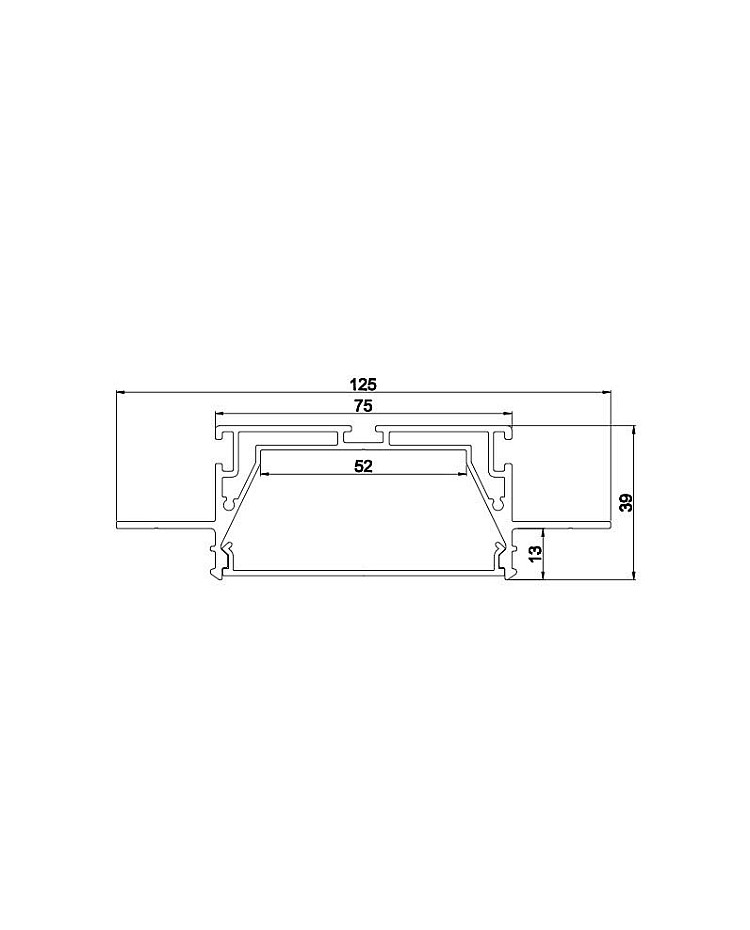

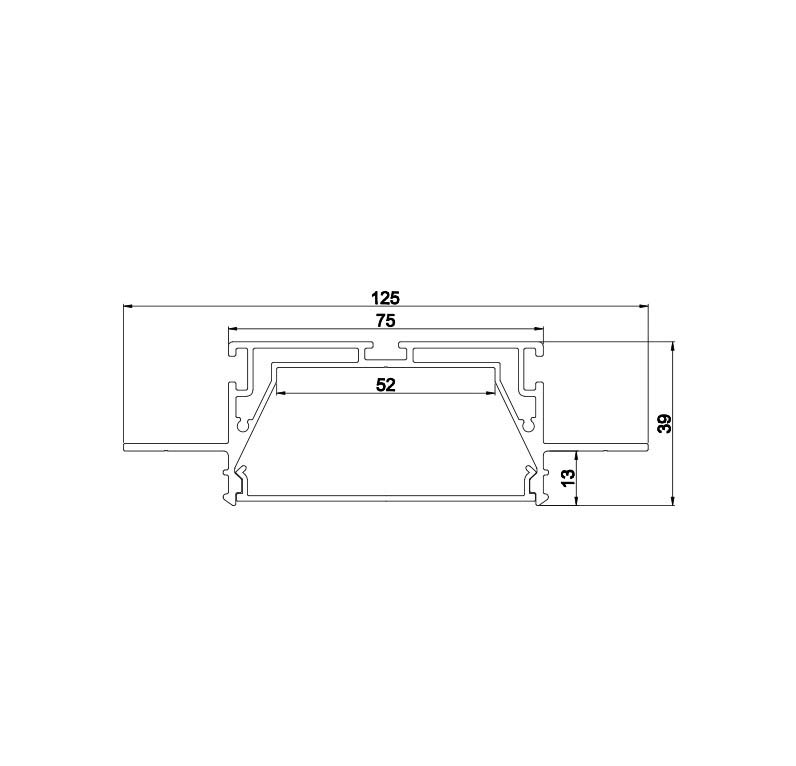

  • Size: 125*39mm(W*H)
  • Inner Width: 52mm
  • Compatible With Multiple Rows 8mm, 10mm, Or 12mm WS2812B Addressable LED Strips
  • Max Power: <50W/M
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES
  • Diffuser: PC Diffused Cover
  • Tolerance: ±1%
  • Installation: Recessed
  • Applications: Architectural Lighting For 12.5mm Thick Plasterboard Or Dry Walls
  • End Caps Included

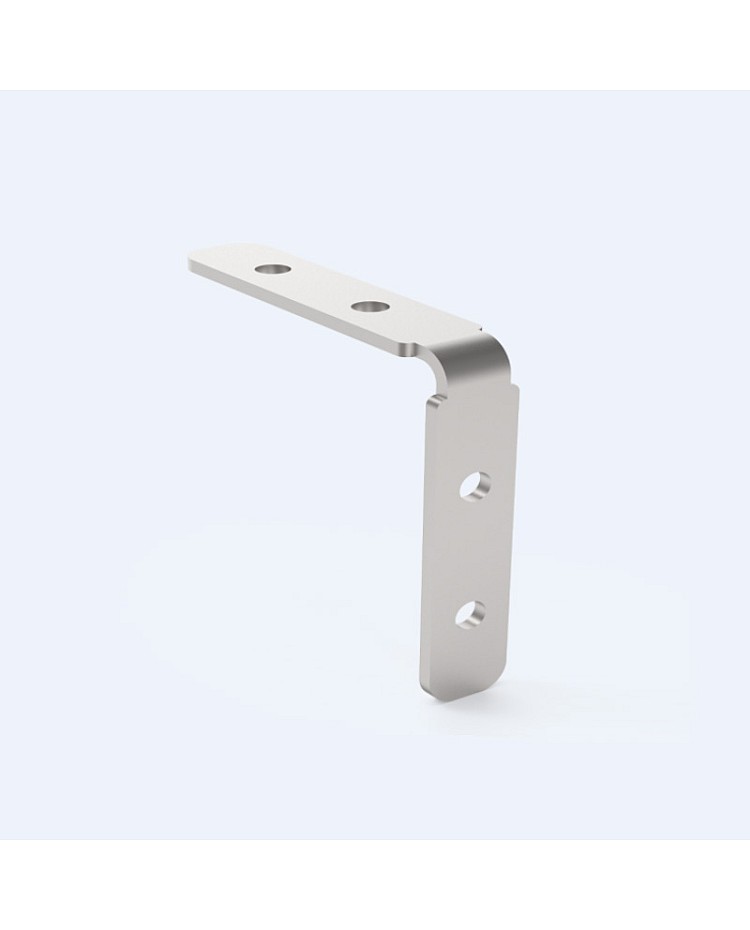

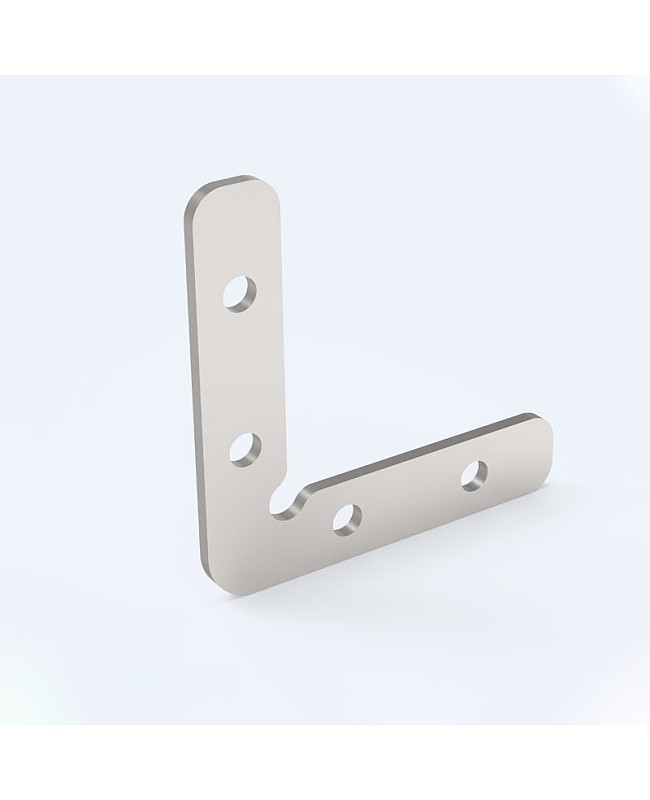

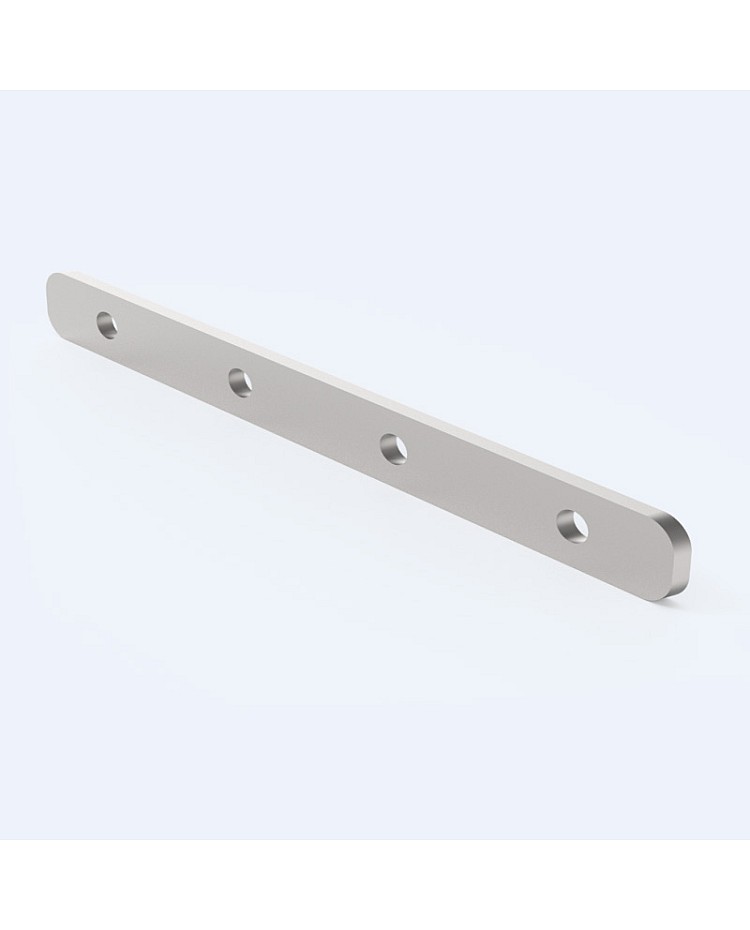

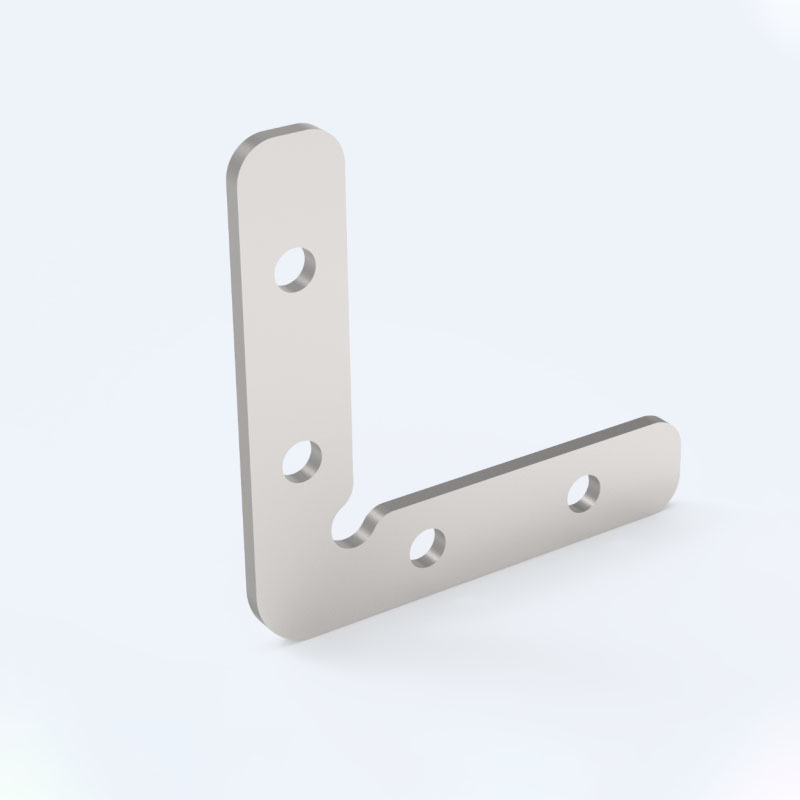

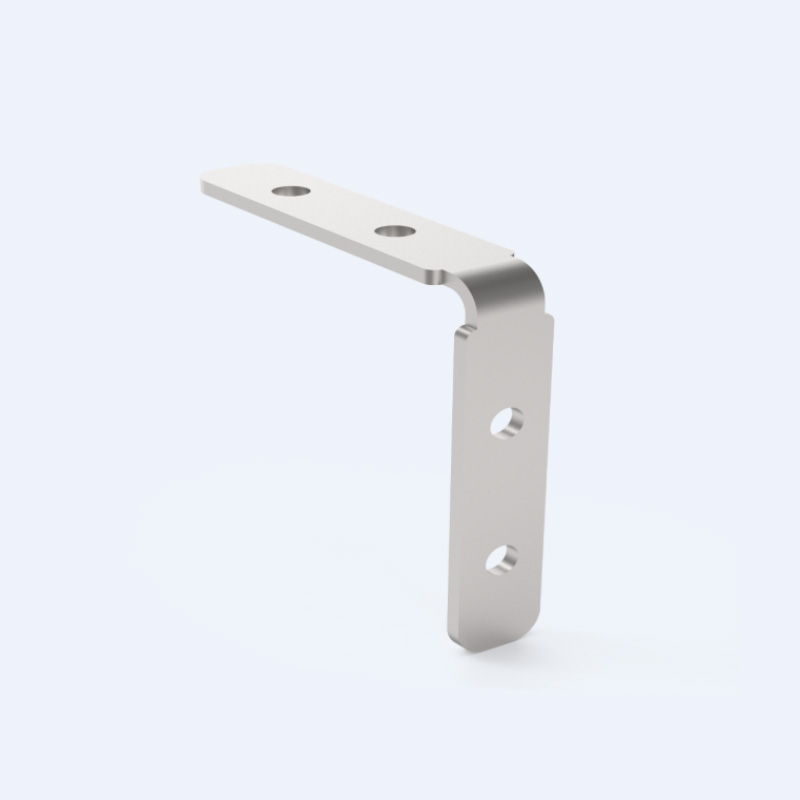

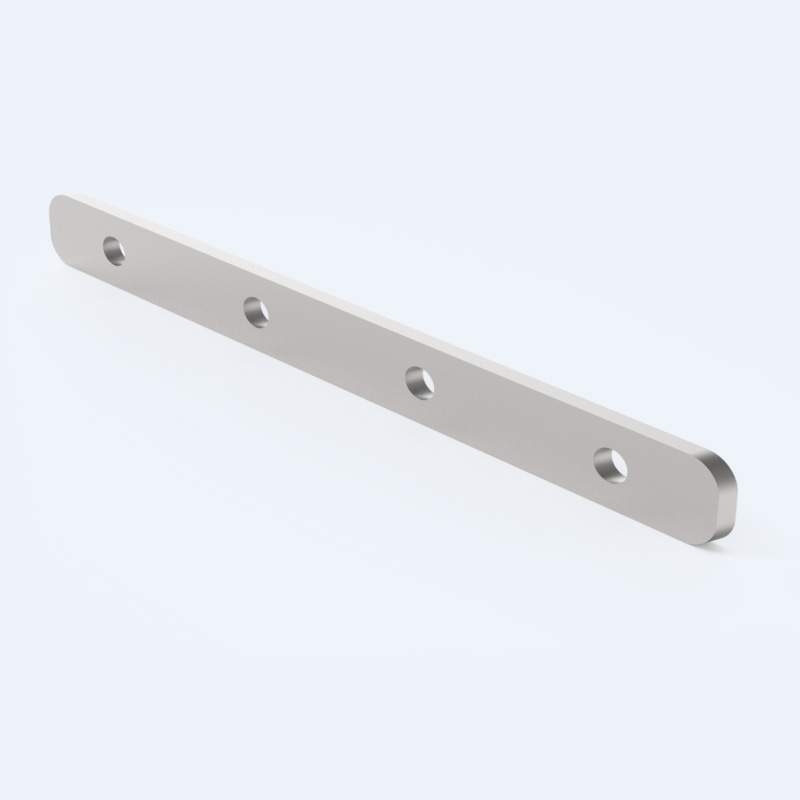

  • LED Strips, "L" And "-" Shape Connectors Sold Separately
  • 5 Years Warranty


1*Recessed LED Light Profile

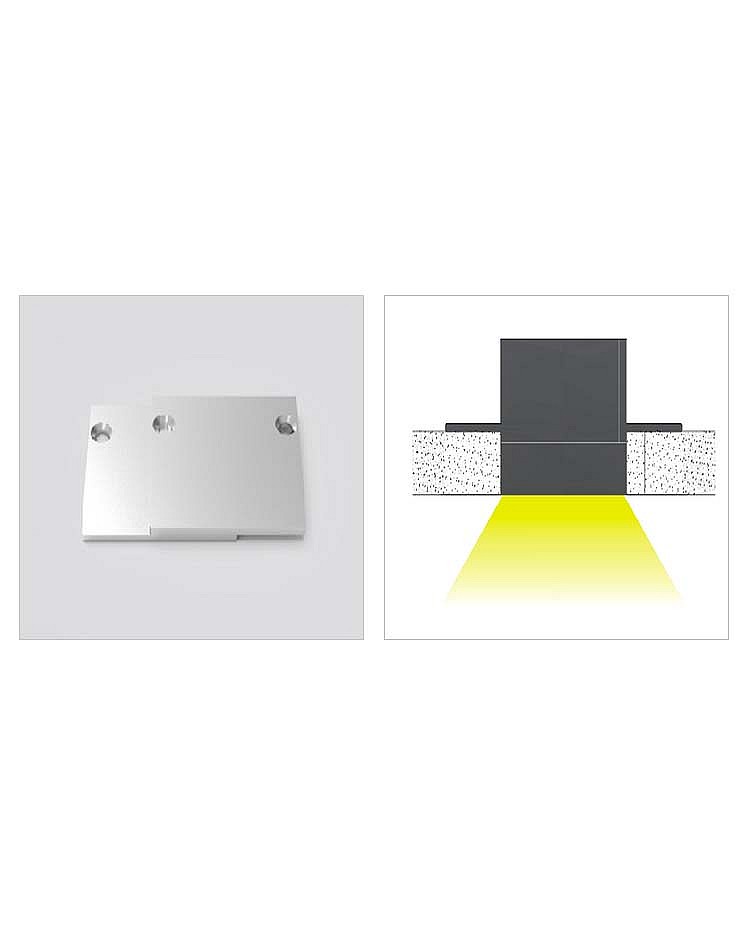

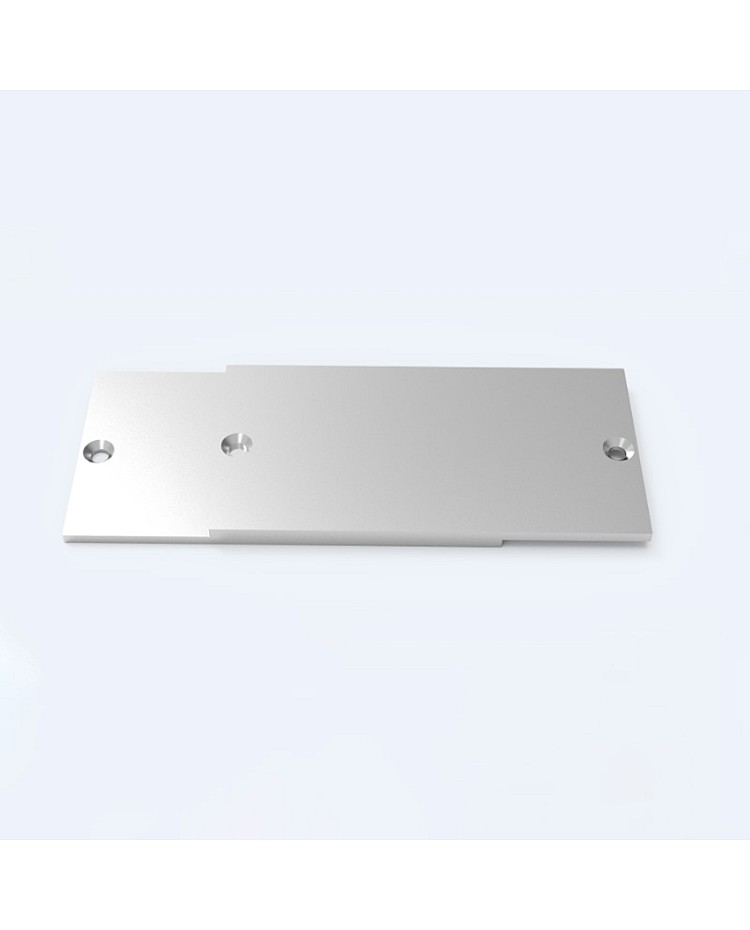

End Caps

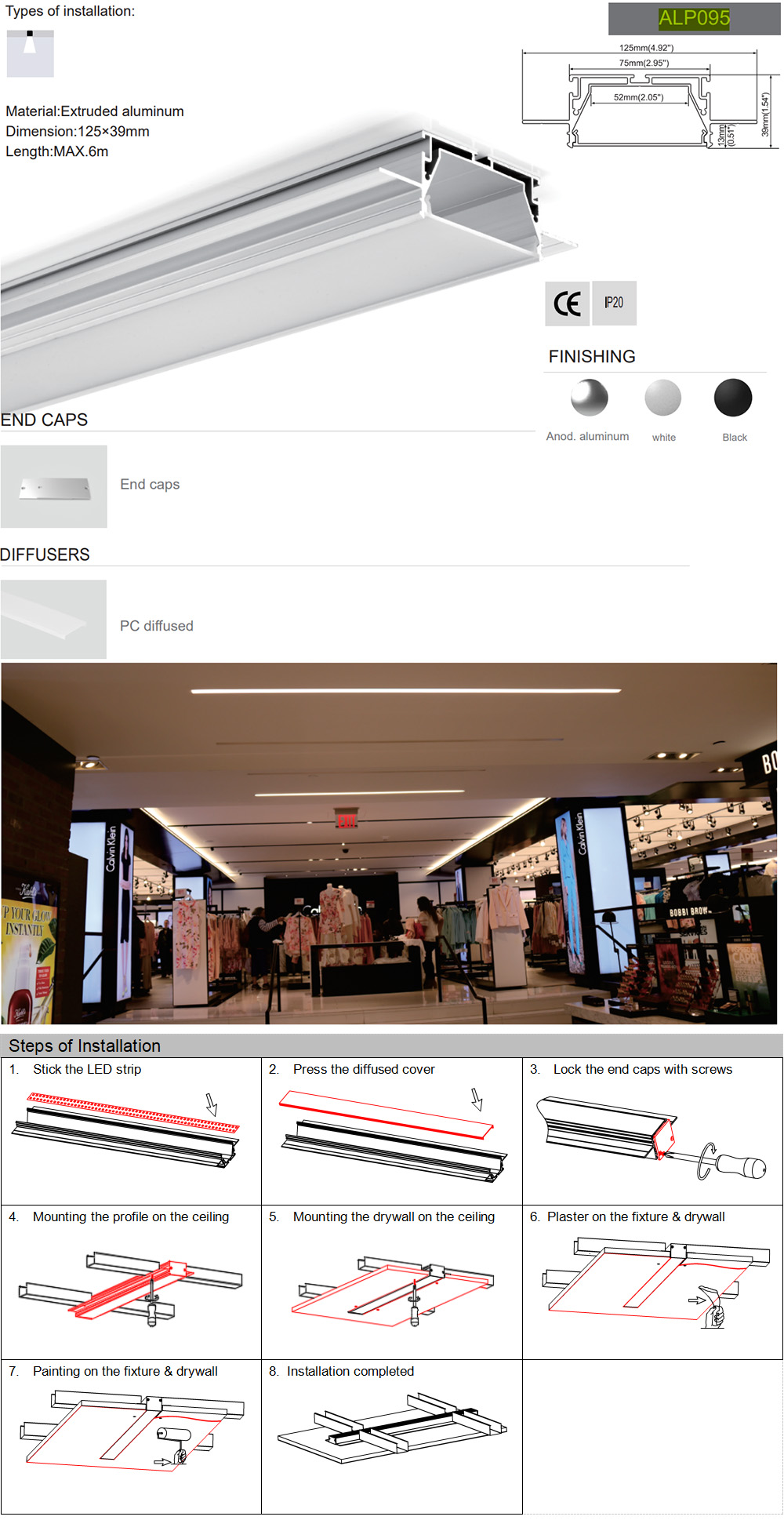

Recessed LED Channel Light
