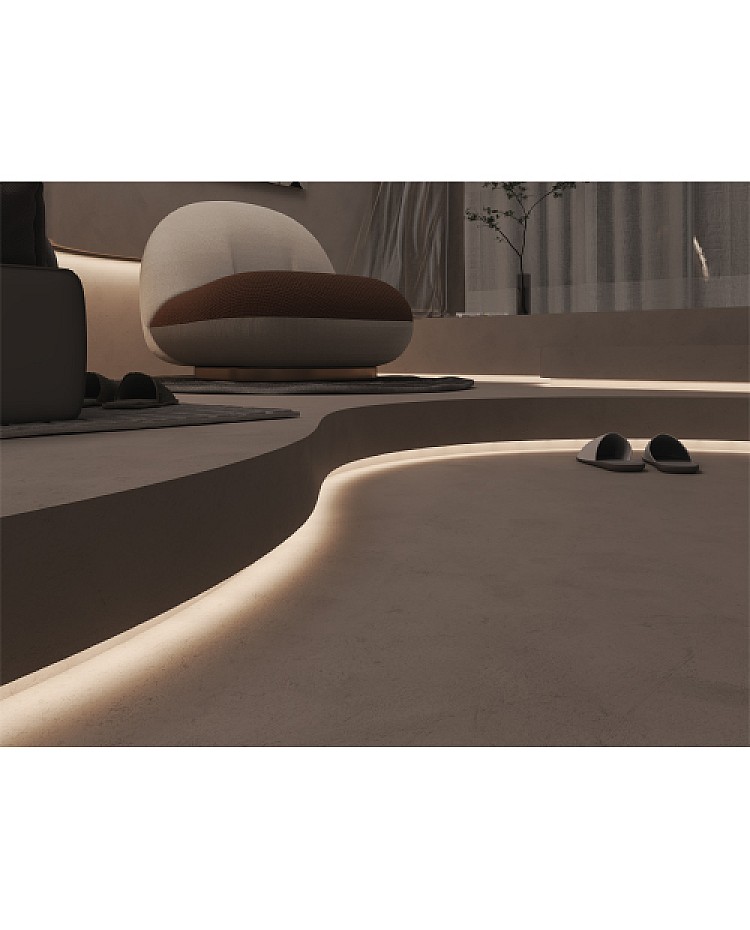

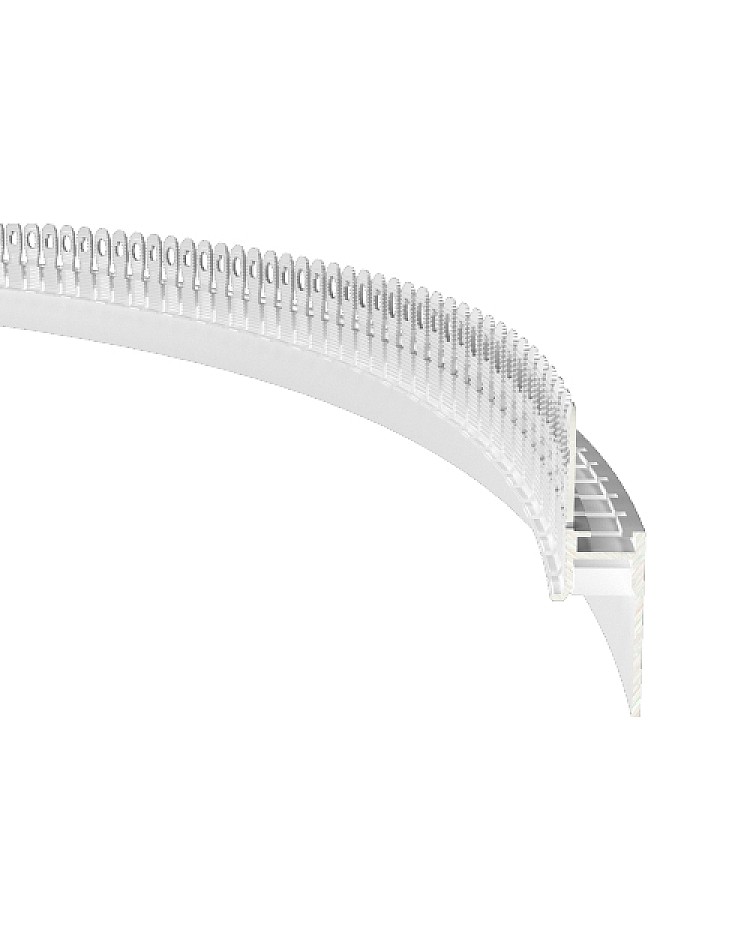

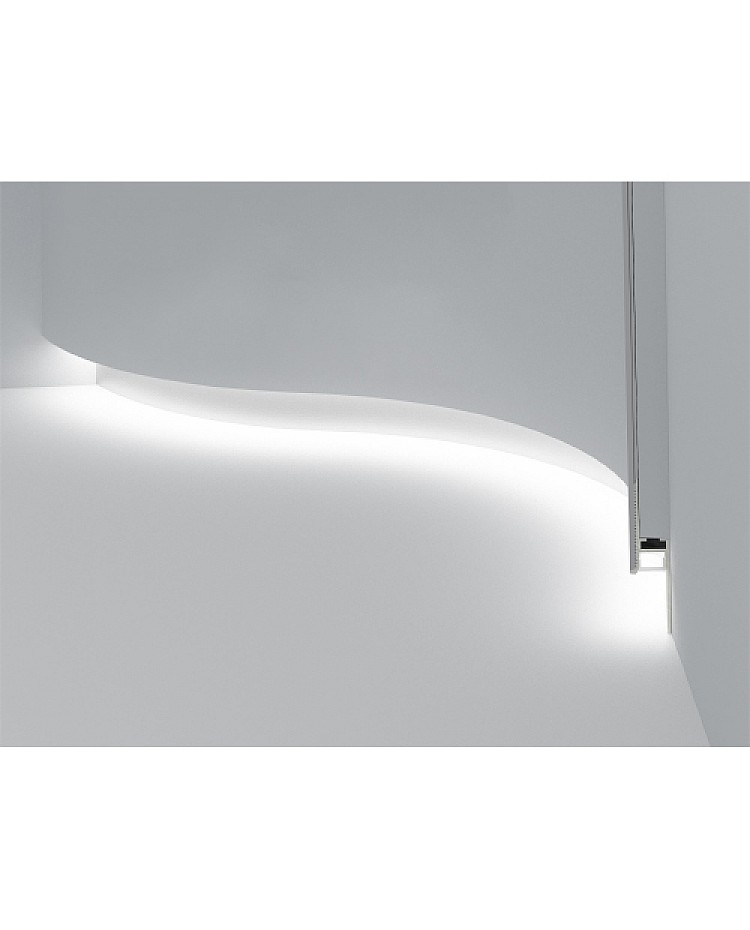

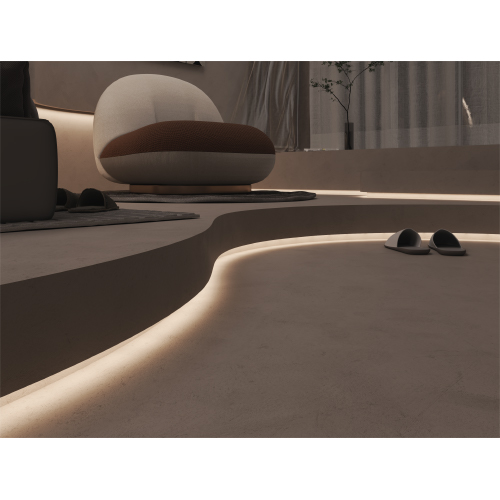

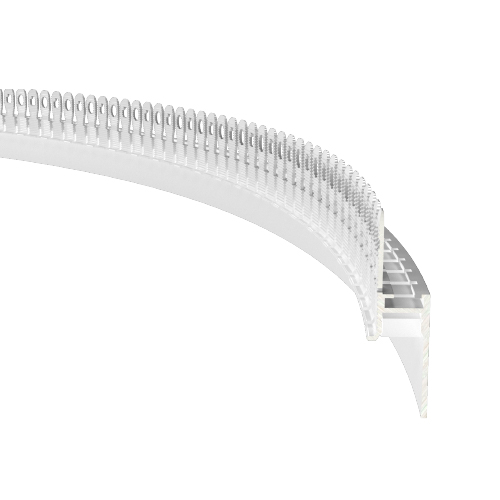

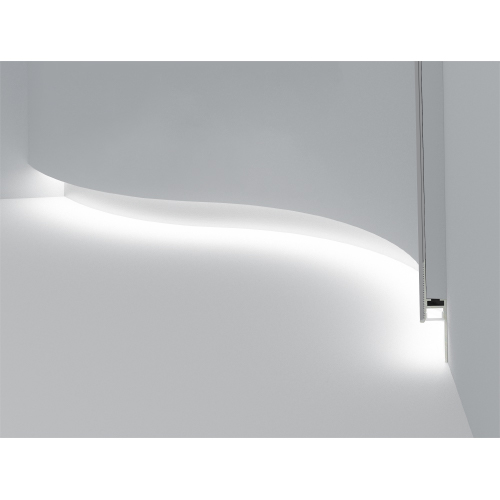

The drywall flexible baseboard LED channels feature a side-bending design and are designed for seamless integration into drywall, curved walls, and curved ceilings that require smooth, continuous LED lighting. You can use them to create continuous linear lighting along curved surfaces, providing both functional and aesthetic lighting. Those bending channels can conform to curved surfaces while delivering consistent, high-quality illumination, making them an excellent choice for both residential and commercial applications. The bendable baseboard light channels are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment for enhanced oxidation resistance and a longer lifespan. The stock lengths are 1 m and 2 m, and they can be cut to any size to meet your needs. Only one type of silicone diffuser is available: semi-clear, made of high-quality silicone material. The maximum length is 50 meters or 100 meters per roll, designed to diffuse light evenly and allow the creation of long, continuous linear lighting. The inner width of the drywall light channels is 8.2 mm, allowing for a maximum width of zig-zag LED tapes of 8 mm.
Specifications:
- Type: Side bending baseboard LED channels
- Model: 5213 / 6713

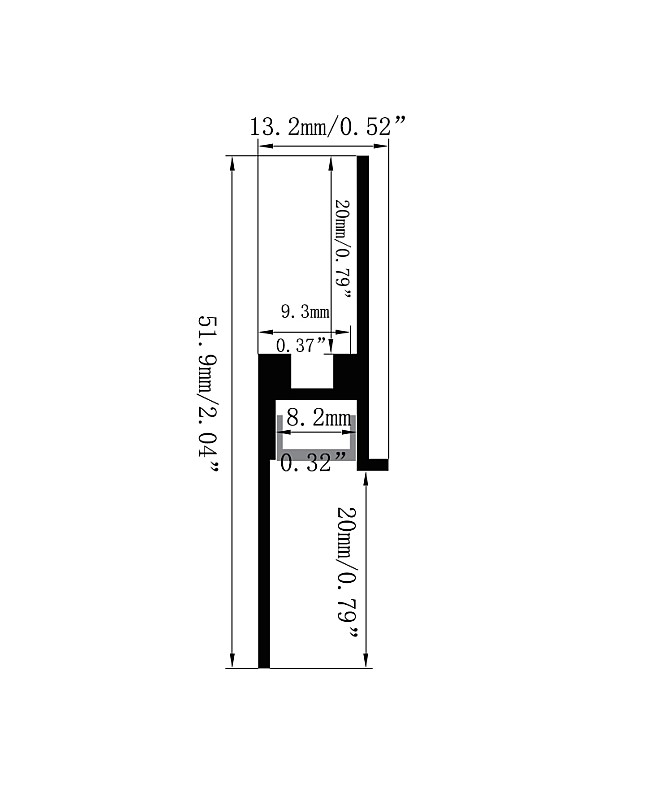

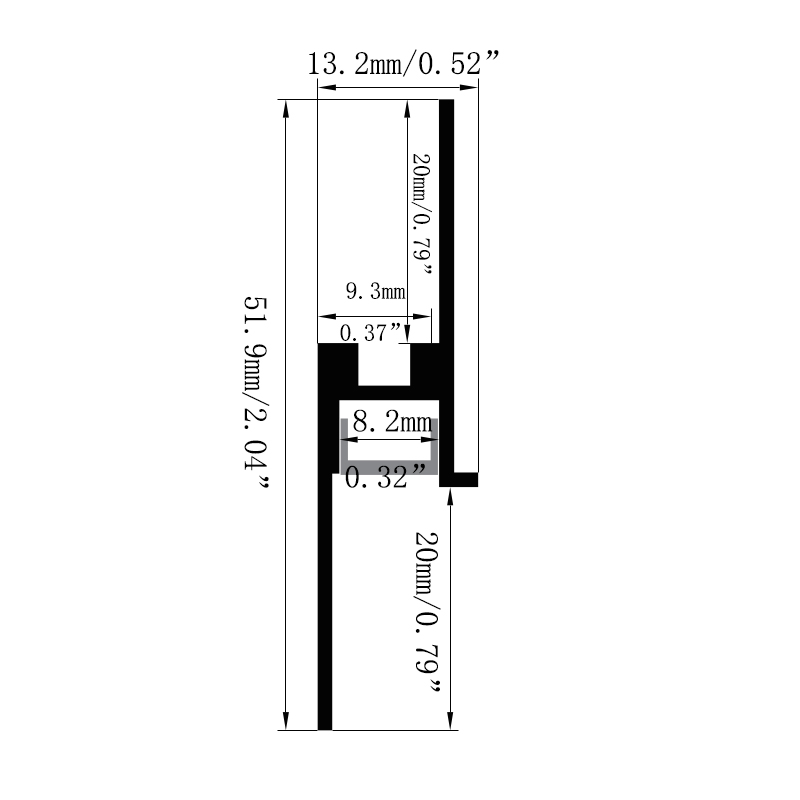

- Size(L*W): 5213: 51.9 mm x 13.2 mm ( 2.04" x 0.52" ) / 6713: 66.9 mm x 13.2 mm ( 2.63" x 0.52" )
- Material: 6063-T5 extruded aluminum(LED channel) / high-quality silicone(diffuser cover)
- Colors: Silver ( aluminum channel ) / Milky ( silicone cover )
- Aluminum Channel Surface Treatment: Anodized
- Lengths Available: 1m ( 39" ), 2 m ( 78" )
- Custom Lengths: YES
- Inner Width: 8.2 mm ( 0.32" )
- Max Width Of Strip Lights: 6 mm / 8 mm S shape SMD LED strips
- Silicone Cover's Type: Semi-clear( 50 meters per roll )
- Bending Type: Side bendable
- Mini Bending Diameter: 500mm
- IP Rating: IP20 non-waterproof
- End caps with/without wire holes are included
- Installation: Recessed
- 3 years warranty
Applications:

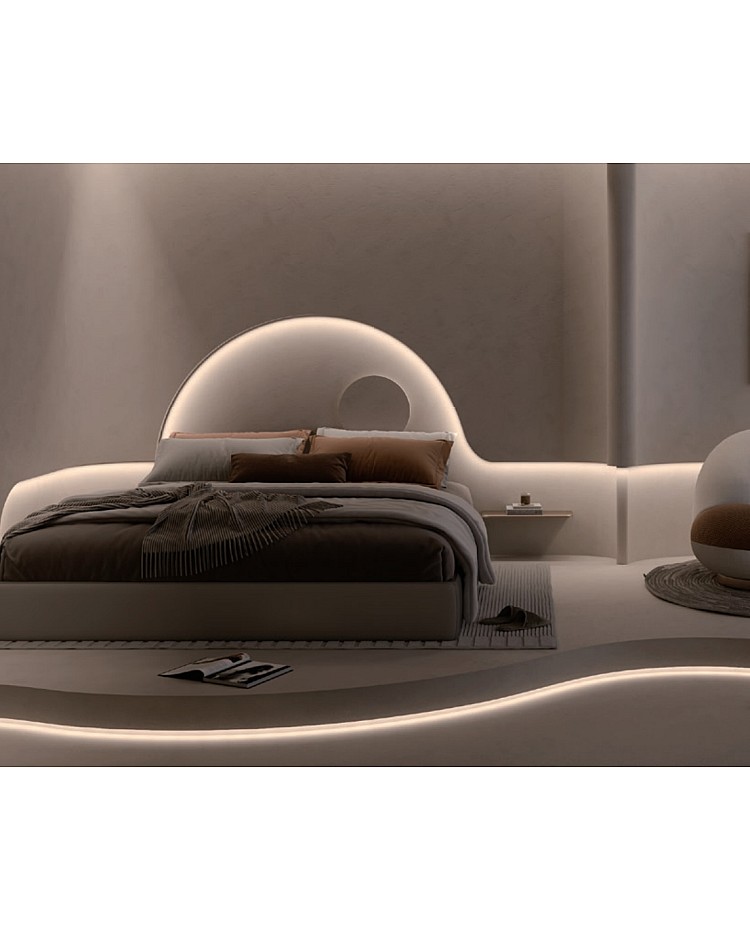

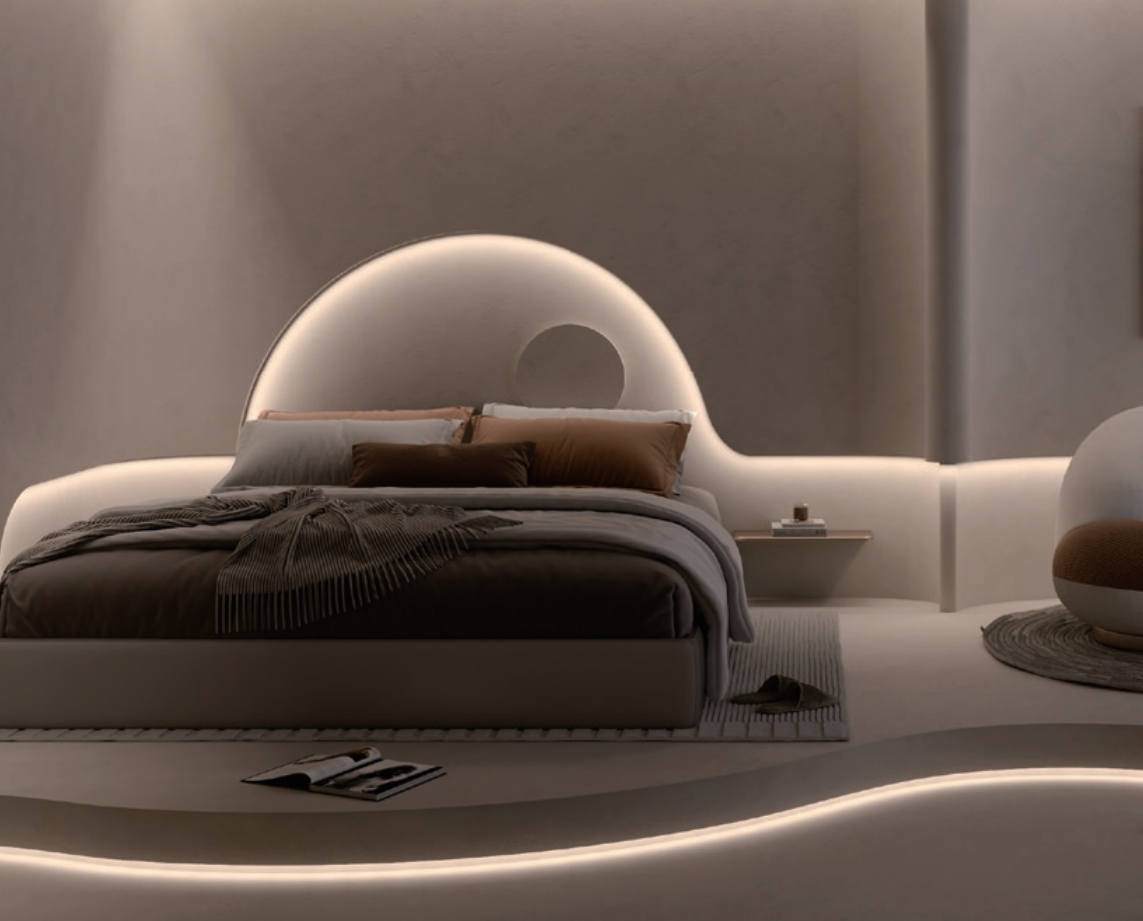

- Curved ceilings/walls (e.g., theaters, museums, luxury retail).
- Architectural cove lighting (residential/commercial).
- Backlit panels or custom LED artworks.
Includes:
1 * Side bendable baseboard LED channel
1 * Silicone cover
End caps with/without wire holes
