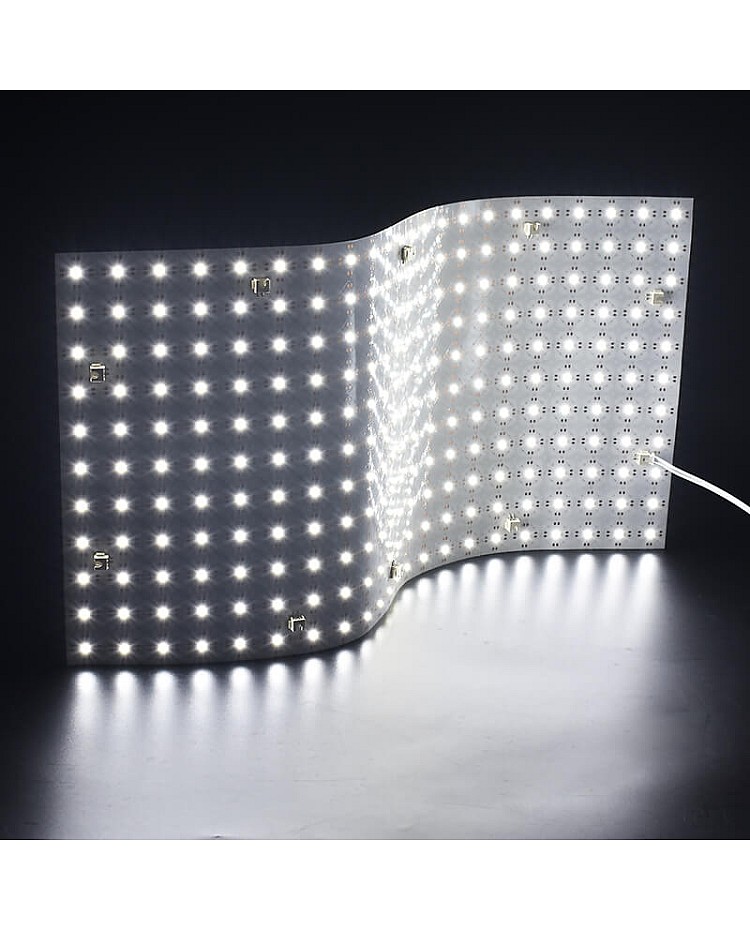

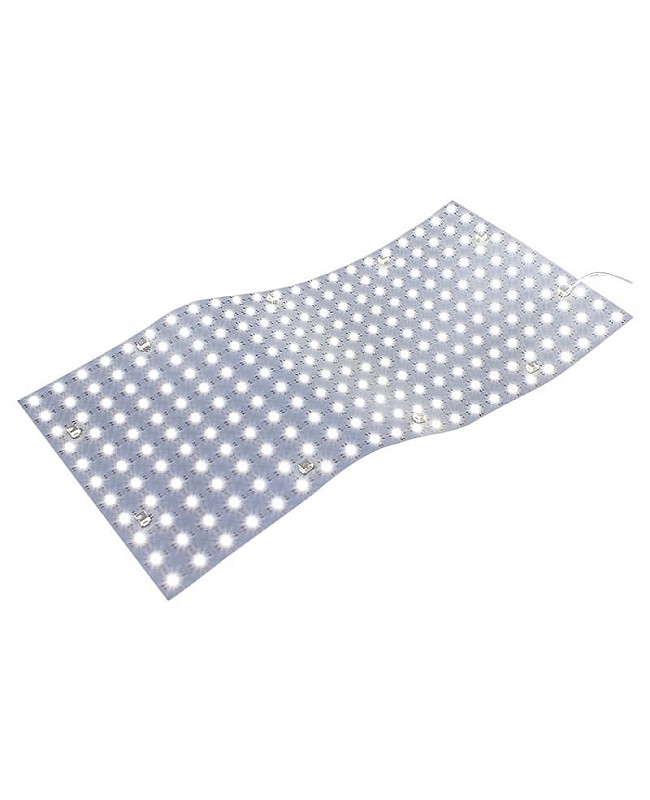

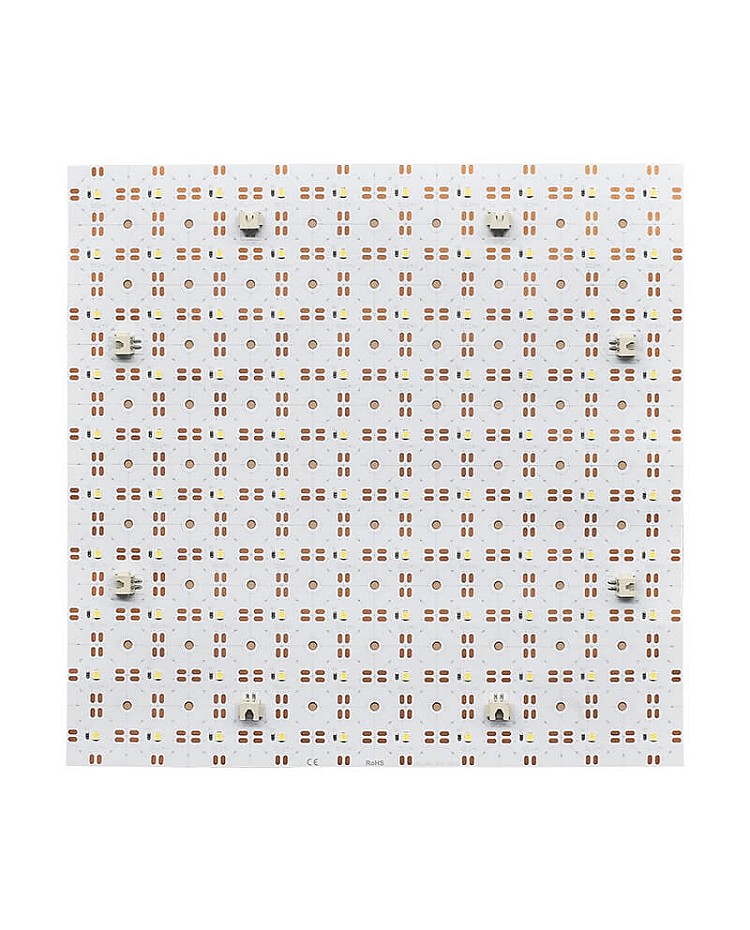

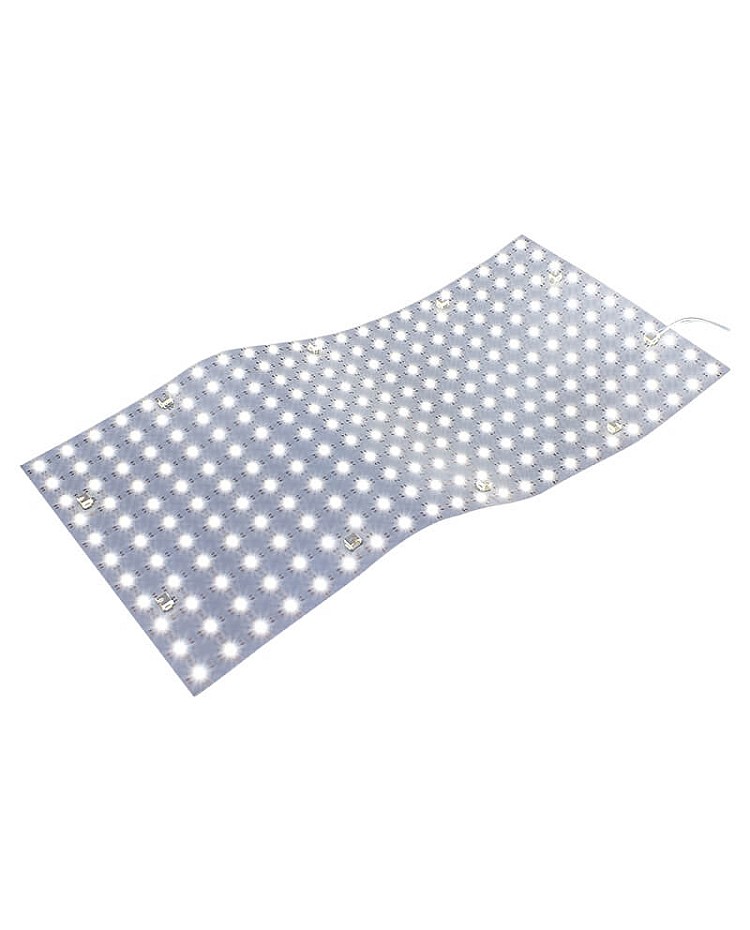

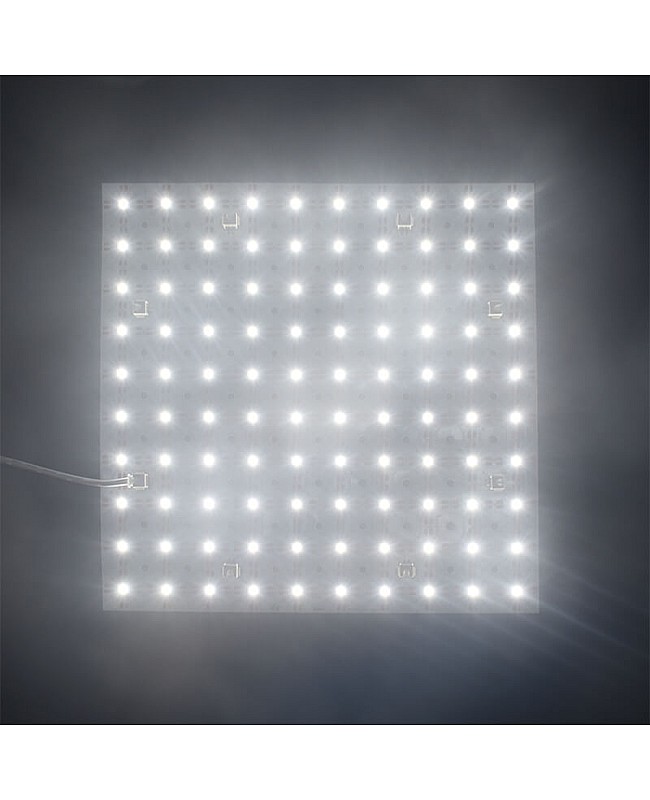

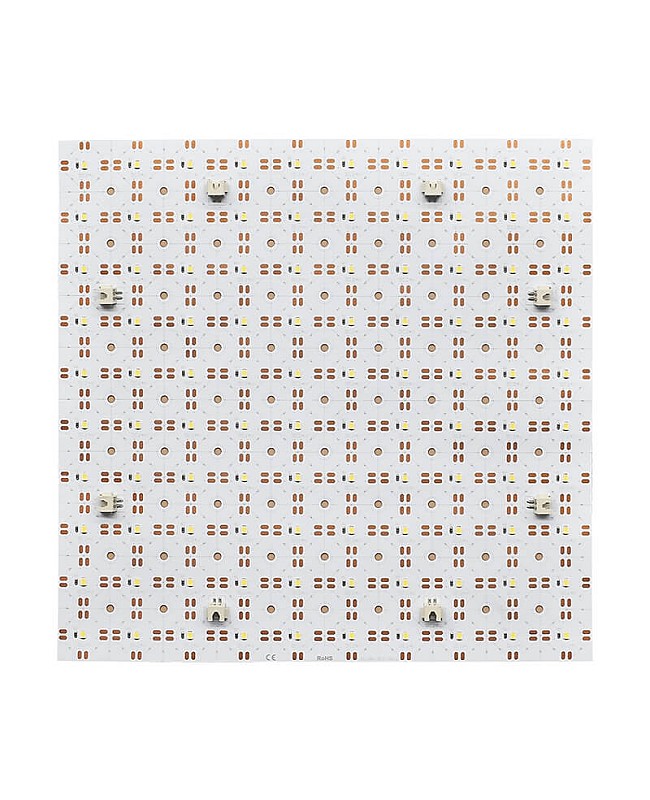

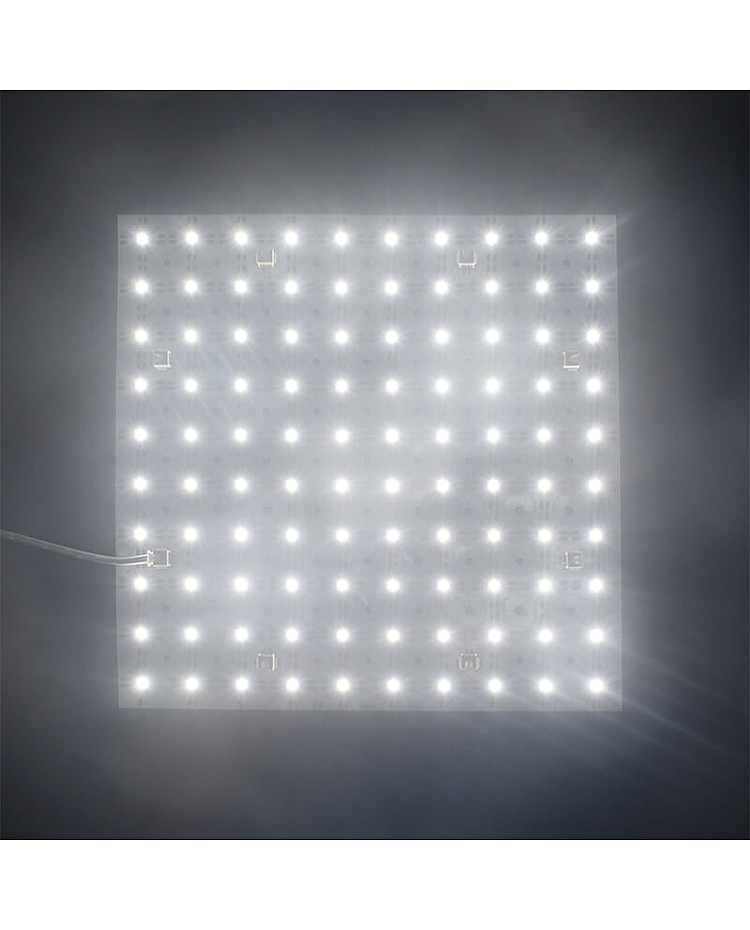

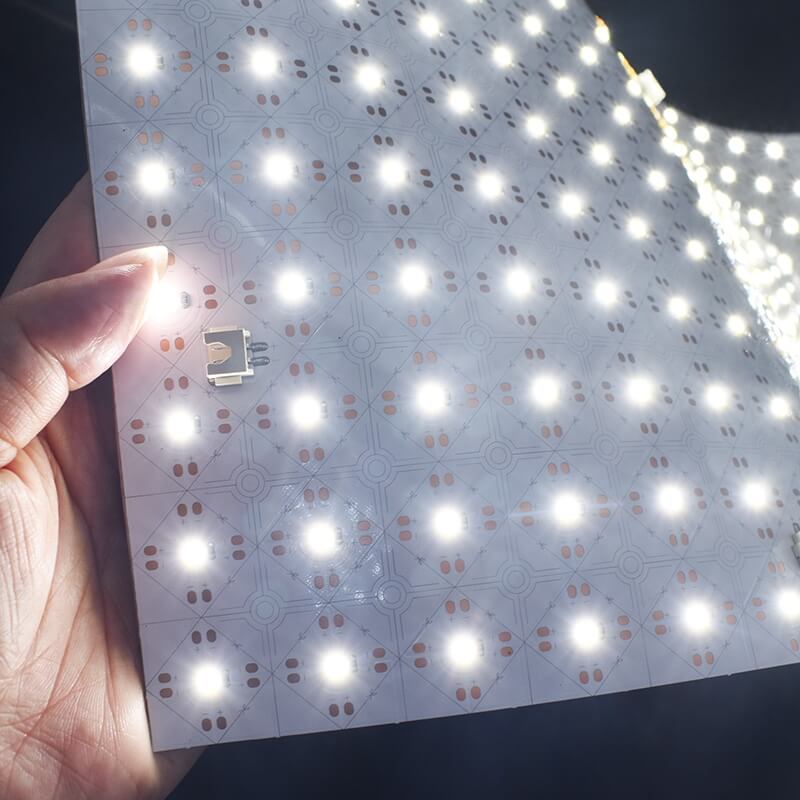

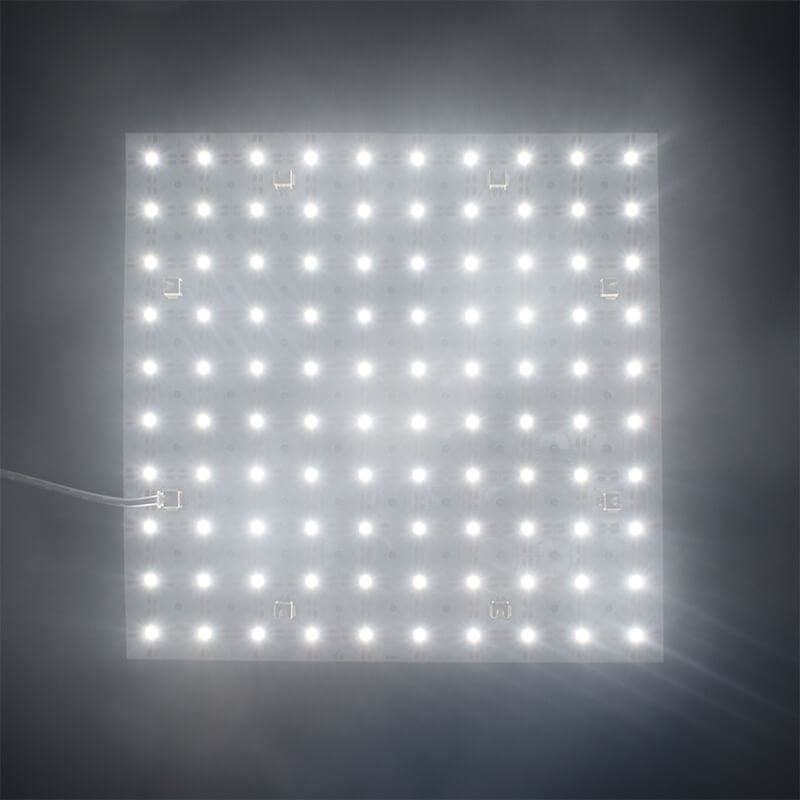

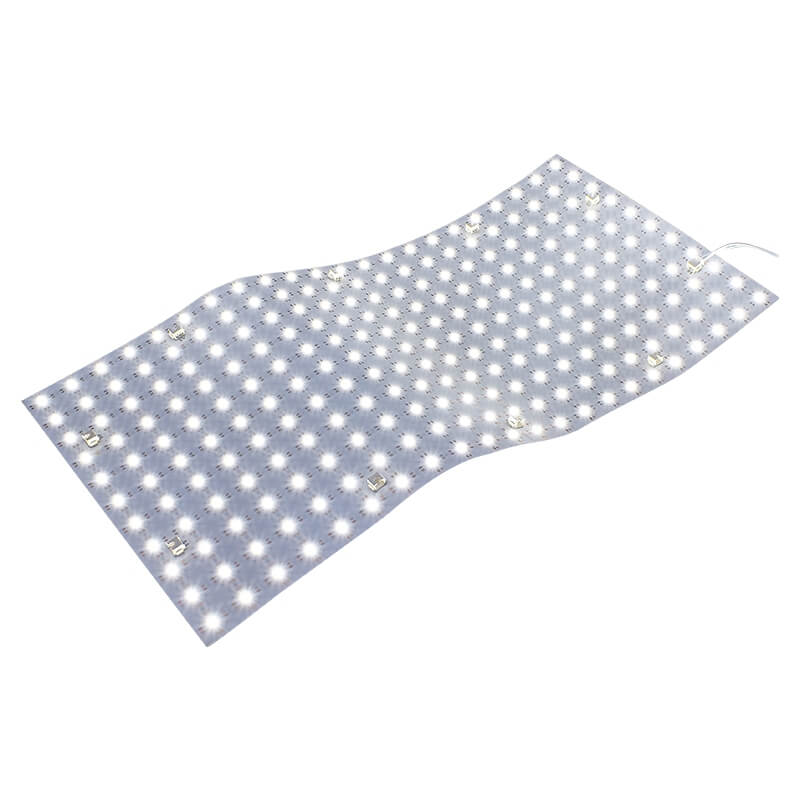

The LED sheet panels are built with a matrix of high-density 2835 SMD LEDs on an ultra-thin, lightweight, bendable PCB board and will deliver a consistent, bright, uniform single-color light output across the entire sheet. They can be widely used as backlighting for translucent countertops made of quartz, onyx, agate, marble, and other stone.

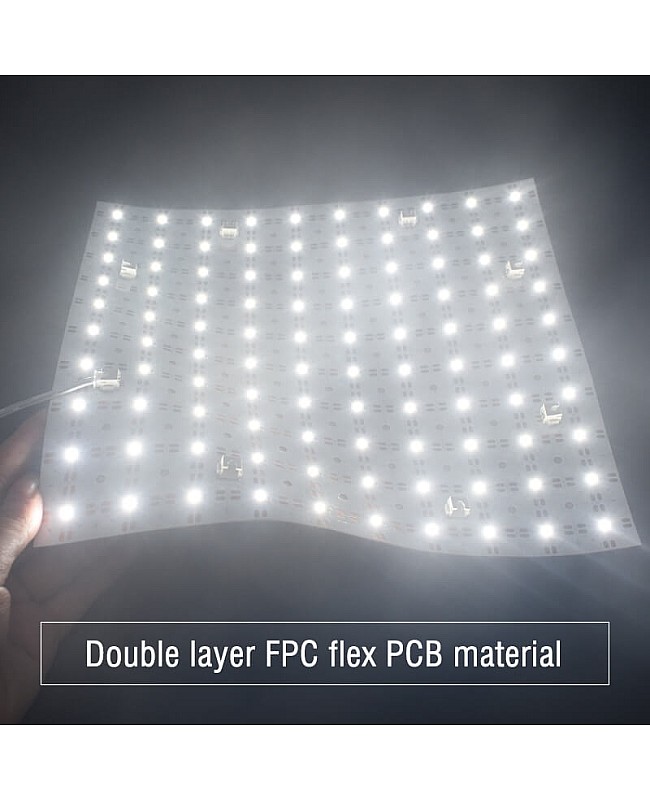

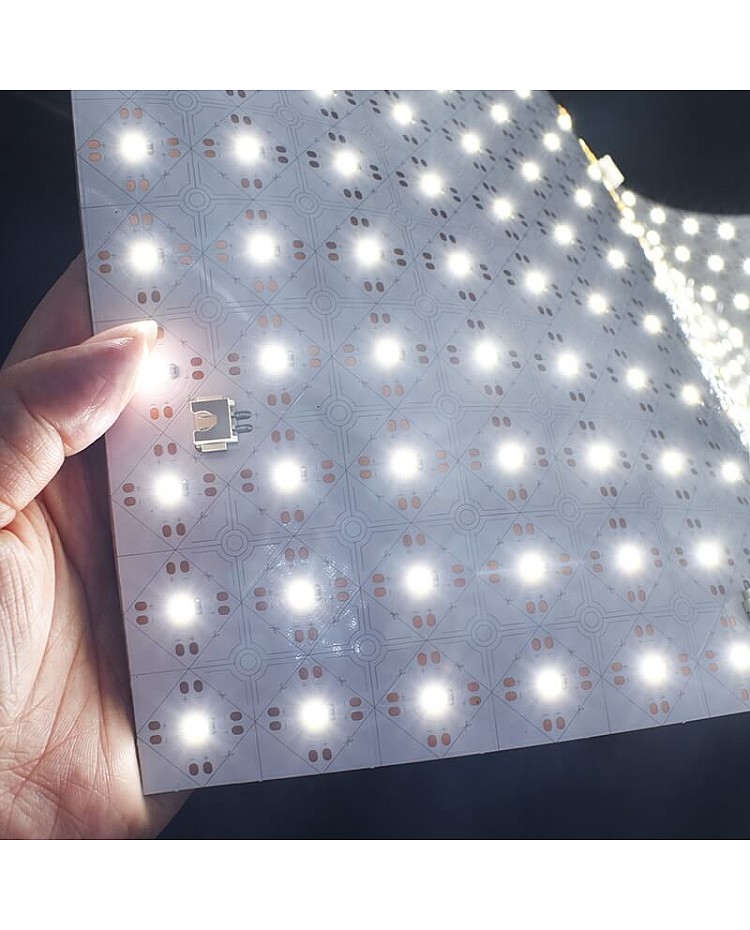

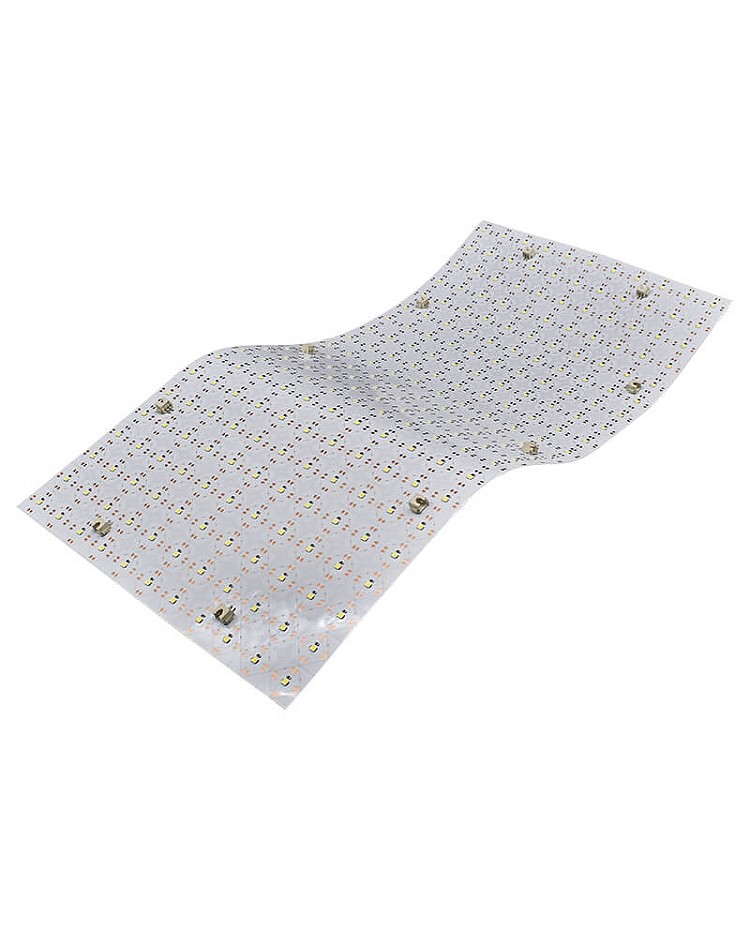

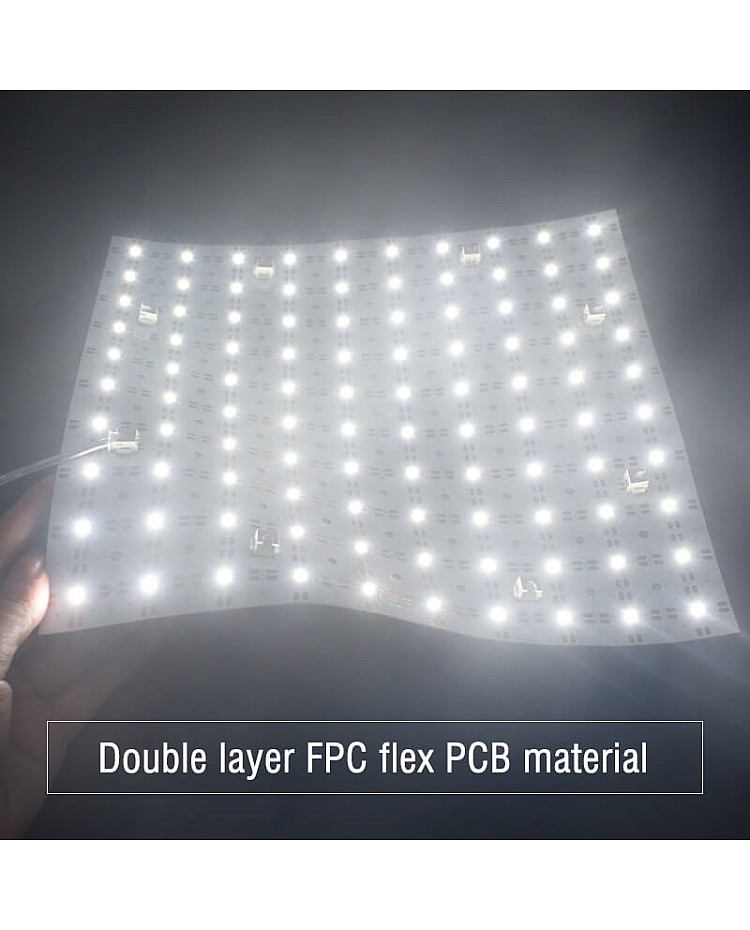

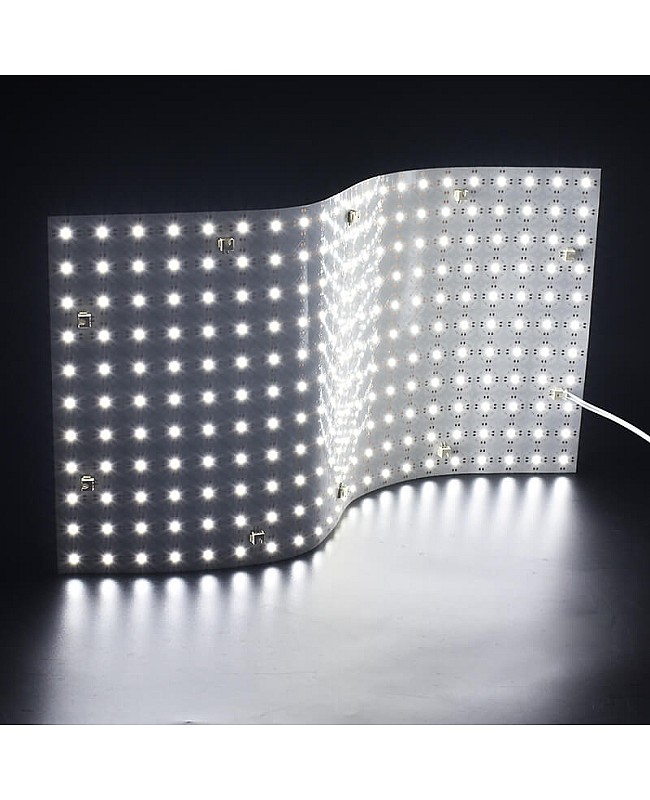

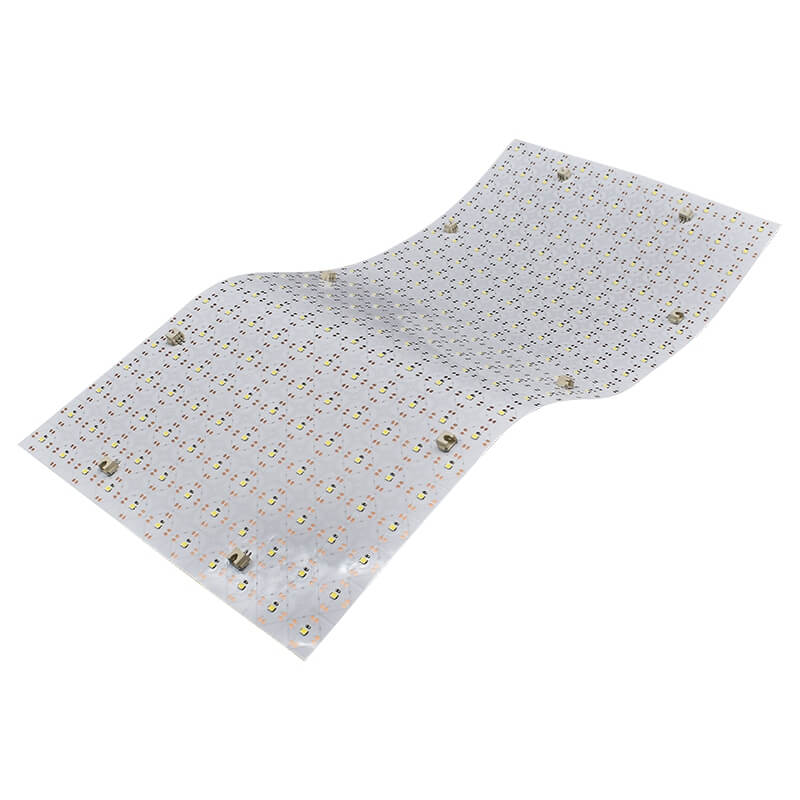

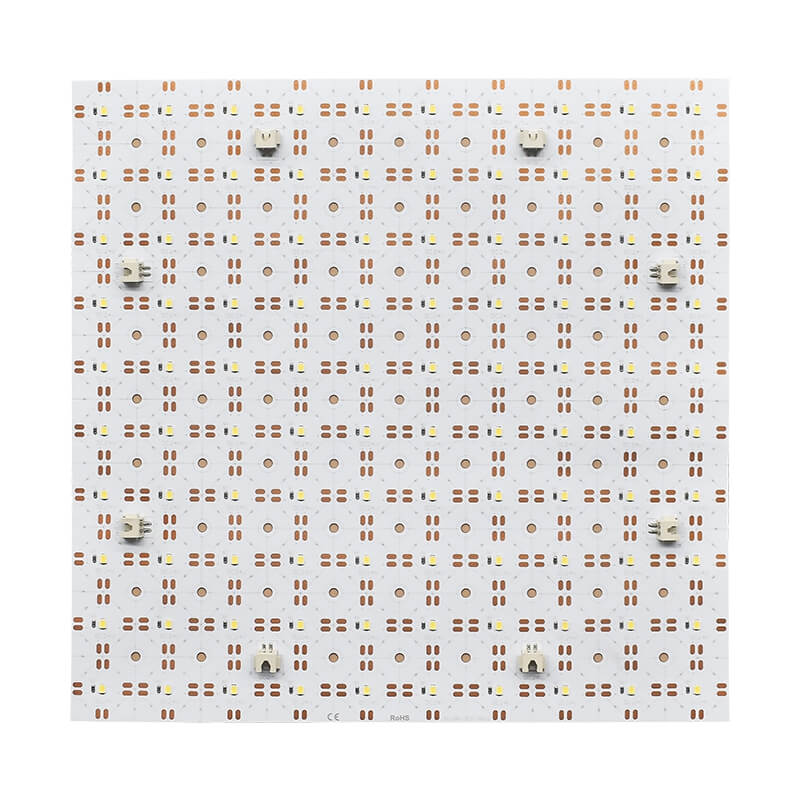

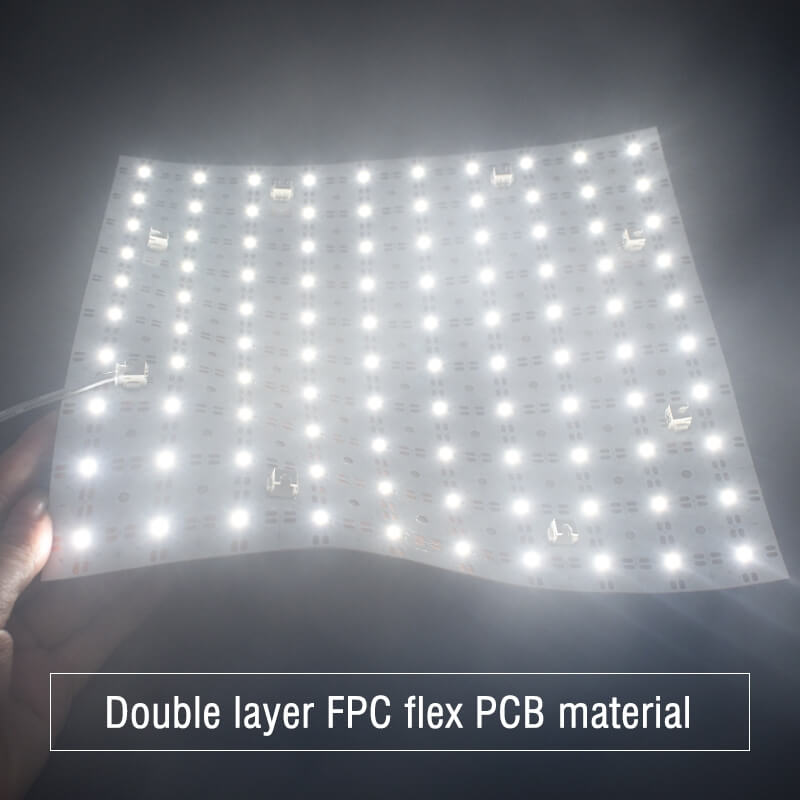

Two sizes of cuttable light sheets are available: 250 mm x 250 mm and 490 mm x 245 mm. They use high-quality 2835 SMD LEDs as the light source, arranged on a dual-layer PCB to ensure flexibility and bendability, with no voltage drop, providing bright, uniform illumination.

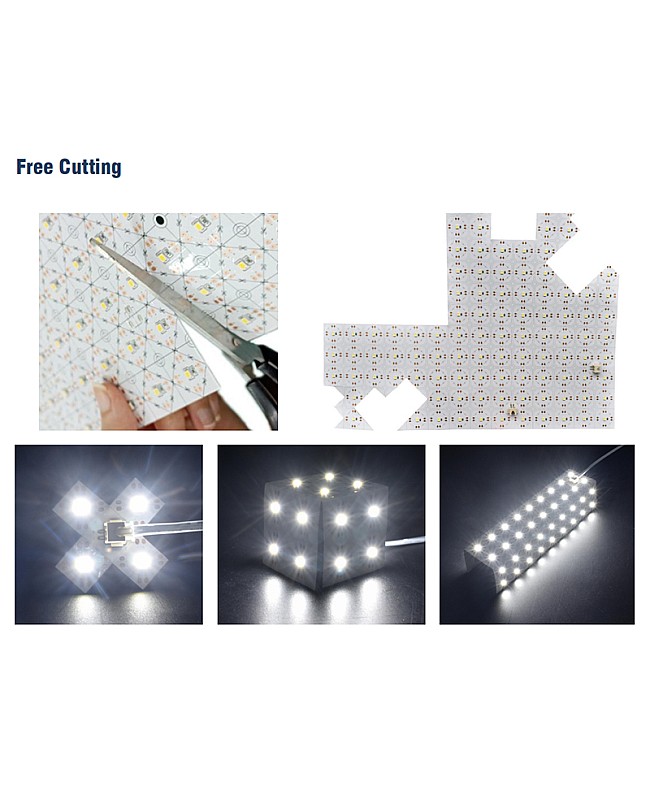

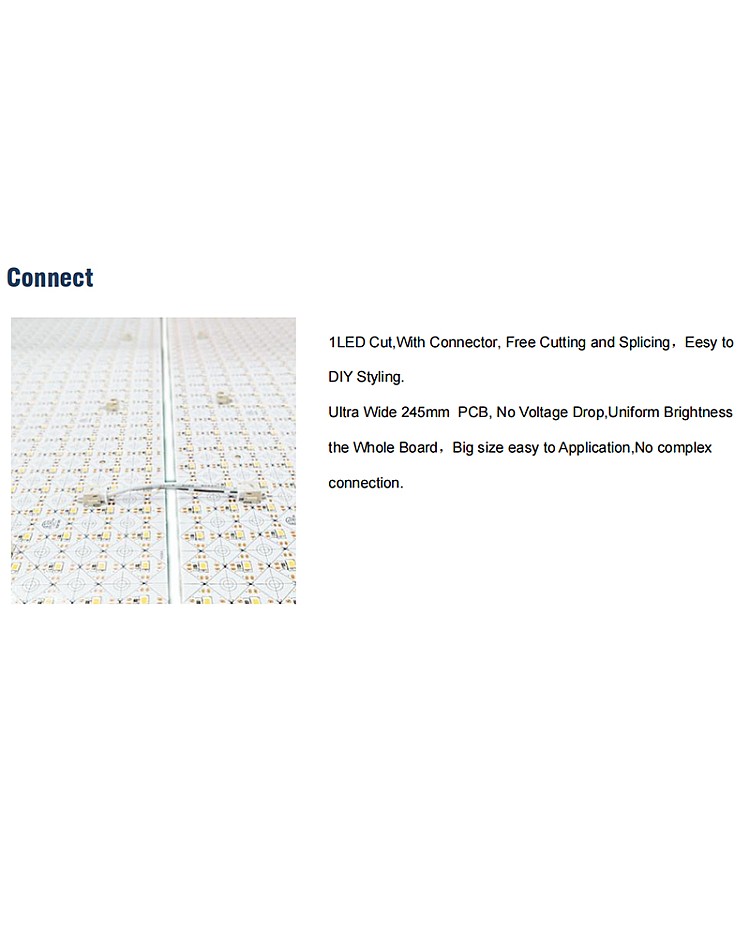

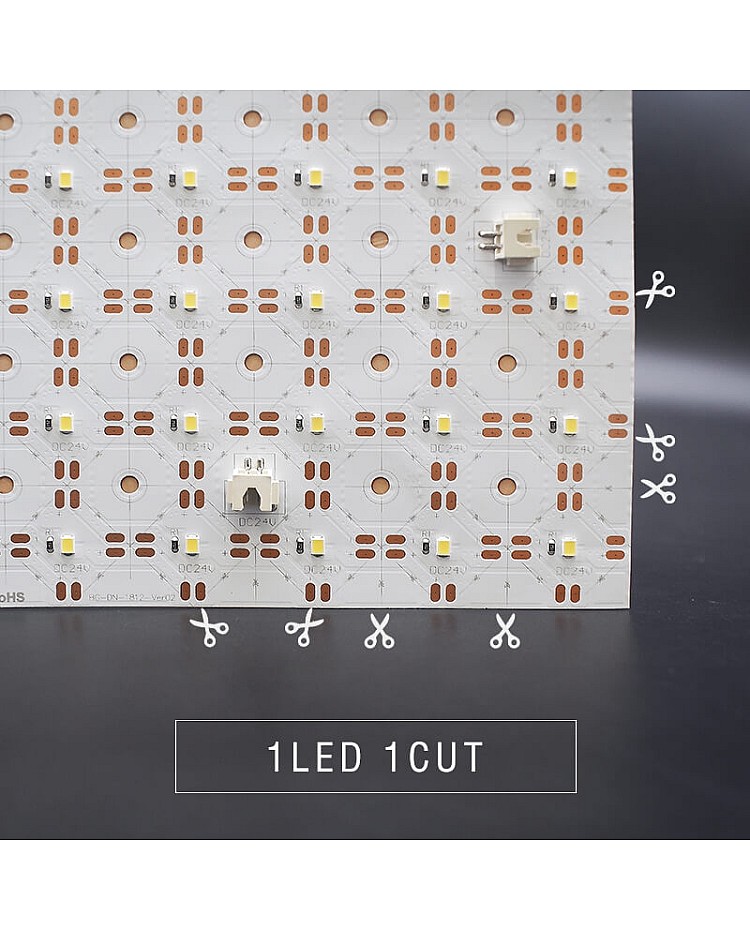

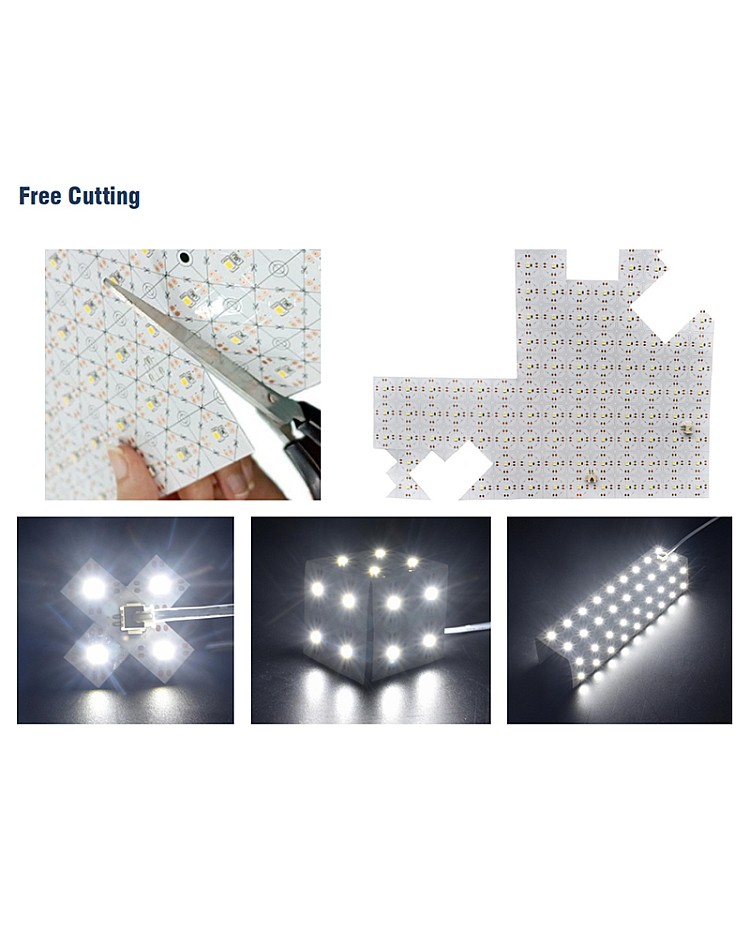

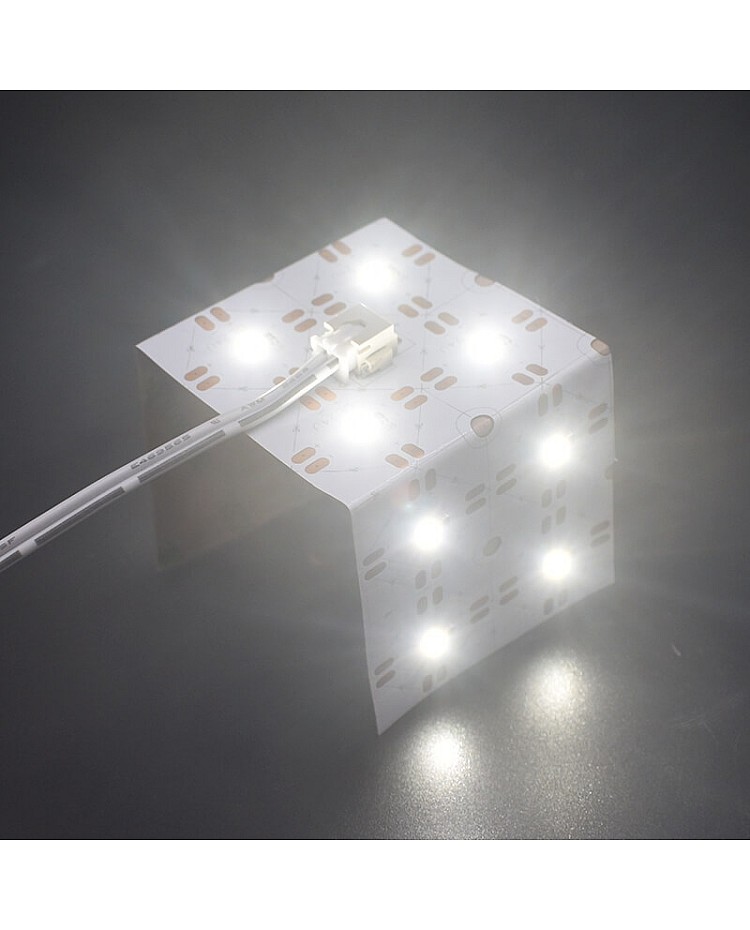

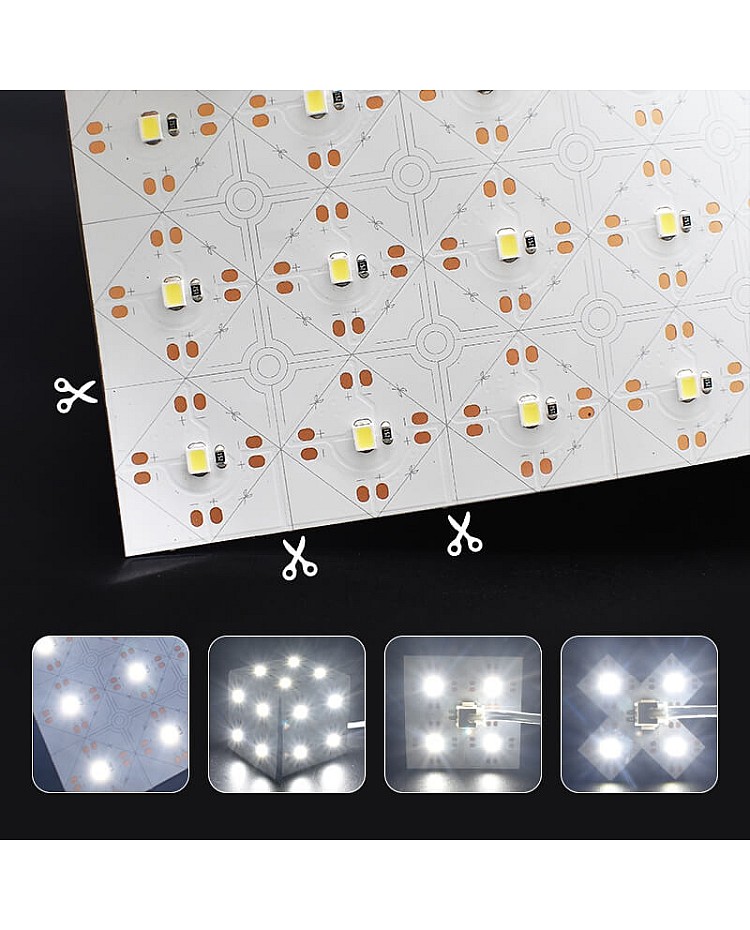

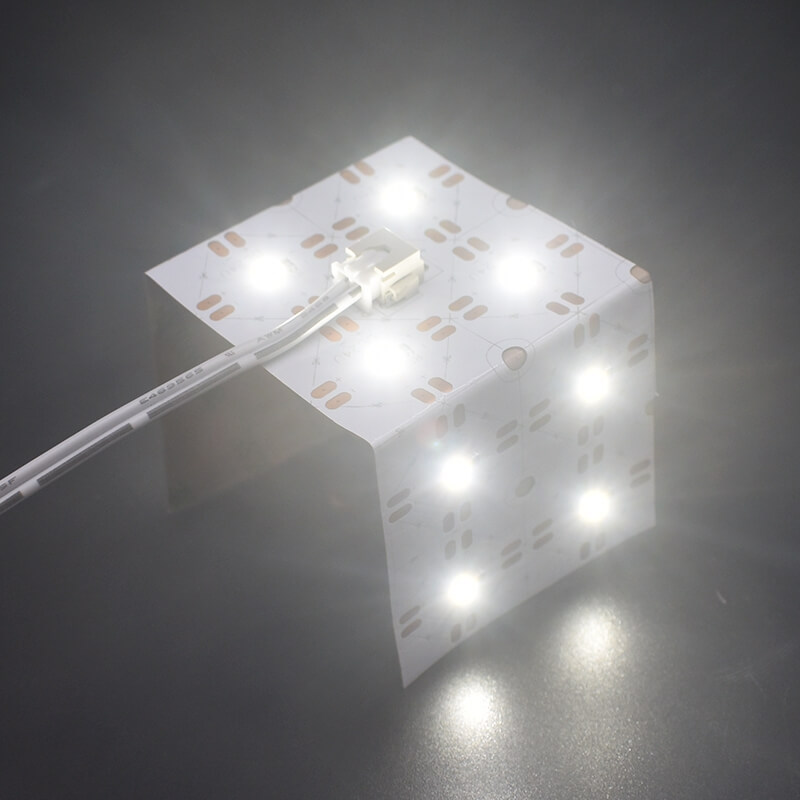

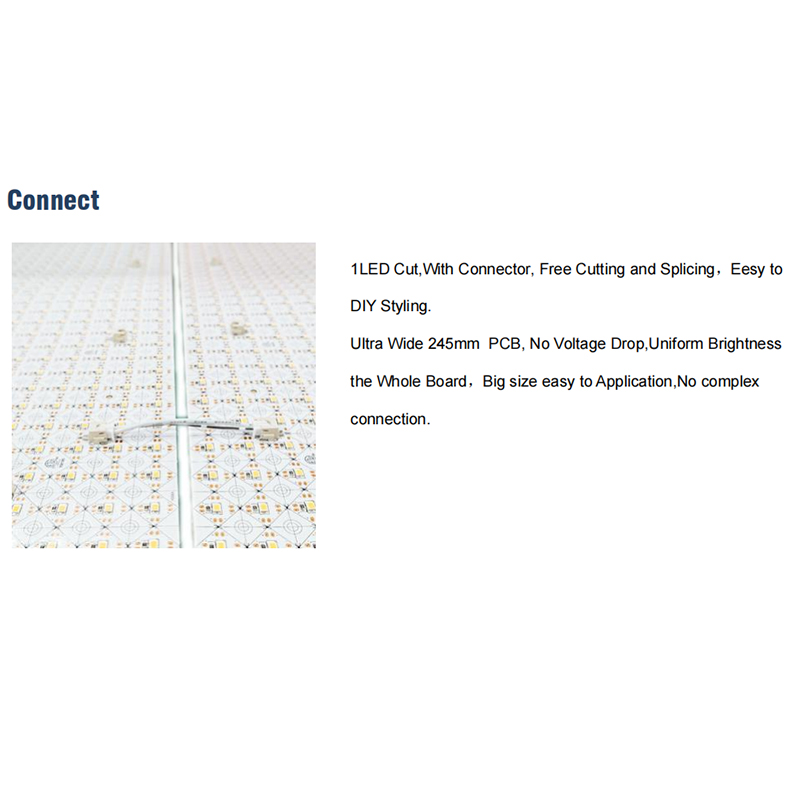

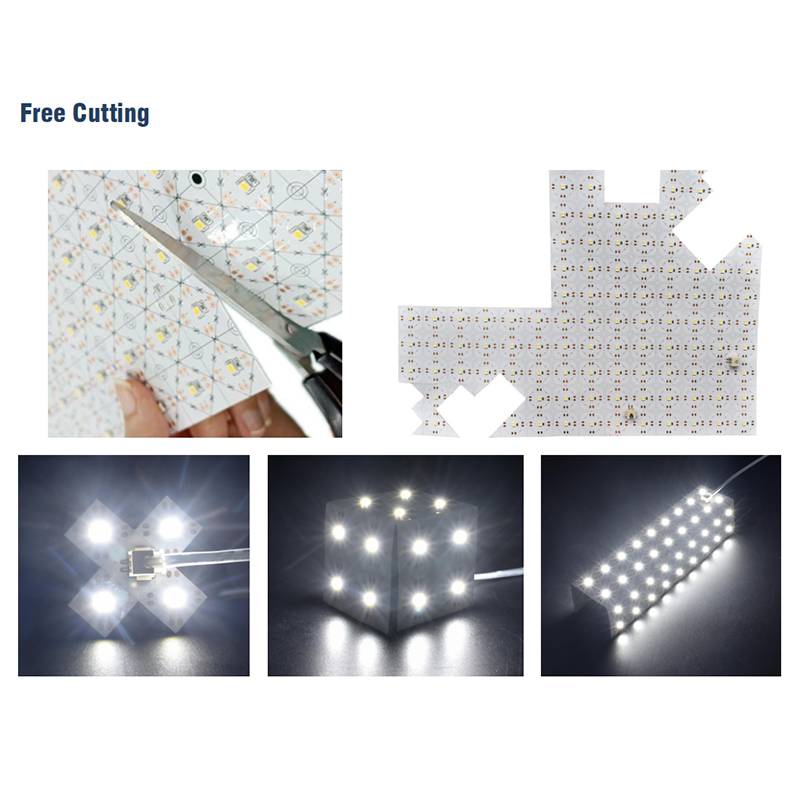

There are trim lines on the panel sheet, allowing you to cut, bend, or shape for your projects or DIY work. The backlight sheets feature multiple power connectors, enabling you to connect multiple sheets for larger projects. They have screw holes, and the back features double-sided adhesive tape, enabling quick and easy installation.
The panel sheet is available in various colors: 3000 K warm white, 4000 K natural white, and 6000 K cool white. The LED mats can connect to a 24V dimming LED driver or light dimmer to adjust brightness.

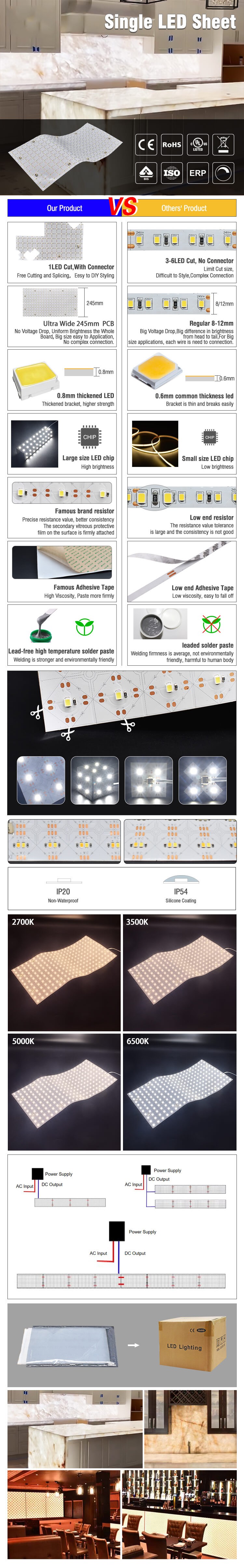

Link: Single color dimmable sheet light data sheet
Specifications:
- Type: Flexible SMD white light sheets
- Models: LB-2835-100 / LB-2835-242
- Size( Length x Width ): 250 mm x 250 mm ( 9.84" x 9.84" ) ( LB-2835-100 ); 490 mm x 245 mm ( 19.29" x 9.65" ) ( LB-2835-242 )
- LED type: 2835 SMDs
- LED quantity: 100PCS/piece ( LB-2835-100 ); 242PCS/piece ( LB-2835-242 )
- Working voltage: DC 24V
- Power: 12W/piece ( LB-2835-100 ) / 28W/piece ( LB-2835-242 )
- Colors: 2700K warm white, 3000K warm white, 4000K natural white, 6000K cool white
- Luminous flux: 1200lm/m ( LB-2835-100 ); 2800lm/m ( LB-2835-242 )
- CRI: >80Ra

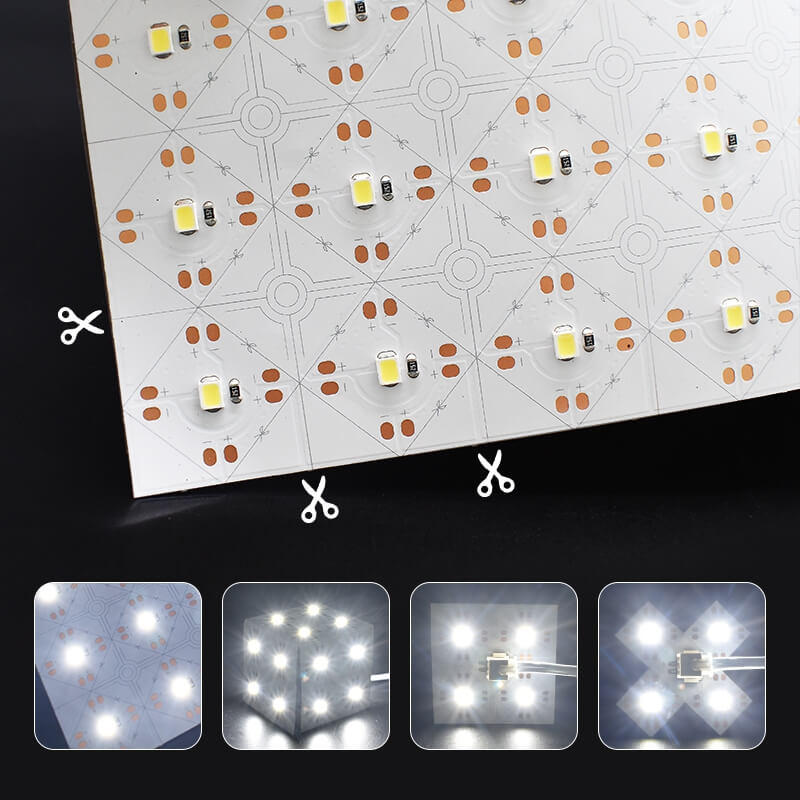

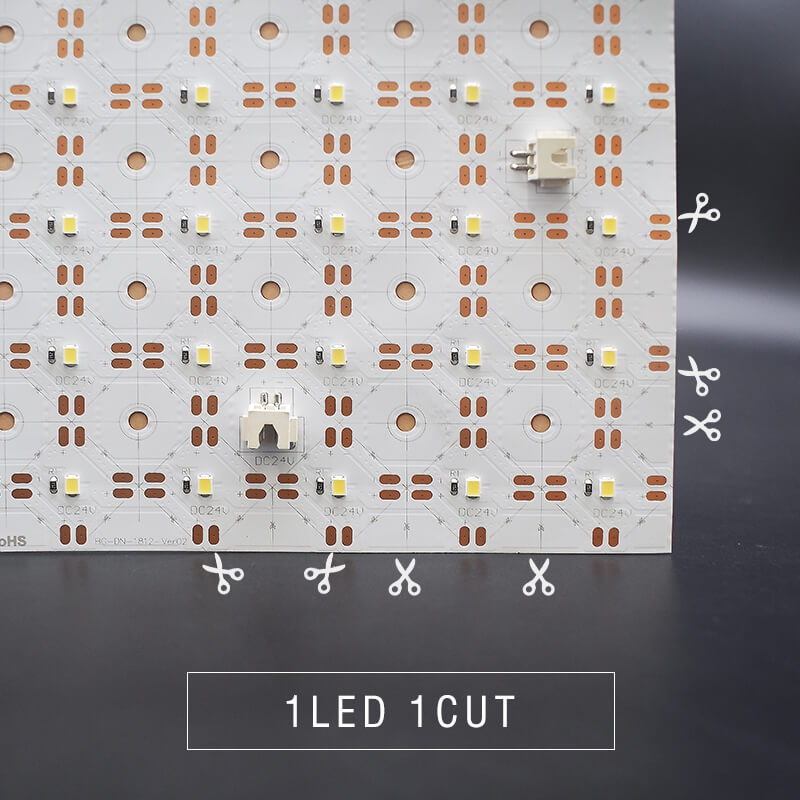

- Minimum cutting length: 25 mm x 25 mm ( 0.98" x 0.98" )( LB-2835-100 ); 22.3 mm x 22.3 mm ( 0.88" x 0.88" )( LB-2835-242 )
- Dimmable: YES
- The back has double-sided adhesive tape
- Beam angle: 120°
- Waterproof level: IP20 non-waterproof, IP54 waterproof
- Storage temperature; -20℃ + 65℃ ( -4°F - 113°F )
- Working temperature: -20℃ + 45℃ ( -4°F - 149°F )
- UL listed
- Lifespan: >35,000 hours
- Warranty: 3 years

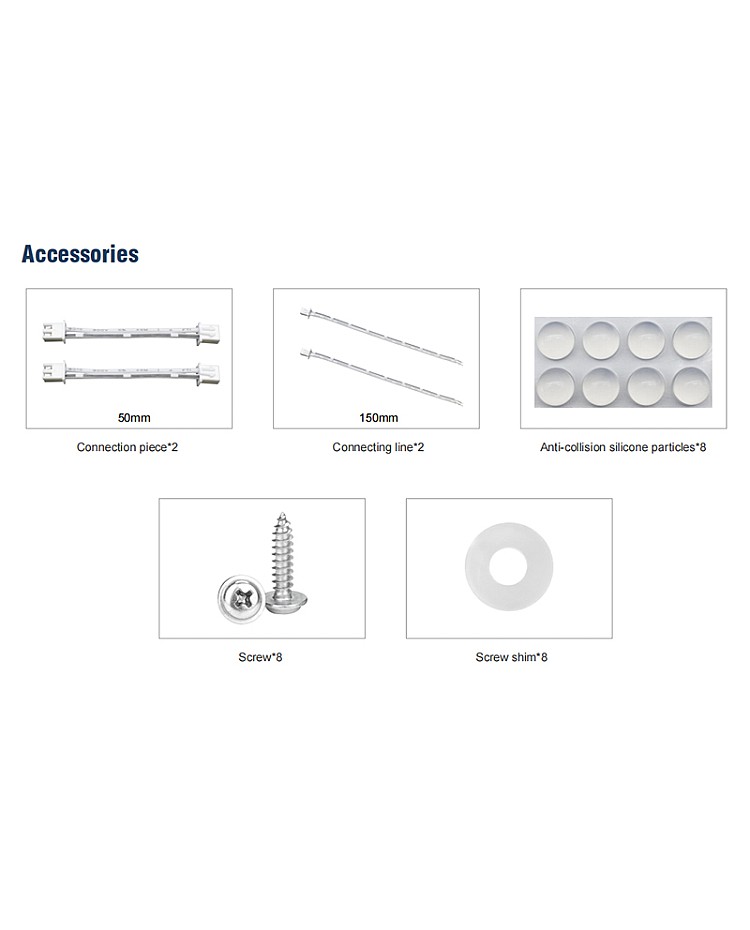

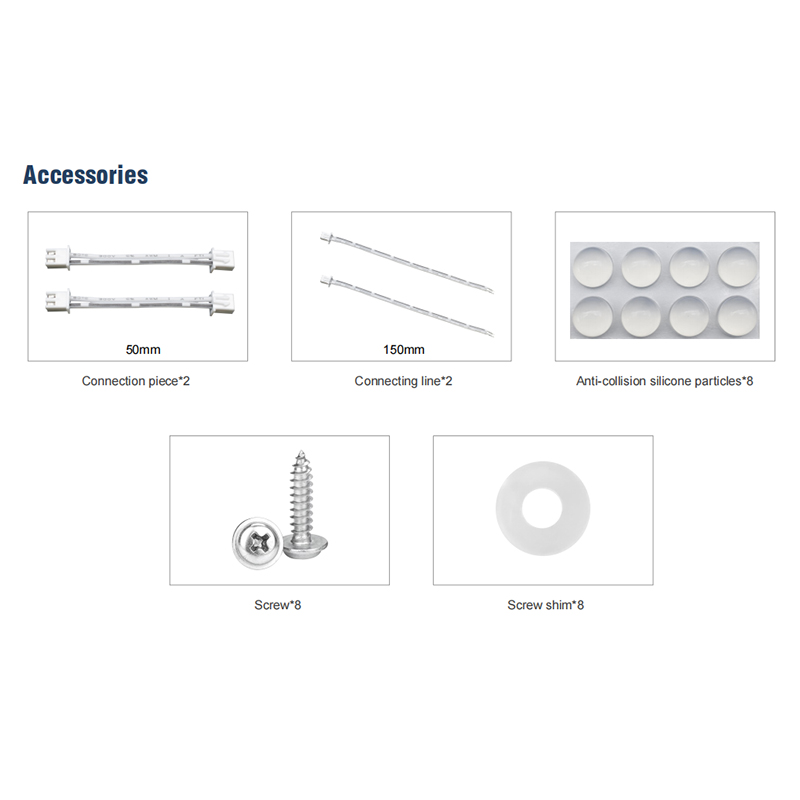

Includes:
1 x LED light sheet panel
2 x 2P connection pieces
2 x 2P power connectors
4 / 8 x Anti-collision silicone particles
