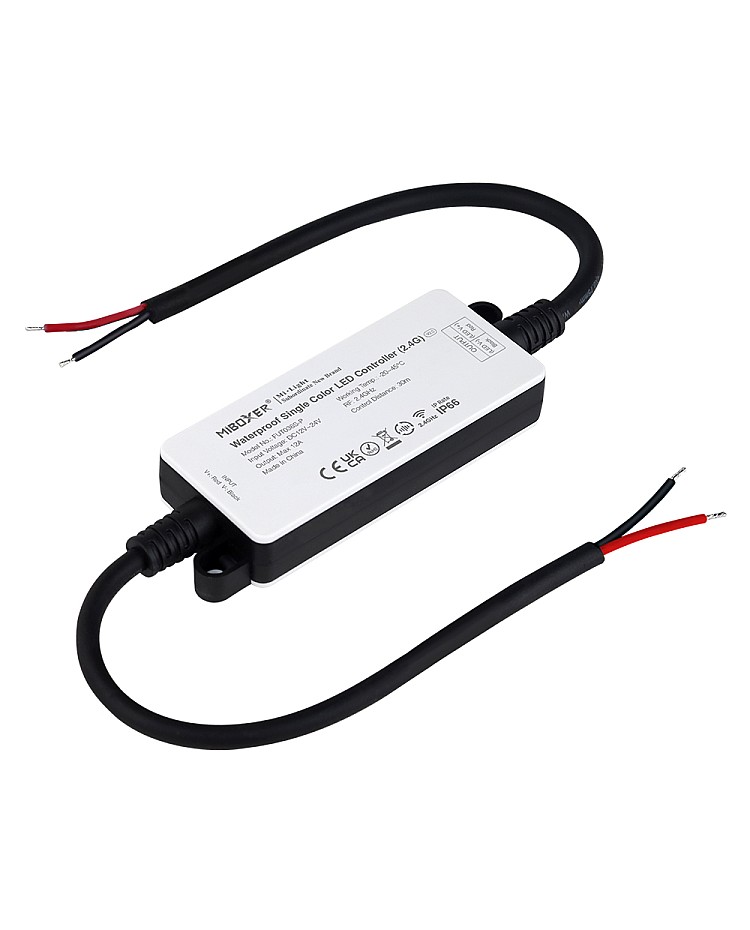

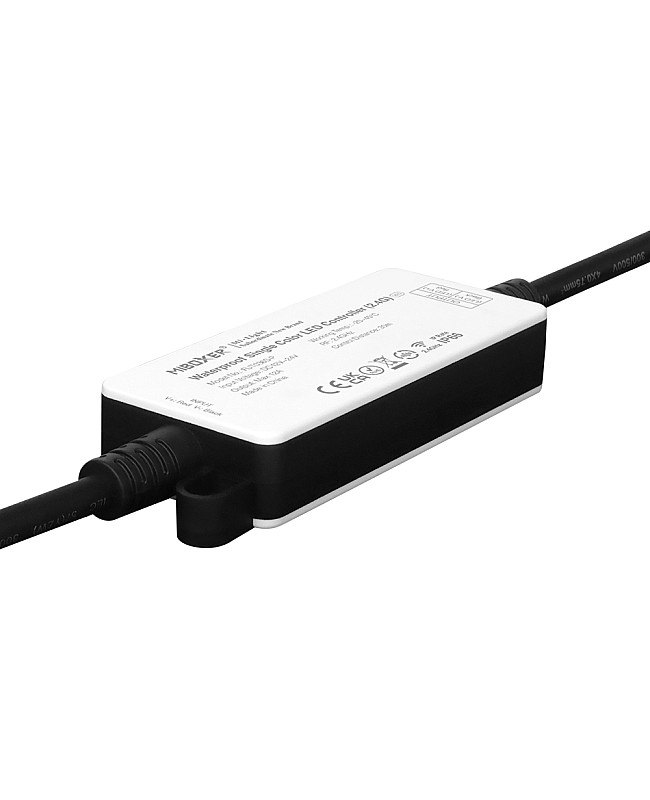

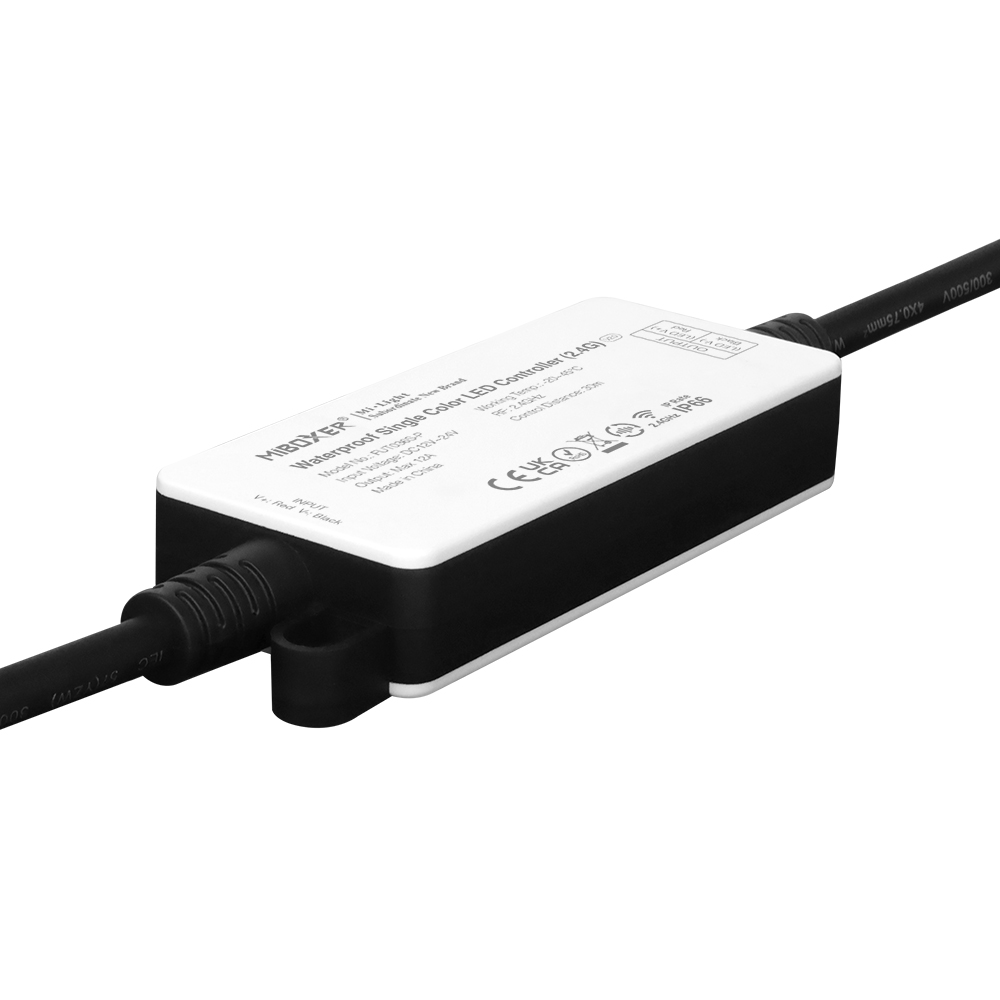

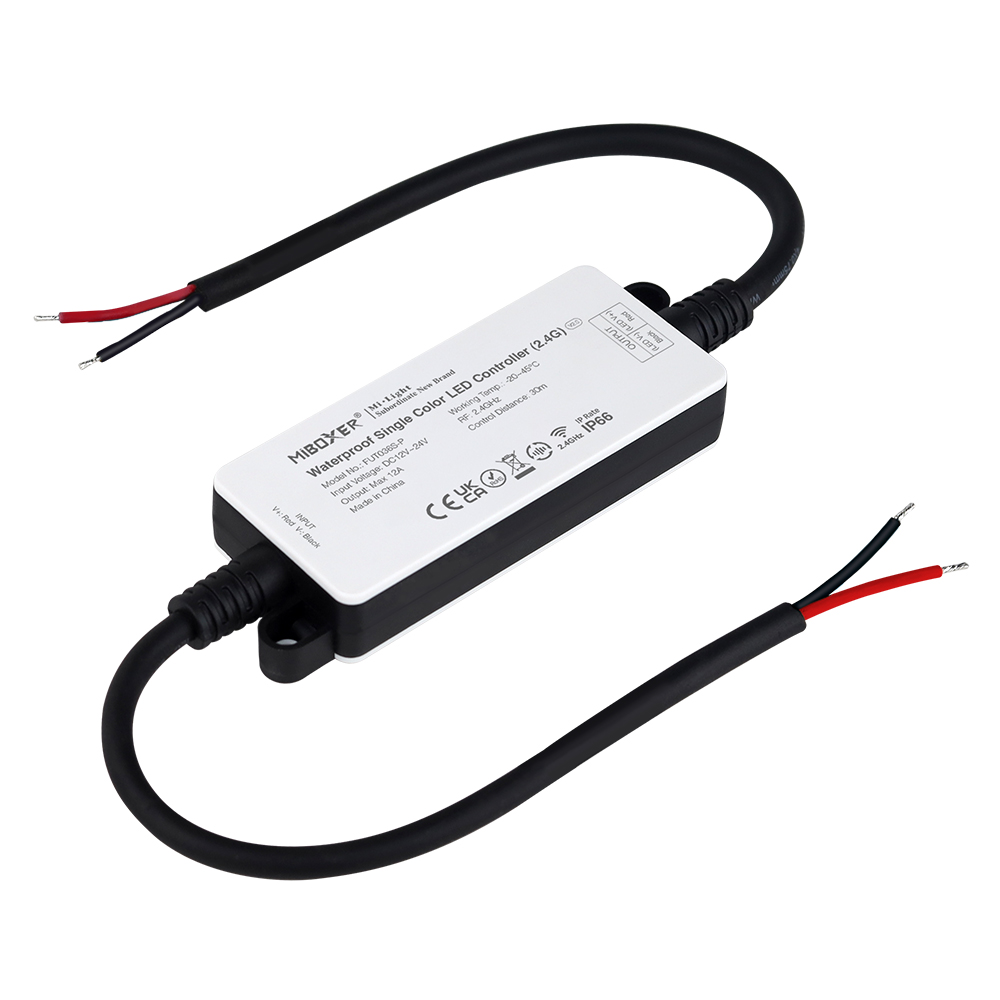

The outdoor waterproof LED single color dimmer, with a waterproof level of up to IP66, can be used for outdoor lighting projects. The working voltage is DC12V-DC24V, with one output channel, and the maximum output current is 12A. The IP66 LED dimmer integrates a 2.4G transmit module, and the control distance is up to 30m. One dimmer can transmit the signals from the remote control to another; if the control distance is within 30m, the remote control distance can be limitless. The outdoor light dimmer is compatible with most 2.4G RF single color light remotes: FUT087, FUT007, FUT006, S1, B1, T1, B2, T2, and K1. After adding a 2.4G gateway WL-BOX1, the MiBoxer waterproof dimmer supports smartphone APP control and third-party voice control, supporting Amazon Alexa and Google Assistant. You can adjust the brightness from 1% to 100% for various scenes. It supports PWM high-frequency 8KHz or low-frequency 500Hz switched.
Link: MiBoxer Waterproof LED Dimmer User Manual
Specifications:

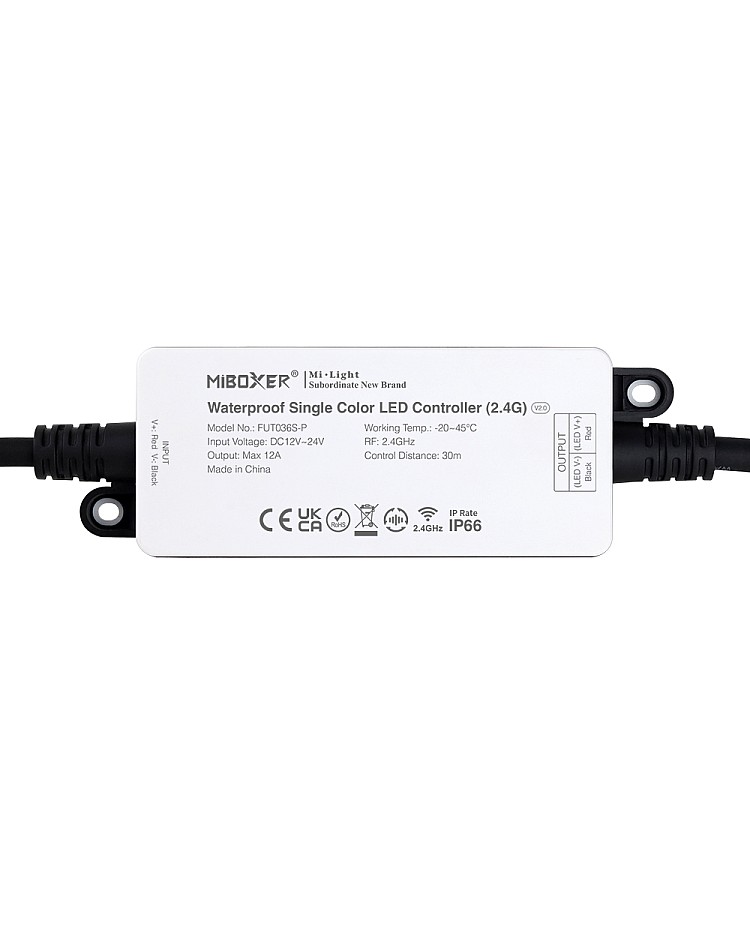

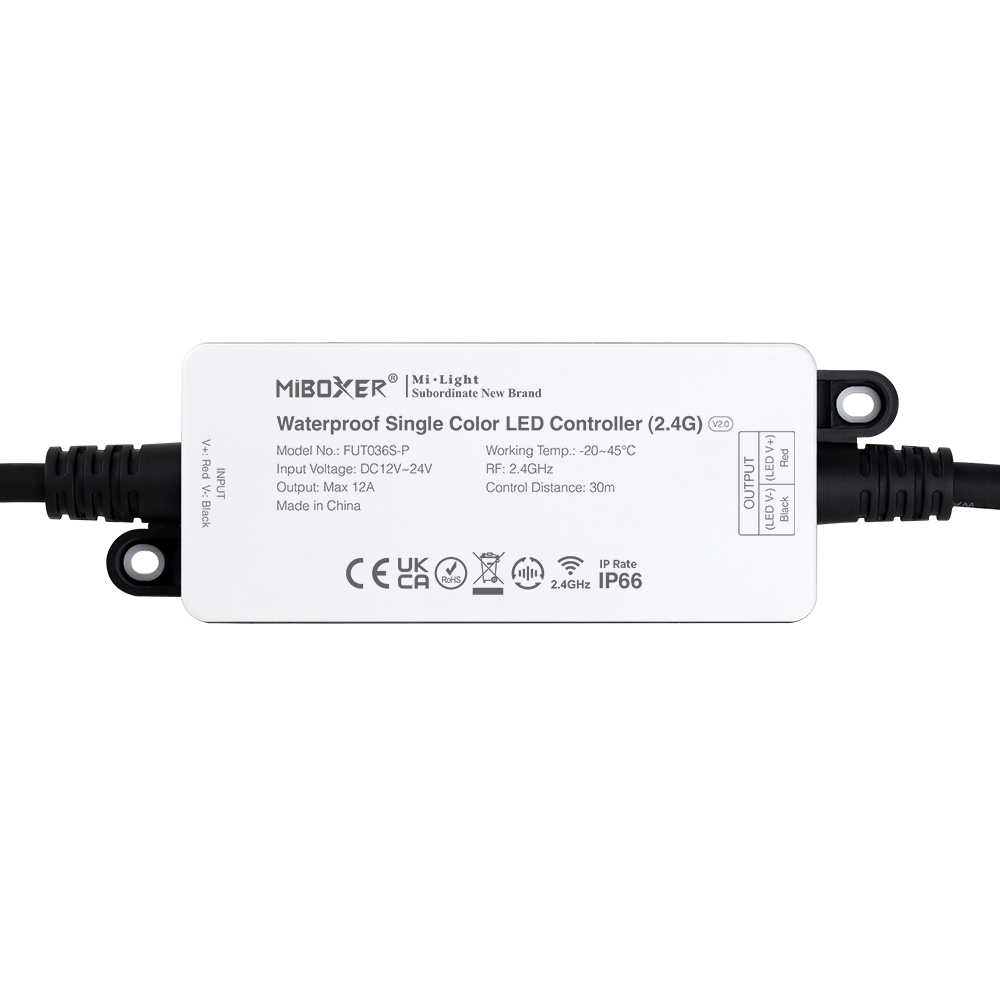

- Model: FUT036S-P

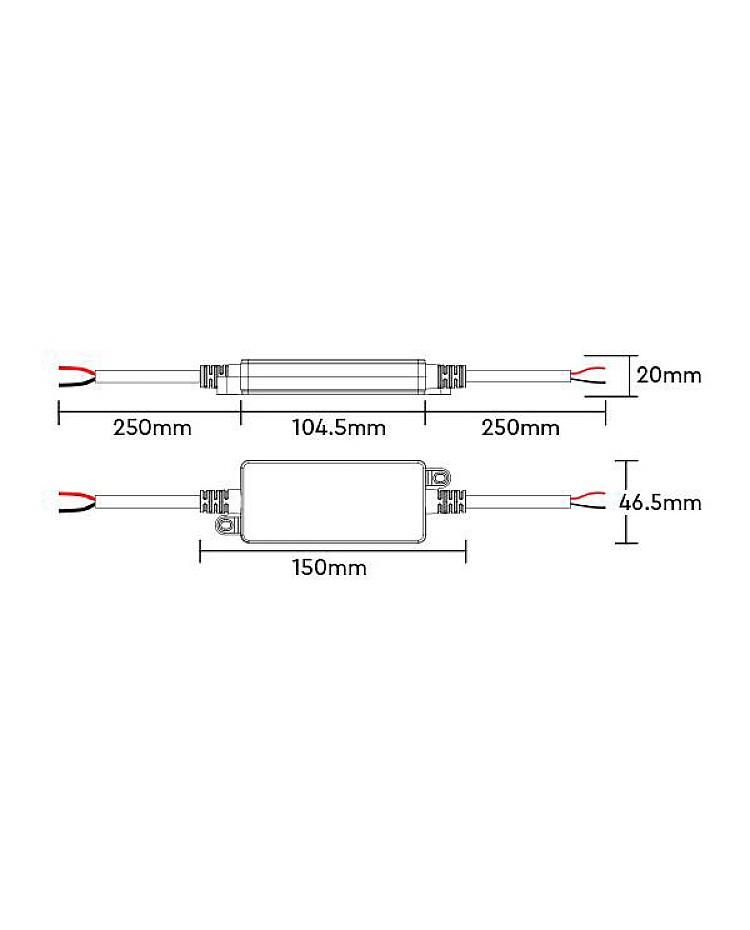

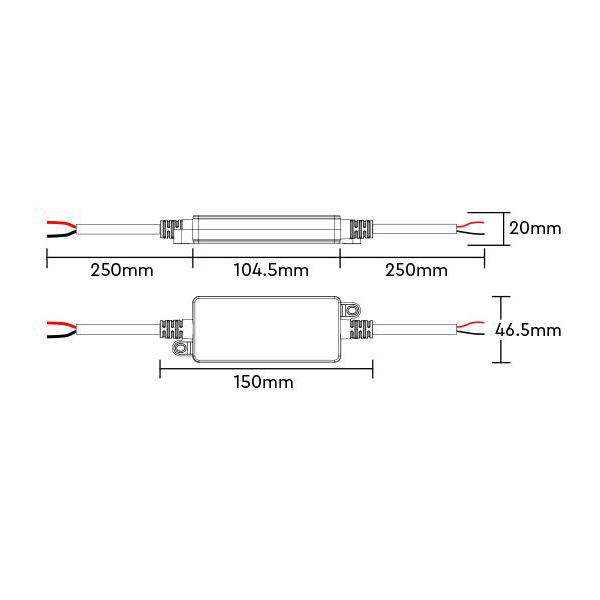

- Size: 150*46.5*20mm(L*W*H)
- Working Voltage: DC12-24V
- Max Output Current: 12A
- IP Rate: IP66
- RF: 2.4GHz
- Stepless Dimming Brightness: 1%-100%
- Control Distance: ≤30m
- Output Connection: Common Anode
- 2.4G RF Remote Controllable: FUT087, FUT007, FUT006, WL-BOX1, S1, B1, T1, B2, T2, K1
- Auto Signal Transmitting
- Frequency Switched High(8KHz) / Low(500Hz)
- Support Smartphone APP Control, Third-Party Voice Control(Amazon Alexa, Google Assistant)
- Working Temperature: -20-45℃
- 2 Years Warranty
Includes:
1 * Outdoor LED Single Color Dimmer
