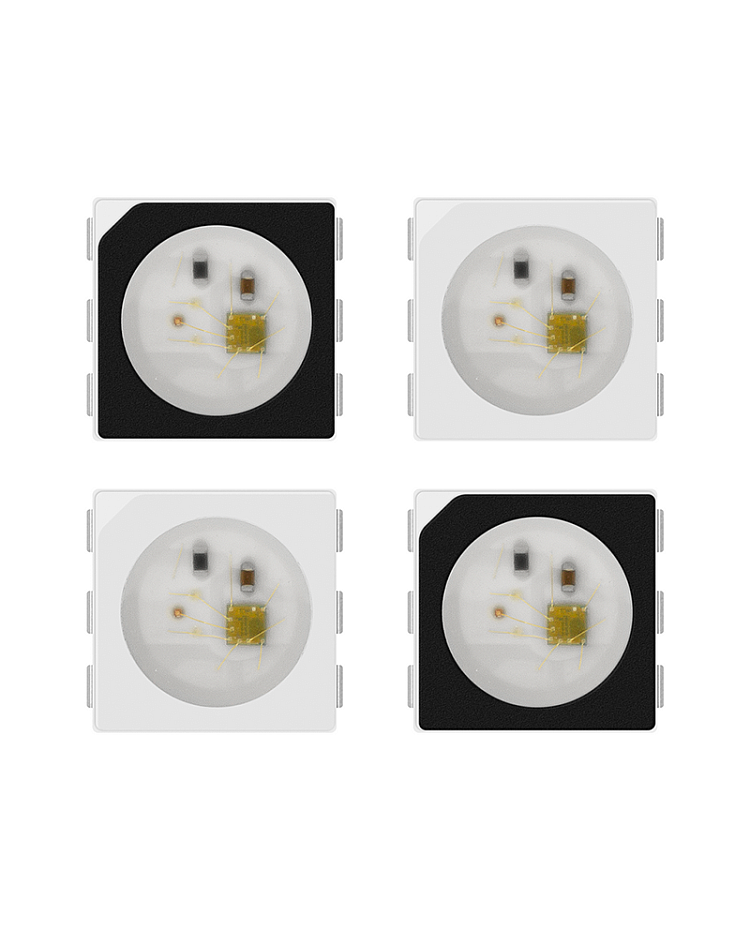

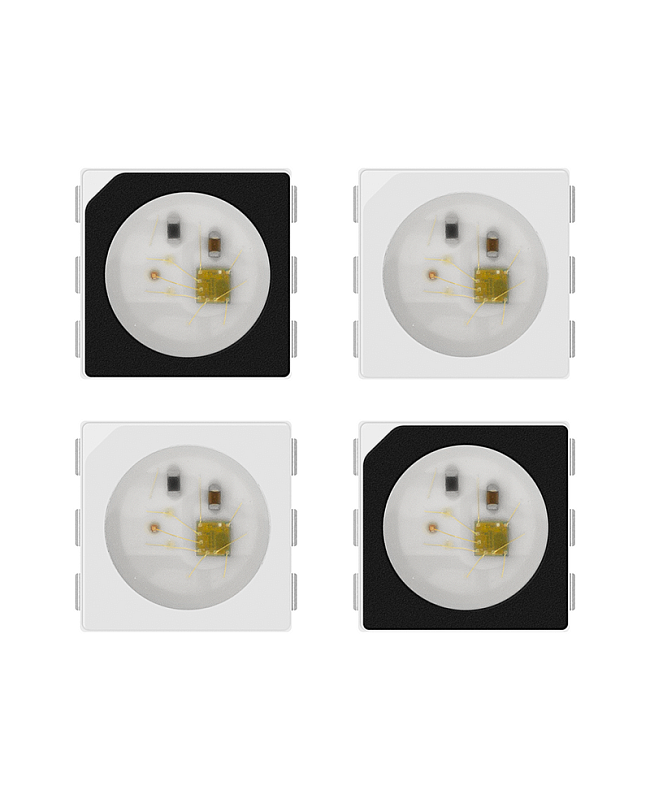

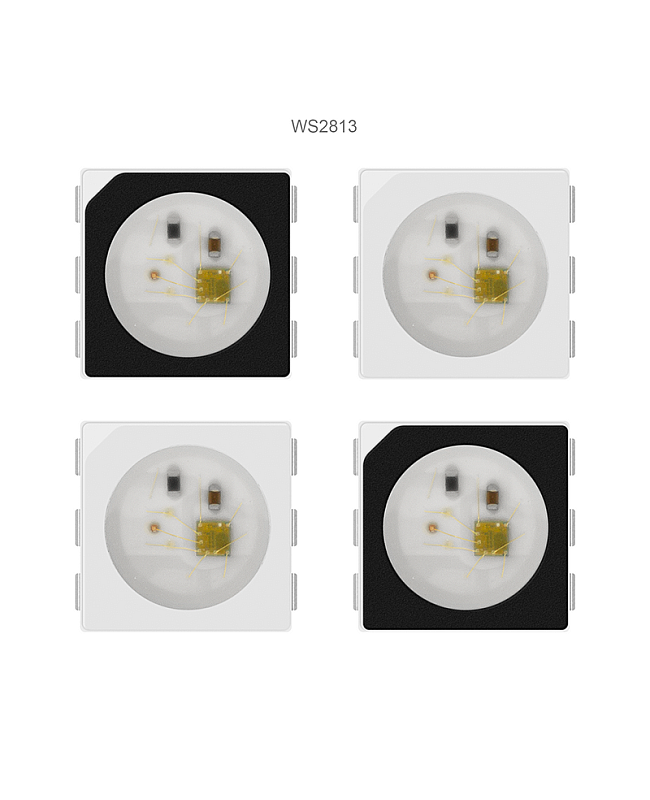

The WS2813 SMD 5050 RGB LEDs are an upgraded version of WS2812B LEDs, have 6 pins, and a dual-signal wire version for signal break-point continuous transmission. The LEDs include red, blue, and green LED chips, also built-in WS2813 IC for individually addressable function, control circuit, and LED share only power source, using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place. Built-in power-on reset and brown-out reset circuits. The gray levels of each Pixel are 256 levels, which will achieve 16 million colors, and the refresh frequency reaches 2KHz/s. There are two surface colors of LEDs available, black and white. You can use them for your DIY lighting projects or to replace the broken LEDs on your WS2813 LED Strips.
Specifications:
- Size: 5.0*5.4*1.5mm
- Input Voltage: DC5V
- Wavelength: Red: 650MCD, Green: 520MCD, Blue: 460MCD
- IC: Built-in WS2813(WS2812B Upgraded Version)

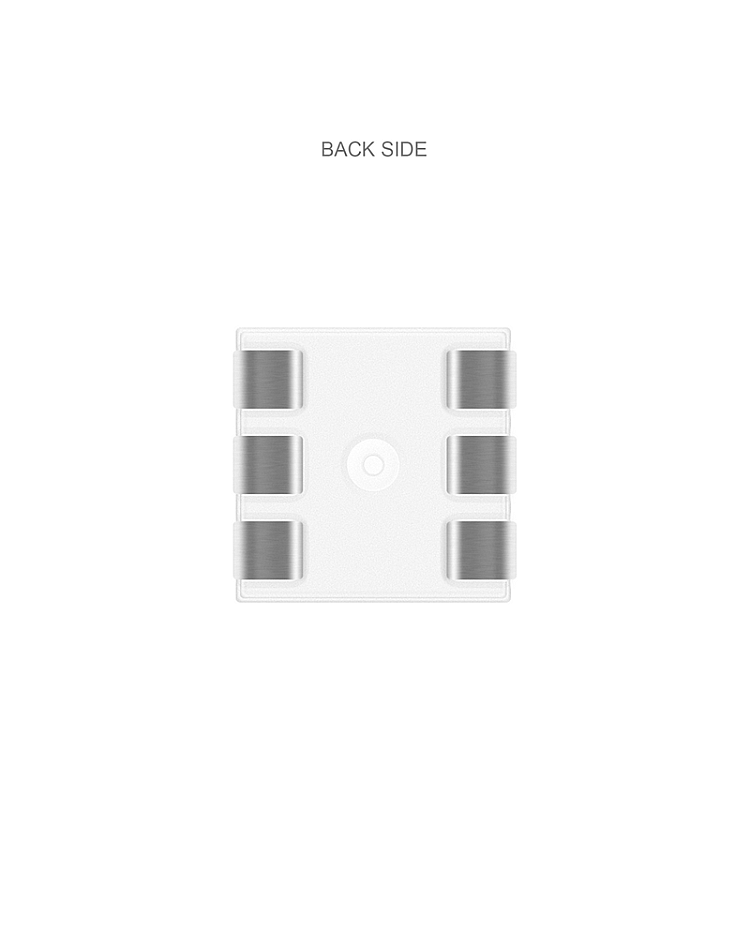

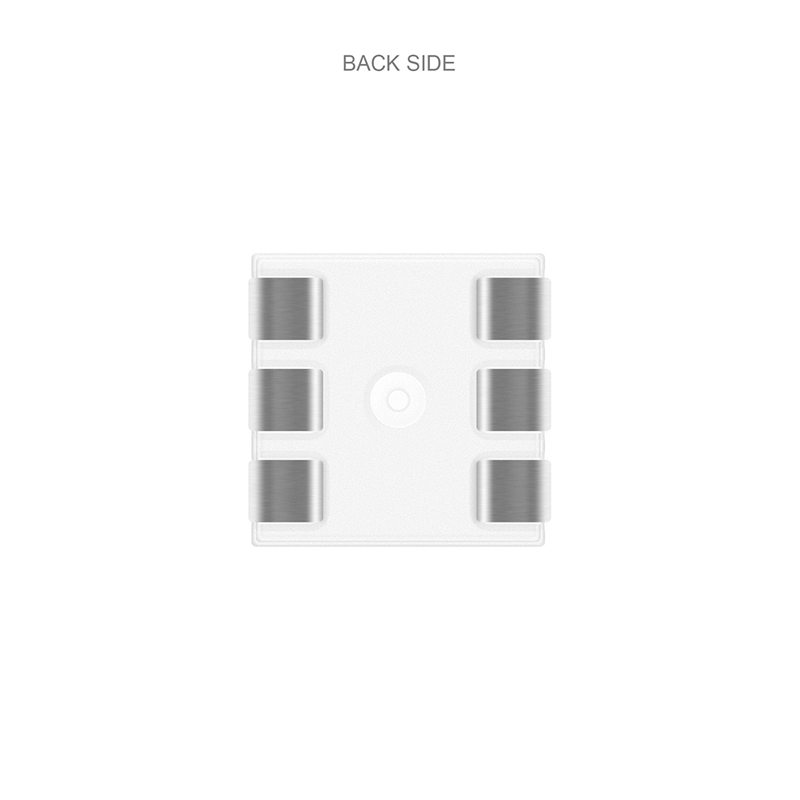

- Pins: 6
- Power: 0.24W/PC
- View Angle: 120°

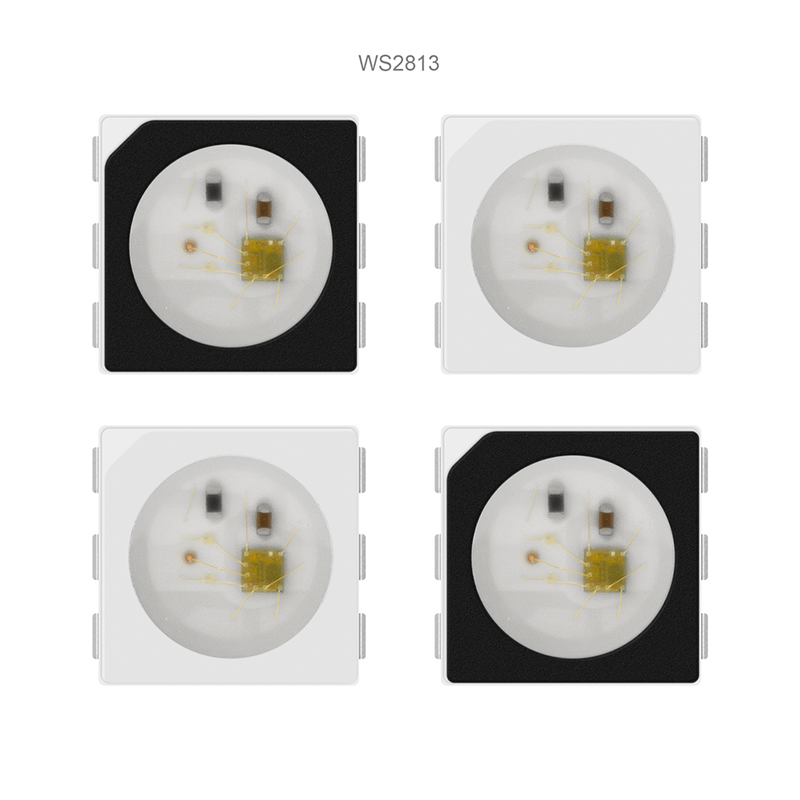

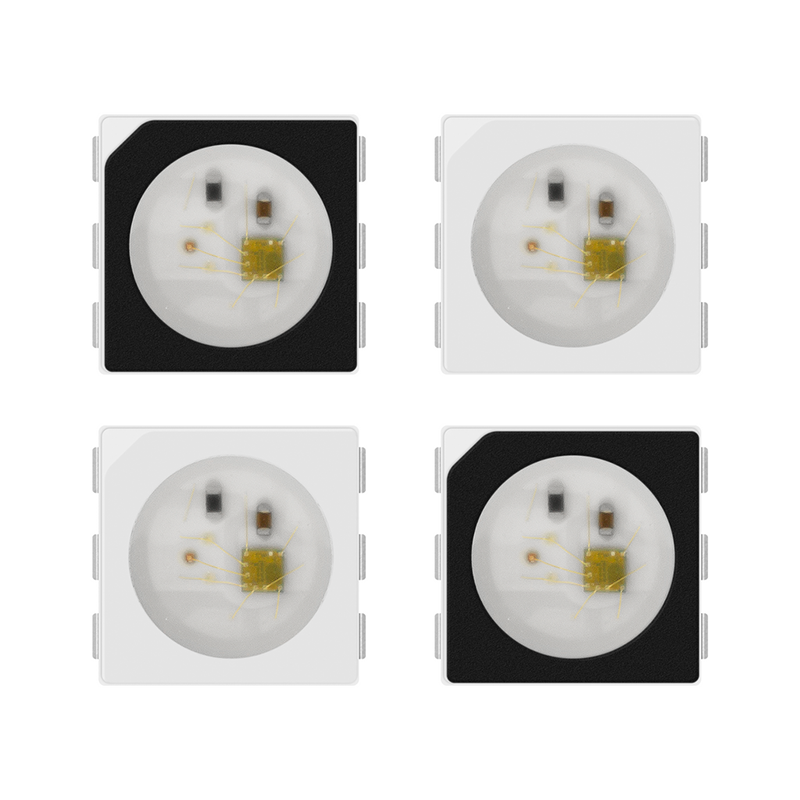

- Surface Color Of LEDs: Black/White
- Quantity Per Pack: 10PCS, 100PCS, 200PCS

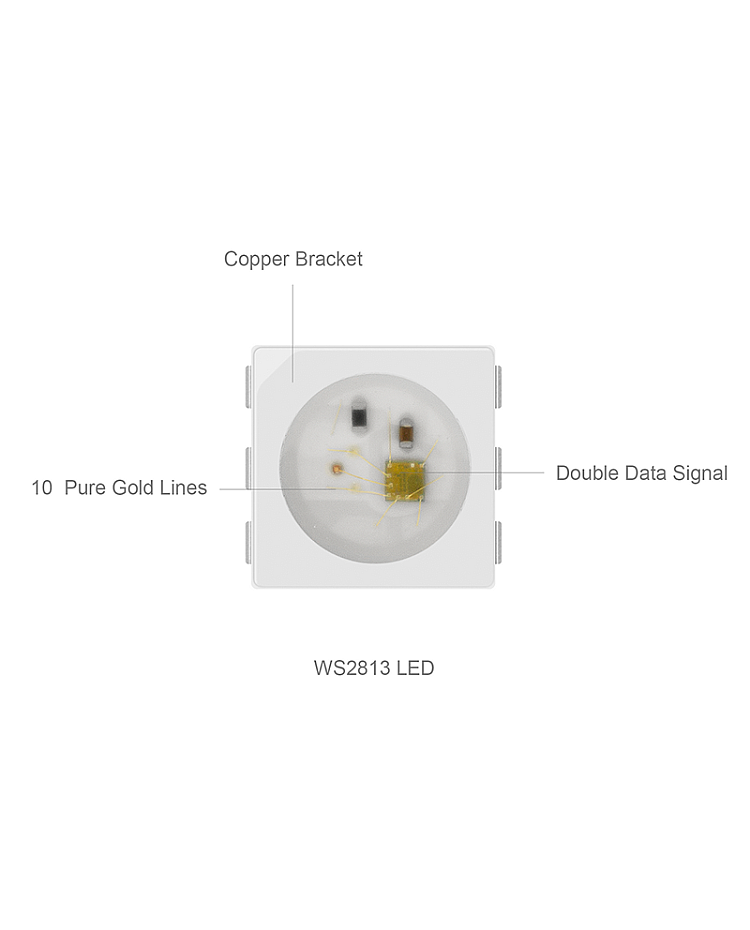

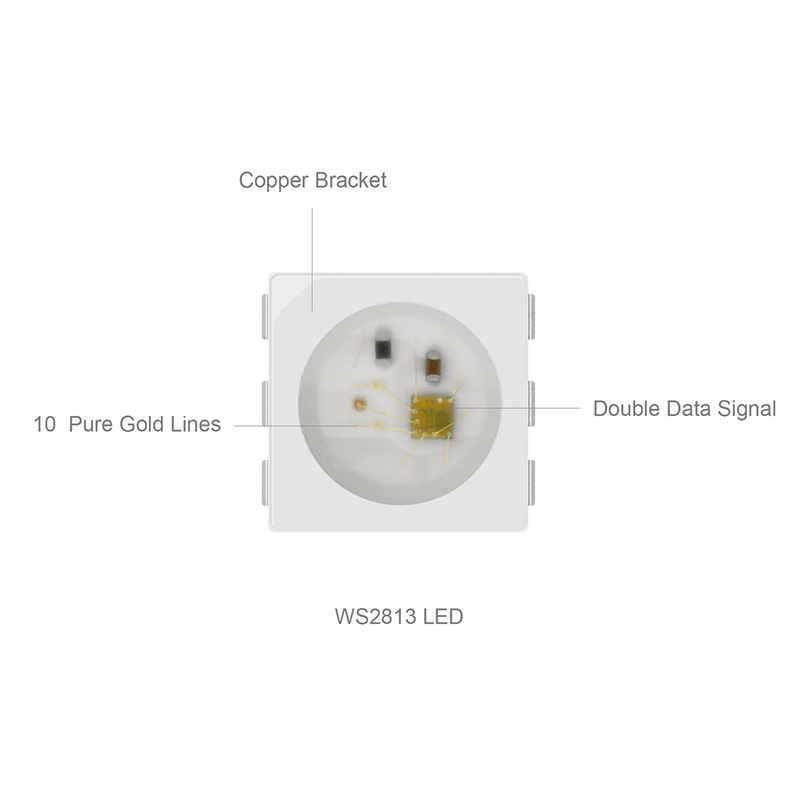

- Dual-Signal Wires Version
- Signal Break-Point Continuous Transmission
- Lifespan: 50,000 Hours

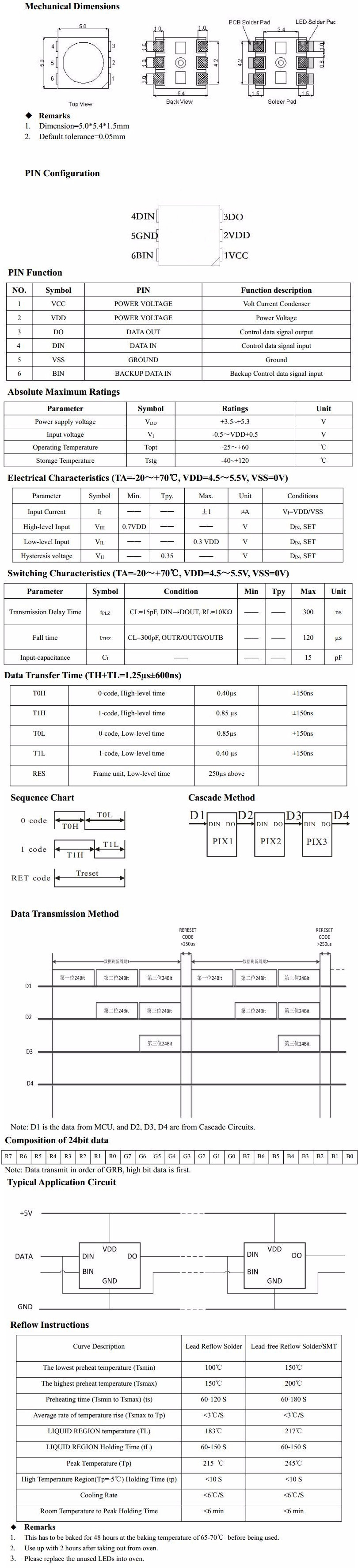

- Pins Function:
- NO.1 VCC Symbol, Power Voltage Pin, Function: Volt Current Condenser
- NO.2 VDD Symbol, Power Voltage Pin, Function: Power Voltage
- NO.3 DO Symbol, Data Output Pin, Function: Control Data Signal Output
- NO.4 DIN Symbol, Data In Pin, Function: Control Data Signal Input
- NO.5 VSS Symbol, Ground Pin, Function: Ground
- NO.6 Bin Symbol, Backup Data In, Function: Backup Control Data Signal Input
Includes:
1 * WS2813 RGB LEDs
