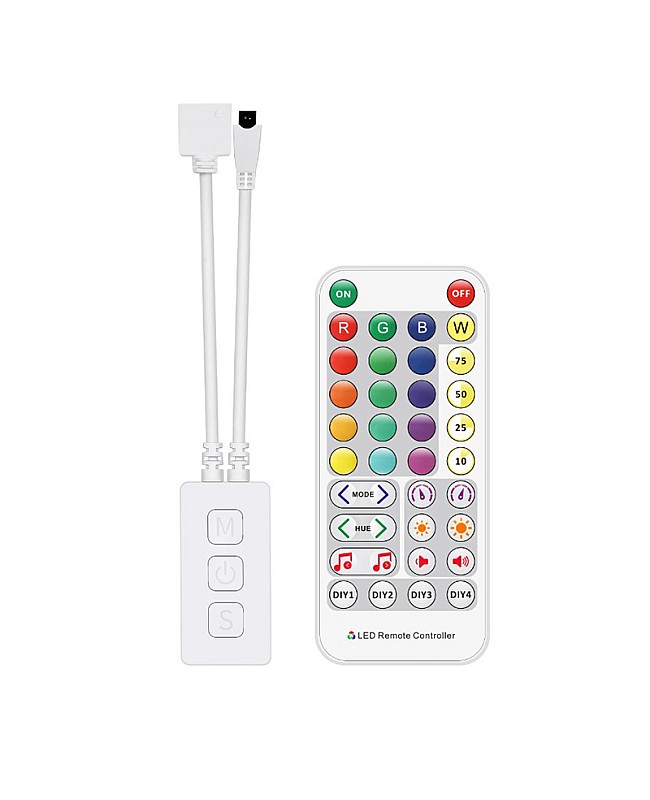

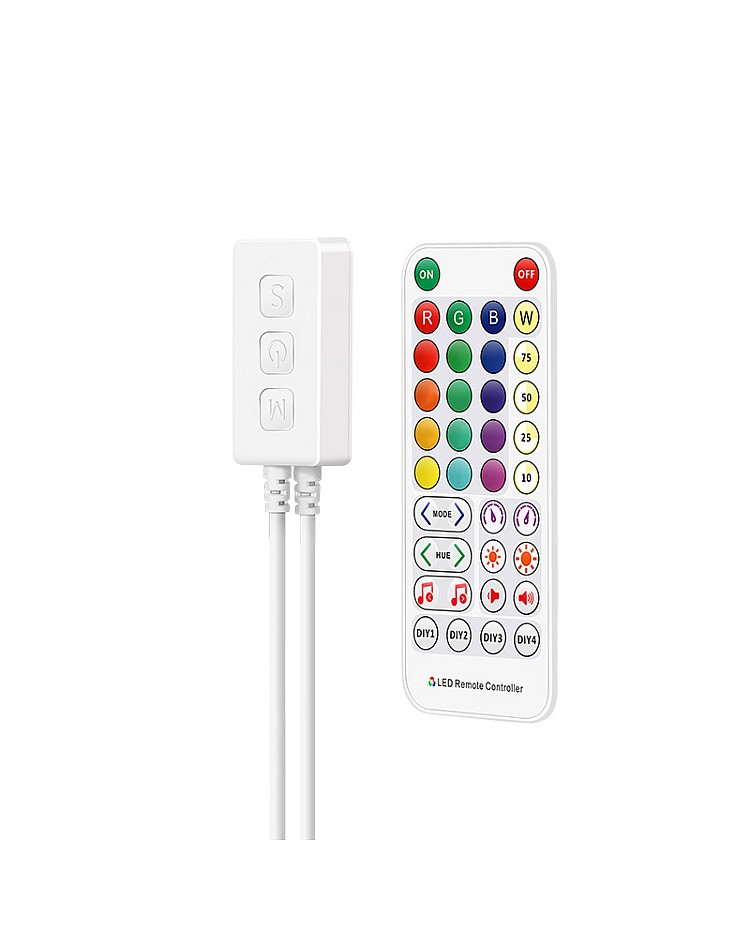

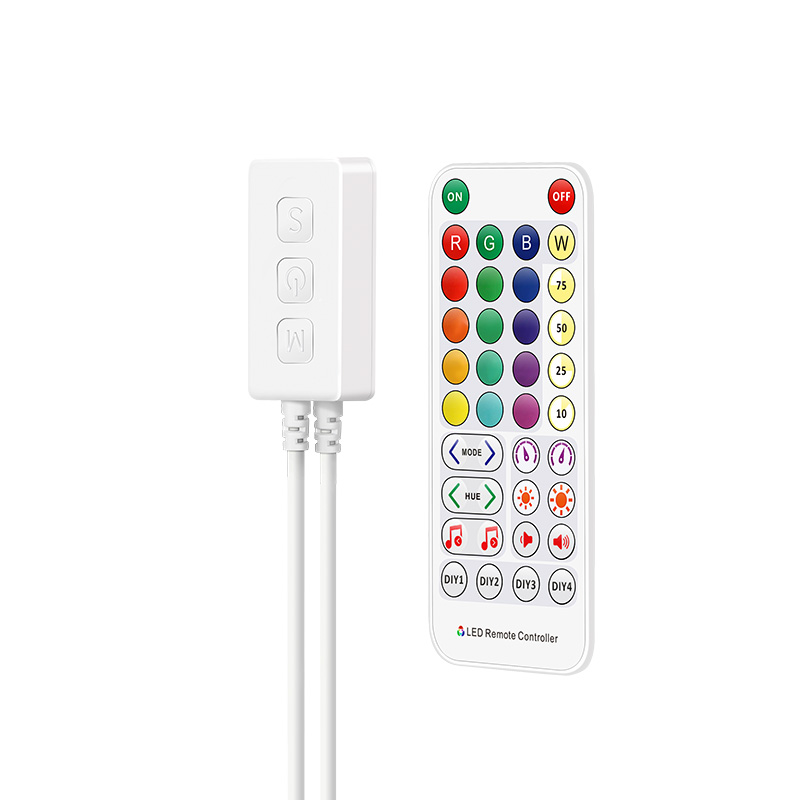

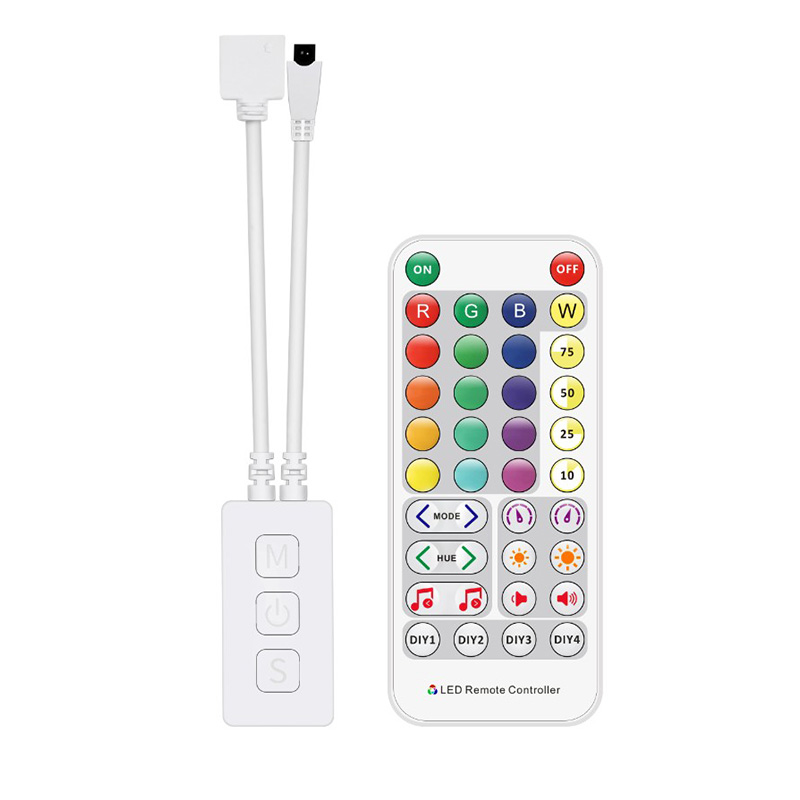

The Sperll SP613E and SP614E Bluetooth music IR controllers, the SP613E for RGB LED lights, and the SP614E for RGBW lights. Both controllers come with a 35-key IR remote control, and you can use the remote control to turn ON/OFF the LED lights, choose the static colors and dynamic modes, adjust the brightness from 10% to 100%, and adjust the color-changing of the dynamic modes. There are a variety of music effects available, and you can adjust the sensitivity of the sound-active modes. The Sperll controller has three sound collection methods: phone mic, player streaming, and onboard mic. There are 4 DIY buttons available, and you can use them to set the DIY modes. The SP614E IR controllers can be controlled by the APP through a Bluetooth connection and support automatic device connection and automatic reconnection when the APP turns on. You can use the APP to group control the music controllers. Music RGB controller supports both Android and IOS mobile devices. You can download the APP from the Google Store and the Apple Store. The music controllers work between DC5V and DC24V and have a max loading power of up to 144W. There are also three physical buttons on the controller box, and you can use them to turn ON/OFF the lights, switch the effects, and adjust the speed of non-music effects.

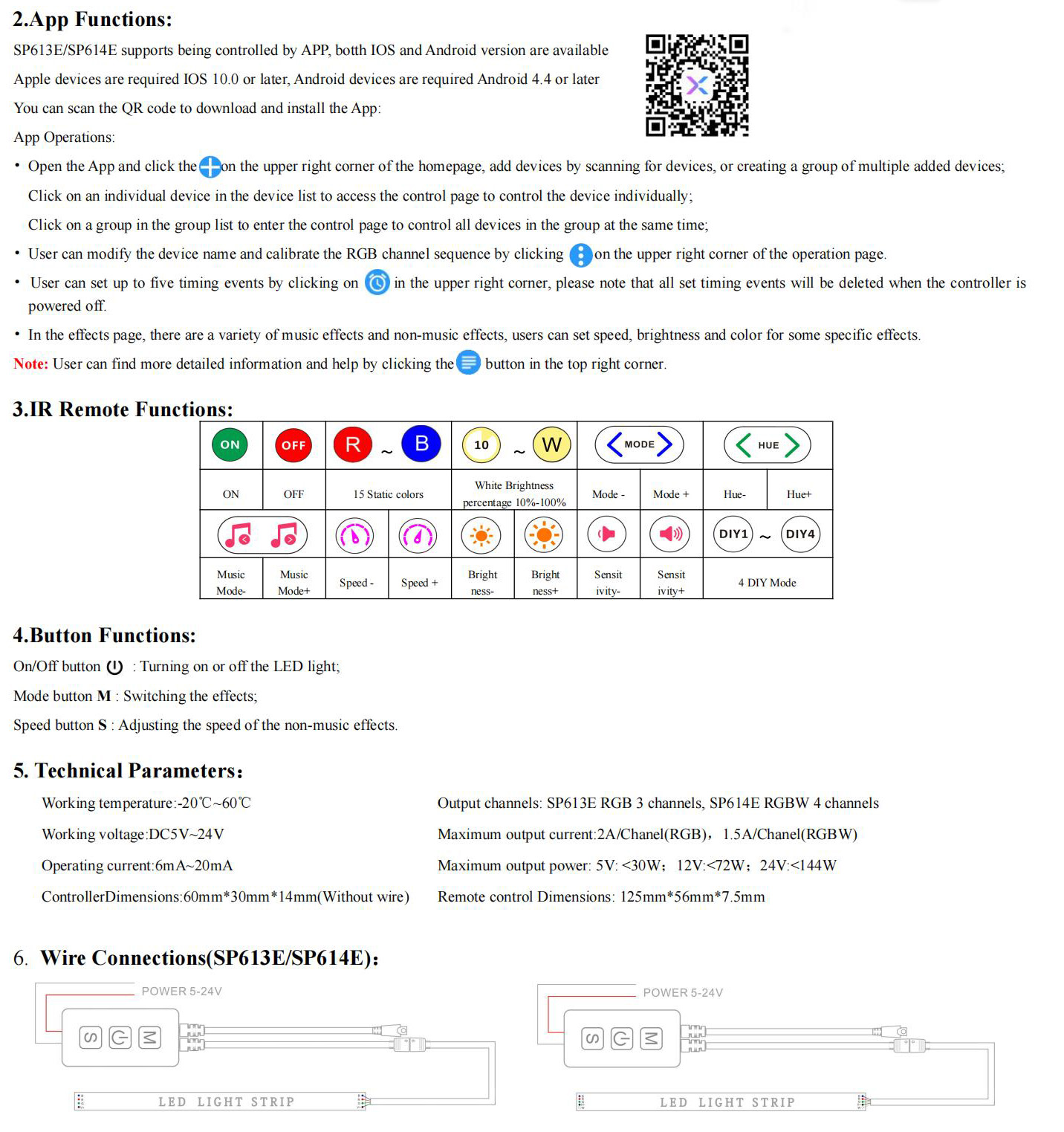

SP613E/SP614E Controller User Manual
Specifications:
- Model: SP613E/SP614E
- Controller Box Size: 60*30*14mm(Without Wires)
- Remote Control Size: 125*56*7.5mm
- Working Voltage: DC5V-24V
- Operating Current: 6mA-20mA
- Output Channels: 3 Channels(SP613E/RGB), 4 Channels(SP614E/RGBW)
- Max Output Current: 2A/Channel(RGB), 1.5A/Channel(RGBW)
- Max Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- Supports Controlled By APP Via Bluetooth And IR Remote Control
- Supports IOS And Android Mobile Operating System(Android 4.4 + And IOS 10.0 +)
- APP Name: BanlanX
- Built-in Music And Non-Music Effects
- Multiple Sound Collection Methods: Phone Mic, Player Streaming, On-Board Mic
- Group Control: YES
- Automatic Device Connection And Automatic Reconnection When The APP Turns On
- Automatic Saving Function For Setting
- Timing Function: YES
- 2 Years Warranty
Includes:
1 * IR Music Controller

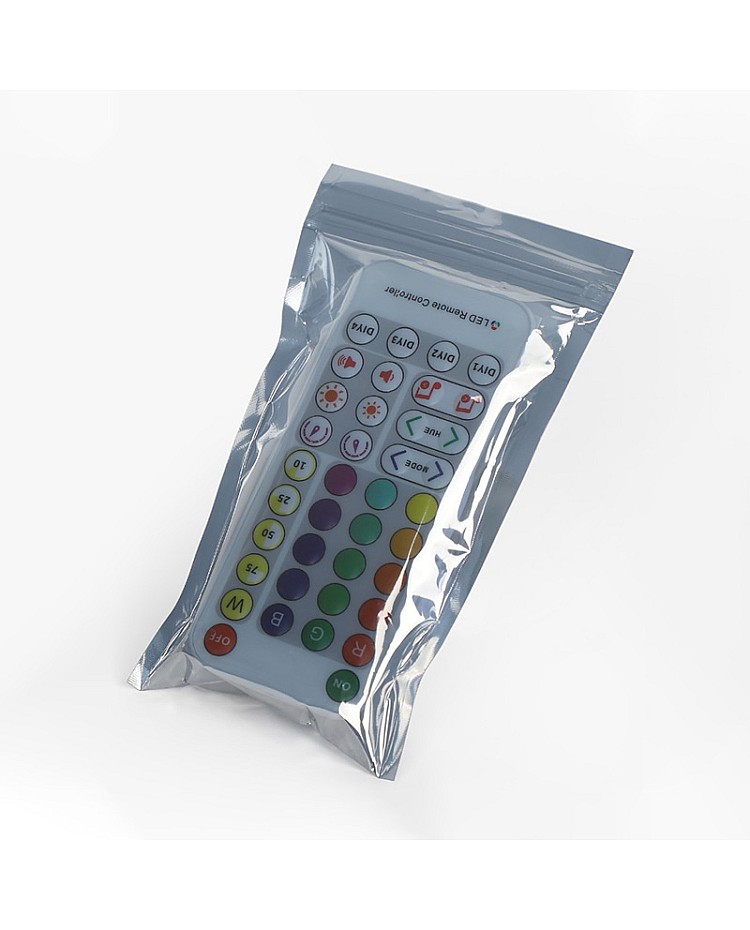

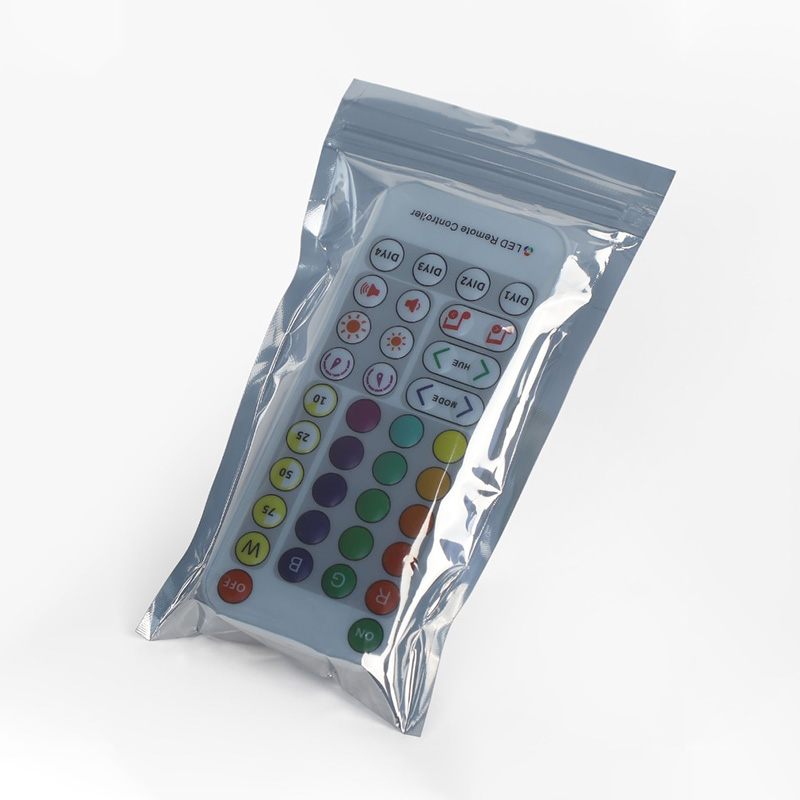

1 * 35 Keys Remote Control
