In Stock
$8.15
Reward Points: 8
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP110-S

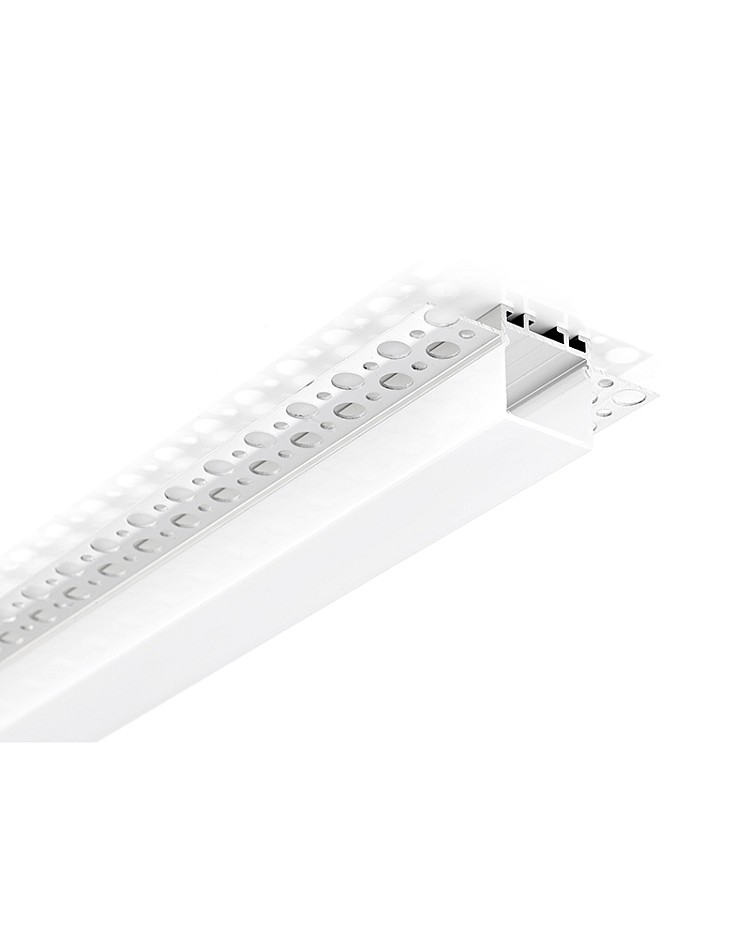

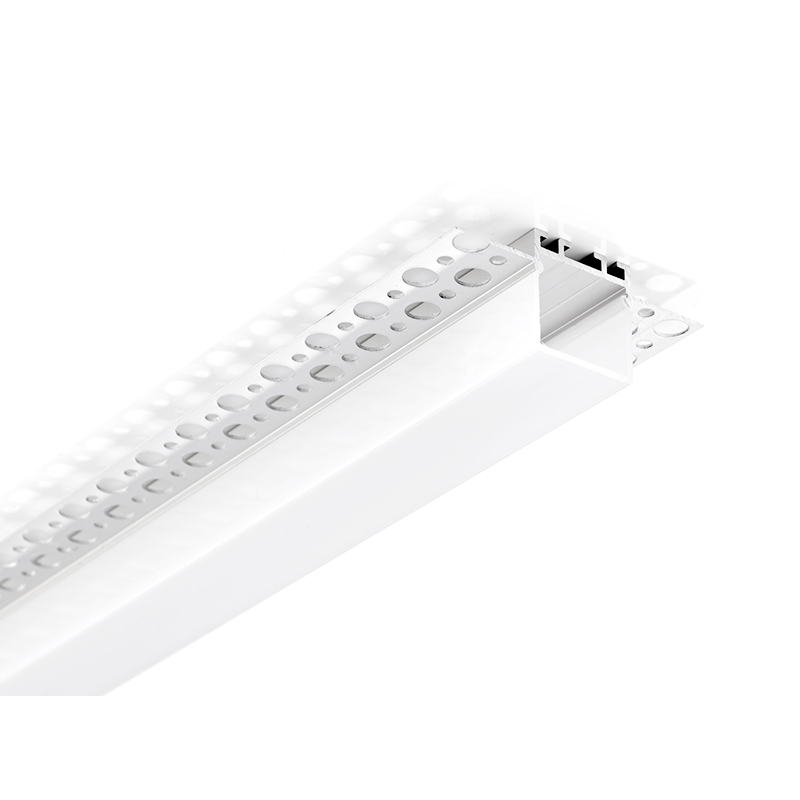

The drywall recessed LED light aluminum extrusions with flange allow it to be flush mounted into the ceilings or walls to create sleek and modern linear lighting. They have a 1-inch square lens for maximum light diffusion and a large view angle. Made of 6063-T5 aluminum alloy material with anodized silver surface treatment, anti-oxidation resistance, and a longer lifespan. The standard lengths are 1M and 2M and can be cut to the length you want. The inner width is 22.8mm, allowing the maximum width of LED lights to be 22mm. We recommend adding COB strip lights as the light source, with no visible light spots and dark areas. The aluminum extrusion can be a heat sink for better heat dissipation. End caps with wire holes are included, making it easy to connect the LED light to the LED adapter to light them up. This aluminum extrusion type is perfect for drywall applications for interior linear lighting.


Specifications:

  • Model: ALP110-S
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Anodized Silver
  • Colors: Silver, Black, White

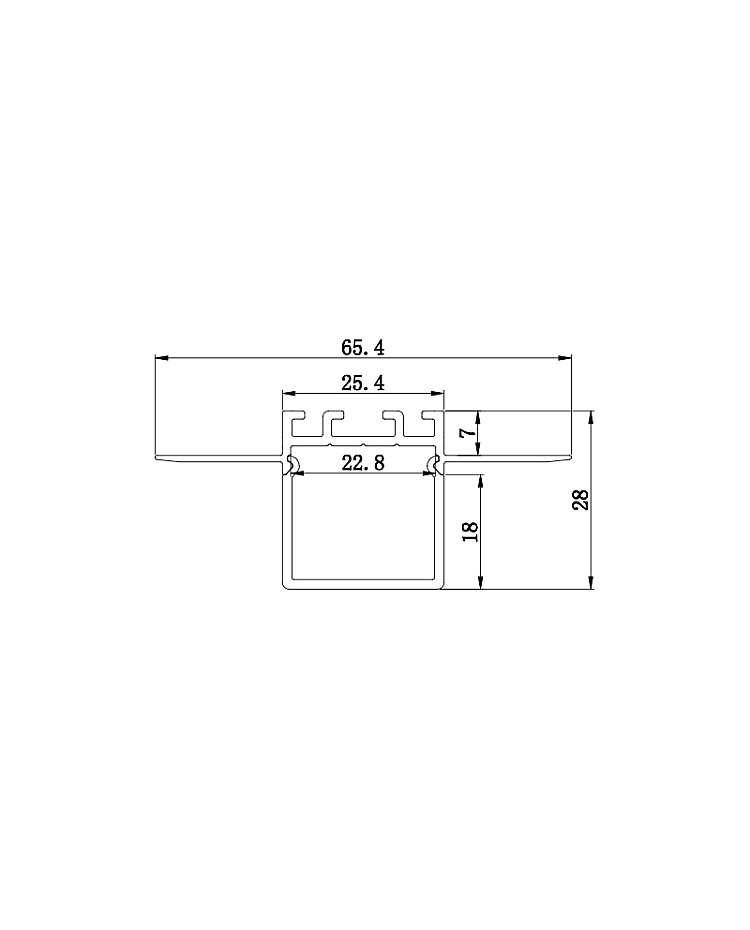

  • Size: 65.4*28mm
  • Inner Width: 22.8mm
  • Max Power: 20W/Meter
  • Standard Length: 1 Meter, 2 M
  • Custom Length Available: YES
  • Diffusers: 1-Inch Square PC Diffused Cover

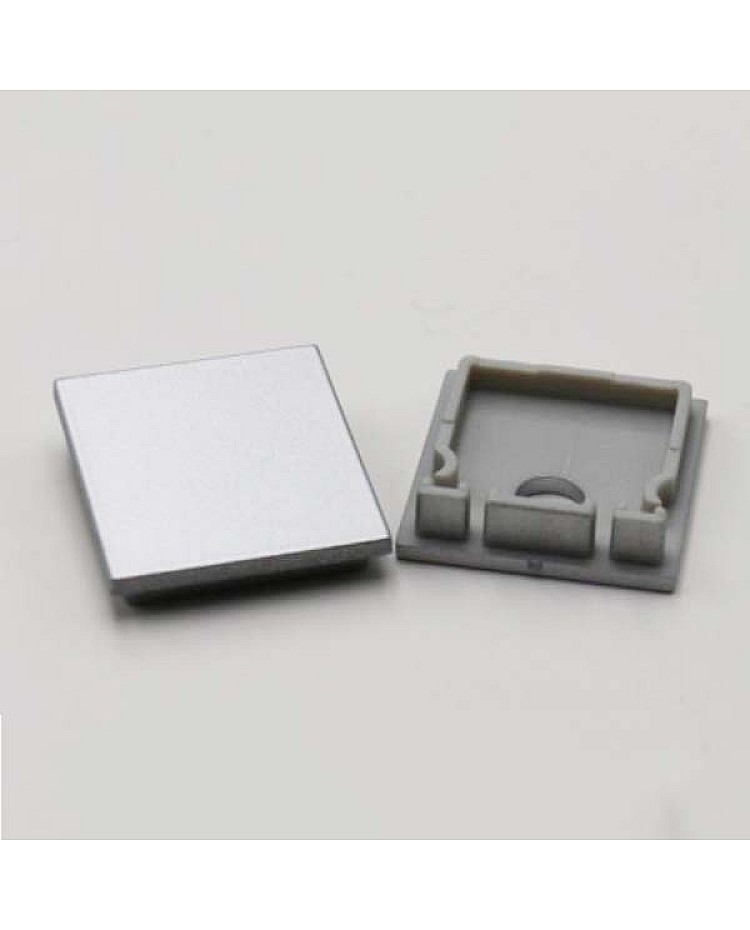

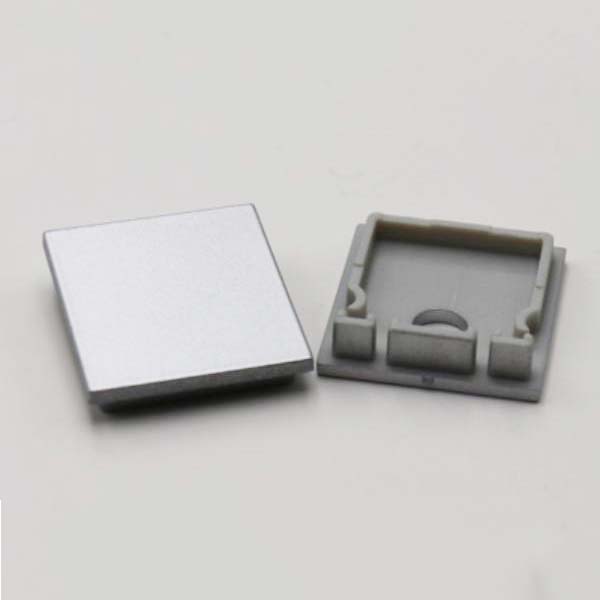

  • End Caps With Wire Hole Included
  • Installation: Recessed
  • Applications: Drywall/Gypsum/Plasterboard
  • Warranty: 5 Years


Includes:

1 * LED Light Aluminum Extrusions With Diffuser

End Caps(With / Without Wire Hole)

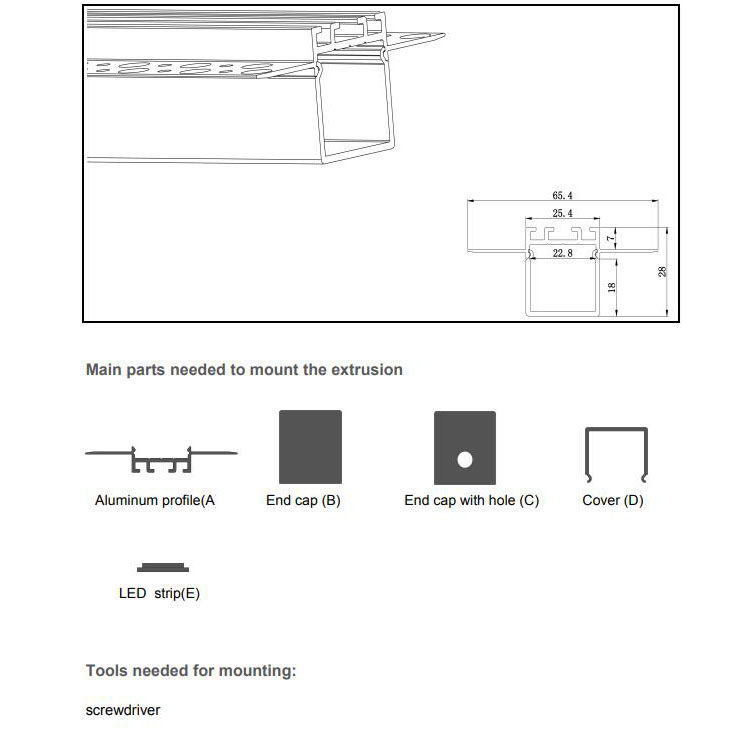

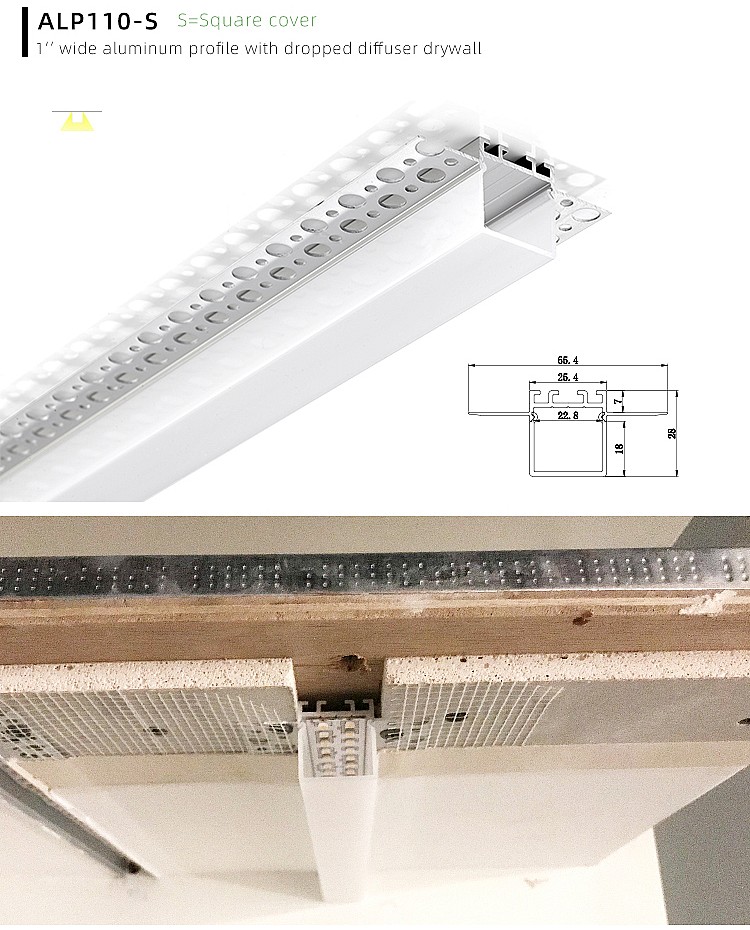

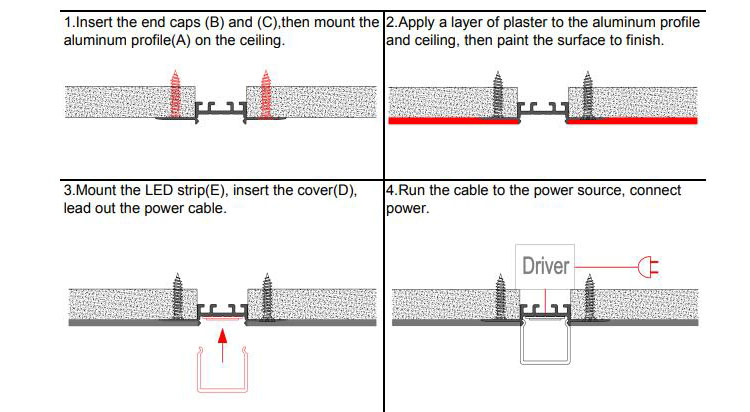

LED Light Aluminum Extrusions Review Recessed LED Light Aluminum Extrusions How To Install LED Light Extrusions
