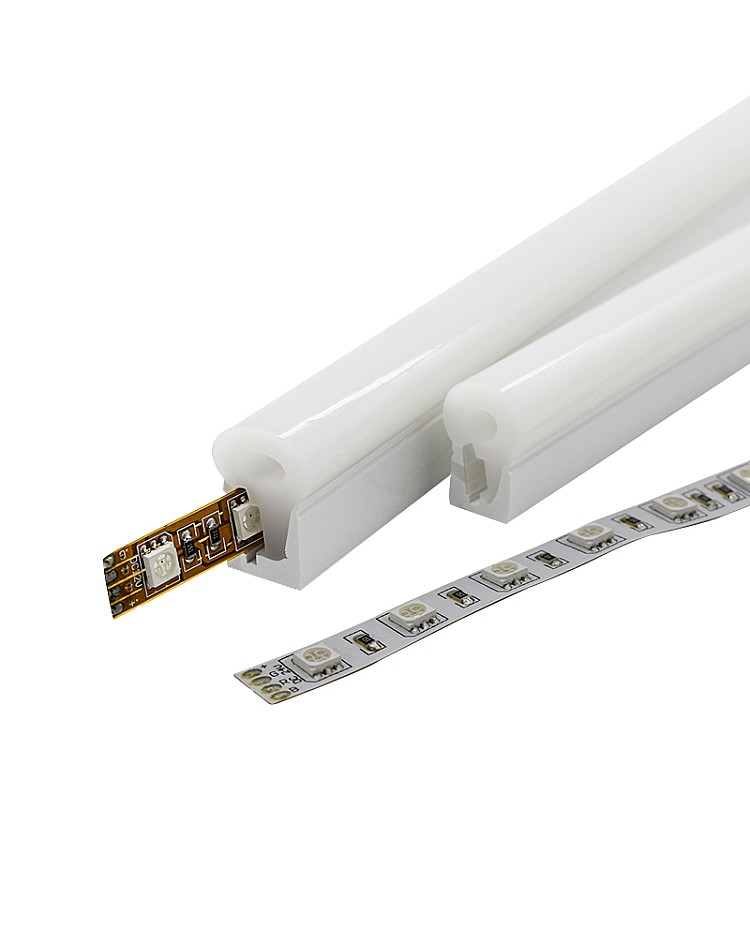

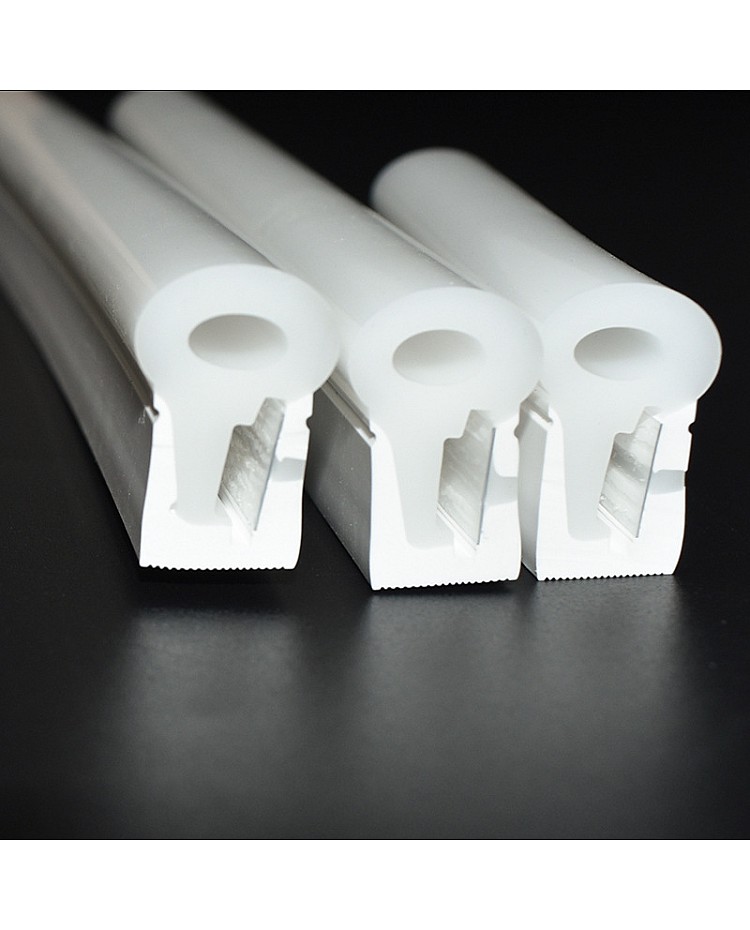

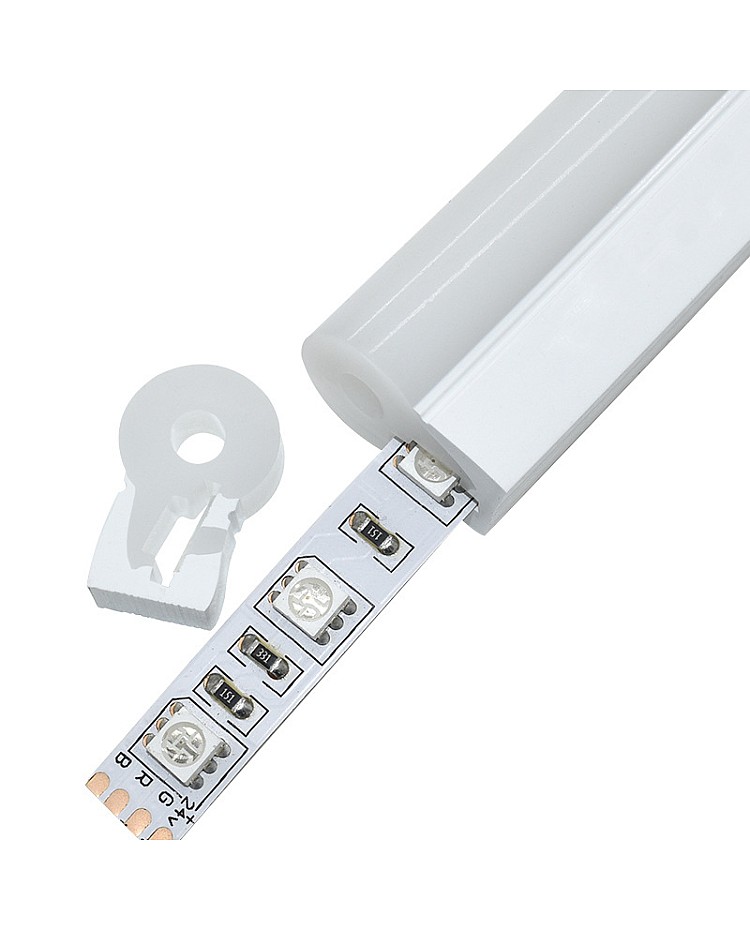

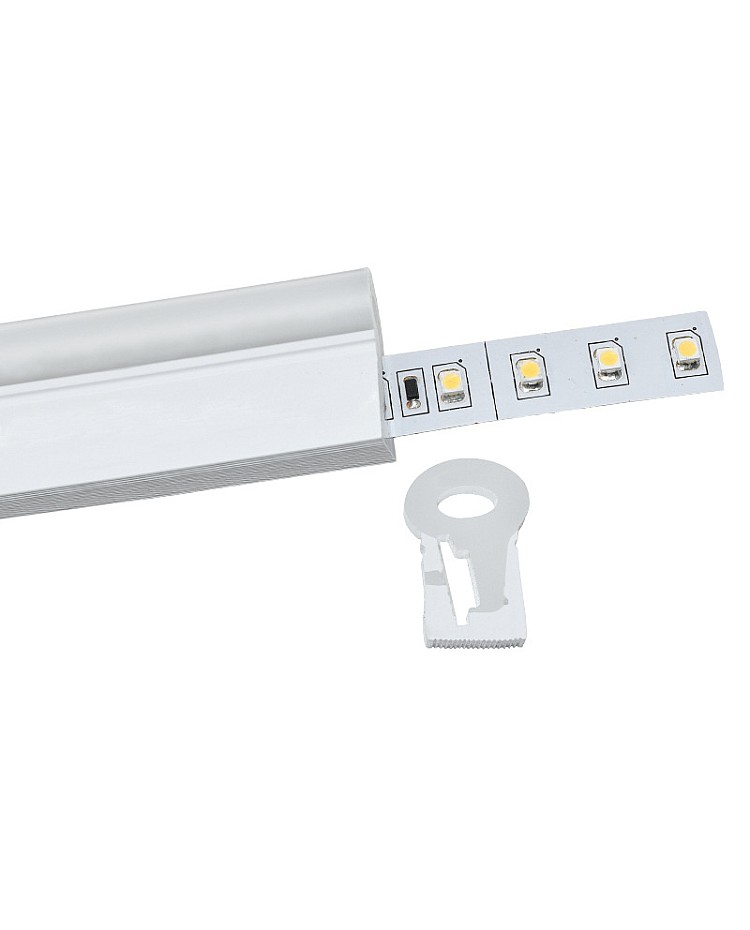

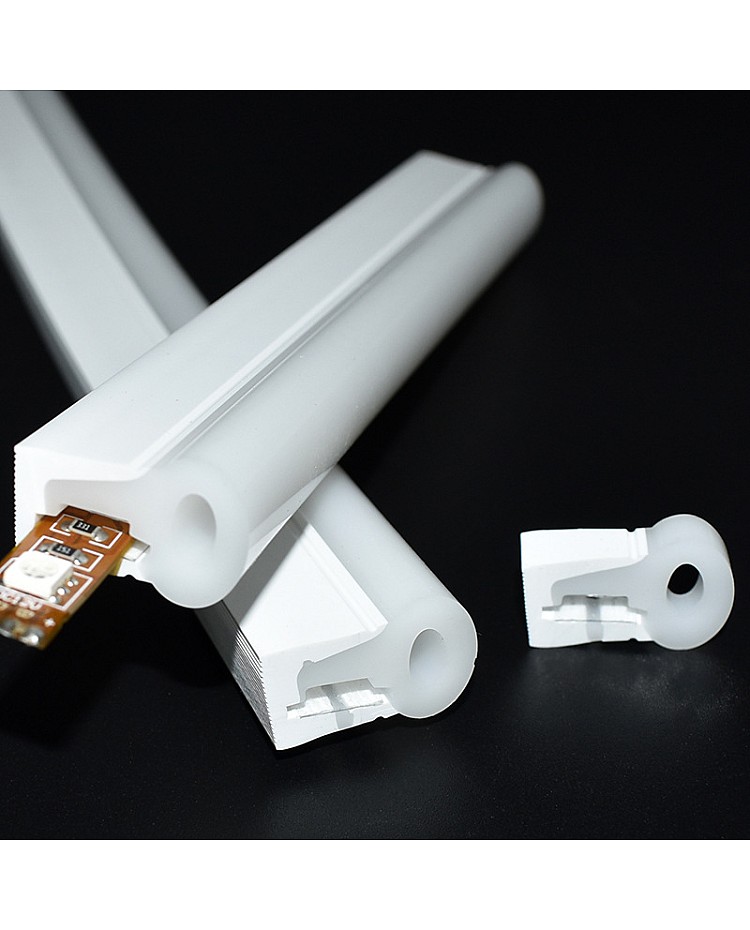

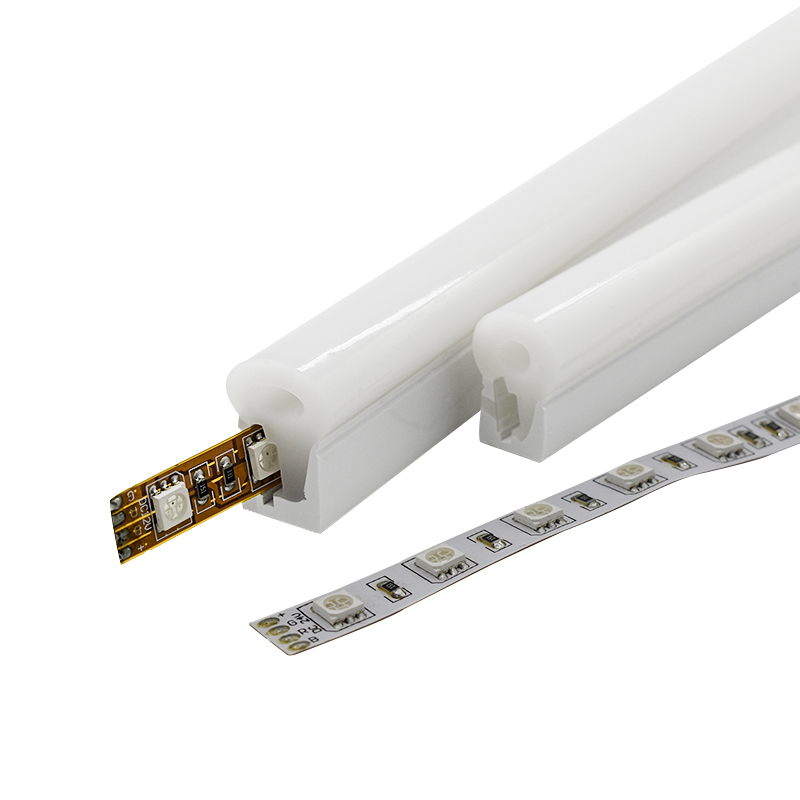

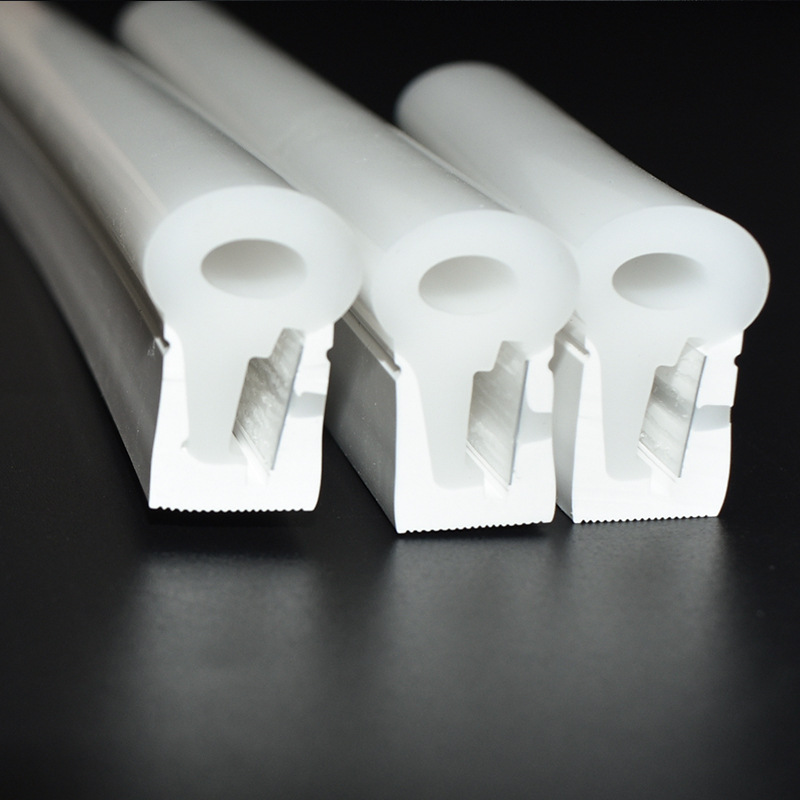

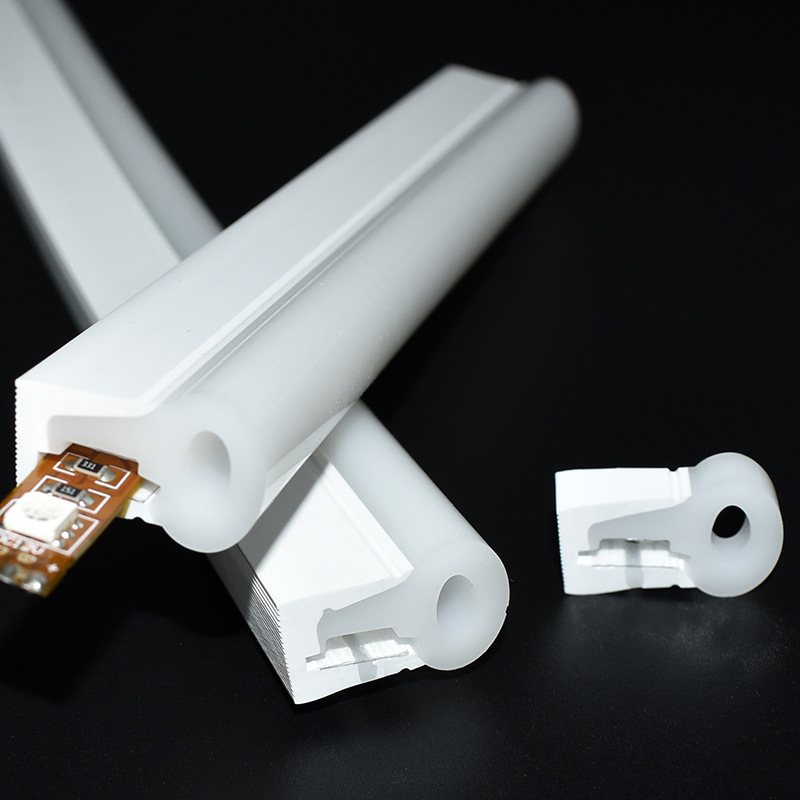

The side lighting silicone LED profiles are designed for ultra-flexible and curved installations. They offer side-emitting illumination, perfect for outlining architectural features, signage, and edges. The round diffused areas provide a large view angle, ensuring even light distribution and a uniform appearance. Its soft silicone body allows horizontal bending, easily bends around curves and irregular shapes for custom lighting. They are made of high-quality silicone material, which is flexible, bendable, tasteless, and non-toxic. The waterproof level is IP67, ensuring waterproof and dustproof protection. It is also resistant to yellowing and oxidation, providing a longer lifespan. There are two sizes of products available, with inner widths of 11 mm and 13 mm, allowing for a maximum width of 10 mm or 12 mm for the LED strips. There is a rope in the silicone LED profiles that can be used to tie a string around the LED strip lights and then go through the LED profiles to complete the installation. The flexible LED profiles are 16.4 ft per reel and can be cut to any size for your project. End caps with wire holes and without wire holes are included. Mounting clips are included, and the side-view silicone LED channels can be installed using clips, adhesive, or aluminum channels.
Specifications:
- Model: ALP-1225
- Material: Silica gel

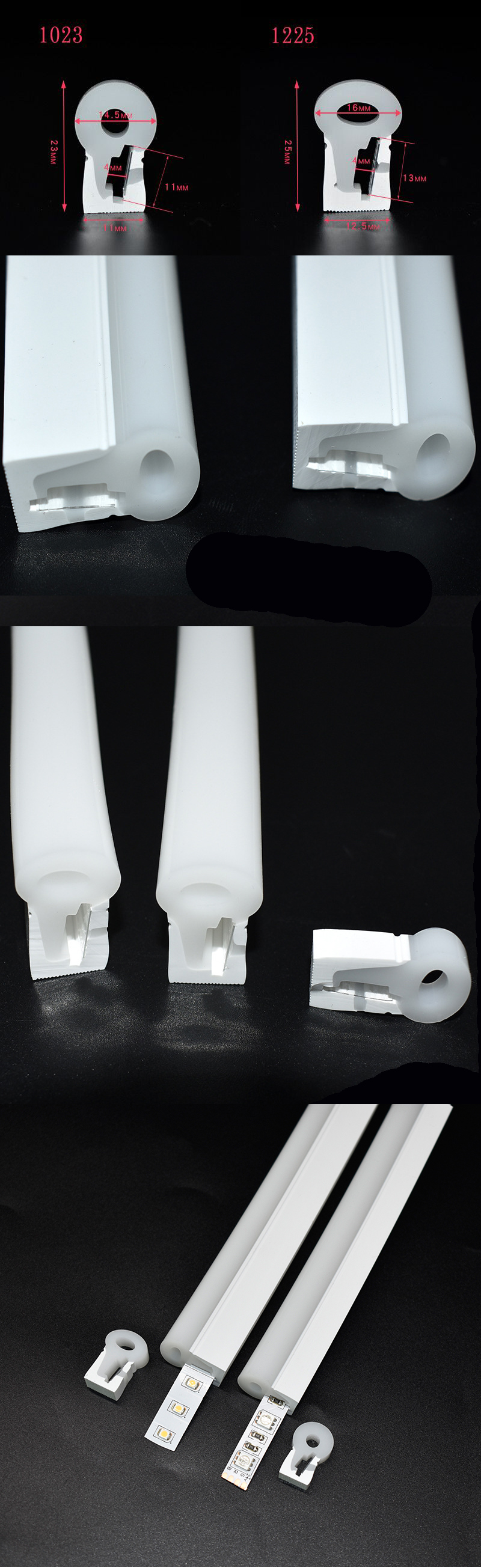

- Size ( W x H ) : ALP1023: 14.5 mm x 23 mm ( 0.57" x 0.91" ) ; ALP1225: 16 mm x 25 mm ( 0.63" x 0.98" )
- Inner width: ALP1023: 11 mm ( 0.43" ) ; ALP1225: 13 mm ( 0.51" )
- Max width of strip lights: ALP1023: 10mm ( 0.39" ) ; ALP1225: 12 mm ( 0.47" )
- Length available: 5 meters (16.4ft ) per roll
- Max power: <15W/m
- Flexible and bendable
- Lighting direction: Side
- Cuttable: YES
- Surface treatment: NO
- Diffuser: NO
- IP rating: IP67 waterproof
- Eco-friendly, non-toxic, tasteless
- High and low-temperature resistance
- Anti-oxidation resistance
- Anti-yellowing

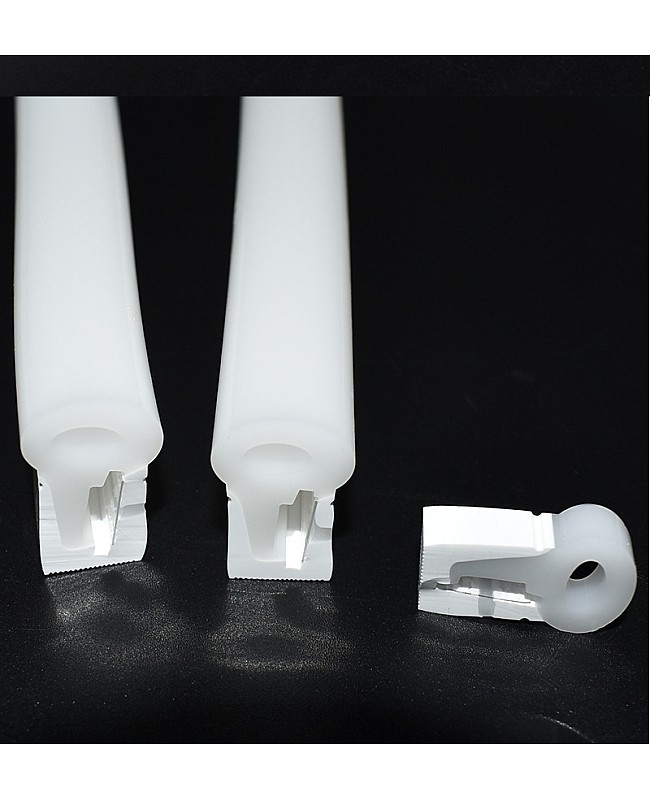

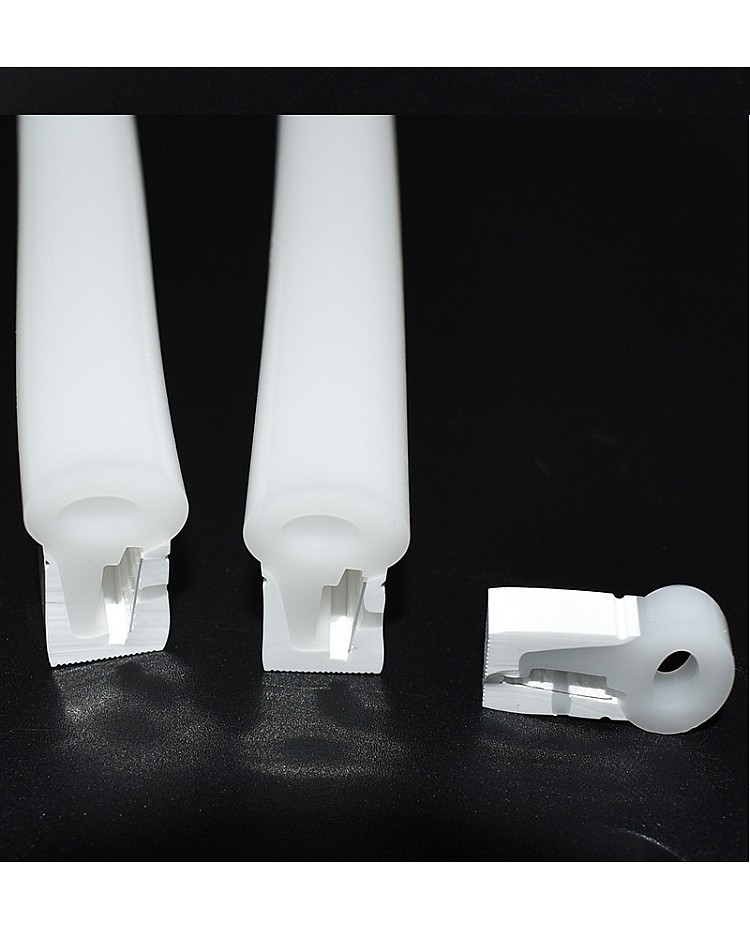

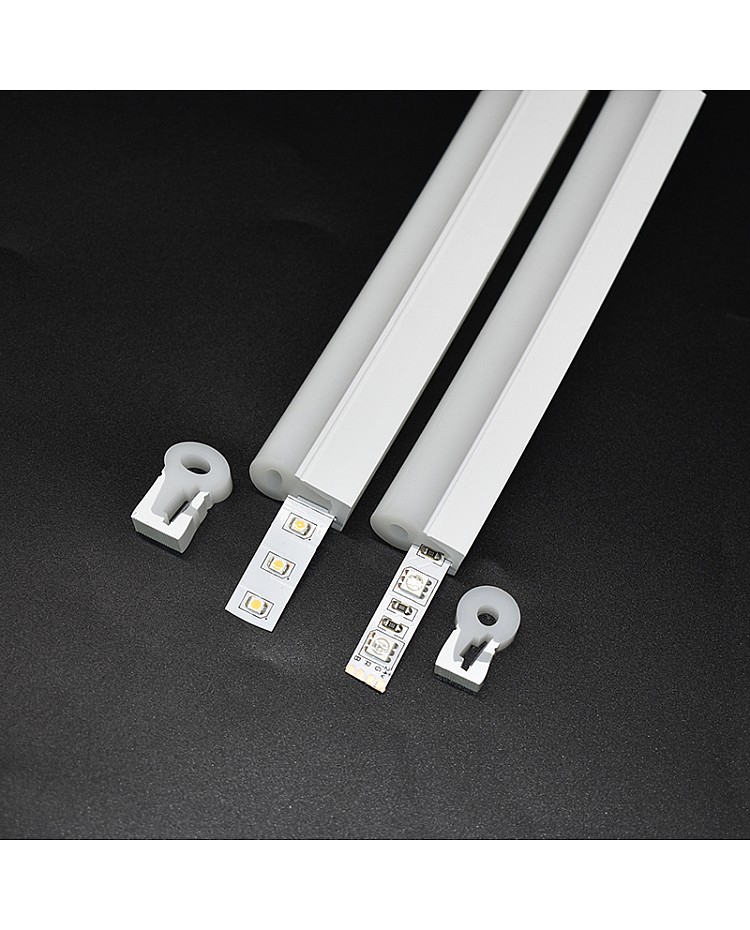

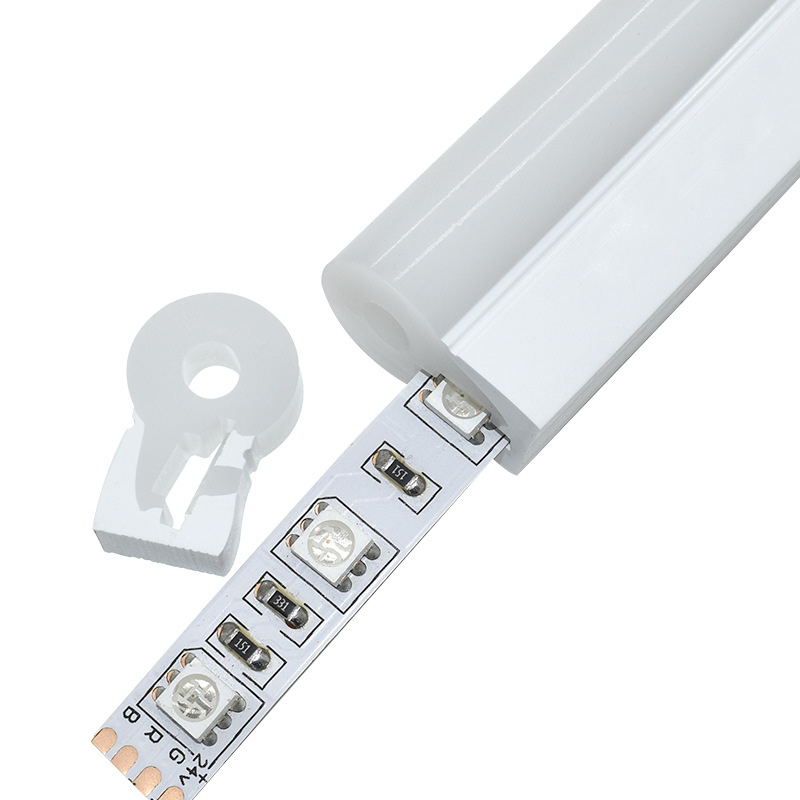

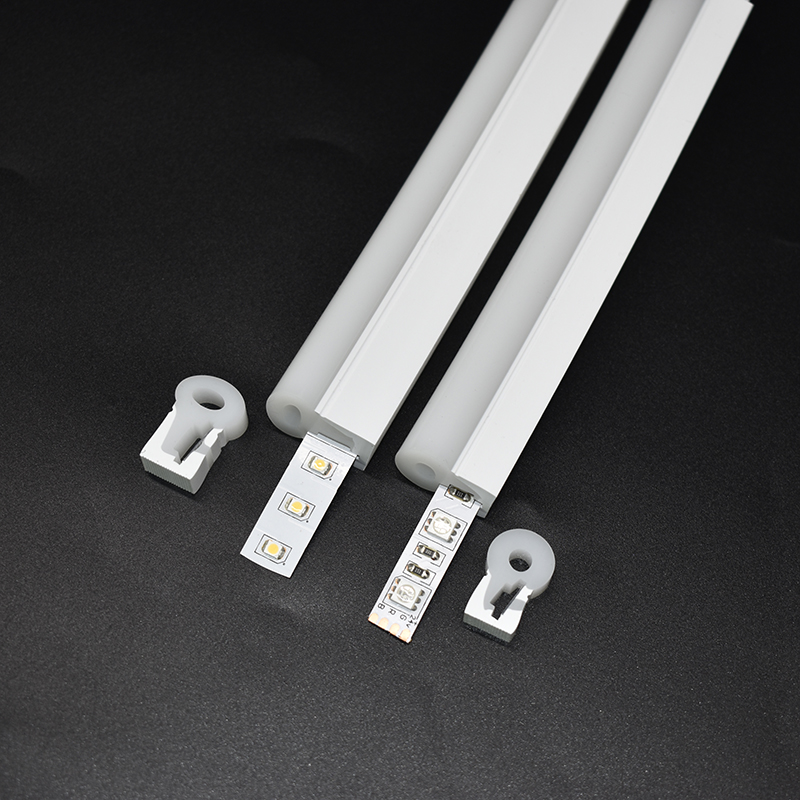

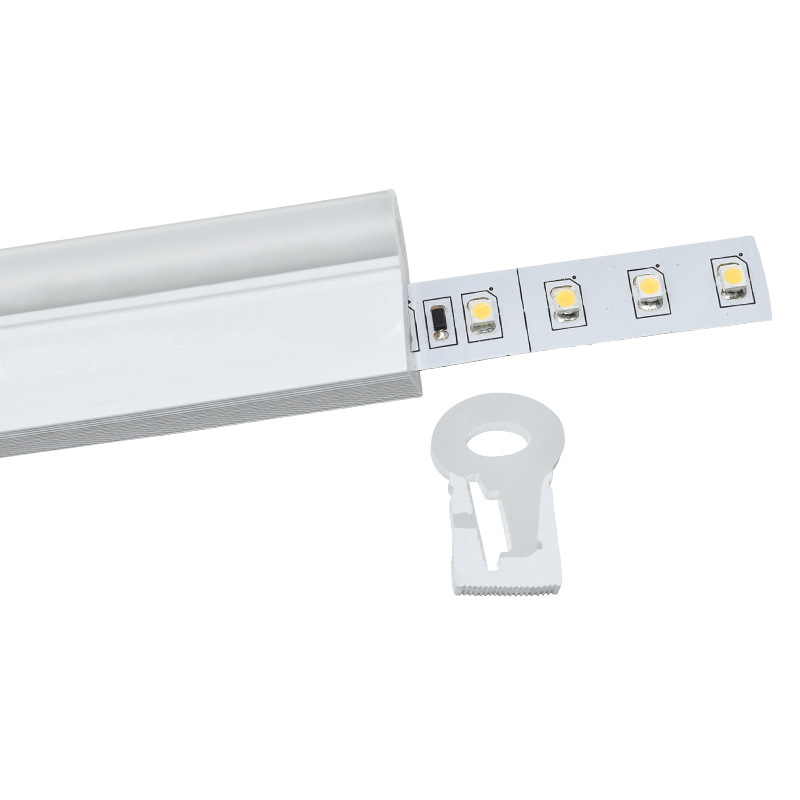

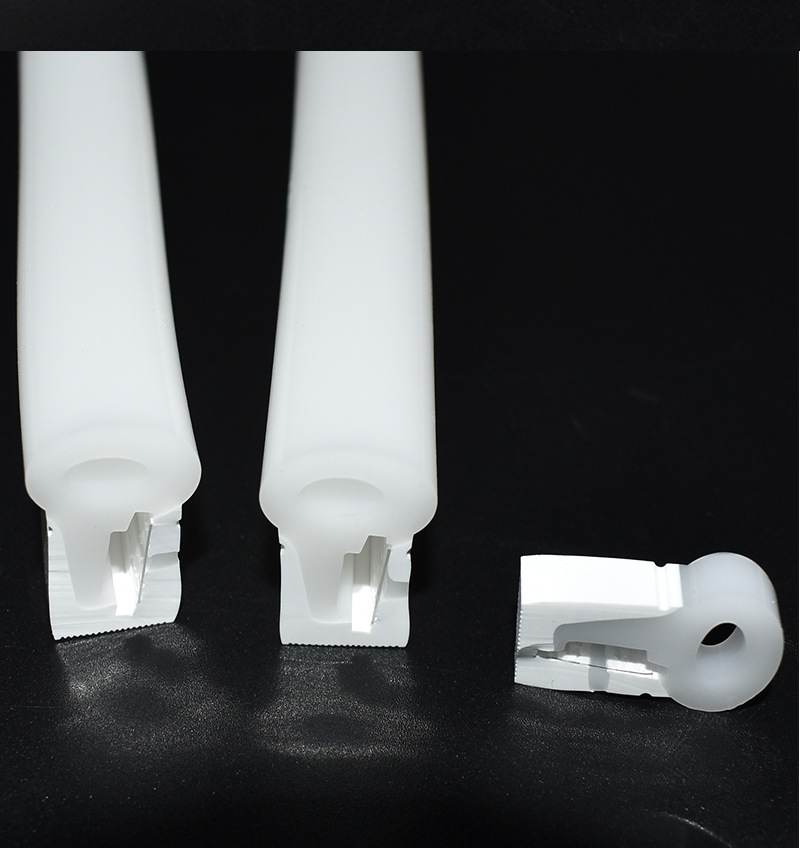

- End caps with and without wire holes are included
- Mounting clips are included
- LED lights, LED driver, and LED controller are sold separately
- Installation: Surface mounted
- Working temperature: -40°-+200°
- Warranty: 3 years
Applications:
- Architectural contour lighting
- Outdoor signage and light boxes
- Retail shelf edge lighting
- Yacht, RV, and vehicle accent lighting
- Modern furniture or stair lighting
Includes:
1 * Side lighting LED profile
End caps
