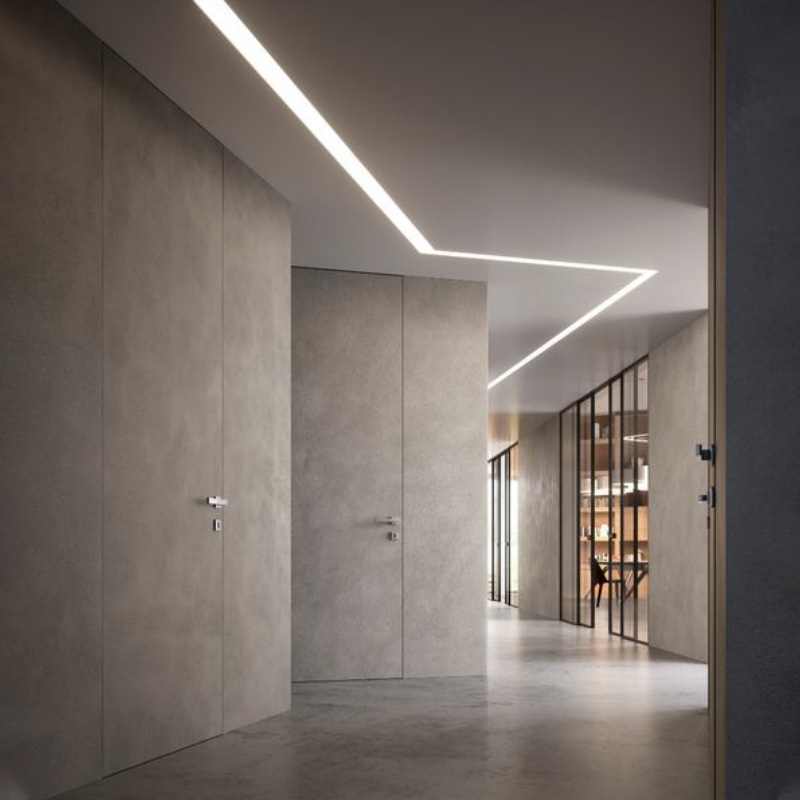

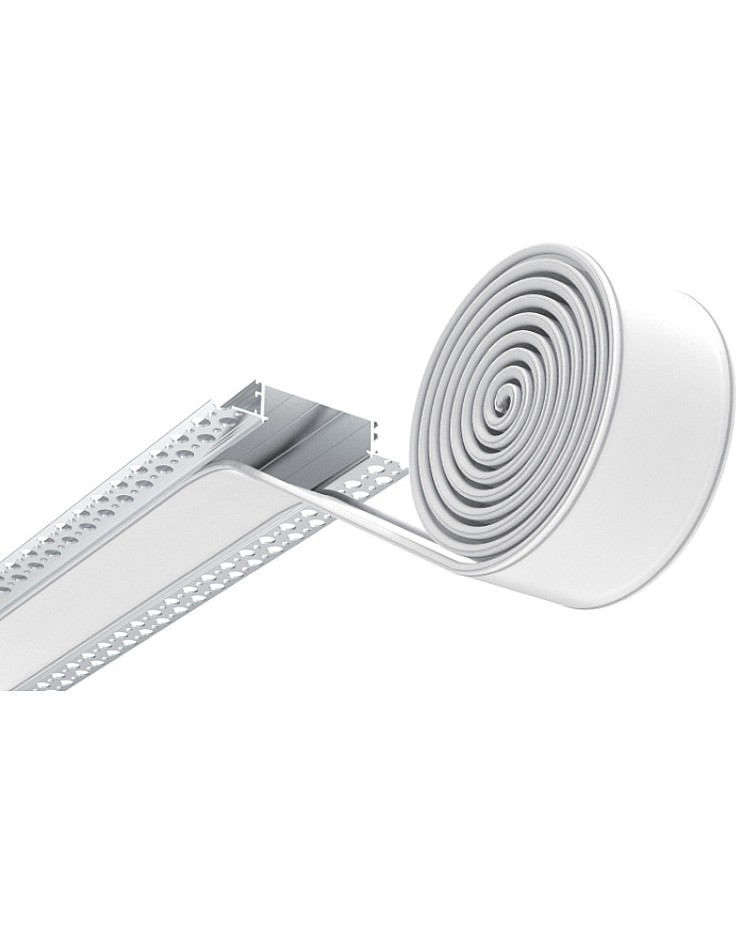

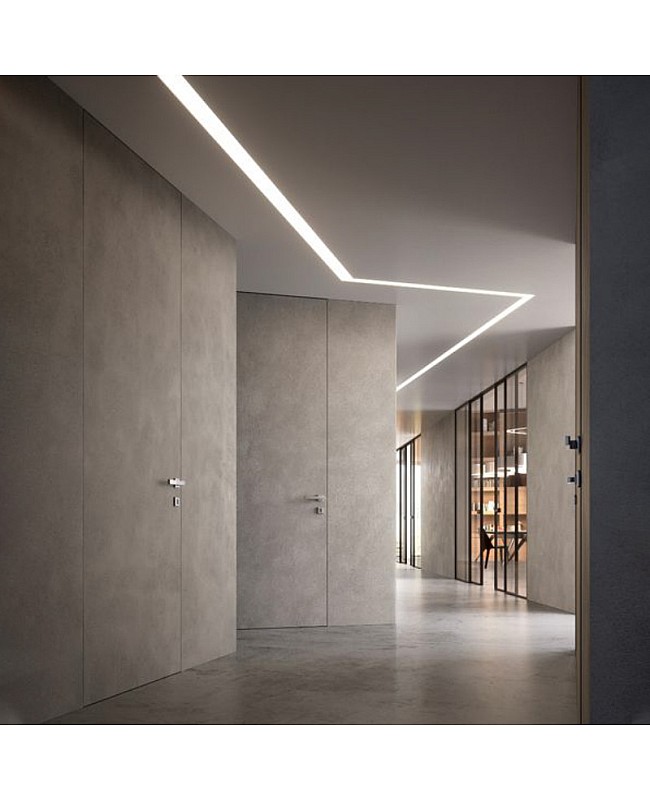

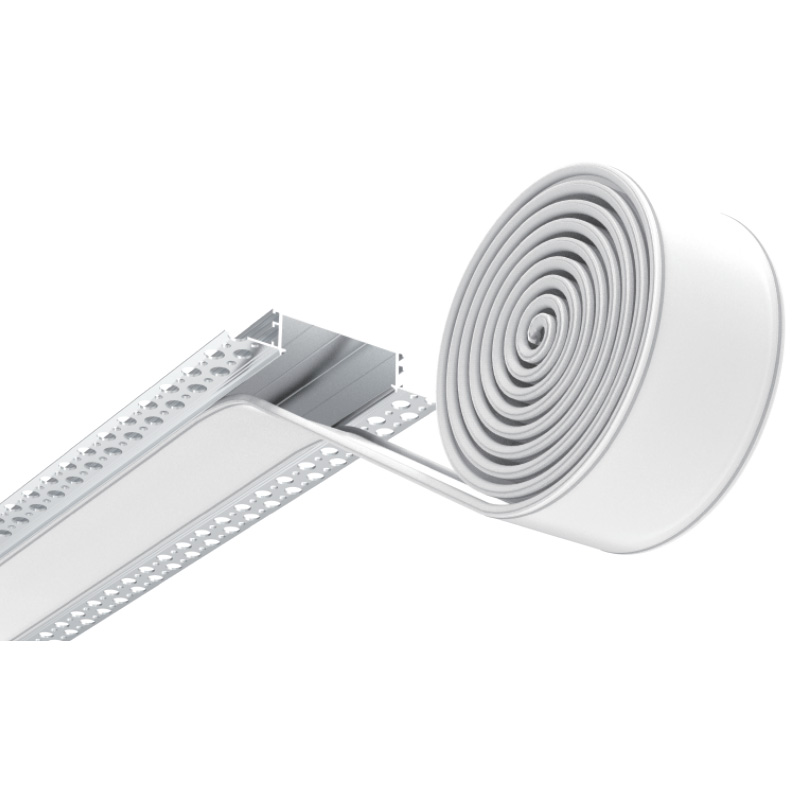

The LED Light Diffusers with flanges are easy to recess into the drywall structure on the wall or ceiling and come with 20 meters long diffuser to create a seamless and shadow-free look. They are ideal for offices, retail spaces, shopping malls, hotels, restaurants, and commercial facilities to create longer linear lighting. There are 2 types of covers available, the PC diffused cover and the black diffused cover. The diffusers are made of brand material, and anti-yellowing. They are designed to disperse the light from LED Strips, creating even, uniform light free of glare and hotspots. It can cut the cover to any length for your interior linear lighting projects. The aluminum base is made of 6063-T5 extruded aluminum material with an anodized surface treatment anti-oxidation feature and has a longer lifespan than other similar products. There are three colors available: silver, white and black. Standard length is 1M and 2M, and you can cut to any length and custom length available. The inner width is 51.4mm and allows the max-width of LED Lights to be 50mm, and you can install multiple lines of Flexible COB LED Strips or Rigid LED Tapes in it. The aluminum base can be worked as a heat sinker for better heat dissipation. End caps with wire holes are included, and it is easy to connect the LED Light to a power supply or a dimmer to light up or adjust the brightness. There are three types of joiners available: 90°, 90° vertical, and 180 Joiners, which can be used to reconnect the LED light diffusers together for lighting projects.


Features:

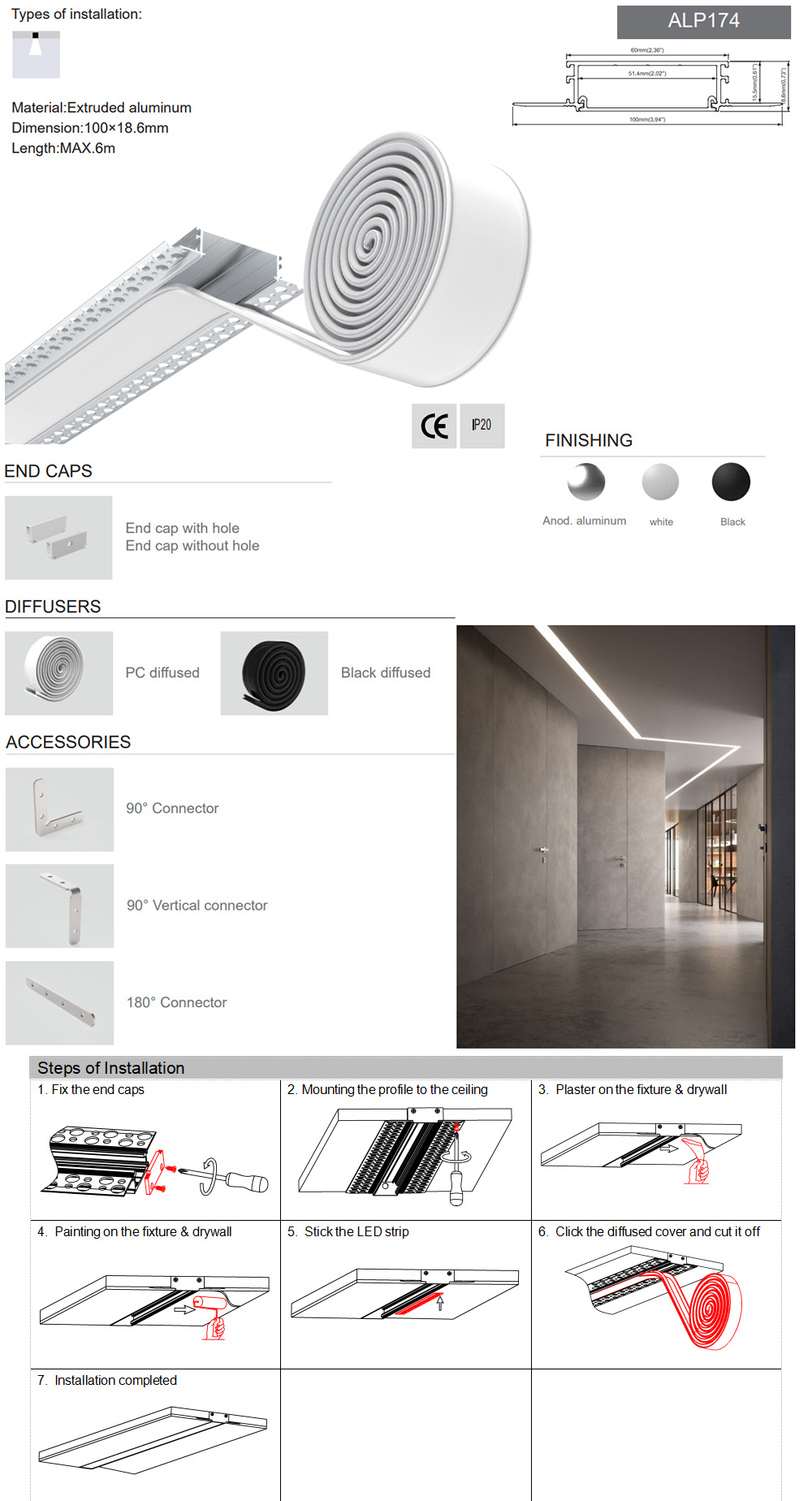

  • Model: ALP174
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

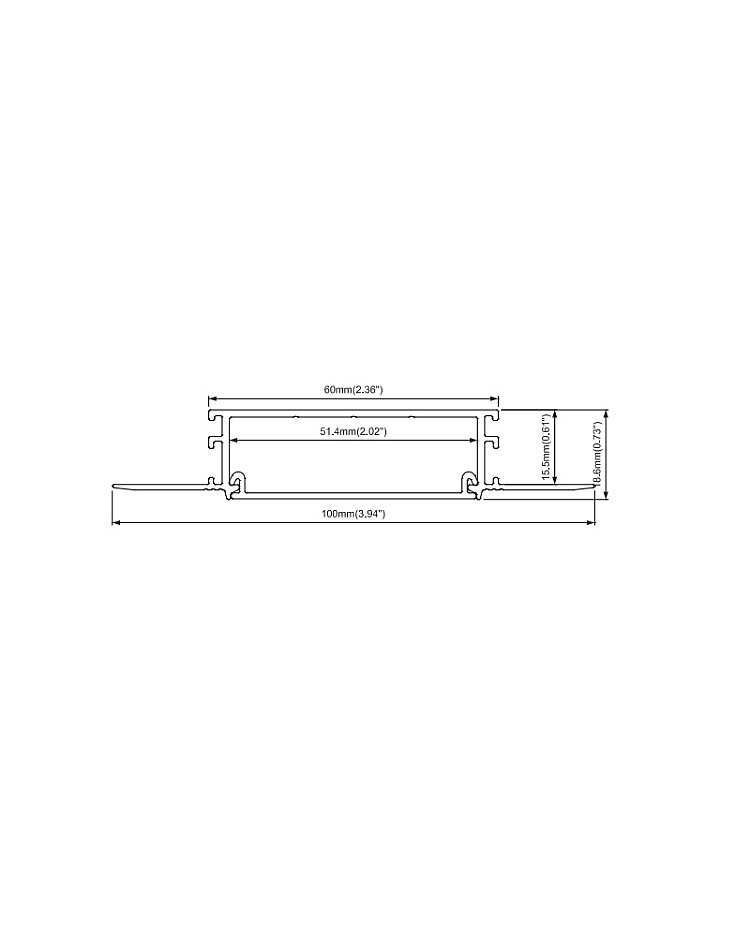

  • Size: 100*18.6mm(W*H)
  • Colors: Silver, White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M
  • Custom Length Available: YES

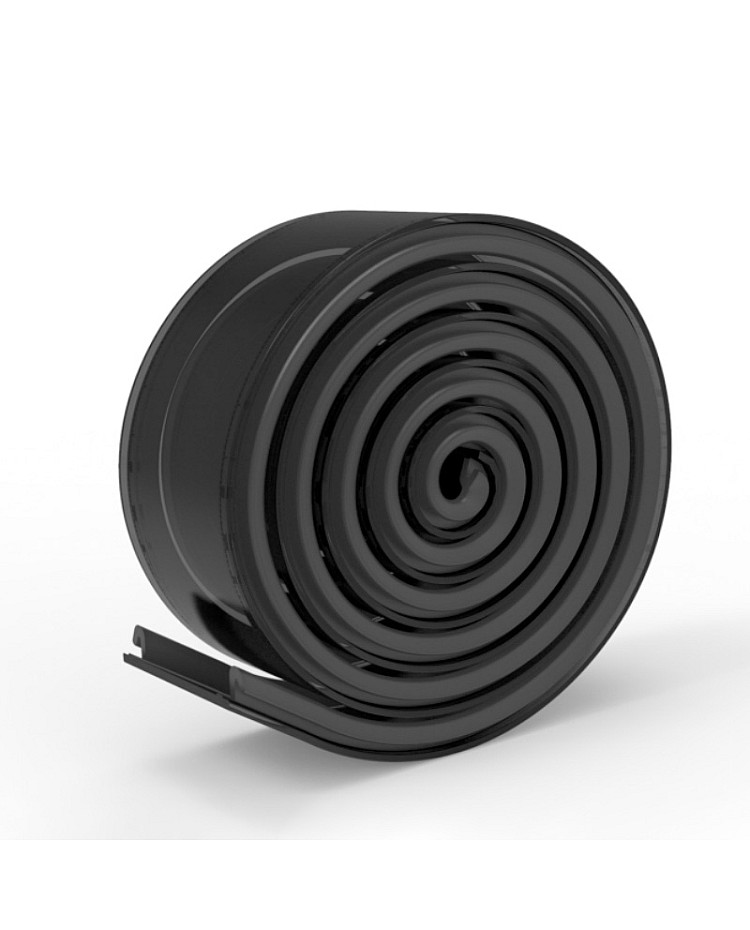

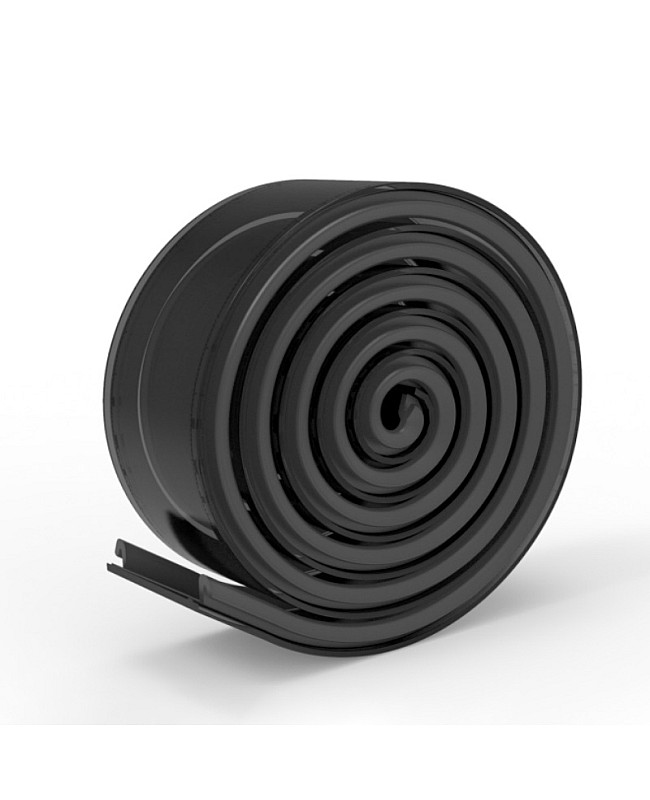

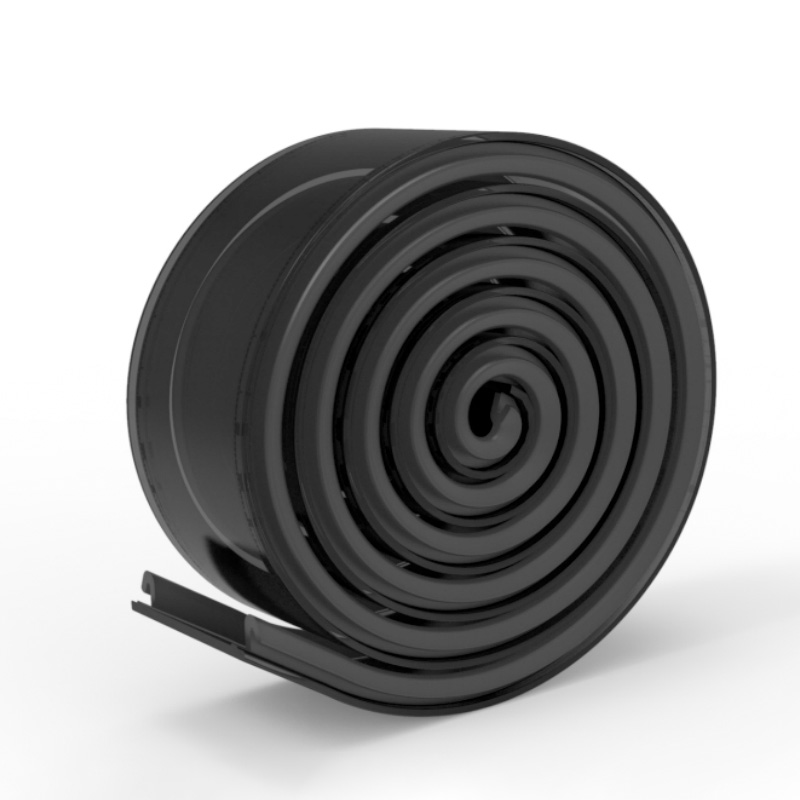

  • Diffusers: PC Diffused Cover, Black Diffused Cover(20M/Reel)
  • Inner Width: 51.4mm
  • Max Width Of LED Light: 50mm
  • Max Power: 24W/M
  • Beam Angle: 110°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof
  • End Caps With Wire Hole Included
  • 90°, 90° Vertical And 180° Joiners Sold Separately
  • Installation: Recessed
  • 5 Years Warranty


Includes:

1*LED Light Diffuser

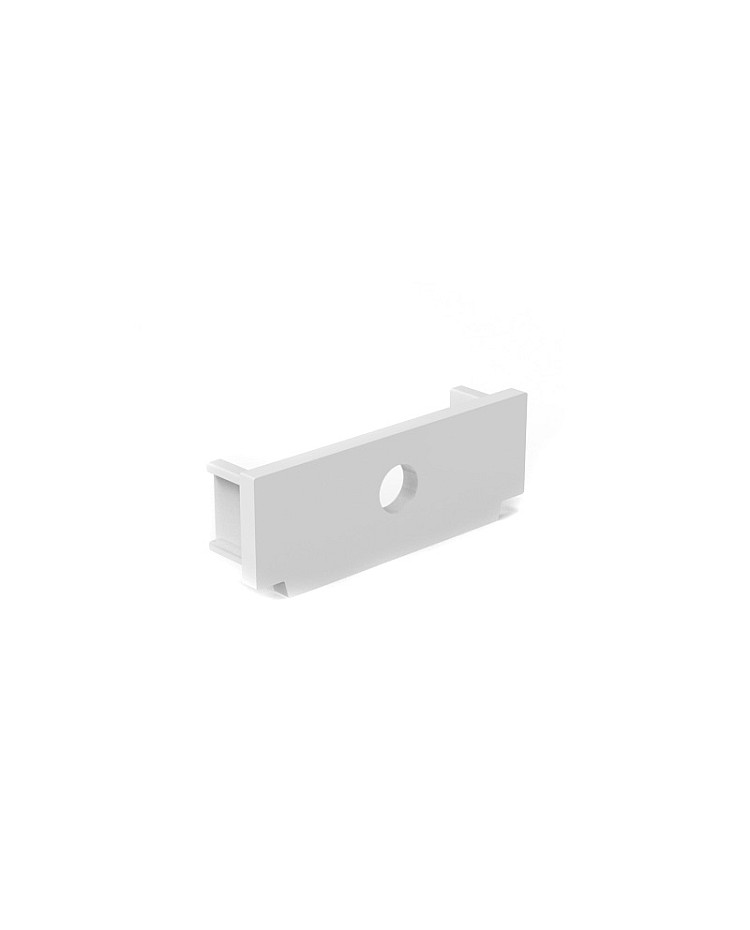

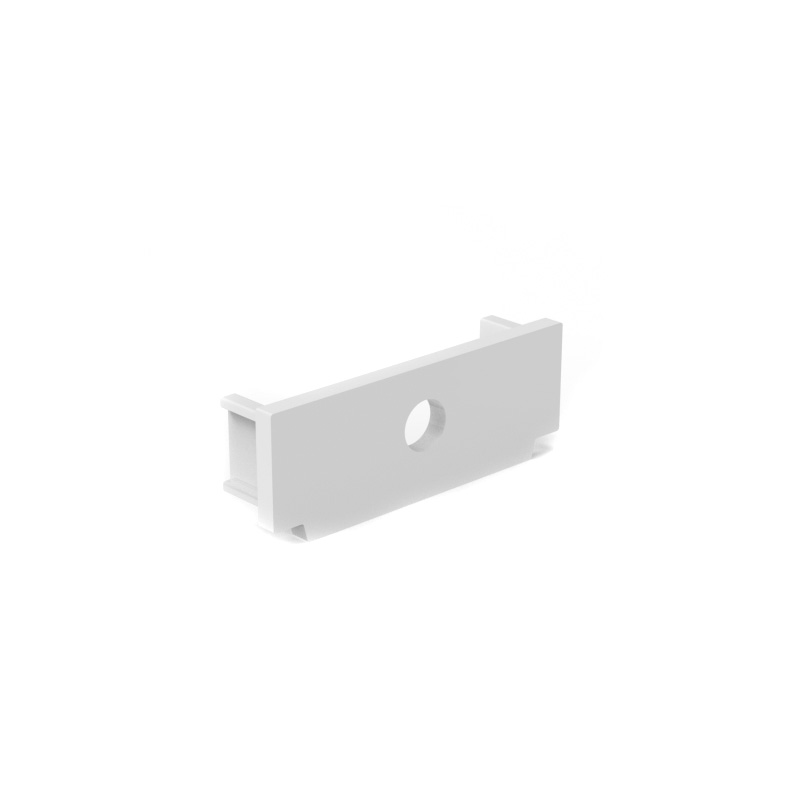

End Cap With Hole/Without Hole
