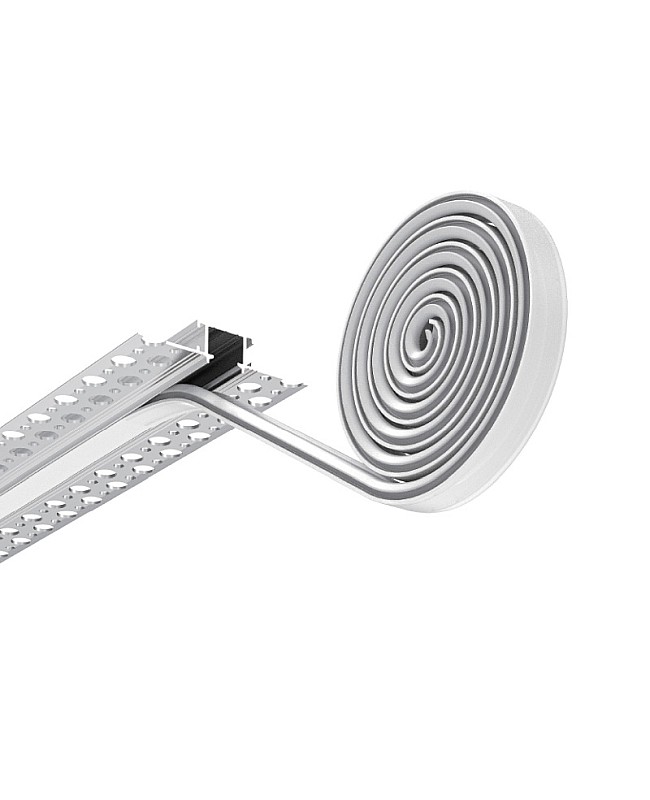

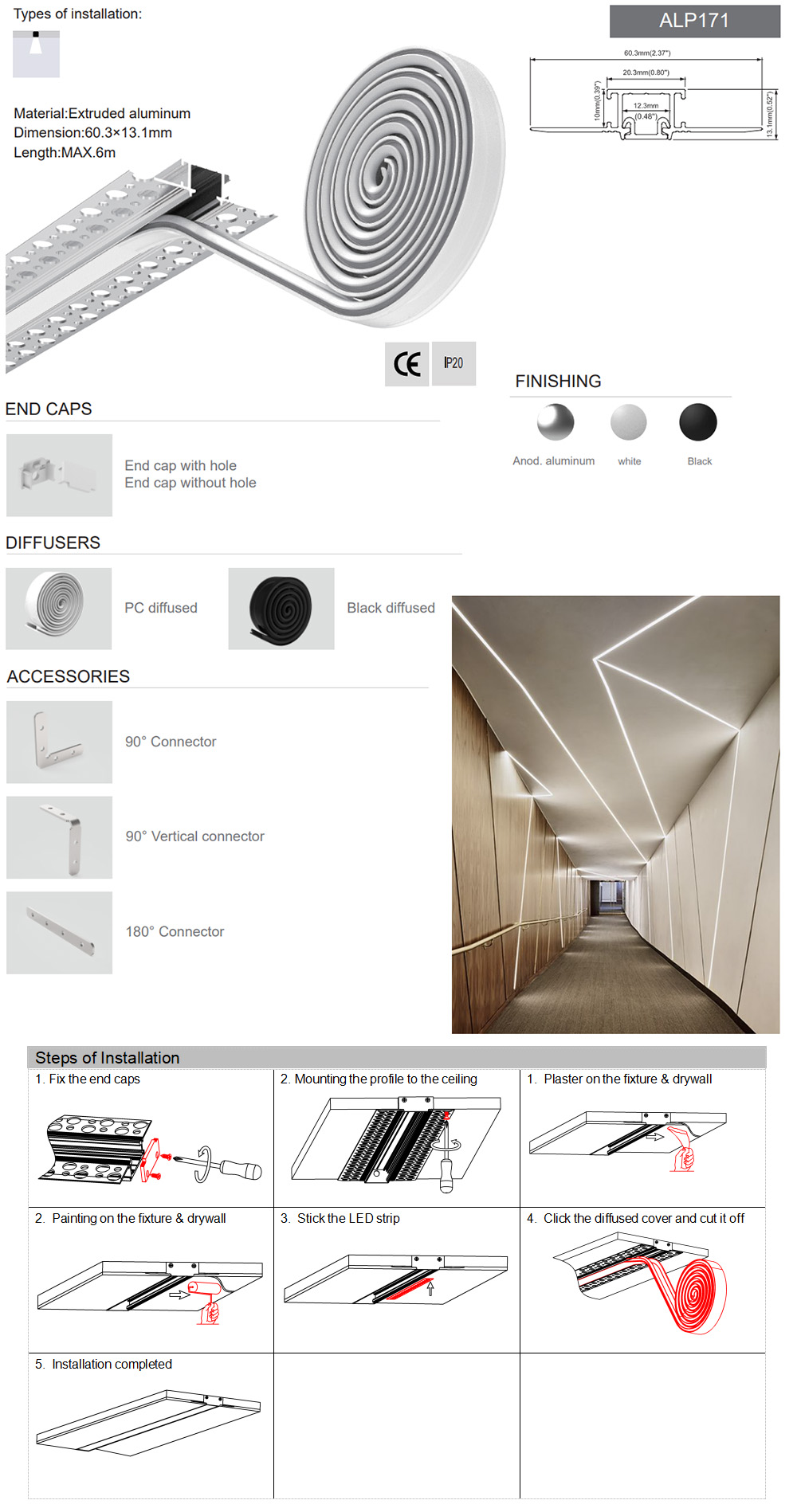

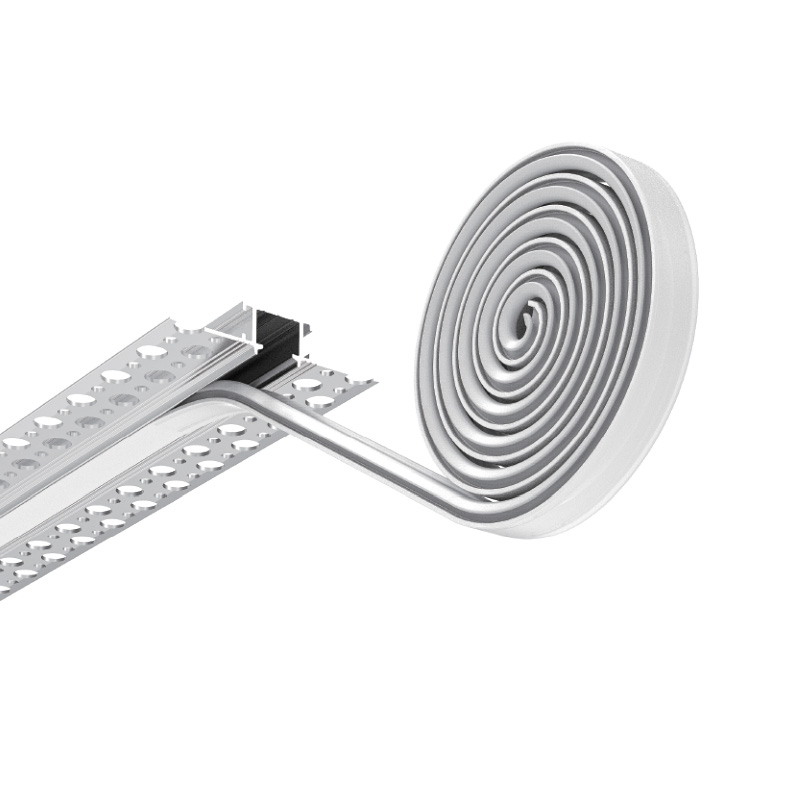

These drywall LED strip tracks come with 20-meter-long diffused covers, providing long, continuous linear lighting for a smooth, glare-free illumination that maintains a sleek, minimalist aesthetic. They can be easily integrated into a drywall structure without visible edges. The LED light tracks are made of 6063-T5 extruded aluminum material with anodized surface treatment, offering anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, which are freely cuttable, and custom lengths are also available. Two types of bendable diffusers are available: PC diffused cover and black diffused cover. The length is 20 meters per reel, and you can cut to any length for your project. They light coves will eliminate hotspots, ensuring even light distribution. The inner width is 12.3 mm, allowing for a maximum width of 12 mm for LED strips. You can add our 24V COB strip lights (single-color, tunable white, RGB, etc.), which are without light dots, for uniform lighting. The aluminum tracks can be used as heat sinks for better heat dissipation. There are three types of joiners available, which can be used for both angled and straight connections. End caps with and without wire holes are included.
Specifications:
- Model: ALP171
- Material: 6063-T5 extruded aluminum

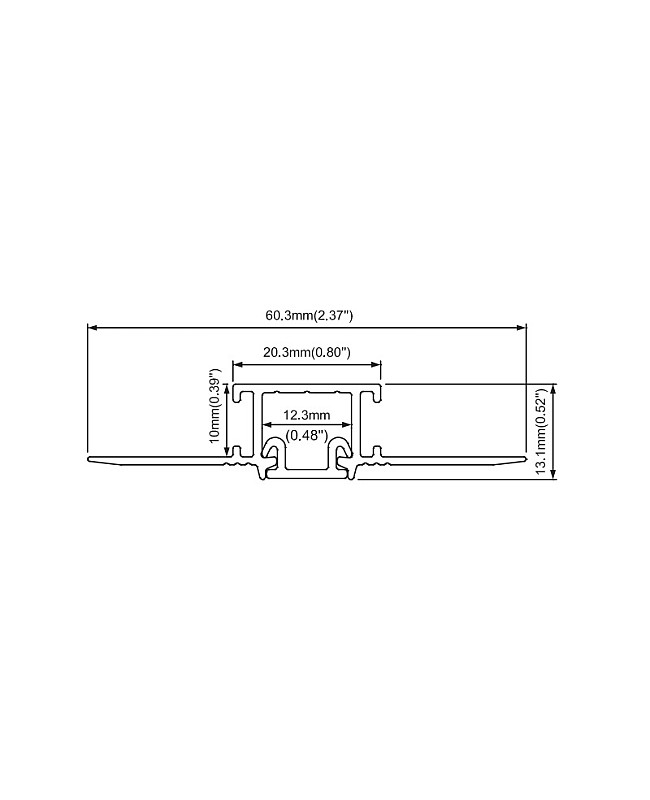

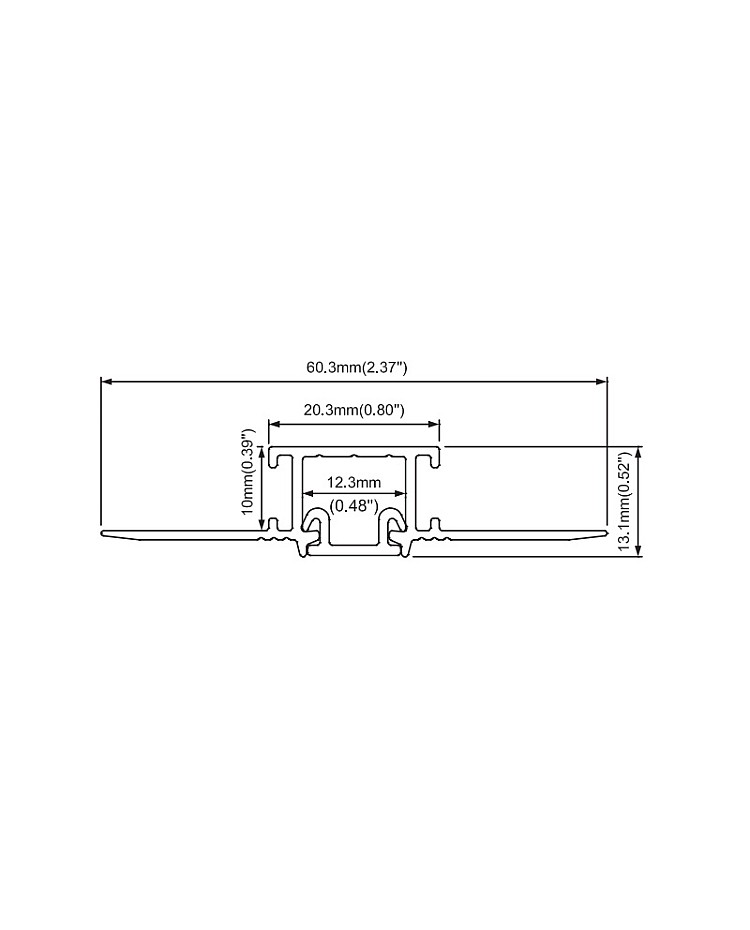

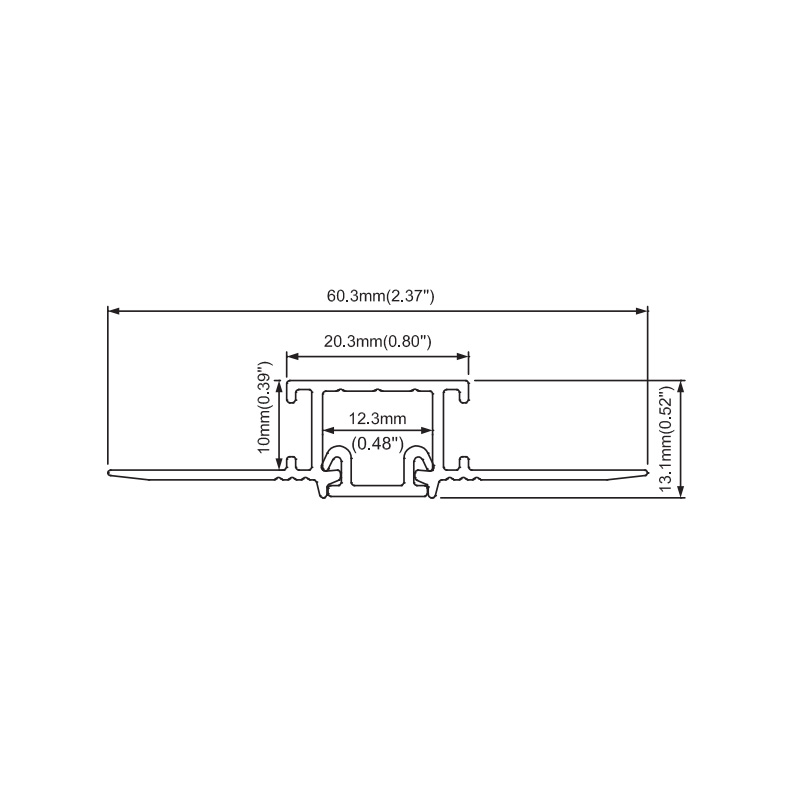

- Size(W*H): 60.3*13.1mm/2.37"*0.52"
- Surface Treatment: Anodized
- Colors: Silver
- Lengths Available: 1.5M(39"), 2M(78")
- Custom Length Available: YES

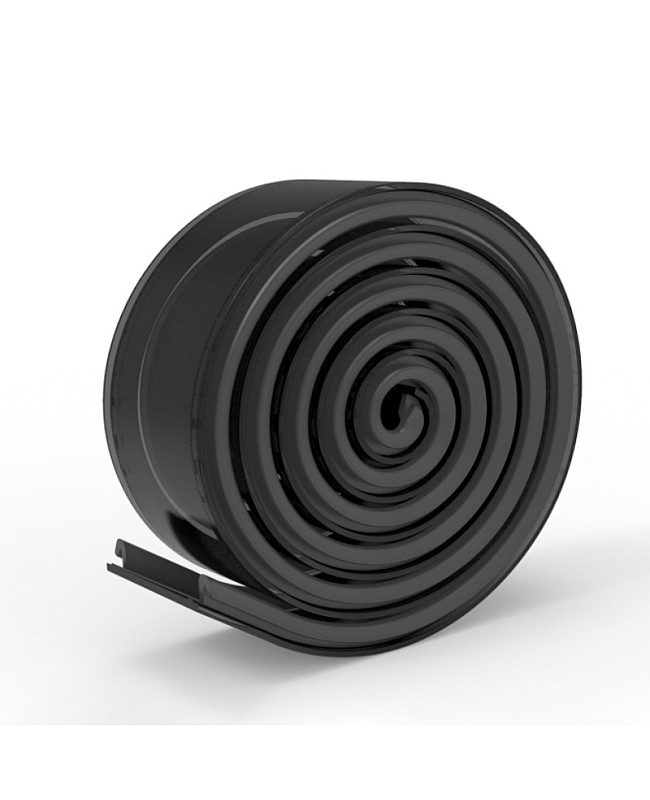

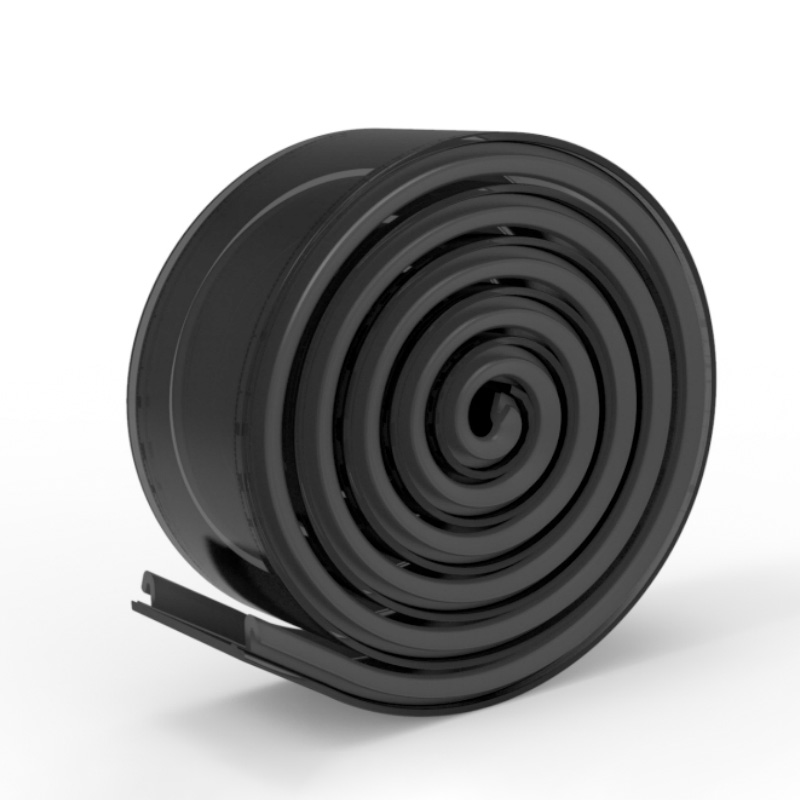

- Diffusers: PC diffused cover, black diffused cover
- Inner Width: 12.3mm/0.48"
- Max Width Of LED Light: 12mm/0.47"
- Max Power: 12W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rating: IP20 non-waterproof

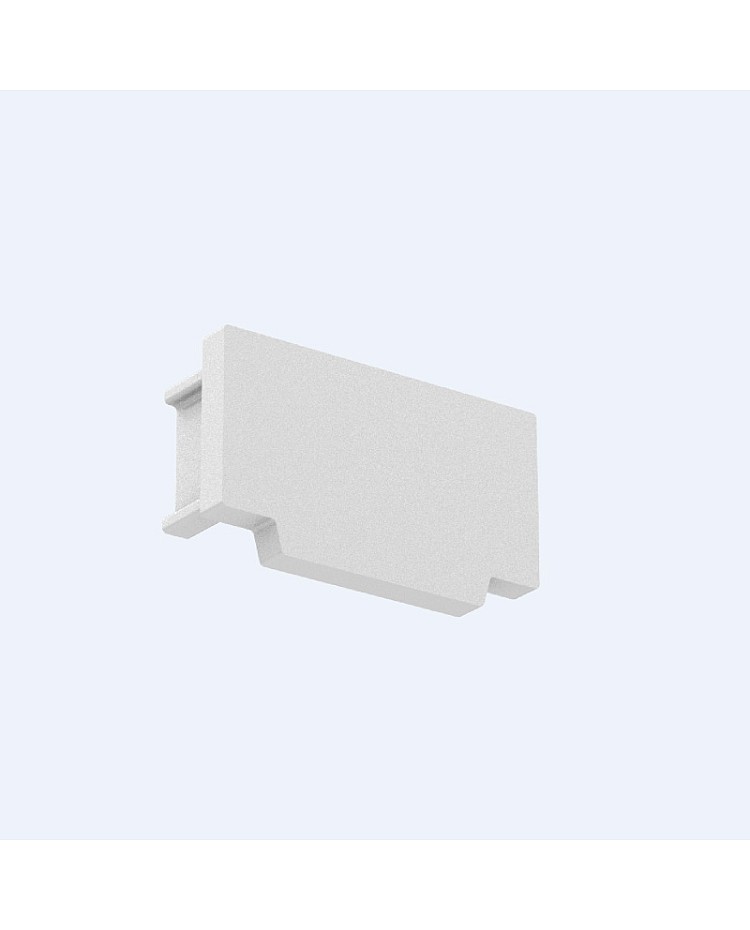

- End caps with wire holes included

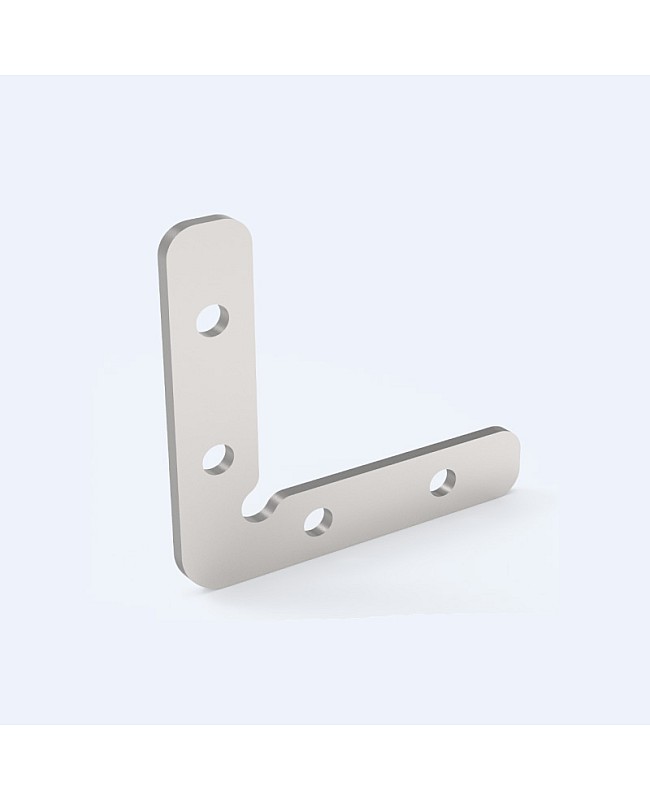

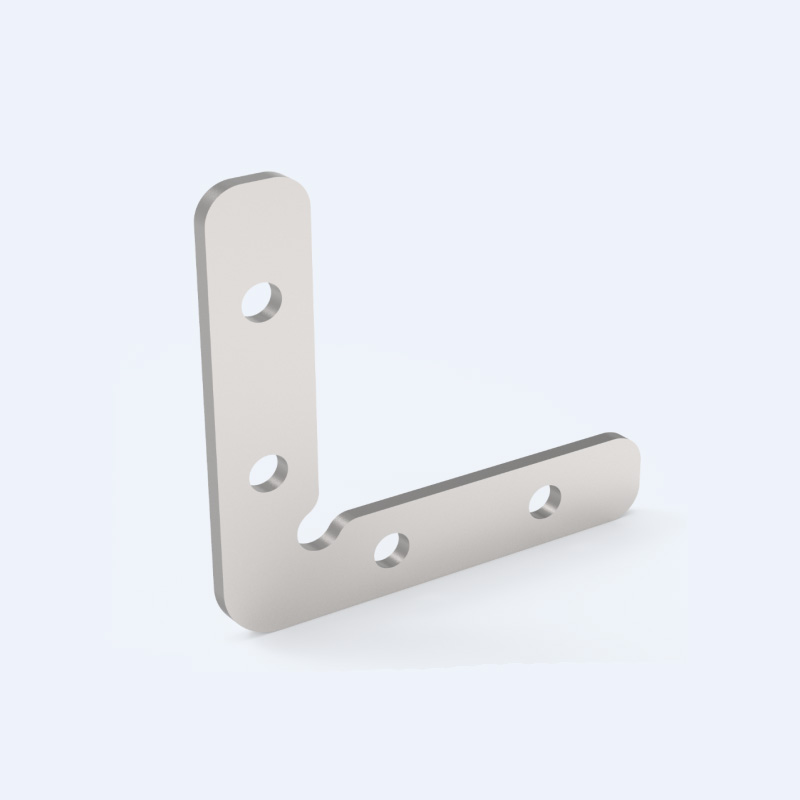

- 90°, 90° vertical and 180° connectors sold separately
- Installation: Plaster-in
- Certifications: CE, ROHS
- 5-year warranty
Applications:

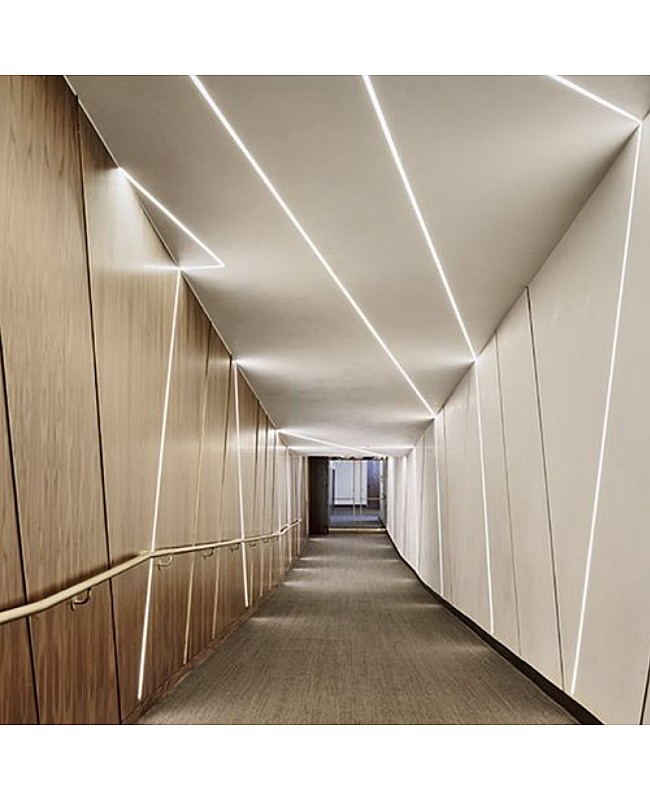

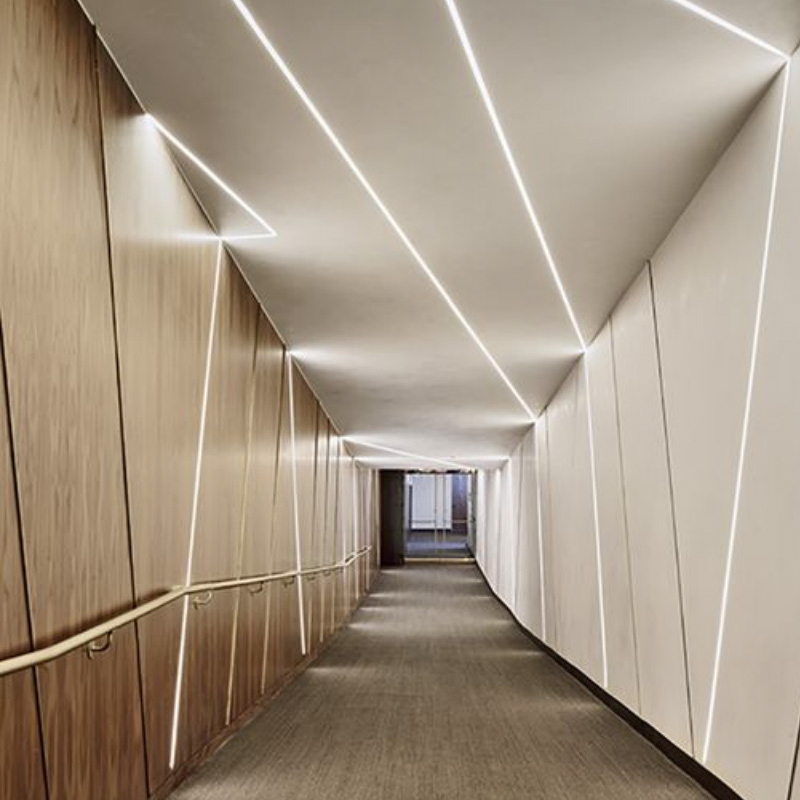

- Wall & Ceiling Cove Lighting: Create floating light effects in living rooms, hallways, and lobbies.
- Retail & Hospitality Lighting: Enhance product displays, bars, and restaurants with a high-end touch.
- Under-Cabinet Lighting: Functional yet stylish illumination for kitchens.
- Office & Architectural Lighting: Sleek, shadow-free lighting for workspaces and modern interiors.
Includes:
1 * LED light strips track with diffuser

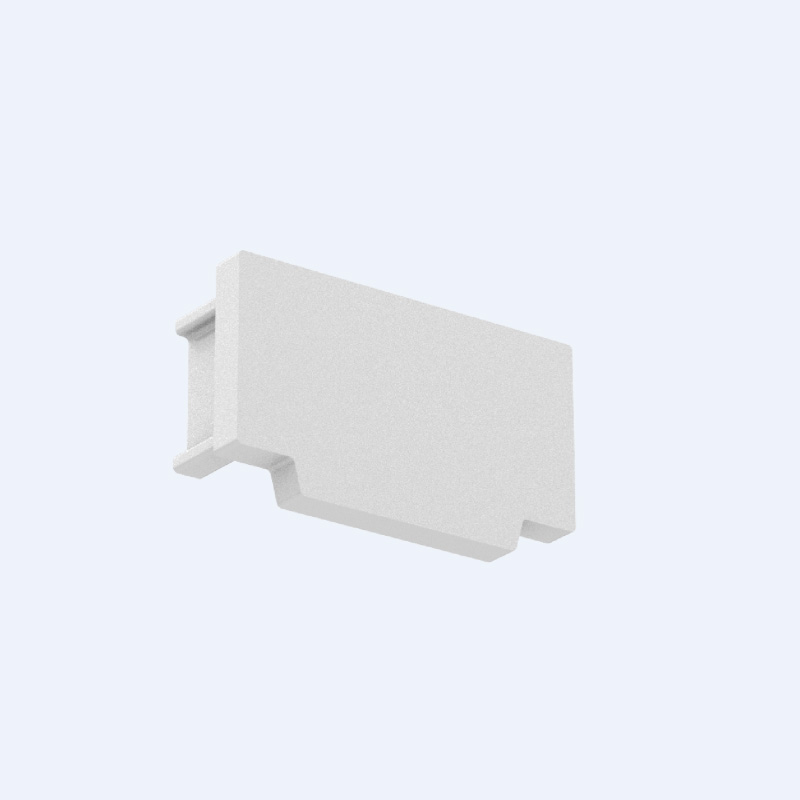

End caps(with/without wire hole)
